Investigation on Shear Behavior of Precast Monolithic ECC Composite Beams
Tingting Lu, Yuxiang Wen, Bin Wang
TL;DR
This study explores how using ECC composite beams improves structural performance compared to traditional concrete beams, especially in terms of crack control and load-bearing capacity.
Contribution
A new precast monolithic ECC composite beam is proposed, showing enhanced mechanical performance and reduced stiffness degradation.
Findings
ECC composite beams showed 8.2% higher peak load and 29.3% greater displacement at peak load compared to RC beams.
ECC beams exhibited finer cracks and less concrete spalling, with a 8.2% lower load degradation coefficient.
Higher stirrup ratios improved ultimate load-bearing capacity by 28.8% and reduced stiffness degradation by 40–50%.
Abstract
This study applied precast engineered cementitious composite (ECC) shells to replace conventional concrete in precast assembled monolithic composite beams to enhance mechanical performance. A new type of precast monolithic ECC composite beam was proposed. Five ECC composite beams and one reinforced concrete (RC) composite beam were designed and fabricated for the experimental study. The failure pattern, failure mechanism, load-bearing capacity, deformability, and stiffness degradation were quantitatively analyzed through the tests. The main findings were as follows: ECC composite beams developed finer and more densely distributed cracks compared to RC composite beams, without significant concrete spalling. The peak load of ECC composite beams was 8.2% higher than that of RC composite beams, while the corresponding displacement at peak load increased by 29.3%. The ECC precast shell…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

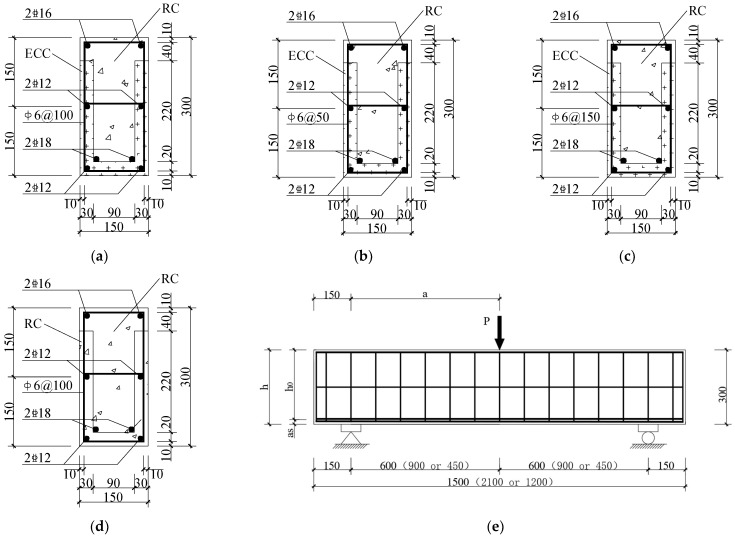

Figure 1

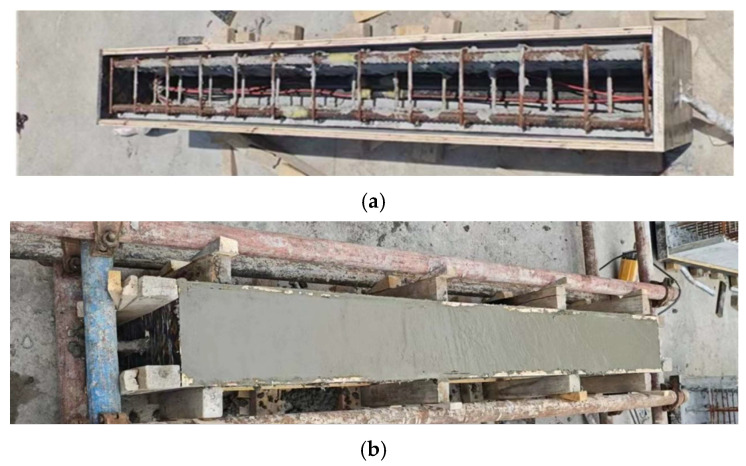

Figure 2

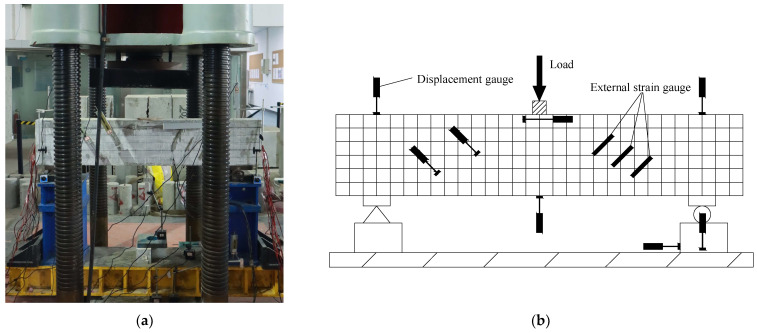

Figure 3

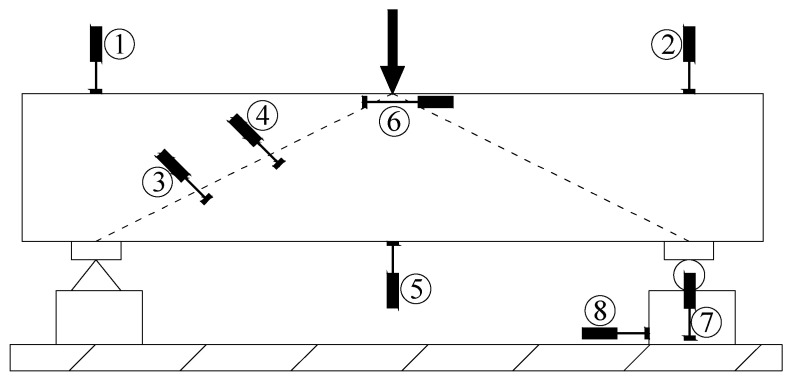

Figure 4

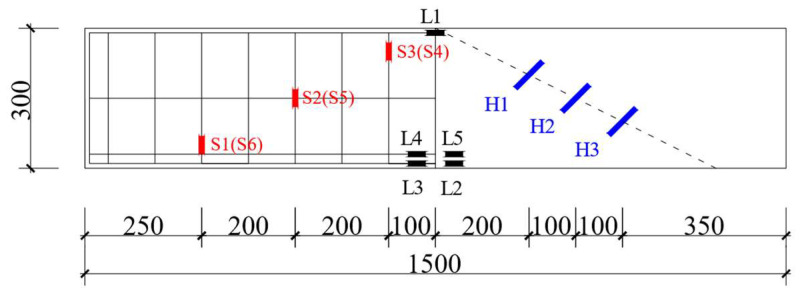

Figure 5

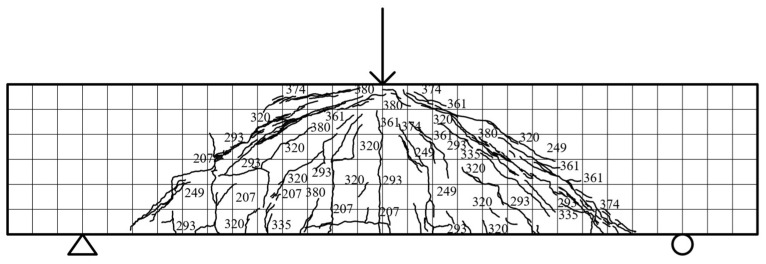

Figure 6

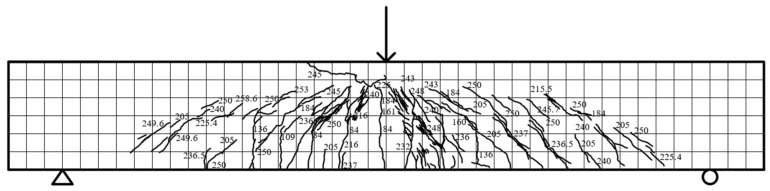

Figure 7

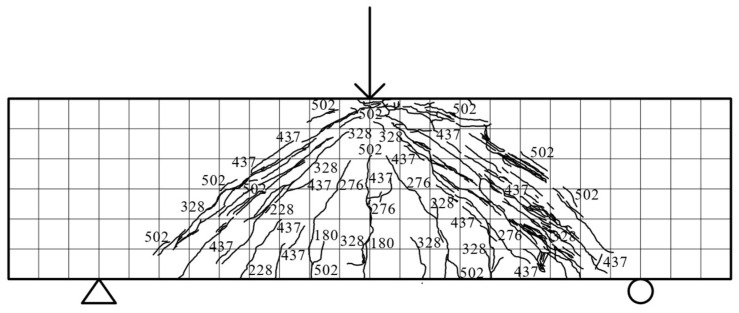

Figure 8

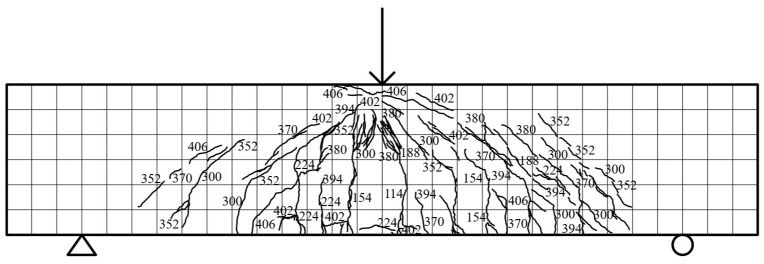

Figure 9

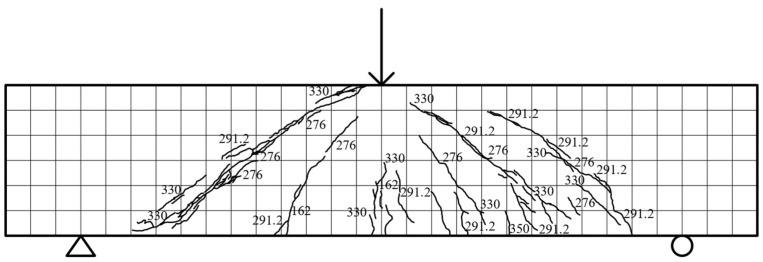

Figure 10

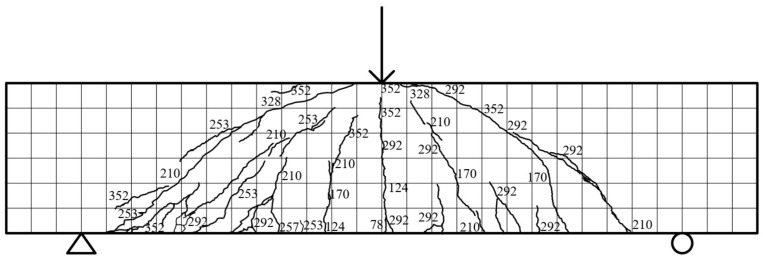

Figure 11

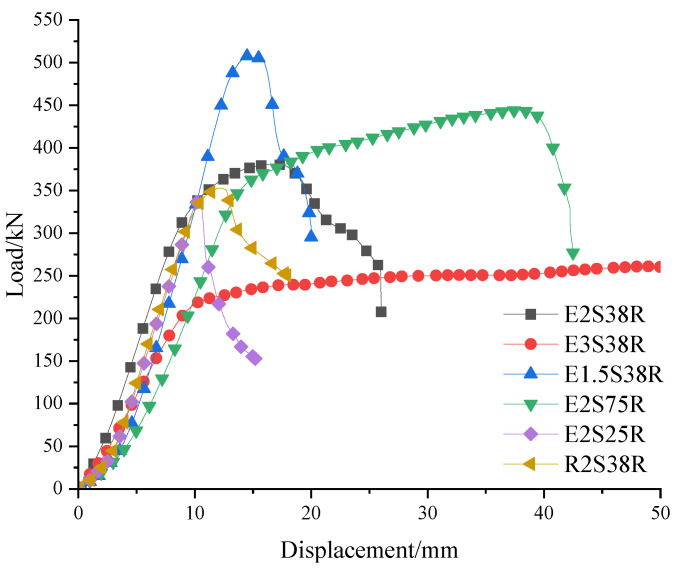

Figure 12

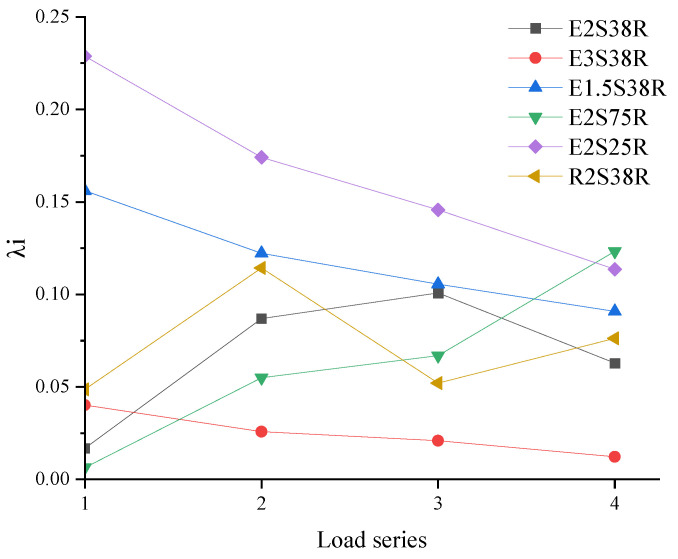

Figure 13

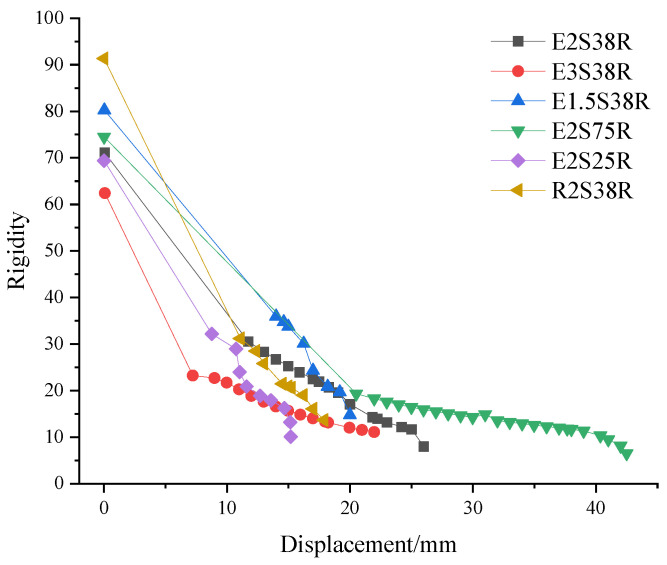

Figure 14

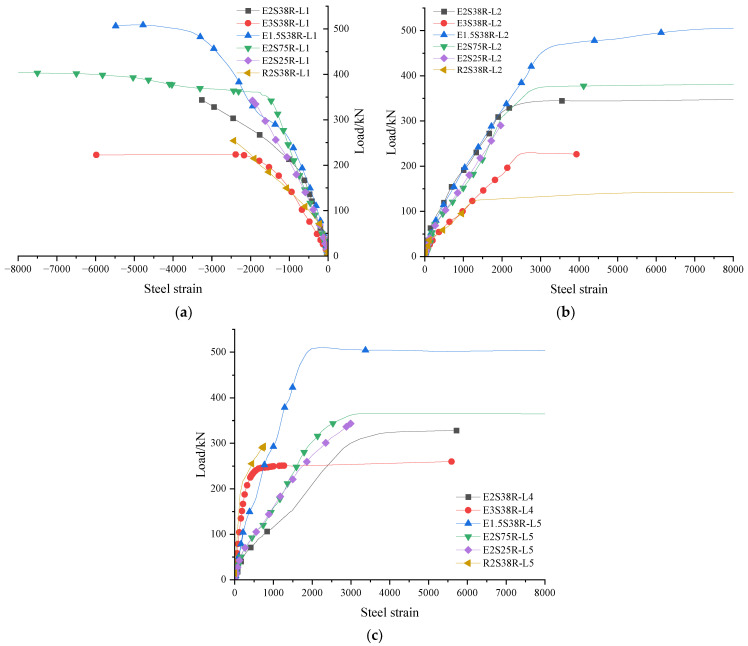

Figure 15

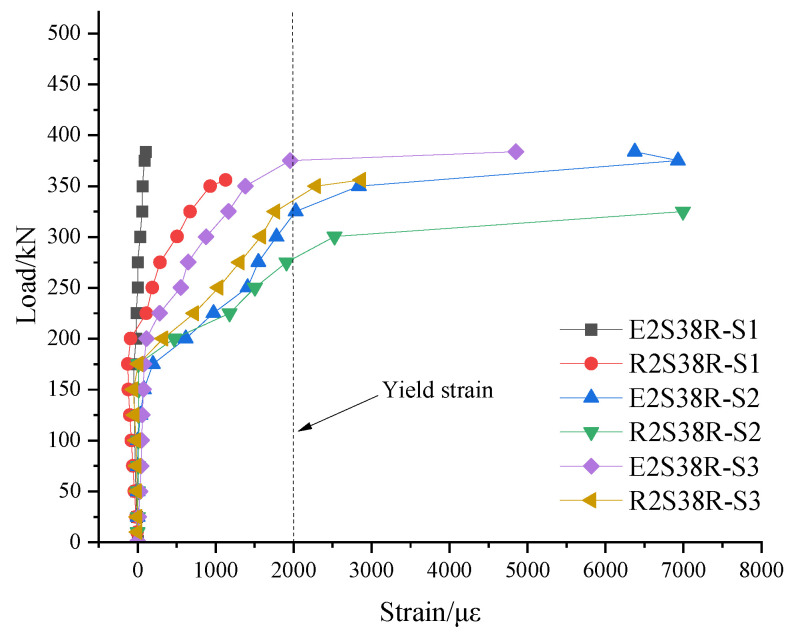

Figure 16

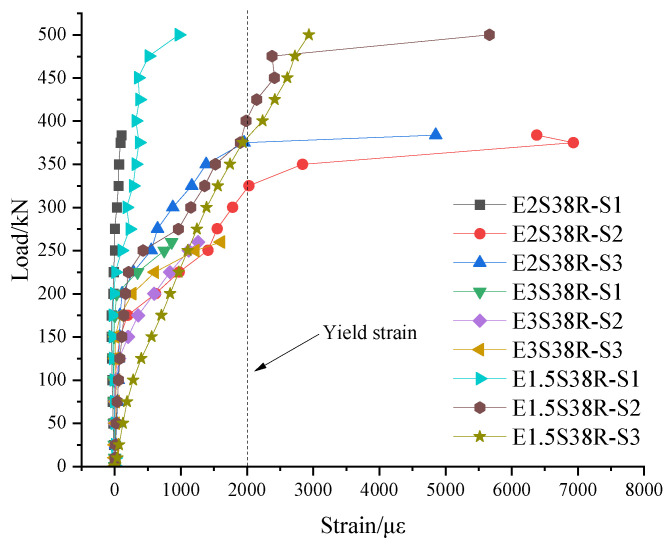

Figure 17

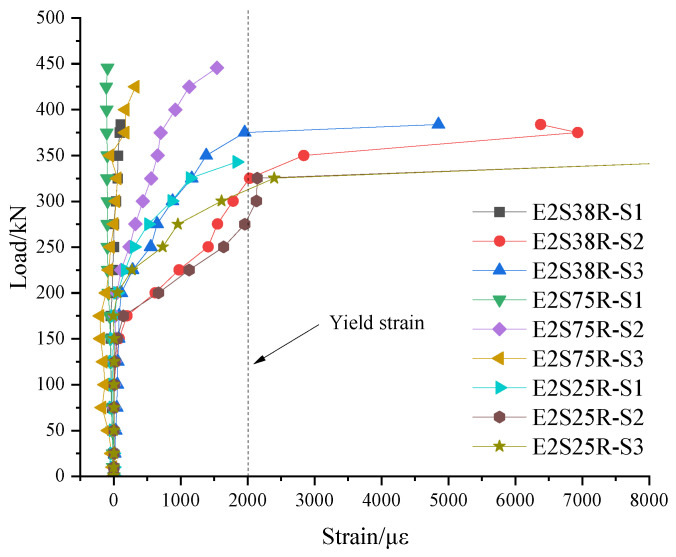

Figure 18Peer Reviews
