Preparation of Carbon Fiber Electrodes Modified with Silver Nanoparticles by Electroplating Method
Yuhang Wang, Rui Li, Tianyuan Hou, Zhenming Piao, Yanxin Lv, Changsheng Liu, Yi Xin
TL;DR
Researchers improved carbon fiber electrodes by modifying them with silver nanoparticles, resulting in better performance for measuring electric fields in ocean and geoelectric environments.
Contribution
A novel electroplating method to modify carbon fiber electrodes with silver nanoparticles, enhancing their performance for electric field sensing.
Findings
The AgNP-CF sensor shows low potential drift (52.1 µV/24 h) and high stability.
The sensor has low self-noise (2.993 nV/√Hz@1 Hz) and minimal temperature drift (<70 µV/°C).
The AgNP-CF electrode performs well in field and simulated ocean tests.
Abstract
To solve the problems of carbon fiber (CF) electrodes, including poor frequency response and large potential drift, CFs were subjected to a roughening pretreatment process combining thermal oxidation and electrochemical anodic oxidation and then modified with Ag nanoparticles (AgNPs) using electroplating to prepare a CF electric field sensor. The surface morphology of the as-prepared AgNP-CF electric field sensor was characterized via optical microscopy, scanning electron microscopy, XPS, and energy-dispersive spectroscopy, and its impedance, polarization drift, self-noise, and temperature drift values were determined. Results show that the surface modification of the AgNP-CF electric field sensor is uniform, and its specific surface area is considerably increased. The electrode potential drift, characteristic impedance, self-noise, and temperature drift are 52.1 µV/24 h, 3.6 Ω, 2.993…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1

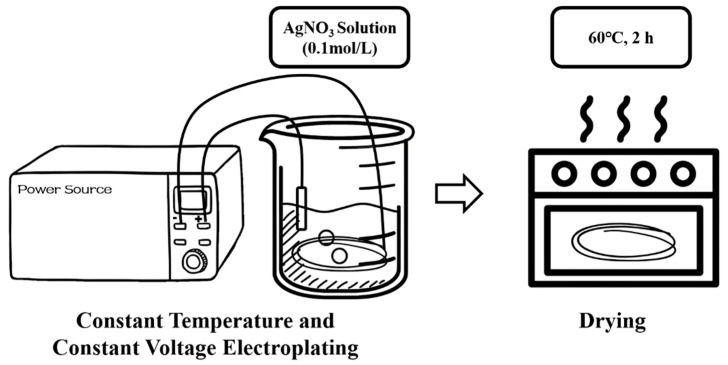

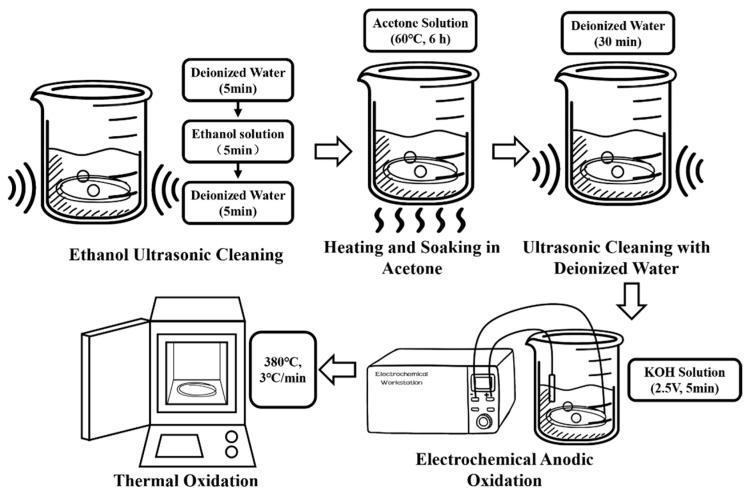

Figure 2
Figure 3

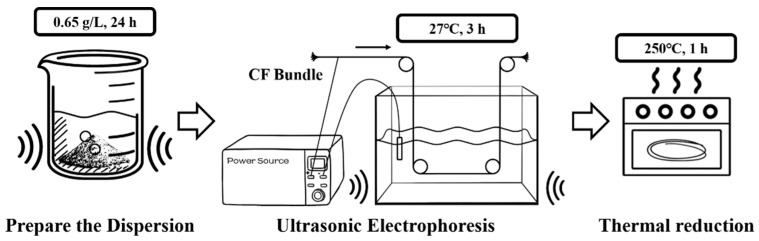

Figure 4

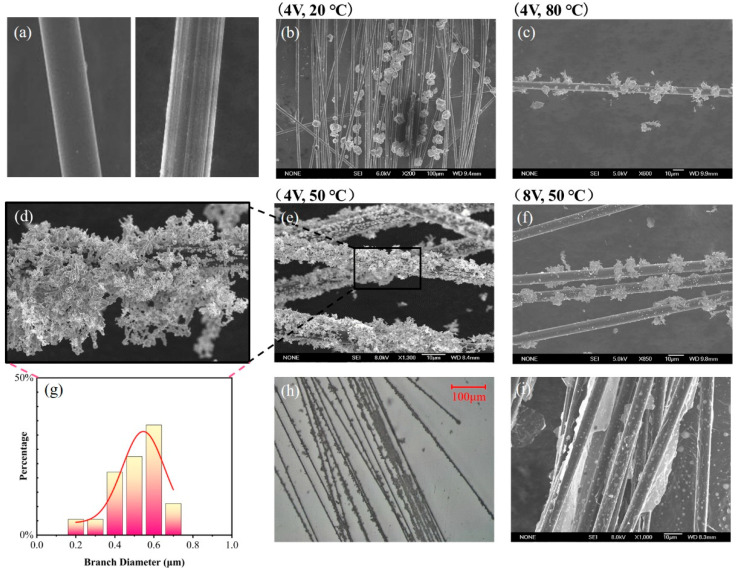

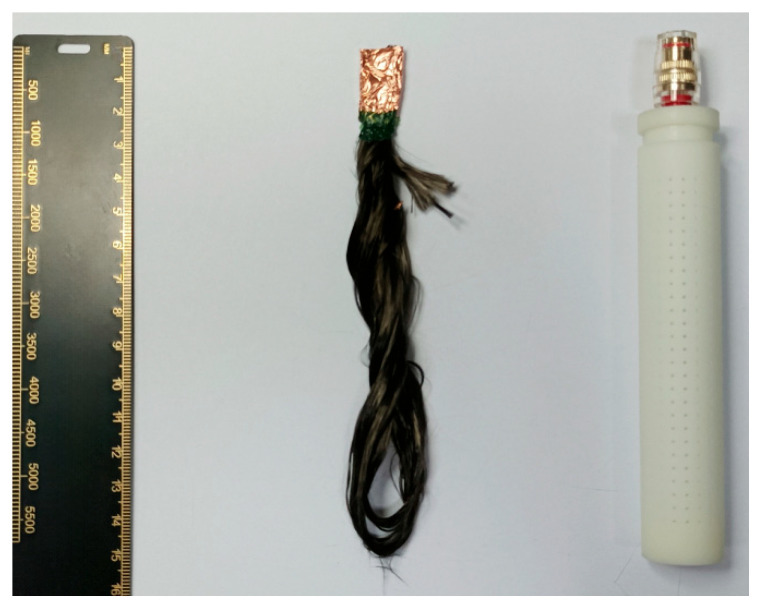

Figure 5

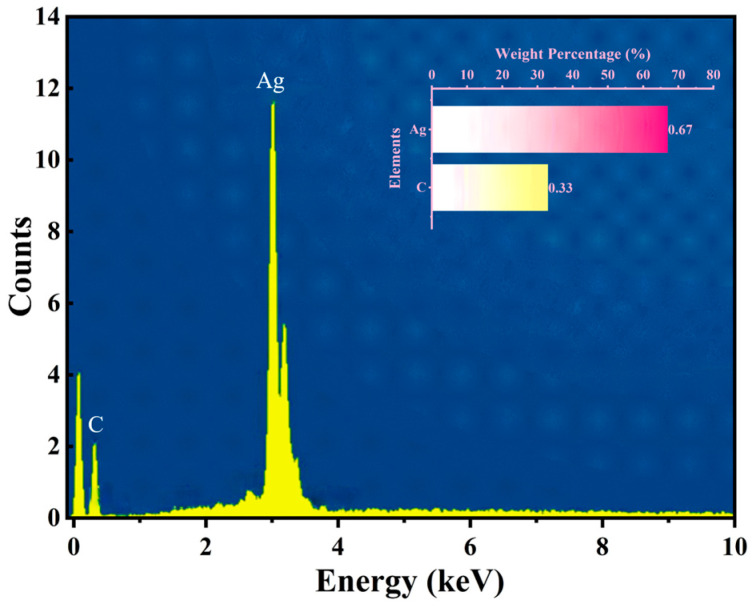

Figure 6
Figure 7

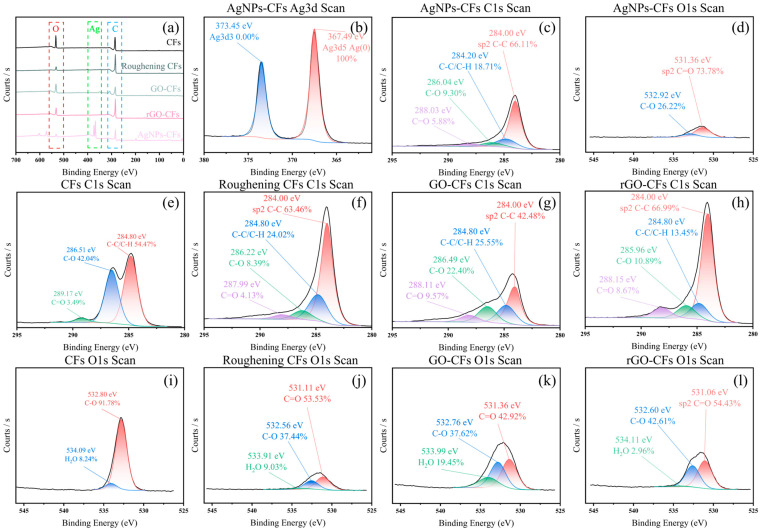

Figure 8

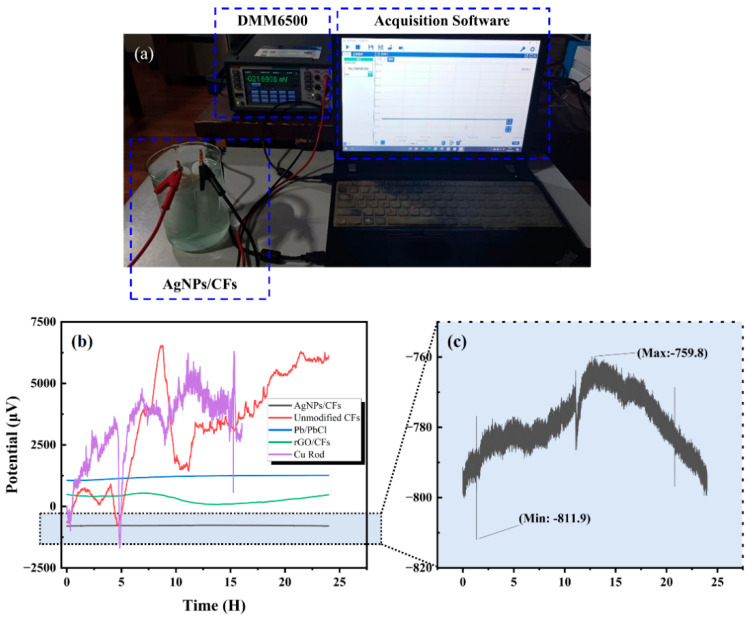

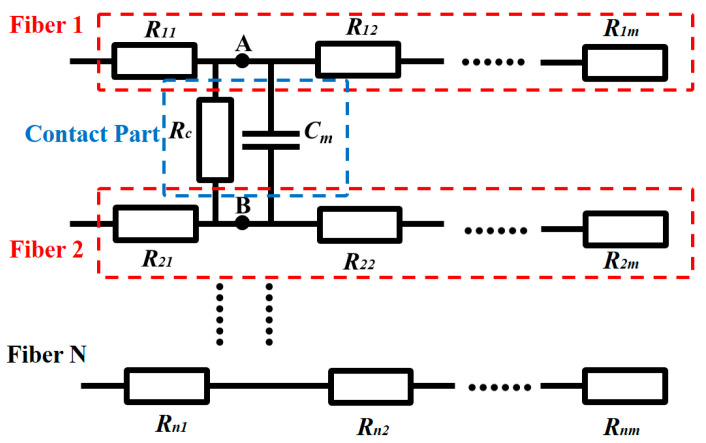

Figure 9
Figure 10

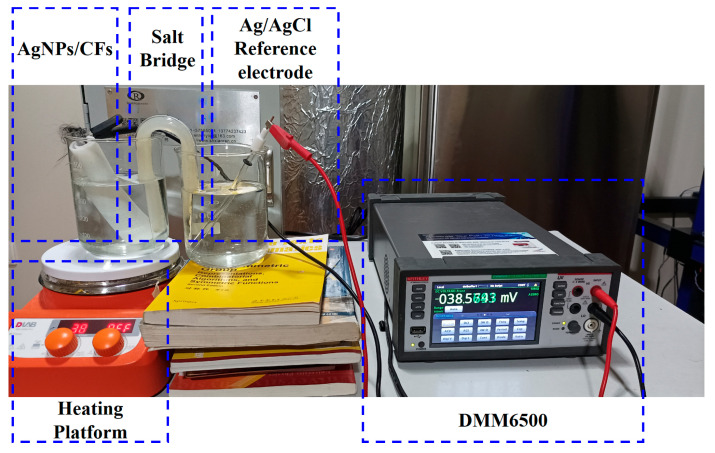

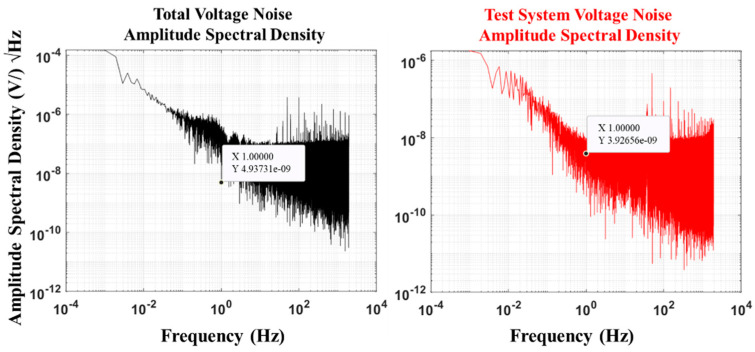

Figure 11

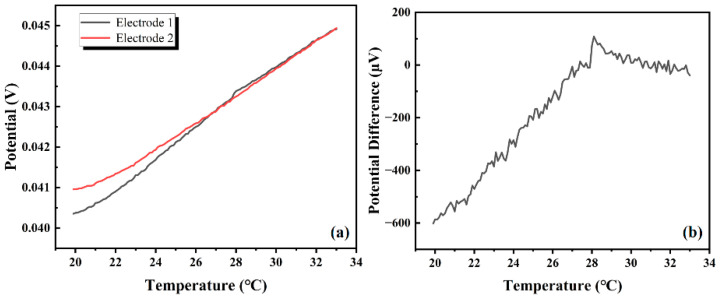

Figure 12
Figure 13

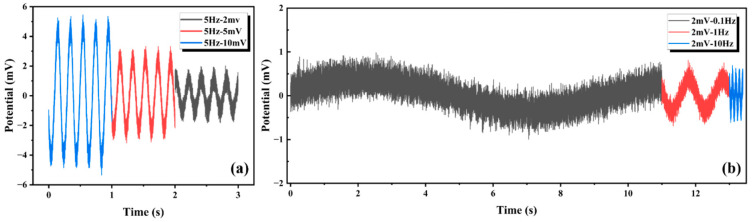

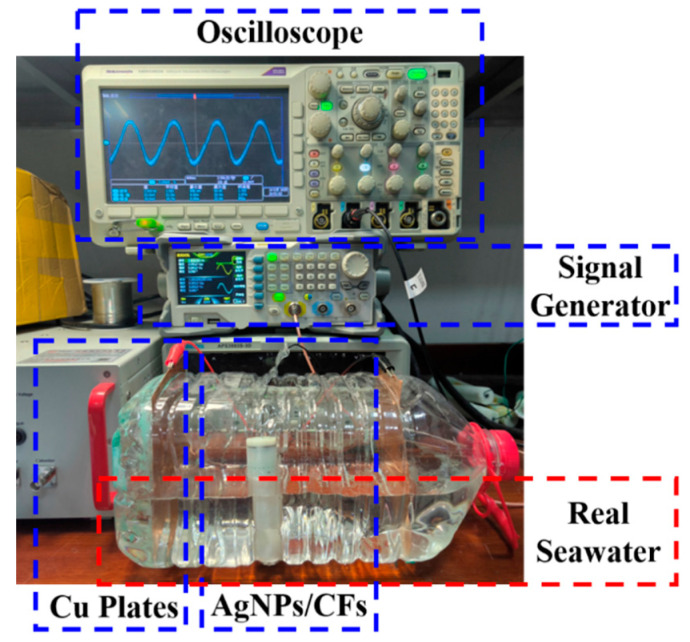

Figure 14

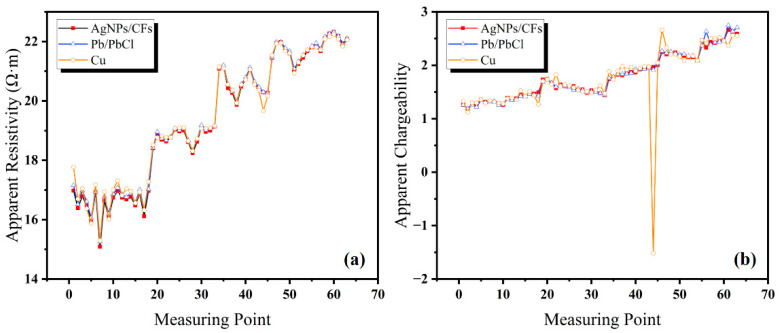

Figure 15Peer Reviews
