Cor Triatriatum Sinister With a Patent Foramen Ovale Presenting With Embolic Stroke

TL;DR

A 21-year-old woman with a rare heart condition and a patent foramen ovale experienced an embolic stroke and was treated with device closure and anticoagulation.

Contribution

This case highlights the association between Cor triatriatum sinister and embolic stroke, emphasizing the need for further research on its mechanisms and treatment.

Findings

CTS was found to be unobstructed in a patient with embolic stroke.

The patient had a patent foramen ovale, which was closed as part of treatment.

Further study is needed to understand the role of CTS in stroke and optimal therapies.

Abstract

Cor triatriatum sinister/echocardiogram and cardiac computed tomography.

The patient was a 21-year-old woman with an embolic stroke who was found to have an unobstructed Cor triatriatum sinister (CTS) and patent foramen ovale and underwent a patent foramen ovale device closure and subsequent anticoagulation therapy. Case reports of CTS associated with stroke have been previously published, and CTS is recognized as a risk factor for an embolic stroke; however, the mechanism of embolic stroke is unclear.

Further study is warranted to understand the mechanism and role of CTS for embolic stroke and optimal therapeutic options to reduce the risk of recurrent stroke.

Figures

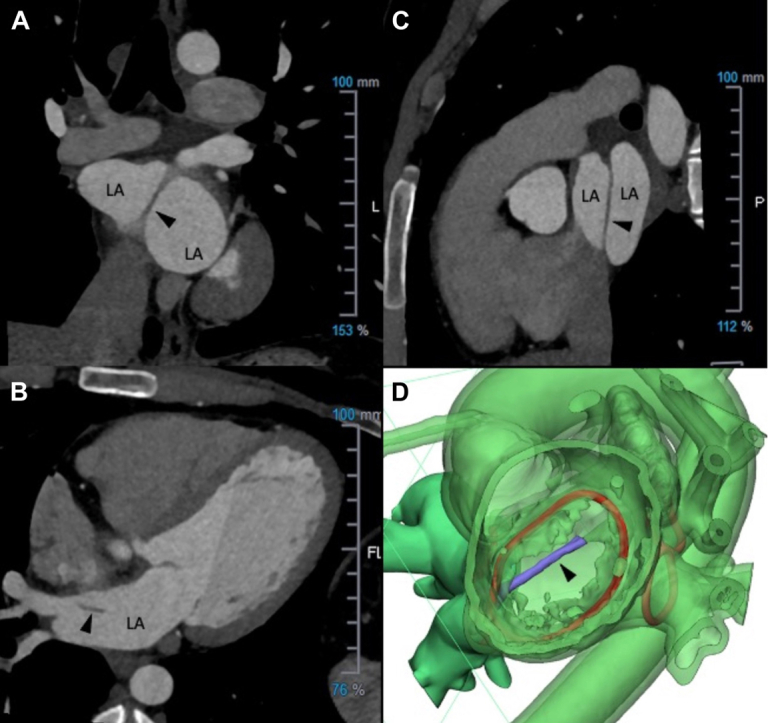

Cor Triatriatum SinisterCardiac computed tomography image in coronal plane (A), axial plane (B), and sagittal plane (C). Apical basal view of 3-dimensional digital cardiac image of Cor triatriatum sinister (CTS) (D). Arrowheads point to a band of CTS tissue. In D, the CTS is shown in purple, and mitral valve annulus is shown in the red circle in center. LA = left atrium.

Full text

Case Summary

A 21-year-old woman with a history of oral contraceptive use presented to the emergency department with a headache, inability to get up from bed, aphasia, and right-sided numbness. An emergent head computed tomography (CT) and magnetic resonance imaging revealed an acute left middle cerebral artery infarct with a thrombus at the distal left middle cerebral artery. The patient underwent a cerebral angiogram with thrombectomy. Her oral contraceptive was discontinued, and she was started on aspirin 81 mg daily with gradual improvement of neurologic deficits over 3 months. The evaluation for stroke etiology revealed no thrombophilia; no vascular anomaly on CT angiogram of the chest, abdomen, and pelvis; and no atrial fibrillation on extended cardiac rhythm monitoring. Transthoracic and transesophageal echocardiogram confirmed a patent foramen ovale (PFO) with grade Ⅱ interatrial shunting. Her biventricular systolic function was normal, and no intracardiac thrombus was seen. However, a prominent but nonobstructive band of tissue in the left atrium extending from the Coumadin ridge to the inferior portion of the atrial septum was visualized, suggesting an underlying Cor triatriatum sinister (CTS) (Video 1). A cardiac CT also demonstrated the CTS (Figure 1, Video 2). The patient’s risk of paradoxical embolism score of 7 estimated a high chance the stroke was due to PFO. After comprehensive discussion, the patient underwent PFO closure (Amplatzer Talisman PFO Occluder 30/25; Abbott). Furthermore, oral anticoagulation therapy and surgical resection of CTS were also considered as additional therapeutic options. Through shared decision-making, oral anticoagulation with apixaban 5 mg twice daily was started, but surgical resection was not pursued. At 18 months after the initial presentation, she remained well with no stroke recurrence; however, apixaban was switched to rivaroxaban for ease of once-daily dosing. Cases of CTS associated with stroke or recurrent strokes have been reported sporadically, including cases without PFO. The exact mechanism of embolic stroke associated with CTS remains unknown. In the setting of PFO-associated stroke, guidelines from the Society for Cardiovascular Angiography and Interventions support the closure of PFO rather than anticoagulation or antiplatelet therapy alone.1 Regarding CTS, the current adult congenital heart disease guideline supports surgical resection of the CTS if symptoms are attributable to the CTS obstruction, or a substantial gradient exists across the CTS.2 However, whether a CTS resection reduces the risk of recurrent stroke is unknown. A recent clinical consensus statement on embolic strokes of undetermined source emphasized assessing overall thromboembolic risk rather than presuming actual embolic source. CTS was noted as one of the features of left atrial disease associated with thromboembolic risk.3 Further study is warranted to understand the mechanism and role of CTS for embolic stroke and optimal therapeutic options to reduce the risk of recurrent stroke.Take-Home Messages

• •The mechanism of embolic stroke in CTS remains unclear.
• •Further study is warranted to understand the mechanism and role of CTS for embolic stroke and optimal therapeutic options to reduce the risk of recurrent stroke. Figure 1. Cor Triatriatum SinisterCardiac computed tomography image in coronal plane (A), axial plane (B), and sagittal plane (C). Apical basal view of 3-dimensional digital cardiac image of Cor triatriatum sinister (CTS) (D). Arrowheads point to a band of CTS tissue. In D, the CTS is shown in purple, and mitral valve annulus is shown in the red circle in center. LA = left atrium.
