Monitoring complete ammonia oxidizers bacteria: relevant players for nitrogen removal from wastewater
Javier Duque, Leire Besga-Oyanarte, Miguel De Celis, Susana Serrano, José Luis Alonso, Antonio Santos, Lucía Arregui
TL;DR
This study explores the role of COMAMMOX bacteria in removing nitrogen from wastewater and how to monitor them effectively.
Contribution
The study introduces specific genetic markers and methods to monitor COMAMMOX bacteria in wastewater treatment.
Findings
COMAMMOX bacteria are present and abundant in wastewater treatment systems.
Digital PCR and fluorescence techniques help quantify and locate COMAMMOX bacteria.
Monitoring tools have biases that need to be considered for effective wastewater management.
Abstract
COMAMMOX (Complete Ammonia Oxidizers) bacteria seem to play an important role in nitrification, being able to directly transform ammonia into nitrates. Due to the relevance of this process in WWTPs, different approaches were used in this work to monitor COMAMMOX bacteria, as well as other microorganisms involved in the biological removal of nitrogen occurring in the bioreactor of a full-scale WWTP. This facility operates with low dissolved oxygen concentrations and prolonged sludge retention times. Fluorescence in situ hybridization confirmed the presence of COMAMMOX bacteria showing their distribution within the activated sludge flocs. Primers targeting the amoA gene, which encodes the A subunit of the ammonia monooxygenase enzyme, were employed as genetic markers in PCR techniques to simultaneously detect and amplify both COMAMMOX clades A and B, as well as specifically clade A, clade…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4- —MINECO
- —SANTANDER-UNIVERSIDAD COMPLUTENSE DE MADRID
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsWastewater Treatment and Nitrogen Removal · Microbial Community Ecology and Physiology · Water Treatment and Disinfection
Introduction
The pressing issue of water pollution underscores the urgent need to optimize sanitation systems. These systems rely on a series of infrastructures culminating in Wastewater Treatment Plants (WWTPs), which play a vital role in environmental protection. Among their primary objectives is the removal of nutrients, particularly nitrogen (N) and phosphorus. Nitrogen removal in WWTPs entails the transformation of ammonia (NH₄⁺) into nitrogen gas (N₂). While this transformation can be achieved chemically, biological nitrogen removal is both more environmentally sustainable and cost-effective. A comprehensive understanding of the microbial communities driving the nitrogen cycle is crucial for optimizing these processes and reducing operational costs (Holmes et al. 2019).
In urban WWTPs, nitrogen removal predominantly occurs through nitrification–denitrification pathways involving nitrate, with nitrification often being a critical step. Prior to the discovery of COMplete AMMonia Oxidizers (COMAMMOX) (Daims et al. 2015; van Kessel et al. 2015), nitrification was considered a two-step process requiring a division of labor between two distinct functional groups. In the first step, ammonia is oxidized to nitrite by Ammonia-Oxidizing Bacteria (AOB) and Ammonia-Oxidizing Archaea (AOA), utilizing ammonia monooxygenase (AMO) and hydroxylamine oxidase (HAO) enzymes. In the second step, nitrite is oxidized to nitrate by Nitrite-Oxidizing Bacteria (NOB) through the activity of nitrite oxidoreductase (NXR). The groundbreaking discovery of COMAMMOX bacteria revealed that a single microorganism could accomplish the complete oxidation of ammonium to nitrate via nitrite, a process that had previously been hypothesized (Costa et al. 2006). The first identified species were provisionally named Candidatus Nitrospira inopinata (Daims et al. 2015), Ca. N. nitrosa, and Ca. N. nitrificans (van Kessel et al. 2015). All known COMAMMOX bacteria belong to the genus Nitrospira, which was historically considered to consist exclusively of canonical nitrite-oxidizing species (Daims et al. 2015). However, these newly discovered species differ from their canonical counterparts by possessing a complete set of amo and hao genes within their genomes (van Kessel et al. 2015).
The genus Nitrospira is classified into six sublineages (Daims et al. 2015), which are widely distributed in natural environments and human-engineered systems (Daims, 2001; Daebeler et al. 2014; Feng et al. 2016). COMAMMOX bacteria identified to date belong to sublineage II, which also includes NOB lacking the enzymatic machinery required for reduced nitrogen compound oxidation. However, phylogenetic analyses based on 16S rRNA or nxr genes do not place COMAMMOX bacteria in a monophyletic clade within sublineage II due to the high sequence similarity between COMAMMOX and NOB. Differentiation between these groups requires additional genetic markers, such as the genes encoding enzymes responsible for aerobic ammonia oxidation—ammonia monooxygenase (AMO) and hydroxylamine dehydrogenase (HAO) (Daims et al. 2015; van Kessel et al. 2015). Specifically, the amoA gene, encoding the A subunit of ammonia monooxygenase, is a widely used marker for identifying ammonia-oxidizing bacteria and archaea. Primers targeting the amoA gene have been developed to detect COMAMMOX bacteria using PCR techniques. These primers enable the simultaneous detection of clades A and B (Bartelme et al. 2017; Fowler et al. 2018; Wang et al. 2018; Zhao et al. 2019), as well as the specific detection of clade A (Pjevac et al. 2017; Xia et al. 2018; Fujitani et al. 2020; Jiang et al. 2020) or clade B (Pjevac et al. 2017; Jiang et al. 2020). Furthermore, primers have been designed to detect multiple Nitrospira species (Beach and Noguera 2019). Among clade A COMAMMOX bacteria, Candidatus N. nitrosa is the most commonly detected species in WWTPs, though Ca. N. inopinata and Ca. N. nitrificans have also been identified. Two of these species (Ca. N. nitrosa and Ca. N. nitrificans) were visualized using fluorescence microscopy with specifically designed rRNA-targeted probes via fluorescence in situ hybridization (FISH) (van Kessel et al. 2015).
Environmental and operational parameters, such as temperature, solids retention time (SRT), and nitrogen and oxygen concentrations, have been linked to the abundance of Nitrospira in WWTPs (Huang et al. 2010; Mehrani et al. 2020; Gruber et al. 2021). A microaerobic dissolved oxygen environment (below 0.2–1.0 mg/L), low ammonium concentrations, and extended SRTs appear to favor COMAMMOX bacteria over canonical nitrifiers (Roots et al. 2019; Cotto et al. 2020). These conditions were observed in a WWTP located in the Community of Madrid, Spain. This facility employs advanced infrastructure and treatment designs to produce high-quality treated water, which is discharged into nearby riverbeds to support ecological restoration. Additionally, the facility is housed within an industrial building to minimize its visual impact, while covered reactors minimize noise and odor emissions.
Developing efficient and accurate methods to detect, identify, and quantify nitrifying organisms (AOB, AOA, NOB, and COMAMMOX) remains a priority in COMAMMOX research, as the relative contributions of these populations are not yet fully understood (Xu et al. 2021; Latocheski et al. 2022). To address this, DNA-based methods—including FISH, conventional and digital PCR, and 16S rRNA gene sequencing—were employed to detect, quantify, and identify COMAMMOX bacteria in samples collected from the oxic compartment of the aforementioned WWTP’s bioreactor. The data obtained were validated and used to assess the accuracy of the applied methodologies.
Material and methods
WWTP description
The wastewater treatment plant (WWTP) serves 40,000 equivalent inhabitants and has a treatment capacity of up to 12,000 m^3^/day. Secondary treatment employs prolonged oxidation biological processes. The plant operates two water lines, each comprising an anoxic/oxic (A/O) reactor and a submerged membrane bioreactor (MBR) with ultrafiltration membranes. Influent enters directly into the anoxic zone, equipped with mixing agitators and hosting an external recirculation line for biological sludge from the membrane tanks. The oxic zone features an aeration system providing oxygen. The bioreactor has a surface area of 8388 m^2^, and 30% corresponds to the anoxic zone. Phosphorus removal is enhanced chemically to complement nitrogen removal. The MBR incorporates a hollow-fiber membrane ultrafiltration system downstream of the bioreactor. A vacuum pump draws treated water through these membranes, directing the permeate for disinfection or discharge.
Sampling
Four mixed liquor samples were collected over three years: January (2020 and 2023), May (2021), and November (2021). Each 1 L sample was taken through a manhole located at the central part of the oxic zone of the biological reactor during turbine operation. This procedure ensured the representativeness of the samples, as the mixed liquor in the biological reactor was homogenized. The sample was transported under refrigeration and stored in the laboratory at 4ºC, where it was processed within the first 48 h. Facility managers provided influent, effluent, and mixed liquor characteristics, alongside operational parameters for the oxic bioreactor compartment. Analytical procedures adhered to the “Standard Methods for the Examination of Water and Wastewater” (APHA, 2017). Recorded values (Fig. S1) included treated flow, BOD₅ (Biological Oxygen Demand), TSS (Total Suspended Solids), COD (Chemical Oxygen Demand), N–NH_4_⁺ (Ammonia Nitrogen), N–NO_3_⁻ (Nitrate Nitrogen), TN (Total Nitrogen), TP (Total Phosphorous), and pH for influent and effluent, as well as MLSS (Mixed Liquor Suspended Solids), MLVSS (Mixed Liquor Volatile Suspended Solids), V30, pH, HRT (Hydraulic Retention Time), and SRT (Sludge Retention Time) for mixed liquor, and BOD_5_, TSS, COD, N–NH_4_ +, N–NO_3_−, TN, TP and pH from effluent.
Approaches for COMAMMOX monitoring.

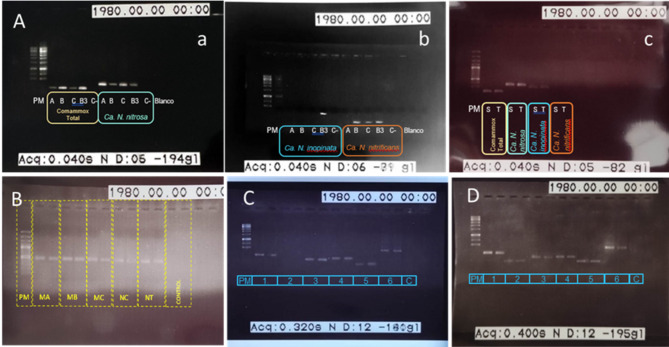

Table 1 summarizes the four approaches used and their specific applications.Table 1COMAMMOX monitoring with various nucleic acid-based methodsApproachSampleApplicationGeneralThis studyFluorescent in situ Hybridization (FISH)January 2020Microbial detectionMicrobial quantificationDetect, quantify and explore activated sludge floc location of AOB, NOB and COMAMMOX Ca. N. nitrosa and Ca. N. nitrificans speciesConventional PCRMay 2021, November 2021Microbial detectionNitrifying COMAMMOX amoA genes detection: both clades A and B simultaneously, specifically clade A or clade B or several COMAMMOX Nitrospira species (Ca. Nitrospira nitrosa, Ca. Nitrospira inopinata and Ca. Nitrospira nitrificans) in two seasonally different samples in which various DNA extraction procedures were applied. Other key genes detection: rRNA16S, cynS (NOB), nxr (Nitrospira) genes, and amoA gene of AOB and AOADigital PCR (dPCR)January 2020, November 2021Microbial quantificationQuantification of rRNA16S, cynS (NOB), nxr (Nitrospira) genes, and amoA gene of AOB in Betaproteobacteria, COMAMMOX Nitrospira clade A and B and AOANGS: sequencing of the 16S rRNA geneJanuary 2023, November 2021, May 2021, January 2020Microbial characterizationMicrobial quantificationActivated sludge microbial community characterization. Determination of relative abundance of nitrogen related phylotypes and COMAMMOX Ca. N. nitrosa among samples
Fluorescence in situ hybridization (FISH)
Subsamples (3 mL) were fixed with ethanol (v/v). Detection of Candidatus N. nitrosa and Ca*. N. nitrificans* utilized probes (Ntspa 476 and CNtspa476) developed by van Kessel et al. (2015). These and additional probes (Table S1) were 5′ labeled with FAM (EUB338 mix) or TAMRA dyes. Hybridization followed the protocol by Daims et al. (2004) at 46 °C. Post-hybridization, slides were air-dried and embedded in Vectashield (Vector Laboratories, USA). Samples were examined under an Olympus BX50 microscope equipped with specific filter sets and a 100 × oil immersion objective. Quantification involved capturing 20 image pairs per probe using green (FAM) and red (TAMRA) fluorescence filters. The images were analyzed using a custom program developed in MATLAB (Borrás, 2008), which calculates the area occupied by the fluorescence signal in pixels. The software quantifies the pixel area corresponding to the specific probe and compares it to that of the general bacterial probe (EUBMIX). The result is expressed as the percentage of the area hybridized with the specific probe relative to the total area detected by the general probe.
DNA extraction protocols
To enhance COMAMMOX detection, DNA extraction was optimized, considering the presumed low abundance of COMAMMOX bacteria in the bioreactor and their likely aggregation within the floc. Three 250 mL aliquots were prepared: MC (control, untreated), MA (10 min agitation and 10 min sonication), and MB (20 min agitation and 15 min sonication). Each aliquot underwent alternative extraction protocols (Fig. S2), from which duplicate samples were subsequently processed using the DNeasy® UltraClean® Microbial Kit (QIAGEN) according to the manufacturer's instructions. DNA yield and quality were assessed using a NanoDrop™ 2000/2000c.
Conventional PCR
Two primer sets were selected:
Set 1 Targeted the amoA gene, which is common in all described COMAMMOX, and others specific to Nitrospira species (Ca. N. nitrosa, Ca. N. inopinata, and Ca*. N. nitrificans*) (Table S2). PCR conditions included 94 °C for 5 min, followed by 40 cycles of 94 °C for 30 s, 48 °C for 45 s, and 72 °C for 1 min, with a final elongation at 72 °C for 10 min.
Set 2 Included generic primers for the 16S rRNA gene and specific primers for amoA genes of Nitrospira clades A and B (Table S2). Other primers were also used to detect different groups of nitrifying microorganisms. PCR conditions varied slightly, with a 95 °C initial denaturation for 10 min, followed by 40 cycles of 95 °C for 30 s, 55 °C for 30 s (or 45 s for Nitrospira nxr gene), and 72 °C for 30–45 s, concluding with a 10-min elongation at 72 °C.
All reactions used ReadyMix® Taq PCR Reaction Mix (Sigma-Aldrich), primers, and 150 ng of DNA, with water added to a 25 μL reaction volume. Products were purified with the GFX™ PCR DNA and Gel Band Purification Kit (GE Healthcare) and confirmed via electrophoresis on 1% agarose gels.
Digital PCR (dPCR)
A digital polymerase chain reaction protocol for the analysis of activated sludge was developed. Reactions (40 μL) included 13.3 μL QIAcuity™ EG PCR Master Mix 3 × (Qiagen), primers (20 μM, Table S2), 5 μL DNA, and 19.7 μL water. Samples were processed in QIAcuity Nanoplate 26 k 24-well plates using the QIAcuity™ One thermocycler with software version 1.0.0.84, operated using the QIAcuity Software Suite version 1.2.18. Conditions included 95 °C for 10 min, followed by 40 cycles of 95 °C for 30 s, 55 °C for 30–45 s, and 72 °C for 30–45 s. After PCR, the amplification target is detected by measuring the fluorescence in all positive partitions. The QIAcuity Software Suite estimates the fraction of positive and negative reactions. As stated in the QIAcuity® Application Guide the fraction of positive reactions is then fitted to a Poison distribution to determine the absolute copy number of the target DNA molecule in the input reaction mixture in units of copies /μL and then automatically calculate the starting target DNA concentration in the form of copies /μL in the sample. Additional columns display the average values calculated from the replicates (www.qiagen.com).
NGS: 16S rRNA gene sequencing
DNA concentrations were assessed using the Qubit 2.0 Fluorometer. Libraries were prepared at the Complutense University’s Genomics Unit following Illumina's "16S Metagenomic Sequencing Library Preparation" manual. The V3–V4 region of the 16S rRNA gene was amplified with 341F and 805R primers and Illumina adapters. Libraries underwent quality control with a Bioanalyzer 2100 (Agilent Technologies) and were pooled for sequencing on Illumina MiSeq (2 × 300 reads, MiSeq Reagent Kit v3). Sequence reads were processed using the DADA2 v1.26.0 package (Callahan et al. 2016) modeling and correcting Illumina-sequenced amplicon errors and generating Amplicon Sequence Variants (ASVs). We used the function filterAndTrim (truncLen = c(285, 195), maxN = 0, maxEE = 6, truncQ = 2, trimLeft = 20) from the DADA2 R package to filter and trim input fastq files. We obtained 1,397,309 good-quality reads, averaging 279,462 ± 145,956 per sample after filtering, aligning paired reads and chimera removal. The taxonomic assignment was performed using the naïve Bayesian classifier implemented in DADA2 using as reference the MiDAS 4.8.1 database (McIlroy et al. 2015). The Illumina sequencing raw data were deposited in the National Center for Biotechnology Information (NCBI) under accession number PRJNA1232652. Compositional analyses were performed in R and plotted with ggplot2 v3.5.1 R package (Wickham 2016).
Results
Detection and quantification of COMAMMOX by FISH

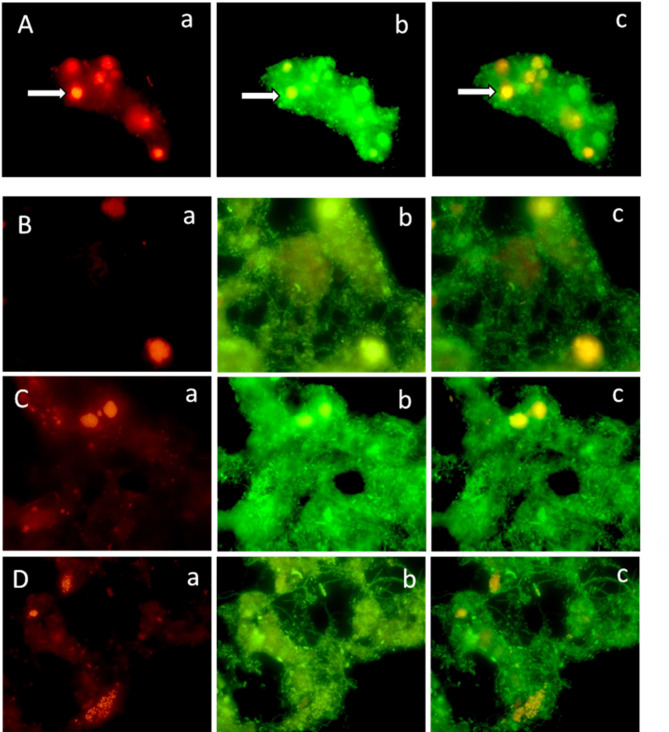

The presence of COMAMMOX species was observed in activated sludge samples from the bioreactor using probes targeting the 16S rRNA gene of Ca*. Nitrospira nitrosa* and Ca*. Nitrospira nitrificans*. Dense, spherical-shaped cell aggregates were detected primarily on the surface of the flocs, with some also present in deeper zones (Fig. 1A, 1B). Nitrite-oxidizing bacteria (NOB) and ammonia-oxidizing bacteria (AOB) were also identified and quantified (Fig. 1C, 1D). Among the seven FISH probes employed, one detected NOBs and two targeted AOBs. The dominant genus responsible for nitrite oxidation was Nitrospira (Ntspa662 probe), with a relative abundance of approximately 3% (Fig. 1C). Neither Nitrotoga nor Nitrobacter genera were detected. The Nso1225 probe indicated a similar abundance for Betaproteobacteria AOBs, particularly within the Nitrosomonadaceae family (Fig. 1D).Fig. 1. Microphotographs of samples taken from the bioreactor oxic chamber. A Selected field from the microscopical observations, 1000x: (a) COMAMMOX bacteria (Ca. N. nitrosa, Ca. N. nitrificans) detected with the Ntspa0476 probe (red emission filter), white arrow; (b) Communities belonging to the Eubacteria domain detected with the EUB mix 338I, 338II, 338III and 338IV probe and COMAMMOX bacteria (Ca. N. nitrosa, Ca. N. nitrificans) with the Ntspa0476 probe (green emission filter), white arrow, (c) Communities belonging to the Eubacteria domain detected with the EUB mix 338I, 338III and 333IV probe and COMAMMOX bacteria (Ca. N. nitrosa, Ca. N. nitrificans) with the Ntspa0476 probe (orange) (double emission filter), white arrow. B–D Random microscopical fields, 1000x. B: (a) COMAMMOX bacteria detected with Ntspa0476 probe (red emission filter) (b) EUB mix 338I, 338II y 338III and 338IV probe (green emission filter), (c) Ntspa0476 (orange) and EUB mix 338I, 338II y 338III and 338IV probes (double emission filter). C. Nitrospira detected with the Ntspa662 probe (red emission filter) (b) EUB mix 338I, 338II y 338III and 338IV probe (green emission filter), (c) Ntspa662 (orange) and EUB mix 338I, 338II y 338III and 338IV probes (double emission filter).** D** Betaproteobacteria AOB detected with the Nso1225 probe (red emission filter) (b) EUB mix 338I, 338II y 338III and 338IV probe (green emission filter), (c) Nso1225 (orange) and EUB mix 338I, 338II y 338III and 338IV probes (double emission filter)
Within the AOB community, halotolerant Nitrosomonas (NEU probe) exhibited a relative abundance close to 1%. Neither Nitrosococcus mobilis nor the Nitrosospira lineage were detected. The Eub338 probes were used to visualize total bacterial populations. Table 2 summarizes the nitrifying community composition determined by FISH.Table 2. Results of the quantification of nitrifying species using the FISH techniqueBacterial species/groupAbundance/uncertaintyCOMAMMOXCa. N. nitrosa, Ca. N. nitrificans3 ± 0.7%NOBNitrospira spp.3 ± 0.3%Nitrobacter spp.0Nitrotoga0AOBBetaproteobacteria ammonia-oxidizing bacteria3 ± 0.8%Nitrosococcus mobilis0Nitrosospira spp.0Most halophilic and halotolerant Nitrosomonas spp.1 ± 0.4%
Detection of nitrifying COMAMMOX amoA and other key genes by conventional PCR
Amplicons of the expected length were generated using DNA extracts and published primers (Table S2). Total COMAMMOX bacteria were detected in both 2021 samples. In addition, Ca. Nitrospira nitrosa and Ca. Nitrospira nitrificans were identified in the May 2021 sample, along with Ca. Nitrospira inopinata, which was uniquely detected in the sample coming from the filter of one of the pre-treated samples (Fig. S2, Fig. 2Ab). In the November 2021 sample, Ca. Nitrospira nitrosa and faint bands of Ca. Nitrospira inopinata were observed on the electrophoresis gels (Fig. 2Ac).Fig. 2. Electrophoresis gel assays carried out with the DNA extracted from samples subjected to different procedures. A (a,b). May sample. (c) November sample. Indicated COMAMMOX amo A gene amplification: (A) pre-treated sample, (B) pre-treated sample, (C) non-treated sample, (B3) sample obtained from the filter after filtration of a pre-treated sample, (C-) primer control, (S) non-treated sample (T) pre-treated sample. BNitrospira nxr gene amplification: (MA, MB) pre-treated May samples, (MC) non-treated May sample, (NC) non-treated November sample, (NT) pre-treated November sample. C. pre-treated May sample. D non-treated November sample. Amplification of the following genes: (1) COMAMMOX Nitrospira clade A amo A gene, (2) COMAMMOX Nitrospira clade B amo A gene, (3) NOB cynS gene, (4) AOA amoA gene, (5) Beta proteobacteria AOB amo A gene, (6) 16S rRNA gene. PM refers to the molecular weight standard
Using the second primer set, amplification of the amoA gene for COMAMMOX Nitrospira clade A, the cynS gene for NOB, and the amoA genes of AOA and AOB were achieved. Additionally, the nxr gene from Nitrospira and the 16S rRNA gene of total bacteria were detected (Fig. 2B-D). The amoA gene of COMAMMOX Nitrospira clade B was observed only in the November 2021 sample, with a faint band on electrophoresis gels (Fig. 2D).
Gene quantification by digital PCR (dPCR)

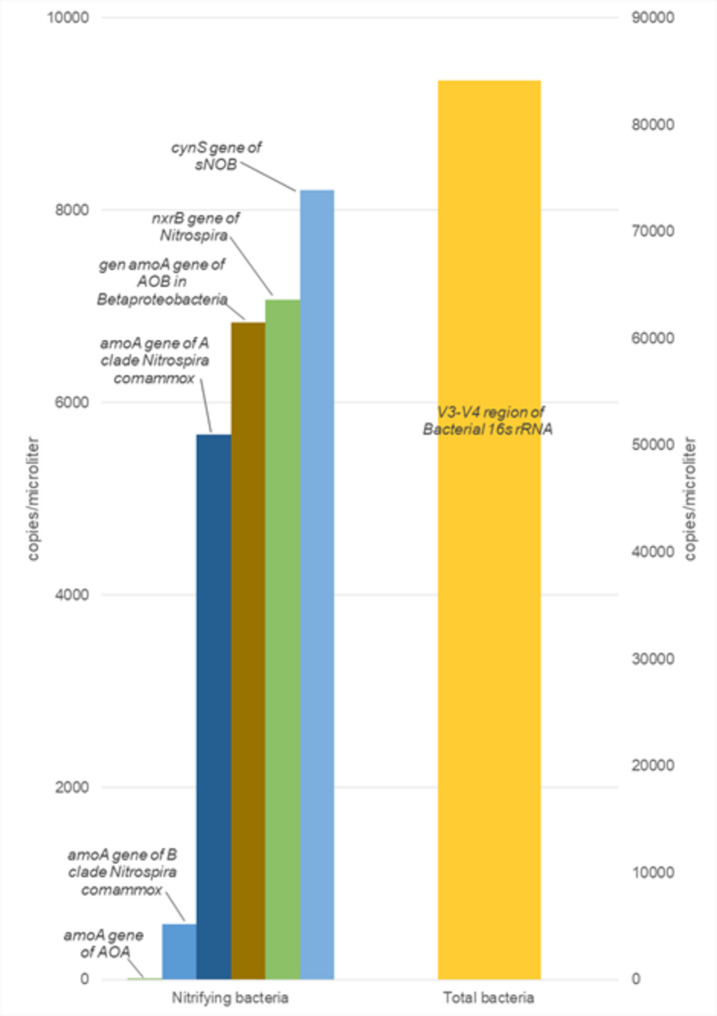

Quantification results are presented in Fig. 3 and detailed in Table 3. A total of 15,044.55 copies/μL (including cynS NOB and amoA Betaproteobacteria AOB) were detected for canonical nitrifiers. Regarding the detection and quantification of Nitrospira, it was observed that nearly all quantified strict NOB (cynS gene: 8213.20 copies/μL) likely belong to this genus (nxrB gene: 7065.80 copies/μL).Fig. 3. Digital PCR. Average concentration, in copies/μL, of each of the targets analyzed by dPCR corresponding to nitrifying bacteria/archaea within the samples. Primary y-axis refers to nitrifying bacteria and archaea and secondary y-axis refers to total bacteriaTable 3DNA concentration (copies/μL), Confidence Interval (CI), Mean and Standard Deviation (SD) for the different targets analyzed by dPCRGeneCopies/µLCI (95%)MeanSD% Relative to 16S rRNAAOA amoA gene1.80.3311.450.490.0021.10.427BOA amoA gene6894.80.0066831.3589.738.16767.90.006Nitrospira COMAMMOX clade A amoA gene5448.80.0065668.40310.566.75888.00.006Nitrospira COMAMMOX clade B amoA gene737.90.017580.30222.880.7422.70.022sNOB cynS gene8002.20.0058213.20298.409.88424.20.006Nitrospira NxrB gene6818.20.0057065.80350.168.47313.40.00516s rRNA Bacteria gene V3–V4 region82,960.10.00584,140.40167.3010085,320.70.005
Both COMAMMOX clades were present, with clade A predominating over clade B. Specifically, the concentration of clade A (5668.40 copies/μL) was one order of magnitude higher than that of clade B (580.30 copies/μL). Finally, it is noteworthy that this technique enabled the quantification of the gene encoding the amoA enzyme of ammonia oxidizing archaea, albeit resulting a very low value (1.45 copies/ μL).
WWTP microbiome composition
Taxonomic profile of the bioreactor oxic compartment

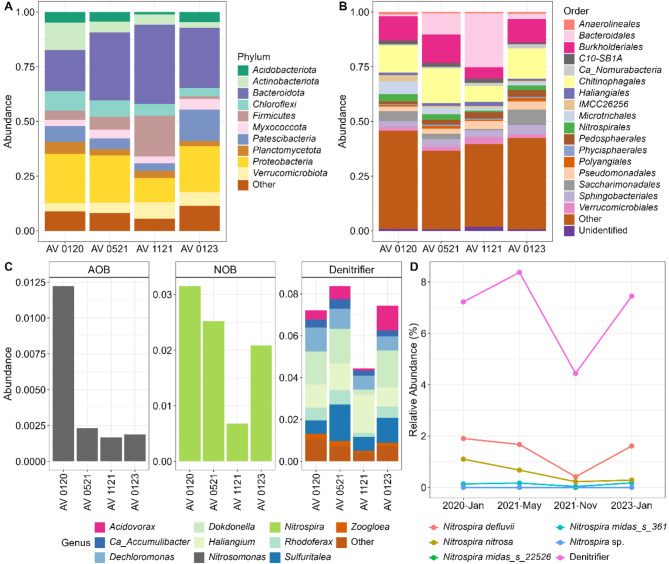

All samples show similar taxonomic profiles at the phylum level. The most abundant were the phyla Bacteroidota and Proteobacteria, (Fig. 4A), with notable presence also observed in Acidobacteria, Actinobacteriota, Chloroflexi, Firmicutes, Myxococcota, Patescibacteria, Planctomycetota and Verrucomicobiota. However, their relative abundance varied among samples. The most remarkable compositional change occurs in the November 2021 sample, with a significant increase in the relative abundance of the phyla Bacteroidota and Firmicutes, and a decrease in Proteobacteria (Fig. 4A). Within the phylum Bacteroidota, which is among the most abundant in these types of systems, the order Bacteroidales stands out, explaining the pattern of increased abundance in November, alongside a decrease mainly in the orders Burkholderiales and Chitinophagales (Fig. 4B).Fig. 4. Taxonomic composition of WWTP samples. Relative abundance of dominant bacterial A phyla and B order. Phyla with less than 1% and orders with less than 0.5% of relative abundance are included in the “Other” category. C Relative abundance of nitrogen related phylotypes identified at the genus level. D Relative abundance (%) of Nitrospira species compared to the abundance of denitrifying bacteria
