Evaluation of the volume and function of the right atrial appendage using computed tomography
Yang Liu, Tong Pan, Xin Tian, Cai-Ying Li
TL;DR
This study uses CT scans to measure the size and function of the right atrial appendage in patients with normal heart rhythms, finding differences between males and females and correlations with body size.
Contribution
The study introduces a method using 256-slice CT angiography to evaluate the dynamic volume and function of the right atrial appendage in sinus rhythm patients.
Findings
Male patients had significantly larger RAA and RA volumes than females.
RAA volume showed minimal fluctuation during 65–85% of the cardiac cycle, indicating a resting phase.
RAAVmax and RAAVmin correlated with weight, body surface area, and RA volumes but not with height.
Abstract
To assess the volume and function of the right atrial appendage (RAA) in patients with sinus rhythm using 256-slice spiral computed tomography (CT) angiography. A total of 60 patients with normal cardiac CT imaging features were enrolled in this retrospective study. The raw imaging data were used to reconstruct 3D images, which were analyzed to measure the volume of the RAA and right atrium (RA) throughout the cardiac cycle, and to obtain the maximum and minimum volume of the RAA and RA (RAAVmax, RAAVmin and RAVmax, RAVmin). Additionally, the RAA ejection volume (RAAEV), RAA ejection fraction (RAAEF), RA ejection volume (RAEV), and ejection fraction (RAEF) were calculated. Independent sample t-tests were used to analyze the data of the RAA and RA between male and female groups. Pearson correlation analysis was used to analyze the correlation between RAA parameters, RA parameters and…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAtrial Fibrillation Management and Outcomes · Cardiac Arrhythmias and Treatments · Cardiac Imaging and Diagnostics
Introduction
The right atrial appendage (RAA) develops from the primitive atrium and exhibits active systolic and diastolic funtions [1]. Its outer surface is relatively flat, while its inner wall is covered with interlaced pectinate muscles. It is an important site for electrophysiological studies and pacemaker electrode implantation. It is also a target for ablation in some atrial tachycardias [2]. Atrial fibrillation and restrictive cardiomyopathy are significantly risk factors of thrombus formation in the RAA [3, 4]. Studies have shown that compared to the function of left atrial appendage (LAA), RAA function may offer superior predictive value for thromboembolic risk in patients with persistent atrial fibrillation [5].
Transesophageal echocardiography (TEE) remains the gold standard for the study of the morphology, structure, and function of the atrial appendage, as well as for thrombus detection [6]. However, TEE is a semi-invasive procedure that causes pain and discomfort, which limits its widespread clinical application. Magnetic resonance imaging is also used for quantitative research of the atrial appendage. However, it is time-consuming, costly, and often unsuitable for patients with pacemakers [7]. The combination of high-end multi-slice spiral CT(MSCT)and 3D imaging software can intuitively display the morphology and volume of the atrium, ventricle, and atrial appendage [8–10]. Although the anatomical and functional characteristics of the LAA have been extensively studied [11, 12], the RAA remains underexplored, including volume and function.
This study aims to preliminarily evaluate the volume and mechanical function of the RAA in normal individuals using 256iCT, providing valuable information for clinical practice.
Methods
Research participants
In this retrospective study, 60 patients with suspected coronary artery disease in the Second Hospital of Hebei Medical University between June 1 and August 31 2020 were enrolled in this study, including 30 males and 30 females with an age range of 35 to 75 (mean, 57.1 ± 10.0) years.All patients had normal sinus rhythm and no evidence of cardiovascular disease on cardiac computed tomography angiography (CCTA) which were performed using retrospective ECG-gating technique. Exclusion criteria included atrial fibrillation, hypertension, coronary artery disease, or other cardiovascular pathologies. Those with poor image quality were excluded from this study.
This study was conducted in accordance with the Declaration of Helsinki (as revised in 2013), and was approved by the Institutional Ethics Committee of The Second Hospital of Hebei Medical University (No. 2018-R245). The institutional review committee waived the requirement for informed consent owing to the retrospective design.
CT scanning technology
All participants underwent CCTA examination using a Phillips 256-slice spiral CT (Brilliance iCT, Philips Health care, Amsterdam, The Netherlands). The retrospective ECG gating was employed, the parameters were as follows: 80–120 kV,280–350 mAs/rev, collimation 128 × 0.625, pitch 0.18, rotation time, 330 ms, matrix 512 × 512, scanning field of view 250 mm, reconstruction slice thickness 0.9 mm and slice interval 0.45 mm. Patients were coached on breath-hold techniques to minimize motion artifacts. A dual tube high-pressure injector was used to inject non-ionic contrast agent iodixanol (350 mg I/mL) at a flow rate of 4–5 mL/s, with a dose of 0.8 mL/kg. The scan range extended from 0.5 cm below the tracheal bifurcation to the diaphragmatic surface of the heart.
Image post-processing technology
The raw data were reconstructed into 10 phases (5 to 95%, with an interval of 10%), with a reconstruction slice thickness of 0.9 mm and an interval of 0.45 mm. Definition of the RAA and its base: The superior vena caval orifice was defined as the transitional position between the superior vena cava (SVC) and the RA. The RAA was situated above the superior vena caval orifice on axial images. The Philips EBW 4.6 workstation (Philips Healthcare) was used to obtain the 3D images of the RAA. The base of the RAA, perpendicular to its long axis, is located at the level of the superior vena cava orifice [13].
Measurement methods
All parameters were analyzed by two experienced radiologists, with over 3 years of experience in cardiac imaging. Consensus in qualitative parameters was reached. Parameters: ①RA and RAA volume: Measured on 3D images of the RAA and RA (Fig. 1A). ② RAA height: The vertical distance from the apex to the base of the RAA was measured (Fig. 2D). ③ Measurement of the long diameter, short diameter, perimeter, and area of the RAA base (Fig. 1B): On the axial image, the base of the RAA was situated at the level of the superior vena cava orifice. The long diameter, short diameter, circumference, and area of the RAA base were all obtained from this image. The above parameters on each phase images were measured to determine the maximal (RAAVmax) and minimal (RAAVmin) volumes of the RAA. Subsequently, the RAA ejection volume (RAAEV) and RAA ejection fraction (RAAEF) were calculated. The parameters of the RA are calculated in a similar way to RAA.Fig. 1. Three-dimensional image of the RAA and RA (A). Measurement of the perimeter, and area of the RAA base on axial images (B)Fig. 2. Changes in volume of RAA at different phases (A-C). the 5% phase (A), the 45% phase (B), the 75% phase (C). RAA height (D)
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\begin{array}{c}\mathrm{RAAEV}\;=\;\mathrm{RAAVmax}-\;\mathrm{RAAVmin}\\\mathrm{RAAEF}\;=\;(\mathrm{RAAVmax}-\;\mathrm{RAAVmin})\;/\;\mathrm{RAAVmax}\times\;100\%\\\end{array}$$\end{document}Statistical analysis
The data were analyzed using the SPSS 25.0 statistical software. The normality test was performed on continuous data using the Shapiro-Wilk test to determine whether the data were considered normally distributed. The data with a normal distribution were represented as mean ± standard deviation (SD), while data with nonnormal distribution were represented as the median (interquartile range). Given that continuous data in this study had followed a normal distribution after normality test, Independent sample t-tests were used to analyze the data of the RAA and RA between male and female groups. Pearson correlation analysis was used to analyze the correlation between RAA parameters, RA parameters and physiological parameters. Paired t-test were used to compare the data of the RAA and RA between the 45% phase and 75% phase. P < 0.05 was considered statistically significant.
Results
Participants characteristics
In this study, 65 patients with sinus rhythm underwent cardiac CTA examination, 5 patients were excluded due to poor image quality. A total of 60 patients with sinus rhythm were enrolled. Baseline characteristics are listed in Table 1. The height, weight, and BMI in male patients were significantly higher than those in female patients (P < 0.05). The female patients demonstrated a higher mean age compared to male patients (P < 0.05).Table 1. Clinical characteristics of the male and femaleMale (n = 30)Female (n = 30)PAge (years)54.3 ± 10.1659.9 ± 9.250.029Height (mm)165.77 ± 5.30158.17 ± 5.590.001Weight (kg)73.90 ± 10.5061.93 ± 7.080.001BMI (kg/m²)26.86 ± 3.3124.71 ± 2.210.004Data are presented as mean ± SDSD standard deviation
Volume-time curves of RA and RAA

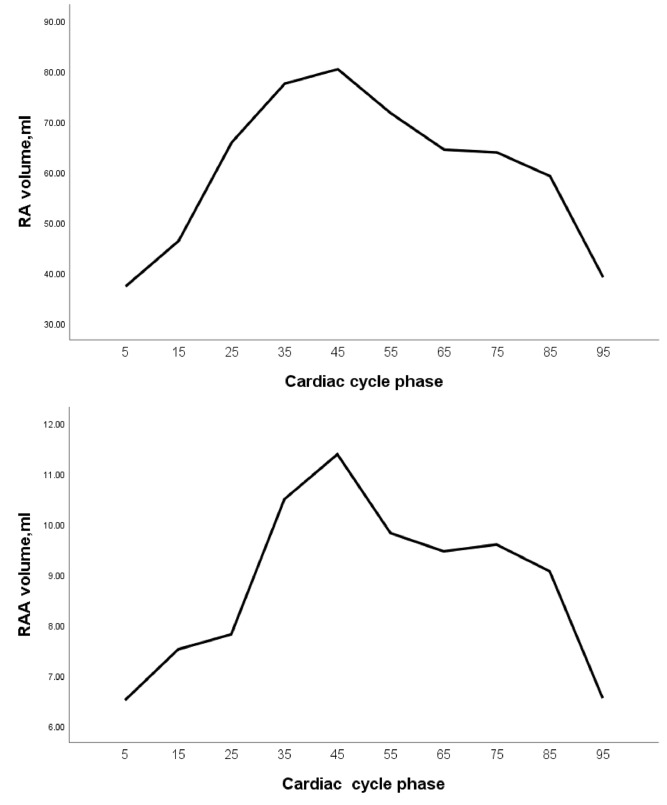

The RAA underwent two emptying phases throughout the entire cardiac cycle. The smallest volume of the RAA occurred at the 5% phase (6.51 ± 2.49 mL), followed by a rapid increase reaching its peak at the 45% phase (11.39 ± 3.59 mL). Subsequently, a gradual decline was observed, with a secondary minor peak rising slowly at the 75% phase. From the 65–85% phase, the volume minimally changed, indicating a resting state of the RAA (Figs. 2A and 3). The volume curve of the RA was similar to that of the RAA, undergoing two emptying phases. The volume was lowerst at the 5% phase (37.28 ± 10.11 mL) and reached its peak at the 45% phase (80.44 ± 20.02 mL). The volume curve from 65 to 85% phase was relatively flat, also indicating a resting state (Fig. 3).Fig. 3. The volume curve of the RA and RAA
