Lessons learned in 20 years of endoscopic endonasal surgery for pterygopalatine and infratemporal fossae lesions: analysis of a patient series and systematic review of literature
Matteo Zoli, Giacomo Sollini, Alessia Giorli, Alessandro Carretta, Marcello Magnani, Arianna Rustici, Martina Conti, Laura Maria Beatrice Belotti, Corrado Zenesini, Sofia Asioli, Paolo Farneti, Ernesto Pasquini, Diego Mazzatenta
TL;DR
This study examines the effectiveness of endoscopic endonasal surgery for tumors in the pterygopalatine and infratemporal fossae over 20 years, finding it to be safe and effective with certain limitations based on tumor location.
Contribution
The study provides a 20-year analysis of EEA outcomes and identifies specific tumor locations that negatively affect resection rates.
Findings
Gross total resection was achieved in 88% of patients.
Tumor location in the temporo-masseteric and tubo-pharyngeal zones was negatively associated with complete resection.
EEA showed a favorable complication rate and quick patient recovery.
Abstract
Recently, the endoscopic endonasal approach (EEA) has been proposed as a possible surgical option for benign and malignant tumors, located in the infratemporal (ITF) and pterygopalatine fossae (PPF). The aim of this study is to analyze the surgical outcome of the EEA for these lesions, identifying the preoperative factors affecting tumor resection. All consecutive cases of PPF and ITF tumors operated through an EEA have been retrospectively collected. Preoperative clinical and radiological features, surgical outcome, complications and patient follow-up have been analyzed. A systematic review of literature has been performed. The series includes 100 patients (66 males, 66.0%, mean age: 43.7 ± 22.1). The most common histotypes were juvenile angiofibromas (36 cases, 36.0%), malignancies (26, 26.0%), and chordomas (14, 14.0%). Gross total resection of the PPF/ITF portion of the tumor was…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4| Tumor | Age in yr. (Mean ± Std Dev.) | Sex | Prev. Treat. | Neur. Sympt. | Other non-neur. Sympt. | T. Location | Involved PPF/IFT zones | T. extension | PPF and/or ITF T. Res. | Compl. | Adjuvant Th. | Recur. | Recur. time (in mo.) (Mean ± Std Dev.) | Treatment of recur. | Deceased | Time of Dec. in mo. (Mean ± Std Dev.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Meningioma and SFT (13 pts) | 55.0 ± 8.3 | 12 Fem.; | 7 Surg. | 4 Tr. Hypoesth.; | 7 Exopth.; | 1 PPF; 12 PPF + IFT | 11 Zone 1; | 7 orbit; | 6 GTR | 4 V2 hypoth. (3 permanent, 1 transient) | 8 EBRT (proton); | 6 | 60.7 ± 63.0 | 2 eTOA; | 3 | 89.5 ± 47.0 |
| Chordoma (14 pts) | 52.9 ± 12.8 | 7 Fem.: | 2 Surg.; | 1 Tr. Neur.; | 1 Nas. Obstr. | 12 PPF; | 11 Zone 1; | 6 MCF; | 13 GTR | 2 V2 hypoth. (1 permanent, 1 transient) | 12 EBRT (proton); | 13 | 35.4 ± 23.7 | 6 EEA; | 13 | 75.7 ± 61 |
| Chondrosarcoma (4 pts) | 52.4 ± 10.6 | 2 Fem.; | 1 | 1 Tr. Hypoesth.; | 1 Nas. Obstr. | 3 PPF; | 3 Zone 1; | 4 CS; | 3 GTR | None | 2 EBRT (proton); | 0 | – | – | 0 | – |
| Schwannoma (4 pts) | 53.1 ± 19.3 | 4 Fem. | 1 | 1 Tr. Neur.; | 1 Rhin. hypoac.; | 2 PPF; | 2 Zone 1; | 1 CS; | 4 GTR | 3 permanent V2 hypoth. | None | 0 | – | – | 0 | – |
| JNA and hemangioma (36 pts) | 21.6 ± 11.9 | 36 Mal. | 1 Surg.+Emb; | None | 31 Nas. Obstr.; | 21 PPF; | 13 Zone 1; | 1 orbit; | 35 GTR | 1 transient V2 hypoesth.; | None | 1 | 26 | 1 EEA | 0 | – |
| Adenoidocystic C. (8 pts) | 69.0 ± 9.0 | 1 Fem.; | 2 Surg.; | 3 Tr. Neur.; | 1 Exopth.; | 1 PPF; | 6 Zone 1; | 3 orbit; | 8 GTR (6 RR | 1 pansinusitis | 3 EBRT (proton); | 3 | 25.8 ± 1.3 | 1 EEA; | 3 | 21.4 ± 15.6 |
| Inflammatory D. and inverted papilloma (3 pts) | 49.3 ± 3.5 | 1 Fem.; | None | 1 Tr. Neur.; | 1 Nas. Obstr.; | 1 PPF; | 2 Zone 1; | 1 MCF; | 1 GTR | None | 2 corticoisteroid th. | 0 | – | – | 0 | – |
| Other malignancies (18 pts) | 52.7 ± 22.7 | 7 Fem.; | 3 Surg; | 3 Tr. Hypoesth; | 1 Exopth.; | 5 PPF; | 11 Zone 1; | 5 orbit; | 18 GTR | 3 Rhin. Hypoac. | 2 EBRT (proton); | 9 | 5.7 ± 10.1 | 1 open surgery + EBRT (proton); | 9 | 13.3 ± 12.4 |
| Total (100 pts) | 43.7 ± 22.1 | 34 Fem. (34.0%); | 35 (35.0%) Naïve; | 8 (8.0%) Tr. Hypoesth; | 9 (9.0%) exopth; | 46 (46.0%) PPF; | 59 (59.0%) Zone 1; | 16 (16.0%) orbit; | 88 (88.0%) GTR | 10 (10%) V2 hypoesth. | 27 (27.0%) EBRT (proton); | 32 (32.0%) | 32.2 ± 34.8 | 13 (13.0%) surg.; | 28 (28.0%) | 50.9 ± 54.1 |
| Type of Symptom | Symptom | Regres/impr. | Unchanged | Worsened |
|---|---|---|---|---|
| Neurological Symptoms | Trigeminal Hypoesthesia | 1 (12.5%) | 7 (87.5%) | 0 (0%) |
| Trigeminal Neuralgia | 9 (56.3%) | 7 (43.8%) | 0 (0%) | |
| Diplopia | 11 (61.1%) | 7 (38.9%) | 0 (0%) | |
| Visual deficit | 5 (62.5%) | 3 (37.5% | 0 (0%) | |
| Dysphagia | 1 (100%) | 0 (0%) | 0 (0%) | |
| Facial palsy | 1 (100%) | 0 (0%) | 0 (0%) | |
| XII CN palsy | 1 (100%) | 0 (0%) | 0 (0%) | |
| Other symptoms | Exophthalmos | 8 (88.9%) | 1 (11.1%) | 0 (0%) |
| Nasal obstruction | 38 (90.5%) | 4 (9.5%) | 0 (0%) | |
| Epistaxis | 32 (100%) | 0 (0%) | 0 (0%) | |
| Rhinogenic hypoacusia | 0 (0%) | 6 (100%) | 0 (0%) | |
| Malar swelling | 1 (50%) | 1 (50%) | 0 (0%) | |
| TMJ pain | 1 (100%) | 0 (0%) | 0 (0%) | |
| Masticatory Dist. | 0 (0%) | 1 (100%) | 0 (0%) | |
| Retro-orbital or facial pain | 2 (100%) | 0 (0%) | 0 (0%) |
| Univariate Analysis | p |
|---|---|
| Sex | 0.91 |
| Age | 0.43 |
| Previous Treatment (surgical or not surgical) | 0.72 |
| Previous Surgery | 0.35 |
| Previous Radio/Chemo-therapy | 0.26 |
| Presence of neurological pre-operative symptoms | 0.31 |
| Presence of other non-neurological pre-operative symptoms | 0.66 |
| Tumor located in PPF | 0.67 |
| Tumor located in IFT | 0.03 |
| Involvement of retromaxillary zone (1) | 0.56 |
| Involvement of superior interpterygoid zone (2) | 0.85 |
| Involvement of inferior interpterygod zone (3) | 0.04 |
| Involvement of temporo-masseteric zone (4) | 0.01 |
| Involvement of tubo-pharingeal zone (5) | <0.01 |
| Histotype | 0.12 |
| Logistic Regression |
| Authors | Year of pub. | N. cases | T. location | Histotype | Pre-operative sympt. | EOR | Compl. | Sympt. outcome | Local Recur/progr. | Compl. Th. | Mortality |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Roger et al. ( | 2002 | 15 | 15 PPF, | 15 JNA | NA | 13 GTR, | 0 | NA | 0 | None | 0 |
| Wormald et al. ( | 2003 | 6 | 6 PPF, | 6 JNA | 6 nas. obst. | 6 GTR, | 0 | Nas. obst: 6 regr. | 0 | None | 0 |
| Hofmann et al. ( | 2005 | 19 | 19 PPF, | 19 JNA | NA | 14 GTR; | 0 | NA | 4 | 1 radiosurg. | 0 |
| Borghei et al. ( | 2006 | 9 | 9 PPF | 9 JNA | NA | 9 GTR | 3 asympt. synechiae | NA | 1 | None | 0 |
| Gupta et al. ( | 2008 | 22 | 22 PPF, | 22 JNA | NA | 21 GTR, | 0 | NA | 0 | None | 0 |
| Hofstetter et al. ( | 2010 | 7 | 6 PPF, | 2 JNA, | NA | 3 GTR, | 3 sinusitis | NA | 1 osteosarc. | 1 RTx, | 2 (1 non related, 1 disease progression) |
| Nicolai et al. ( | 2010 | 41 | 38 PPF, 16 ITF | 41 JNA | NA | 38 GTR, | 0 | NA | 0 | None | 0 |
| El Morsy et al. ( | 2011 | 15 | 15 PPF, 15 ITF | 15 JNA | 15 nas. obst., | 15 GTR | 1 transitory epiphora | NA | 3 | 1 Radiosurg. | 0 |
| Al Sheibani et al. ( | 2011 | 20 | 21 PPF, 21 ITF | 5 ACC, | NA | 20 GTR (19 RR, | 1 ICA injury | NA | 7 | 19 RTx w or w/o CRx | 18 (disease progression) |
| Zhang et al. ( | 2012 | 8 | 8 PPF, | 8 schwannomas | 1 nas. obst., | 8 GTR | 0 | NA | 0 | None | 0 |
| Fyrmpas et al. ( | 2012 | 6 | 6 PPF, | 6 JNA | 6 nas. obstr.; | 6 GTR | 1 V2 hypostesia | Nas. Obstr.: 6 regr.; | 1 | None | 0 |
| Taylor et al. ( | 2014 | 21 | 21 ITF | 3 JNA, | NA | 16 GTR, | 9 V2 numbness, | NA | 3 | 3 RTx, | 2 (disease progression) |
| Battaglia et al. ( | 2014 | 37 | 20 PPF, 37 ITF | 20 JNA, | NA | 36 GTR, | 1 ICA injury, | NA | 0 | 5 RTx, | 0 |
| Battaglia et al. ( | 2016 | 37 | 37 PPF | 22 JNA, | 31 nas. obstr.; | 37 GTR (36 RR, 1 R1) | 4 check/palate numbness (1 transient), | NA | 0 | 3 RTx, | 2 (disease progression) |
| Zhou et al. ( | 2016 | 7 | 7 PPF, | 7 schwannomas | 3 fac. numb., | 7 GTR | 4 fac. numb. | NA | 0 | None | 0 |
| Janakiram et al. ( | 2016 | 15 | 15 PPF | 15 JNA | 15 nas. obstr., | 13 GTR, | 3 synechiae | NA | 1 | NA | 0 |
| Plzak et al. ( | 2017 | 13 | 13 PPF, | 10 JNA, | 12 nas. obstr., | 12 GTR; | 8 V2 hypoesthesia (4 transient), | NA | 0 | 1 CRT (proton beam) | 0 |
| Shin et al. ( | 2018 | 6 | 6 PPF, | 6 meningiomas | 2 facial hypostesia, | 5 GTR, | 1 transient V2 dysthesia, | Visual loss: | 2 | 2 RTx, | 1 (disease progression) |
| Epprecht et al. ( | 2018 | 9 | 8 PPF, | 9 JNA | 2 hypoac. | 5 GTR, | 3 rhynogenic hypoac. | Hypoac.: 2 unch. | 1 | None | 0 |
| Ozawa et al. ( | 2020 | 12 | 12 PPF, | 2 JNA, | NA | 3 GTR, | 2 V2 hyposthesia (1 permanent, 1 transient) | NA | 0 | 5 RTx (2 proton beam), | 1 (disease progression) |
| Bignami et al. ( | 2022 | 57 | 33 PPF, 25 ITF | 57 JNA | NA | 56 GRT, | NA | NA | 0 | None | 0 |
| Gupta et al. ( | 2022 | 25 | 25 PPF, 17 ITF | 25 JNA | 25 nas. obstr., | 23 GTR, | 0 | NA | 0 | None | 0 |
| Wu et al. ( | 2023 | 8 | 4 PPF, | 8 Schwannoma | 7 fac. numb., | 8 GTR | 1 CN VI palsy | Fac. numb.,: 6 impr., | 0 | None | 0 |
| Total | 415 | 345 (85.1%) PPF, | 300 (72.3%) JNA or hemangiomas; | 111(26.7%) nas. obstr.; | 374 (90.1%) GTR; | 6 (1.4%) syniechiae; | Nas obs: 12 regr.; | 24 (5.8%) | 3 radiosusg.; | 26 (6.3%) (25 -6.0%- due to disease progression) |
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsHead and Neck Surgical Oncology · Meningioma and schwannoma management · Sinusitis and nasal conditions
Introduction
Neoplasms of pterygopalatine and infratemporal fossae (PPF and ITF) are a heterogenous group of tumors, which poses particular challenges to the surgeons for their deep location and intimate relationship with highly functional neurovascular and osteo-muscular structures (1–5).
Conventionally, they are surgically removed through open approaches, usually highly demolitive, with potentially significant neurological and functional sequelae and consequent detriment to patients’ quality of life (QoL) (2, 6, 7). A minimally invasive option is represented by the endoscopic endonasal approach (EEA), which allows us to access the PPF and ITF with the ventral corridor constituted by natural cavities, such as the nasal and paranasal sinuses (8–15). Indeed, these deep regions can be directly approached through the maxillary sinus, with a favorable angle of attack and a short distance from the nasal openings. The main advantages of this route is represented by its excellent and panoramic view, not requiring anyexternal bone drilling and neurovascular structures manipulation (15–18). Inded Multiple Authors have reported that this endoscopic transmaxillary-transpterygoid route could be effective for the surgical treatment of PPF and ITF lesions, such as encephaloceles, schwannomas, juvenile angiofibroma (JNA), meningiomas, but also loco-regional malignancies, preserving the osteo-ligamental and muscular structures with no visible scars, optimal cosmetic outcome, and consequently limited risk of permanent neurological or functional deficits, such as mastication or swallowing impairment (19–26). However, few reports have also pointed out the limitations of this route, which are mainly constituted by the difficulties to manage tumors with a very lateral or a deep extension toward the upper parapharyngeal space, or also extended to other lateral skull base regions, and by the lack of proximal control of the arterial and venous structures of the fossa (22, 27, 28). Moreover, a debate about its role in the management of malignancies is still open (22, 27, 28).
Therefore, indications of EEA for PPF and ITF tumors are still controversial and its effective role in clinical practice is discussed. The aim of this study is to analyze the surgical outcome and complications of EEA in our center and to determine its advantages and limits. A systematic review was also performed to consider the adoption and the outcome of this approach for PPF and ITF tumors in literature.
Materials and methods
Cases series
We present our retrospective case series of all consecutive patients with lesions involving the PPF and ITF surgically treated with an EEA in our Institution from 1998 to December 2022. Eligible patients were identified querying our institutional local database and then reviewing the neuroimaging and the clinical data for each case. Inclusion criteria consisted in 1. tumor location in the PPF and/or ITF, 2. surgical treatment with an EEA, 3. availability of pre- and postoperative clinical and neuroradiological data with a follow-up of at least 1 year. Cases of nasal-paranasal/skull base tumors not involving the PPF or ITF, or without adequate neuroimaging, or not undergone a purely endoscopic approach or with a follow-up shorter than 12 months were excluded.
Our management protocols for ITF and PPF have already been described elsewhere, as well as our surgical technique (29, 30). Briefly, all patients preoperatively underwent a complete neurological examination, considering their medical history with attention to previous surgical or adjuvant therapies for ITF and PPF tumors. ENT examination included a preoperative nasal endoscopy, with biopsy of the mass, when feasible. In all cases, preoperative imaging consisted in an MRI with contrast enhancement and a CT scan with angiographic sequences (CTA). Furthermore, patients suspected of a vascular lesion underwent a preoperative angiography with embolization 48–72 hours before the surgical procedure.
Surgery was carried out with patients in semi-sitting position, under general anesthesia, using HD 2D endoscopes (SPIES, Karl Storz, Tuttlingen, Germany, 4mm in diameter, 18 cm in length, with 0° and 30° scopes) with a high-definition camera, a neuronavigation system (StealthStation S7 and S8 MEDTRONIC, Louisville, CO. USA) with StealthMerge Software (MEDTRONIC, Louisville, CO. USA), intraoperative EcoDoppler (Mizuho 20 MHz Surgical Doppler System, Mizuho, Tokyo, Japan) and a 4 mm diamond high-speed drill (Midas Rex MR8, MEDTRONIC, Louisville, CO. USA). A 4-hands approach was performed, using a bi- or mono-nostril corridor, according to tumor extension.
The first surgical steps are represented by an inferior complete or partial turbinectomy, followed by medial maxillectomy, whose anterior extension depends on the lateral tumor expansion (Figure 1). Afterward the perpendicular plate of the palatine bone is resected, the spheno-palatine artery is isolated and coagulated on exiting from the sphenopalatine foramen. A spheno-ethmoidectomy with drilling of the medial pterygoid plate is performed to increase the instruments’ maneuverability. After identification of the infraorbital nerve, dividing the projection of the PPF and ITF on the posterior wall of the maxillary sinus, the posterior wall of the maxillary sinus can be removed with high-speed drill or Kerrison rongeur to access the PPT and ITF (Figure 1).
Intraoperative endoscopic images (0° scope). (a–c) The medial maxillectomy with a pre-lacrimal approach is performed to fully expose the posterior wall of the maxillary sinus. (d) After resection of this bony wall, the ventral access toward the PPF and ITF is obtained, and the tumor (meningioma) is visible. (e) The mass is progressively dissected from the surrounding structures and removed. (f–h) The internal maxillary artery is identified as proximally as possible, afterwards it is clipped and cut.
Benign tumors are resected with a microsurgical technique, starting with a central debulking followed by cleavage from surrounding structures and with a centripetal removal of the tumor in large blocks up to negative surgical margins confirmed by frozen sections, for malignancies (Figures 1, 2). Unless they are infiltrated by a malignancy, particular attention is paid to preserve the V2 and V3, which can be identified following their course respectively from the foramen rotundum and ovale. Moreover, V3 represents a helpful landmark for the petrosal tract of the internal carotid artery (ICA), which is the posterior limit of this approach. Internal maxillary artery and its branches are identified as soon as possible during tumor resection and then coagulated or clipped to avoid intra- or peri-operative bleeding. In case of CSF leak or exposure of the ICA, closure of the posterior wall of the maxillary sinus is performed with abdominal fat, covered by a mucoperiosteal graft, or an inferior turbinate flap previously harvested or bu other nasal flaps. Nasal cavities are packed with Merocel (MEDTRONIC, Louisville, CO. USA) (Figure 2).
Intraoperative endoscopic images (0° scope). (a–e) The tumor is progressively resected, and the temporal floor dura is visible at the end of the removal. (f, g) Hemostasis is achieved with bipolar coagulation and with hemostatic agents. (h) Closure is performed with fat, covered by inferior turbinate graft.
Spontaneous breathing was restored at awakening with removal of oro-tracheal intubation and oral feeding within 6–8 hours after surgery. If no intraoperative CSF leak occurred, the patients could start a cautious mobilization the same day of surgery, otherwise 3 days of bed rest were prescribed. Patients were discharged after 3–4 days if no complications occurred.
Follow-up consisted in an endoscopic endonasal evaluation performed within 30 days from surgery. An MRI with contrast enhancement and a neurological evaluation was repeated before hospital discharge and at 3 months to assess the extension of tumor resection and patients’ clinical outcome. Afterwards, these examinations were repeated every 3–12 months, depending on the histopathological diagnosis. For malignancies, cases were discussed in a multidisciplinary team and, where indicated, adjuvant radiation or chemotherapies were advised.
Patients’ preoperative clinical symptoms were collected based on medical records. On preoperative MRI, tumors were classified depending on their location as proposed by Li et al. (22). They were considered in the retromaxillary zone (zone 1), in case of location between the posterolateral wall of maxillary sinus and medial and lateral pterygoid and temporalis muscles complex; in the superior interpterygoid zone (zone 2), in case of location in the upper part of the ITF and PPF; in the inferior interpterygoid (zone 3), in case of location between the inferior head of the lateral pterygoid muscle, the medial pterygoid muscle and temporalis muscle; in the temporo-masseteric zone (zone 4), in case of location between the temporalis muscle and zygomatic arch; in the tubopharyngeal space (zone 5) in case of location in the upper part of the parapharyngeal space (Figure 3) (22).
MRI. Axial T1-w after gadolinium, showing the tumor location, according to Li et al. 26 (a) Retromaxillary zone (zone 1). (b) Superior interpterygoid zone (zone 2). (c) Inferior interpterygoid zone (zone 3). (d) Temporo-masseteric zone (zone 4). (e) Tubopharyngeal zone (zone 5).
At 3 months after postoperative MRI, radical resection was considered as gross total removal (GTR), in case of absence of visible tumor remnants, or as partial tumor removal (PTR) if a remnant is observed, and particular attention was paid to assess the location of this remnant inside or outside the PPF or IFT. Complications were considered, as well as their management, based on surgical reports. Recurrences or remnant progressions at follow-up, their treatment and timing were reported, as well as mortality due to the tumor progression.
Statistical analysis
Our dataset of PPF and ITF tumors operated with a resective aim was analyzed to assess the clinical and neuroradiological factors associated with the GTR of the portion of the tumor located in these regions. Continuous variables were expressed as mean ± SD, while categorical variables as absolute (n) and relative frequency (%). A p-value < 0.05 was considered statistically significant. Mann-Chi-square or Fisher’s exact test were used to discrete variables and Whitney test or t-Student test for continuous ones. Multivariable logistic regression models were used to evaluate the associations with the variables significant in univariate analysis and the outcome. The results were presented as odds ratio (OR) and 95% confidence interval (95% CI).
Statistical analysis was performed using Stata (StataCorp. 2017. Stata Statistical Software: Release 15. College Station, TX: StataCorp LLC).
Systematic review of literature
Search strategy
A systematic literature review was performed in accordance with the Preferred Reporting Items for Systematic Reviews and Meta‐analyses (PRISMA) statement guidelines (31). MEDLINE and Web of Science Core Collection (SCI-EXPANDED, SSCI, A&HCI, CPCI-S, CPCI-SSH, ESCI) databases were queried using individual keywords and MeSH terms. A purposely-defined search string was created for MEDLINE search: (“transmaxillary” [All Fields] OR “endoscopy” [MeSH Terms] OR “endoscopy” [All Fields] OR “endonasal” “[All Fields] OR “transnasal” “[All Fields] AND “pterygopalatine” [All Fields] OR “pterygomaxillary” “[All Fields] OR “infratemporal” “[All Fields]; WOS: TOPIC: (endoscopy or endoscopic) AND TOPIC: (infratemporal or pterygopalatine or pterygomaxillary). The results were then limited to the English language, human subjects and exclusively endoscopic approaches. After duplicate removal, title and abstracts were firstly screened and, for the papers deemed appropriate, full texts were obtained and reviewed for appropriateness and extraction of data. Article references were examined to identify any other relevant study (Figure 4).

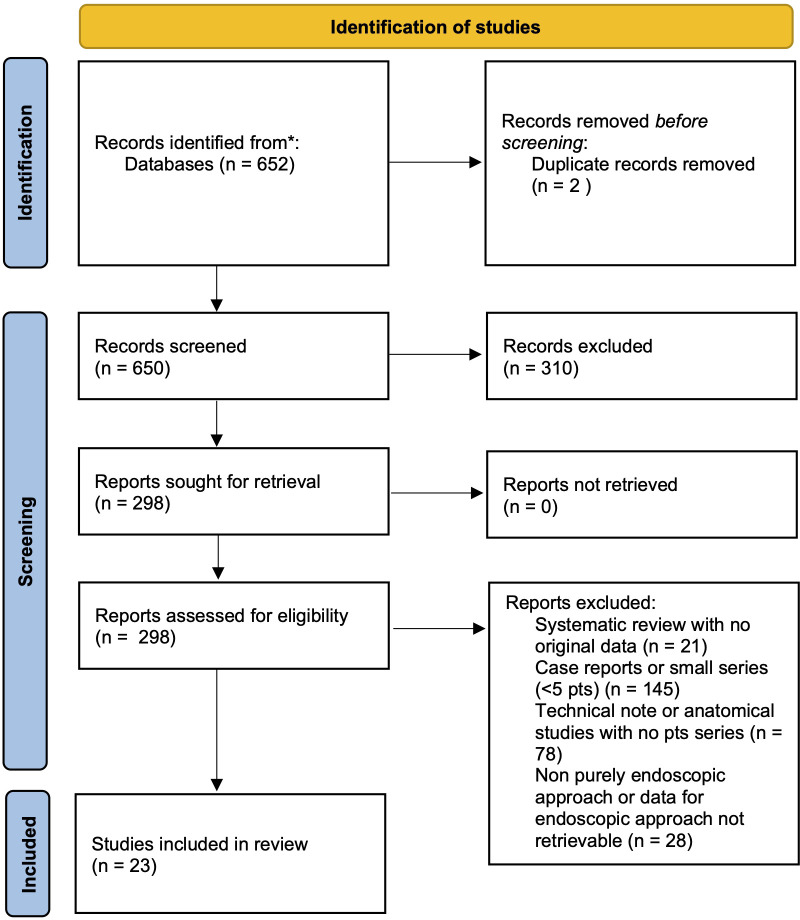

PRISM diagram of the systematic review of literature.
Selection criteria
Only studies assessing the surgical outcomes of EEA for biopsy/resection of tumoral (benign or malignant) or pseudotumoral lesions of PPF or ITF were included (Figure 4). Exclusion criteria were: 1. combined or non-exclusive endoscopic endonasal approaches or endoscopy‐assisted procedures; 2. non-tumoral/pseudotumoral lesions; 3. less than 5 reported cases or if it was not possible to determine the extent of tumor removal after EEA for PPF or ITF tumors. Studies involving various surgical procedures or patient populations were included only if sufficient individual data on endoscopic removal of IFT and PPF tumors could be obtained to meet the inclusion criteria. Nonhuman, cadaveric and anatomical, technical, radiological and review studies, as well as papers with insufficient data were excluded. In case of aggregate (not-individual), missing and unreported data, the authors of each eligible study were contacted to obtain additional information.
Data extraction
Data from the included studies were extracted, organized and analyzed using Microsoft Excel 2019 (Microsoft Corp, Redmond, WA, USA).
Results
Cases series
Our series is composed of 100 patients (66 males, 66.0%, mean age was of 43.7 ± 22.1 years). Thirty-five patients (35.0%) were naïve, while 14 (14.0%) had already undergone surgery, 15 (15.0%) surgery followed by radio- and/or chemotherapy, 8 (10.9%) a neo-adjuvant treatment, 1 (1.0%) surgery and embolization, and other 27 (27.0%) JNA had been embolized before surgery (Table 1).
The most common symptom was represented by nasal obstruction (42, 42.0%), followed by recurrent epistaxis (32, 32.0%), diplopia (18, 18.0%), trigeminal neuralgia (16, 16.0%) (Table 1). The majority of tumors were occupying both the PPF and ITF (47, 47.0%), while only 46 and 7 were exclusively located at the PPF or ITF, respectively. Neoplasms were located in the superior interpterygoid zone in 59 cases (59.0%), in the retromaxillary zone in 64 (64.0%), in the inferior interpterygoid in 42 (42.0%), in the temporo-masseteric zone in 29 (29.0%) and in tubo-pharyngeal zone in 30 cases (30.0%). The lesion was limited in the PPF or ITF only in 3 cases (3.0%), in all the others it was extended to the surrounding anatomical regions, as reported in Table 1. The most common histotypes were angiomas or juvenile nasal fibrangiomas (JNA) (36, 36.0%), malignant tumors (8 adenoidocystic carcinoma, 8.0%, and 18 other malignancies, 18.0%), followed by chordomas (14, 14.0%) and meningiomas/solitary fibrous tumors (13, 13.0%) (Table 1, Supplementary Table 1).
GTR of the PPF or ITF portion of the tumor was achieved in 88 patients (88.0%). Complications of the series consisted in 10 (10.0%) cases of de novo V2 hypoesthesia (7 permanent and 3 transient), 3 of postoperative rhinogenic hypoacusia (3.0%), 1 epistaxis (1.0%), 1 pansinusitis (1.0%), 1 permanent hard palate hemi-hypoesthesia (1.0%). An adjuvant treatment with radiation, chemo or immune-therapy was advised in 47 (47%) patients, in two pseudotumors a corticosteroid therapy was suggested after biopsy.
At follow-up (mean 39.9 months ± 46.0), pre-operative diplopia improved or normalized in 11 (61.1%), trigeminal neuralgia in 9 (56.3%), while trigeminal hypoesthesia was unchanged in 7 patients (87.5%) and improved only in one case (12.5%) (Table 2). Epistaxis resolved in all cases, nasal obstruction in 38 (90.5%) and proptosis in 8 (88.9%). Recurrences were observed in 32 cases (32.0%) after a mean of 32.2 ± 34.8, and at follow-up 28 (28.0%) were deceased for tumor progression.
Statistical analysis
At univariate analysis, preoperative factors negatively associated with GTR of the tumor portion located in the PPF and ITF were its extension into the ITF (p:0.03) and the involvement of the inferior interpterygoid (zone 3), temporo-masseteric (zone 4) or tubo-pharyngeal (zone 5) regions (respectively p: 0.04, 0.01 and <0.01) (Table 3). At logistic regression, tumor extension into the temporo-masseteric (zone 4) and the tubo-pharyngeal zone (zone 5) confirmed their negative association with the GTR (p:0.05 and p<0.01) (Table 3).
Systematic review of literature
We identified 23 studies presenting the results of EEA for 415 patients with PPF and/or ITF tumors (Table 4) (1, 4, 14, 32–51). Most of them were located in the PPF (345, 83,1%), while 205 (49.4%) were occupying the ITF. The most common histotype was represented by JNA or hemangiomas (300, 72.3%), followed by 34 (8.2%) schwannomas or other nerve sheet tumors and 13 (3.1%) meningiomas/fibrous dysplasia. Sixty-one (14.7%) cases of nasal/paranasal sinuses malignancies have been reported (16 ACC, 3.9%, and 45, 10.8%, other sinu-nasal malignancies).
The most common symptoms were represented by nasal obstruction (111, 26.7%) and recurrent epistaxis (67, 16.1%), neurological symptoms were mostly constituted by trigeminal hypoesthesia (20, 4.8%).
GTR was achieved in 374 (90.1%) patients. Complications consisted in synechiae (6, 1.4%), sinusitis (3, 0.7%), ICA blow-out (2, 0.5%), transient or permanent trigeminal hypoesthesia (33, 7.9%), eustachian tube dysfunction and rhinogenic hypoacusia (9, 2.2%), trismus (4, 1.0%), Claude Bernard Horner Syndrome (1, 0.2%), dry eye (4, 1.0%), temporary masticatory impairment (3, 0.7%), CN VI palsy (1, 0.2%), transitory epiphora due to naso-lacrimal duct injury (1, 0.2%).
Twenty-four (5.8%) local recurrences have been observed and 26 patients (6.3%) were deceased at follow-up (25, 6.0% for tumor progression).
Discussion
In our large series of 100 cases, we have observed that EEA permits to effectively manage a large number of different PPF and ITF tumors with an excellent GTR (88.0%) and a favorable morbidity rate. Our results have been confirmed by the largest reported series: indeed, in the our review of literature, GTR was achieved in 90.1% of 415 cases, and the complication rate was estimated at 16.0%, with few permanent sequelae or potentially life-threatening events (1, 4, 14, 32–51).
It is interesting to observe that in the early studies in literature, the vast majority of PPF and ITF lesions treated with an EEA were represented by fibrovascular lesions as JNA, which are the 36% in our series (35, 39, 41, 44, 46, 48, 52). These tumors commonly extend into the PPF and/or ITF because of their multilobular shape, invading neural foramina or other skull base fissures from its point of origin in the spheno-palatine foramen or, according to other Authors, at the external opening of the pterygopalatine canal (35, 39, 41, 44, 46, 48, 52). The increasing experience in endoscopic treatment of sinonasal diseases, including loco-regional neoplasms, has brought many surgeons in the ‘00 to resect selected cases of JNA with such approach (35, 39, 41, 44, 46, 48, 52). The contemporary anatomical definition of the prelacrimal or Denker’s corridor to the maxillary sinus and consequently to the PPF and ITF has allowed worldwide surgeons to include more complex and invasive cases of JNA, achieving a tumor resection rate comparable to the open approaches, but with an inferior blood loss, limited cosmetic deformities, quick recovery, minimal morbidity and consequently reduced time of hospitalization (1, 4, 14, 32–53). Thereafter, thanks to the routinary adoption of the 4-hands technique, with the endoscope held by the second surgeon or a mechanical device, various benign and malignant PPF and ITF histotypes have been progressively considered suitable for EEA (1, 4, 5, 14, 32–34, 36–38, 40, 43, 45, 47, 49–51, 54–57). Indeed, the coupling of the microsurgical two-hands tumor removal technique with the dynamic and magnified surgical view of the endoscopic vision can favor the identification of the mass limits and boundaries, facilitating its complete resection (58). Consequently, as reported by Ozawa et al., along the years the number of nasal/paranasal sinuses malignancies treated with this approach has increased, representing, also, a large group of patients in our series (26%) (14). Indeed, EEA has proven to warrant a radical tumor resection with negative margins in a significant number of cases (75% of ACC and 66.7% of the other malignancies in our experience), allowing us to follow tumor infiltration inside the PPF and ITF. Moreover, thanks to the multidisciplinary collaboration between ENT and neurosurgeons, this route has been adopted also for other skull base tumors invading the PPF and ITF (57, 58). Particularly, it can be combined with other endoscopic endonasal corridors, i.e., the transclival corridor, to maximize the e resection of tumors such as chordomas and chondrosarcomas that originate respectively from the clivus or the petro-clival junction and frequently bulkily occupy the PPF and ITF (57). The direct approach given by the EEA allows the surgeon to expose the entire extension of these lesion, improving the chances to achieve a GTR (observed in 92.8% of chordomas and 75% of chondrosarcomas in our experience). Similarly, benign masses such as meningiomas or schwannomas, which can originate directly from the PPF or ITF or extend into these cavities from the surrounding skull base or cranial regions, such as middle or posterior fossa, cavernous sinus or Meckel cave, can be a potential target for the EEA (49, 51, 56, 59). Indeed, this approach gives a sufficient maneuverability to perform a initially bimanual central debulking of these benign lesions, later followed by their progressive cleavage from the surrounding structures, leading to a GTR of 46.1% for the meningiomas and of 100% for the schwannomas of our series. This different outcome can be explained considering the different consistencies of these lesions (usually firmer for meningiomas) and because of the different invasiveness of the surrounding soft and bony structures of these histotypes (49, 51, 56, 59).
One of the main limits of this approach has been represented by the poor control of arterial vessels in this area, mainly the internal maxillary artery and its branches, and the ICA (47). Therefore, for highly vascularized tumors (i.e., JNA, meningiomas, solitary fibrous tumors) the possibility of a preoperative embolization has to be considered to quicken the surgical procedures and reduce the intraoperative blood loss (47, 60). In our experience, we did not find significant difficulties in identifying tumor margins after embolization, which could represent a possible drawback of this procedure. Intraoperatively, we suggest identifying and clipping or ligating as early as possible the internal maxillary artery to reduce the risk of perioperative bleeding. Moreover, peculiar attention should be paid to the anatomical identification and preservation of the ICA, which can be encountered in the resection of large invasive skull base tumors (29, 30). In literature, two (0.5%) cases of ICA blow-out have been reported (1, 32). In our experience the main advice to prevent such complications is to identify its anatomical landmarks (i.e., V3, which lies anteriorly to the petrous tract of the ICA; the vidian nerve, which marks its petro-clival bend; the eustachian tube, which represents a reliable anatomical marker for its parapharyngeal tract with its bony insertion just anterior to the ICA canal) and by the routine adoption of technological devices such as neuronavigation and intraoperative Doppler to localize its course in real time (29, 30, 61).
A further limitation of EEA is represented by a lateral extension of the tumor into the surrounding facial spaces, cervical region, or the petrous bone, which would require an alternative external route or a combination of different complementary surgical approaches (61, 62). Moreover, we found that the classification proposed by Li et al, dividing the PPF and ITF into 5 regions (1:retromaxillary zone; 2: superior interpterygoid zone; 3: inferior interpterygoid; 4: temporo-masseteric zone; 5: tubopharyngeal space, schematically represented in Figure 3) can be helpful to predict the surgical outcome (22). Indeed, we observed that the lesion extension in the temporo-masseteric area or in the tubo-pharyngeal region (including in the upper pharyngeal space) represent the most significant negative prognostic factors for tumor resection (22). The temporo-masseteric zone is very lateral, bound externally by the mandible ramus (30). To reach such tumoral extension, it is of paramount importance to expand as anteriorly as possible the medial maxillectomy, to increase the surgical angle available for the ITF (5). Similarly, the involvement of the tubo-pharyngeal region hampers the surgical resection for the risk of damaging neurovascular and functional structures of the region (5). A possible alternative is represented by the adoption of an anterior transmaxillary approach, as a Caldwell-Luc procedure (ipsilateral or contralateral) to enlarge the exposure of the most lateral or deep tumor extension, however the specific morbidity of this approach should be considered (26). This confirms that the careful pre-operative evaluation of the tumor location and its extension into the PPF or ITF represents the most important factor to determine the complete tumor resection.
One of the main caveats of this approach is represented by the risk of V2 damage, with a permanent or transitory rate of postoperative facial hypoesthesia respectively of 5.5% and 2.4% in literature (30). The early identification of the nerve and its cleavage from the tumor mass, when not infiltrated, can significantly reduce this risk, and also contributing to the control of preoperative trigeminal neuralgia, which was observed in 56.3% of cases in our series (30). However, in case of neural infiltration by a malignant tumor, its sacrifice is mandatory (30).
In this study, we present our 20 years surgical experience, along this long time-span our technique has been progressively implemented, adapting the medial maxillectomy to each case extension, and progressively pushing the edge of envelope toward more challenging benign or malignant tumors. Moreover, we would like to remark that the endoscopic transmaxillary-pterygoid approach to PPF and ITF tumors requires a long training, and some key success factors are represented by surgeons specific experience and skills in endoscopic surgery, by an accurate case selection, and by the possibility of a multidisciplinary collaboration with dedicated ENT, neurosurgeons and other specialties involved in the management of these cases.
The limits of this study are represented by its retrospective design and by the low number of cases enrolled due to the rarity of the neoplasms of these regions. For these reasons, we have decided to include heterogenous histotypes, encompassing benign and malignant tumors. This has allowed us to give the most accurate and real-life description of the state of the art of EEA for PPF and ITF tumors, but, nevertheless, no definite conclusions on the long-term results could be drawn due to the small size of each group of neoplasms. Future studies with larger series could be helpful to determine the surgical outcome and the neurological results of each histotypes after this approach.
Conclusions
After 20 years of experience, we report the effectiveness of the EEA to manage the majority of tumors involving the PPF and ITF. This minimally invasive approach is characterized by a satisfactory rate of tumor removal with a low morbidity, especially in terms of neurological deficits and functional sequelae, however it requires a long experience in endoscopic surgery.
In our study, the factors negatively associated with a complete tumor removal were the lateral extension of the tumor in the temporo-masseteric area or its involvement of the tubo-pharyngeal space. At the same time, the tumor’s more lateral or more inferior expansion into the facial or cervical spaces or the involvement of the petrous bone should be considered as the most significant limits of this approach.
Therefore, an accurate preoperative surgical planning, considering the tumor location and its extension, the multidisciplinary collaboration and the specific training in endoscopic skull base surgery, represent the most relevant key success factors for this approach.
