GRAPEVNE - Graphical Analytical Pipeline Development Environment for Infectious Diseases

TL;DR

GRAPEVNE is a user-friendly platform for building and managing complex data analysis workflows to improve infectious disease research and public health decision-making.

Contribution

GRAPEVNE introduces a modular, open-source platform with a graphical interface for streamlining infectious disease data analysis workflows.

Findings

GRAPEVNE supports genomic analysis, epidemiological modeling, and large-scale data processing through modular workflows.

The platform enables local, reproducible analysis without cross-border data sharing.

A dengue virus pipeline demonstrates end-to-end automation from sequence retrieval to phylogeographic inference.

Abstract

The increase in volume and diversity of relevant data on infectious diseases and their drivers provides opportunities to generate new scientific insights that can support ‘real-time’ decision-making in public health across outbreak contexts and enhance pandemic preparedness. However, utilising the wide array of clinical, genomic, epidemiological, and spatial data collected globally is difficult due to differences in data preprocessing, data science capacity, and access to hardware and cloud resources. To facilitate large-scale and routine analyses of infectious disease data at the local level (i.e. without sharing data across borders), we developed GRAPEVNE (Graphical Analytical Pipeline Development Environment), a platform enabling the construction of modular pipelines designed for complex and repetitive data analysis workflows through an intuitive graphical interface.

Built on the
Snakemake workflow management system, GRAPEVNE streamlines the creation, execution, and sharing of analytical pipelines. Its modular approach already supports a diverse range of scientific applications, including genomic analysis, epidemiological modeling, and large-scale data processing. Each module in GRAPEVNE is a self-contained Snakemake workflow, complete with configurations, scripts, and metadata, enabling interoperability. The platform’s open-source nature ensures ongoing community-driven development and scalability. GRAPEVNE empowers researchers and public health institutions by simplifying complex analytical workflows, fostering data-driven discovery, and enhancing reproducibility in computational research. Its user-driven ecosystem encourages continuous innovation in biomedical and epidemiological research but is applicable beyond that.

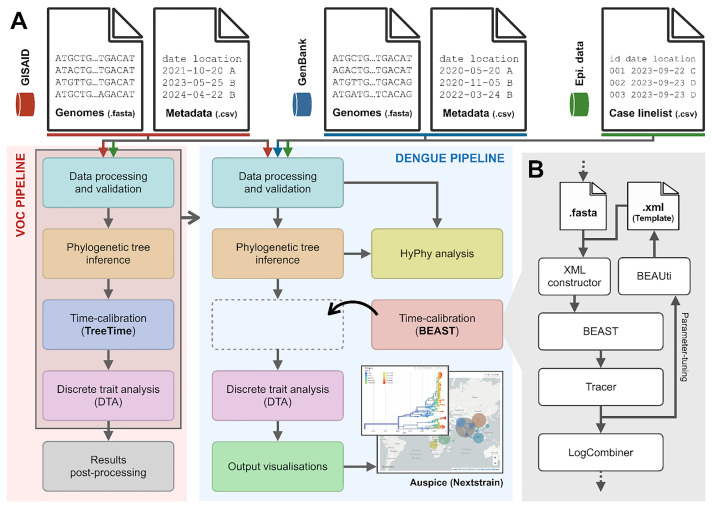

Key use-cases include automated phylogenetic analysis of viral sequences, real-time outbreak monitoring, forecasting, and epidemiological data processing. For instance, our dengue virus pipeline demonstrates end-to-end automation from sequence retrieval to phylogeographic inference, leveraging established bioinformatics tools which can be deployed to any geographical context. For more details, see documentation at:
https://grapevne.readthedocs.io

With the growing amount of data on infectious diseases, researchers have new opportunities to improve public health decisions and pandemic preparedness. However, analyzing this vast and diverse data—spanning clinical records, genomic sequences, epidemiological trends, and geographic information—can be challenging due to differences in data processing methods, technical expertise, and access to computing resources.

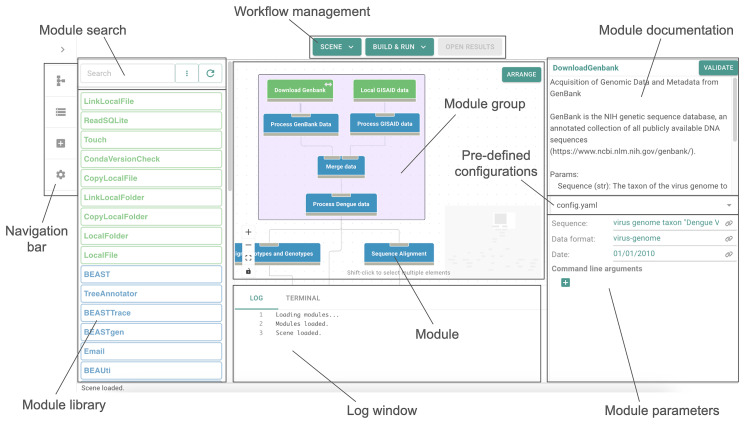

To address these challenges, we developed GRAPEVNE, a user-friendly platform that helps researchers build and manage complex data analysis workflows using a visual interface. Built on the Snakemake workflow management system, GRAPEVNE simplifies the process of organizing and running large-scale studies, making it easier to track outbreaks, analyze disease patterns, and process health data efficiently. Its modular approach allows users to customize workflows based on their specific needs, ensuring flexibility and ease of use.

As an open-source platform, GRAPEVNE fosters collaboration and rolling development, supporting a wide range of applications, including genomic analysis, epidemiological modeling, and outbreak monitoring. Researchers can use it for tasks such as studying viral evolution, predicting disease spread, and processing epidemiological data across different geographical contexts. By streamlining data analysis, GRAPEVNE empowers public health institutions and researchers to make data-driven decisions more effectively.

For more details, visit:
https://grapevne.readthedocs.io.

Figures
