An Integrated Framework for Automated Image Segmentation and Personalized Wall Stress Estimation of Abdominal Aortic Aneurysms

TL;DR

This paper introduces an automated system for analyzing abdominal aortic aneurysms using AI and biomechanical modeling to improve clinical decision-making.

Contribution

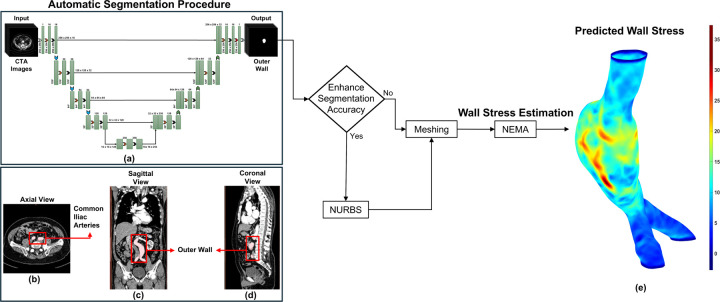

A novel framework combining deep learning, NURBS, and NEMA for automated AAA segmentation and wall stress estimation.

Findings

A patch-based dilated modified U-Net model segments AAA outer walls efficiently.

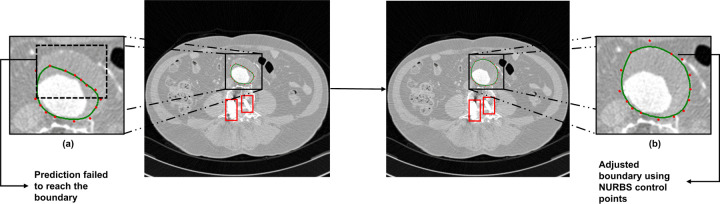

NURBS refines segmentation accuracy, and NEMA estimates wall stress biomechanically.

The system processes images in 0.02 milliseconds per frame, offering rapid clinical insights.

Abstract

Abdominal Aortic Aneurysm (AAA) remains a significant public health challenge, with an 82.1% increase in related fatalities from 1990 to 2019. In the United States alone, AAA complications resulted in an estimated 13,640 deaths between 2018 and 2021. In clinical practice, computed tomography angiography (CTA) is the primary imaging modality for monitoring and pre-surgical planning of AAA patients. CTA provides high-resolution vascular imaging, enabling detailed assessments of aneurysm morphology and informing critical clinical decisions. However, manual segmentation of CTA images is labor intensive and time consuming, underscoring the need for automated segmentation algorithms, particularly when feature extraction from clinical images can inform treatment decisions. We propose a framework to automatically segment the outer wall of the abdominal aorta from CTA images and estimate AAA wall stress. Our approach employs a patch-based dilated modified U-Net model to accurately delineate the outer wall boundary of AAAs and and Nonlinear Elastic Membrane Analysis (NEMA) to estimate their wall stress. We further integrate Non-Uniform Rational B-Splines (NURBS) to refine the segmentation. During prediction, our deep learning architecture requires 17 ° 0.02 milliseconds per frame to generate the final segmented output. The latter is used to provide critical insight into the biomechanical state of stress of an AAA. This modeling strategy merges advanced deep learning architecture, the precision of NURBS, and the advantages of NEMA to deliver a robust, accurate, and efficient method for computational analysis of AAAs.
