An ultrasound-scanning in vivo light source
Shan Jiang, Marigold G. Malinao, Fan Yang, Yushun Zeng, Silky S. Hou, Xiang Wu, Nicholas J. Rommelfanger, Lata Chaunsali, Jun Ding, Xiaoke Chen, Qifa Zhou, Harald Sontheimer, Guosong Hong
TL;DR
This paper introduces a non-invasive method using ultrasound to generate light deep inside the body for precise biological control.
Contribution
A novel in vivo light source using ultrasound-scanning mechanoluminescent nanotransducers for dynamic deep-tissue optical interfacing.
Findings
The approach enables programmable light patterning in tissue-mimicking phantoms and animal circulatory systems.
The system allows dynamic 3D brain targeting and behavioral control in freely moving animals.
Functionality was validated through electrophysiological recordings and immunostaining in opsin-expressing neurons.
Abstract
Biological systems operate across distributed regions with fast, localized dynamics, yet existing biointerfaces fail short in providing both high spatiotemporal precision and the ability to dynamically target any region without disturbing surrounding tissue. Here, we present an in vivo deep-tissue light source based on focused ultrasound (FUS) scanning of mechanoluminescent nanotransducers (MLNTs) circulating through the vasculature. We demonstrate the programmability of this approach in tissue-mimicking phantoms and the endogenous circulatory system of animals, where tunable spatial resolution and dynamic light patterning can be achieved. We validate the functionality of the ultrasound-scanning light source in opsin-expressing neurons through electrophysiological recordings and immunostaining. We showcase dynamic three-dimensional brain targeting and temporally resolved behavioral…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

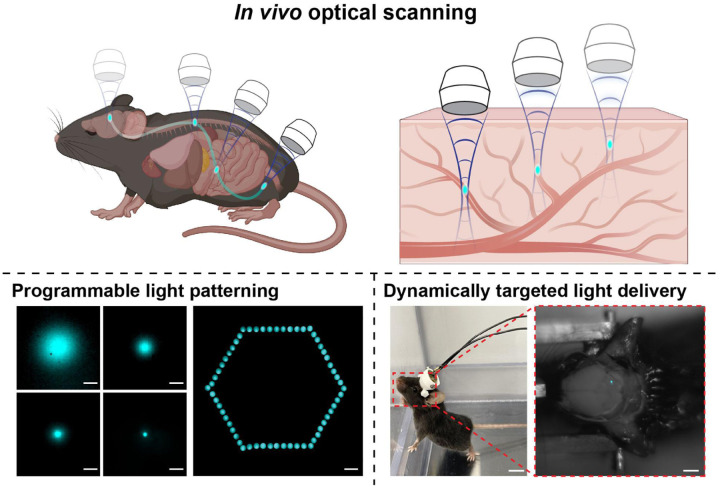

Figure 1

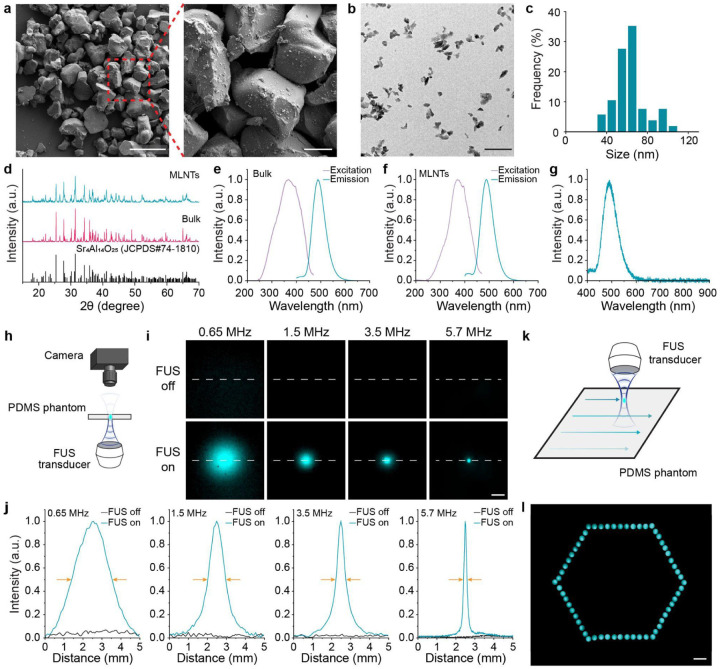

Figure 2

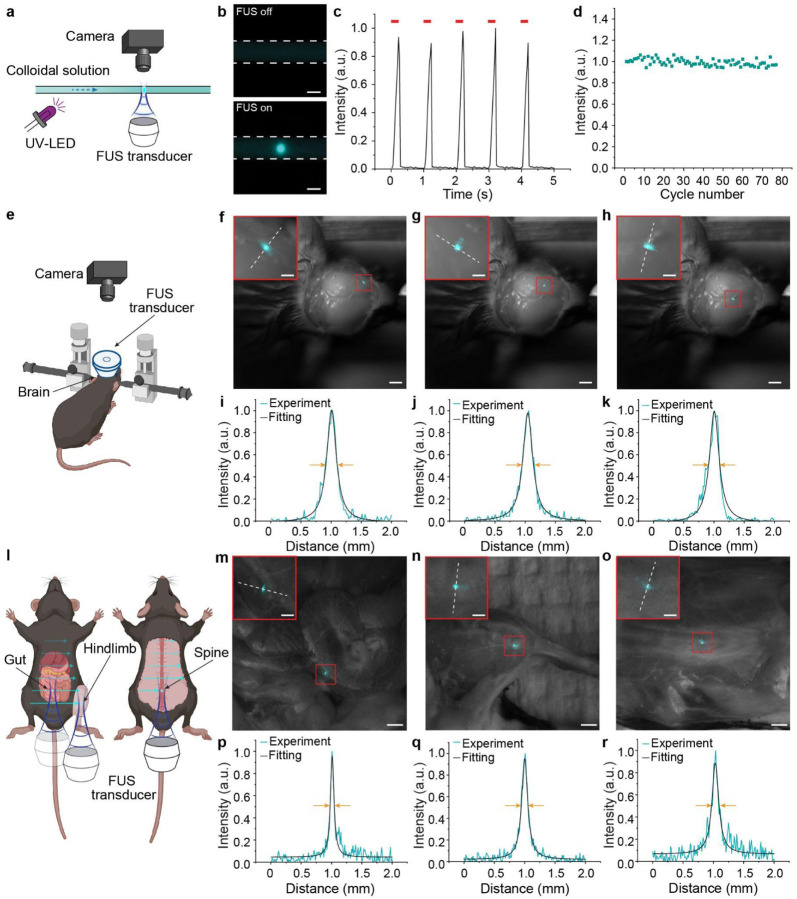

Figure 3

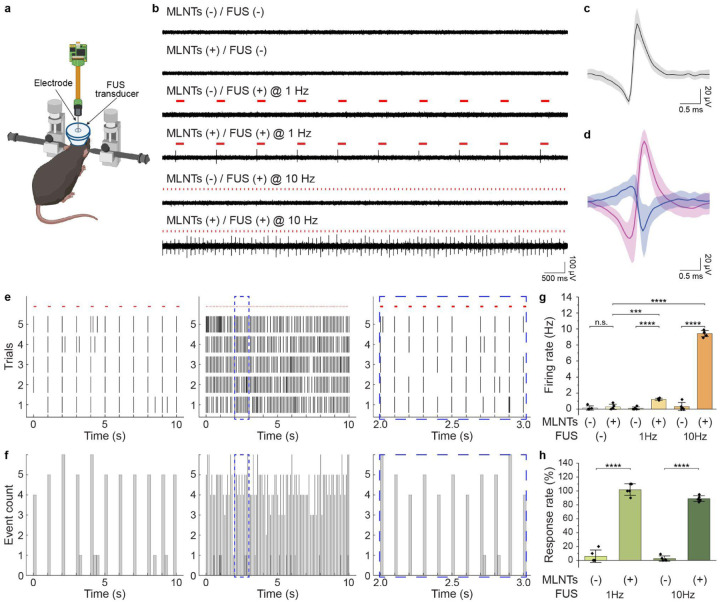

Figure 4

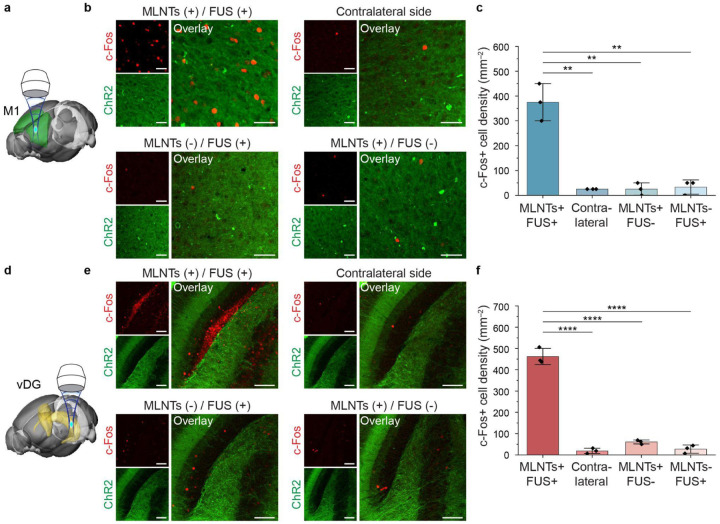

Figure 5

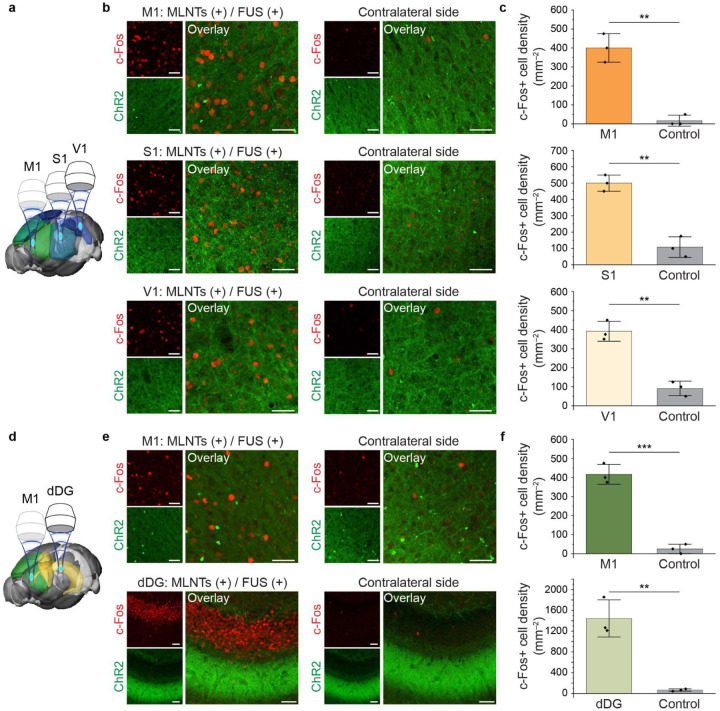

Figure 6

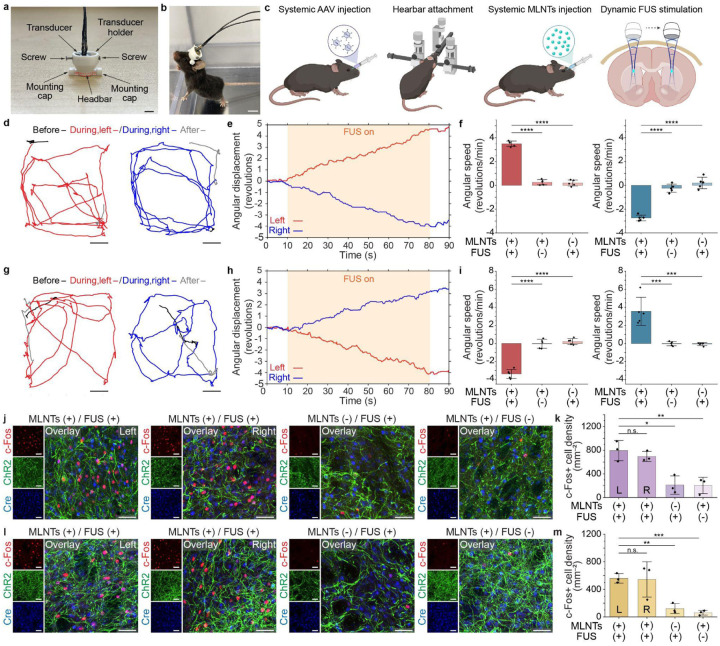

Figure 7

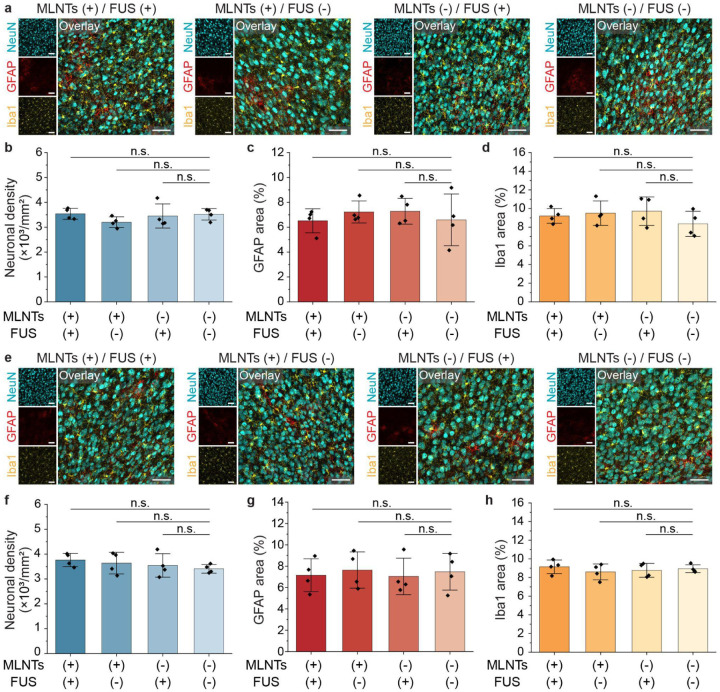

Figure 8Peer Reviews
