Transcatheter PDA recanalization and interatrial septal stenting as a bridge to arterial switch operation in a late-presenting infant with D-transposition of the great arteries
Revan Satrio, Priyandini Wulandari, Hiradipta Ardining, Brian Mendel, Indriwanto Sakidjan Atmosudigdo, Radityo Prakoso, Bambang Widyantoro
TL;DR
A late-presenting infant with a heart defect was successfully treated with a minimally invasive procedure to improve oxygen levels before surgery.
Contribution
A novel bridging strategy using transcatheter PDA recanalization and interatrial septal stenting is proposed for late-presenting d-TGA/IVS patients.
Findings
Transcatheter PDA recanalization improved oxygen saturation from 33% to 56%.
Interatrial septal stenting further increased oxygen saturation to 85%.
The patient was successfully bridged to arterial switch operation after two months.
Abstract
Dextro-transposition of the great arteries with intact ventricular septum (d-TGA/IVS) requires early arterial switch operation (ASO) to preserve left ventricular function, but delayed presentations complicate outcomes due to LV regression and hypoxemia. Alternative bridging strategies are essential for late-presenting patients to improve surgical feasibility. We present a six-month-old male patient with dextrocardia, situs inversus, d-TGA/IVS who experienced persistent cyanosis despite prior balloon atrial septostomy (BAS). On admission, the patient exhibited severe hypoxemia (SpO₂ 33%), metabolic acidosis, and LV regression (LV mass index: 36–41 g/m2). Echocardiography confirmed a restrictive atrial septal defect (3.5 mm) and the absence of a patent ductus arteriosus (PDA). Given the prohibitive risk of immediate ASO, an emergency transcatheter intervention was performed. PDA…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsCongenital Heart Disease Studies · Cardiac Arrhythmias and Treatments · Mechanical Circulatory Support Devices
Introduction
Dextro-transposition of the great arteries with intact ventricular septum (d-TGA/IVS) is a life-threatening congenital heart defect, with an estimated prevalence of 4,000 live births per year [1]. The arterial switch operation (ASO) is the preferred corrective procedure, optimally performed within the first two weeks to one month of life [2]. After one month, the LV undergoes involution, making it unsuitable for ASO due to insufficient systemic pressure capacity [1, 2].
Despite this critical time frame, access to ASO is often limited, resulting in many patients presenting late in our country. Late presenters (aged > 1 month) are at risk of LV dysfunction, severe hypoxemia, and cyanosis, all of which compromise ASO outcomes [3, 4]. Early palliative surgical interventions such as modified Blalock–Taussig shunt (BTS) or pulmonary artery (PA) banding remain challenging in our setting, primarily due to limited infrastructure and the lack of a cardiac surgeon available to perform these procedures [5].
Transcatheter approaches have emerged as promising alternatives. Unlike cardiac surgery, which is concentrated in specialized centers, cath labs are more widely available, expanding access to non-surgical interventions [5, 6]. PDA stenting, combined with balloon pre-dilation, has been successfully performed as a bridging strategy. However, in d-TGA/IVS cases without a PDA, PDA recanalization offers a novel approach to reestablishing systemic-to-pulmonary circulation [6, 7]. We report a case of a late-presenting d-TGA/IVS patient who underwent emergent PDA recanalization and stenting, followed by IAS stenting, as a life-saving bridge to elective ASO.
Case report
A 6-month-old, 5.9-kg male infant was admitted to our outpatient clinic with persistent cyanosis since birth, exacerbated by crying. At the previous hospital, he was diagnosed postnatally with D-TGA/IVS. Due to the scarcity of the cardiologist, Rashkind procedure was not performed and was delayed until the age of 2 months. He was only referred to our center at 6 months of age due to delays caused by the lengthy queue in the tiered referral system. Antenatal history revealed that the patient’s mother, a 34-year-old woman, had undergone routine antenatal visits. There was a history of one miscarriage. The infant was delivered at term via Cesarean section due to prolonged labor, with a birth weight of 3400 g. Although the baby cried immediately after birth, cyanosis was noted, leading to NICU admission.
On admission, the heart rate was 151 bpm, respiratory rate of 35 breaths per minute, and peripheral oxygen saturation of 33%. Cardiac auscultation revealed a single accentuated second heart sound at the right upper parasternal area without murmurs. Echocardiographic findings included dextrocardia, situs inversus, D-TGA/IVS, post-BAS Atrial Septal Defect (ASD) measuring 3.5 mm, no Patent Ductus Arteriosus (PDA), Left Ventricular Mass Index (LVMI) of 36–41 g/m2, and a D-shaped left ventricle, suggesting right ventricular pressure exceeded left ventricular pressure (Fig. 1a). During observation, an episode of symptomatic bradycardia occurred, necessitating full resuscitation and mechanical ventilation. Blood gas analysis revealed metabolic acidosis with a lactate level of 5.4 mmol/L. Given the high surgical risk, emergency PDA recanalization with stenting was planned.Fig. 1. Ductal Recanalization and IAS Stenting in d-TGA/IVS. (a) Echocardiography showed an LVMI of 36–41 g/m2 and a D-shaped left ventricle, indicating higher right ventricular pressure. (b) Angiography revealed a completely occluded PDA with no pulmonary artery flow. (c) A V-18″ wire was successfully advanced into the right pulmonary artery. (d) A 3.0 × 15 mm Emerge balloon was inflated at 12 atm for 5 s. (e) A 4.0 × 16 mm Promus Premier stent was deployed at 16 atm, flared at 18 atm. (f) Post-procedure angiography confirmed proper stent placement with restored flow. (g, h) A 10.0 × 29 mm Omnilink Elite stent was deployed in the interatrial septum at 14 atm for 5 s
During procedure, right femoral arterial access was obtained using a 4/5F slender sheath, and an initial dose of intravenous (IV) heparin (350 IU) was administered intra-sheath. A 3.5/4F internal mammary artery (LIMA) catheter was advanced into the descending aorta (AoD), and selective angiography revealed a minute PDA stump with no contrast flow into the pulmonary artery (PA), indicating total occlusion from the mid-PDA (Fig. 1b). A stepwise recanalization approach was employed. Initial attempts with a 0.014″ Fielder XT wire failed to cross the occluded PDA. A 0.014″ ASAHI Gaia Second wire successfully crossed into the PA but recoiled back into the aortic arch (AoA) upon catheter advancement. Subsequently, a V-18″ wire was directed into the PDA and successfully advanced into the right pulmonary artery (RPA), yet catheter progression remained challenging (Fig. 1c). Reattempting with the ASAHI Gaia Second 0.014″ CTO wire enabled successful wire passage into the PA and left ventricle (LV), allowing for the exchange of the diagnostic catheter for a 3.5/5F JR guiding catheter.

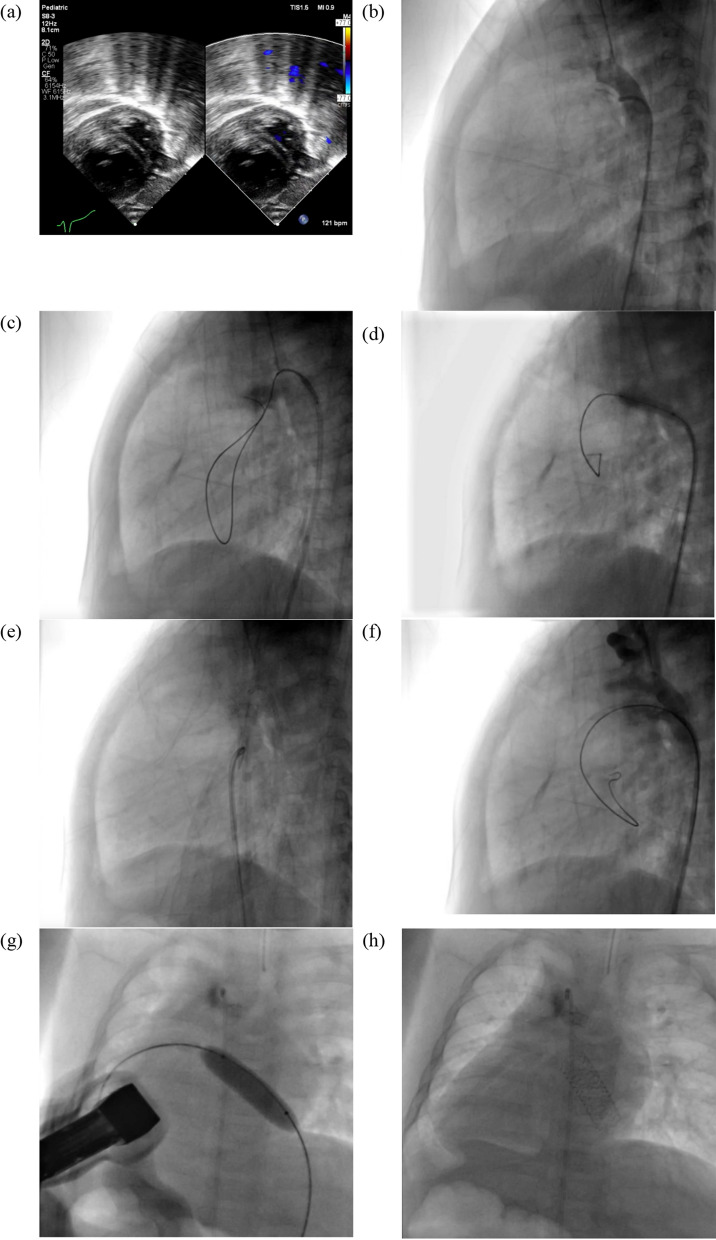

Balloon angioplasty was performed using a 2.5 mm × 15 mm SAPPHIRE II balloon at 12 atm; however, the balloon ruptured due to overinflation and was removed. A subsequent 3.0 mm × 15 mm Emerge balloon was inflated at 12 atm for 5 s (Fig. 1d), followed by successful deployment of a 4.0 mm × 16 mm Promus Premier stent at 16 atm (Fig. 1e) with a flare technique at 18 atm. Post-procedure angiography confirmed adequate stent positioning with contrast flow into the PA (Fig. 1f). Oxygen saturation improved from 33 to 56%. However, this remained insufficient for a duct-dependent mixing lesion, where a minimum saturation of 75% is required.
