The Impact of Humidity in the Thermal Ageing of Celluloid: An Inter-Scale Investigation

TL;DR

This paper studies how different humidity levels affect the aging of celluloid, showing that higher humidity speeds up degradation and causes visible and molecular changes.

Contribution

The study provides a multi-scale analysis of celluloid degradation under varying humidity, linking macroscopic and molecular changes.

Findings

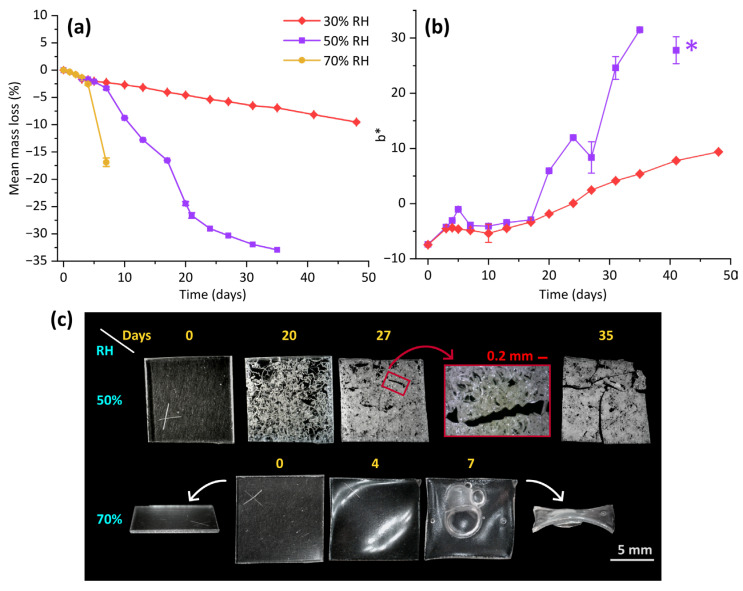

Higher humidity levels (70%) cause faster deformation and bubble formation in celluloid samples.

At 50% humidity, significant molecular changes and cracking occur, linked to denitration and oxidation.

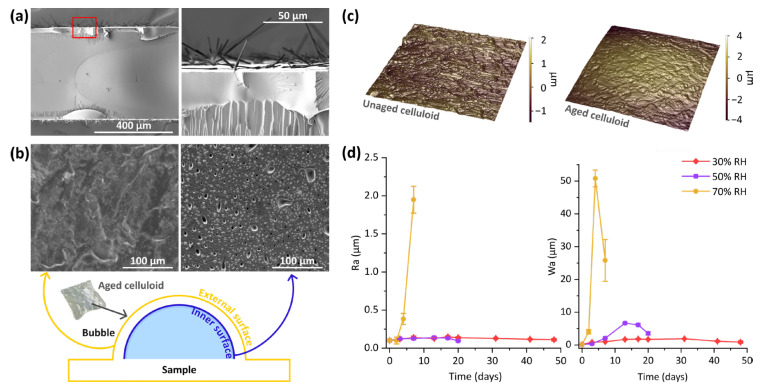

Macroscopic effects like yellowing and surface roughening correlate with microscopic degradation processes.

Abstract

The role of humidity on the ageing of celluloid is investigated by performing accelerated ageing tests on mock-up samples. At 70 °C, three levels of relative humidity (RH) are selected: 30%, 50%, and 70%. Samples are monitored for the macro- and micro- changes occurring through ageing to relate the visible modifications to the molecular ones. Infrared and Raman spectroscopy, microscopy, mass and contact angle measurements, profilometry, and colourimetry are combined for this purpose. While the ageing test at 30% RH results in a slight embrittlement of the samples and small spectral changes, the one at 50% RH induces significant modifications at the molecular level and the formation of cracks, while the one at 70% RH causes a fast deformation of the samples and the development of bubbles. Although quite diverse, such results prove to be related to the same chemical processes: denitration, chain scission, and oxidation. These occur more promptly or extensively based on humidity level, resulting in different outcomes. Beyond morphology and brittleness, macroscopic effects also involve mass loss, surface roughening, and yellowing. A possible correlation between the macro and micro modifications is present, highlighting the influence humidity has on the degradation process of celluloid.

Figures
