Non-Destructive Integrity Assessment of Austenitic Stainless-Steel Membranes via Magnetic Property Measurements
Haeng Sung Heo, Jinheung Park, Jehyun You, Shin Hyung Rhee, Myoung-Gyu Lee
TL;DR
This paper introduces a new non-destructive method to assess the structural integrity of LNG carrier membranes using magnetic property measurements.
Contribution
A novel non-destructive inspection method using magnetic permeability to detect damage in austenitic stainless steel membranes.
Findings
Strain-induced martensitic transformation in SUS304L increases magnetic permeability, measurable via a Feritscope.

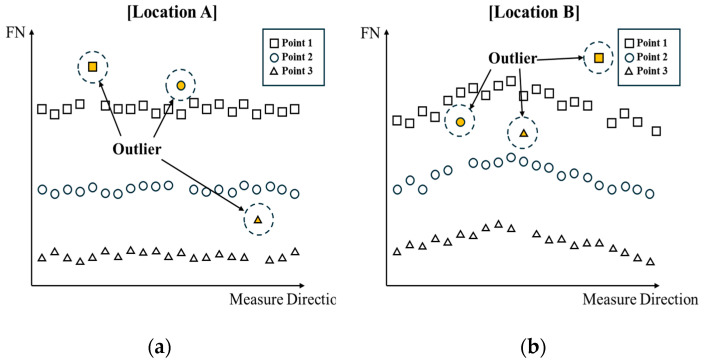

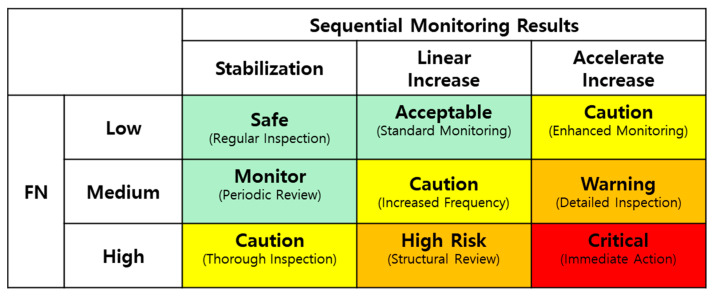

Three Feritscope-based approaches were developed for evaluating membrane health: outlier detection, damaged area analysis, and time-series analysis.

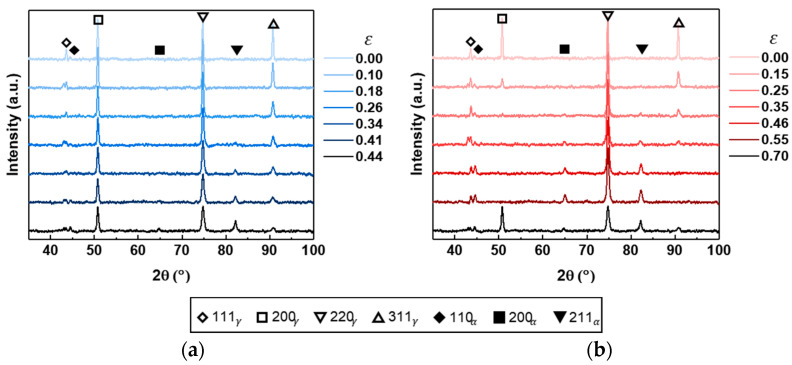

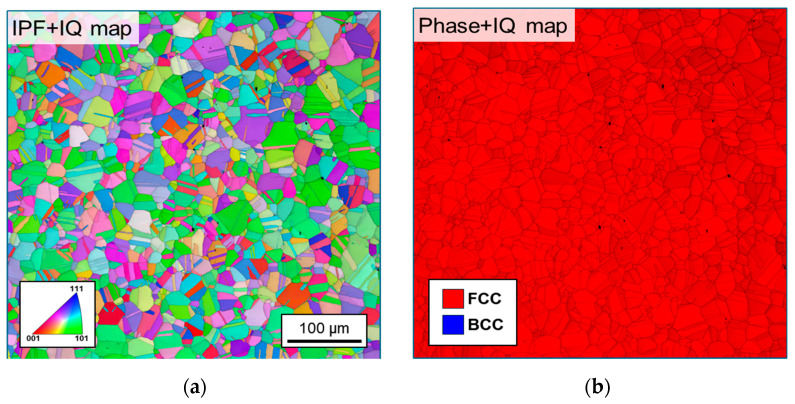

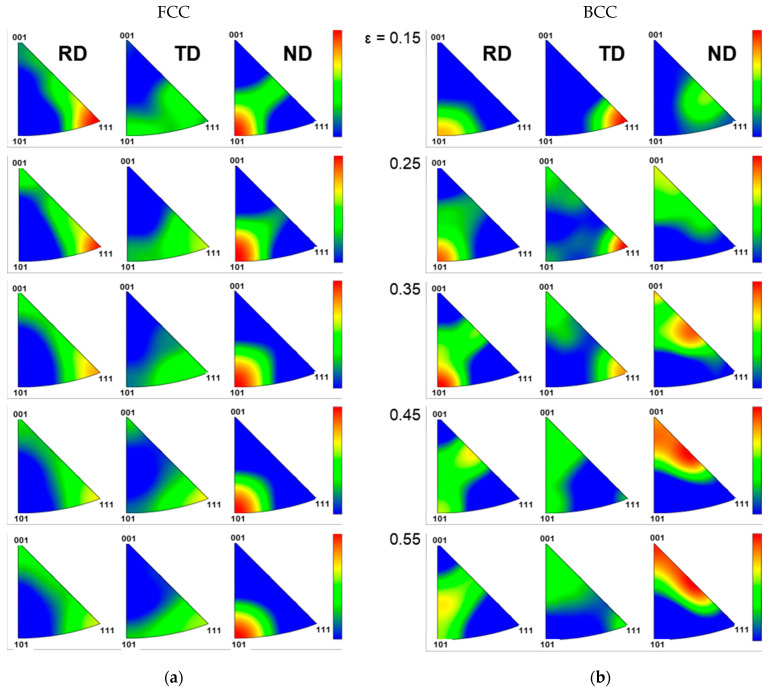

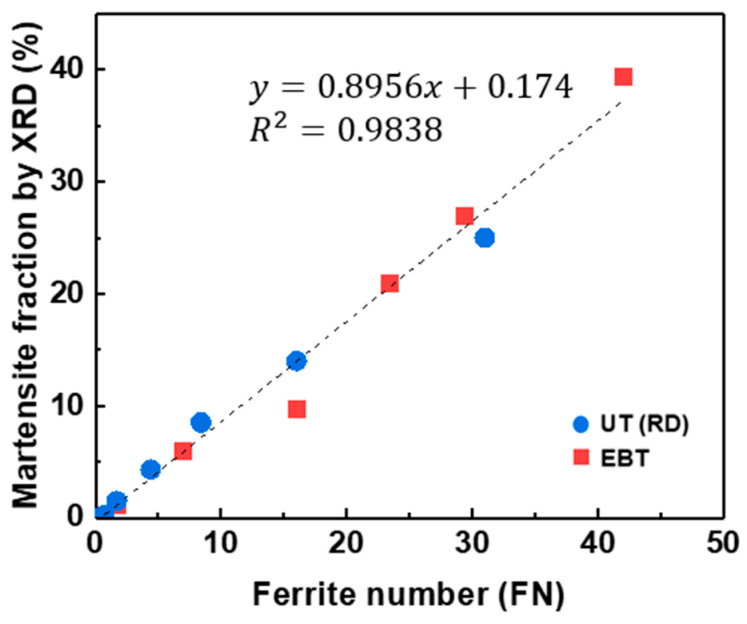

XRD and EBSD confirmed a correlation between plastic strain and martensite volume fraction, validating the Feritscope measurements.
Abstract

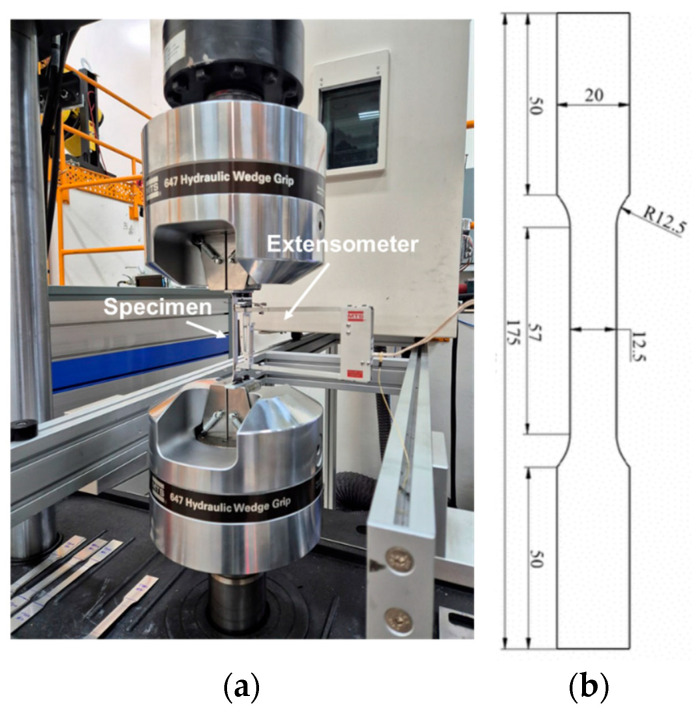

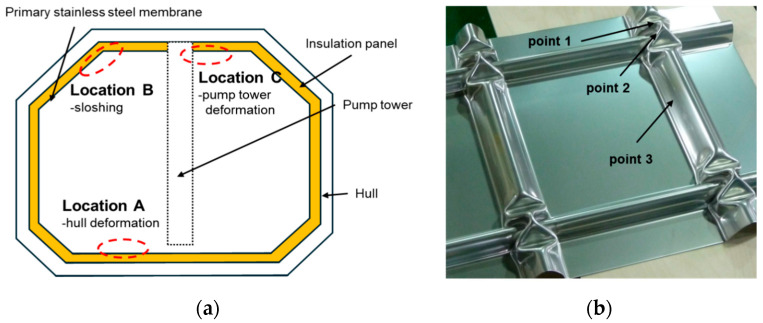

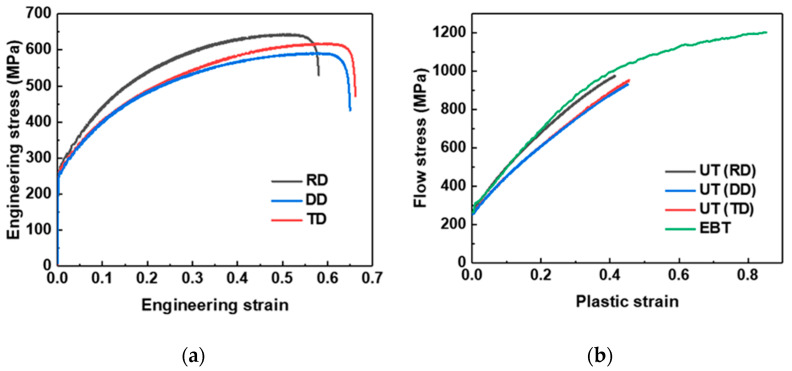

This study proposes a novel non-destructive methodology for assessing structural integrity in liquefied natural gas (LNG) carrier cargo containment systems (CCSs), addressing limitations of conventional inspection techniques like visual inspection and vacuum box testing. The method leverages strain-induced martensitic transformation (SIMT) in austenitic stainless steel (SUS304L), widely used in CCS membranes, quantifying magnetic permeability increase via a Feritscope to evaluate deformation history and damage. To analyze SUS304L SIMT behavior, uniaxial tensile (UT) and equi-biaxial tensile (EBT) tests were conducted, as these stress states predominate in CCS membranes. Microstructural evolution was examined using X-ray diffraction (XRD) and electron backscatter diffraction (EBSD), allowing a quantitative assessment of the transformed martensite volume fraction versus plastic strain.…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

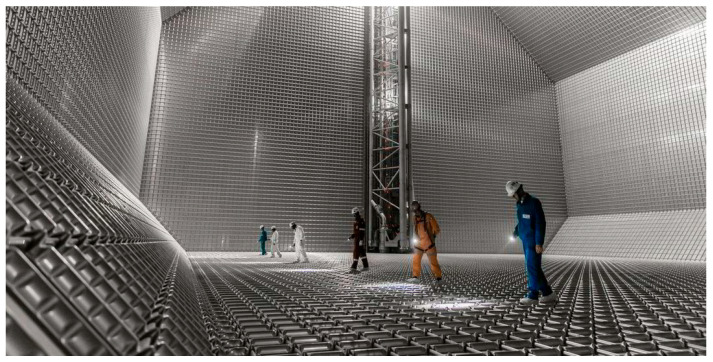

Figure 1

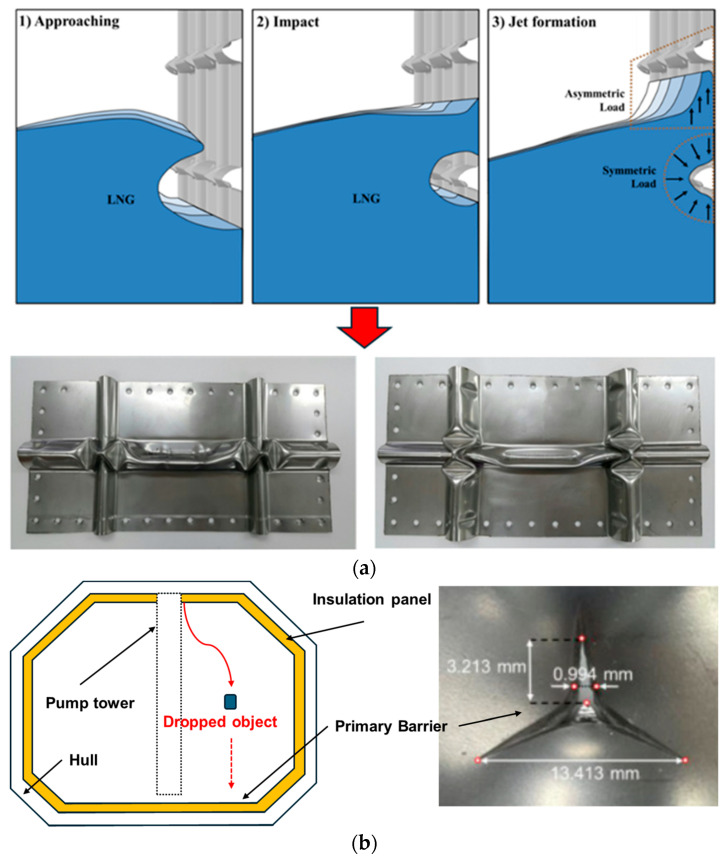

Figure 2
Figure 3

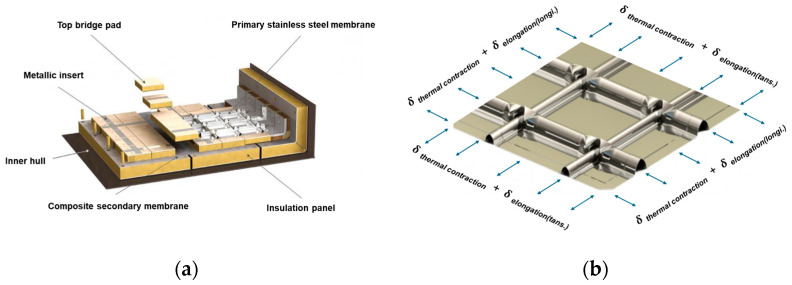

Figure 4
Figure 5

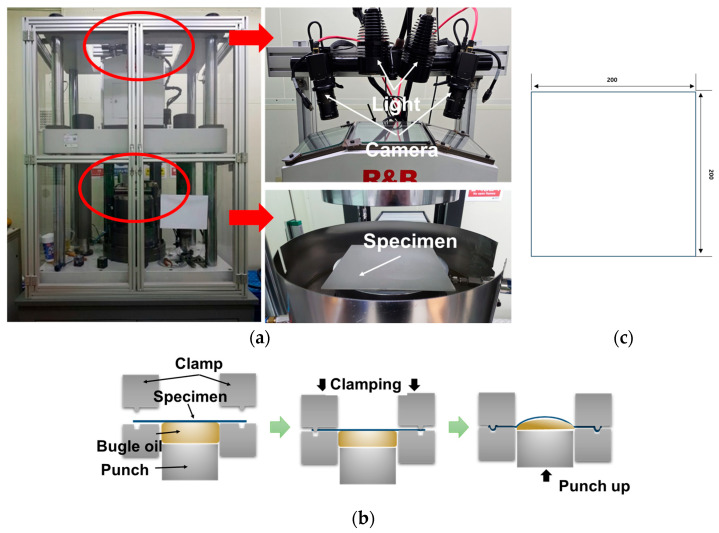

Figure 6
Figure 7
Figure 8

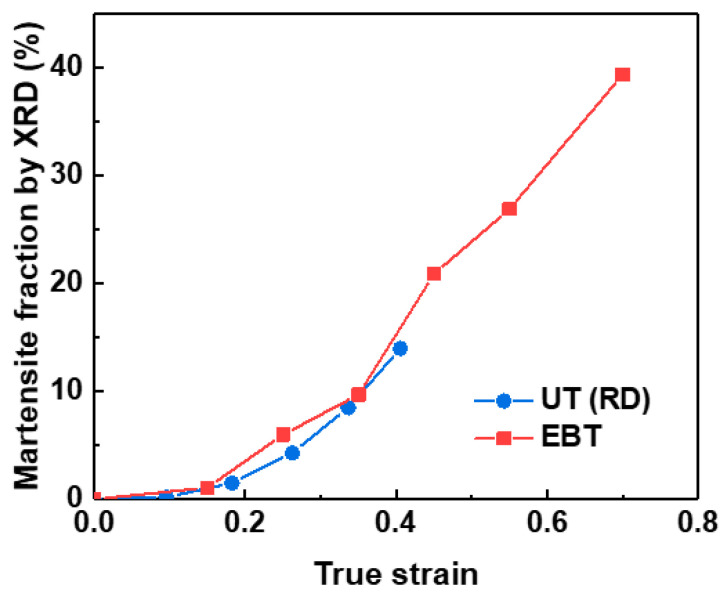

Figure 9
Figure 10

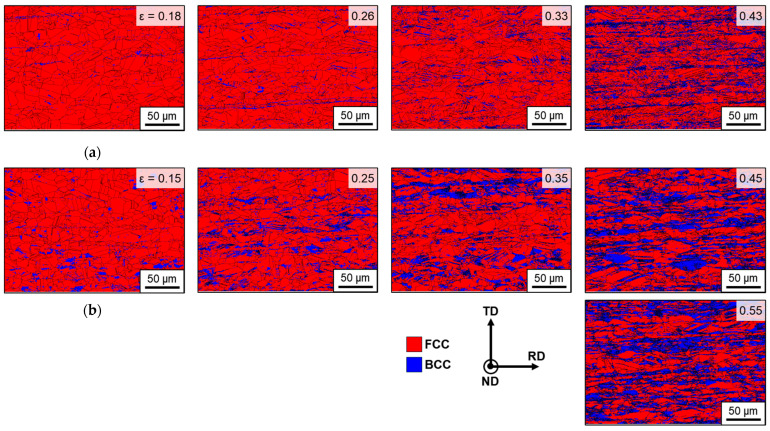

Figure 11

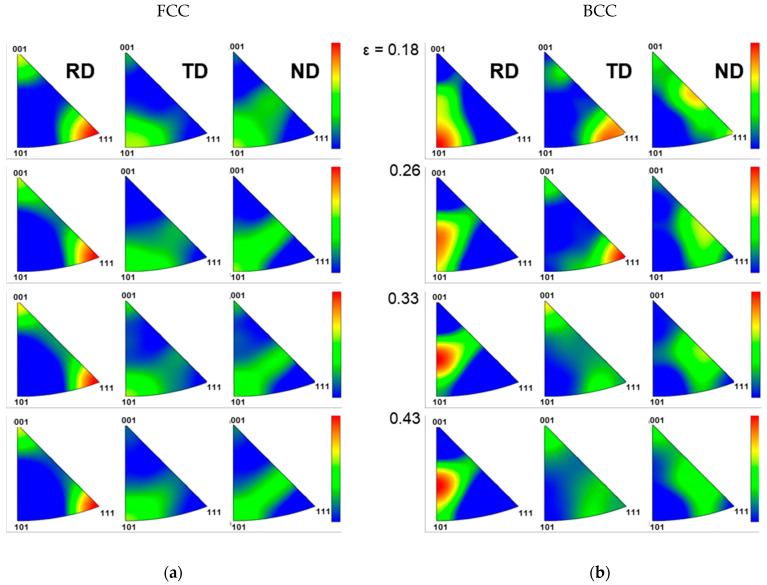

Figure 12
Figure 13

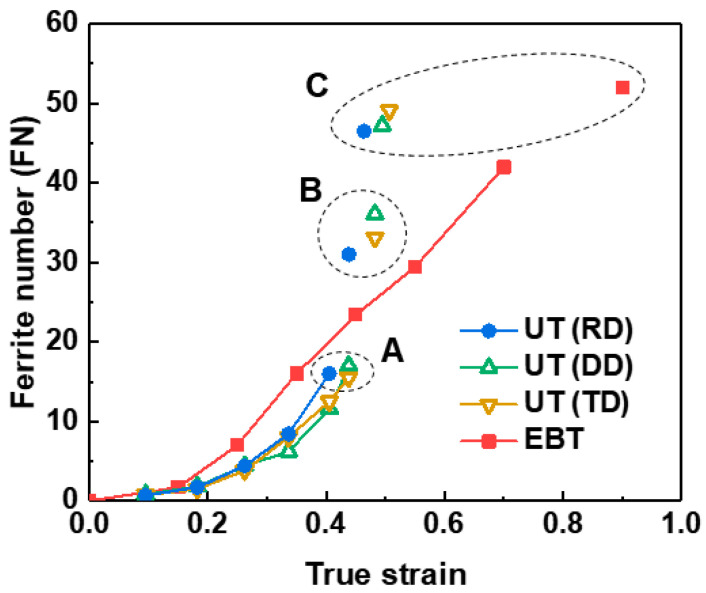

Figure 14
Figure 15
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20
Figure 21Peer Reviews
