Formability Limits in Square Tubes and L-Section Profiles
Inês M. Almeida, João P. G. Magrinho, Maria Beatriz Silva
TL;DR
This paper studies how square tubes and L-section profiles deform and break during manufacturing, offering new methods to improve their design and performance.
Contribution
A novel methodology combining DIC with time-dependent analysis and thickness measurements is introduced to assess formability limits.
Findings
Geometry significantly influences fracture mechanisms in square tubes and L-section profiles.
Forming limit points and fracture lines were determined for different strain paths leading to failure.
The approach provides data to optimize tube-forming processes for lightweight structural components.
Abstract
Understanding the formability limits of thin-walled tubes with square cross-sections and L-section profiles is crucial for improving manufacturing efficiency and ensuring structural reliability in industries such as automotive and aerospace. Unlike the usually studied circular tubes, square tubes and L-section profiles geometries present unique deformation and fracture behaviours that require specific analysis. To address this gap, this research establishes a novel methodology combining digital image correlation (DIC) with a time-dependent approach and precise thickness measurements, enabling accurate strain measurements essential to the onset of necking and fracture strain identification. Two experimental tests under different forming conditions allowed capturing a distinct range of strain paths leading to failure. This approach allowed the determination of the forming limit points…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

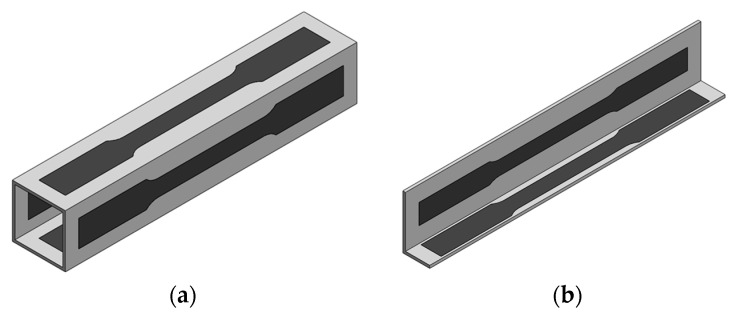

Figure 1

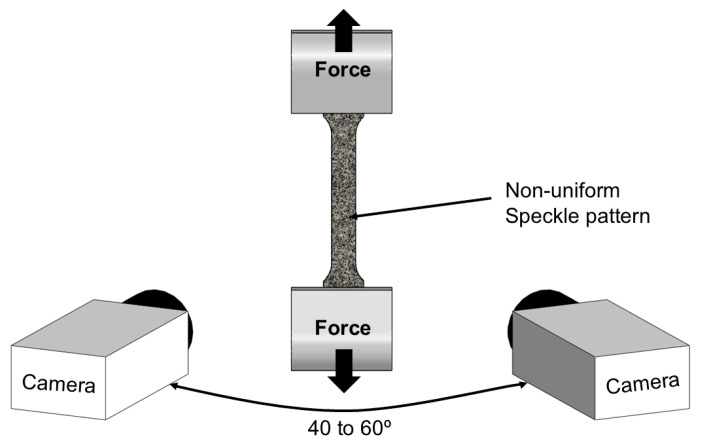

Figure 2

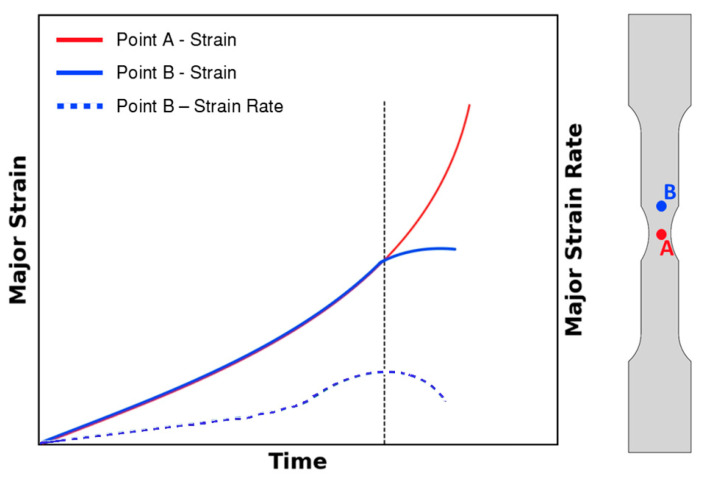

Figure 3

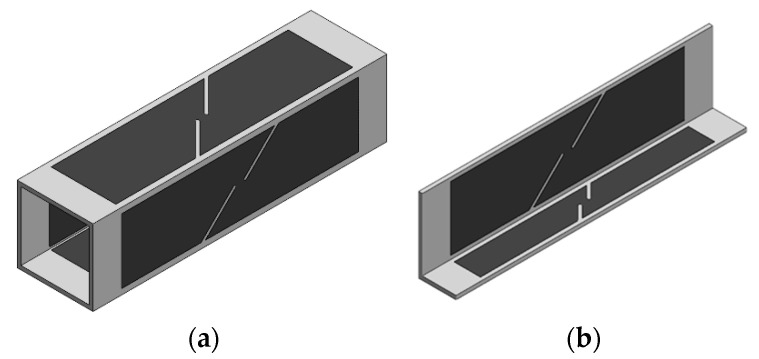

Figure 4

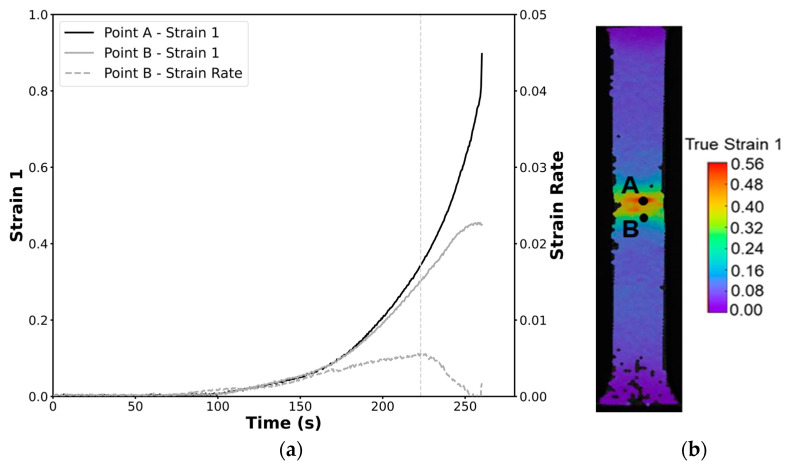

Figure 5

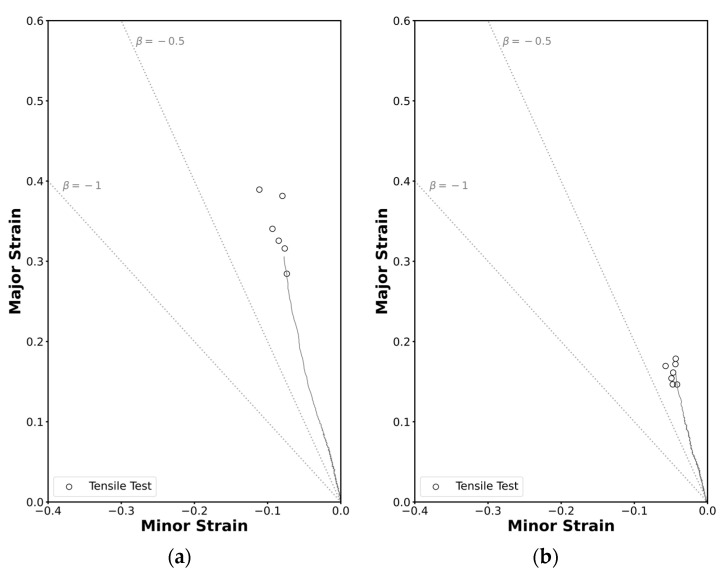

Figure 6

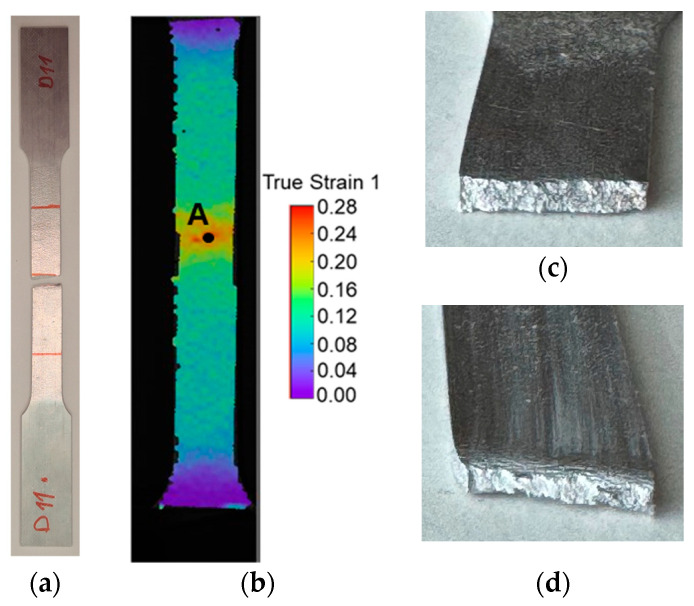

Figure 7

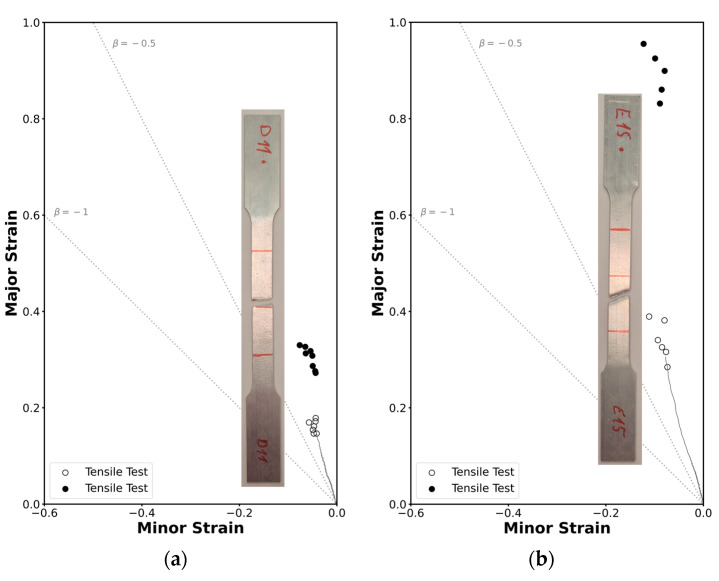

Figure 8

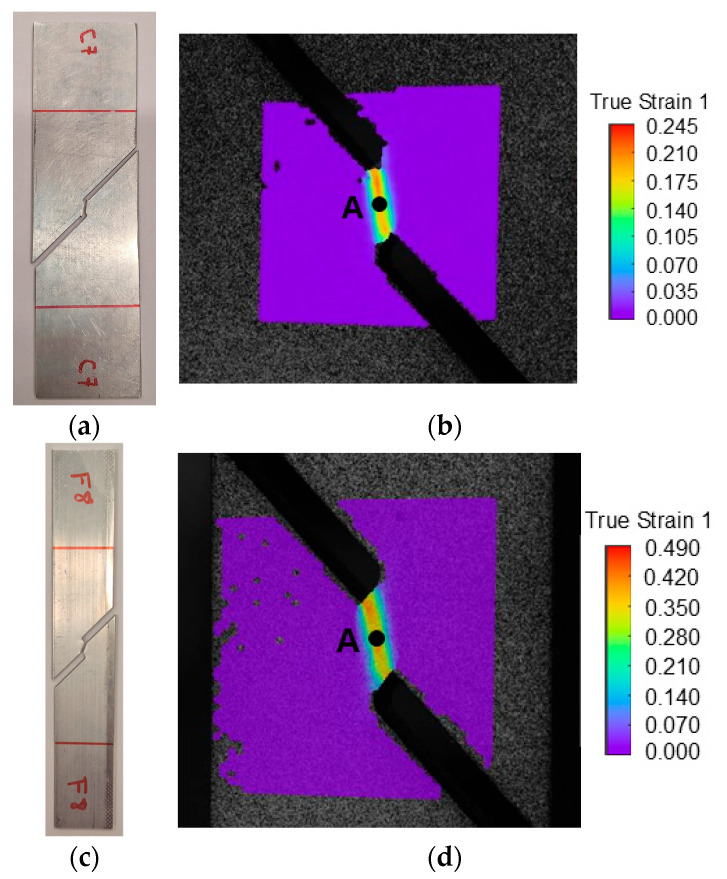

Figure 9

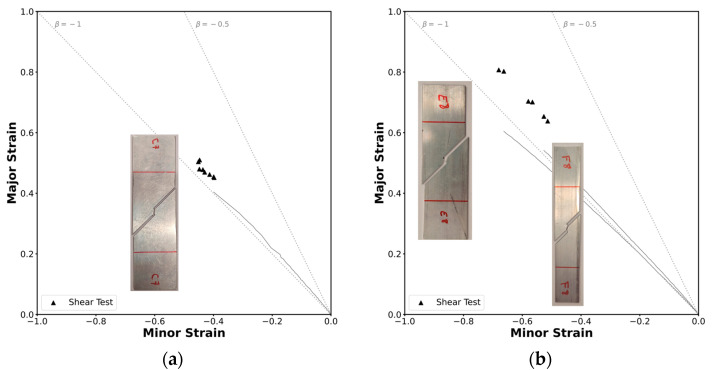

Figure 10

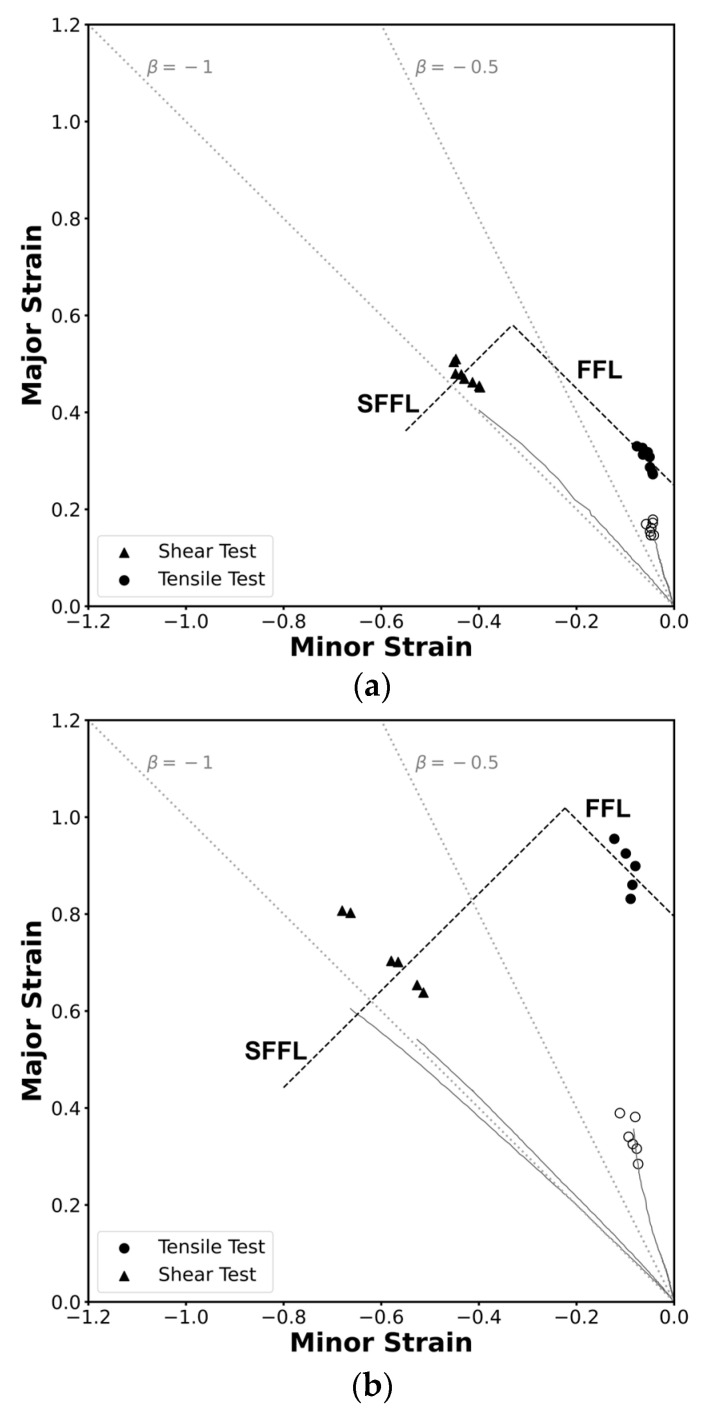

Figure 11
Figure 12
Figure 13Peer Reviews
