A X-Band Integrated Passive Device Structure Based on TMV-Embedded FOWLP
Jiajie Yang, Lixin Xu, Xiangyu Yin, Ke Yang
TL;DR
This paper presents a new X-band radar component using a cost-effective packaging method, achieving good performance and miniaturization.
Contribution
A novel IPD structure using FOWLP process with transition line and SMPM testing for X-band FMCW radar is introduced.
Findings

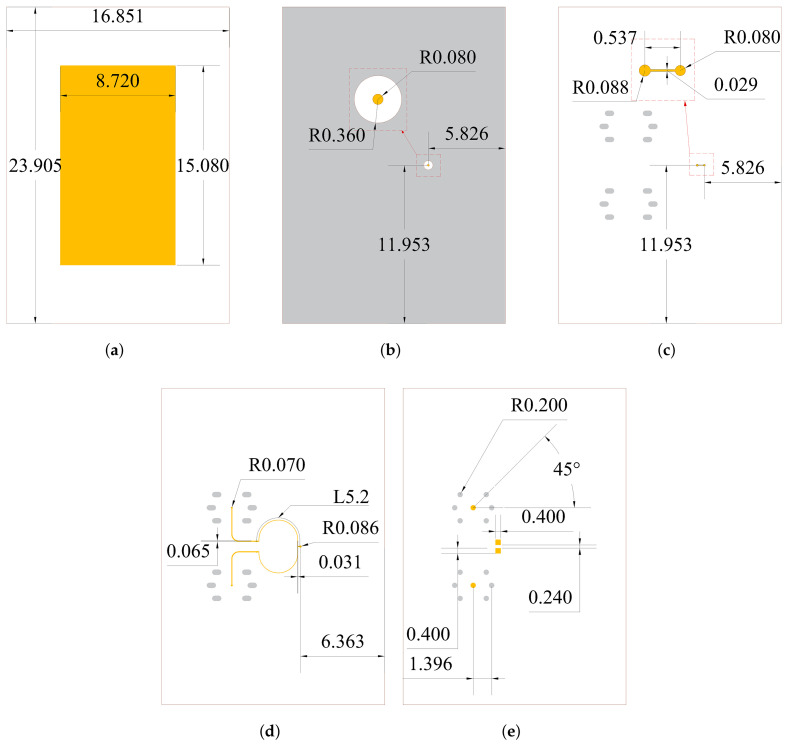

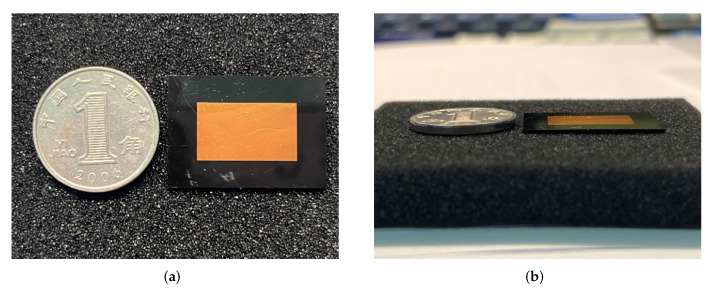

The fabricated IPD structure has dimensions of 16.983 × 24.099 × 0.56 mm³.

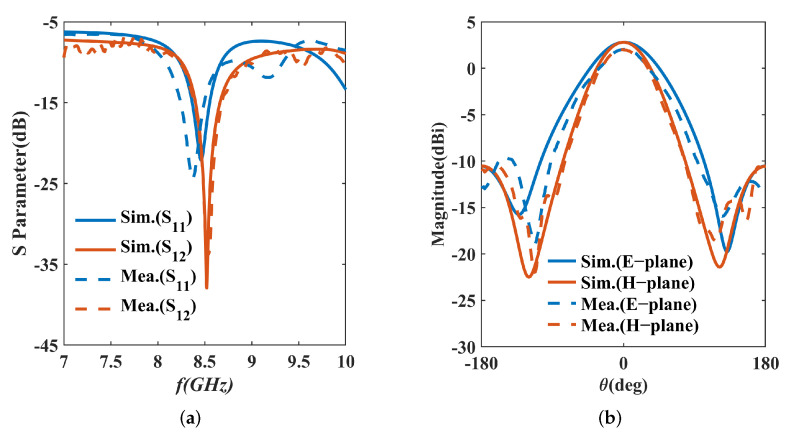

The operational bandwidth at 8.5 GHz center frequency is 7.66% with maximum isolation of 33.9 dB.
The FOWLP process is validated for miniaturizing X-band FMCW radar antennas and passive devices.
Abstract

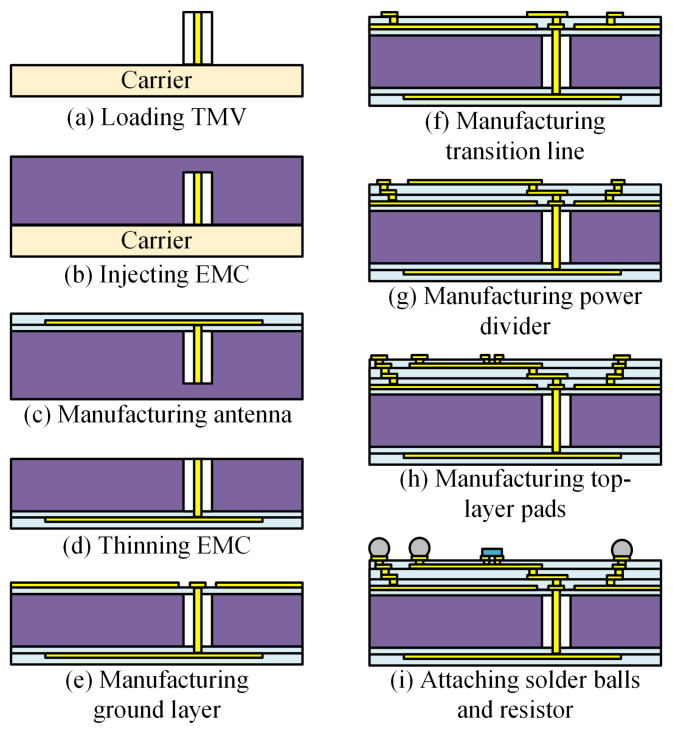

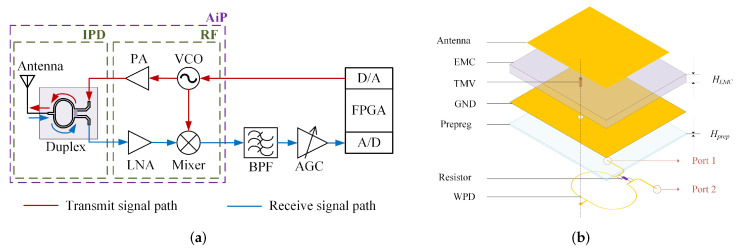

In this paper, the fabrication and testing of an integrated passive device (IPD) structure for X-band FMCW radar based on the fan-out wafer-level packaging (FOWLP) process are discussed. First, a transition line structure is added to the IPD structure to increase the upper impedance limit of the substrate, so as to reduce the process implementation difficulty and development cost. Second, the vertical soldered SubMiniature Push-On Micro (SMPM) interfaces testing method is proposed, reducing the testing difficulty of the dual-port structure with the antenna. Finally, the process fabrication as well as testing of the IPD structure are completed. The dimensions of the fabricated structure are 16.983 × 24.099 × 0.56 mm3. Test results show that, with a center frequency of 8.5 GHz, the actual operational bandwidth of the structure reaches 7.66% (8.095–8.74 GHz), with a maximum isolation of…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1

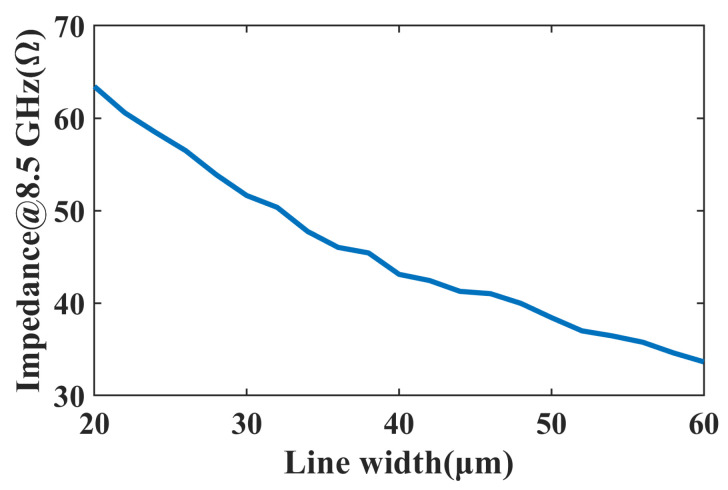

Figure 2

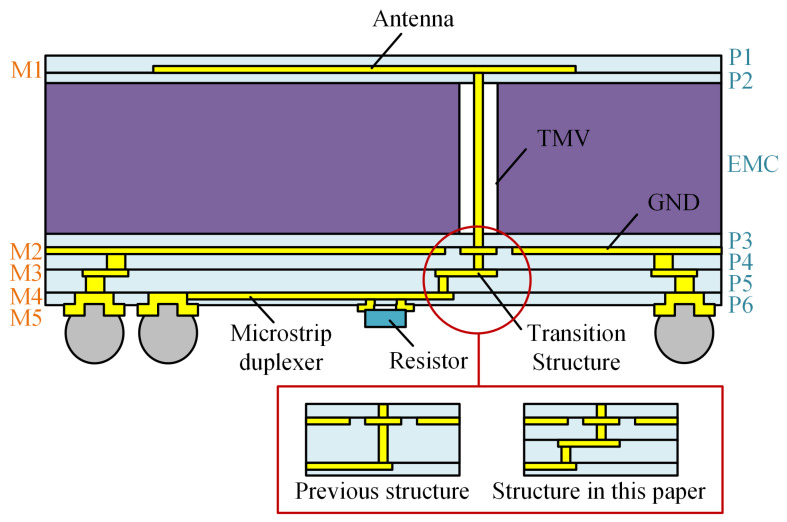

Figure 3

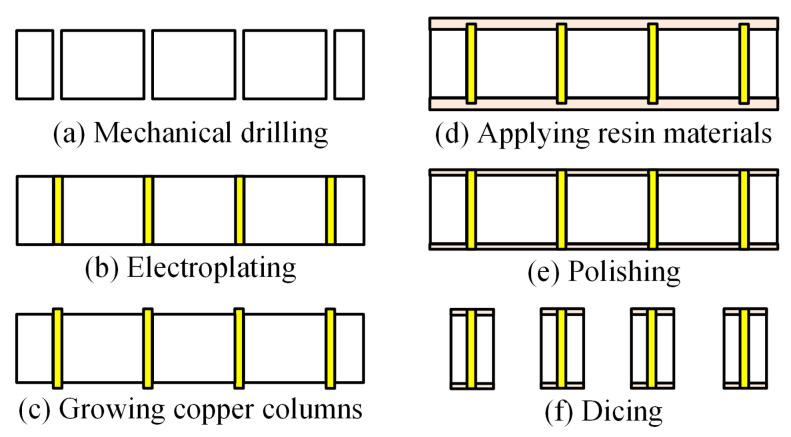

Figure 4
Figure 5
Figure 6

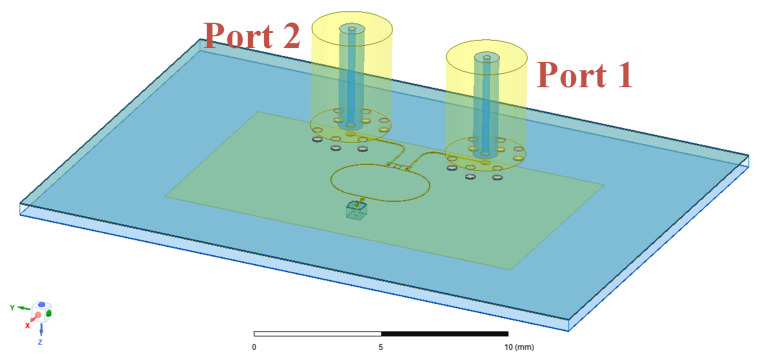

Figure 7

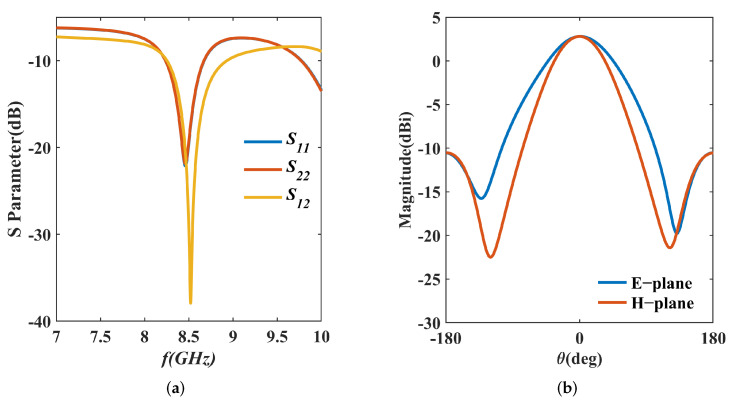

Figure 8

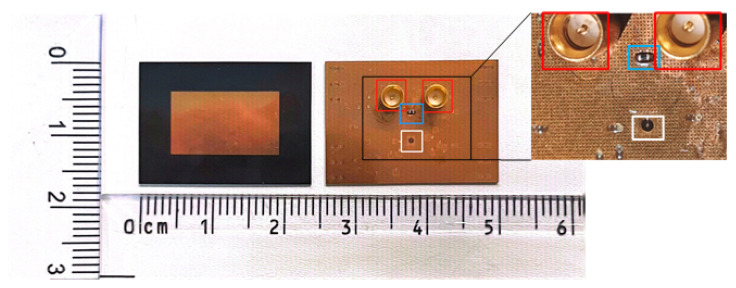

Figure 9
Figure 10

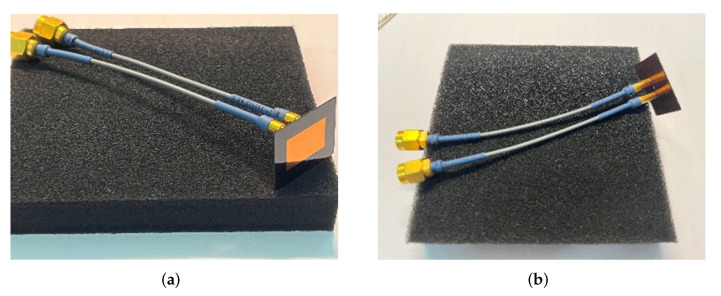

Figure 11

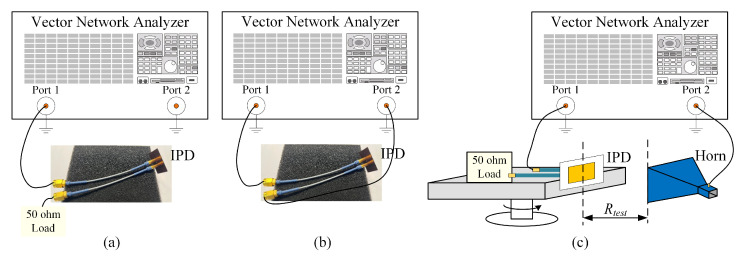

Figure 12
Figure 13

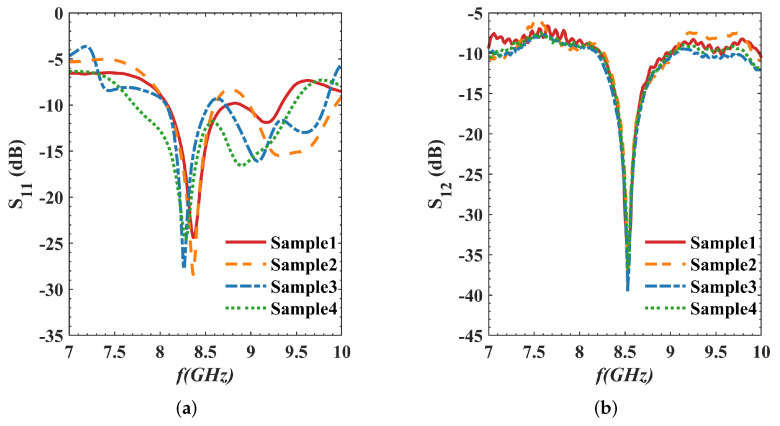

Figure 14

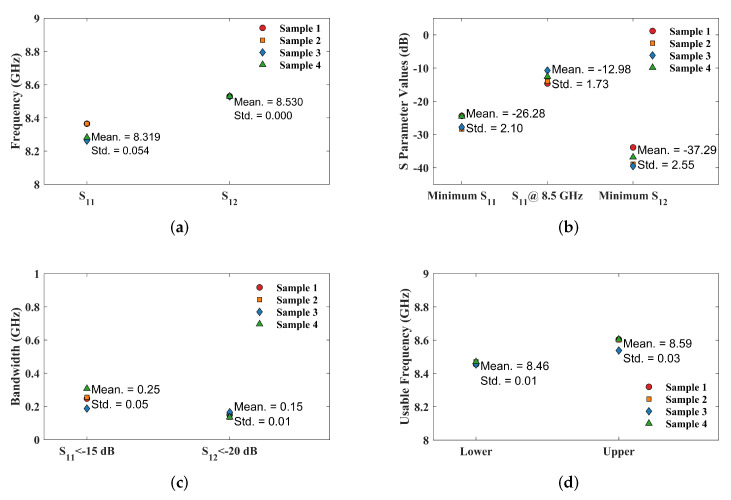

Figure 15

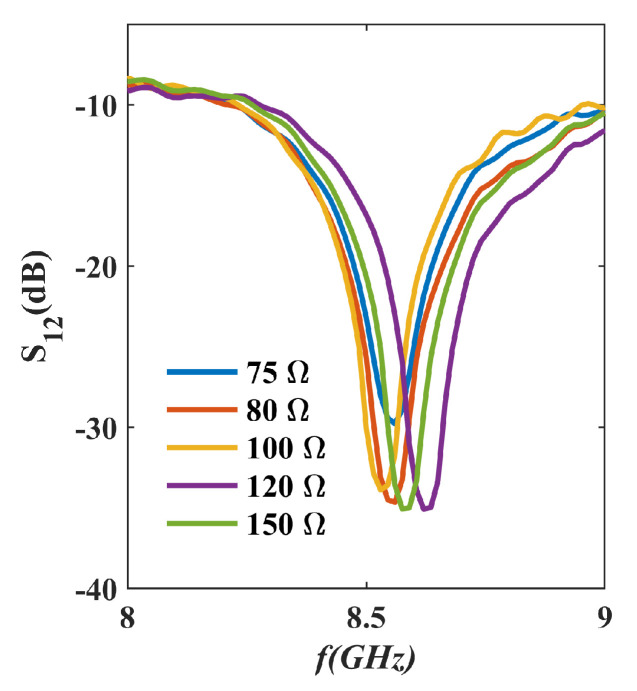

Figure 16Peer Reviews
