Standardizing Neonatal Body Composition Assessment Using Air Displacement Plethysmography: Insights from the Bavarian Experience

TL;DR

This study shows that air displacement plethysmography can be safely and effectively used in routine neonatal care to assess body composition, using a standardized Bavarian protocol.

Contribution

The Bavarian Clinical Protocol is introduced as a standardized framework for ADP in neonatal care, improving data comparability and clinical utility.

Findings

89.1% of eligible infants underwent ADP assessments after implementing the Bavarian Clinical Protocol.

No adverse events were observed in 8,317 ADP assessments across 76 studies.

The protocol was successfully integrated into clinical workflows without disruption.

Abstract

Background/Objectives: Body composition plays a crucial role in neurodevelopment and the long-term health of preterm and term infants. Air displacement plethysmography (ADP), especially with the PEAPOD® system, is well established in research and increasingly explored in clinical practice. Building on our team’s earlier experiences, this study aimed to (1) evaluate the safety and feasibility of ADP in preterm infants, (2) identify published clinical protocols, and (3) implement and assess a standardized routine—the Bavarian Clinical Protocol (BCP). Methods: We conducted two systematic literature reviews: one on the eligibility-to-assessment rate and safety of ADP in research contexts, and a second focusing on existing clinical protocols. In addition, we retrospectively analyzed routine ADP assessments at the NICU of Nuremberg Children’s University Hospital from January 2022 to December 2024, where the BCP had been introduced. Results: The literature review included 76 studies reporting a total of 8,317 assessments without adverse events. In experimental settings, the eligibility-to-assessment rate was 41%. We identified three published clinical protocols. Following BCP implementation, 626 of 702 eligible infants (89.1%) underwent a total of 851 ADP measurements. No adverse events were observed, and repeated assessments were integrated smoothly into clinical workflows. Conclusions: ADP can be safely and effectively incorporated into neonatal routine care. The Bavarian Clinical Protocol provides a practical framework for standardized application, improves comparability across centers, and supports the clinical use of body composition data to inform individualized nutritional strategies.

Figures

Tables

Table 1. Comparison of settings and conditions for ADP assessments in routine clinical practice. Data adapted from Alja’nini et al. 2021 [17] and Luecke et al. 2024 [18]. NICU = Neonatal intensive care unit.

	Nuremberg Children’s University Hospital [18]	Cincinnati Children’s Medical Center [17]	MetroHealth Medical Center [17]
Eligibility criteria	All infants admitted to NICU	All NICU admissions regardless of birth weight	VLBW infants (birth weight < 1500 g)
Exclusion criteria	1—no stable breathing on room air2—episode of significant desaturation3—bradycardia (<60/min) requiring stimulation within the last 48 h.4—positive for multidrug-resistant infections on routine microbiological tests (e.g., 3-MRGN, MRSA)	1—Respiratory support or Oxygen requirement2—Chest tube to suction3—Tubes deemed critical by surgical team4—COVID infection	1—Birth weight > 1500 g2—Infants being discharged on O2 support and failed the ‘room air challenge’ of 2 min3—COVID infection
Screening for readiness of eligible infants	The PEAPOD nurse screens all neonates at the units. Eligibility for testing is evaluated using inclusion and exclusion criteria. Clinical stability is confirmed by the attending physician on test day	Neonatal dietician brings up infant readiness for testing during daily rounds	Incorporated into NICU discharge guidelinesReminders of testing eligibility incorporated into electronic medical records
Test frequency	Weekly, once infant is weaned to room air	Weekly, once infant is weaned to room air	Once, at term corrected gestation or prior to dischargewhichever comes first
Testing time	Once weekly, Tuesdays, at predefined time window between 8.30 AM and 11.00 AM	On Wednesdays, for infants with central lines test done on ‘line change’ day	Whenever infants are ready for testing
Testing location	In an examination room near NICU	In the NICU	In the NICU
Personnel	PEAPOD certified nurse handles PEAPOD and PEAPOD nurses handle the infants	Monitor technician handles the PEAPOD device and bedside nurse handles the infant	Assigned trained NICU nurses, nurse managersand dieticians
Time requirements	8 min with a workforce of 3 persons (see section Time and staffing requirementsfor estimation of total work-load)	The measurement itself only takes 5–7 min and includes a body mass measurement	The measurement itself only takes 5–7 min and includes a body mass measurement
Clinical utility of Body Composition Data	Data is trended in reference graphs and available for physicians. No nutrional intervention plan is established	Trended data is used to adjust nutritional management on weekly basis.	Adjust discharge feeding regimens Evaluate/Adjust unit’s nutritional practices

Full text

1. Introduction

Preterm infants depend on tailored external nutrition and feeding strategies, whereas a healthy fetus in utero benefits from placental nutrition for optimal growth of organs, body mass, and brain development. With increasing survival rates and reduced neonatal morbidity, the focus has shifted toward enhancing the quality of survival [1,2]. The evidence suggests that body composition impacts the risk of chronic diseases and improves neurodevelopmental outcomes in preterm infants. Both low and excessive fat mass are linked to a greater risk of metabolic and cardiovascular diseases [3,4,5]. Greater fat-free mass has been associated with better neurodevelopment [6,7,8].

A key objective in neonatal research is to establish routine body composition monitoring and nutritional interventions to further enhance outcomes [9]. Multiple methods have been explored for body composition assessment, including anthropometry, bioelectrical impedance analysis, dual-energy X-ray absorptiometry, and air displacement plethysmography (ADP) [10,11,12].

ADP is a promising non-invasive and radiation-free approach for clinical body composition assessment, and several studies have validated its accuracy, positioning it as the gold standard for routine body composition evaluation in both preterm and full-term infants [13,14,15,16,17]. This method is a reliable tool for routine body composition evaluation in preterm and full-term infants [12]. Assessments via the PEAPOD^®^ system (COSMED, Inc., Concord, CA, USA) have been extensively described [13,14]. The method utilizes a two-compartment model—fat mass and fat-free mass—based on body density derived from measured body volume and weight. Weight is obtained via an integrated scale, whereas body volume is calculated from the displacement of air in the chamber. The model assumes a constant fat mass density and gestational age-dependent fat-free mass density. Detailed procedural information is outlined in prior studies [13,15].

While ADP has been extensively validated and widely applied in experimental settings, its integration into clinical practice remains limited to a few institutions [16,17,18]. Building upon early experimental experiences at McMaster University, our team developed a routine protocol that was successfully introduced in the neonatal intensive care unit (NICU) at Nuremberg in early 2021 [19,20]. Despite this successful transition, there remains a critical need for a standardized protocol to ensure comparable and reliable ADP application across clinical settings. Furthermore, such a protocol would facilitate the transition of ADP from primarily a research tool to a routine clinical method.

The objectives of this study are as follows:

• To systematically review the literature on the proportion of eligible preterm infants who undergo assessment (eligibility-to-assessment rate) and to evaluate the safety of ADP assessments conducted in experimental settings.
• To systematically review the literature for comparable routine clinical protocols and standard operating procedures for ADP in body composition assessments.
• To develop and utilize a standardized clinical protocol for routine ADP use in preterm and term infants: The Bavarian Clinical Protocol (BCP).

2. Materials and Methods

2.1. Literature Review (#1 and #2)

The two literature reviews (#1 and #2) followed the PRISMA (Prevention and Recovery Information System for Monitoring and Analysis) guidelines. Keyword searches were completed via PubMed and OVID MEDLINE (all) using the search terms listed below [21]. The search period was restricted to the first of January 1995 until the fifteenth of August 2024. Both review processes were performed via a stepwise approach. First, following the retrieval of the publications identified in the literature search, titles and abstracts were screened, language restrictions (limited to the English language) were applied, and duplicates were removed. In the next step, eligibility was analyzed via full-text assessment. Aims, search terms and exclusion criteria, and collected parameters for the two separate literature reviews (#1 and #2) were as follows:

(#1) Aim: To review published studies for eligibility-to-assessment rates and potential adverse events from ADP assessments in preterm infants. The “eligibility-to-assessment rate” was defined as the proportion of infants who met the inclusion criteria (eligibility) and proceeded to undergo ADP assessments (assessment). The search terms used were “body composition” AND “air displacement plethysmography” AND “preterm”. The exclusion criteria were as follows: (1) the manuscript did not contain body composition data acquired by the authors’ institution; (2) the body composition data originated from an identical cohort with publications already included; and (3) the infants’ age at body composition assessment was ≥1 year.

Subgroup analysis was performed for articles providing insights into the recruitment and eligibility process. The parameters collected were as follows: (1) no parental consent; (2) misalignment with study criteria or difficulties enrolling (e.g., study team/PEAPOD not available); (3) discharged, transferred, or lost to follow-up; (4) medically excluded; and (5) excluded for unknown reasons.

(#2) Aim: To analyze the implementation of ADP protocols in routine clinical settings at different institutions; search terms: “air displacement plethysmography” AND “clinical routine”. The exclusion criteria were as follows: (1) body composition assessments were not performed during the first year of life; (2) body composition assessments were not performed in the clinical routine, or no information was provided regarding the body composition testing procedure; (3) literature review without data from body composition assessments and no information about potential testing routine was provided; and (4) body composition assessments were not performed via the ADP method. The parameters collected were as follows: (1) eligibility criteria, (2) exclusion criteria, (3) screening for readiness of eligible infants, (4) test frequency, (5) testing time, (6) testing location, (7) personnel, (8) time requirements, and (9) clinical utility of body composition data. A comparison of the analyzed parameters was performed via Microsoft Excel and PowerPoint^®^ Office 365 (Redmond, Washington, DC, USA).

2.2. Retrospective Analysis of the Bavarian Clinical Protocol

A retrospective analysis of the implementation of the BCP was performed from January 2022 until December 2024 at the NICU of the Children’s Hospital at Nuremberg General Hospital, South Campus of Paracelsus Medical School Nuremberg [22,23]. Anonymized data were exported from our REDCap NICU database, which was accessed from July to December 2024. Prior to data collection, the measurement protocol was approved by our institutional review board (#SZ_D_028.21-IX-1). According to German professional regulations for physicians, this study did not require additional Ethics Committee approval because it was a quality improvement initiative, with all prior data being available on a routine basis and analyzed in an anonymized way, which was also reported according to the Standards for Quality Improvement Reporting Excellence (SQUIRE 2.0). Descriptive statistics were performed via Microsoft Excel Office 365 (Redmond, Washington, DC, USA).

3. Results

3.1. Literature Review (#1)—Air Displacement Plethysmography in Preterm Infants

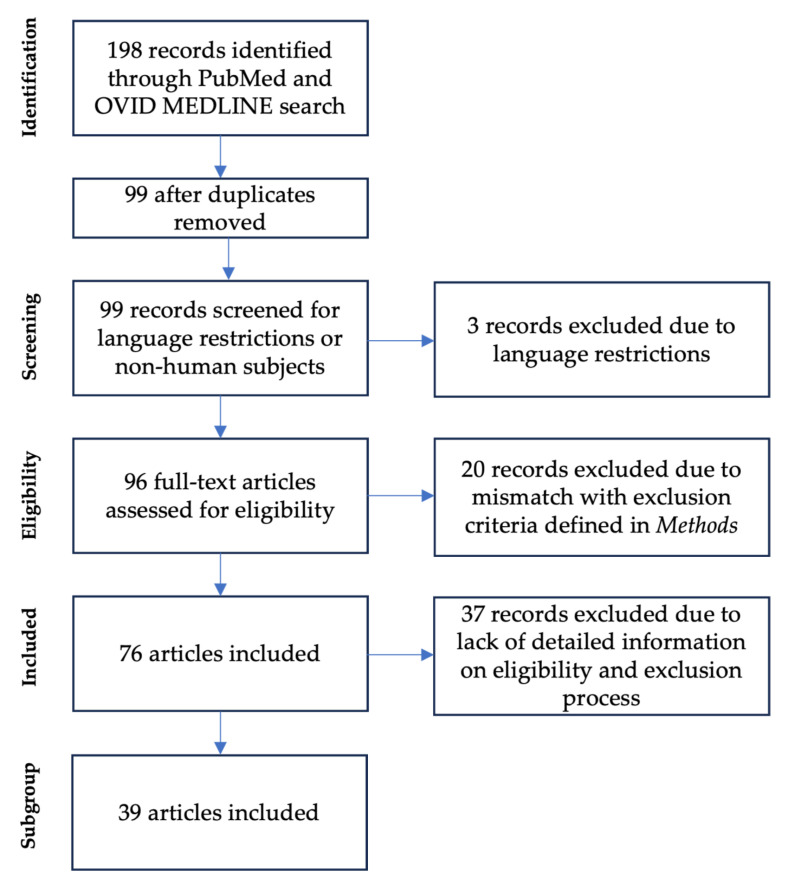

A total of 198 articles were identified on the basis of the presented search terms in PubMed and Ovid. Removal of duplicates (N = 99) and application of language restrictions (N = 3) resulted in 96 articles. Eligibility was assessed with a full-text article review. N = 20 articles were excluded for the following reasons: (1) the manuscript did not contain body composition data acquired by the authors’ institution (N = 13); (2) the body composition data originated from an identical cohort with existing publications (N = 4); and (3) the body composition data were measured in infants older than 1 year of corrected age (N = 3) (Figure 1).

The resulting N = 76 articles provided data on body composition assessments in preterm infants. From these articles, 8317 preterm infants were tested cumulatively. Two articles were identified for full-text review for reporting potential adverse effects due to body composition measurements. These two articles reported no adverse effects due to ADP measurements.

To analyze the eligibility-to-assessment rate in an experimental setting, we performed a sub-analysis for articles providing insight into the eligibility process (manuscripts including identification of eligible infants and documentation of reasons for non-assessment) yielding N = 39 articles. To provide an overview of the study characteristics, eligibility criteria, exclusion criteria, and reported outcomes, a detailed summary table is available as Supplementary Table S1 [6,16,19,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59]. These N = 39 articles describe a total of 8256 infants eligible for body composition measurement. Among these 8256 eligible infants, 3353 infants were enrolled and tested, resulting in a total eligibility-to-assessment rate of 40.6%. The reasons for exclusion were as follows: (1) no parental consent (N = 1932, 23.4%); (2) misalignment with study criteria or difficulties enrolling (e.g., study team or PEAPOD not available) (N = 1393, 16.8%); (3) deceased, transferred, or lost to follow-up (N = 794, 9.6%); (4) medically excluded (N = 709, 8.6%); and (5) excluded for unknown reasons (N = 74, 0.9%).

3.2. Literature Review (#2)—Clinical Routine Protocols

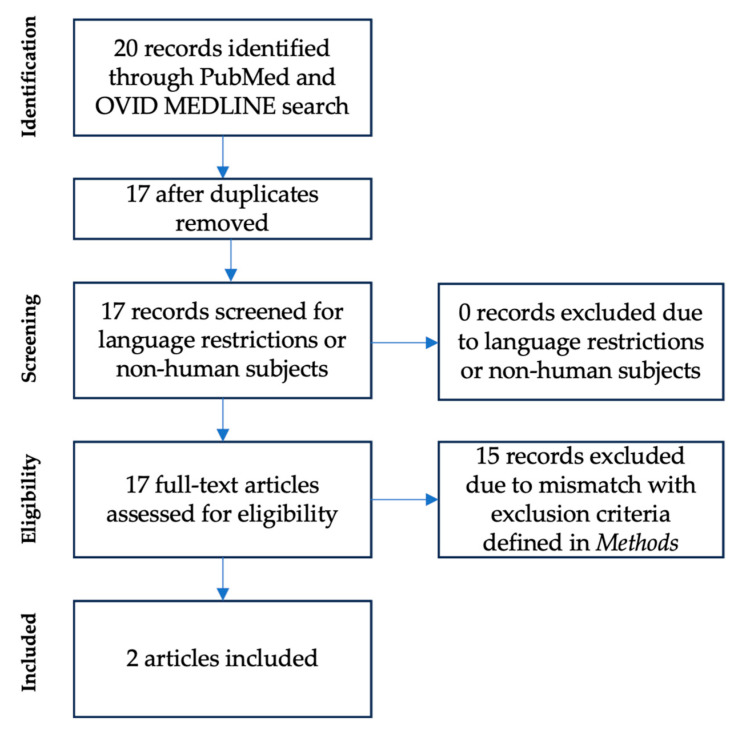

A second literature review was performed to identify institutions that had already incorporated routine body composition assessments. This search initially yielded 20 articles. After removing duplicates, 17 studies remained for full-text review. Among these, 15 were excluded for the following reasons:

(1) Body composition assessments were not performed during the first year of life (corrected age, N = 5); (2) Body composition assessments were not performed in the clinical routine, or no information was provided regarding the body composition testing procedure (N = 5); (3) Literature review without data from body composition assessments and no information about potential testing routine provided (N = 3); (4) Body composition assessments were not performed via the ADP method (N = 2) (Figure 2).

The remaining two articles provided information on the setting and conditions of ADP assessments in clinical routine while comparing the protocols for implementation of the method at three pediatric hospitals: (1) Cincinnati Children’s Medical Center (Cincinnati, OH, USA), (2) MetroHealth Medical Center (Cleveland University, Cleveland, OH, USA) [17], and (3) Nuremberg Children’s University Hospital [18].

3.3. Comparison of Clinical Routines

The feasibility of integrating ADP into routine clinical practice was supported by studies at these three institutions. While there was general alignment of the testing protocols, several differences in practice were identified (Table 1):

1. Eligibility and exclusion criteria: Clinical stability is a common prerequisite for all three institutions. Definitions varied slightly: for example, Cincinnati Children’s Hospital excluded infants with tubes deemed critical by the surgical team, whereas at MetroHealth Medical Center, the exclusion criteria was a birth weight of >1500 g. COVID-19 infection was an exclusion criteria at both institutions. Nuremberg’s initial protocol emphasized clinical stability with no bradycardia, desaturation, or respiratory instability within 48 h before testing.
2. Screening procedures: Screening was performed by dietitians at Cincinnati, integrated into electronic medical records at MetroHealth, and handled collaboratively by nurses and physicians at Nuremberg. Here, primary screening by nurses was recommended because of their frequent patient interactions, with the attending physician confirming eligibility.
3. Testing frequency: Nuremberg and Cincinnati performed weekly assessments to track body composition changes, whereas MetroHealth limited testing to a single session during the hospital stay.
4. Time and personnel requirements: ADP assessments typically require two staff members; however, involving three operators was shown to improve efficiency, reducing the assessment time from 13 to 8 min. Approximately 12 weekly assessments at Nuremberg required up to 5 h of total staff time.

3.4. Bavarian Clinical Protocol

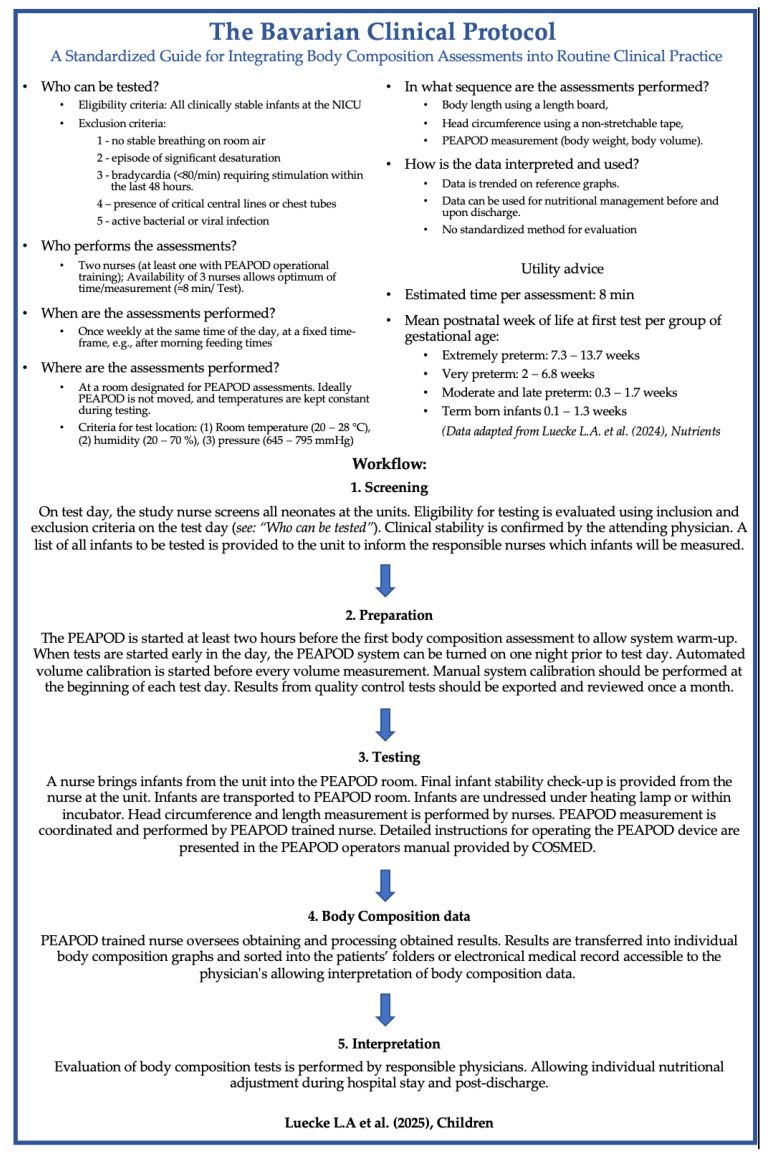

On the basis of insights from the literature review, the initial Nuremberg clinical protocol was refined into a standardized routine: the BCP (Figure 3).

This protocol was implemented in January 2022 at Nuremberg Children’s University Hospital. Between January 2022 and December 2024, 832 preterm infants were admitted to our NICU. Of these, 702 were eligible for ADP and were not receiving respiratory support on scheduled test days. Among the eligible infants, 626 underwent at least one ADP assessment, yielding an eligibility-to-assessment rate of 89.1%. In total, 851 ADP assessments were performed, including repeated measurements.

The reasons for not having body composition measurements included early discharge of late preterm infants, scheduling conflicts with other exams on the ADP measurement day, colonization with multiple drug-resistant organisms, transfer to a local hospital, and an unstable clinical condition.

No adverse events (e.g., apnea > 20 s, desaturation < 90% SaO_2_, bradycardia < 60 bpm) were observed during or within six hours of testing. Retrospective analysis revealed no device-related infections or traceable germ transmission among NICU infants. These results validate the safety and feasibility of incorporating ADP into clinical care and support its potential for improving neonatal nutritional management.

4. Discussion

This study systematically reviewed research employing ADP for body composition assessment in research settings, identified published protocols used in clinical practice, and successfully developed and validated the BCP. The absence of reported adverse events highlights ADP as a viable and safe research tool for assessing body composition in preterm infants. Published protocols for routine clinical application in neonates remain limited. Furthermore, this study demonstrated that the BCP is feasible and safe for implementation in routine clinical settings.

4.1. Current Utilization of Routine ADP Assessments for Preterm Infants

Our initial literature review (#1) revealed a low eligibility-to-assessment rate of 41% in experimental settings. The causes for not performing ADP were a lack of parental consent (23%) and not meeting the inclusion criteria (17%). In contrast, when the ADP is integrated into routine clinical practice, the eligibility-to-assessment rate is significantly higher (89.1%) on the basis of our retrospective analysis. A similar trend was noted in our previous study, where routine testing enabled assessments of almost 90% of eligible term and preterm infants [18].

Across the 79 reviewed publications, ADP was consistently described as a safe, non-invasive method for neonatal body composition assessment. Only two manuscripts addressed the possible occurrence of adverse effects related to ADP: (1) Roggero et al. reported crying infants during assessments [60], and (2) Pereira-da-silva et al. reported that “No death occurred during or close to the study period” [61]. These findings align with findings from our recent quality improvement analysis [18] and the lack of adverse events related to 851 ADP assessments over the two-year evaluation period of this current study. The safety of ADP is comparable to that of routine anthropometric measurements and provides additional insights into nutritional status and growth.

Routine ADP use has the potential to enhance neonatal care by significantly increasing eligibility-to-assessment rates while enabling safe, inclusive, and comprehensive body composition assessments for preterm and term infants with minimal practical constraints.

4.2. Comparison of Protocols for Routine Clinical ADP

The feasibility of routine ADP assessments has been demonstrated across institutions, including Cincinnati Children’s Medical Center, MetroHealth Medical Center, and Nuremberg Children’s University Hospital. While protocols are broadly comparable, minor procedural variations warrant discussion:

1. Eligibility criteria: Most centers exclude infants with active infections, central lines, or critical tubes, prioritizing safety and preventing cross-contamination. Formalizing these criteria across institutions may further reduce risks [62].
2. Testing frequency: Weekly assessments, as supported by our prior findings, offer sufficient reproducibility for monitoring changes in body composition. Institutions may opt for single or repeated assessments on the basis of priorities—while repeated tests improve monitoring, single assessments reduce workload [14].
3. Time and Staffing Requirements: Streamlined workflows with at least two nurses significantly reduce assessment duration, from an average of 13 min to approximately 8 min [18]. This is slightly longer than the 5–7 min reported by Alja’nini et al.; although, it is unclear if their estimate included tasks such as dressing and undressing the infant or transporting them to and from the PEAPOD room. Furthermore, the number of personnel involved in their assessments was not specified, making it difficult to directly compare total work time across these two studies [17]. Efficient scheduling, including preparing one infant while another is being assessed, further enhances time management.

4.3. Bavarian Clinical Protocol (BCP)

The BCP (Figure 3) was employed in 851 assessments, demonstrating its potential for the following:

1. Serve as a practical blueprint for implementing body composition testing in various clinical settings.
2. Enhance the reliability and comparability of ADP-based measurements across institutions.
3. Improve neonatal safety by standardizing exclusion criteria and operational workflows.
4. Facilitate multicenter studies and broader benchmarking efforts in neonatal care.

The protocol’s adoption in routine practice can improve the quality of body composition assessments and provide insights for optimizing nutritional management.

4.4. Implementing ADP in Routine Neonatal Care: Practical Considerations

On the basis of our experience, we recommend the following strategies to ease the integration of ADP into clinical practice:

1. Weekly planning: Initiate planning sessions at the beginning of each week to schedule assessments and ensure staff alignment.
2. Morning Setup: Perform early setup of the ADP device on the test day to minimize delays and interruptions.
3. Fixed Location: Designate a permanent location for the device to reduce transport time and eliminate frequent recalibration needs.
4. Streamlined Workflow: Adopt an assembly line model, with assigned roles for measurement, infant transport, and dressing/undressing.
5. Comprehensive Growth Monitoring: Pair ADP assessments with weekly anthropometric measurements to track overall growth and optimize resource allocation.

4.5. Interpretation and Use of Body Composition Data

Currently, there are no established guidelines for body-composition-based nutritional interventions in neonates. At the NICU of Nuremberg Children’s Hospital, longitudinal ADP measurements are digitally tracked and visualized using gestational age-specific percentile trajectories for fat mass and fat-free mass. This standardized tracking enables clinicians to identify deviations from expected growth patterns and potential nutritional inadequacies. While no direct changes in nutritional management are yet based solely on these measurements, the data support clinical decision-making and highlight the need for future evidence-based recommendations to translate body composition metrics into targeted interventions.

4.6. Clinical Significance

Standardized protocols such as the BCP lower the barrier to implementing ADP in neonatal care, offering an accessible approach to safe, reliable body composition assessment. Over 200 actively used PEAPOD devices globally represent a significant opportunity to safely integrate these practices into routine NICU workflows [17]. By plotting growth trajectories and utilizing reference charts (e.g., Hamatschek et al., Norris et al. and Demerath et al. [53,63,64]), clinicians can optimize nutrition and monitor individual growth patterns.

Future research should explore standardized approaches to nutritional interventions informed by body composition data. This could identify optimal compositions for supporting neurodevelopment while minimizing the risk of future metabolic or vascular conditions. The development of guidelines for data interpretation and tailored nutritional adjustments will further increase the clinical utility of routine ADP assessments.

4.7. Limitations

We suggest that the BCP represents a significant milestone in the nutritional management of preterm infants. However, the BCP’s applicability may vary due to differences in institutional regulations, staffing resources, logistics, and infrastructure. Additionally, the limited availability of published clinical protocols restricts direct comparisons between a high number of institutions. While this study validates the safety and feasibility of the BCP, the absence of standardized frameworks for nutritional adjustments on the basis of body composition data remains a critical gap.

The key strengths of this study are the large number of individual measurements (N = 851) that demonstrate the safety and feasibility of the BCP in clinical practice. To the best of our knowledge, this is the largest series of body composition assessments using ADP in a NICU setting.

5. Conclusions

The BCP represents a significant advance in neonatal body composition assessment, offering a robust, standardized framework for routine ADP use.

This protocol enhances scientific comparability, facilitates personalized nutrition strategies, and supports improved neonatal outcomes. Furthermore, the non-invasiveness and safety of ADP measurements are comparable to those of established anthropometric measurements. However, it provides body composition data for neonates, opening possibilities for individual nutritional adjustments on the basis of body composition reference charts.
