Microelectrode Implantation in Human Insula: Technical Challenges and Recording Insights

TL;DR

This study explores the challenges and outcomes of implanting hybrid macro-microelectrodes in the human insula to better understand brain activity in epilepsy.

Contribution

The study provides practical insights and recommendations for implanting hybrid electrodes in the insula to record neural activity in epilepsy patients.

Findings

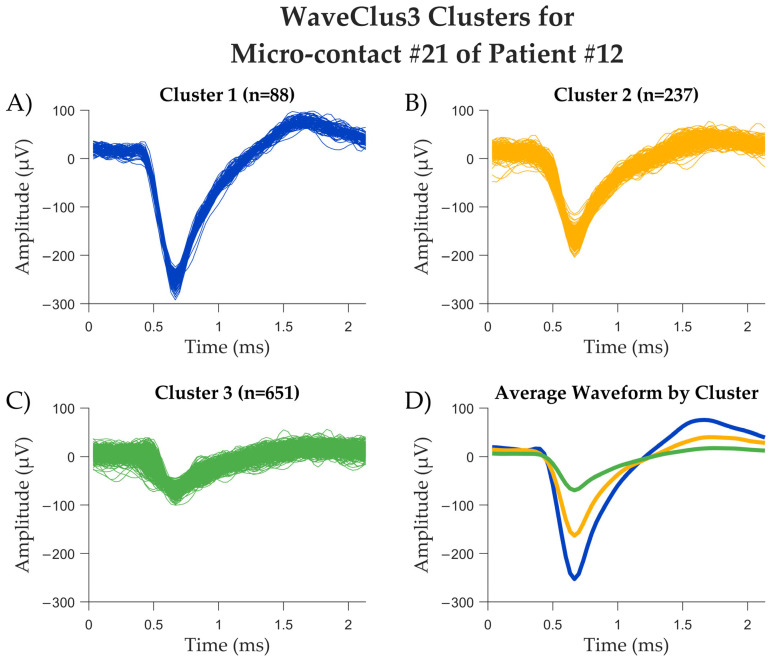

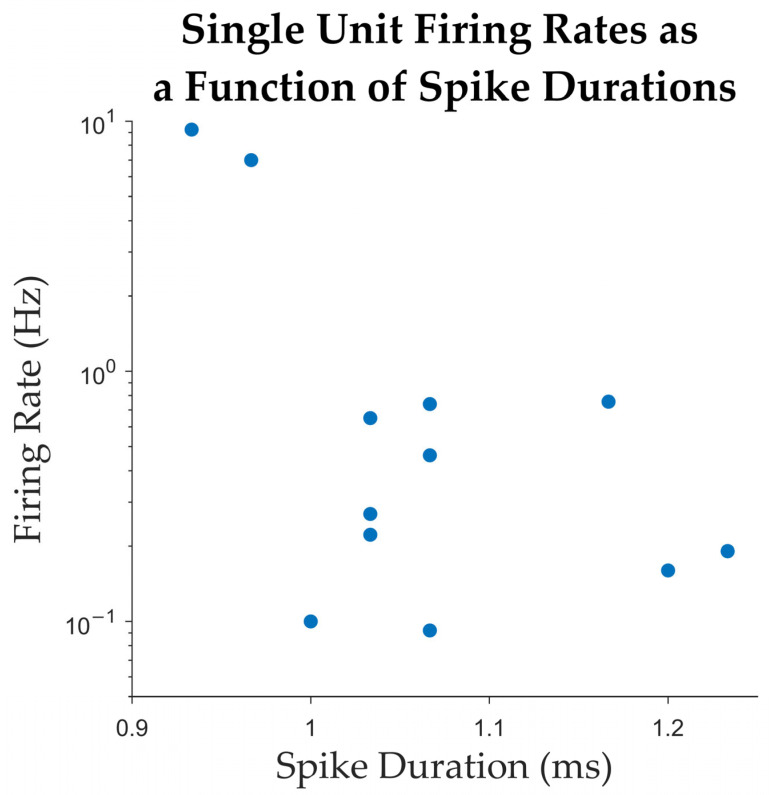

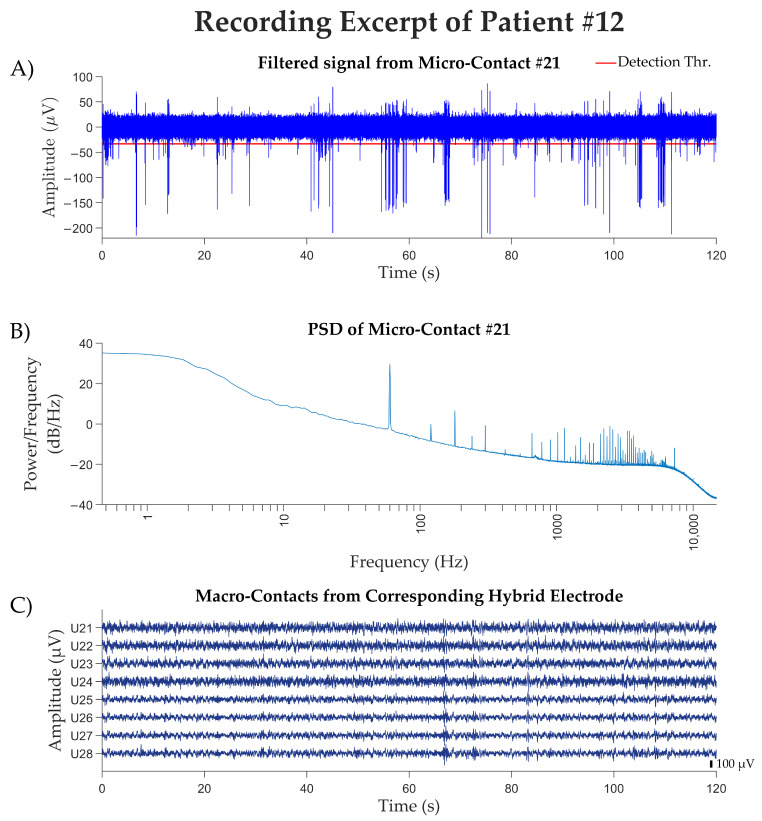

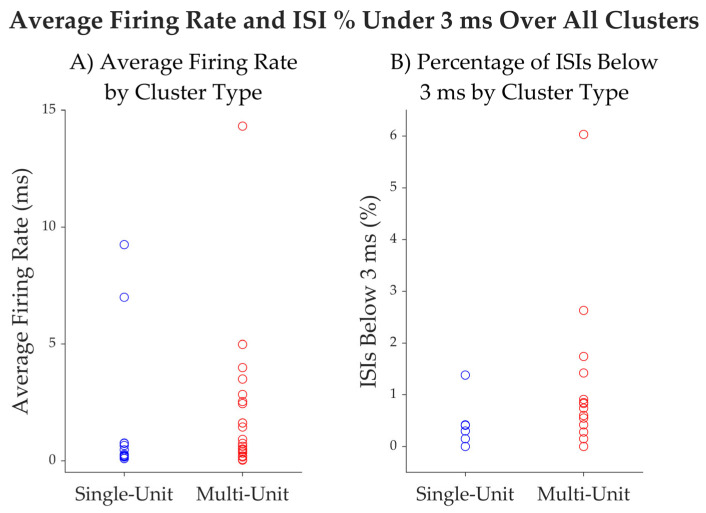

Spiking neural activity was successfully recorded in 20.3% of microcontacts in the anterior-inferior insula.

Hybrid electrode implantation was safe with no complications, but faced challenges like signal absence and noise interference.

Abstract

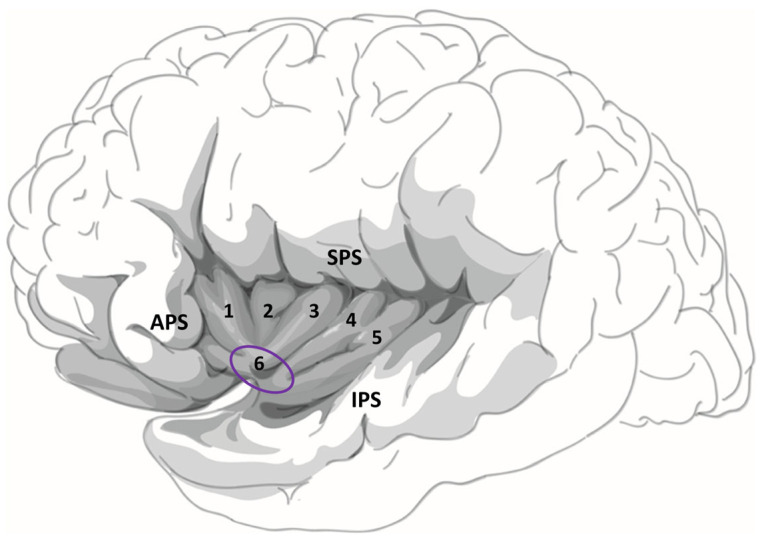

Background/Objectives: Intracranial macroelectrode implantation is a pivotal clinical tool in the evaluation of drug-resistant epilepsy, allowing further insights into the localization of the epileptogenic zone and the delineation of eloquent cortical regions through cortical stimulation. Additionally, it provides an avenue to study brain functions by analyzing cerebral responses during neuropsychological paradigms. By combining macroelectrodes with microelectrodes, which allow recording the activity of individual neurons or smaller neural clusters, recordings could provide deeper insights into neuronal microcircuits and the brain’s transitions in epilepsy and contribute to a better understanding of neuropsychological functions. In this study, one or two hybrid macro-micro electrodes were implanted in the anterior-inferior insular region in patients with refractory epilepsy. We report our experience and share some preliminary results; we also provide some recommendations regarding the implantation procedure for hybrid electrodes in the insular cortex. Methods: Stereoelectroencephalography was performed in 13 patients, with one or two hybrid macro-microelectrodes positioned in the insular region in each patient. Research neuropsychological paradigms could not be implemented in two patients for clinical reasons. In total, 23 hybrid macro-microelectrodes with eight microcontacts each were implanted, of which 20 were recorded. Spiking activity was detected and assessed using WaveClus3. Results: No spiking neural activity was detected in the microcontacts of the first seven patients. After iterative refinement during this process, successful recordings were obtained from 13 microcontacts in the anterior-inferior insula in the last four patients (13/64, 20.3%). Hybrid electrode implantation was uneventful with no complications. Obstacles included the absence of spiking activity signals, unsuccessful microwire dispersion, and the interference of environmental electrical noise in recordings. Conclusions: Human microelectrode recording presents a complex array of challenges; however, it holds the potential to facilitate a more comprehensive understanding of individual neuronal attributes and their specific stimulus responses.
