Prevalence of hyposegmentation of granulocytes/Pelger-Huët anomaly in different canine breeds: a Bayesian approach

TL;DR

This study uses Bayesian analysis to estimate the prevalence of a blood cell abnormality in various dog breeds, finding it most common in Australian Shepherds and newly identifying it in Dachshunds.

Contribution

The study is the first to estimate the prevalence of hyposegmentation of granulocytes in multiple canine breeds using Bayesian methods and real-world data.

Findings

HG/PHA was most prevalent in Australian Shepherds (7.1%) and newly identified in Dachshunds.

Bayesian analysis provided credible intervals for prevalence estimates across breeds.

The study highlights breed-specific differences in a real-world setting.

Abstract

Pelger-Huët anomaly (PHA) is a benign congenital hematological disorder first observed in humans and occasionally reported in dogs. It has been mainly described in Australian Shepherd Dog (ASD) with a prevalence of 9.8–13% where, based on a genetic study, it was recently renamed hyposegmentation of granulocytes (HG). Prevalences in other canine breeds have not been documented. This study aims to: (1) estimate the prevalence of HG/PHA across various breeds, (2) quantify the uncertainty of the estimated values using a Bayesian approach, and (3) identify affected breeds not previously documented. This cross-sectional study was based on the CBC database of the San Marco Veterinary Clinic and Laboratory (Padua, Italy) from 2001 to 2024. Data were collected from dogs diagnosed with HG/PHA and breeds previously reported as affected. To handle limited data and provide reliable estimates, Bayesian analysis was performed to estimate the prevalence of the anomaly and its uncertainty, using posterior probabilities from an informative prior model. The analysis adhered to the Bayesian Analysis Reporting Guidelines (BARG). The study included 5,716 dogs: German Shepherd (GS, 40%), Dachshund (DA, 22.6%), Cocker Spaniel (CS, 17.3%), Border Collie (BC, 9.5%), ASD (5.9%), Samoyed (SA, 2.2%), Boston Terrier (BT, 1.6%), Australian Cattle Dog (ACD, 0.7%) and Basenji (BA, 0.2%). Overall, HG/PHA was found in 0.45% dogs, specifically in ASD (7.1%), SA (0.8%) and DA (0.08%) and not in the other breeds. The prevalence estimates were 6.47% in ASD with 95% Credible Interval (95% CrI) from 4.22 to 9.18%, 0.32% (95% CrI: 0.04, 1.11%) in SA, 0.2% (95% CrI: 0.02, 0.86%) in BA, 0.18% (95% CrI: 0.02, 0.77%) in ACD, 0.16% (95% CrI: 0.02, 0.64%) in BT, 0.11% (95% CrI: 0.02, 0.30%) in DA, 0.10% (95% CrI: 0.01, 0.34%) in BC, 0.08% (95% CrI: 0.01, 0.25%) in CS, 0.05% (95% CrI: 0.01, 0.15%) in GS. HG/PHA was newly identified in DA. This study, using laboratory data collected over two decades and analyzed with Bayesian methods, could be considered representative of the prevalence of HG/PHA in multiple canine breeds. It is the first study to estimate the prevalence of HG/PHA beyond ASD, highlighting breed-specific differences in a real-world setting.

Figures

Neutrophil in an Australian shepherd dog affected by HG/PHA (1,000X, modified Wright stain). Courtesy of the San Marco Veterinary Laboratory (Padua, Italy).

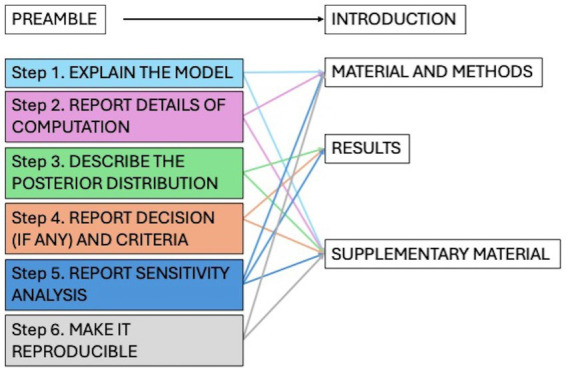

List of the items for the Bayesian analysis reported guidelines (BARG) and location in the paper.

Tables

Table 1. Characteristics of the dogs at the baseline in the total study population and in the HG/PHA affected and not affected groups.

Variable	Overall dogs	HG/PHA
		absent (n = 5,690)	present (n = 26)
Breed (n = 5,716)
GS (%)	2,286 (40)	2,286 (40.2)	0
DA (%)	1,293 (22.6)	1,292 (22.7)	1 (3.8)
CS (%)	990 (17.3)	990 (17.4)	0
BD (%)	541 (9.5)	541 (9.5)	0
ASD (%)	338 (5.9)	314 (5.5)	24 (92.3)
SA (%)	126 (2.2)	125 (2.2)	1 (3.8)
BT (%)	91 (1.6)	91 (1.6)	0
ACD (%)	41 (0.7)	41 (0.7)	0
BA (%)	10 (0.2)	10 (0.2)	0
Sex (n = 5,716)
Male (%)	2,983 (52.2)	2,968 (52.2)	15 (57.7)
Female (%)	2,733 (47.8)	2,722 (47.8)	11 (42.3)
Sexual status (n = 5,714)
Intact (%)	3,624 (63.4)	3,608 (63.4)	16 (61.5)
Neutered (%)	2090 (36.6)	2080 (36.6)	10 (38.5)
Age, years (n = 5,716), median (IQR)	6.47 (6.72)	6.50 (6.71)	2.83 (4.27)

Table 2. Estimated prevalences of HG/PHA related to breed.

Breed	Estimated prevalence (%)	Lower 95%CrI (%)	Upper 95%CrI (%)
ASD	6.47	4.22	9.18
SA	0.32	0.04	1.11
BA	0.20	0.02	0.86
ACD	0.18	0.02	0.77
BT	0.16	0.02	0.64
DA	0.11	0.02	0.30
BC	0.10	0.01	0.34
CS	0.08	0.01	0.25
GS	0.05	0.01	0.15

Full text

Introduction

1

The Pelger-Huët anomaly (PHA) is a benign congenital hematological disorder in which granulocytes (especially neutrophils) are characterized by hyposegmentation of nuclei and mature coarse chromatin patterns (1, 2). PHA was first described in humans (3, 4), where it is inherited as an autosomal dominant trait caused by mutations in the lamin B receptor (LBR1) gene (5, 6).

PHA has been sporadically described in domestic animals as rabbits (7), cats (8–10), horses (11, 12) and different canine breeds (13).

Traditionally, PHA has been considered an autosomal dominant trait in dogs (as in human medicine) and has often been reported as an asymptomatic heterozygous form. Recently, a homozygous LMBR1L splice site variant (which is therefore different from LBR1 in humans) has been identified as a possible causal variant in affected Australian Shepherd Dogs (ASD) (14). In this breed, the neutrophilic anomaly has also been shown to follow an autosomal recessive mode of inheritance (14). Therefore, it has been suggested that the anomaly observed in ASD may not be homologous to human PHA, and consequently the use of the term ‘hyposegmentation of granulocytes’ (HG) has been advised for the ASD condition, reserving the term PHA exclusively for the LBR1-related mutations anomaly (14).

The congenital form of PHA must be differentiated from pseudo-PHA, an acquired form in which similar morphological changes of white blood cells are associated with pathological conditions such as inflammation/infection (15, 16), some drug therapies (17), leukemia (16, 18), and myelodysplasia with asynchronous neutrophil maturation (16).

The anomaly has been reported primarily in ASD with frequencies ranging from 9.8% (1) to 13% (14). Historically, PHA has also been observed in other breeds such as Australian cattle dog (ACD), Basenji (BA), Border Collie (BC), Boston terrier (BT), Cocker spaniel (CS), Black and Tan and Redbone Coonhound, Danish/Swedish Farmdogs, Foxhounds, German Shepherd (GS), Samoyed (SA) (13) and in mixed breed dogs (19). However, for each of these breeds, limited evidence is still available and relies on case reports/case series (20–22) or anecdotical descriptions of single or related subjects. Probably due to the rarity of the anomaly, to the knowledge of the authors, no population study or prevalence and/or incidence of PHA have been documented in breeds other than ASD.

The Bayesian analysis permits to incorporate external, independent prior knowledge or belief from previous studies in the fitted model (23, 24), quantifying uncertainty about the magnitude of effect (23, 25) by computationally robust estimates and credible intervals (CrI) for derived parameter values (23, 26). The use of Bayesian statistics over frequentist estimation in a small sample size is commonly recommended (27). In a systematic review comparing Bayesian versus frequentist estimation with a small sample size, the authors encouraged making well-considered decisions about all priors, preferring a thoughtful prior instead of a naive one (28).

The aims of this study are (1) to estimate the overall prevalence of PHA in various canine breeds, (2) to use a Bayesian approach to quantify the uncertainty of the estimated values and (3) to describe, for the first time, breeds affected by PHA that have not been previously reported in the literature.

Materials and methods

2

Setting, data source, and definition

2.1

This study was carried out at the San Marco Veterinary Laboratory (Padua, Italy), which is the referral laboratory for patients of the San Marco Private Clinic (the same institute) and for patients of veterinarians scattered throughout Italy. All analysis reports have been electronically recorded and stored by POA System Plus 9.0® software to be available for consultation at any time. Among the complete blood count (CBC) recorded reports (n = 720,002), only those of dogs referred to the San Marco Veterinary Clinic (n = 170,747) had the essential anamnestic and clinical information to be considered eligible for the present study. As a laboratory rule, each CBC recorded in the database must include an automated analysis of the sample together with a microscopic evaluation of the peripheral blood smear (PBS).

The samples used in the present study were previously collected from clinicians during routine veterinary activity from healthy and unhealthy dogs. The samples were taken solely for diagnostic purposes with the owner’s informed consent.

As the genetic study of the anomaly was not a primary objective of this study and given that, to the knowledge of the authors, the genetic findings reported in ASD (14) have not been described in other breeds so far, the broader term HG/PHA will be used to identify the morphological characteristics of granulocytes traditionally reported as PHA in the dog.

Dogs and selection criteria

2.2

This cross-sectional study was conducted throughout the San Marco Veterinary Clinic and Laboratory CBC database in two steps during the period between 30 April 2001 and 24 February 2024.

An initial data extraction was performed, focusing on reports of patients with suspected or diagnosed HG/PHA, to identify and to investigate dogs potentially affected by the anomaly. To be considered suitable for the present study, the inclusion criteria were: (1) signalment with at least breed indication; (2) presence of at least 40% hyposegmented neutrophils with the typical appearance of HG/PHA. Exclusion criteria were: (1) no second evaluation when HG/PHA was suspected but not clearly diagnosed by PBS in the first presentation; (2) presence of myeloid neoplasia associated with HG/PHA; (3) presence of mild infection/inflammation attested by increased reactive C protein (>20 mg/L) (29), neutrophilic leukocytosis and with or without toxic cytoplasmic changes, in the absence of confirmation of the HG/PHA by other post-recovery CBCs.

Medical records including signalment, clinical and therapeutic history, physical examination, laboratory analysis (i.e., biochemical profile, serum protein electrophoresis, hemostatic profile, and urine analysis), imaging, and all other tests or procedures necessary to make the final diagnosis were evaluated to exclude causes of pseudo-PHA. When available, historical medical records were consulted to determine whether HG/PHA was confirmed by other CBC performed after diagnosis.

To obtain data from all dogs belonging to breeds eligible for the study to estimate breed-specific prevalences, a second data extraction was performed from the database, covering the same period. Dogs were enrolled based on the following inclusion criteria: (1) belonging to one of the breeds of dogs with HG/PHA previously identified (including both new breeds and those previously reported in literature); (2) belonging to one of the breeds reported in the literature as affected by HG/PHA (13); (3) having a CBC report.

Data were collected in separate groups according to breed, and the results of CBC and PBS microscopic evaluations were used as a proxy measure of the prevalence of HG/PHA. Breed-specific prevalences were subsequently estimated based on the available breeds.

Samples, laboratory analysis, and diagnosis

2.3

The K3EDTA whole blood samples were analyzed using automatic cells counters (ADVIA®120, ADVIA®2,120 and ADVIA®2120i Hematology System, Siemens Healthineers GmbH, Erlangen, Germany) within 1 h after collection. PBSs were prepared accurately immediately after collection (in 30′) and stained with a modified Wright stain using a hematology slide stainer (Aerospray®LB-S44, Delcon, Bergamo, Italy).

The diagnosis was based on an optical microscopical examination of the blood smears with manual differential white blood cell counts by an experienced hematologist. Neutrophils with HG/PHA appearance frequently showed band- or metamyelocyte-shaped nuclei, with fully mature, coarse, densely clumped nuclear chromatin (Figure 1). Bilobed nuclei with ‘pince-nez’ or ‘dumbbell’ appearances or round to oval, nonlobulated or peanut-shaped nuclei could also be present (30). According to the inclusion criteria, only dogs that showed the typical morphological characteristics previously described, in most neutrophils and possibly eosinophils, were considered affected by HG/PHA.

Neutrophil in an Australian shepherd dog affected by HG/PHA (1,000X, modified Wright stain). Courtesy of the San Marco Veterinary Laboratory (Padua, Italy).

Statistical analysis

2.4

Descriptive analysis

2.4.1

The study population was analyzed according to breed and each breed was characterized by sex, sexual status, and age at diagnosis. Quantitative data were expressed as mean ± standard deviation, if normally distributed, and as median and interquartile range (IQR), if not normally distributed. Categorical variables were expressed as counts and percentages in each category.

The prevalence of HG/PHA in the different breeds was estimated and reported as a percentage.

Bayesian analysis

2.4.2

To improve the quality, transparency, and reproducibility of the statistical approach, the Bayesian Analysis Reporting Guidelines (BARG) were used to conduct and report the present analysis. The guidelines propose following a list of key points including model explanation, details of computation, posterior distribution description, model comparison, and sensitivity analysis (26). To accurately reflect current knowledge, informative priors (InfPr) model was elicited and evaluated against a broad prior model and a mildly informative prior model through a sensitivity analysis. Figure 2 presents the list of items requested by the guidelines addressed throughout the manuscript. Detailed steps of the analysis can be consulted in the Supplementary material.

List of the items for the Bayesian analysis reported guidelines (BARG) and location in the paper.

Statistical analysis was implemented using R1 version 4.4.1 (2024-06-14). Bayesian models were interfaced with Stan via the brm function in the ‘brms’ package (31), the graphic MCMC evaluation was implemented using ‘bayesplot’ package, and some parameters were obtained using ‘bayestestR’ and ‘tydibayes’ packages. Other packages used are ‘tydiverse’, ‘kableExtra’ and ‘ggplot2’.

Results

3

The dogs (n = 5,716) included in the study were GS (n = 2,286, 40%), DA (n = 1,293, 22.6%), CS (n = 990, 17.3%), BC (n = 541, 9.5%), ASD (n = 338, 5.9%), SA (n = 126, 2.2%), BT (n = 91, 1.6%), ACD (n = 41, 0.7%), and BA (n = 10, 0.2%). The dogs were 47.8% female and 52.2% male and ranged in age from 0.09 to 22.4 years, with a median value (IQR) of 6.47 (6.72) years. The demographic characteristics of the dogs are summarized in Table 1.

Overall, HG/PHA was observed in 26 out of 5,716 (0.45%) dogs. Twenty-four cases were among ASD (7.1%), one SA (0.79%), one DA (0.08%) and absent in the other breeds. The percentage of pelgeroid neutrophils counted by microscopy evaluation was available in most affected dogs with a median value of 88% (IQR: 16%). In three cases of ASD, the percentages of typical neutrophils were not recorded at the time of evaluation and could not be recovered because blood smear slides were no longer available. The diagnosis was based on multiple CBC evaluation in 17/26 (65%) dogs. Dogs with a unique CBC were considered affected because they did not meet the exclusion criteria and belonged to breeds previously known to be affected by HG/PHA (13). Seven ASD dogs were excluded because they have a unique CBC in which the anomaly was associated with signs of inflammation (n = 4), or the diagnosis was uncertain (n = 3).

In the DA dog, the diagnosis was considered plausible in the evaluation of CBC with most neutrophils with the characteristics of HG/PHA and in the absence of an underlying disease or drug administration associated with pseudo-PHA development. The data of the offspring and siblings are not available due to the retrospective nature of the study.

The detailed results of the Bayesian analysis are reported in the Supplementary material. The InfPr model best fitted the data, capturing the trend of them. The estimated prevalences and 95%CrI of HG/PHA obtained for each breed were summarized in Table 2. Based on the high values of the posterior probability of direction (PD = 100%) and practical significance (PS = 1.00) obtained for each breed, the estimates appeared robust and strongly supported by the data. These results suggested a meaningful difference between the different breeds. A slightly positive prevalence was estimated for the male sex (see the Supplementary material), but it was moderately supported, with PD = 69.5%, PS = 0.52 and not statistically significant. Consequently, it is not clear whether male sex influences the prevalence of HG/PHA within breeds.

Discussion

4

This study describes the prevalence of HG/PHA in various canine breeds using hematologic reports from a large laboratory database collected over a 20-year period. By analyzing data from routine laboratory procedures and from dogs evaluated for reasons unrelated to HG/PHA, our findings potentially reflect the true prevalence of this anomaly in a real-world setting.

The probabilistic nature of the Bayesian fitted model used in the present work allows for uncertainty quantifications in the estimated prevalences of HG/PHA based on breeds and provides clinicians with an idea of the frequency, but at the same time of the rarity, of this anomaly in the dog. By the Bayesian approach, what was already known by the parameter (the prior distribution) is combined with current evidence as support (the data we collect), resulting in updated knowledge of the parameter (posterior probability distributions) (27) that is clinically useful. The use of Bayesian over frequentist estimation in small sample size contexts, as in the present study, is recommended because it can be performed without losing power and retaining precision (27). Furthermore, since the construction of thoughtful priors is strongly encouraged in small sample size contexts (28), posterior probabilities from broad to informative three prior models were compared by sensitivity analysis, and the most informative one was selected to estimate the prevalence and uncertainty of the anomaly for the breeds included in this work. Furthermore, to produce rigorous, transparent, and reproducible analysis and to enhance the robustness and credibility of results, a workflow that adheres to the BARG steps (26) was applied.

For the first time, we report prevalences of HG/PHA in some canine breeds other than ASD. So far, only single cases or descriptions of related dogs have been reported for these breeds (13). Our results confirm that HG/PHA is a rare disease in ACD, BA, BC, BT, CS, GS, and SA with an estimated prevalence between 0.05–0.32%. Lower frequencies of 0.01 to 0.1% for human PHA were described. However, higher frequencies have historically been observed in clusters, such as in Sweden (0.6%) and Germany (1.01%) (30). In human hematological laboratory, only a part of the blood samples analyzed are manually reviewed by smear microscopic evaluation, for example, when it is suggested by a clinical or instrumental (i.e., ‘flags’ report) suspicious of disease (32, 33); consequently, this morphological anomaly may not be detected routinely. On the contrary, in veterinary medicine, microscopic evaluation of PBS is strongly encouraged in all patients (34), and in a reference high-quality laboratory such as the one where this work was carried out, it is routinely performed in both healthy and unhealthy patients. Thus, our results might approximate the true prevalence of HG/PHA in the breeds considered. It should be noted that a small number of subjects were included in the BA and ACD groups and more dogs must be evaluated to better estimate the real prevalences of the anomaly in these breeds.

We estimated a prevalence of HG/PHA of 6.47% in ASD, less than reported in the other two studies available in the literature conducted in the United States (1) and Switzerland (14). This result could reflect a geographical difference distribution of the anomaly, a different intensity of inbreeding, or a different line breeding in Italy compared to other parts of the world. In agreement, historically geographical clustering of human PHA has been reported (35–37). On the other hand, a slight underestimate of prevalence could not be excluded, as seven subjects with significant inflammatory conditions and uncertain diagnosis were not included in the study due to the absence of a confirmatory CBC performed after recovery. It would be interesting to apply our model to datasets obtained from other geographic areas to gain additional information on breed-specific frequencies and enable comparative analysis.

Interestingly, even if HG/PHA remains generally uncommon in dogs, our data estimated different prevalences between breeds: higher in ASD and lower in the others. Recently, a mutation in the LMBR1L gene (so different from LBR1 in humans) has been identified in affected ASD (14). It is unknown whether dogs of different breeds share the same mutation and the same inheritance pattern with ASD. On the other hand, it could not be excluded that in those breeds where HG/PHA is described with a lower prevalence, the anomaly may be caused by other genetic mutations or by the same genetic mutations that cause human PHA. However, our results could simply reflect a different real breed-related prevalence of the same genetic anomaly. Future genetic studies should clarify the mutation underlying the anomaly in these canine breeds.

Notably, we also documented HG/PHA (apparently congenital) in DA for the first time, suggesting that this breed could plausibly be added to the list of breeds affected by the anomaly.

A limitation of this study could be that not only healthy dogs are included due to the nature of the database used. The HG/PHA affected dogs reported in the present study were incidentally found during routine microscopic laboratory activity; therefore, the PBSs of the sick dogs were also evaluated. Restrictive inclusion criteria and careful evaluation of clinical records were adopted to minimize or exclude pseudo-PHA misclassification, particularly in cases where hematologic follow-up was unavailable, thus preventing overestimation. However, due to the retrospective nature of data collection, the restrictive inclusion criteria, and the lack of hematologic follow-up after recovery, also a slight underestimate of the prevalence of the anomaly cannot be ruled out.

Given the retrospective design of this work, another limitation is the inability to confirm whether there was a familial relationship between ASD affected by the anomaly that could potentially bias the assessment of its true prevalence. Furthermore, considering the limited presence of these breeds in Italy, there was a low number of dogs available to estimate the prevalence of HG/PHA for BA and ACD.

In conclusion, this real-world study, based on extensive data, provides valuable information on the prevalence of HG/PHA in nine canine breeds. For the first time, it reports prevalence estimates in breeds beyond ASD using reliable estimates obtained through a Bayesian approach and identifies DA as a newly affected breed. These findings enhance clinicians’ understanding on the frequency, but at the same time of the rarity, of HG/PHA in dogs, highlighting breed-specific differences. This study improves the epidemiological characterization of the anomaly, supporting potential applications in clinical practice, genetic research, and dog breeding practices.
