Percutaneous Reduction and Fixation for Traumatic Thoracolumbar Vertebral Fracture Using a Monoaxial Screw System
Shunsuke Kobayashi, Akira Shinohara, Tadashi Kimura, Shunsuke Katsumi, Mitsuru Saito
TL;DR
This study shows that using a monoaxial screw system for spine surgery in thoracolumbar fractures is minimally invasive and effective, with good recovery outcomes.
Contribution
The study introduces the use of a monoaxial screw system for percutaneous fixation of thoracolumbar vertebral fractures.
Findings
No surgical complications occurred, and implant failure was not observed in any patients.
Significant improvement in spinal kyphosis angle and wedge deformity was seen immediately after surgery.
Improvements in spinal parameters were maintained after implant removal, despite some loss of correction.
Abstract
Background and aim: The development of percutaneous pedicle screws (PPSs) has led to the development of minimally invasive spine stabilization (MISt) procedures, which has decreased the invasiveness of spine surgery. Conventionally, PPSs were available as polyaxial screws only, making it technically challenging to perform percutaneous repair of thoracolumbar vertebral fractures with implants. This study aimed to evaluate percutaneous posterior fixation for thoracolumbar vertebral fractures using a monoaxial screw system and determine imaging and clinical outcomes until after implant removal. Methods: We retrospectively reviewed 20 patients who underwent posterior fixation using the S4 Spinal Fracture Reduction Instrumentation (FRI) system with percutaneous vertebroplasty for traumatic thoracolumbar vertebral fractures. Follow-up continued until after implant removal. AO classification…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7| Case | Age (years) | Sex | Fracture | Type | LSC score | Time from injury to surgery (day) | Mechanism of injury | PVP (HA) | Fixed range (above-below) | AIS (preoperatively) | AIS (postoperatively) |
| 1 | 73 | M | L2 | A3 | 5 | 15 | Fall from height | Yes | 1-1 | E | E |
| 2 | 71 | F | L1 | A3 | 6 | 3 | Road traffic accident | No | 1-1 | D | E |
| 3 | 25 | F | L2 | A3 | 4 | 3 | Snowboarding | No | 2-1 | E | E |
| 4 | 48 | M | L1 | A3 | 6 | 4 | Skiing | No | 1-1 | E | E |
| 5 | 42 | F | L1 | A3 | 5 | 0 | Fall from height | No | 1-1 | D | E |
| 6 | 28 | F | T12 | A3 | 7 | 2 | Fall from height | Yes | 1-2 | C | E |
| 7 | 46 | M | T12 | A3 | 7 | 3 | Road traffic accident | Yes | 1-2 | D | E |
| 8 | 35 | M | L1 | A3 | 7 | 3 | Snowboarding | Yes | 1-1 | E | E |
| 9 | 37 | M | L1 | A3 | 6 | 0 | Fall from height | Yes | 1-1 | E | E |
| 10 | 61 | M | T12 | A3 | 7 | 2 | Fall of heavy objects | Yes | 1-1 | E | E |
| 11 | 63 | F | L1 | A3 | 6 | 2 | Fall from height | Yes | 1-1 | E | E |
| 12 | 41 | M | L1 | A3 | 5 | 1 | Fall from height | Yes | 1-1 | E | E |
| 13 | 47 | F | L1 | A3 | 6 | 1 | Fall from height | Yes | 1-1 | E | E |
| 14 | 41 | M | L3 | A3 | 5 | 6 | Road traffic accident | Yes | 1-1 | E | E |
| 15 | 65 | M | T12 | A3 | 6 | 5 | Fall from height | Yes | 1-1 | E | E |
| 16 | 20 | M | T11 | A3 | 6 | 5 | Snowboarding | Yes | 1-1 | E | E |
| 17 | 23 | M | L2 | B2 | 7 | 4 | Fall from height | Yes | 1-1 | E | E |
| 18 | 41 | M | L1 | A3 | 7 | 20 | Fall from height | Yes | 1-1 | E | E |
| 19 | 36 | F | L1 | A3 | 5 | 1 | Fall from height | Yes | 1-1 | E | E |
| 20 | 33 | M | L1 | A3 | 6 | 1 | Fall from height | Yes | 1-1 | E | E |
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsSpinal Fractures and Fixation Techniques · Spine and Intervertebral Disc Pathology · Pelvic and Acetabular Injuries
Introduction
Various methods have been used to treat thoracolumbar vertebral fractures, including conservative therapy, posterior fixation, anterior fixation, and combined posterior-anterior fixation. However, the choice of treatment remains controversial.
The development of percutaneous pedicle screws (PPSs) has advanced minimally invasive spine stabilization (MISt) procedures, reducing the invasiveness of spine surgery. Initially, PPSs were used for single-level posterior lumbar fusion or transforaminal lumbar interbody fusion, but they are now also used in various MISt-specific devices that allow for multivertebral fixation [1]. These devices have expanded the indications for MISt to include tumors, infections, and trauma [2,3].
Conventionally, PPSs were available only as polyaxial screws, making percutaneous repair of thoracolumbar vertebral fractures technically challenging. However, in 2011, B. Braun Aesculap AG (Melsungen, Germany) introduced the S4 Spinal Fracture Reduction Instrumentation (FRI) system, a monoaxial PPS system that enables percutaneous kyphosis correction and reduction with distraction. Monoaxial screws have the advantage of less loss of correction in comparison with polyaxial screws.
Although good outcomes have been reported for single-level posterior intervertebral fixation using Schantz screws and PPSs, there have been no studies evaluating the S4 Spinal FRI System alone for traumatic thoracolumbar vertebral body fractures [4-6]. This study retrospectively evaluates percutaneous posterior fixation using this system and reviews clinical and radiological outcomes until after implant removal.
Materials and methods
Patients
Twenty patients (13 men and seven women) who underwent posterior fixation using the S4 Spinal FRI System (B. Braun Aesculap AG: Melsungen, Germany) with percutaneous vertebroplasty (PVP) for traumatic thoracolumbar vertebral fractures at Kashiwa Hospital, Jikei University School of Medicine, from August 2012 to March 2017 were followed up until after implants removal. The mean age at surgery was 44±16 (range: 23-73) years. The cause of injury included falls in 12 patients, sports activities in four, traffic accidents in three, and the impact of a heavy falling object in one. Osteoporotic vertebral fractures were excluded. Fracture levels were T11 in one patient, T12 in four, L1 in 11, L2 in three, and L3 in one. AO classification was type A3 in 19 patients and type B2 in one [7]. The mean load-sharing classification score was 6.0 (range: 4-7) [8]. Preoperative neurological deficits were observed in four patients, and the American Spinal Injury Association Impairment Scale (AIS) grade was C in one patient, D in three, and E in 16. Implants were removed after confirmation of bone healing on computed tomography (CT), with a mean postoperative period of 326±96 days. The mean follow-up period was 753 days. This study complied with the Strengthening the Reporting of Observational Studies in Epidemiology (STROBE) guidelines. This study was conducted in accordance with the Declaration of Helsinki and was approved by our institution’s research ethics committee. Informed consent was obtained from all individual participants included in the study.
Surgical procedure
To preserve the adjacent intervertebral space, fixation was limited to one level above and one level below the fracture. When necessary, polyaxial PPSs were combined with monoaxial PPSs to extend fixation in cases of small pedicle diameters or adjacent vertebral fractures.
Preoperative planning
Plain X-ray radiography and CT were used to determine the screw size and direction of penetration preoperatively. The longest and thickest screws possible were selected for correction of alignment. Since the monoaxial PPS fixes the screw at a 90° angle to the rod, the penetration direction was planned based on the anticipated alignment after kyphosis correction (Figure 1).

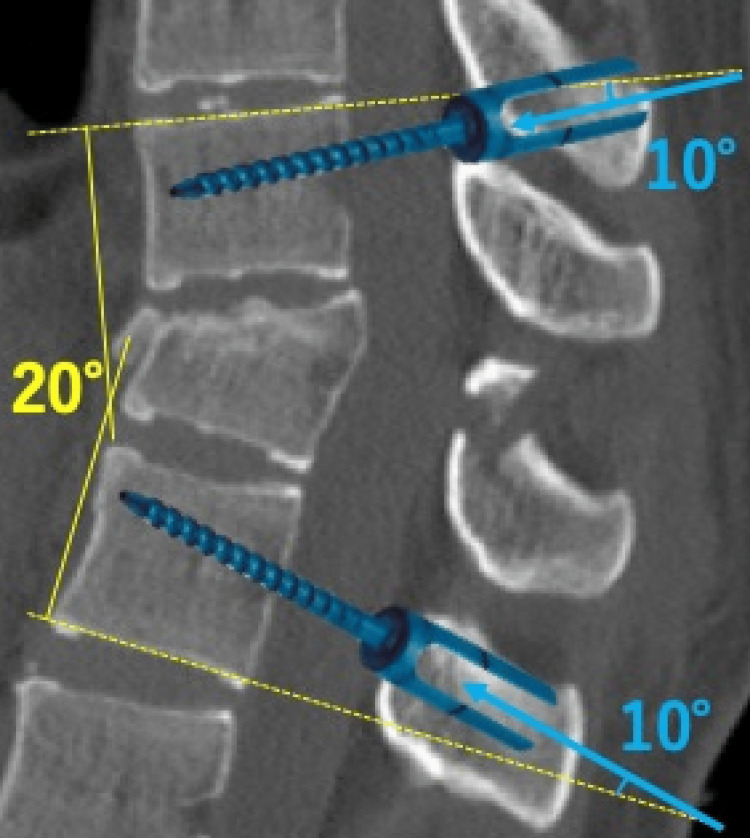

Insertion angle of monoaxial PPS.This case involves a fracture of the 12th thoracic vertebra with a local kyphosis angle of approximately 20°. To correct the kyphosis, we plan to insert the monoaxial PPS with a 10° cephalocaudal angulation.This image is created by the author (Shunsuke Kobayashi) of this study.PPS: percutaneous pedicle screw
Approach
A longitudinal skin incision was made at the PPS insertion site to facilitate the attachment and removal of the FRI. For PVP, a small incision was made lateral to the point of PPS insertion to allow for rod insertion.
Insertion of monoaxial PPS and bone biopsy needle for PVP
First, a PPS probe was inserted into the vertebrae above and below the fracture. A bone biopsy needle for PVP was then inserted into the fractured vertebra, positioned at a slightly oblique angle to accommodate the subsequent rod insertion. The monoaxial PPSs were then inserted under fluoroscopic guidance using the conventional method. Finally, the rod was inserted percutaneously, taking care not to pinch the fascia.
Kyphosis correction
An FRI was installed, and kyphosis correction was performed carefully while monitoring the real-time fluoroscopic lateral view (Figure 2). The kyphosis was corrected by rotating the distally placed nut, although manual correction could also be achieved by grasping the upper end of the screw extender.

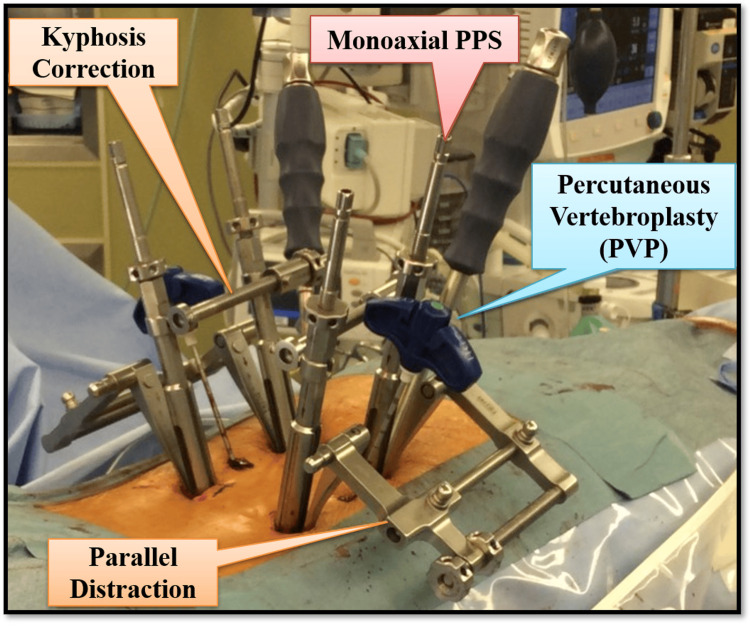

Fracture reduction instrument.Percutaneous kyphosis correction and reduction with ligamentotaxis after insertion of monoaxial PPS. The image is created by the author (Shunsuke Kobayashi) of this study.PPS: percutaneous pedicle screw
Parallel distraction
Parallel distraction was applied by rotating the proximally placed nut, reducing the fracture through ligamentotaxis. To prevent excessive distraction that could cause the disc space to widen, the real-time fluoroscopic lateral view was carefully monitored.
Percutaneous vertebroplasty
After final fixation, the FRI was removed. PVP was performed using the preplaced bone biopsy needle, with a hydroxyapatite (HA) block placed in the appropriate position under fluoroscopic guidance to fill the defect caused by the endplate fracture and kyphosis correction. Bone grafting was not performed to preserve motion after implant removal.
The following were determined preoperatively, immediately postoperatively, immediately before implant removal, and after implant removal (mean time to removal 304 days): intraoperative blood loss, operative time, neurological assessments, and radiological assessments using computed tomography (CT) of local kyphosis angle, wedge deformity rate (defined as {Hb-Ha}/Hb × 100, where Ha is the height of the anterior wall of the fractured vertebra and Hb is the height of the posterior wall), and spinal canal stenosis rate (defined as {L_average-L_fracture}/L_average × 100, where L_average = {La+Lb}/2, L_fracture is the anterior-posterior diameter of the spinal canal at the fracture site, La is the diameter at the cephalad vertebra, and Lb is the diameter at the caudal vertebra) (Figures 3A-3C) [9]. Values are reported as mean±standard deviation.

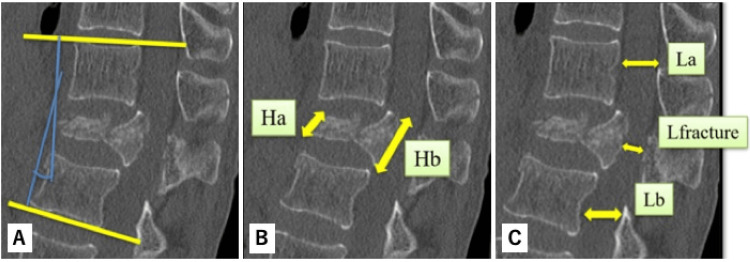

Radiological assessments using computed tomography (CT).(A) Local kyphosis angle. (B) Wedge deformity rate. (C) Spinal canal stenosis rate.Ha: Height of the anterior wall of the fractured vertebra; Hb: Height of the posterior wall; Lfracture: anterior-posterior diameter of the spinal canal at the fracture site; La: diameter at the cephalad vertebra; and Lb: diameter at the caudal vertebra.The image is created by the author (Shunsuke Kobayashi) of this study.
Statistical analyses
One-way Analysis of Variance (ANOVA) with Tukey’s multiple post hoc test was used to compare mean preoperative parameters with those immediately after surgery and before and after FRI removal. A p-value less than 0.05 is considered significant. All statistical analyses were performed using EZR (Saitama Medical Center, Jichi Medical University: Saitama, Japan), which is a graphical user interface for R version 3.5.1 (The R Foundation for Statistical Computing: Vienna, Austria). More precisely, it is a modified version of R Commander designed to add statistical functions frequently used in biostatistics [10].
Results
Clinical results
Surgery was performed an average of four days after injury. The mean intraoperative blood loss was 30±27 (range: 5-90) g, and the mean operative time was 100±36 (range: 45-188) min. PVP was performed in 16 patients. The extent of fixation was one level above to one level below in 17 patients, and the extent of fixation was extended by one vertebra in three patients with adjacent vertebral fractures. Four patients with preoperative neurological deficits recovered to AIS grade E postoperatively and were able to walk (Table 1).
Complications
No patients had implant failure or required a blood transfusion during surgery. There were no infections, and no additional procedures were needed. None of the patients required routine painkillers at the final follow-up.
Radiologic results

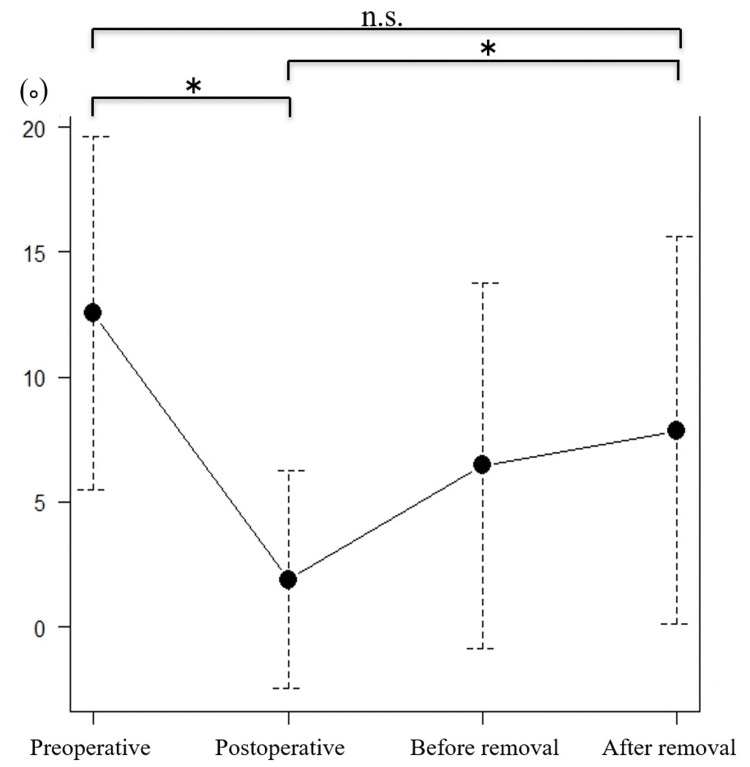

The mean local kyphosis angle was 12.6° preoperatively, 1.9° immediately after surgery, 6.5° before implant removal, and 7.9° after implant removal (Figure 4). Significant improvement was observed between the preoperative and immediate postoperative periods. However, there was also a significant loss of correction after implant removal compared with the immediate postoperative period (mean 6°). The kyphosis angle tended to decrease from the preoperative period to after implant removal, though the change was not statistically significant.
*Local kyphosis angle.P<0.05 was considered statistically significant.

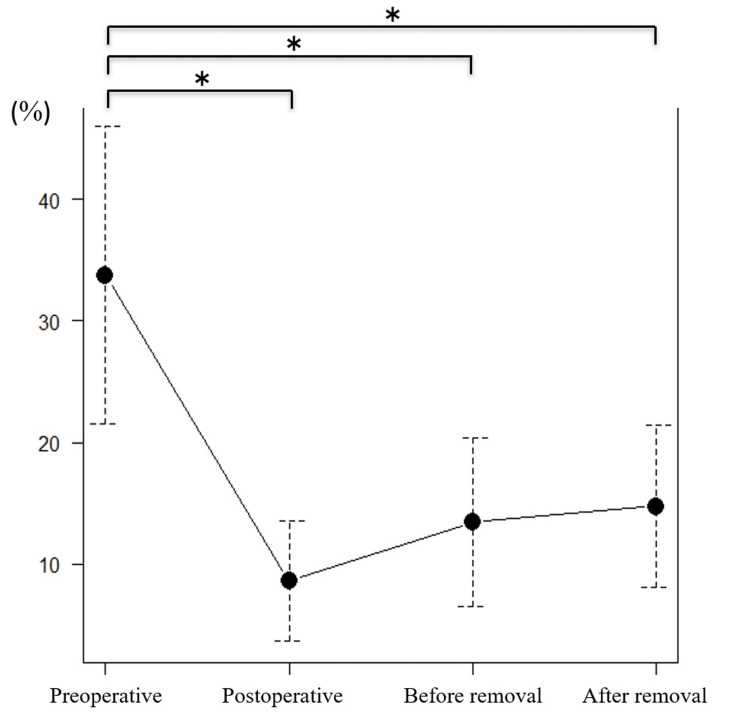

The mean wedge deformity rate showed significant improvement immediately after surgery (33.8% preoperatively, 8.6% immediately after surgery, 13.4% before implant removal, and 14.7% after implant removal; p<0.05) (Figure 5). This improvement was maintained after implant removal (p<0.05).
*Wedge deformity rate.P<0.05 was considered statistically significant.

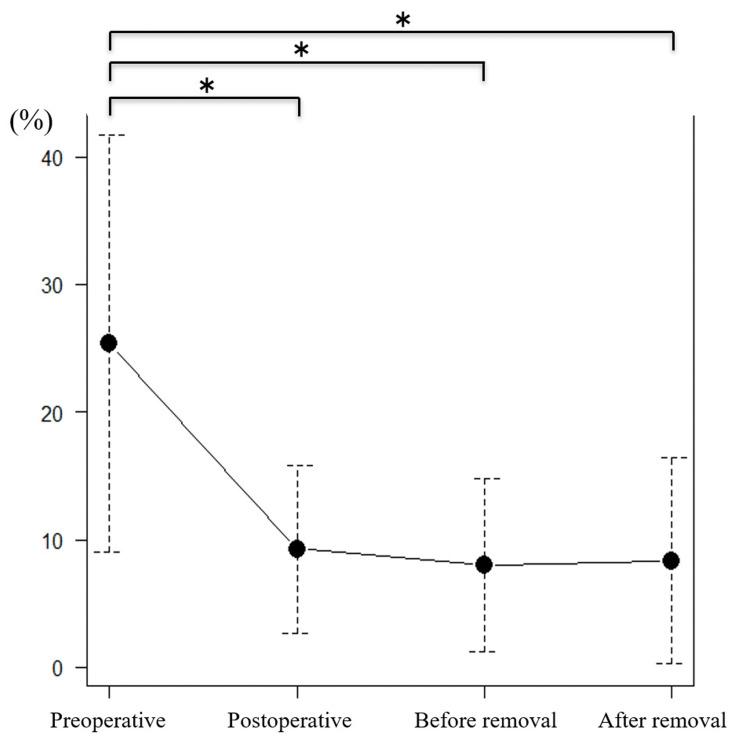

The mean spinal canal stenosis rate also showed significant improvement immediately after surgery (25.3% preoperatively, 9.3% immediately after surgery, 8.0% before implant removal, and 9.4% after implant removal; p<0.05) and was also maintained until after implant removal (Figure 6).
*Spinal canal stenosis rate.P<0.05 was considered statistically significant.
Example case
A 28-year-old woman with schizophrenia fell from a height and sustained a burst fracture of the 12th thoracic vertebra, AO classification A3 (Figures 7A-7D). On admission, she had neurological deficit (AIS grade C), and a CT scan showed a local kyphosis angle of 19°, spinal canal stenosis rate of 42.5%, and wedge deformity rate of 57.1%. Surgery was performed two days after the injury. Operative time was 115 minutes, and intraoperative blood loss was 11 g. Postoperatively, her neurological deficit improved to AIS grade E, and she was able to walk on postoperative day one. She was discharged on postoperative day eight. Immediately after surgery, the local kyphosis angle improved by 2°, the spinal canal stenosis rate by 3.9%, and the wedge deformity rate by 3.0%. During follow-up, there was a slight loss of kyphosis correction, but the bony union was achieved, and the spinal canal was remodeled. The improvements in the spinal canal stenosis and wedge deformity rates were maintained.

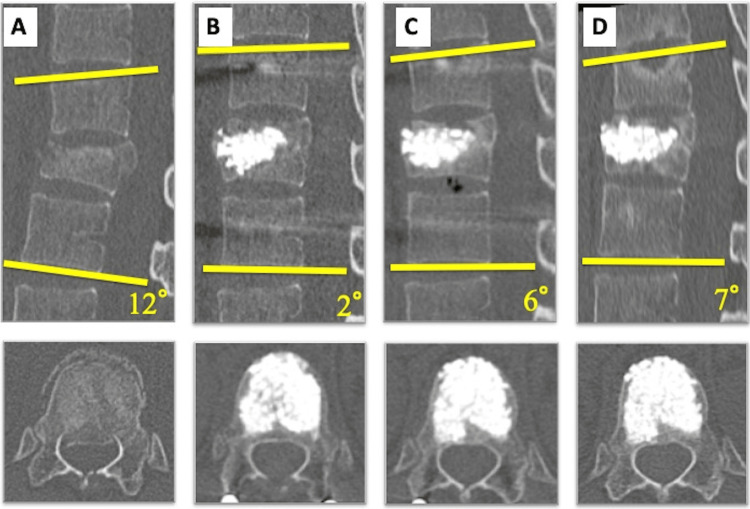

Imaging findings in an example case.(A) Preoperative, (B) postoperative, (C) before implant removal, and (D) after implant removal. A 28-year-old woman sustained a burst fracture of the 12th thoracic vertebra. Immediately after surgery, the local kyphosis angle improved by 2°. During follow-up, there was a slight loss of kyphosis correction, but bony union was achieved, and the spinal canal was remodeled.Local kyphosis angle: (A) 12°, (B) 2°, (C) 6°, (D) 7°. Wedge deformity rate: (A) 57.1%, (B) 3.0%, (C) 10.6%, (D) 10.7%. Spinal canal stenosis rate: (A) 42.5%, (B) 3.9%, (C) 7.2%, (D) 6.0%.This image is created by the author (Shunsuke Kobayashi) of this study.
