Biomechanical effects of loading methods on the patellofemoral joint during stair climbing: based on statistical parametric mapping analysis

TL;DR

This study compares how different ways of carrying loads affect the patellofemoral joint during stair climbing, using advanced biomechanical analysis.

Contribution

The study introduces the use of Statistical Parametric Mapping to analyze patellofemoral biomechanics during stair climbing with different loading methods.

Findings

Hand-carry carriage increases patellofemoral joint stress during single-support and second double-support phases.

Shoulder-load carriage maintains joint stability with shorter external moment arms despite initial stress spikes.

Hand-carry carriage reduces lower-limb co-activation, compromising joint stability.

Abstract

Stair negotiation with external loads imposes substantial demands on the structural and functional integrity of the patellofemoral joint. Current research predominantly focuses on singular loading modalities or level walking conditions, often employing discrete time-point comparisons. This study innovatively employs Statistical Parametric Mapping (SPM) to systematically analyze patellofemoral biomechanical characteristics during stair negotiation with different load-carrying strategies.

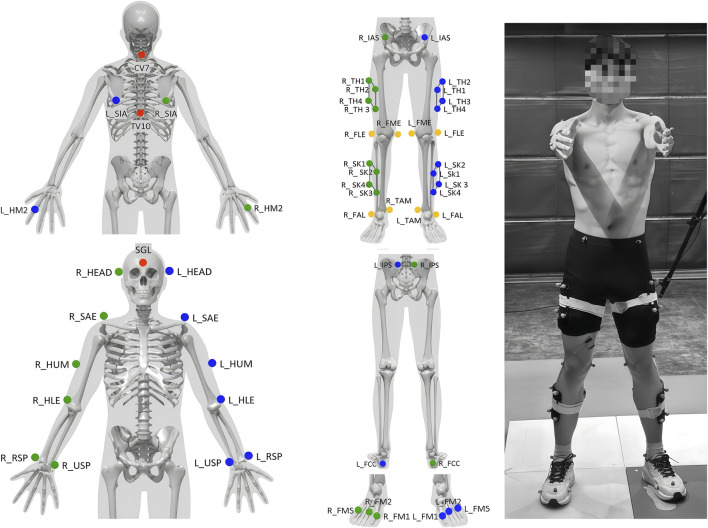

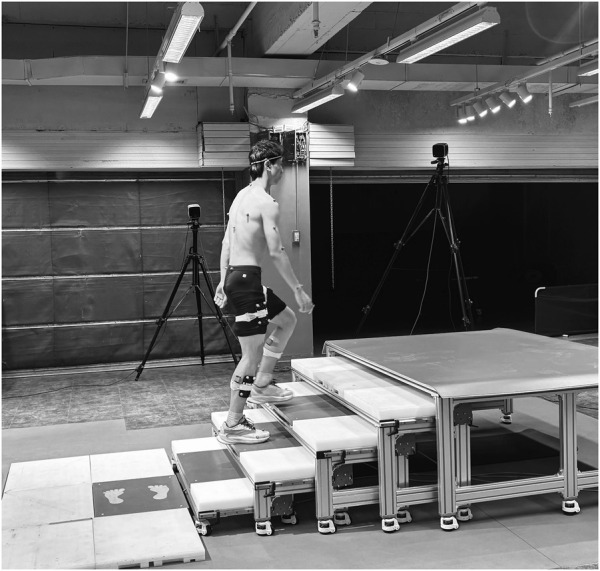

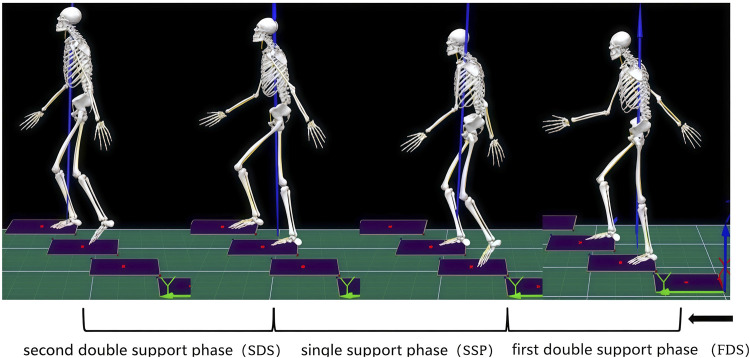

Twenty healthy males performed stair negotiation tasks under shoulder-load carriage (SLC) and hand-carry carriage (HCC) conditions (15 kg). Kinematic (200 Hz), kinetic (2000 Hz), and electromyographic (2000 Hz) data were synchronized to compute patellofemoral joint stress(PFJS), center of pressure (COP) trajectories, and muscle co-activation indices across stair phases.

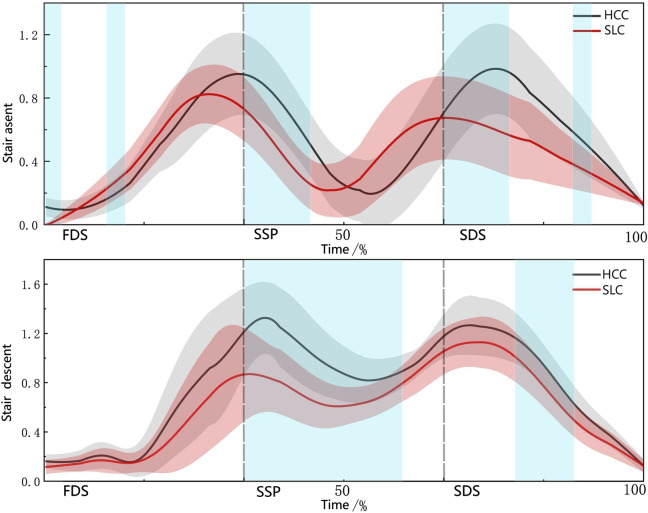

HCC generated significantly greater patellofemoral joint stress during most stair phases compared to SLC (P < 0.05), while SLC exhibited transient stress elevation only during initial double-support phase.

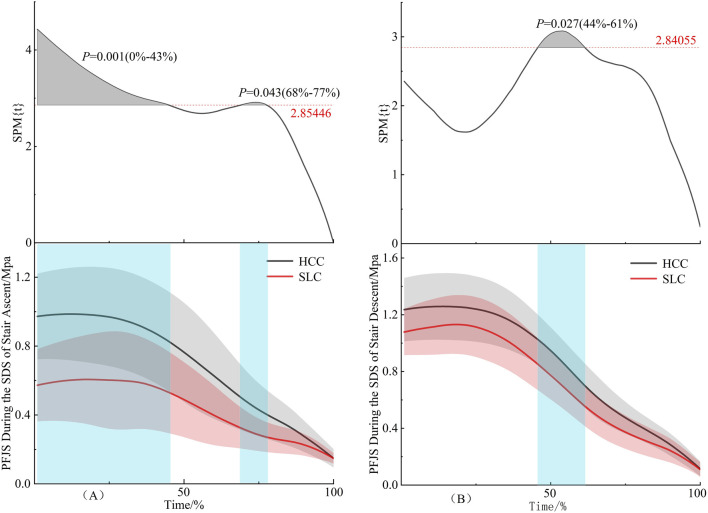

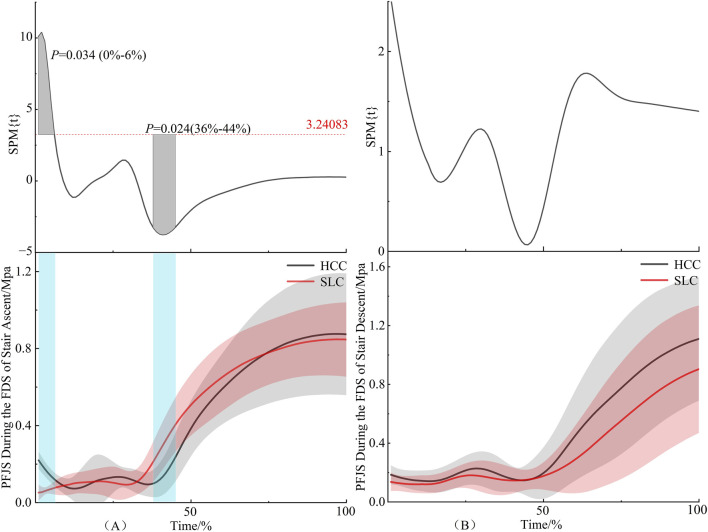

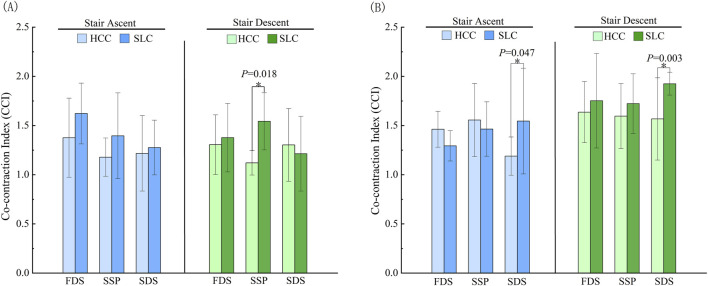

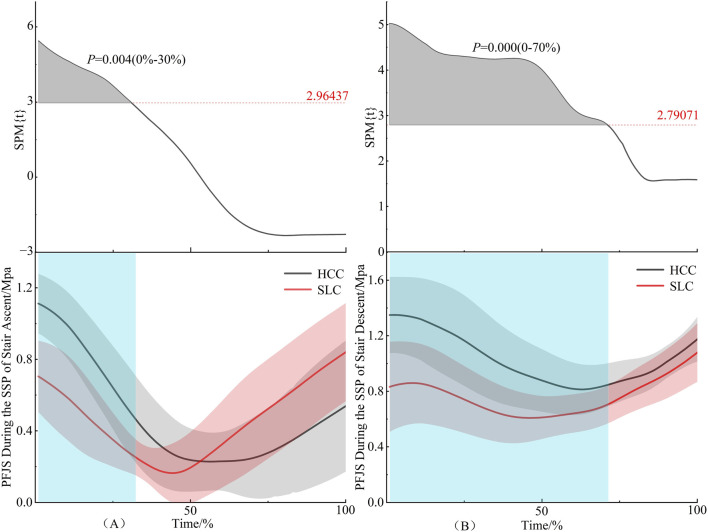

HCC particularly increased joint stress during single-support and second double-support phases, with concomitant increases in COP displacement distances and reduced lower-limb co-cativation indices (CCI) collectively compromising joint stability. Despite transient stress spikes during initial double-support, SLC maintained kinetic chain equilibrium through shorter external moment arms. These findings recommend prioritizing proximal symmetric loading modes complemented by targeted vastus medialis training to enhance patellar stability, thereby reducing both patellofemoral joint stress concentrations and low back pain risks.
