Estimation of the Safe Zone in the Anterior Mandible for Implant Osteotomy: A Cone-Beam Computed Tomography (CBCT) Study
Mousumi Mahato, Sadananda Hota, Purnendu Bhusan, Anjana Raut, Arun Mohanty, Jaya Naikode
TL;DR
This study uses CT scans to determine safe zones in the lower jaw for dental implants, finding differences between men and women.
Contribution
The study introduces gender-specific safe zone measurements in the anterior mandible using CBCT and the genial tubercle as a reference.
Findings

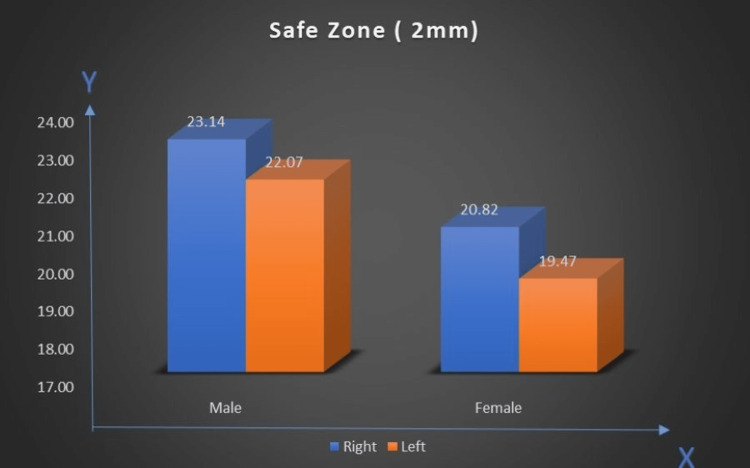

Men had wider safe zones (mean 23.14 mm right, 22.07 mm left) compared to women (20.82 mm right, 19.47 mm left).
More women had safe zones between 15-19.9 mm, while more men had safe zones above 25 mm.
A strong correlation was found between genial tubercle to anterior loop distance and safe zone measurements.
Abstract
Purpose: This study aimed to estimate the safe zone in the anterior mandible relative to the genial tubercle. It also evaluated the genial tubercle’s reliability as a reference point for interforaminal measurements during implant planning. Patients and methods: Four hundred ninety-nine cone-beam computed tomography (CBCT) Digital Imaging and Communications in Medicine (DICOM) files (250 men and 249 women) were examined with NNTViewer software (Newtom, Verona, Italy). These files were obtained from dental departments of academic institutions and private imaging centers. The distance from the genial tubercle to the anterior loop of the inferior alveolar nerve was measured, and a standardized protocol for determining safe zones was established. Results: In men, the mean safe zone was 23.14 mm (right) and 22.07 mm (left). In women, it was 20.82 mm (right) and 19.47 mm (left). Overall, men…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

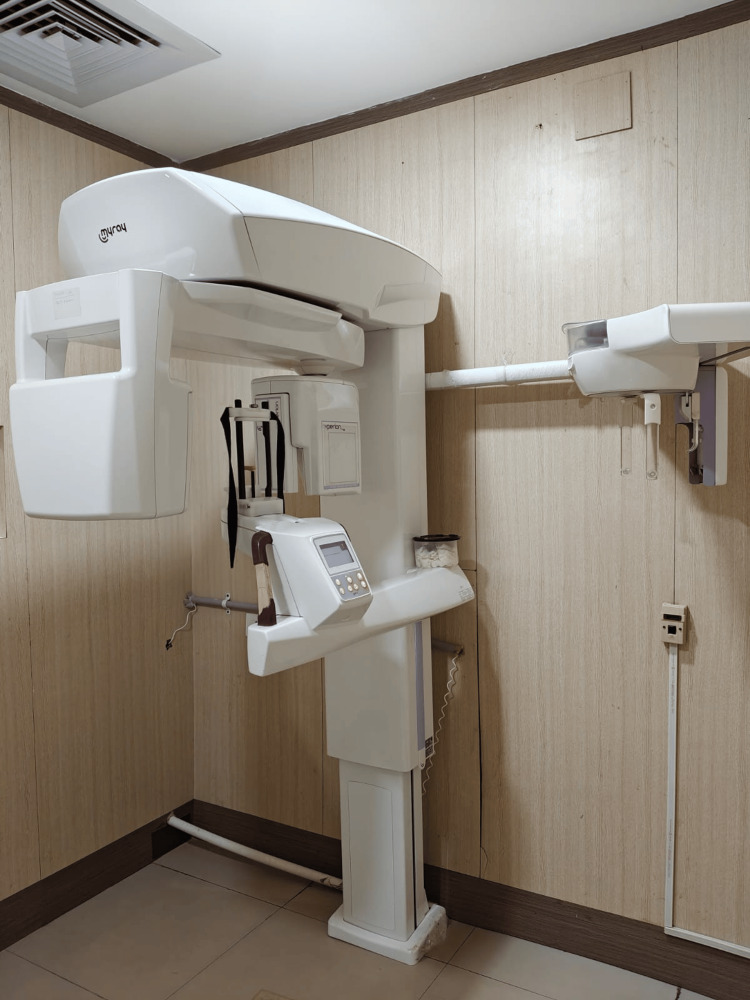

Figure 1

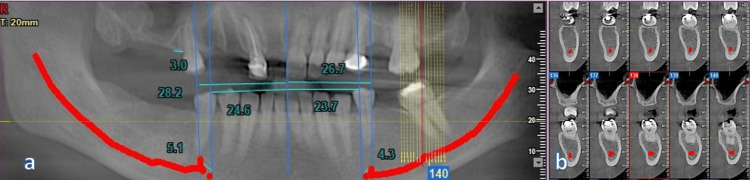

Figure 2

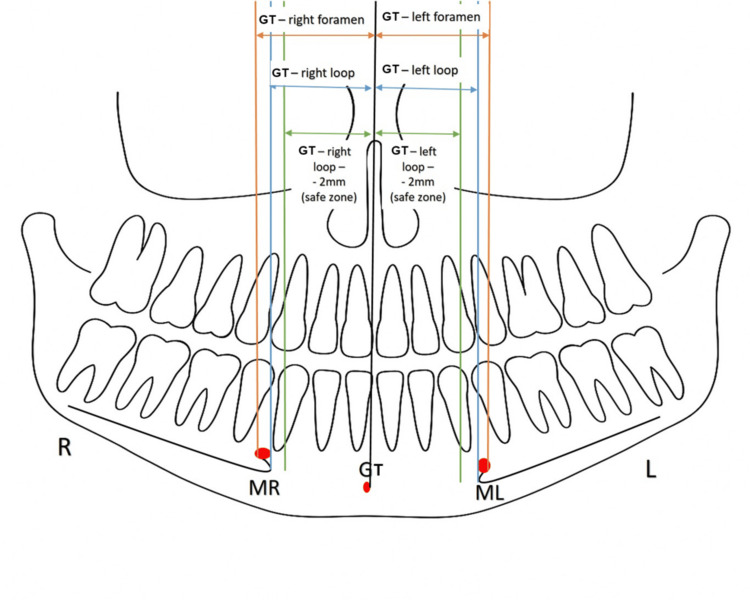

Figure 3

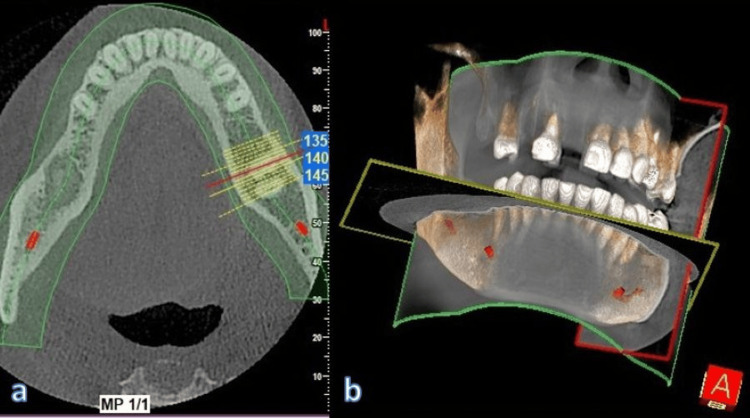

Figure 4

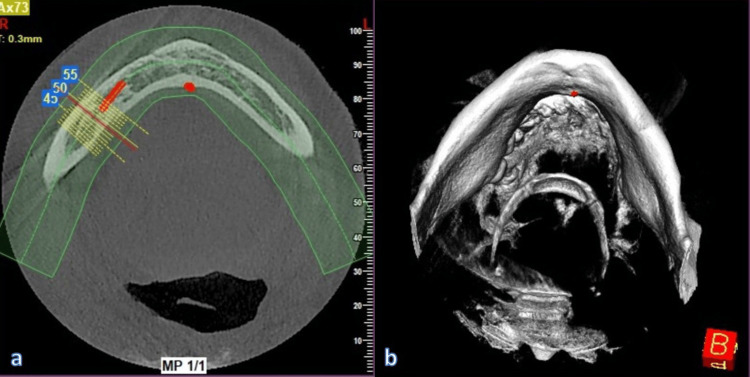

Figure 5

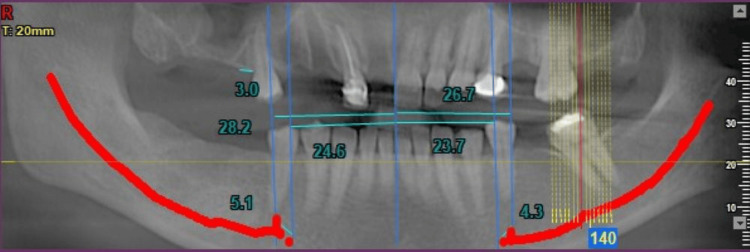

Figure 6

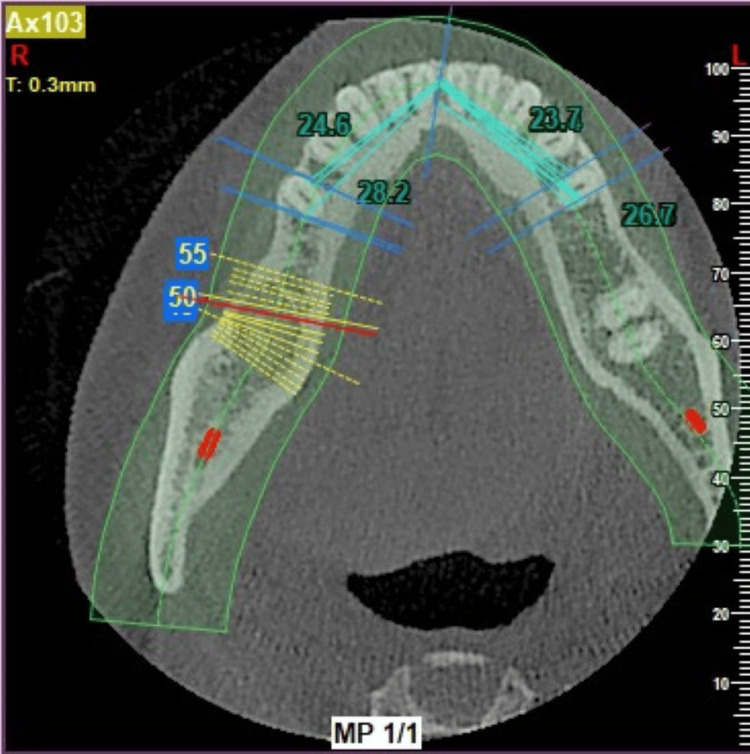

Figure 7

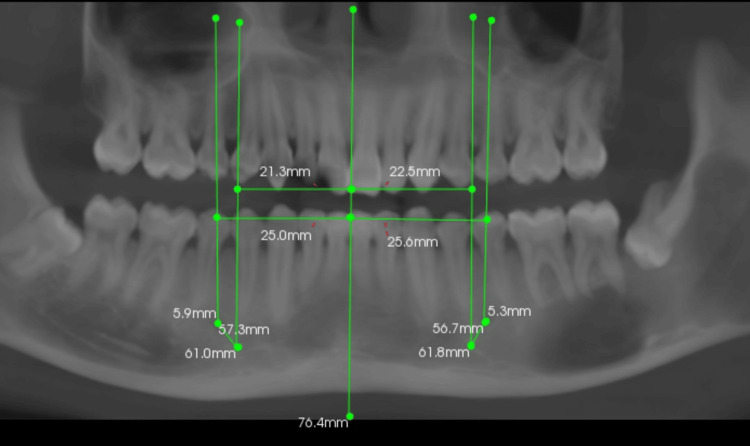

Figure 8

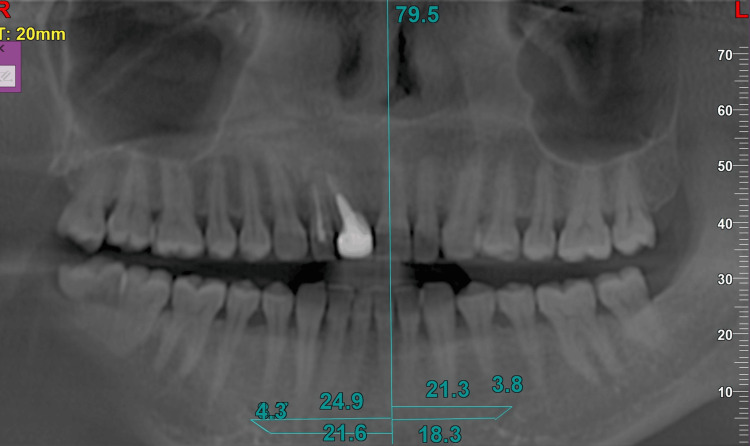

Figure 9

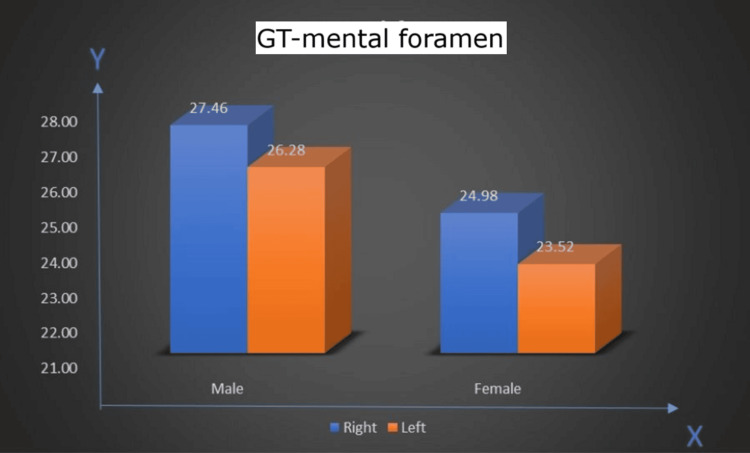

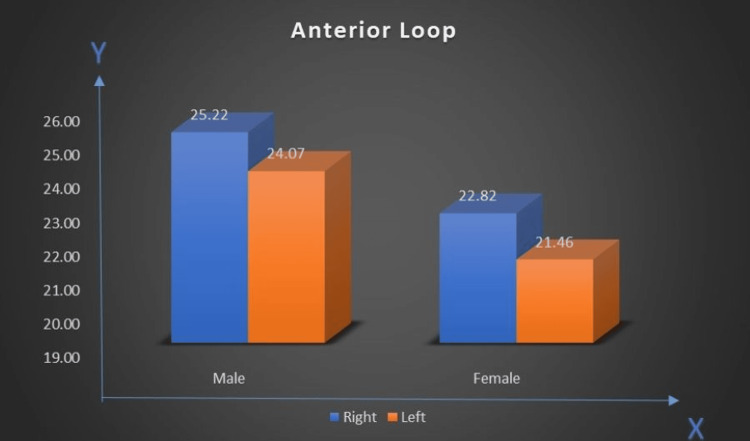

Figure 10
Figure 11
Figure 12Peer Reviews
