Skeletal ossification of Middle Triassic pachypleurosaur Keichousaurus hui (Reptilia: Sauropterygia) revealed by zinc distribution
Yi-nuo Wang, Da-yong Jiang, Ryosuke Motani, Ming-tao Yao, Cheng Ji, Zuo-yu Sun, Min Zhou
TL;DR
This study uses zinc distribution to reveal bone development patterns in a Middle Triassic pachypleurosaur.
Contribution
The novel use of zinc as an indicator of active ossification in fossil reptiles is introduced.
Findings
Zinc is enriched in specific skeletal regions and correlates with active ossification in Keichousaurus hui.
Zinc distribution patterns differ between juvenile and subadult specimens, indicating ontogenetic bone development.
Zinc suggests progressive tarsal ossification in K. hui, similar to endochondral ossification in modern reptiles.
Abstract
The elemental composition of seven specimens of Keichousaurus hui, a small pachypleurosaur from the Middle Triassic of China, was analyzed via Micro X-ray fluorescence (Micro-XRF). The results indicate that the distribution of zinc (Zn) is notably correlated with the bones of the skeletons and preferentially enriched in certain areas, unlike other bone-enriched elements such as calcium (Ca), phosphorus (P), and strontium (Sr). Based on the distribution of Zn and its chemical properties, Zn is interpreted as a potential indicator of active ossification in K. hui. A comparative analysis of juvenile and subadult specimens reveals distinct patterns of Zn enrichment, reflecting differential bone development across ontogenetic stages. Notably, the Zn distribution in the subadult specimen of K. hui suggests the ossification of the tarsals gradually progresses from the centre to the periphery…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8- —National Natural Science Foundation of China
- —Fundamental Research Funds for NIGPAS
- —Youth Innovation Promotion Association of the CAS
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsPaleontology and Evolutionary Biology · Evolution and Paleontology Studies · Ichthyology and Marine Biology
Introduction
Keichousaurus hui is a small pachypleurosaur from the Middle Triassic of the eastern Tethyan region (South China) and serves as the index fossil of the Xingyi Fauna (Young, 1958; Lin, Rieppel & Field Museum of Natural History, 1998; Rieppel, 2000; Jiang et al., 2023). Its ontogenesis, sexual dimorphism, allometric growth, reproductive strategies, and diet preferences have been discussed on the basis of abundant, well preserved, and complete specimens from the Zhuganpo Member of Falang Formation (Ladinian, Middle Triassic) at Xingyi, Guizhou, southwestern China (Cheng, Wu & Ji, 2004; Cheng et al., 2009; Fu et al., 2013; Motani et al., 2015; Xue et al., 2015; Liao et al., 2021; Li et al., 2023). Despite these comprehensive investigations, the ossification of K. hui bones remains poorly understood.
Biologically mineralized hard tissues (e.g., bones, teeth, osteoderms) and delicate soft tissues (e.g., feathers, skins) can preserve biochemical residues that provide vital insights into the physiology of extinct taxa (Erickson et al., 2006; Tumarkin-Deratzian, Vann & Dodson, 2006; Edwards et al., 2011; Vitek et al., 2013; Qvarnstrom, Niedzwiedzki & Zigaite, 2016; Lindgren et al., 2018; Su et al., 2025). Among these, hard tissues (e.g., bones) are more likely to retain endogenous chemical signatures than soft tissues, owing to their higher resistance to degradation and diagenetic alteration during fossilization.
Ossification typically occurs through two distinct processes: direct (intramembranous) and indirect (endochondral) ossification, both of which contribute to the formation of normal bone tissue and are regulated by a complex interplay of physiological factors (González, 2019; De Buffrénil & Houssaye, 2021). The trace element, zinc (Zn), has been proven to have profound impacts on bone physiology in extant species (O’Connor et al., 2020). Zn influences bone ossification either directly, acting on nucleation and mineral growth as a divalent cation, or indirectly, as a cofactor for enzymes such as alkaline phosphatase or other metalloenzymes that are integral to the ossification process (Gomez et al., 1999). For example, alkaline phosphatase—synthesized by osteoblasts—plays a crucial role in cartilage mineralization and bone formation. This enzyme requires divalent cations like Zn^2+^ as cofactors at the active site to function effectively (Coleman, 1992; Gomez et al., 1999).
The presence of endogenous Zn closely linked to ossification has been well-documented in many fossil bones (Anné et al., 2014; Anné et al., 2016; Anné et al., 2018). Zn exhibits remarkable post-mortem preservation and remains stable throughout the fossilization process, as evidenced by studies on extinct species (Shinomiya et al., 1998; Bergmann et al., 2010; Anné et al., 2014; Anné et al., 2017). Research on various fossil materials, such as extinct cave hyenas, archosaurs and Sirenia, has revealed a strong correlation between Zn and fossilized bones, which provides critical insights into ossification processes, even among heterochronous species deposited in diverse burial environments (Anné et al., 2014; Anné et al., 2016; Anné et al., 2018). Consequently, analyzing the distribution of specific elemental markers, such as Zn, can offer valuable information about the physiological state of ossification in extinct organisms.
The application of Micro X-ray fluorescence (Micro-XRF) on fossil surfaces, with its high spatial resolution, enables the visualization of entire fossils and facilitates large-scale scanning. Recent studies utilizing this non-destructive technique on vertebrate fossils and their surrounding matrices have demonstrated its potential not only to complement skeletal anatomy (Li et al., 2020; Schroder et al., 2022; Chen et al., 2023; Liu et al., 2024; Wang et al., 2024), but also to enhance our understanding of the chemical composition in keratinous structures and soft tissues, such as claw sheaths and feathers in Jianianhualong tengi (Li et al., 2020) and the trunk of Mixosaurus panxianensis (Wang et al., 2024). This study aims to apply this method to the skeletal analysis of K. hui in order to elucidate bone development across various ontogenetic stages, including fetal, juvenile, subadult, and adult. The objectives of this paper are threefold: (1) to reveal the elemental distribution (especially Zn) in skeletons of K. hui; (2) to explore the implications of Zn as a biomarker of ossification in K. hui; (3) to visualize the ossification of certain bones at different ontogenetic stages, and compare with those in extant species.
Materials & Methods
The material for this study includes seven specimens of K. hui from Xingyi City, Guizhou, China. Four specimens are deposited in the Geological Museum of Peking University (GMPKU), and three are in the Xingyi National Geopark Museum (XNGM). During the preparation process, all specimens were handled with great care to preserve the original biological signals within the bones and the surrounding matrix. Efforts were made to minimize the use of chemical solvents to avoid potential damage to these signals. The specimens were measured with a pair of digital calipers with a precision of 0.01 mm using the criteria of Sander (1989). Curved elements, such as the neck and trunk, were measured by aligning a cotton thread along the axis and measuring it with a ruler later. Seven morphological features (Table 1), including humerus length (HL), maximum distal width of humerus (MAXDWH), minimum width of humeral shaft (MINWHS), femur length (FeL), snout-vent length (SVL), standard length (SL) and humeral midshaft circumference (HMC), were measured to distinguish their ontogenetic stages and gender following the previous morphology-based classification scheme (Cheng et al., 2009; Qin, Yu & Luo, 2014; Xue et al., 2015). Specifically, the HL/FeL is used to estimate whether these specimens have reached sexual maturity and then gender identification can be quantified in adult individuals based on MAXDWH/MINWHS, HL/FeL and HL/SL (Lin, Rieppel & Field Museum of Natural History, 1998; Cheng et al., 2009) (Table 1). According to the criteria established by Lin, Rieppel & Field Museum of Natural History (1998), adults are defined as those with a HL/FeL ratio greater than 1, while non-adults are characterized by an HL/FeL ratio less than 1 (Table 1). In adult individuals, genders are assigned following the methodology of Cheng et al. (2009). The diagnostic ratios and their corresponding threshold values are as follows: 1.8 for MAXDWH/MINWHS, 1.1 for HL/FeL, and 1.3 for HL/SL (Cheng et al., 2009). Specimens exhibiting at least one ratio exceeding its respective threshold were classified as male (Table 1). Non-adult ontogenetic stages were further subdivided into juvenile (within one year after birth) and subadult (more than one year, but younger than two years) by humeral midshaft circumference (Table 1; Fig. 1). Based on the data of humeral midshaft circumference and age estimated by bone histology from Li et al. (2023), we fitted these data and assigned our specimens to facilitate age division (Fig. 1). However, the humerus of XNGM WS-31-R22 was broken, so some related data are unavailable. GMPKU-P-4317 is a gravid specimen in ventral view whose fetuses cover the four most posterior trunk vertebrae, so the standard length of GMPKU-P-4317 is also unavailable.
Table 1: Measurements of the skeleton in K. hui (mm).

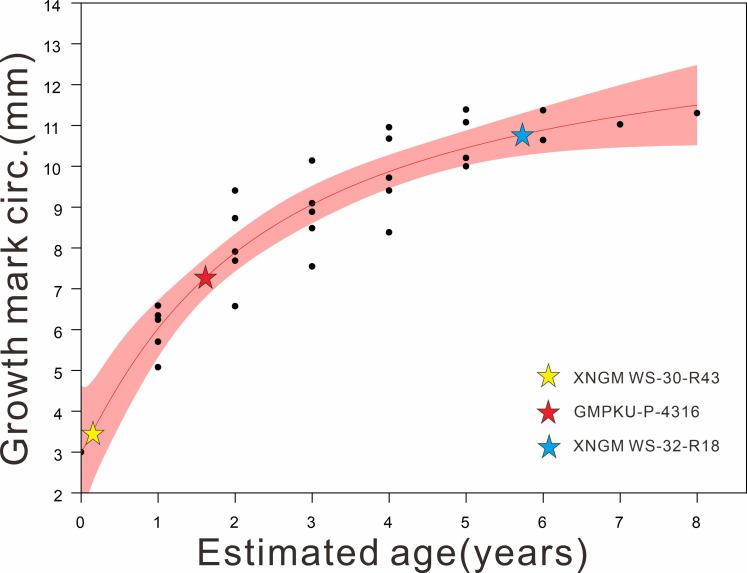

Regression of the body size (proxy: humeral midshaft circumference) on the age of K. hui (R2:0.86124) (modified based on data from Li et al., 2023), with three specimens superimposed.The red shaded area represents the 95% confidence interval. The plots of our examined specimens show that XNGM WS-30-R43, GMPKU-P-4316, and XNGM WS-32-R18 are juvenile, subadult and adult, respectively.
Elemental maps of the fossil specimens were obtained using the Bruker M6 Jetstream mobile X-ray fluorescence instrument at the Micro-XRF imaging Lab, China University of Geosciences Beijing. The seven skeletons are dorsoventrally preserved and the instrument was calibrated to mitigate height disparities, ensuring that the variance in height at the four corners did not exceed 2 mm, thereby meeting the requirements for qualitative imaging. Specific mapping parameters, including acquisition conditions, acquisition time per pixel and total measurement time, are in Table S1. Areas of interest, such as the left and right hindlimbs of GMPKU-P-4316, were further investigated by Micro-XRF using higher spatial resolution. The Golden Software Surfer 13 (Golden Software, LLC., Golden, Colorado, USA) was used to analyze the samples’ elemental content data and generate element distribution maps. The XRF mapping is a false-colour image, which only shows the distribution of elements and not their actual concentration.
Results
Results are reported here mainly based on three of the specimens that illustrate ontogenetic differences best, namely XNGM WS-30-R43 (juvenile), GMPKU-P-4316 (subadult), and XNGM WS-32-R18 (adult) (Fig. 1).
Tendency of overall elemental distribution
The elemental distribution in K. hui demonstrates a distinct enrichment of elements typically associated with bone, primarily calcium (Ca), phosphorus (P), and strontium (Sr) (Figs. 2–4, Figs. S1–S4). Conversely, manganese (Mn), sulfur (S), titanium (Ti), and potassium (K) exhibit higher concentration in the surrounding matrix and are relatively depleted in the skeletal structures (Fig. S5). Notably, Zn shows a strong correlation with skeletal elements in some specimens (Figs. 2E, 3E, 4E).

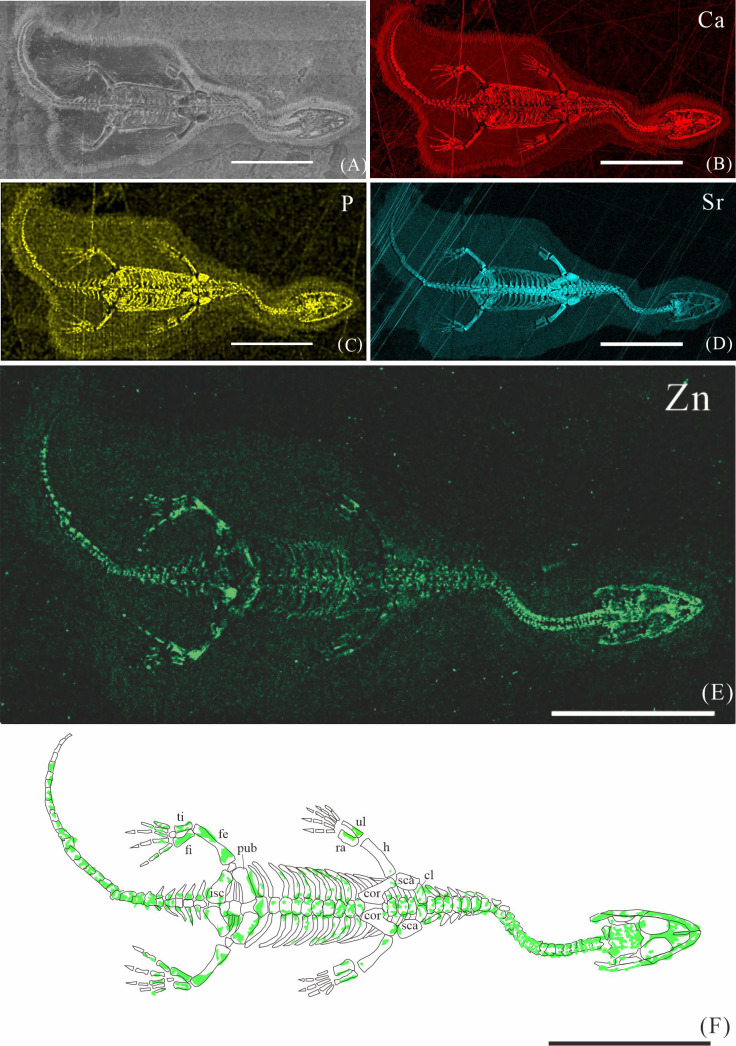

Elemental distribution map and drawing of XNGM WS-30-R43.(A) Photo of XNGM WS-30-R43. (B–E) Micro-XRF maps (false-color images) of Ca (B), P (C), Sr (D), Zn (E). (F) Drawing of XNGM WS-30-R43 and distribution diagram of Zn. The scale bars are 20 mm. Abbreviations: ti, tibia; fi, fibula; isc, ischium; fe, femur; pub, pubis; ra, radius; ul, ulna; h, humerus; cor, coracoid; sca, scapula; cl, clavicle.

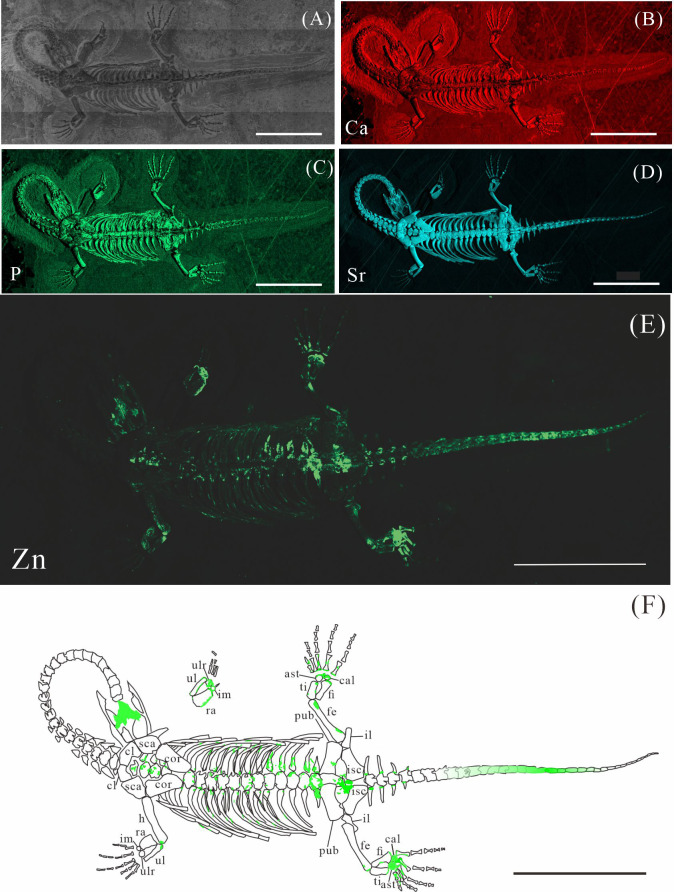

Elemental distribution map and drawing of GMPKU-P-4316.(A) Photo of GMPKU-P-4316. (B–E) Micro-XRF maps (false-color images) of Ca (B), P (C), Sr (D), Zn (E). (F) Drawing of GMPKU-P-4316 and distribution diagram of Zn. The scale bars are 3 cm. Abbreviations: cl, clavicle; sca, scapula; cor, coracoid; h, humerus; ra, radius; im, intermedium; ul, ulna; ulr, ulnare; ast, astragalus; ti, tibia; pub, pubis; fi, fibula; fe, femur; cal, calcaneum; il, ilium; isc: ischium.

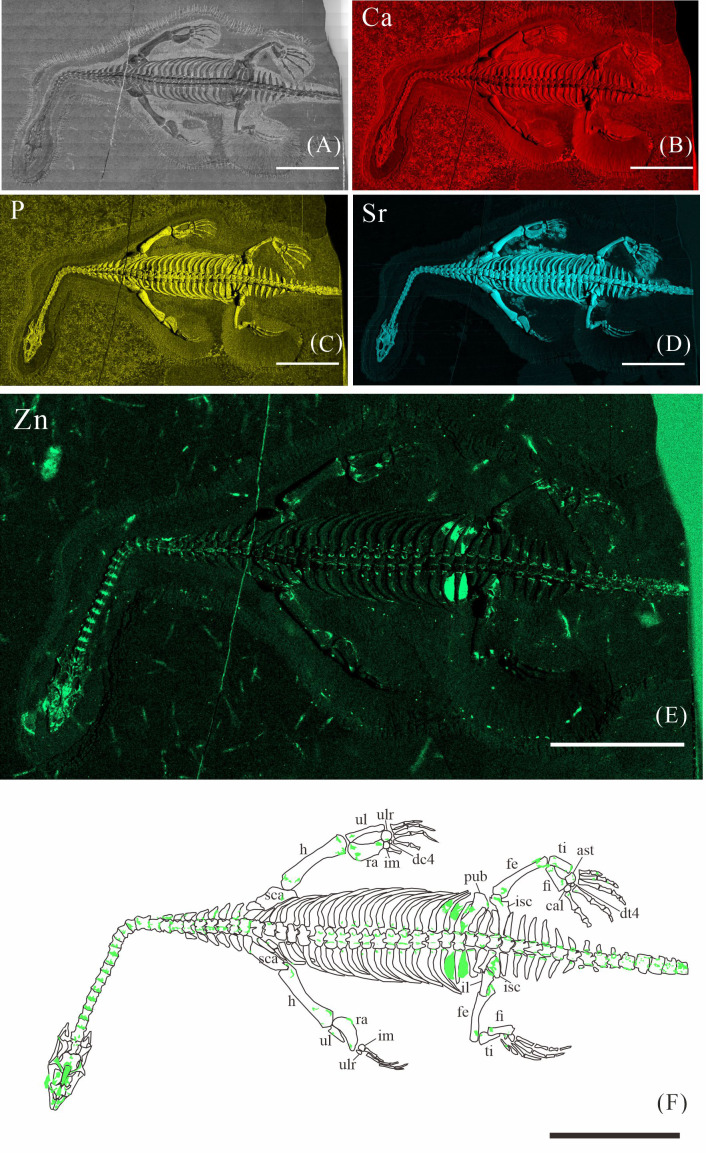

Elemental distribution map and drawing of XNGM WS-32-R18.(A) Photo of XNGM WS-32-R18. (B–E) Micro-XRF maps (false-color images) of Ca (B), P (C), Sr (D), Zn (E). (F) Drawing of XNGM WS-32-R18 and distribution diagram of Zn. The scale bars are 4 cm. Abbreviations: sca, scapula; h, humerus; ul, ulna; ulr, ulnare; ra, radius; im, intermedium; dc4, fourth distal carpal; pub, pubis; fe, femur; isc, ischium; fi, fibula; ti, tibia; ast, astragalus; cal, calcaneum; dt4, fourth distal tarsal; il, ilium.
The skeletal structures exhibit significantly higher Ca content compared to the surrounding matrix, mineralogically consistent with apatite. However, the contrast in Ca-maps is not sufficiently pronounced to clearly delineate the skeletal outlines (e.g., Figs. 2B, 3B, 4B). P is primarily distributed in skeletons, thereby revealing the skeletal structures (e.g., Figs. 2C, 3C, 4C). Notably, all seven K. hui specimens consistently exhibit distinctly elevated Sr levels throughout the entire skeleton, providing exceptional anatomical clarity (e.g., Figs. 2D, 3D, 4D). The Sr-maps demonstrate a higher contrast compared to the Ca-maps and P-maps, suggesting their superior potential for distinguishing bones from the matrix.
The distribution of Zn in K. hui varies significantly among the seven specimens. In three specimens—XNGM WS-30-R43 (Fig. 2E), GMPKU-P-4316 (Fig. 3E), and XNGM WS-32-R18 (Fig. 4E)—Zn shows marked correlation with skeletal structures, but with distinct distribution patterns in each specimen. In contrast, the remaining four specimens show no elevated Zn levels in the skeletal regions (Figs. S1E, S2E, S3E, S4E). Given this variability, the Zn distribution in the three specimens displaying skeletal enrichment is described in greater detail below.
Elemental distribution in XNGM WS-30-R43, GMPKU-P-4316 and XNGM WS-32-R18
Elemental distribution in XNGM WS-30-R43
XNGM WS-30-R43 is a well-preserved juvenile individual in ventral view (Fig. 2). Zn is primarily concentrated in the skull and along the axial skeleton, particularly in the cervical vertebrae and caudal vertebrae (Figs. 2E, 2F). Notably, Zn enrichment is also observed in the proximal ends and shafts of the dorsal ribs, as well as both the proximal and distal ends of the long bones in the limbs (Fig. 2F).
Elemental distribution in GMPKU-P-4316
GMPKU-P-4316 is a subadult individual exposed in ventral view (Fig. 3). The Zn-map shows that the distribution of Zn is closely related to the skeletal structure, with higher Zn content observed in specific bones such as the parietal, carpals, tarsals, proximal ends and shafts of the dorsal and caudal ribs. Notably, the proximal ends and shafts of dorsal and caudal ribs show distinct Zn enrichment compared to the rest of the ribs, forming a bilaterally symmetrical pattern along the dorsal and caudal vertebrae (Figs. 3E, 3F). Zn distribution around the tarsals is particularly noteworthy, showing a nearly circular pattern consistent with the bone shape (Figs. 5F, 5K, 6J, 6K). According to the complete outline of the tarsals in the light photo and Sr-map (since Sr can clearly delineate bone morphology, we use Sr-maps here to reveal the structure), high Ca and P concentrations are concentrated primarily in the centers of the astragalus and calcaneum (Figs. 5C, 5D, 5H, 5I, 6C, 6D, 6G, 6H). In contrast, Zn distribution is roughly complementary to Ca and P, extending slightly beyond the skeletal outline of the tarsals (Figs. 5L, 5M, 6L, 6M). The Zn-map further reveals the possible morphology of the fourth distal tarsal (dt4). In the left hindlimb, the dt4 is visible in the light photo, Sr-map, and Zn-map, appearing as a subround area between the astragalus and calcaneum (Figs. 5B, 5E, 5F), while being undetectable in the Ca-map or P-map (Figs. 5C, 5D). Notably, this subround Zn-enriched area is larger than those observed in the Sr-map and light photo (Figs. 5B, 5E, 5F). In the right hindlimb, the dt4 is only visible in the Zn-map (Fig. 6J, 6K) and not in other maps (Figs. 6C, 6D, 6E). Furthermore, the Zn content in the metatarsal close to the tarsal gradually diminishes from the proximal towards the distal end in both hindlimbs (Figs. 5F, 5K, 6J, 6K).

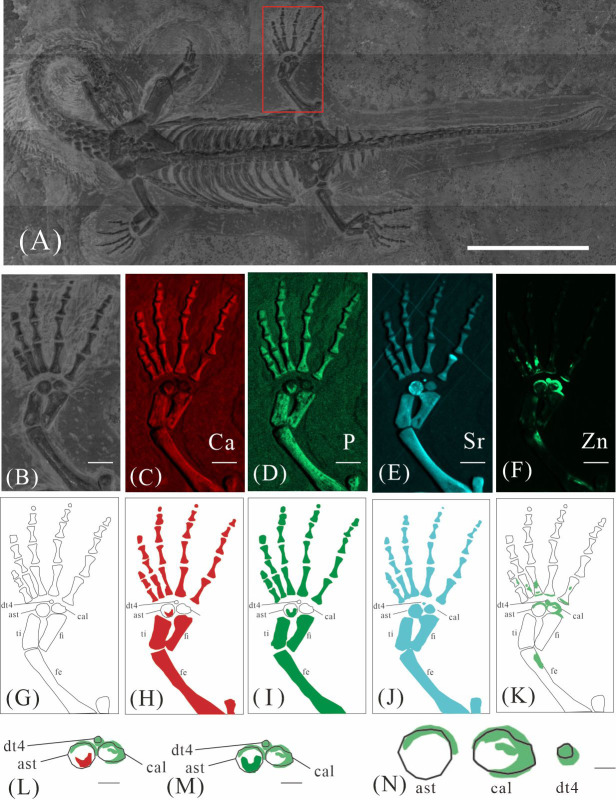

Elemental distribution map and drawing of GMPKU-P-4316’s left hindlimb.(A) The position of left hindlimb. The scale bar is 3 cm. (B) Photo of GMPKU-P-4316’s left hindlimb. The scale bar is 3 mm. (C–F) Micro-XRF maps (false-color images) of Ca (C), P (D), Sr (E), Zn (F). The scale bars are 3 mm. (G) Drawing of GMPKU-P-4316’s left hindlimb. (H–K) The drawing of different elemental distribution, Ca (H), P (I), Sr (J), Zn (K). (L) The distribution of Zn and Ca in GMPKU-P-4316’s tarsal. The scale bar is 1 mm. (M) The distribution of Zn and P in GMPKU-P-4316’s tarsal. The scale bar is 1 mm. (N) The distribution of Zn in GMPKU-P-4316’s astragalus, calcaneum, and the dt4. The scale bar is 0.5 mm. Abbreviations: dt4, fourth distal tarsal; ast, astragalus; cal, calcaneum; ti, tibia; fi, fibula; fe, femur.

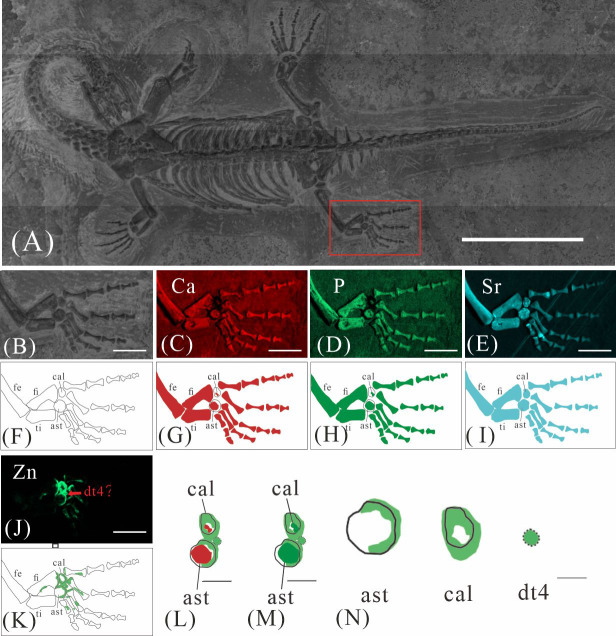

Elemental distribution map and drawing of GMPKU-P-4316 right hindlimb.(A) The position of the right hindlimb. The scale bar is 3 cm. (B) Photo of GMPKU-P-4316’s right hindlimb. The scale bar is 5 mm. (C–E, J) Micro-XRF maps (false-colour images) of Ca (C), P (D), Sr (E), Zn (J). The scale bars are 5 mm. (F) Drawing of GMPKU-P-4316’s right hindlimb. (G–I, K) The drawing of different elemental distribution, Ca (G), P (H), Sr (I), Zn (K). (L) the distribution of Zn and Ca in GMPKU-P-4316’s tarsal. The scale bar is 2 mm. (M) The distribution of Zn and P in GMPKU-P-4316’s tarsal. The scale bar is 2 mm. (N) The distribution of Zn in GMPKU-P-4316’s astragalus, calcaneum, and dt4. The scale bar is 1 mm. Abbreviations: fe, femur; fi, fibula; cal, calcaneum; ti, tibia; ast, astragalus; dt4, fourth distal tarsal.

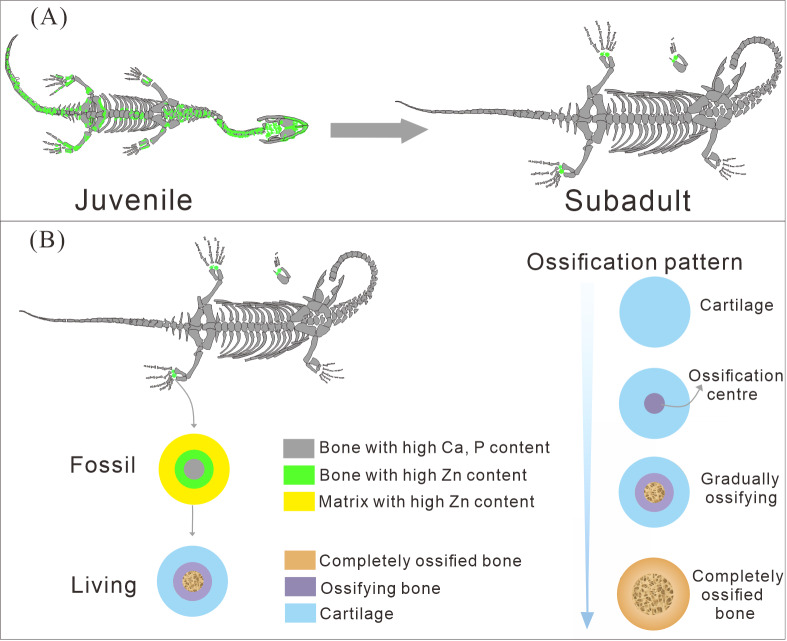

The ossification pattern in K. hui.(A) The different bone development patterns in juvenile and subadult individuals. (B) The ossification pattern of tarsus in K. hui.
Elemental distribution of XNGM WS-32-R18
XNGM WS-32-R18 is an adult male in dorsal view, missing part of the tail (Fig. 4). Zn also appears to be enriched in some bones. Interestingly, Zn accumulates at the articular surfaces where each centrum connects with the previous one (Fig. 4E). The proximal regions of the dorsal and caudal ribs exhibit pronounced Zn enrichment relative to the remaining rib segments. And the neural arches of both dorsal and caudal vertebrae also exhibit elevated Zn concentrations. Similarly, the proximal and distal epiphyses of the limb long bones demonstrate significant Zn accumulation. The two dark parts in the trunk region covered by the dorsal ribs and the gastral ribs also show the high level of Zn (Fig. 4E).
Discussion
Preservation mechanisms of Ca, P, Sr, Zn within fossil bones
Changes in the elemental composition of fossil bones can occur during two distinct periods: first, during the organism’s lifetime, and second, during the fossilization process (Piga et al., 2011). Throughout fossilization, the preservation mechanisms of various elements differ due to a complex interplay of chemical, physical, and environmental factors (Parker & Toots, 1970; Pyzalla et al., 2008; Piga et al., 2011). Calcium hydroxyapatite (Ca_10_(PO4)6(OH)2), the primary inorganic content of bones, has the flexibility of the lattice for replacements at every site within the mineral structure. This flexibility enables the replacement of Ca^2^^+^, PO_4_^3^^−^, and OH^−^ ions with other ions, facilitating both the uptake and loss of elements within the bones (Miyaji, Kono & Suyama, 2005; Trueman et al., 2008).
Despite some inevitable loss during fossilization, Ca and P are highly tenacious and stable, remaining the predominant constituents in fossil bones (Pan & Fleet, 2002). For instance, in the bones of the Middle Triassic marine reptile Mixosaurus panxianensis, Ca accounts for 68.86 wt% to 71.11 wt%, and P ranges from 6.67 wt % to 8.05 wt % (Wang et al., 2024). A similar pattern is ubiquitous across diverse fossil taxa (Li et al., 2020; Liu et al., 2024), and this trend is also observed in seven specimens of K. hui analyzed in this study (e.g., Figs. 2B–2C, 3B–3C, 4B–4C). The enrichment of Sr in fossils occurs both during the organism’s lifetime and through the fossilization process. Sr concentrations are higher in seawater than that in freshwater, resulting in marine organisms typically exhibiting higher Sr content that is strongly correlated with the Sr levels in their environment (Rosenthal, Eves & Cochran, 1970). Sr incorporates into the bones during fossilization through substitution processes, leading to further enrichment, reflected by the elevated Sr content observed in the seven K.hui specimens (e.g.,Figs. 2D, 3D, 4D) (Gueriau, Jauvion & Mocuta, 2018).
However, the preservation of Zn in fossil bones presents significant challenges, as some degree of Zn loss is inevitable during the fossilization and preparation processes. Firstly, in living organisms, Zn is present in much lower concentrations and is unevenly distributed within bones compared to the abundant endogenous Ca and P (Honda et al., 1984; Goodwin et al., 2007; Wang et al., 2024). Secondly, diagenetic processes, particularly demineralization, are likely responsible for postmortem Zn loss (Dean et al., 2023). Micro-XRF scans of Mixosaurus panxianensis have revealed a pattern of Zn diffusion, with Zn concentrations gradually decreasing from the trunk region toward the surrounding matrix (Wang et al., 2024). Finally, the fossil preparation process can also alter the original distribution of Zn, despite efforts to minimize such impacts. Physical friction during matrix removal can damage the original Zn signal, and the use of solvents such as water or acetone during preparation can lead to Zn loss. Notably, Zn^2^^+^ exhibits high solubility in water, increasing the likelihood of its removal during preparation (Mou, 1999). As a result, among the seven K. hui specimens analyzed, only three retained a relatively intact original Zn signal (Figs. 2E; 3E; 4E). The remaining specimens failed to preserve this signal due to factors related to fossilization or preparation.
Origin of Zn in Keichousaurus hui
The robust correlation between Zn intensity and bone morphology in specimens XNGM WS-30-R43, GMPKU-P-4316, and XNGM WS-32-R18 suggests that the observed Zn enrichment in these fossilized bones is endogenous (Figs. 2E, 3E, 4E). This interpretation is supported by several lines of evidence. Firstly, unlike other bone-related elements such as Ca, P, and Sr, which are uniformly distributed throughout the skeletal structures, Zn shows selective accumulation in specific skeletal regions. For example, Zn is concentrated in areas like the periphery of tarsal bones in K. hui (Figs. 5 and 6). Zn exhibits an uneven distribution within the bones of extant and extinct species, predominantly localizing in regions between mineralized and unmineralized zones of osteons, as well as at the ossification front where active calcification occurs (Bradley, Moger & Winlove, 2007; Anné et al., 2014). For instance, synchrotron microfocus X-ray analysis of the forelimbs of one-day-old mice supports this pattern, demonstrating Zn enrichment across all skeletal elements, including both cartilage and bone (Fig. 8D). Peak concentrations are observed at the developing edges of bones, a distribution pattern strikingly similar to that observed in K. hui (Fig. 8D) (Anné et al., 2017). Secondly, Zn content in the surrounding pelitic limestone is markedly lower than that detected in the bones of the three specimens, effectively ruling out exogenous Zn. And there is no evidence to suggest that Zn could have been transferred by aqueous fluids in this system. Mineralogical experiments indicate that substituting exogenous Zn for Ca in hydroxyapatite is relatively challenging (Miyaji, Kono & Suyama, 2005). This contrasts with the physiological incorporation of Zn into bone, suggesting that Zn from groundwater is unlikely to enter bones through substitution processes. Finally, the three Zn-enriched specimens can be compared with the Mixosaurus panxianensis specimen that shows evident Zn loss (Wang et al., 2024), revealing different Zn distribution characteristics: K. hui displays discrete Zn zoning with sharp compositional boundaries (e.g., Fig. 4E), whereas M. panxianensis exhibits diffuse boundaries (Wang et al., 2024). This sharp contrast indicates that the absence of Zn in other skeleton regions is not likely to be attributed to post-depositional loss processes, given that the element loss tends to lead to the diffuse distribution as shown in M. panxianensis.

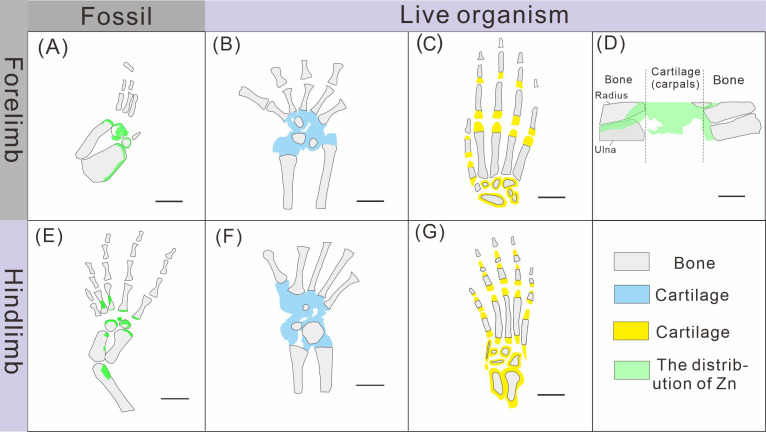

Comparison of limb ossification between Keichousaurus hui, extant reptile and mammal.(A, E) The distribution of Zn in GMPKU-P-4316’s carpal and tarsal, respectively. (B, F) The cartilage and bone in the carpal and tarsal of Cyrtodactylus pubisulcus, respectively (modified from Rieppel, 1992). (C, G) The cartilage and bone in the carpal and tarsal of mouse (modified from Patton & Kaufman, 1995). (D) The distribution of Zn in mouse (modified from Anné et al., 2017).
