Cell-mechanical parameter estimation from 1D cell trajectories using simulation-based inference
Johannes C. J. Heyn, Miguel Atienza Juanatey, Martin Falcke, Joachim O. Rädler
TL;DR
This paper introduces a new method using simulation-based inference to estimate cell mechanical parameters from cell movement data, enabling insights into cancerous and non-cancerous cell behavior.
Contribution
The novel use of simulation-based inference (SBI) to estimate cell-specific parameters from 1D trajectories without prior knowledge of drug effects.
Findings
SBI successfully distinguishes mechanical properties of MCF-10A and MDA-MB-231 cell lines.
SBI reveals the impact of Latrunculin A and Y-27632 on cell migration without prior drug effect knowledge.
The approach supports building cell motility libraries and evaluating refined models.
Abstract
Trajectories of motile cells represent a rich source of data that provide insights into the mechanisms of cell migration via mathematical modeling and statistical analysis. However, mechanistic models require cell type dependent parameter estimation, which in case of computational simulation is technically challenging due to the nonlinear and inherently stochastic nature of the models. Here, we employ simulation-based inference (SBI) to estimate cell specific model parameters from cell trajectories based on Bayesian inference. Using automated time-lapse image acquisition and image recognition large sets of 1D single cell trajectories are recorded from cells migrating on microfabricated lanes. A deep neural density estimator is trained via simulated trajectories generated from a previously published mechanical model of cell migration. The trained neural network in turn is used to infer…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5
Fig 6
Fig 7- —http://dx.doi.org/10.13039/501100001659Deutsche Forschungsgemeinschaft
- —http://dx.doi.org/10.13039/501100001659Deutsche Forschungsgemeinschaft
- —http://dx.doi.org/10.13039/501100001659Deutsche Forschungsgemeinschaft
- —http://dx.doi.org/10.13039/501100001659Deutsche Forschungsgemeinschaft
- —http://dx.doi.org/10.13039/501100001659Deutsche Forschungsgemeinschaft
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsCell Image Analysis Techniques · Cellular Mechanics and Interactions · Cancer Cells and Metastasis
Introduction
Cell migration on one-dimensional (1D) microlanes has become a well-established cell motility assay, offering comparability, reproducibility and high-throughput automation [1–7]. The reduction of cell movies to low-dimensional trajectories enables the characterization of cell populations in terms of statistical measures including cell-cell variability both within and between diverse populations. A remarkable feature in the analysis of cell dynamics is the fact that morphodynamics exhibit both cell-specific as well as universal behaviors. In early work the mean velocity of cells migrating on flat substrates was frequently studied as a cell-specific property. The average cell speed is understood to be a quantity dependent on cell line, individual cell state as well as varying external conditions. In contrast, the dependence of the speed of cells migrating on substrates as a function of increasing adhesiveness exhibits a recurrent biphasic adhesion-velocity relation that holds for many cell types [8–12]. Moreover, the persistent random walk model proved to generally reproduce the diffusive nature of cell walks over large time scales. In the case of 1D migration on micropatterned microlanes, a persistent random walk analysis has led to the discovery of another universal relation, the so-called universal coupling of cell speed and persistence (UCSP) [2,13]. A long history of cell migration models aimed to explain the underlying cause of universal features in cellular morphodynamics. In particular, detailed biomechanical models of migration in one dimension have been developed to elucidate the features observed in cell trajectories [4,12–17]. These models exhibit a rich spectrum of behavior, including multiple cell states with distinct dynamic features, specifically states with oscillations of the rear end versus steady state motion. The characteristics of states as well as the noise driven transition statistics between states are cell type specific. In order to validate mechanistic models, comparison to experimental data is requested and requires an optimal choice of parameters in the theoretical models. The majority of models have been validated using a limited number of cell lines and parameter sets. The complexity of biomechanical models is demanding and the effect of parameter changes is not always intuitive. As a consequence, parameter optimization is both mathematically and conceptually challenging and the high dimensionality of the problem makes rigorous Bayesian inference computationally infeasible. Often, researchers are left to explore model parameters based on intuition or trial-and-error in a laborious and non-systematic way. A systematic and scalable approach to infer parameters from large cell motility datasets would allow for data-driven discovery and extraction of information about the underlying networks regulating cell motility.
In recent years, machine learning (ML) approaches have emerged as a powerful tool to analyze cell phenotypes, including cell morphology and dynamics. Neural networks proved useful for automated image segmentation and retrieval of cell shape from phase contrast or fluorescence image raw data [18,19]. Early cell shape analysis approaches used classic Fourier analysis for the classification of cell shape dynamics [20]. In recent years deep learning methods led to robust cell type classification schemes and recognition of disease related morphometry [21–25]. Furthermore, AI based approaches enable data-driven discovery from large biological data sets of cell shapes under defined conditions [26]. Using real-time assessment of cell shapes in standardized platforms a novel type of cytologic analysis emerged, an approach now commercialized under the name “morpholomics” [27–29]. However, there are few AI-based approaches that include the dynamic features of cell shapes. In dynamic analysis the reduction of cell motion to one dimension helps to reduce the complexity of cell morphodynamics.
In the latter case mechanistic models of dynamical behavior exist and deep learning approaches offer the unique opportunity that neural density estimators can be trained on simulated data. The trained network in turn is capable of estimating the best model parameters to fit experimental data and hence offers new avenues for parameter optimization in complex models using Bayesian inference [30]. The approach named simulation-based inference (SBI), has gained widespread acceptance as a systematic tool for parameter optimization in mechanistic models [31–34]. A particularly inspiring example is the Hodgkin-Huxley model reproducing neural spikes, in which case SBI is used to estimate model parameters to capture specific experimental spike recordings [31]. SBI combines elements of simulation modeling and statistical inference to analyze data and make inferences about underlying processes. In order to train SBI, parameter sets are sampled from the prior, i.e. a set of candidate values, to simulate data using the model. Next, a deep density estimation neural network is trained to infer the parameters underlying the simulated data. Finally, the trained density estimation network is applied to experimental data to infer its parameter distribution. SBI is particularly useful in situations where the underlying system is complex, with intricate interactions and dependencies that are difficult to model analytically; traditional likelihood-based methods may not be feasible due to intractable likelihood functions or computational limitations; the data exhibit heterogeneity or non-standard patterns that cannot be adequately captured by standard statistical models; there exists prior knowledge or mechanistic understanding of the system, which can be incorporated into the simulation process. Despite its general applicability and statistical power, the application of SBI to derive migratory phenotypes with specific model parameters has been limited. In this context we recently presented a mechanistic model based on the concept of competing protrusions and noisy clutch. Within this model universal relations, such as the adhesion-velocity relation and the UCSP which is caused by multistability, emerge as embedded features of the nonlinear dynamics [12,13]. However, a model-based characterization of migration dynamics across multiple cell lines, each distinguished by specific sets of parameters, has yet to be done.
Here, for the first time, we employ SBI to infer parameter sets from 1D trajectories of migrating cells within the framework of an established mechanical migration model [13]. We train a neural network using simulated trajectories and infer parameters from high-throughput datasets containing hundreds of experimentally obtained trajectories. Using an algorithm based on work by Papamakarios and Murray, Lueckmann et al., Greenberg et al. and Deistler et al. [35–38], we first validate our approach on simulated data before we systematically optimize the parameter set matching the migratory behavior of two human epithelial breast cell lines. Specifically, we obtain cell-line-specific posterior estimators for cell length, actin polymerization rate and the integrin related parametrization of the clutch, i.e. the on-rate, slip velocity and maximum friction coefficient. We demonstrate that the estimated parameters significantly vary for cell lines MDA-MB-231 and MCF-10A. SBI is also found to unveil without prior knowledge that the cytoskeletal inhibitors Latrunculin A and Y-27632 both exclusively affect actin polymerization. Our work showcases the potential of SBI to characterize migrating cells in a fully automated fashion and to explore the compliance of refined biophysical models.
Results
High-throughput imaging of 1D cell migration yields large amounts of data to quantitatively study migratory behavior
We study epithelial cells on a micro-patterned substrate consisting of well-defined adhesive Fibronectin (FN) lanes separated by nonadhesive regions, see Fig 1(a). After the cells adhere to the FN lanes, we monitor cell migration via automated scanning time-lapse acquisition over 48h (see Methods). For statistical analysis a high number of cell trajectories of substantial length is required. From previous work it is known that migratory behavior shows substantial heterogeneity even within the same cell population and under controlled conditions. Furthermore, the analysis of rare events such as migratory state transitions require a long total observation time [13]. We met this requirement by building a data pipeline to automatically extract cell trajectories from time-lapse videos imaging a few thousand cells per experiment. The pipeline takes a set of time-lapse images and automatically outputs a dataset with several thousand triple trajectories consisting of the front, back and nucleus position of single cells for each experiment. For our analysis we consider only single cell trajectories with a minimal length of 24h. A total of 47,000h of tracks is automatically processed. We collected about 2,000 single cell trajectories of 24h length for both the breast epithelial cell lines MDA-MB-231 and MCF-10A. In Fig 1(b) we show typical trajectories for each cell line. The spectrum of migratory phenotypes is broad, with trajectories moving at a range of different speeds or not moving at all, as well as protrusions oscillating frequently in length or staying stationary. The data set was complemented by studies of cells treated with inhibitors latrunculin A, which inhibits F-actin polymerization, and with Y-27632, which inhibits Rho-associated protein kinase (ROCK) signaling [39,40]. We chose the concentrations for the treatments to be high enough to affect the migratory behavior but low enough to not stall migration altogether (see Methods). For this study the large-scale acquisition of 1D trajectories provides the biological information about the migratory phenotype of cells. However, in order to retrieve an understanding of phenotypic characteristics a mechanistic model is essential.

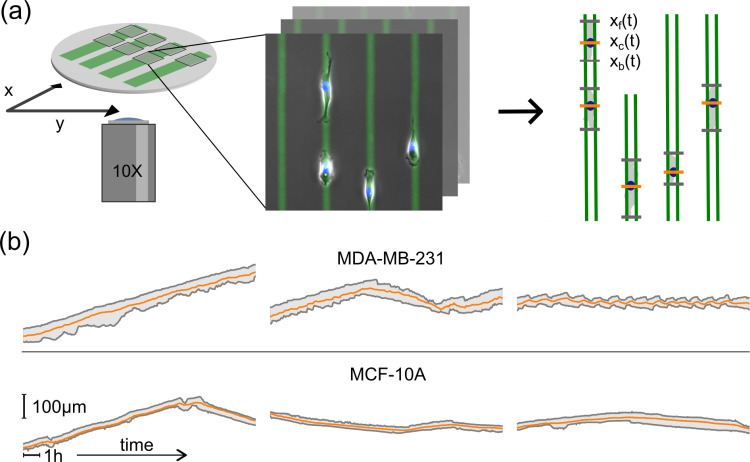

High-throughput time-lapse imaging of single cells migrating on 1D micropatterned lanes.(a) Migration dynamics of single cells on one-dimensional Fibronectin (FN) lanes are recorded by scanning time-lapse measurements. FN lanes are fluorescently labeled, depicted here in green. At each point in time a bright field (BF) image showing the cell contour, and a DAPI fluorescence image indicating the position of the nuclei are captured. The FN lanes are automatically detected, the nuclei tracked, and the cells’ contours segmented. (b) Single cell trajectories, shown as position of cell front, back and nucleus plotted against time, reveal a broad spectrum of cell-type specific features. The first row depicts typical trajectories for MDA-MB-231 cells, the second row for MCF-10A cells. Horizontal scale bar represents 1h, vertical scale bar 100μm.
Biophysical model of mesenchymal cell motility
In previous work we introduced a biophysical model that reproduced all the observed universal migratory hallmarks, including multistability of migratory states, the universal correlation between speed and persistence (UCSP) and the biphasic adhesion-velocity relation [13]. We use this model as a candidate model for SBI with the goal to characterize the cell-specific migration dynamics of MDA-MB-231 and MCF-10A cells. The model describes a cell that migrates along a lane by a one-dimensional mechanical equivalent model consisting of a nucleus flanked by a lamellipodium of length L on each side (Fig 2). Lamellipodia have the resting length L_0_ in the force-free state and are coupled to the nucleus by springs with an elastic modulus E. The elastic forces mediate competition between the protrusions. Protrusion forces F_f_ and F_b_ arise from the extension of the F-actin network at rate V_e_ which pushes against the cell’s front and back edges by polymerization of filament tips near the cell membrane. This polymerization force also drives retrograde flow v_r_ against the friction force F_fric_ = *k**v_r_.

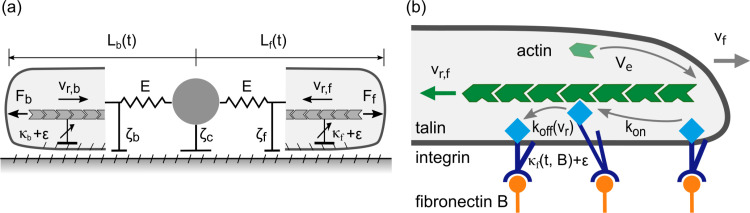

Biophysical model of cell migration in one dimension.(a) Cartoon of the mechanical protrusion competition model. The cell is defined by three marks: back, nucleus and front. Together the marks set the protrusion length L. Front and back are coupled to the nucleus by an effective elastic spring E and coupled to the ground by a non-linear molecular clutch κ. Polymerization forces F push the membrane outwards. The cell experiences the drag ζ during its movement. Redrawn from [13]. (b) Cartoon of the molecular clutch. Actin polymerization at the edge of the cell creates a retrograde flow vr. Talin-integrin mediated coupling (kon and koff) between the actin network and the fibronectin substrate B results in an effective friction force. Friction slows down the retrograde flow vr and pushes the membrane outwards.
Friction force is caused by the binding and unbinding of the actin retrograde flow to structures adhered to the substrate which are stationary in the lab frame of reference with rates k_on_ and k_off_(v_r_), respectively [41,42]. The dissociation rate depends on the velocity of the retrograde actin flow v_r_ in a non-linear fashion. The dynamics can be characterized by k_on_, k_off_, the maximum friction coefficient kmax and the characteristic retrograde flow velocity v_slip_, see SI. Noise ε adds the stochastic behavior observed in experiments. The cell’s edges and nucleus experience a drag force that depends linearly on the cell’s velocity v with the drag coefficient 𝝵. In our previous work, the drag coefficient 𝝵 was related to the fibronectin density B by Hill-type equations with the maximum 𝝵_max_, see SI. As the fibronectin density is constant in the present study we simplify the model and introduce a constant B. We keep the ratio b of the drag at the cell’s nucleus versus that of the edges constant, too. Lastly, we add an external noise term ε_external_ to the model to account for random motion on short time scales that might, among other things, be caused by limitations of the experimental determination of the cell’s location (see Methods). Computational simulations based on this model reproduce simulated trajectories that resembled observed data as indicated in Fig 3. In order to determine the parameter sets that show best agreement with data, we employ simulation-based inference as explained in the next section.

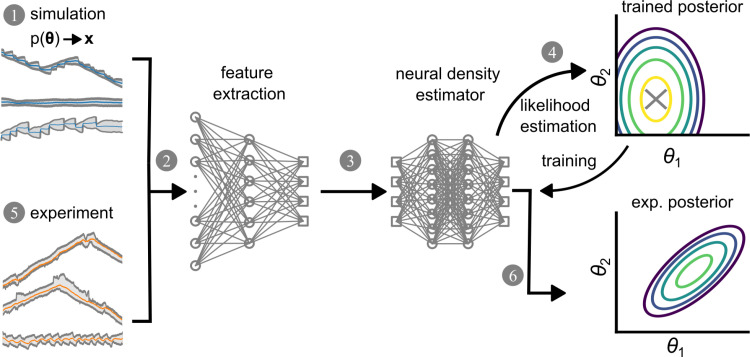

Simulation-based inference (SBI) of model parameters.A schematic representation of the SBI workflow. A neural network is trained with simulated data, and subsequently experimental data are analyzed using the pretrained network. (1) A set of parameters {θ} is randomly sampled from the prior p(θ) and used to simulate trajectories x. x is a tensor with the shape (721, 3), where 721 represents the number of time points and 3 corresponds to spatial 1D coordinates: front, back, and nucleus. (2) The trajectory is downsampled into a low-dimensional feature space by a convolutional neural network (CNN). (3) The downsampled trajectory is fed into the neural density estimator (NDE) which outputs the posterior density. The log-likelihood of the NDE at the true point (θ) is used as a loss function to update the NDE. The trained NDE has a maximum likelihood at the true parameter point as marked by an ‘X’. The trained SBI is then used to estimate parameters from measured data. (5) The experimental trajectories are downsampled into a low-dimensional feature space by the same CNN as in step (2) and then fed into the previously trained NDE. (6) The resulting posterior represents a cell-specific parameter estimation describing interpretable properties of the cell as defined by the biophysical model.
Simulation-based inference connects experimental trajectories to biophysical parameter distributions
We would like to establish the relation between cell trajectories as shown in Fig 1b and the biophysical model (Fig 2). As shown in Fig 3, our goal is to present an unbiased approach to estimate those parameters that best match the data. We will show that SBI allows for inference of the set of cytoskeletal parameters θ which are most likely to generate a trajectory x(t) using Bayes’ theorem. Bayes’ theorem states that the desired probability distribution of parameters is the posterior distribution p(θ|x) given the prior parameter distribution p(θ) (see Table 1), the likelihood p(x|θ) and the evidence p(x):
Table 1: Bounds of the uniform prior p(θ).The 10 parameters and two noise amplitudes entering our biophysical model. 5 parameters are variable and the target of our inference procedure; one of the noise amplitudes is latent; all other parameters are kept constant. The bounds of the prior were chosen in agreement with the results of our previous publication Amiri et al. The prior was designed such that the parameter values of Amiri et al. fall within the prior. For the two noise amplitudes we chose values that produced results that were in quantitative agreement with experiments.
Computing the posterior distribution p(θ|x) therefore implies computing both the likelihood p(x|θ) and the evidence p(x), which is computationally infeasible for a high-dimensional parameter space. We therefore use neural density estimation (NDE) to learn the posterior distribution p(θ|x) directly without computing the likelihood p(x|θ). The algorithm itself is based on work by Papamakarios and Murray, Lueckmann et al., Greenberg et al. and Deistler et al. [35–38]. Specifically, we deploy the toolkit “sbi”, a PyTorch-based package developed by Tejero-Cantero et al. [43]. The following procedure to implement SBI is based on the work by Goncalves et al. [31].
Fig 3 shows the 6-step workflow of simulation-based inference using NDE. First, the algorithm randomly samples a set of points from the prior parameter space {θ} to simulate a set of trajectories x using our biomechanical model. Simulated trajectories vary in their appearance even if they are simulated using the same parameter set because of the stochastic nature of the model. Each trajectory consists of 3x721 = 2,163 data points, representing the position of the front, back and nucleus of a cell for 721 time points which signify a temporal resolution of 2 min in 24h of simulated time. Second, an embedding in the form of a convolutional neural network (CNN) compresses each trajectory and extracts summary statistics, also called “features”. Third, these features are fed into a neural density estimator based on neural spline flows, a form of normalizing flows, to calculate the posterior directly. Fourth, both networks, i.e. CNN and NDE are trained on simulated trajectories with known parameters by adjusting their weights to maximize the log-likelihood of true parameters (see Methods). Fifth, the trained SBI can then be applied to empirical data from in vitro experiments. The experimental trajectories are treated the same way as the synthetic data, i.e. they are fed into the trained CNN and NDE, resulting in a posterior distribution. This posterior distribution assigns a likelihood to all parameter values depending on the data and the prior. Hence, SBI can estimate the optimal set of model parameters that characterizes an experimental trajectory.
Table 1 shows the 10 parameters and 2 noise amplitudes that enter our simulation as defined by the mechanical model. However, inferring the full set of parameters we encounter loss of identifiability. To demonstrate the problem, we discuss the results of SBI with 10 free parameters, which exhibit correlations and lacks precise inference (see SI). In order to proceed we reduce the complexity of the neural posterior estimation by rescaling our model to five most influential parameters, (for details see SI). We find that our model’s dynamics is fully described by the reduced set of the following 5 parameters: {resting protrusion length: L_0_, actin network extension rate: V_e_^0^, on-rate for dynamic integrin signaling: k_on_, maximum friction coefficient for integrin signaling: kmax, critical retrograde flow velocity: v_slip_}. As shown in the next section, the reduced set of parameters is inferred reliably without loss of identifiability.
Validation of SBI using simulated data
We start our analysis by training an NDE using 1,000,000 simulated trajectories with known parameters to infer the 5 parameters of choice. For details we refer to the methods section. Next, we show that our posterior is well calibrated, i.e. neither underconfident nor overconfident, by performing a simulation-based calibration (SBC), see S2 Fig. The details of the procedure are described in the SI. We then validate the performance of our NDE by testing its predictive power using simulated data and by making sure that it is unbiased. To this end we generate a test trajectory from randomly chosen but known parameters and subject the data to SBI. Fig 4 shows the simulated trajectory x(t) and the resulting posterior p(θ|x) as well as the true parameter θtrue set used to simulate the trajectory. The parameter set for the simulated trajectory is randomly sampled from a uniform prior distribution. The trajectory simulates a cell that migrates along a 1D FN lane for 24h without the influence of any external forces. The simulated trajectory exhibits several changes in the direction of the cell’s movement and an oscillating length of the cell. By visual inspection we see that the inferred posterior generally peaks at the values of the true parameters (marked by a vertical orange line) which indicates an accurate and unbiased inference. Plots of the pairwise distribution p(θ_ij_|x) in the right hand corner of Fig 4 provide insights into correlations between parameters. Tilted distributions indicate a positive or negative (depending on the sign of the slope) correlation, while horizontal distributions, such as for k_on_ vs V_e_^0^, indicate the parameters to be orthogonal. Clearly, the sensitivity of the inference of parameters varies. Parameters that can be particularly accurately estimated, as can be seen by a sharp prior distribution, are the resting cell length L_0_ and the network extension rate V_e_^0^. In summary, applying a simulated trajectory with known parameters to the trained NDE correctly infers posterior distributions for 5 free parameters that comprise the wanted parameters within the accuracy of the approach.

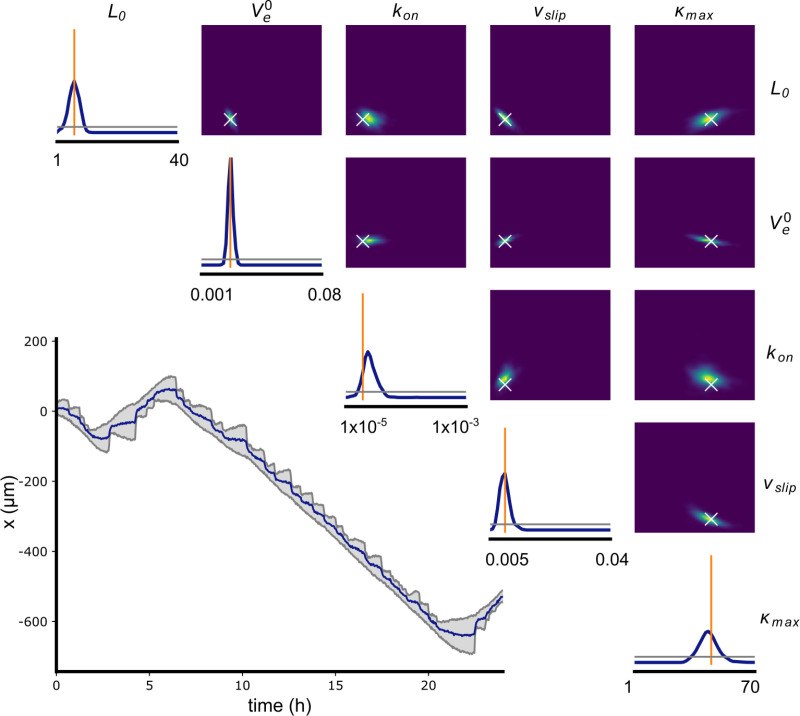

Validation of SBI applied to a simulated trajectory.A simulated trajectory x from parameter set θ and its corresponding posterior distribution. The posterior probability p(θ|x) was inferred by the trained NDE. On the right hand side the posterior distributions for each pair of parameters p(θij|x) are plotted (true parameters shown as white cross). The posterior distribution p(θi|x) for each individual parameter estimation is given by the blue graph on the diagonal with the true parameter value indicated by the vertical orange line. Horizontal gray lines in the plots on the diagonal represent a uniform posterior. The boundaries of the x-axis correspond to those of the prior p(θi) (see Table 1).
Inference of parameters from experimental trajectories
Next, we apply the trained NDE to experimental trajectories of MDA-MB-231 cells in two different states of motion as depicted in Fig 5. The insets of panel (a) and (b) show the trajectories, with trajectory (a) constantly moving albeit at different speeds and trajectory (b) being spread for most of the time. While the lengths of the protrusions for trajectory (a) oscillate for the first couple of hours, they stay relatively constant after 12h. Trajectory (b) on the other hand represents a cell whose protrusions keep on oscillating in length for the entirety of the observed time. The diagonals in Figs 5(a) and 5(b) display the inferred posterior distributions for each individual parameter and the right-hand corners display distributions for pairs of parameters. The posterior distribution of actin network extension rate V_e_^0^ is strongly peaked for both trajectories while the distribution for v_slip_ is very broad and close to that of a uniform posterior distribution (horizontal gray line). The inferred distribution of L_0_ is much broader for trajectory (a), where the protrusion length and oscillatory behavior changes over time, compared to that of trajectory (b), which oscillates permanently. Insets in the right panel of Figs 5(a) and 5(b) depict simulations that were sampled from the most likely parameter set of trajectories (a) and (b), respectively. The example demonstrates that SBI is capable of inferring probability distributions of parameters for individual cell trajectories. Next, we show that parameter sets inferred for populations of different cell types result in a meaningful characterization that discriminates distinct cell lines.

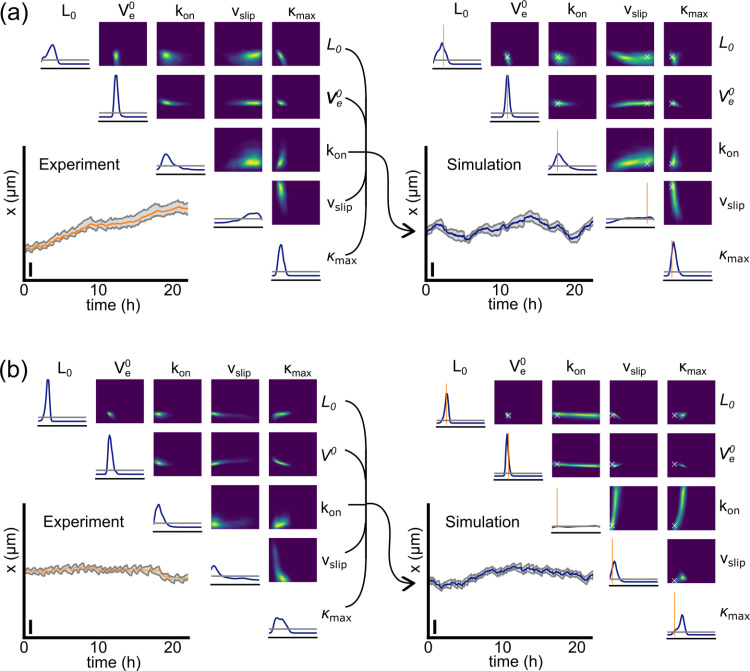

Validation of SBI on experimental data.Four different trajectories and posterior probabilities p(θ|x) as inferred by our trained NDE from experimental (left side) and simulated data (right side). The trajectories can be seen in the lower right corner. The posterior distribution for each individual parameter p(θi|x) are plotted on the diagonals and in the upper right corner the posterior distribution for each pair of parameters p(θij|x) are shown. The axes’ limits correspond to the prior limits as listed in Table 1. Left side in (a) and (b): typical 24h trajectories of MDA-MB-231 cells and their estimated posterior distribution. Vertical scale bars represent 100μm. Right side: the posterior distributions corresponding to each of the two experimental trajectories were used to sample parameters {θ}. The most likely parameter value from the experimental posterior distribution θtrue was chosen to simulate a trajectory x, and the simulated trajectory x used to estimate the posterior distribution again to verify our approach. The vertical orange lines on the histograms and the crosses in the density plots show θtrue.
Inference of cell type specific properties
We use the trained NDE to characterize datasets of two different cell lines MDA-MB-231 and MCF-10A. For each population, we filtered for trajectories with a duration of 24h. Shorter durations had previously resulted in broad posterior distributions with smeared out peaks. The posterior distributions of each trajectory were used to build a 5-dimensional probability distribution of parameter values. The distributions of trajectories belonging to each cell population were combined to construct an ensemble distribution of cytoskeletal parameters for the given population, see Fig 6. We find that the populations of MDA-MB-231 and MCF-10A differ mainly in the distribution of the two parameters L_0_ and V_e_^0^, with the actin network extension rate being significantly higher for MDA-MB-231. Both populations express a broad, almost uniform distribution for the parameters k_on_ and v_slip_. The distribution of kmax is similarly peaked for both cell lines, hinting towards a well conserved signaling pathway across cell lines. A comparison between 10 randomly chosen trajectories of each cell line visualizes the apparent differences in motile behavior, Fig 6(a), 6b). While both populations exhibit both motile and spread cells, the ratio of motile cells is higher for MDA-MB-231 cells. Additionally, MDA-MB-231 cells tend to oscillate in length significantly more often than MCF-10A cells. These observed differences are explained by differences in the force-free resting length L_0_ and the actin network extension rate V_e_^0^. According to our biophysical model, a shorter length and a higher actin network extension rate result in less persistent cells that are more likely to exhibit length oscillations. Hence, inference of 5 cell type specific model parameters allows for an automated and unbiased characterization of cell properties. The most distinctive cell parameters appeared to be the resting length L_0_ and the actin network extension rate V_e_^0^.

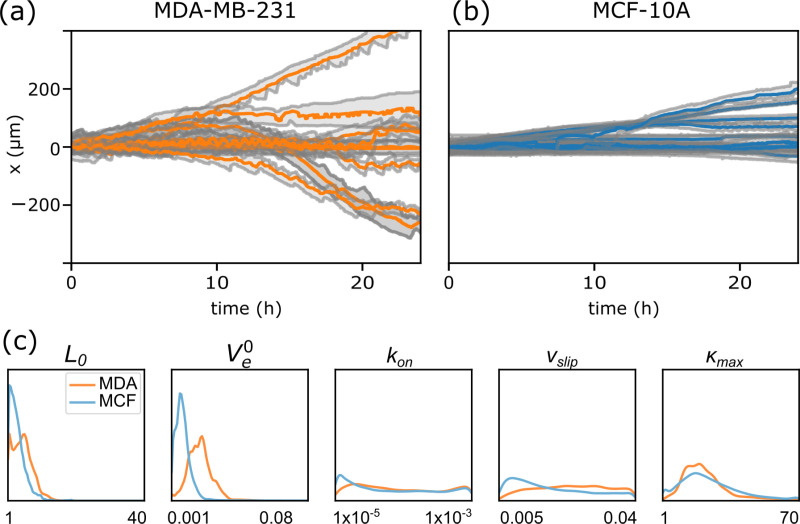

Comparative characterization of migratory phenotype for two cell lines.(a, b) 10 randomly chosen trajectories for MDA-MB-231 and MCF-10 cells, respectively. (c) Ensemble posterior distribution of estimated model parameters using SBI. For each trajectory in a given population 1000 different points were sampled in parameter space. The plots show the ensemble average of all sampled points for all trajectories of a given population (NMDA = 85, NMCF = 30). Cell length L0 and actin polymerization rate Ve0 are the most distinctive parameters.
Unbiased SBI analysis of the effect of inhibitors
To further test the capabilities of SBI, we subject both cell lines to cytoskeleton inhibitors. Latrunculin A inhibits the polymerization of F-actin [39,44,45]; the specific ROCK (Rho-associated protein kinase) inhibitor Y-27632 affects the Rho/ROCK pathway [46–48]. We apply SBI, as described above, without implementation of prior knowledge of the inhibitor action, to the data sets. Upon treatment with Latrunculin A the inferred posterior distributions show an exclusive reduction in the rate of actin polymerization (V_e_0) compared to the untreated cohort both in MDA-MB-231 cells and in MCF-10A cells, Fig 7(a). The inhibitor Y-27632 shows similar reduction in the polymerization rate but additionally shifts the probability distribution of the resting protrusion length L_0_ towards larger values, Fig 7(b).

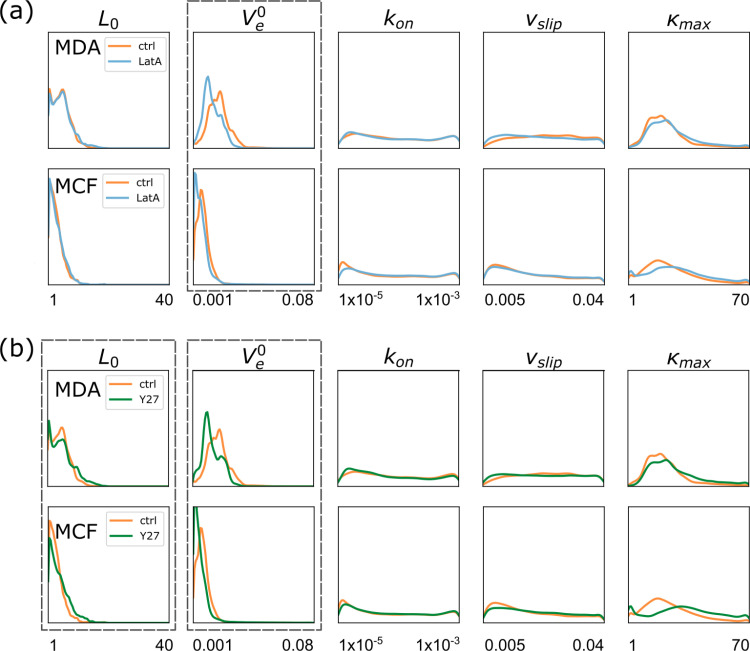

Effect of inhibitors on model parameters as inferred by SBI.Ensemble posterior distribution of model parameters of experimental cell trajectories using SBI. (a) Latrunculin A significantly decreases the actin network extension rate Ve0 for both MDA-MB-231 and MCF-10A cells while leaving all other parameters unchanged. (b) A similar effect can be observed for Y27632 treatment. Additionally, the resting protrusion length L0 is shifted towards larger values. For each trajectory in a given population we sampled 1000 different points in parameter space. Here, the ensemble of all sampled points for all trajectories of a given population is shown. MDA experiments, 5 replications, NMDA_ctrl = 85, NMDA_LatA = 129, NMDA_Y27 = 96; MCF experiments, 4 replications, NMCF_ctrl = 301, NMCF_LatA = 465, NMCF_Y27 = 507.
