Generation of a spontaneous murine HPV + oral cancer model with site-specific oncogene insertion using CRISPR-SONIC
Julia Tao, Jason Murray, Hsin-Fang Tu, Darrell Fan, Ya-Chea Tsai, Ming-Hung Hu, Annie A. Wu, Deyin Xing, Chien-Fu Hung, T.-C. Wu
TL;DR
A new mouse model for HPV-related oral cancer was created using CRISPR to study disease progression and test therapies.
Contribution
A novel murine model of HPV16 + HNC was developed using CRISPR-SONIC for site-specific oncogene insertion.
Findings
CRISPR-SONIC insertion of HPV16 E6/E7 and KrasG12D induced spontaneous buccal tumors in mice.
DNA vaccination targeting HPV16 E7 reduced tumor growth and triggered immune responses.
Co-delivery of HPV oncogenes with AKT and c-Myc produced tumors with HNC-like morphology in NSG mice.
Abstract
Human papillomavirus associated head and neck cancer (HPV + HNC) is rising globally, emphasizing the need for improved therapeutic and screening strategies. To test novel therapies and study HPV-related disease progression, it is vital to develop relevant preclinical models. However, many fail to address critical concerns, including generating a representative immune microenvironment and adequately modeling HPV-driven malignant transformation. Recent multi-omics studies reveal the significance of HPV integration location in HPV-related carcinogenesis and highlight the necessity of targeted treatment methods. Thus, we have developed a murine model of HPV16 + HNC modifying the published CRISPR-based Somatic Oncogene kNock-In for Cancer Modeling (CRISPR-SONIC) system for precise integration of HPV oncogenes. We showed that CRISPR-SONIC knock-in of KrasG12D, HPV16 E6 and E7, and a…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7- —http://dx.doi.org/10.13039/100000054National Cancer Institute
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsVirus-based gene therapy research · interferon and immune responses · Bacteriophages and microbial interactions
Background
Human papillomavirus (HPV) is the most common sexually transmitted infection, affecting approximately 80% of individuals during their lifetime [1, 2]. These DNA viruses typically result in transient infections in the skin and mucosal membranes, where the virus maintains its genome episomally [3]. However, persistent infection with high-risk HPV (HR-HPV) types, including HPV types 16 and 18, can lead to carcinogenesis [4], and integration of viral DNA into the host genome is thought to play a critical role. Specifically, viral oncogenes E6 and E7 are maintained in HR-HPV integration [5], and contribute to cellular dysregulation by inactivating the tumor suppressors p53 and pRb respectively [2]. E6 and E7 are highly expressed post-integration, which is thought to result from two main factors: disruption of the viral protein E2, which normally inhibits their expression [6], and increased stability of the resulting spliced viral-cellular fusion transcripts [7, 8]. Sequencing studies have revealed high frequency of integration in HPV-related cancers, including reports of up to 71% in HPV-associated head and neck cancer (HPV + HNC) [5, 9] and 62–98% in cervical carcinomas [10–13]. Furthermore, the presence of integration in HPV + cancers has been correlated with decreased overall survival and low immune infiltration in patients, indicating its clinical significance [5, 14].
In recent years, HPV + HNC has become a rising global epidemic [15], surpassing cervical cancer to become the most common HPV-related malignancy in the United States and other high-income countries [1]. Existing prophylactic vaccinations for HR-HPV have shown efficacy in reducing oral HPV infections (by an estimated 88.2% among vaccinated young adults in the U.S.) [16] and HPV vaccination coverage among adolescents has been on the rise (75.1% with ≥ 1 dose and 58.6% up to date among 13–17 year olds in the U.S. in 2020) [17]. Despite this, prophylactic HPV vaccinations cannot clear existing infections and progression of persistent oral HR-HPV infections to HPV + HNC remains a concern among older adults [1, 18], with incidence of oropharyngeal cancer among adults aged 70–83 projected to increase from 16.8 to 29.0 per 100,000 population by 2045 [19]. Furthermore, current treatment options for oral cancers typically include surgical resection or chemoradiotherapy [20, 21], which can reduce quality of life and potentially cause irreparable anatomical damage [22]. Therefore, it remains of critical concern to develop interventions for HPV + HNC, as well as to improve diagnostic and preventative strategies.
Although a number of preclinical models have been developed for understanding HPV-related cancer progression and therapeutic testing, it has proven difficult to fully capture disease progression as papillomaviruses are species-specific and have a life cycle reliant on stratified squamous epithelial differentiation [23]. Traditionally, humanized preclinical models are formed through xenograft implantations of HPV + tumor cell lines directly into mice. This method can generate tumors rapidly, but has some limitations including the adaptation and homogenization of cell lines under culture as well as the requirement for severe immunodeficiency [24]. The direct implantation of cell lines also renders these models incapable of capturing the distinct process of cellular transformation in HPV-related disease progression, which is vital in establishing the immune microenvironment. Thus, these orthotopic models often fail to model the human tumor microenvironment and clinical response. Another frequently used preclinical model is the transgenic mouse, created by insertion of HPV oncogenes at the embryonic level [25]. Although inclusion of a tissue-specific promoter such as K14 could limit expression of the inserted oncogenes to keratinocytes, expression would occur tissue-wide rather than focally as in an authentic HPV infection, complicating therapeutic testing [26, 27]. Furthermore, while transgenic mice are capable of immunocompetency, prenatal HPV oncoprotein expression can cause immunotolerance to introduced exogenous genes [28, 29]. Transgenic mice therefore cannot fully model the natural immune environment, rendering them less appropriate for testing immunotherapies. Conditional and inducible genetic models employing Cre recombinase have also been developed to study HPV-associated neoplasia, offering spatial and temporal control of oncogene expression [30–33]. Despite this, both conditional and conventional transgenic models are time-consuming and costly to generate, requiring initial genetic modification during early development and subsequent breeding. This makes these models impractical for efficiently exploring the variability of HPV integration across the genome. To address these challenges, we had previously developed a spontaneous murine model of HPV + buccal tumor, which could be controlled with an HPV DNA vaccine that generated a potent HPV16 E7-specific immune response [34]. This model utilized the Sleeping Beauty (SB) transposase-based system which enables rapid tumor formation through semi-random integration of oncogenes into the host genome.
HPV integration into the genome is believed to occur in a near-random manner [35], and our previously developed SB system reflects this integration process. However, recent multi-omics studies have shown evidence that there exists strong selective pressure for productive integrations, which produce actively transcribed viral-host fusion transcripts associated with higher expression of E6/E7 oncogenes compared to episomally maintained viral DNA [36, 37]. These productive integrations have been reported to occur within gene regions (introns and exons), common fragile sites, enhancers, and specific repetitive elements including Alu regions [5, 9, 14, 36, 38]. In comparison to silent (non-transcribed) integrations which are indeed generally randomly distributed, productive integrations are non-randomly distributed across viral and host genomes and result in increased tumor aggressiveness and immune evasion [36, 37]. This suggests the existence of selective pressure for productive sites, allowing for clonal expansion and tumor progression [36, 37]. Furthermore, integration typically occurs at just one or a few loci within a lesion, almost always with amplification of the host genome [39, 40]. For instance, RNA sequencing data revealed integration in cervical and HNC tumors generally resulted in only a single transcriptionally active driver integration locus [41].
Thus, we sought to generate a model of HPV + head and neck cancer with targeted oncogene insertion. To do so, we utilized the published CRISPR-based Somatic Oncogene kNock-In for Cancer Modeling (CRISPR-SONIC) system [42]. This system employs the CRISPR/Cas9 gene editing system, which uses the Cas9 enzyme to generate double-stranded breaks (DSBs) at a targeted site in the genome through use of a simple single guide RNA (sgRNA). While gene integration is typically achieved utilizing homology-directed DNA repair (HDR) with the inclusion of a homologous template, this method is limited in utility and scope due to its low efficiency. Therefore, the CRISPR-SONIC system leverages the more efficient homology-independent repair strategy, non-homologous end joining (NHEJ) [42, 43]. While this method is more error-prone, CRISPR-SONIC mitigates the impact of small indels often generated by NHEJ during DSB repair by including an internal ribosomal entry site (IRES), ensuring proper gene expression occurs [42]. Previously, Mou et al. used CRISPR-SONIC to model liver cancer, and reported a significant increase in integration efficiency compared to HDR knock-in, from 0.5% to 10% [42].
Here, we have utilized the CRISPR-SONIC system to generate a model of HPV16 + HNC which recapitulates targeted HPV integration at a single locus. HPV16 is well-suited for this model as it is the most prevalent among the HR-HPV types found in HPV + cancers, in over 50% of cervical cancers and 90–95% of HPV + HNCs [4], as well as presents the lowest clearance rate [44]. To induce malignant transformation, which typically necessitates three or more driver gene mutations or “hits” [45, 46], we modified the CRISPR-SONIC system to include HPV16 oncogenes E6 and E7 alongside the oncogenic Ras isoform Kras^G12D^. These genes were delivered with a luciferase reporter sequence to the 3’-UTR of β-actin, leveraging the robust endogenous mouse β-actin promoter for expression. In vitro transfection of murine cells confirmed the successful integration and expression of oncogenes via our Kras + HPV + SONIC system. We also showed the system was functional in vivo, generating spontaneous HPV + buccal tumors when delivered to the buccal mucosa of mice via injection and electroporation. Moreover, these tumors could be controlled by an HPV16 E7-specific immune response induced by a therapeutic HPV DNA vaccine pNGVL4a-CRT/E7 (detox). Finally, spontaneous HPV + buccal tumors modeling the reported hyperactive PI3K/AKT/mTOR pathway in HNC [39, 47–49] could be generated through CRISPR-SONIC based delivery of HPV16 E6/E7 together with oncogenes c-Myc and AKT delivered via SB100X transposase. Tumor histology revealed characteristics consistent with carcinoma, validating its clinical relevance [50–52].
Methods
Plasmid vectors
The Kras + HPV + SONIC donor vector SONIC-Kras^G12D^-Luc-E7-E6 was generated as follows: the Luc-T2a-E7-T2a-E6 sequence was obtained by PCR amplification of the Pkt2-Luc-T2a-E7-T2a-E6 plasmid (constructed as previously described [34]) with the following primers: 5′-AAAGCCACCATGGAAGACGCCAAAAACAT -3′ and 5′- AAAGTCGACTTACAGCTGGGTTTCTCTACGT -3′. The sequence was then cloned into the NcolI/SalI sites of the SONIC-Kras^G12D^-IRES-luciferase donor plasmid purchased from Addgene, Watertown, MA, USA (Addgene #138178) (constructed as previously described [42]). Plasmid constructs were confirmed by DNA sequencing.
The HPV + SONIC donor vector SONIC-Luc-E7-E6 was generated as follows: the Luc-T2a-E7-T2a-E6 sequence was obtained by PCR amplification of the Pkt2-Luc-T2a-E7-T2a-E6 plasmid with the following primers: 5′-AAATGGCCAATGGAAGACGCCAAAAACAT -3′ and 5′- AAAATCGATTTACAGCTGGGTTTCTCTACGT -3′. The amplified product was then cloned into the MscI/ClaI sites of the H517 SONIC HRASV12 donor plasmid purchased from Addgene (Addgene #138177) (constructed as previously described [42]). Plasmid constructs were confirmed by DNA sequencing.
The PKT2-cMyc plasmid was constructed by cloning mouse c-Myc into the XbaI/Bgl II sites of the PKT2/CLP-AKT vector as previously described [53]. The pcDNA3-E7/GFP plasmid was constructed by cloning HPV16 E7 into the EcoRI/BamHI sites of pcDNA3-GFP as previously described [54].
The plasmids H513 pX330.sgActin.UTR.2 (Addgene #138176), and sgA (Addgene #83807) were purchased from Addgene, developed as previously described [42]. The plasmids pT/Caggs-NRasV12 (Addgene #20205) and PKT2/CLP-AKT (Addgene #20281) were purchased from Addgene, developed as previously described [55, 56]. The plasmid pCMV(CAT)T7-SB100 (Addgene #34,879) was purchased from Addgene, developed as previously described [57].
Cell lines
TC-1 cells (primary murine lung cells immortalized with HPV16 E6 and E7 as well as human HRAS oncogenes as described previously [58, 59]) were cultured in RPMI complete media supplemented with 10% fetal bovine serum, 1 mM sodium pyruvate, 2 mM l-glutamine, 100 U/ml penicillin, 100 µg/ml streptomycin, 2 mM non-essential amino acids, and 50 µM 2β-mercaptoethanol and incubated at 37 °C with 5% CO_2_.
Animal care
Female C57BL/6 mice (6–8 weeks old) and female NSG mice (6–8 weeks old) were purchased from Jackson Laboratory and housed at the Johns Hopkins University School of Medicine Animal Facility (Baltimore, MD, USA) under pathogen-free conditions. The mice were managed in accordance to protocols by the Johns Hopkins Institutional Animal Care and Use Committee, and all efforts were made to minimize animal suffering.
Transfection in vitro
TC-1 cells were seeded in 24-well plates and grown to 30% confluency. ExpiFectamine 293 Reagent (Gibco, Waltham, MA) was used according to manufacturer instructions to transfect the cells with a total of 5 μg of DNA per transfection, distributed as follows: 1:1:1 ratio of SONIC-Kras^G12D^-Luc-E7-E6 donor, H513 pX330.sgActin.UTR.2, and sgA; or 1:1 ratio of SONIC-Kras^G12D^-Luc-E7-E6 donor and pcDNA3-E7/GFP; or 1:1 ratio of Pkt2-Luc-T2a-E7-T2a-E6 and pCMV(CAT)T7-SB100; or 1:1 ratio of Pkt2-Luc-T2a-E7-T2a-E6 and pcDNA3-E7/GFP. Wells were imaged 3 days post-transfection using the IVIS Spectrum imager series 2000 (Xenogen, Alameda, CA, USA) after addition of D-luciferin (GoldBio, St. Louis, MO, USA). Cells from transfected wells were re-seeded and imaged again after growth for an additional 4 days. IVIS Spectrum bioluminescent images were analyzed with Living Image software (Xenogen, Alameda, CA, USA).
Buccal tumor formation in vivo
Transient immune suppression
C57BL/6 mice (n = 5) were transiently immunosuppressed with intraperitoneal (i.p.) injections of either 100 μg of monoclonal anti-CD3 (clone 17A2, Bio X Cell, Lebanon, NH, USA) or 100 μg of monoclonal anti-CD4 (clone GK1.5, Bio X Cell) according to the schedules shown in Fig. S1B, 2A, 3A, 4A, and 5A.
Buccal tumor generation
For generation of Kras^G12D^ and HPV16-E6/E7 expressing buccal tumor, C56BL/6 mice (n = 5) were first anesthetized with intramuscular (i.m.) injection of ketamine/xylazine (5:1 ratio). The mice were then submucosally injected in the right buccal mucosa with the various plasmid formulations for oncogene integration, followed by invasive electroporation using the ECM 830 Square Wave Electroporation System (BTX, Holliston, MA, USA) at the injection site (8 pulses at 72v for 20 ms/pulse, with 200 ms interval between each). Fig. S1A indicates the plasmid formulations (10 μg/plasmid/mouse) for the groups (n = 5) of mice as follows: Kras + HPV + SONIC system [SONIC-Kras^G12D^-Luc-E7-E6 donor, H513 pX330.sgActin.UTR.2, and sgA] or Nras + HPV + SB system [Pkt2-Luc-T2a-E7-T2a-E6, pT/Caggs-NRasV12, and pCMV(CAT)T7-SB100].
For generation of c-Myc, AKT, and HPV-E6/E7 expressing buccal tumor, NSG mice (n = 3) were anesthetized and submucosally injected at the buccal site with the HPV + SONIC system co-delivered with AKT and c-Myc oncogenes containing the following plasmid formulation (10 μg/plasmid/mouse): SONIC -Luc-E7-E6 donor, H513 pX330.sgActin.UTR.2, sgA, PKT2-cMyc, PKT2/CLP-AKT, pCMV(CAT)T7-SB100 (Fig. 6A). The mice then received electroporation at the injection site (8 pulses at 72v for 20 ms/pulse, with 200 ms interval between each).
Vaccination
To evaluate tumor response to immunotherapy, mice were vaccinated with the DNA vaccine pNGVL4a-CRT/E7 (detox) generated as previously described [59, 60]. The vaccine (10 μg/mouse) was injected i.m. into the hind leg, followed by electroporation at the injection site (8 pulses at 106 V for 20 ms/pulse, with 200 ms interval between each) according to the schedules shown in Fig. 3A, 4A, and 5A. The E7-specific immune response induced by vaccination was evaluated by assessing E7-specific CD8 T cells in the peripheral blood via flow cytometry.
Flow cytometry
To evaluate immune response in vaccination experiments, quantification of E7-specific CD8 T cells was performed via flow cytometry of peripheral blood mononuclear cells (PBMCs). 10 drops of blood were drawn from the facial vein of each mouse into a tube coated with 100 μl of 10% EDTA. Blood lysis buffer (Cell Signaling Technology, Danvers, MA, USA) was added to samples to lyse red blood cells, followed by washing with 1X FACS buffer (0.5% BSA/PBS). Samples were stained with Zombie Aqua Live/Dead (#423102 BioLegend, San Diego, CA, USA). Prior to antibody staining, cells were washed and Fc blocking was done (Fc block, BD Pharmingen, San Diego, CA). Cells were then simultaneously stained at 4 °C with fluorescently conjugated APC/Fire™ 750 anti-mouse CD8a antibody (clone 53–6.7, #100766 Biolegend) and PE-conjugated HPV16 E7aa49-57 peptide loaded H-2Db tetramer (provided by the NIAID tetramer core facility, Atlanta, GA, USA). The CD8a antibody clone 53–6.7 was utilized for the tetramer staining protocol due to its ability to enhance rather than block tetramer staining [61, 62]. Following washing and resuspension in FACS buffer, flow cytometry was performed in the 13-color CytoFLEX S (Beckman Coulter, Brea, CA, USA). The data was then analyzed using FlowJo 10.4 software (BD Biosciences, Franklin Lakes, NJ, USA).
Bioluminescence imaging
Tumor growth in mice was quantified by bioluminescence imaging. Prior to conducting imaging, mice were anesthetized with i.m. injection of ketamine (40 mg/kg) and xylazine (0.5 mg/kg) solution (Phoenix Pharmaceutical Inc., St. Joseph, MO, USA) followed by i.p. injection of 200 µL of 3.9 mg/mL D-luciferin (GoldBio, St. Louis, MO, USA). 10 min post-injection with luciferin, mice were placed in the IVIS Spectrum imager and bioluminescence imaging was conducted. Bioluminescence signals were subsequently analyzed with Living Image software through quantification of photon flux from regions of interest.
In order to minimize mouse suffering, mouse death by tumor burden was defined as previously described, according to the following conditions: (1) bioluminescent signal (average radiance) of 10^9^ p/sec/cm^2^/sr; (2) tumor volume of 150 mm^3^; (3) 10% reduction in weight compared to average weight of healthy mice of the same age. Mice were euthanized by CO_2_ asphyxiation upon observation of these conditions.
Tumor marker validation
Buccal tumors excised following mouse sacrifice were initially frozen at − 80 °C. These were then placed in Trizol solution (#15596018 Invitrogen, Carlsbad, CA, USA) in a gentleMACS M Tube (#130-093-236 Miltenyi Biotec, Auburn, CA, USA), and dissociated using program RNA_02 in the gentleMACS Dissociator (#130-093-235 Miltenyi Biotec). RNA isolation was performed as follows: chloroform was added to induce phase separation, followed by collection of the RNA phase. RNA was precipitated in isopropanol, followed by washing in 75% ethanol. RNA pellets were air-dried and resuspended in RNase-free ddH_2_O. RNA yields were measured by nanodrop. RNA samples were then treated with DNase and reverse transcribed into cDNA according to manufacturer instructions (QuantiTect Reverse Transcription Kit, #205311 Qiagen, Hilden, Germany). PCR was performed to verify presence of HPV16-E6 and HPV16-E7 proteins using the following primers: HPV16-E6 forward 5’-CCACAGGAGCGACCCAGAAAG-3’ and reverse 5’-TCTGCAACAAGACATACATCG-3’, HPV16-E7 forward 5’-TATGTTAGATTTGCAACCAGA-3’ and reverse 5’-TTCCTAGTGTGCCCATTAACA-3’, and internal control β -actin forward 5′-AGGTGTGCACCTTTTATTGGTCTCAA-3′ and reverse 5′-TGTATGAAGGTTTGGTCTCCCT-3′. Amplified fragments were visualized using 6X gel loading dye (#B7024S New England BioLabs, Ipswich, MA, USA) on a 1% agarose gel with ethidium bromide (Supplementary Fig. S5).
Tumor histology
Buccal tumors were excised following mouse sacrifice, and fixed in 10% neutral buffered formalin for 48 h. Formalin-fixed samples were paraffin embedded and sections were stained with hematoxylin and eosin (H&E) by the Johns Hopkins University Oncology Tissue Services. The histology slides were reviewed by Dr. T.-C. Wu, a board-certified gynecologic pathologist at the Johns Hopkins University School of Medicine, Department of Pathology.
Tumor immunohistochemical staining
Immunostaining for c-Myc, AKT, Ki67, CK19. KRAS-G12D was performed at the Oncology Tissue Services Core of Johns Hopkins University. Immunolabeling was performed on formalin‐fixed, paraffin embedded sections on a Ventana Discovery Ultra autostainer (Roche Diagnostics). Briefly, following dewaxing and rehydration on board, epitope retrieval was performed using Ventana Ultra CC1 buffer (catalog# 6414575001, Roche Diagnostics) at with temperature and incubation time optimized for each antibody.
Primary antibodies (anti‐cMyc, 1:200 dilution, catalog# ab32072, Abcam; anti-AKT, 1:200 dilution, catalog # 10176-2-AP, Proteintech; anti‐Ki67, 1:200 dilution, catalog# Ab16667, Abcam; anti‐CK19, 1:800 dilution; catalog# ab133496, Abcam; anti-KRAS-G12D, 1:75 dilution, catalog# MA5-36256, ThermoFischer) were applied at 36–37 °C for 60 min. Primary antibodies were detected using an anti-rabbit HQ detection system (catalog# 7017936001 and 7017812001, Roche Diagnostics) followed by Chromomap DAB IHC detection kit (catalog # 5266645001, Roche Diagnostics), counterstaining with Mayer’s hematoxylin, dehydration and mounting.
Immunostaining for OSCAR (catalog# 300 M-18 predilute antibody, SigmaAldrich) was performed in the clinical histology lab on the Benchmark XT autostainer (Ventana Medical Systems Inc., Tucson, AZ) using the I-View detection kit and standard methods.
Statistical analysis
GraphPad PRISM 9 Software (GraphPad, Boston, MA, USA) was used for statistical analysis, and data was expressed as the mean ± the standard error of the mean (SEM). One-way ANOVA with Tukey–Kramer multiple comparisons test or Student’s t-test was used to determine statistical significance. To measure survival outcomes, Kaplan–Meier plots of survival percentage were constructed and the log-rank test was used to determine whether survival times between groups displayed significant differences. In all cases, p-values ≤ 0.05 were considered statistically significant.
Results
CRISPR-SONIC system is required for targeted integration and efficient expression from SONIC donor construct in vitro in TC-1 cells

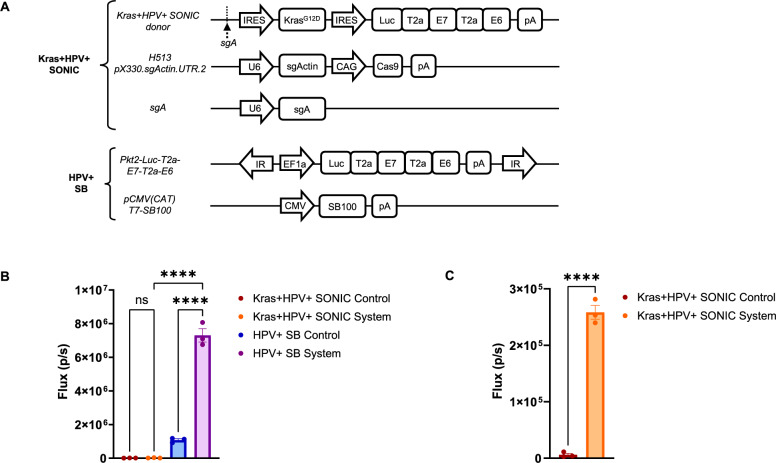

To enable modeling of HPV integration and tumorigenesis, we modified the single-cut donor vector of the CRISPR-SONIC system to deliver HPV16 E6/E7, Kras^G12D^, and luciferase. The recombinant SONIC-Kras^G12D^-Luc-E7-E6 donor vector was paired with (1) a plasmid H513 pX330.sgActin.UTR.2 encoding the Cas9 enzyme and sgRNA targeting the host’s β-actin site, and (2) a plasmid sgA encoding sgRNA targeting the sgA site on the donor plasmid for the purpose of linearization [42]. Upon delivery of this system, knock-in occurs through NHEJ, enabling insertion of the linearized donor into the cleaved 3’-UTR of β-actin. Integration specificity and efficacy at the β -actin 3’ UTR using this single-cut system with sgRNA targeting the β -actin 3’ UTR were previously confirmed by Mou et al. via Sanger sequencing of junction amplicons [42]. Here, we leveraged this validated platform with a modified payload to model HPV integration and tumorigenesis. When properly oriented, the Kras^G12D^-Luc-E7-E6 sequence would be expressed under the control of the β-actin promoter and IRES signal and be subsequently terminated by the poly A signal. We also compared the activity of this Kras + HPV + SONIC system to our previously developed Nras + HPV + SB system [34], which utilizes the SB100X hyperactive transposase to deliver oncogenes HPV16 E6/E7 and Nras.
To validate the functionality of the Kras + HPV + SONIC system and compare its activity to the SB system, TC-1 cells were transfected with either (1) Kras + HPV + SONIC system [SONIC-Kras^G12D^-Luc-E7-E6 donor, H513 pX330.sgActin.UTR.2, and sgA]; (2) Kras + HPV + SONIC control [SONIC-Kras^G12D^-Luc-E7-E6 donor and pcDNA3-E7/GFP]; (3) HPV + SB system [Pkt2-Luc-T2a-E7-T2a-E6 and pCMV(CAT)T7-SB100]; (4) HPV + SB control [Pkt2-Luc-T2a-E7-T2a-E6 and pcDNA3-E7/GFP]; where (2) and (4) are negative controls replacing required constituents for gene insertion by the SONIC and SB system respectively with a pcDNA3-E7/GFP vector control for dosage balance (Fig. 1A). Bioluminescence signals were measured in the IVIS Spectrum imager following addition of luciferin, at 3- and 7-days post-transfection. The Kras + HPV + CRISPR-SONIC system displayed no difference in signal compared to its paired control at 3 days post-transfection (Fig. 1B), but demonstrated significantly higher signal (p < 0.0001) compared to its control at 7 days post-transfection (Fig. 1C). This result suggests successful integration and expression from the donor plasmid by the Kras + HPV + SONIC system.Fig. 1CRISPR-SONIC system is required for targeted integration and efficient expression from SONIC donor construct in vitro in TC-1 cells**.** In vitro integration of Kras^G12D^, HPV oncogenes, and luciferase reporter into murine cells via Kras + HPV + SONIC or HPV + SB system. A Plasmids used for transfection of TC-1 cells. Integration-deficient controls for the Kras + HPV + SONIC system and HPV + SB system were generated by replacing the H513 pX330.sgActin.UTR.2 and sgA plasmids, as well as the pCMV(CAT)T7-SB100 plasmid respectively with pcDNA3-E7/GFP for dosage balance. Bioluminescence signals were quantified by imaging on the IVIS Spectrum imager after addition of luciferin. B Bioluminescence signals of TC-1 cells transfected with Kras + HPV + SONIC system, Kras + HPV + SONIC control, HPV + SB system, or HPV + SB control at 3 days post-transfection. Data represent the mean ± SEM of 3 replicates. One-way ANOVA analysis was conducted followed by the Tukey–Kramer Test. C Bioluminescence signals of TC-1 cells transfected with Kras + HPV + SONIC system or Kras + HPV + SONIC control at 7 days post-transfection. Data represent the mean ± SEM of 3 replicates. Unpaired two-tailed t-test analysis was conducted. ****p < 0.0001 vs control with a p ≤ 0.05 considered statistically significant
In contrast, a significantly higher (p < 0.0001) luminescence signal in the HPV + SB system was seen by 3 days post-transfection compared to the negative controls and the Kras + HPV + SONIC system. (Fig. 1B). Low levels of basal expression in the HPV + SB negative control were also seen despite the lack of the transposase plasmid. This suggests the SB system leads to higher expression levels from the Pkt2-Luc-T2a-E7-T2a-E6 plasmid compared to the expression from the SONIC-Kras^G12D^-Luc-E7-E6 donor plasmid with the SONIC system.
Kras + HPV + SONIC system generates spontaneous HPV + buccal tumors in C57BL/6 mice with transient immune depletion

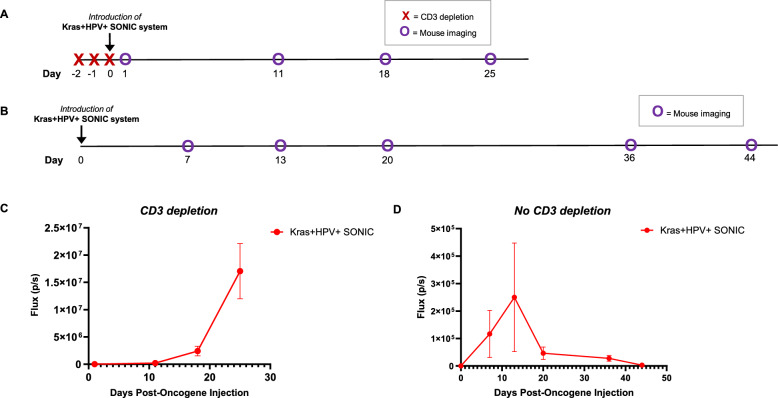

Transient CD3 T cell depletion enables tumor formation
We previously demonstrated that spontaneous formation of tumors required immunosuppression, with optimal tumor formation via CD3 depletion [34]. It was shown that transient depletion with anti-CD3 prior to oncogenic plasmid transfection could enable tumor induction and growth while also allowing recovery of the CD3 T cell population over time [34].
Thus, to generate spontaneous buccal tumors in mice, two groups of C57BL/6 mice (n = 5) were injected intraperitoneally (i.p.) with anti-CD3 daily for 3 days, and plasmids were introduced through submucosal injection at the buccal site followed by electroporation on the third day. As depicted in Fig. S1A, the administered plasmids included: (1) Kras + HPV + SONIC system [SONIC-Kras^G12D^-Luc-E7-E6 donor, H513 pX330.sgActin.UTR.2, and sgA]; and (2) Nras + HPV + SB system [Pkt2-Luc-T2a-E7-T2a-E6, pT/Caggs-NRasV12, and pCMV(CAT)T7-SB100]. As tumor growth was previously shown to correlate with bioluminescence signal [34, 42], mice were imaged weekly in the IVIS Spectrum following i.p. injection of luciferin to measure signal from buccal tumors (Fig. 2A).Fig. 2. Kras + HPV + SONIC system generates spontaneous HPV + buccal cancer in C57BL/6 mice with transient immune depletion. A Schedule of CD3 depletion and bioluminescence imaging of buccal tumors in a group of mice (n = 5). Kras + HPV + SONIC was introduced in the buccal region of mice through submucosal injection and electroporation on Day 0, as indicated. Tumor growth by bioluminescence signal was quantified by imaging on the IVIS Spectrum after intraperitoneal injection of luciferin. B Schedule of Kras + HPV + SONIC system introduction in immunocompetent mice (n = 5) and subsequent bioluminescence imaging. C Quantified bioluminescence kinetics of buccal tumors in mice with an initial 3-day anti-CD3 administration prior to administration of Kras + HPV + SONIC system. D Quantified bioluminescence kinetics of buccal tumors in immunocompetent mice administered the Kras + HPV + SONIC system
The Kras + HPV + SONIC system was capable of inducing spontaneous buccal tumor growth in the transiently immunosuppressed mice, as indicated by increase in luminescence intensity over time (Fig. 2C). In comparison, mice with tumors induced by the Nras + HPV + SB system showed significantly higher luminescence by Week 1 (p < 0.001) than with the Kras + HPV + SONIC system (Supplementary Fig. S1C). However, by the second week there was no significant difference in luminescence signal between the two groups. Furthermore, mice injected with the Nras + HPV + SB system plasmids experienced lower survival percentages compared to the Kras + HPV + SONIC system (Supplementary Fig. S2C). These results suggest that while the Nras + HPV + SB system leads to higher expression levels in tumors, the Kras + HPV + SONIC system effectively induces spontaneous tumor formation with controlled expression and lower mortality.
Spontaneous tumor growth is not supported in immunocompetent mice
To confirm whether transient immunosuppression was required for spontaneous tumor formation, administration of the Kras + HPV + SONIC system was also performed without prior CD3 T cell depletion in fully immunocompetent C57BL/6 mice (Fig. 2B). Tumor growth, monitored by weekly luminescence signal imaging, increased for two weeks followed by a rapid decline (Fig. 2D). These results further support the need for temporary immune suppression, as demonstrated through transient CD3-depletion here, in order to generate spontaneous HPV + buccal tumors.

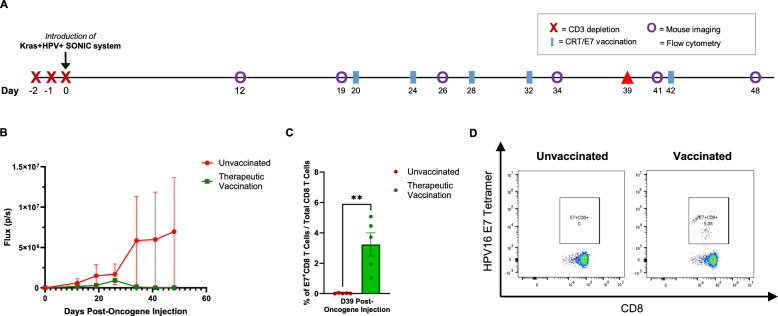

Kras + HPV + SONIC-induced tumors can be controlled by therapeutic DNA vaccination with pNGVL4a-CRT/E7 (detox)
To assess whether Kras + HPV + SONIC-induced buccal tumors were capable of responding to immunotherapy, mice were vaccinated with the DNA vaccine pNGVL4a-CRT/E7 (detox), which expresses human calreticulin (CRT) and detoxified HPV16-E7 antigen as previously described [59, 60].
Two groups of C57BL/6 mice (n = 5) were given 3 days of anti-CD3 administration prior to introduction of the Kras + HPV + SONIC system to the buccal region (Fig. 3A). After buccal tumors formed as indicated by bioluminescence imaging, one group of mice was vaccinated in 4-day intervals for a total of four vaccinations, followed by an additional fifth booster vaccination at Day 42 post-oncogene injection (Fig. 3A). While the unvaccinated group showed a continuous upward trend in bioluminescence signal, the vaccinated group saw bioluminescence signal return to baseline levels, indicating tumor regression (Fig. 3B). In addition to weekly bioluminescence imaging to track tumor growth, blood was also collected from the mouse facial vein to analyze the immune response to vaccination. Flow cytometry indicated that the E7-specific CD8 T cell population increased significantly in response to vaccination compared to in the unvaccinated group (Fig. 3C, D). These results indicate Kras + HPV + SONIC-induced tumors can be effectively controlled by vaccination, with tumor regression correlated to a robust HPV16 E7-specific CD8 T cell response, demonstrating the potential of this model for evaluating immunotherapeutic strategies.Fig. 3. Therapeutic vaccination induces HPV16 E7-specific CD8 T cell response and regression of Kras + HPV + SONIC-induced spontaneous buccal tumors in CD3-depleted C57BL/6 mice. A Schedule of CD3 depletion, introduction of Kras + HPV + SONIC system, bioluminescence imaging of buccal tumors, and flow cytometry analysis of PBMCs for quantification of tumor-specific immune response in 2 groups of mice (n = 5). Therapeutic vaccination with pNGVL4a-CRT/E7(detox) DNA vaccine was performed as indicated in one group of CD3-depleted mice. The remaining group of CD3-depleted mice did not receive vaccination. B Quantified bioluminescence kinetics of buccal tumors in CD3-depleted mice, either with or without therapeutic vaccination. C Flow cytometry of PBMCs collected at Day 39 post-oncogene injection from either vaccinated or unvaccianted mice was performed to determine the proportion of E7-specific CD8 T cells out of total CD8 T cells. D Representative flow cytometry images of E7-specific CD8 T cells gated out of total CD8 T cells in either vaccinated or unvaccinated mice administered anti-CD3. Data represent the means ± SEM. Unpaired two-tailed t-test was conducted with a p ≤ 0.05 considered statistically significant (**p < 0.01 vs control)
pNGVL4a-CRT/E7 (detox) DNA vaccination controls Kras + HPV + SONIC-induced buccal tumors in a CD4 T cell-compromised model
Additionally, to mimic the CD4 T cell-compromised conditions seen in immunocompromised hosts such as HIV patients, for whom HPV infections are of concern, tumors were also induced in mice undergoing continuous CD4 depletion. As the pNGVL4a-CRT/E7 (detox) vaccine was previously described to effectively target HPV16 E6/E7 expressing tumors in the absence of CD4 T cells in other models of HPV + cancer [63], the ability of the Kras + HPV + SONIC-induced tumors to respond to the vaccination in a CD4-deficient environment was also examined here.

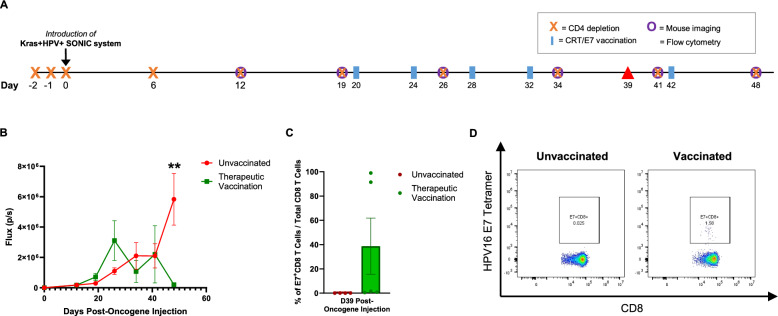

Therapeutic vaccination generates HPV16 E7-specific immune response and tumor control in CD4-depleted mice
Two groups of C57BL/6 mice (n = 5) were depleted with 3 days of anti-CD4 administration prior to Kras + HPV + SONIC system introduction to the buccal region, followed by ongoing anti-CD4 administration weekly (Fig. 4A). After buccal tumors formed as indicated by bioluminescence imaging, one group of mice was vaccinated in 4-day intervals for a total of four vaccinations, followed by an additional fifth booster vaccination at Day 42 post-oncogene injection (Fig. 4A). Imaging revealed that tumors had significantly lower signal after vaccination compared to the unvaccinated group, where tumors continued to increase in bioluminescence intensity (Fig. 4B). In addition to weekly bioluminescence imaging to track tumor growth, blood was also collected from the mouse facial vein to analyze the immune response to vaccination. Flow cytometry indicated that vaccination of the tumor-bearing CD4-depleted mice appeared to generate a potent E7-specific CD8 T cell response, although a significant difference was not seen compared to the unvaccinated group (Fig. 4C, D). These results indicate that Kras + HPV + SONIC-induced tumors can still be controlled by vaccination correlated with a robust HPV16 E7-specific CD8 T cell response, even in the absence of CD4 T cells, highlighting the model’s relevance for immunocompromised conditions.Fig. 4. Therapeutic vaccination induces HPV16 E7-specific CD8 T cell response and regression of Kras + HPV + SONIC-induced spontaneous buccal tumors in CD4-depleted C57BL/6 mice.** A** Schedule of CD4 depletion, introduction of Kras + HPV + SONIC system, bioluminescence imaging of buccal tumors, and flow cytometry analysis of PBMCs for quantification of tumor-specific immune response in 2 groups of mice (n = 5). Therapeutic vaccination with pNGVL4a-CRT/E7(detox) DNA vaccine was performed as indicated in one group of CD4-depleted mice. The remaining group of CD4-depleted mice did not receive vaccination. B Quantified bioluminescence kinetics of buccal tumors in CD4-depleted mice, either with or without therapeutic vaccination. C Flow cytometry of PBMCs collected at Day 39 post-oncogene injection from either vaccinated or unvaccianted mice was performed to determine the proportion of E7-specific CD8 T cells out of total CD8 T cells. D Representative flow cytometry images of E7-specific CD8 T cells gated out of total CD8 T cells in either vaccinated or unvaccinated mice administered anti-CD4. Data represent the means ± SEM. Unpaired two-tailed t-test was conducted with a p ≤ 0.05 considered statistically significant (**p < 0.01 vs control)

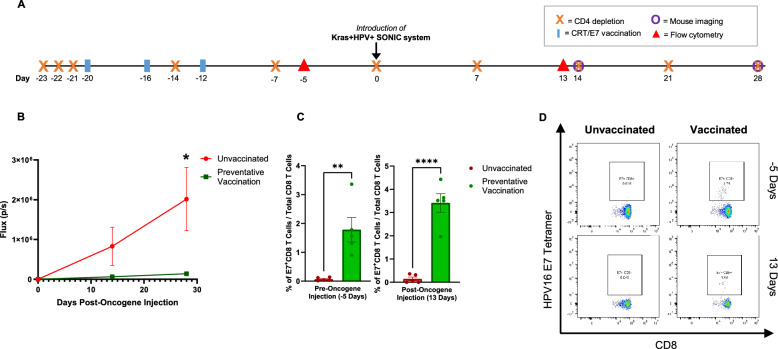

Preventative vaccination with pNGVL4a-CRT/E7 (detox) provides antitumor immunity in CD4-depleted mice
To determine if Kras + HPV + SONIC-induced buccal tumor growth could be attenuated via preventative vaccination, CD4-depleted mice (3 days of initial depletion, followed by weekly depletion thereafter) were vaccinated with pNGVL4a-CRT/E7 (detox) in 4-day intervals for a total of three times prior to introduction of oncogenes (Fig. 5A). Bioluminescence imaging revealed growth of tumors in unvaccinated mice, whereas bioluminescence signal remained significantly lower in vaccinated mice (Fig. 5B).Fig. 5. Preventative vaccination induces HPV16 E7-specific CD8 T cell response and prevents growth of Kras + HPV + SONIC-induced spontaneous buccal tumors in CD4-depleted C57BL/6 mice. A Schedule of CD4 depletion, introduction of Kras + HPV + SONIC system, bioluminescence imaging of buccal tumors, and flow cytometry analysis of PBMCs for quantification of tumor-specific immune response in 2 groups of mice (n = 5). Preventative vaccination with pNGVL4a-CRT/E7(detox) DNA vaccine was performed as indicated in one group of CD4-depleted mice, while the other group did not receive vaccination. B Quantified bioluminescence kinetics of buccal tumors in CD4-depleted mice, either with or without preventative vaccination. C Flow cytometry of PBMCs collected from the mice was used to determine the proportion of E7-specific CD8 T cells out of total CD8 T cells before and after introduction of oncogenes via Kras + HPV + SONIC. D Representative flow cytometry images of E7-specific CD8 T cells gated out of total CD8 T cells at 5 days pre-oncogene injection, and 13 days post-oncogene injection. Data represent the means ± SEM. Unpaired t-test was conducted with a p ≤ 0.05 considered statistically significant (*p < 0.05, **p < 0.01, ****p < 0.0001 vs control)
In addition, blood samples were collected post-vaccination prior to administration of the Kras + HPV + SONIC system, as well as after growth of the tumor. Prior to oncogene introduction, flow cytometry analysis indicated that vaccinated mice had significantly increased E7-specific CD8 T cells compared to naïve mice (Fig. 5C, D). Post oncogene integration, the amount of E7-specific CD8 T cells remained significantly higher in the vaccinated group compared to the unvaccinated group (Fig. 5C, D). These results demonstrate that preventative vaccination with pNGVL4a-CRT/E7 (detox) successfully primes the immune system in CD4-depleted mice, providing protection against Kras + HPV + SONIC-induced tumors correlated with sustained HPV16 E7-specific CD8 T cell activity.

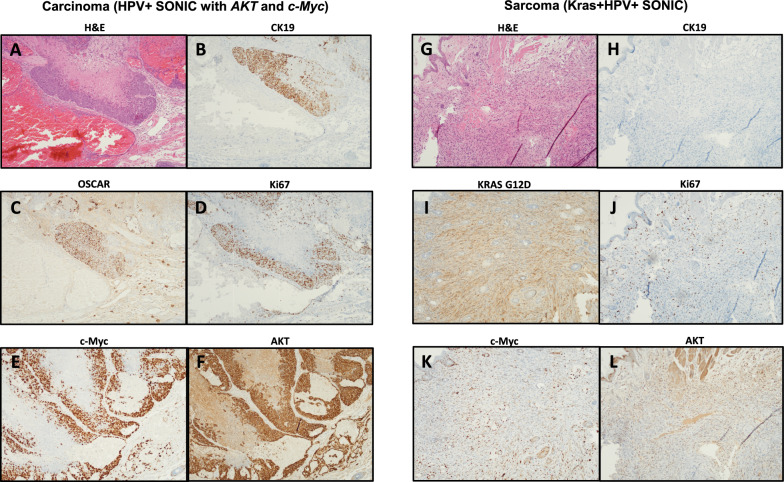

HPV + SONIC system in conjunction with AKT and c-Myc oncogenes generates tumors with positive epithelial markers consistent with carcinoma in NSG mice
While studies have shown significant correlation between HPV + status and KRAS activation and mutations in HPV + HNC clinically [64, 65], the PI3K/AKT/mTOR pathway is reported to be hyperactive and the most mutated pathway in HNC [39, 47–49]. Thus, we sought to generate a more comprehensive and clinically relevant model of HPV + HNC by utilizing the CRISPR-SONIC system to deliver HPV16 E6 and E7, along with delivery of oncogenes c-Myc and AKT via SB100X transposase.

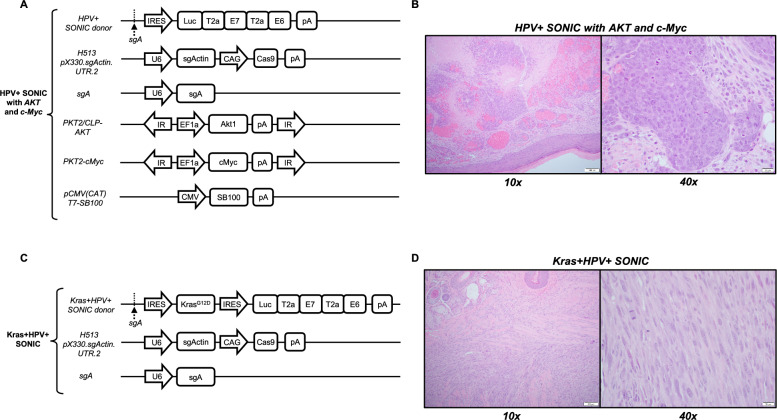

We prepared the SONIC-Luc-E7-E6 donor plasmid and delivered it in immunodeficient NOD SCID gamma (NSG) mice (n = 3) via submucosal injection to the buccal site together with plasmids H513 pX330.sgActin.UTR.2 and sgA, as well as PKT2-cMyc, PKT2/CLP-AKT, and pCMV(CAT)T7-SB100 (Fig. 6A). This formulation was able to induce tumor formation in the NSG mice (with visible tumor formation by day 90 post-oncogene delivery). Investigation with routine histologic methods revealed high-grade cytology with atypical nuclear features, high nuclear to cytoplasmic ratio, and frequent mitoses (Fig. 6B, 7A). The HPV + SONIC system in conjunction with AKT and c-Myc oncogenes displayed cohesive growth in a lobulated and nested architectural pattern with extensive necrosis and hemorrhage indicative of rapid and aggressive growth. Its epithelial origins were confirmed with immunohistochemical staining by both CK19 (Fig. 7B) and OSCAR (Fig. 7C) which are low molecular weight and broad-spectrum cytokeratin stains, respectively, in a focal to patchy pattern, consistent with the high-grade features. Ki67, an immunohistochemical marker of rapidly dividing cells, was elevated in viable tumor (Fig. 7D). The tumor also stained strongly for both c-Myc (Fig. 7E) and AKT (Fig. 7F), in a nuclear and membranous pattern respectively, as expected given the use of these genes in creating the model system.Fig. 6. Spontaneous buccal tumors induced by HPV + SONIC system with AKT and c-Myc oncogene co-delivery in NSG mice demonstrate carcinoma morphology, while Kras + HPV + SONIC-induced buccal tumors in C57BL/6 mice demonstrate sarcoma morphology.** A** Schematic diagram of plasmids used in the HPV + SONIC system with AKT and c-Myc oncogene co-delivery for tumor generation in NSG mice (n = 3) via submucosal injection followed by electroporation. B Representative histological section of buccal tumor extracted from an NSG mouse administered the HPV + SONIC system with AKT and c-Myc oncogene co-delivery demonstrates carcinoma-like phenotype. Left: 10 × magnification shows dense cellularity with areas of hemorrhage and necrosis. Right: 40 × magnification reveals pleomorphic cells with prominent nucleoli and frequent mitotic figures. C Schematic diagram of plasmids used in Kras + HPV + SONIC system used for tumor generation in C57BL/6 mice (n = 5) via submucosal injection followed by electroporation. D Representative histological section of buccal tumor extracted from a C57BL/6 mouse administered Kras + HPV + SONIC system demonstrates sarcoma-like phenotype. Left: 10 × magnification displays spindle-shaped cells within the stroma. Right: 40 × magnification demonstrates elongated cells with a uniform chromatin pattern and minimal nuclear pleomorphismFig. 7H&E histology and immunohistochemical characterization of carcinoma induced by HPV + SONIC system with AKT and c-Myc oncogene co-delivery in NSG mice (A-F) and sarcoma induced by Kras + HPV + SONIC system in C57BL/6 mice (G-L). A The carcinoma (generated with HPV + SONIC with AKT and c-Myc) shows a nodular growth pattern with high grade histology, central necrosis, and abundant hemorrhage on routine H&E staining. B, C Staining for CK19 and OSCAR, respectively, is present in a strong and patchy manner, supporting epithelial origin for the carcinoma. D Ki67, a marker of cell proliferation, is significantly elevated in the viable carcinoma. E, F Staining for c-Myc and AKT in a nuclear and membranous pattern (respectively) is strong and diffuse in the viable carcinoma, as expected given their use in creating the carcinoma model. G The sarcoma (generated with Kras + HPV + SONIC) demonstrates spindled and fascicular morphology with atypia and frequent mitoses on routine H&E staining. H CK19 is negative, as expected, for a tumor of mesenchymal origin. I KRAS^G12D^ is positive in the sarcomatous elements as expected, given its role in creating the tumor, while negative in the overlying skin and hair follicles. J Ki67 is significantly elevated in the sarcoma. K c-Myc is present in a similar pattern to Ki67, highlighting dividing cells and involved inflammatory cells and lymphocytes. L AKT demonstrates only non-specific staining in the sarcoma areas
