Automated landmark-based symmetric and standard alignment of skull base structures on CT

TL;DR

This paper introduces a new method for aligning skull base structures in head CT scans using anatomical landmarks, improving accuracy over traditional techniques.

Contribution

The novel contribution is a landmark-based alignment method that achieves standard orientation while improving skull base alignment accuracy.

Findings

Landmark-based alignment reduced whole head deviations in axial, sagittal, and coronal planes significantly.

Cochlea alignment using landmarks showed mean deviations of 0.552 and 0.511 mm, outperforming traditional registration methods.

Abstract

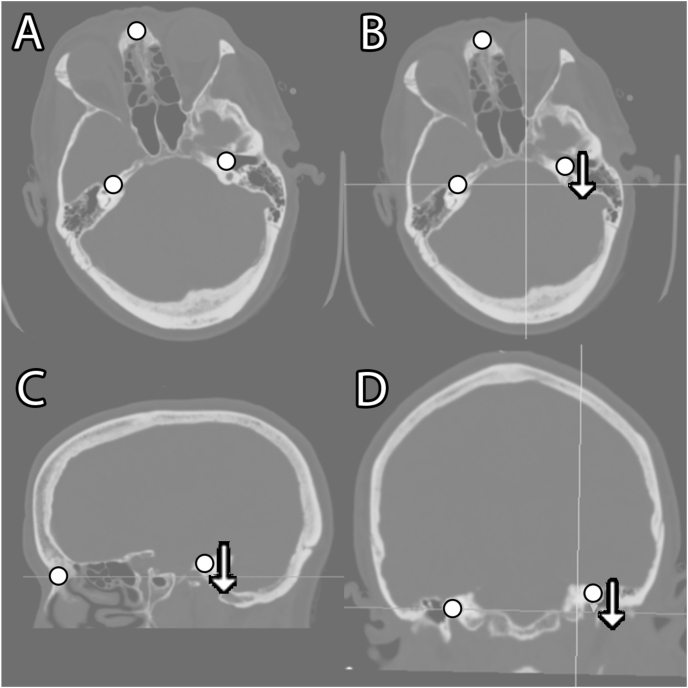

Symmetry and standard alignment are crucial in both clinical interpretation and research on head CT studies. Registration to a standard template is the traditional method for alignment, yet registration does not guarantee precise alignment of any given structure. This study introduces a method for aligning skull base structures while still achieving a standard anterior commissure-posterior commissure (AC-PC)-like orientation on head CT studies using landmarks, specifically the cochleas and nasal bridge.

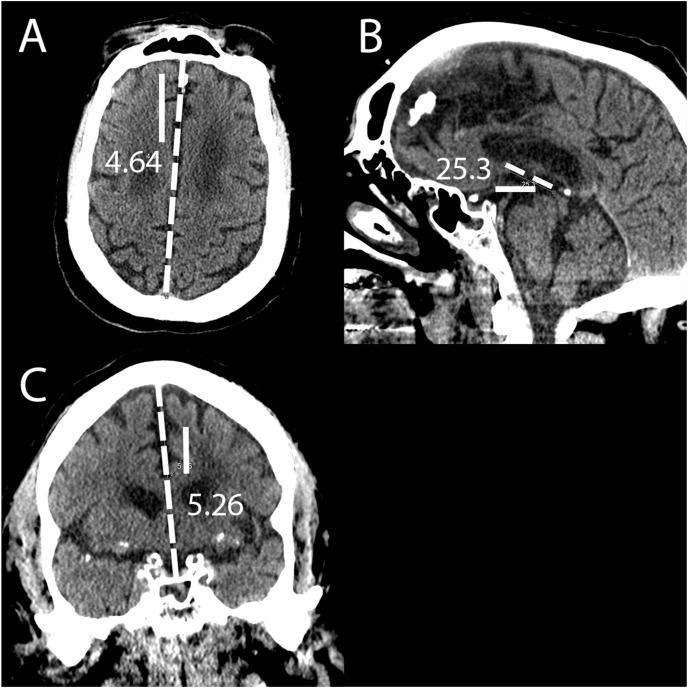

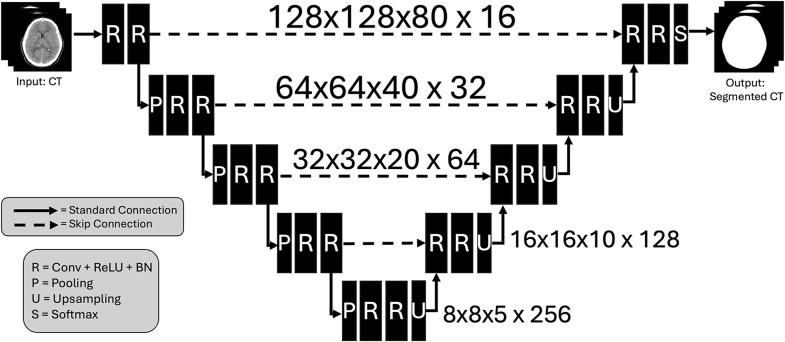

A retrospective study was conducted using head CTs from various General Electric scanners. Landmarks were manually annotated, and a 3D U-Net was trained for landmark identification. Landmark-based alignment was then performed on a test dataset and assessed in two different ways: whole head and skull base alignment. Whole head alignment was assessed quantitatively by expert review. Skull base alignment was then assessed at the cochleas, comparing their alignment between this landmark-based technique and registration to a template.

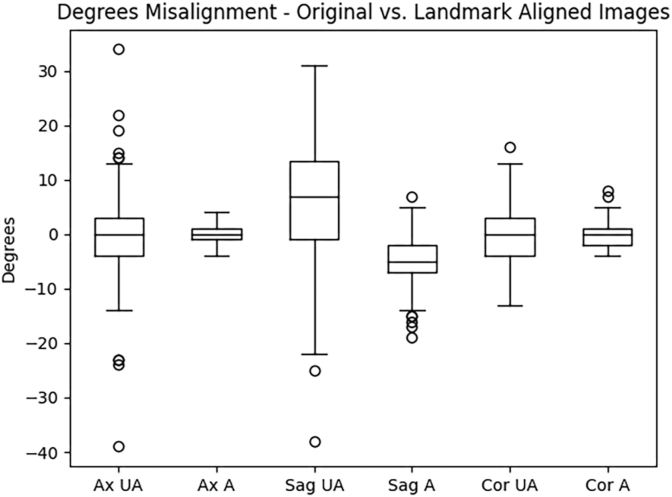

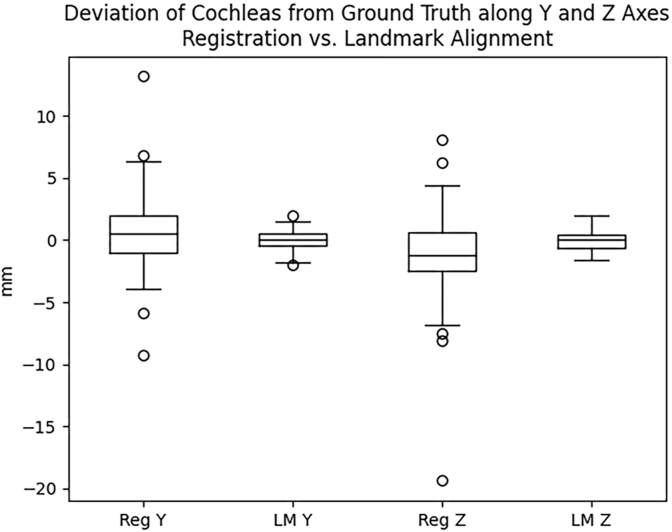

This landmark-based technique significantly improved whole head and skull base alignment of head CT studies. Whole head alignment reduced average deviations of 5, 11, and 4° in the axial, sagittal, and coronal planes to 1, 5, and 2° respectively. Meanwhile, skull base alignment assessed via the cochlea was also improved relative to traditional registration. For the landmark technique, the cochleas were deviated from perfect by a mean of 0.552 and 0.511 mm along the y and z axes compared to 2.110 and 2.506 mm with registration.

This study demonstrates a simple landmark-based technique for aligning the cochleas on head CT studies while approximating whole head AC-PC orientation, which has applications in both clinical and research settings, particularly for studies focused on the skull base.
