Development of a novel phantom for evaluating jawbone SPECT targeting medication-related osteonecrosis of the jaw
Naoya Hayashi, Norikazu Matsutomo, Ryotaro Tokorodani, Mitsuha Fukami, Miki Nishimori, Hitomi Iwasa, Kie Nakatani, Tetsuya Yamamoto, Takuji Yamagami, Tomoaki Yamamoto
TL;DR
A new phantom was developed to improve the evaluation of jawbone SPECT for diagnosing medication-related osteonecrosis of the jaw.
Contribution
A novel phantom was created and validated for optimizing jawbone SPECT image reconstruction parameters.
Findings
The phantom study showed that increasing update numbers improved contrast and recovery coefficients.
OSEMjaw parameters (120 updates, no filter) provided better SUVmean correlation with clinical stages than current methods.
OSEMjaw-reconstructed images were visually superior to those from the current standard method.
Abstract
We developed a new phantom for technical evaluation of jawbone single-photon emission computed tomography (SPECT) examinations for medication-related osteonecrosis of the jaw (MRONJ). In this study, we verified the utility of the phantom by determining optimal image reconstruction parameters. We evaluated the image quality and quantification in jawbone SPECT images obtained by different reconstruction parameters using the phantom. The phantom images were acquired using a SPECT/computed tomography (CT) system and then reconstructed using ordered-subset expectation maximization (OSEM) iterative reconstruction with resolution recovery as well as scatter and attenuation correction with various update numbers and Gaussian filter full width at half maximums (FWHMs). The percent contrast (%contrast) and absolute recovery coefficient were calculated to determine the optimal reconstruction…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsBone health and treatments · Bone and Joint Diseases · Medical Imaging Techniques and Applications
Introduction
Medication-related osteonecrosis of the jaw (MRONJ) is a challenging condition arising during the administration of bone resorption inhibitors for the treatment of malignancies and osteoporosis, and its incidence has increased substantially in recent years. Assessing local bone inflammatory activity is important in the diagnosis of MRONJ and is performed by jawbone single-photon emission computed tomography (SPECT) imaging [1, 2]. Moreover, quantitative metrics, such as the standardized uptake value (SUV), are increasingly being used in MRONJ management [3–7]. Recent advancements in resolution enhancement, attenuation correction, and scatter correction have facilitated SUV-based quantitative evaluation in SPECT examinations, with numerous studies validating the utility of quantitative imaging [8–11]. Nevertheless, in nuclear medicine examinations using SPECT systems, quantitative accuracy is strongly affected by the radiopharmaceuticals’ radioactivity, acquisition parameters, image reconstruction parameters, and various correction conditions. Because data collection conditions vary among facilities, evaluating the appropriateness of each facility’s data collection protocols is crucial. In nuclear medicine, phantoms mimicking organs such as the brain, heart, spine, liver, and lymph nodes have been developed, aiding in the accumulation of evidence for technology and quantitative precision [12–22]. However, a phantom that reflects the characteristics of the jawbone has yet to be developed. Given its thin structure and unique shape, the jawbone is susceptible to partial volume effects, necessitating the establishment of suitable conditions to enhance image quality and quantitative precision. Therefore, the development of a new phantom could contribute greatly to increasing diagnostic accuracy and improving treatment outcomes in oral surgery.
In this study, we designed and developed a novel jawbone SPECT evaluation phantom based on human anatomy. We assessed the practicality and adaptability of the developed phantom by establishing appropriate parameters.
Materials and methods
This study was approved by the ethics committee of our university (approval no. ERB-110089 and ERB-110327).
Jawbone phantom

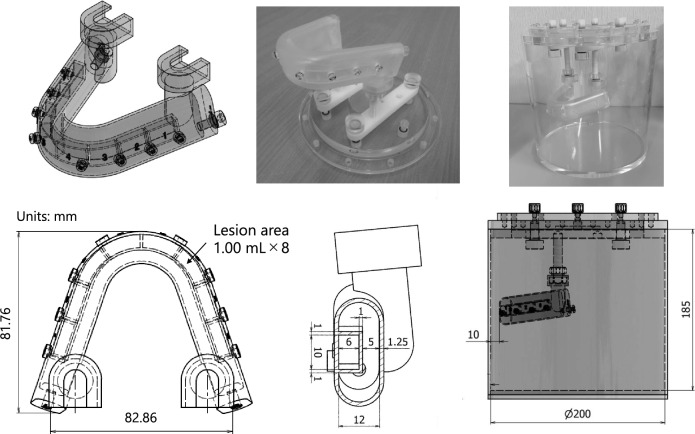

Figure 1 shows a photograph and the design of the novel jawbone SPECT phantom, which was designed based on 3-dimension (3D) skull data (https://free3d.com/ja/3d-model/skull-v3--785914.html). This phantom was created by outsourcing (NMP Business Support Co., Ltd., Hyogo, Japan). The phantom consisted of a jawbone section and a cylindrical container. The jawbone section was made of epoxy resin, forming a horseshoe-shaped structure 12 mm thick, measuring 120 mm front to back and 100 mm left to right. Eight lesion areas 1 mL in size were set in the normal bone area of 39.63 mL. Technical evaluation of jawbone SPECT could be performed by varying the radioactivity concentration, location, and size of the lesion. The cylindrical outer had a diameter of 200 mm and a height of 185 mm. It was designed to match the size of the Brain Tumor phantom, a ^11^C-methionine brain tumor PET phantom, considering the combined dimensions of the neck and maxillofacial. The outer container of the novel jawbone SPECT phantom was filled with 3.0 kBq/mL of ^99m^Tc solution, and the normal bone area was filled with ^99m^Tc in bone-equivalent solution (^99m^Tc: 39.0 kBq/mL and K_2_HPO_4_ solution: 0.50 g/cm^3^). K_2_HPO_4_ is a bone-equivalent solution with a composition comparable to that of cranium [23]. Figure 2 shows a CT image of the phantom. Simulated lesions of 1 mL were placed on both sides. The radioactivity ratios of the normal bone area to the lesions (lesion/normal ratio; LNR) were 1:2, 1:4, and 1:8 (lesion radioactivity: 78, 156, and 312 kBq/mL, respectively).Fig. 1. Photograph and design of the novel jawbone SPECT phantom. The phantom consists of a jawbone section and a cylindrical container. The jawbone section is a horseshoe-shaped structure, and eight lesion areas are set in the normal bone areaFig. 2CT image of the novel phantom. The jawbone area was filled with a bone-equivalent solution (K_2_HPO_4_) with a concentration of 0.50 g/cm^3^, which results in a CT value comparable to that of the normal mandible
The concentrations of ^99m^Tc and K_2_HPO_4_ solutions were determined by comparing clinical and phantom evaluations in a preliminary study. The radioactivity concentration of the ^99m^Tc solution in the outer container was determined by placing a sufficiently large region of interests (ROIs) in the paracervical soft tissue and adopting the measured concentration. The concentration of the normal jawbone was determined by matching the measured radioactivity concentration of the normal side to that measured in the phantom. The measured radioactivity concentration ratio of the lesion to the normal area was 2.7 for the minimum, 4.2 for the median, and 7.9 for the maximum, so the LNR was set accordingly. The average CT value of the normal mandible was 530 Hounsfield units (H.U.), and the concentration of K_2_HPO_4_ solution was adjusted to obtain a similar CT value.
Phantom study
Image acquisition and reconstruction
All SPECT data were acquired using a dual-head gamma camera (Symbia T6; Siemens AG, Erlangen, Germany) equipped with a low-energy high-resolution collimator. The system had a spatial resolution of 7.4 mm with ^99m^Tc placed 10 cm from the collimator. Image reconstruction was performed using the Syngo MI Apps version VA50C (Siemens Healthcare Co., Ltd., Munich, Germany).
The projection data were obtained using the continuous mode through 360° of rotation at 90 angular views. Data acquisition was performed with a 128 × 128 matrix, zoom of 1.23 × , pixel size of 3.9 mm, 360° acquisition (90 directions, 4° steps), and 25 s/step. A ^99m^Tc photo-peak window was set as a 20% energy window centered at 140 keV. A sub-window for scatter correction was set as a 7% energy window on the lower side of the photo-peak window. SPECT acquisition was performed in a circular orbit with a radius of 15 cm using an attachment for the brain. A low-dose CT scan was performed at 130 kV, with the quality reference set at 120 mA, auto exposure control for the tube current, rotation time of 0.6 s, slice thickness of 2.5 mm, and pitch value of 1.6.
The SPECT images were reconstructed by using the ordered-subset expectation maximization (OSEM) algorithm with resolution recovery, scatter correction, and attenuation correction, which used low-dose CT. The number of subsets was fixed at 10 and the number of iterations was varied from 1 to 15. The SPECT images were post-smoothed using a 3D Gaussian filter (no filter, full width at half maximum (FWHM) of 3.90, 5.85, and 7.80 mm).
Data analysis

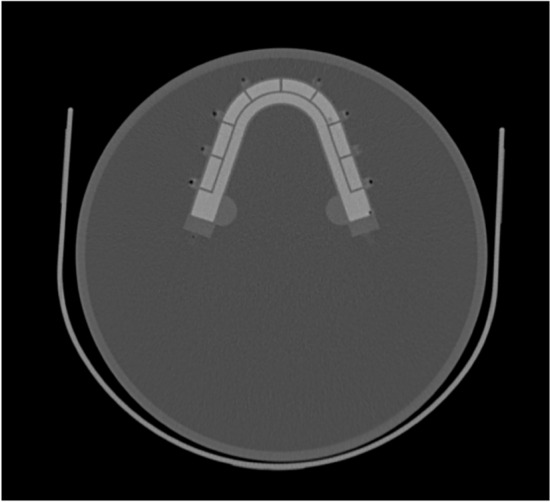

To investigate the basic properties of the reconstruction parameters, percent contrast (%contrast) and absolute recovery coefficients (ARCs) were calculated. %contrast and ARC were used as evaluation indices to assess optimal image reconstruction parameters in terms of image quality and quantitative accuracy. We placed ROIs with a 5 mm diameter on the lesion and normal bone area on the CT images and then copied the ROIs on the SPECT images. The %contrast and ARC were calculated as follows:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\%contrast}= \left(\frac{Cl}{Cn}-1\right)/\left(\frac{Al}{An}-1\right)\times 100\left(\%\right)$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text{ARC}=\text{CCF}\times (Cl\text{ or }Cn)/(Al\text{ or }An)\times 100\left({\%}\right)$$\end{document}Here, Cl and Cn are the average counts in the ROI in the lesion and normal bone, respectively. Al and An are the radioactivity in the lesion and normal bone area, respectively. The cross-calibration factor (CCF) converts count values [counts/pixel] to radioactivity concentration [Bq/mL]. The CCF was obtained from the correlation between radioactivity and counts per second of a cylinder phantom. The cylindrical phantom had a diameter of 160 mm and a height of 150 mm. The CCFs were calculated and applied for each reconstruction parameter.
Clinical study
Participants
We retrospectively enrolled 19 MRONJ patients who underwent bone SPECT examination at our hospital from April 2022 to February 2023. MRONJ diagnosis and clinical stage were confirmed according to the 2022 the American Association of Oral and Maxillofacial Surgeons definition [24]. The clinical stages are defined based on the presence of infection as determined by clinical findings. The relationship between stage and clinical symptoms is shown in Table 1. The patient characteristics are shown in Table 2. The patients included 7 men and 12 women with a mean age ± standard deviation of 72.0 ± 10.8 years (range: 41–86 years). The MRONJ stages of the patients were as follows: stage 1 (n = 6), stage 2 (n = 10), and stage 3 (n = 3). The patients’ target illnesses were as follows: cancer (n = 10), osteoporosis (n = 8), and rheumatoid arthritis (n = 1). Table 1. The relationship between clinical stage and clinical symptomsStage 1Exposed and necrotic bone, or fistulas that probe to bone, in patients who are asymptomatic and have no evidence of infectionStage 2Exposed and necrotic bone, or fistulas that probe to bone, with infection as evidenced by pain and erythema in the region of the exposed bone with or without purulent drainageStage 3Exposed and necrotic bone or fistulae that probes tothe bone, with evidence of infection, and one or moreof the following:• Exposed necrotic bone extending beyond the region of alveolar bone (i.e., inferior border and ramus in the mandible, maxillary sinus, and zygoma in the maxilla)• Pathologic fracture. Extraoral fistula• Oral antral/oral-nasal communication• Osteolysis extending to the inferior border of the mandible or sinus floorTable 2Characteristics of all patientsCaseSexAgeType of anti-resorptive agentTarget illnessLocationStage1F67Zelodronate, denosumabBreast cancerMaxilla22M83DenosumabProstate cancerMandible23M77DenosumabProstate cancerMandible14F68DenosumabBreast cancerMaxilla35M70DenosumabLung cancerMandible16F41DenosumabBreast cancerMandible27F76IbandronateRheumatoid arthritisMandible28M69DenosumabProstate cancerMandible39M60DenosumabLung cancerMandible210F66MinodronateOsteoporosisMandible211F82IbandronateOsteoporosisMandible212M86ZelodronateOsteoporosisMandible213F75DenosumabOsteoporosisMandible314F81RisedronateOsteoporosisMandible115F74Ibandronate, minodronateOsteoporosisMandible216M75ZelodronateLung cancerMandible117F66DenosumabOsteoporosisMandible118F87Minodronate, denosumabOsteoporosisMandible119F63Ibandronate, alendronate, denosumabcervical cancerMaxilla2M male and F female
Bone scintigraphy protocol
In all patients, ^99m^Tc-hydroxymethylene diphosphonate was intravenously injected and data acquisition was initiated approximately 4 h later. SPECT acquisition was performed after planar acquisition. The injected dose, calculated by subtracting the post-injection remaining radioactivity in the tube and syringe from the pre-injection radioactivity, was 952 ± 137 MBq. The uptake time for SPECT acquisition was 250.3 ± 7.9 min.
Image acquisition and reconstruction
The SPECT/CT scanner, SPECT acquisition conditions, and CT imaging conditions were the same as for the phantom study. Immediately after data acquisition, a low-dose CT scan was performed. SPECT images were reconstructed using two sets of parameters: OSEM_jaw_, with reconstruction parameters determined by the results of the phantom study; and OSEM_current_, with a subset of 10, number of iterations of 6, and FWHM of 7.80 mm for the Gaussian filter, which were the image reconstruction conditions determined previously using a spherical phantom [25].
Data analysis
SUV_mean_ values of the clinical images were calculated by using GI-BONE software (AZE Co., Ltd., Tokyo, Japan). Volumes of interest were placed in the lesion areas. The average SUV that was 40% or more of SUV_max_ in the volume of interest was defined as SUV_mean_. SUV was calculated by

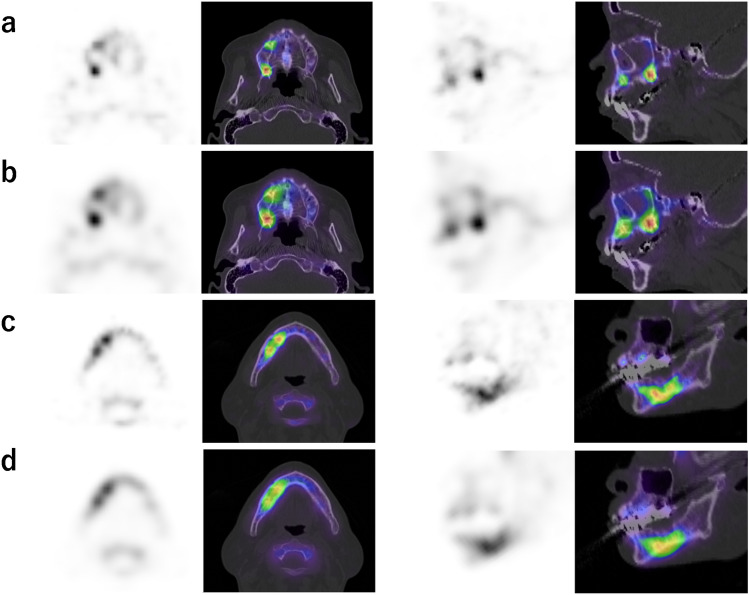

\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text{SUV} = \frac{\text{ SPECT counts}/\text{CCF}}{\text{Injected activity }/\text{Body weight}}$$\end{document}The quality of the SPECT images was evaluated visually by a board-certified nuclear medicine physician, a board-certified radiologist, an oral and maxillofacial surgeon, and a board-certified nuclear medicine radiological technologist. The score was graded from 1 to 5 (1, very poor; 2, poor; 3, moderate; 4, good; and 5, excellent) in terms of detectability of lesions, including the contrast and the sharpness of the lesion area.
Statistical analysis
SUVs were compared between clinical stages using the Kruskal–Wallis test, and subsequent post hoc analysis using the Steel–Dwass test. The visual score was acquired by averaging the results of the observers’ scores. The visual scores for two parameters were compared by using Wilcoxon signed rank tests. Differences were considered statistically significant when p < 0.05.
Results
Phantom study

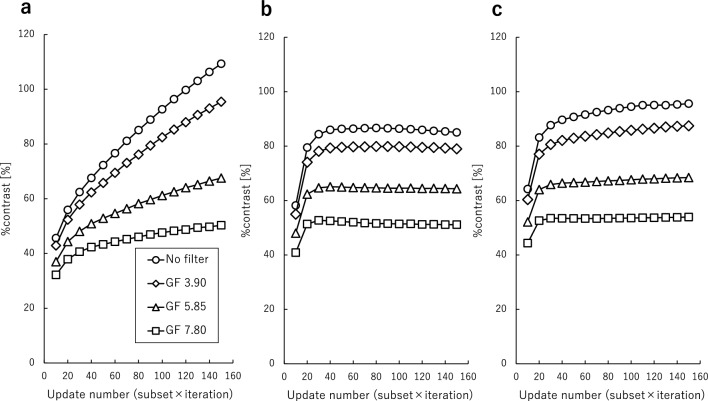

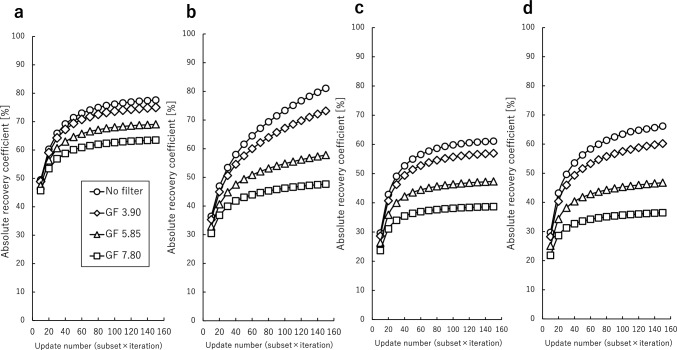

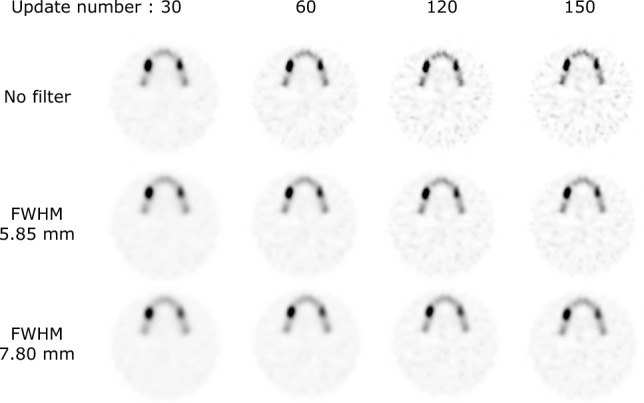

The %contrast and ARC plotted as a function of the update number are shown in Figs. 3 and 4 for phantoms with different LNRs. For all LNRs, %contrast and ARC increased with increasing update number or decreasing Gaussian filter FWHM. For %contrast and ARC, the parameters without the Gaussian filter provided the best approximations to the theoretical values. The ARC converged uniformly for both normal bone and lesions with an update number of 120 or larger, except for an LNR of 1:2. In 1:2 LNR, overestimation occurred when the number of updates exceeds 130. The SPECT images obtained with various update numbers and FWHMs of the Gaussian filter are shown in Fig. 5. Visually, although the background uniformity increased with decreasing update number and increasing Gaussian filter FWHM, the clarity of the lesion inside the jawbone decreased. In addition, more than 120 updates were required to obtain sufficient lesion clarity. Based on these results, the optimum parameters determined by the newly developed phantom study (OSEM_jaw_) were 120 updates and no filter.Fig. 3. Comparison of the %contrast for LNR of 1:2 (a), 1:4 (b), and 1:8 (c) obtained at various Gaussian filter FWHMs. The number of subsets was set at 10 and the number of iterations varied from 1 to 15. The %contrast increased with update number and converged uniformly, except for LNR of 1:2. GF Gaussian filterFig. 4Comparison of the ARC in the normal bone area (a), LNR of 1:2 (b), 1:4 (c), and 1:8 (d) obtained at various Gaussian filter FWHMs. The number of subsets was set at 10 and the number of iterations varied from 1 to 15. The ARC increased with update number and converged uniformly, except for LNR of 1:2. GF Gaussian filter.Fig. 5SPECT images of the phantom using various iteration numbers and Gaussian filter FWHMs. The simulated lesions became sharper with increasing iteration number and decreasing Gaussian filter FWHM. The right side of the phantom was LNR 1:8 and the left side was LNR 1:4
Clinical study
Reconstruction parameters for OSEM_jaw_ were 10 subsets, number of iterations of 12, and no filter and those for OSEM_current_ were 10 subsets, number of iterations of 6, and Gaussian filter FWHM of 7.8 mm. OSEM_jaw_ included the image reconstruction parameters determined by the novel phantom, whereas OSEM_current_ included the image reconstruction parameters determined by the spherical phantom in a previous study [25].

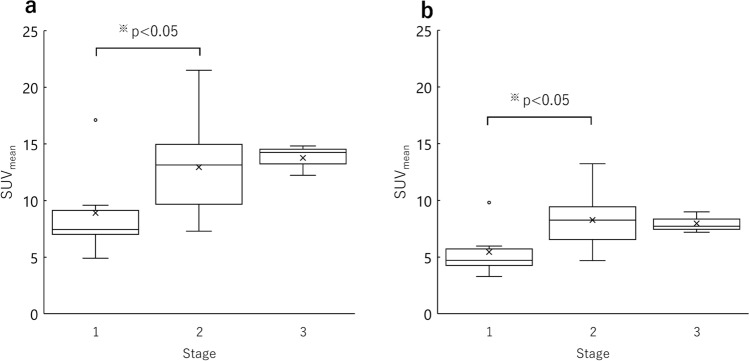

SUV_mean_ and clinical stage obtained by OSEM_jaw_ and OSEM_current_ are compared in Fig. 6. The mean and standard deviation of SUV_mean_ obtained from OSEM_jaw_ were 2.3 ± 0.6 for normal area, 8.9 ± 1.4 for stage 1 lesions, 12.9 ± 4.1 for stage 2 lesions, and 13.8 ± 1.4 for stage 3 lesions. For OSEM_current_, they were 1.4 ± 0.4 for normal area, 5.4 ± 2.3 for stage 1 lesions, 8.3 ± 2.5 for stage 2 lesions, and 8.0 ± 0.9 for stage 3 lesions. Only SUV_mean_ obtained from OSEM_jaw_ increased with increasing disease stage, while OSEM_current_ showed a decrease in mean SUVmean from stage 2 to stage 3. Significant differences were observed in both parameters across clinical stages. Subsequent post hoc analysis revealed that SUV_mean_ for stage 2 was significantly higher than that for stage 1.Fig. 6. Relationship between SUV_mean_ of the lesion area and clinical stage. SUVs were obtained with OSEM_jaw_ (a) and OSEM_current_ (b). OSEM_jaw_ includes the image reconstruction parameters determined by the new phantom, whereas OSEM_current_ includes those previously determined by a spherical phantom [25]. Only SUV_mean_ obtained from OSEM_jaw_ increased with disease stage, while OSEM_current_ showed a decrease in mean SUVmean from stage 2 to stage 3. Significant differences were observed only in the parameters across clinical stages (p < 0.05). Subsequent post hoc analysis revealed that SUV_mean_ for stage 2 was significantly higher than that for stage 1
