Two new cichlid species of the genus Labrochromis from rocky reefs of Lake Victoria, Tanzania (Perciformes, Cichlidae)

Abstract
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7| Morphometric, dentition and meristic characters | Males, Python Isl. (n = 13) | Females, Python Isl. (n = 4) | Males, Kissenda Isl. (n = 10) | Females, Kissenda Isl. (n = 7) | Males Makobe Isl. (n = 12) | Females, Makobe Isl (n = 5) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Range | Mean±SD | Range | Mean±SD | Range | Mean±SD | Range | Mean±SD | Range | Mean±SD | Range | Mean±SD | |
| 77.6–127.8 | 107.0±15.8 | 81.6–116.2 | 97.8±13.5 | 82.8–124.3 | 102.6±13.4 | 99.1–120.0 | 106.9±8.0 | 88.2–144.2 | 115.2±17.1 | 80.7–120.8 | 108.5±16.3 | |
| 37.2–44.0 | 40.8±2.8 | 36.9–41.9 | 39.1±2.0 | 36.1–42.8 | 39.7±1.9 | 37.2–39.2 | 38.4±0.8 | 34.5–42.7 | 38.5±2.7 | 35.0–39.5 | 36.8±2.0 | |
| 31.7–34.2 | 33.3±0.7 | 31.8–34.9 | 33.4±1.1 | 32.0–35.0 | 33.5±1.1 | 32.6–35.8 | 34.3±1.3 | 32.6–37.0 | 34.4±1.1 | 33.6–36.3 | 34.4±1.1 | |
| 16.0–18.9 | 17.5±0.9 | 16.8–18.4 | 17.5±0.6 | 17.2–19.1 | 18.1±0.6 | 16.3–18.5 | 17.4±0.6 | 16.0–18.9 | 16.9±0.8 | 16.0–18.9 | 17.5±0.7 | |
| 14.1–17.7 | 16.0±1.1 | 14.3–17.6 | 15.8±1.2 | 14.9–17.2 | 15.7±0.8 | 14.6–16.4 | 15.6±0.5 | 15.2–17.5 | 16.4±0.7 | 15.8–18.0 | 16.6±0.9 | |
| 10.9–13.5 | 12.2±0.5 | 11.4–12.6 | 12.0±0.5 | 11.4–13.5 | 12.3±0.6 | 11.3–12.1 | 11.6±0.3 | 9.5–12.9 | 11.5±1.0 | 10.3–11.9 | 10.7±0.8 | |
| 27.8–36.7 | 30.9±2.6 | 27.9–35.8 | 30.4±2.9 | 27.5–33.5 | 30.2±1.7 | 27.3–32.3 | 29.7±1.9 | 30.7–36.0 | 32.5±2.2 | 30.2–32.4 | 31.4±0.7 | |
| 27.2–34.0 | 30.7±2.2 | 24.3–33.8 | 29.9±3.3 | 21.7–32.4 | 28.2±3.1 | 27.2–31.5 | 29.4±1.4 | 25.9–31.7 | 29.3±2.3 | 25.7–28.8 | 27.2±1.4 | |
| 16.1–20.3 | 17.2±1.2 | 15.4–18.5 | 17.3±1.1 | 16.0–21.2 | 18.5±1.9 | 16.2–22.1 | 19.2±2.2 | 17.0–19.7 | 18.1±0.9 | 16.8–18.8 | 17.7±0.8 | |
| 29.4–39.0 | 34.2.±2.9 | 29.3–36.2 | 32.2±2.4 | 30.4–32.2 | 32.2±1.4 | 28.4–35.7 | 33.4±3.6 | 27.6–32.5 | 30.3±1.2 | 28.5–31.4 | 30.0±1.1 | |
| 22.6–25.1 | 24.4±1.5 | 23.7–25.9 | 24.6±1.4 | 21.8–25.7 | 24.2±1.8 | 21.7–24.9 | 23.9±1.1 | 18.7–25.1 | 23.4±2.4 | 19.2–25.8 | 21.8±3.1 | |
| 20.9–27.7 | 23.5±2.0 | 21.4–26.7 | 24.4±2.1 | 19.8–25.9 | 24.2±2.7 | 20.1–24.9 | 22.8±1.6 | 19.7–24.6 | 22.9±1.5 | 20.5–25.5 | 22.8±2.0 | |
| 21.7–29.3 | 24.1±2.0 | 22.4–27.5 | 22.2±2.4 | 23.0–28.3 | 24.4±3.6 | 25.4–29.2 | 25.8±2.8 | 24.2–30.1 | 26.7±2.6 | 25.7–29.5 | 26.7±2.5 | |
| 35.2–43.2 | 39.5±2.3 | 36.7–44.2 | 40.1±2.9 | 35.7–43.8 | 40.5±2.7 | 33.1–40.2 | 38.1±2.6 | 29.9–41.4 | 38.2±2.9 | 38.2–42–0 | 40.40±1.5 | |
| 24.9–33.8 | 29.7±2.9 | 22.7–30.3 | 27.1±3.0 | 26.7–34.9 | 29.7±3.2 | 25.9–33.0 | 27.5±1.9 | 20.2–26.9 | 24.6±2.1 | 22.8–27.5 | 25.7±1.8 | |
| 25.0–30.2 | 28.2±1.6 | 26.0–29.4 | 27.3±1.3 | 26.8–31.8 | 28.1±1.6 | 24.0–30.4 | 27.3±2.1 | 23.3–27.9 | 25.40±1.5 | 23.6–27.3 | 24.6±2.0 | |
| 0.9–1.0 | 0.9±0.4 | 0.9–1.0 | 0.9±0.0 | 0.84–1.0 | 0.9±0.4 | 0.9–1.0 | 0.9±0.1 | 0.9–1.0 | 0.9±0.1 | 0.9–1.0 | 0.9±0.1 | |
| 1.1–1.8 | 1.6±0.2 | 1.3–1.7 | 1.5±0.1 | 1.22–1.7 | 1.2–1.7 | 1.4±0.1 | 1.3–1.8 | 1.6±0.2 | 1.4–1.8 | 1.7±0.2 | ||
| Outer tooth cusp shape | 4–5 | 4–5 | 4–5 | 4–5 | 4–5 | 4–5 | ||||||
| No. of inner tooth rows | 2 | 2 | 2 | 2 | 2 | 2 | ||||||
| Scales in Lateral line | 31(7) 32(4) | 31(4) | 31(6) 32(2) | 31(4) 32(1) | 32(4) 33(6) | 33(4) | ||||||
| Dorsal fin spines | 15(11) | 15(4) | 15(8) | 15(5) | 15(10) | 15(4) | ||||||
| Dorsal fin rays | 9(11) | 9(4) | 9(8) | 9(5) | 9(9) 10(1) | 9(4) | ||||||
| Anal fin spines | 3(11) | 3(4) | 3(8) | 3(5) | 3(10) | 3(4) | ||||||
| Anal fin rays | 9(11) | 9(4) | 7(8) | 7(5) | 7(1)8(9) | 8(4) | ||||||
| Pelvic fin spines | 1(11) | 1(4) | 1(8) | 1(5) | 1(10) | 1(4) | ||||||
| Pelvic fin rays | 5(11) | 5(4) | 5(8) | 5(5) | 5(10) | 5(4) | ||||||
| Morphometric measurements traits | Python and Kissenda ( | Python and Makobe ( | Kissenda and Makobe ( | Kruskal Wallis ( | P-value |
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|
| NS | NS | NS | 3.8358 | 0.1469 | |||||
|
| 0.42824 | 0.01143 | 0.01224 | 6.3051 |
| 0.36640701 | -0.21177428 | 0.39288745 | -0.2415679 |
|
| 0.91001 | 0.01680 | 0.01988 | 9.1562 |
| -0.30908718 | 0.11330820 | -0.4973120 | -0.3691148 |
|
| 0.33257 | 0.01170 | 0.01279 | 7.0932 |
| 0.26172810 | 0.43947012 | 0.5082432 | 0.4798611 |
|
| NS | NS | NS | 5.1290 | 0.0770 | 0.28868712 | 0.18613928 | -0.4998712 | -0.3863816 |
|
| 1.00000 | 0.02484 | 0.02342 | 9.0352 |
| 0.27071093 | -0.41657362 | 0.3560223 | 0.6240751 |
|
| 0.13211 | 0.00309 | 0.00401 | 9.0552 |
| -0.22564143 | -0.09977733 | -0.4749950 | -0.6112960 |
|
| 0.05103 | 0.02345 | 0.30001 | 6.9826 |
| 0.06375188 | -0.45124306 | 0.1672694 | -0.7952798 |
|
| 0.04277 | 0.13225 | 0.51284 | 7.1428 |
| -0.29447601 | -0.4028297 | 0.5851777 | 1.2259793 |
|
| NS | NS | NS | 5.1182 | 0.0774 | -0.01427275 | -0.47965171 | -0.9974223 | -0.0553676 |
|
| NS | NS | NS | 8.8554 | 0.0621 | -0.24497664 | -0.21387251 | 0.7930468 | 1.2020115 |
|
| 0.06220 | 0.03240 | 0.34310 | 16.2450 |
| 0.29860841 | 0.48404488 | -0.9532856 | 0.5843687 |
|
| NS | NS | NS | 1.6541 | 0.4373 | 0.02723807 | 0.08215604 | -0.7268303 | 0.2668128 |
|
| 0.91000 | 0.01450 | 0.01130 | 17.4940 |
| 0.35659496 | 0.35183019 | 0.8688871 | 0.8266514 |
|
| 1.00000 | 0.01220 | 0.00701 | 19.3730 |
| 0.36035519 | 0.07944776 | 0.9985393 | 0.4749023 |
| Species |
|
|
|
|
|
| ‘ | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Range | 74.0–100.5 | 102.0–137.0 | 65.0–90.0 | 70.0–126.0 | 90.0–106.0 | 82–136.0 | 75.0.0–95.0 | 77.6–127.8 | 80.7–144.2 | |
| Range | 39.0–43.0 | 38.0–45.0 | 29.0–37.5 | 33.8–42.0 | 38.6–42.0 | 37.0–45.5 | 35.7–38.6 | 36.1–44.0 | 34.5–42.7 | |
| Mean | 41.0 | 42.0 | 34.4 | 38.5 | 40.0 | 40.1 | 37.4 | 40.2 | 38.0 | |
| Range | 32.0–36.0 | 33.0–37.0 | 31.6–37.8 | 31.5–36.8 | 34.2–37.6 | 33.8–37.5 | 33.7–37.3 | 31.7–35.8 | 32.6–37.0 | |
| Mean | 34.0 | 34.9 | 34.7 | 34.6 | 36.0 | 34.8 | 36.4 | 33.3 | 34.6 | |
| Range | 14.0–19.0 | 12.0–20.0 | 13.6–17.9 | 13.8–19.0 | 14.7–17–4 | 15.3–20.5 | 15.3–20.5 | 15.4–21.2 | 16.8–19.7 | |
| Mean | 17.0 | 16.0 | 16.3 | 16.8 | 16.4 | 17.0 | 17.3 | 17.2 | 18.0 | |
| Range | 25.0–30.0 | 26.0–33.0 | 21.0–28.6 | 23.7–28.5 | 23.5–26.0 | 24.0–32.0 | 22.5–25.8 | 25.0–31.8 | 23.3–27.9 | |
| Mean | 27.0 | 29.0 | 24.2 | 26.3 | 24.7 | 27.6 | 24.6 | 27.9 | 25.1 | |
| Range | 27.0–31.0 | 28.0–33 | 27.0–34.8 | 27.3–33.3 | 29.4–32.4 | 29.0–36.0 | 32.2–35.5 | 27.8–36.7 | 30.7–36.0 | |
| Mean | 29.0 | 31.0 | 30.9 | 30.8 | 30.6 | 31.6 | 33.7 | 31.1 | 32.2 | |
| Range | 19.0–25.0 | 20.0–29.0 | 18.5–23.2 | 19.7–27.0 | 20.5–24.3 | 20.7–31.0 | 21.4–27.0 | 21.7–29.3 | 22.2–30.1 | |
| Mean | 22.0 | 23.0 | 21.2 | 24.1 | 22.0 | 25.5 | 24.3 | 25.8 | 26.2 | |
| Range | 33.0–40.0 | 35.0–43.0 | 33.4–39.6 | 35.8–44.0 | 37.3–41.2 | 35.8–42.5 | 37.4–39.3 | 35.2–44.2 | 32.9–42.0 | |
| Mean | 37.0 | 39.0 | 36.6 | 38.6 | 39.0 | 39.1 | 38.2 | 39.5 | 38.8 | |
| Range | 27.0–33.0 | 28.0–33.0 | 27.0–32.5 | 23.0–31.8 | 26.5–32.4 | 23.0–31.0 | 24.1–26.8 | 21.3–25.9 | 18.7–25.8 | |
| Mean | 30.0 | 31 .0 | 30.3 | 26.5 | 30.0 | 27.7 | 25.2 | 22.9 | 22.9 | |
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAquatic Ecosystems and Biodiversity · Fish Biology and Ecology Studies · Fish biology, ecology, and behavior
Introduction
The world’s largest tropical lake by surface and the largest in the African great lake’s region, Lake Victoria, hosts a remarkable species-flock comprising ~ 500 cichlid species (Genner et al. 2004; Witte et al. 2013). This diverse array exhibits a spectrum of morphologies, melanic stripe patterns, male nuptial coloration, diets, behaviors, and habitat preferences (Greenwood 1974; Seehausen 1996; Santos et al. 2023). Remarkably, this diversification primarily occurred within the last ~ 15,000 years (Meier et al. 2017, 2023), establishing the haplochromine cichlids of Lake Victoria as a paradigmatic example of explosive evolution and adaptive radiation among vertebrate animals (Seehausen 2006; Meier et al. 2017; McGee et al. 2020).
Despite its very recent origin (Meier et al. 2017, 2023), the ecological diversity of Lake Victoria’s cichlid species flock, in terms of trophic groups and habitat guilds, is on par with that of the older species flocks in lakes Malawi and Tanganyika (Greenwood 1974; Seehausen 1996). Species richness in this young lake is higher than in the older Lake Tanganyika, which though exhibits larger morphological diversity (Young et al. 2009; Martinez et al. 2024).
Contrary to long-held beliefs that rocky environments were not an important habitat for cichlids in Lake Victoria (Fryer and Iles 1972; Greenwood 1984; Goldschmidt and Witte 1992), more recent studies have unveiled a species-rich rock-dwelling cichlid assemblage, comparable in ecology and diversity to that in Lake Malawi (Seehausen 1996; Seehausen et al. 1998). In spite of some initial efforts resulting in the description of 15 of the newly discovered rock-dwelling species (Seehausen et al. 1998), the vast majority remained undescribed, emphasizing the need for continued taxonomic work on this rich assemblage. Here we make a start by describing new snail-eating members.
Lake Victoria harbors a much greater diversity of snail-eating cichlids than any of the other much older African Great Lakes (Seehausen 1999). These snail-eating cichlids can be broadly categorized into two distinct groups with different feeding strategies and adaptations. The first group, known as oral shellers and oral crushers, possess specialized oral dentition that enables them to either extract the soft body of the snail from its shell or to crush the shell using their oral jaws (Witte and van Oijen 1990). The second group, referred to as pharyngeal crushers, is characterized by massively enlarged pharyngeal jaws equipped with broad molariform teeth that allow these fish to crush the hard shells of Melanoides snails. Greenwood considered this group a distinct phylogenetic lineage, the genus Labrochromis. This genus comprises currently six described species from Lake Victoria. These are Labrochromisishmaeli (Boulenger, 1906), L.humilior (Boulenger, 1911), L.pharyngomylus (Regan, 1929), L.teegelaari (Greenwood & Barel, 1978), L.mylergates (Greenwood & Barel, 1978), and L.ptistes (Greenwood & Barel, 1978). ‘Haplochromistheliodon’ shares some derived features with Labrochromis. Specifically, the extent to which the lower pharyngeal bone and its dentition are hypertrophied is comparable to that of L.humilior. However, the neurocranial apophysis for the upper pharyngeal bones in ‘H.’ theliodon is not as well developed as in L.humilior and the chest scales of ‘H.’ theliodon are significantly smaller compared to those of L.humilior. Based on these characteristics, Greenwood (1980) refrained from placing ‘H.’ theliodon in the genus Labrochromis. Given that the new species we describe here are rocky shore dwellers and have small deeply embedded chest scales, we include ‘H.theliodon’ in our comparison and differential diagnosis irrespective of that Greenwood did not assign it to Labrochromis. Because we had no opportunity to study Greenwood’s material, we do not assign ‘H.theliodon’ to Labrochromis but use ‘Haplochromis’ in quotation marks following Greenwood to reflect the uncertainty regarding the generic placement of this species.
Additionally, Greenwood had assigned one species of Lake Edward to Labrochromis, L.mylodon. Phylogenomic work recently revealed a clade containing all highly specialized pharyngeal snail crushers of the Lake Victoria radiation for which whole genome sequences were available, including described Labrochromis species, but the phylogenetic distinctiveness of all the haplochromines of Lake Edward that form a separate radiation remains evident (Meier et al. 2023). The Lake Edward snail crusher should therefore probably not be considered as a member of the genus Labrochromis.
Here we describe two new species of pharyngeal snail-crushers from Lake Victoria in the genus Labrochromis. Greenwood (1980) redescribed Labrochromis Regan, 1920 as a genus of haplochromines characterized by a massive hypertrophy of the pharyngeal mill. This hypertrophy is especially prominent in the lower pharyngeal bone and its dentition. The degree of hypertrophy is the sole derived morphological character that distinguishes Labrochromis from other lineages with generalized facies within the Lake Victoria radiation. As the fish grows, the apophysis becomes relatively more massive than in other species (Greenwood 1980). The oral jaw teeth of Labrochromis are moderately stout, slightly recurved, and have a subcylindrical neck with a crown that is not markedly compressed. The teeth in the outer row of the oral jaws are of the basic bicuspid type in small individuals, but weakly bicuspid and some unicuspid teeth occur in specimens of all species beginning at a length of ~ 70–80 mm standard length (SL). The proportion of unicuspid teeth in the outer tooth row increases with the length of the fish, and fishes larger than 100 mm SL have mostly unicuspid and weakly bicuspid teeth while exclusively unicuspid dentition is uncommon even in large fish. The inner row teeth are small, tricuspid and are arranged in 1–3 (rarely 4) rows anteriorly and anterolaterally in both jaws. Despite their typically generalized facies, most species of Labrochromis have a “heavy headed” and deep bodied appearance (Greenwood 1980). The fish have a horizontal or slightly oblique mouth with isognathous jaws, and their lips are not thickened. The premaxilla is not produced into a beak. The dentary, which carries the lower jaw teeth, is slender and shallow, and the lower jaw length ranges from 34–44% of the head length (HL) (modal range 37–40%).
While these morphological traits provide some clarity in genus assignment, as in any very species rich group, there are challenges in morphologically delimiting the genus from some forms assigned to other, phylogenomically not closely related genera due to overlapping values in individual traits and possibly parallel evolution. Hoogerhoud (1984) highlighted these difficulties and expressed doubts about the validity of the genus Labrochromis. He especially emphasized the lack of a morphological trait gap between Labrochromis and Gaurochromis, but Hoogerhoud analyzed traits as univariate characters, and these genera have been shown to form distinct clusters when Seehausen (1996) subjected Hoogerhoud’s data to a multivariate cluster analysis. These genera also emerged as distinct and not closely related in recent phylogenomic work (Meier et al. 2023). For these reasons and additional reasons given by Seehausen (1996), we follow the classification proposed by Greenwood (1980) which doubtlessly aids a more nuanced understanding of species diversity and evolutionary relationships within Lake Victoria’s cichlid fish than lumping 500 species into a single genus. A larger number of previously unknown rock-dwelling haplochromines were introduced to science in 1996 (Seehausen 1996). The two new species that we describe here, were part of this largely new fauna and were designated in 1996 with provisional names Labrochromis sp. “stone” (first introduced in Witte et al. 1992), and Psammochromis sp. “striped crusher”. That the latter was mistaken as a member of the genus Psammochromis is likely explained by the circumstance that only subadult individuals (<93 mm SL; compared to a maximum size of 144 mm SL reported here) were available in which the pharyngeal apparatus and dentition were incompletely developed (Seehausen 1996). The former is distributed in central/northern Mwanza Gulf where it is known from at least 13 sites. The latter is only known from rocky shores and offshore reefs within the Speke Gulf, notably Makobe, Ruti and Igombe Islands, and from Hippo Island in the northern Mwanza Gulf. The sympatric coexistence of these two species is rare and has only been observed at Hippo Island in the northern Mwanza Gulf (Seehausen 1996).
Materials and methods
All specimens were collected in Mwanza and Speke gulfs, Lake Victoria, Tanzania between 1993 and 2010 with gill nets. We base the description of Labrochromismawe sp. nov. on specimens from Python Island and Kissenda Island, and that of Labrochromismawepili sp. nov. on specimens from Makobe Island. We refer to our specimens from these three islands as three populations that we use for the purposes of comparisons. The occurrence of Labrochromis species in rocky habitats has been assessed for more than 100 islands and rocky mainland shores all around the lake, but no positive records of either of these two species were made outside the above-described regions (Fig. 1). While confidence in the absence of our two species from any one site is limited given the modest sampling effort for many of the individual sites, the total absence in records across all of these sites outside the Mwanza Gulf and Speke Gulf regions suggests that these species may indeed be regionally endemic to relatively small parts of the lake. This is relatively unusual for Lake Victoria cichlids (Seehausen 1996; Genner et al. 2004). Neither of the two species has been recorded in trawl shots over soft bottom anywhere in the lake either (Fig. 1) and seem to be confined to rocky shores.

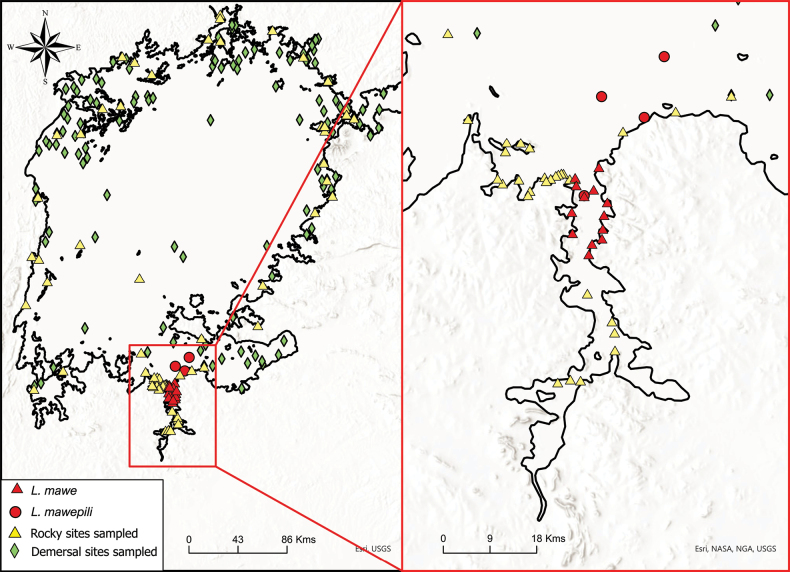

Known occurrences of Labrochromismawe sp. nov. and Labrochromismawepili sp. nov. against the background of all sites sampled in Lake Victoria by the authors’ team. Rocky sites are characterized by rocky substrates, which include boulders of various sizes, slabs and blocks, and occasionally large pebbles. Demersal sites are non-rocky substrates, mostly soft bottom, sometimes sand. Each rocky site was sampled with a comparable fleet of gillnets of various mesh sizes (1–2 inches stretched mesh) set in the morning, usually between 8 and 9 am and pulled after 4–5 hours. Each demersal site was trawled for ten minutes, which amounts to a stretch of ~ 1 km long and 10 m wide.
After being captured, some individuals were photographed alive in photo cuvettes to document their live coloration (Fig. 2). All specimens were anesthetized with an overdose of MS222 and subsequently kept on melting ice until their fixation in a neutralized solution consisting of 6% formaldehyde back in the laboratory. The specimens were later transported to the Swiss Federal Institute of Aquatic Science and Technology (Eawag). The final processing for long-term storage involved rinsing under flowing water to remove the formalin, followed by stepwise transfer to ethanol of increasing concentrations and final storage in 75% ethanol. All type material was deposited at the Natural History Museum of Bern (NMBE 1111864–NMBE 1111917).

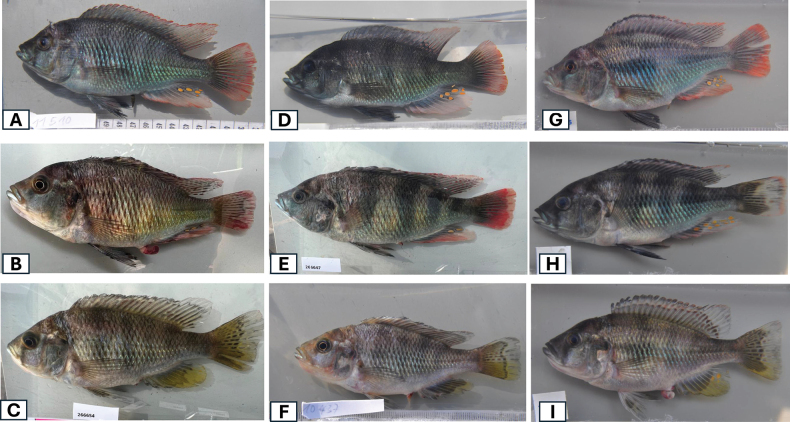

From top left A male Labrochromismawe sp. nov. blue morph Python Island B male Labrochromismawe sp. nov. red morph Python Island and C female Labrochromismawe sp. nov. Python Island D, E two males Labrochromismawe sp. nov. Kissenda island and F female Labrochromismawe sp. nov. Kissenda Island G, H two males Labrochromismawepili sp. nov. Makobe island and I female Labrochromismawepili sp. nov. Makobe island.
The sex of the specimens was determined by observing the coloration of the freshly caught fish and examining their genital papillae. We performed a full head CT scan at 10 µm resolution for comparative morphology, including dentition. We scanned representative specimens of each population (see below) The CT scanning was performed using SkyScan2214 v. 1.8 at the microscopy imaging center of the University of Bern, Switzerland. We used 3D slicer software (Fedorov et al. 2012) to extract the oral and pharyngeal jaws from each head scan. We assessed the shape of teeth in the outer row of both oral jaws following categories of (Barel et al. 1977) and coded as 1 = equally bicuspid, 2 = sub equally bicuspid, 3 = unequally bicuspid, 4 = weakly bicuspid, 5 = unicuspid (Seehausen 1996). The number of inner tooth rows was counted at the anterior most part of both jaws. The number of dorsal fin spines, scales in the lateral line, dorsal fin rays, anal fin spines, anal fin rays, pelvic fin spines and pelvic fin rays were also counted following Barel et al. (1977).
Morphometric measurements were taken to the nearest 0.1 mm using digital calipers with needles glued to the tips. We measured 16 informative linear distances (Table 1) following (Barel et al. 1977): standard length (SL), body depth (BD), head length (HL), head width (HW), lower jaw length (LJL), lower jaw width (LJW), snout length (SnL), snout width (SnW), eye length (EyL), eye depth (EyD), cheek depth (ChD), pre-orbital depth (POD), inter-orbital width (IOW), pre-orbital width (POW), caudal peduncle length (CPL), and caudal peduncle depth (CPD). We measured each trait thrice and checked for outliers. If the deviation between any one of the three measurements and the other two exceeded 5%, we repeated the measurement and replaced the outlier with the new measurement. Finally, we calculated the mean of the three measurements. For some analyses we converted measurements into percentages relative to reference measurements such as SL or HL. For other analyses, we worked with the residuals of linear regressions of each trait against standard length.
For univariate analysis of trait variation between species and populations we performed Kruskal-Wallis tests (kruskal.test function) on the proportional measurements followed by pairwise post-hoc comparisons using Dunn’s test (dunn.test function). To control for multiple comparisons, we applied a Bonferroni adjustment within each trait, dividing the alpha level (α = 0.05\alpha = 0.05α = 0.05) by the number of pairwise comparisons for that trait.
To visualize the total variation across groups, the dimensionality in the residual trait data was reduced using principal component analysis (PCA). We used the prcomp() function in the base stats package in R. We employed a multivariate analysis of variance (MANOVA) to assess the statistical significance of differences between groups in the principal component (PC) scores. Principal component analysis is frequently employed in taxonomic studies of haplochromine cichlids to evaluate if groups are different in multivariate space (Katongo et al. 2017; Vranken et al. 2020, 2023). To facilitate the identification of distinctive features for species identification, we subsequently performed Discriminant Function Analysis (DFA) on the three populations using the lda() function from the MASS package in R. We used R v. 4.1.2 (2021-11-01) for all analyses.
For species delineation broadly speaking, we looked for coincidence between differences among groups in morphological traits and differences in melanin pattern and/or male nuptial coloration (Seehausen et al. 1998). This combination of traits has proven to produce reliable species delineation, as has been found in all speciation genomics studies of cichlid fish from Lake Victoria to date (Keller et al. 2013; Wagner et al. 2013; Van Rijssel et al. 2022; Meier et al. 2023). To test for intraspecific sexual dimorphism in morphometric traits, we conducted Mann-Whitney U tests on each trait separately. The significance level was set at α = 0.05.
Results
The male nuptial coloration revealed no noticeable differences between populations from Python and Kissenda islands. Both populations also shared the same melanin pattern with few very broad vertical bars but total absence of midlateral and dorsolateral bands, whereas interrupted midlateral and dorsolateral bands present in all individuals of the Makobe population (Fig. 2). The absence of midlateral and dorsolateral bands in fish from Python and Kissenda islands and the expression of these bands in fish from Makobe Island was visible in preserved specimens too (Fig. 3). The Kruskal-Wallis tests on the proportional measurements of the populations from Kissenda, Python, and Makobe islands indicated a significant difference among the groups. Further exploration through post hoc tests, locate pronounced differences in multiple traits between the population from Makobe Island and both other populations (Table 2).

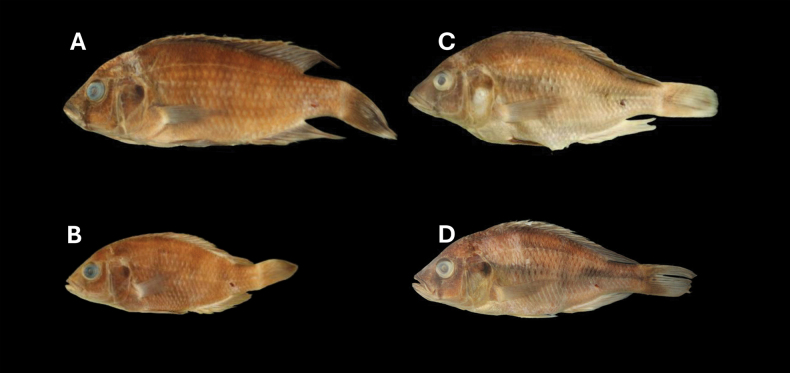

ALabrochromismawe sp. nov. holotype, NMBE 1111880, male, 127.8 mm SL, Python Island, Lake Victoria, Tanzania B female Labrochromismawe sp. nov. NMBE 1111867, female, 81.6 mm SL, Python Island CLabrochromismawepili sp. nov. holotype, NMBE 1111906, male, 126.2 mm SL, Makobe Island DLabrochromismawepili sp. nov. NMBE 1111912, female, 120.8 mm SL, Makobe Island, Lake Victoria, Tanzania.
The Mann-Whitney U tests for intraspecific sexual dimorphism in the morphometric traits showed no significant sexual dimorphism in the measured morphometric traits in any of the populations (Kissenda, Python, and Makobe islands). The p-values for the traits ranged from 0.068 to 0.787, all of which exceeded the threshold for significance (p > 0.05).
Principal Component Analysis (PCA) on the residuals of linear regressions of each trait against SL clearly separated the population of Makobe Island from those of Python and Kissenda islands along PC1 (31.07% of variance) whereas none of the other PC axes separated the populations (Fig. 4A). Most variables loaded positively on PC1, with residuals variation in BD, IOW, ChD, and LJW having the largest positive loadings. Variables with significant negative loadings on PC1 included HL and POD. Principal Component 2 (13.12% of variance) was primarily determined by HW and ChD with positive loadings, while EyL, SnW, and CPD contributed negatively (Table 2). However, PC2 did not separate any of the populations. The results of the multivariate analysis of variance (MANOVA) suggest substantial differences along the PC1 between the species, i.e., the populations from Python and Kissenda versus that from Makobe Island (Pillai’s trace statistic = 0.78474, F statistic = 16.143, num Df = 4, den Df = 100, p-value = 3.135e-10).

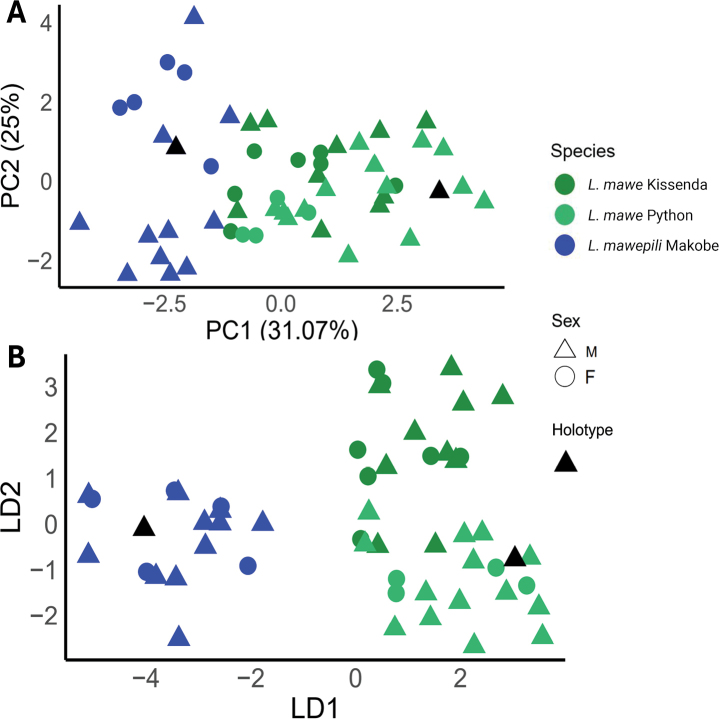

APCA and BDFA results on the residuals from linear regressions against standard length of 16 traits.
Discriminant Function Analysis (DFA) on the residuals of linear regressions of each trait against SL corroborates the major differences between the population from Makobe versus both other populations which is all captured by DF1. It additionally reveals small differences between the two latter populations, and this is captured by DF2 (Fig. 4B). The variance explained by DF1 was 78.74%, primarily determined by IOW, LJW and POD. DF2 explained 21.25% of the variance and was determined by ChD and HW.
CT scans of the skull (Fig. 5) and jaws (Fig. 6) revealed no visible differences in the oral and pharyngeal jaws between individuals from populations of Python and Kissenda islands. Individuals from Makobe Island possess slightly finer and procumbently implanted teeth in the outer row of oral jaws. Based on all the phenotypic data combined, we conclude that the populations from Python and Kissenda islands constitute populations of a single species. We hereby describe this species as Labrochromismawe sp. nov.

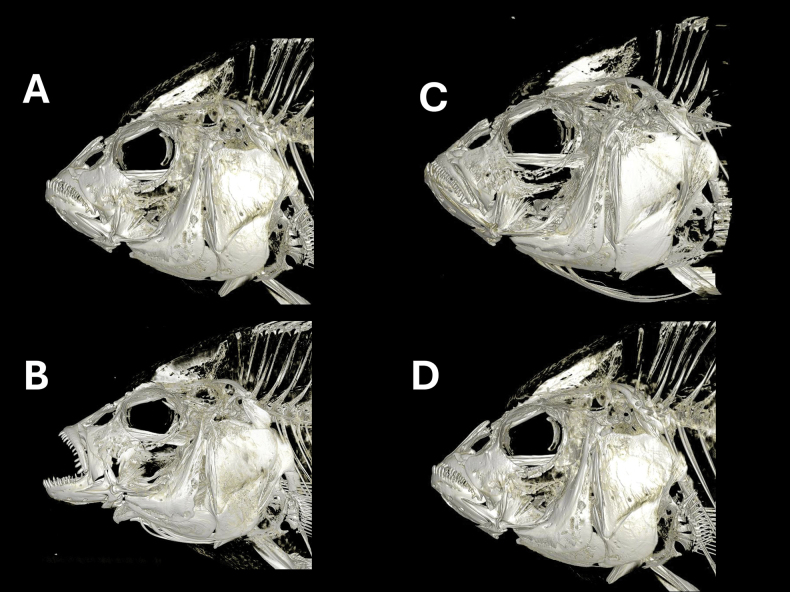

CT scans of the skull of Labrochromismawe sp. nov. and Labrochromismawepili sp. nov. All are males from top left AL.mawe sp. nov., NMBE 1111873, Python Island BL.mawe sp. nov., NMBE 1111871, Python Island CL.mawe sp. nov., NMBE 1111893, Kissenda Island DL.mawepili sp. nov., NMBE 1111906, Makobe Island, Lake Victoria, Tanzania.

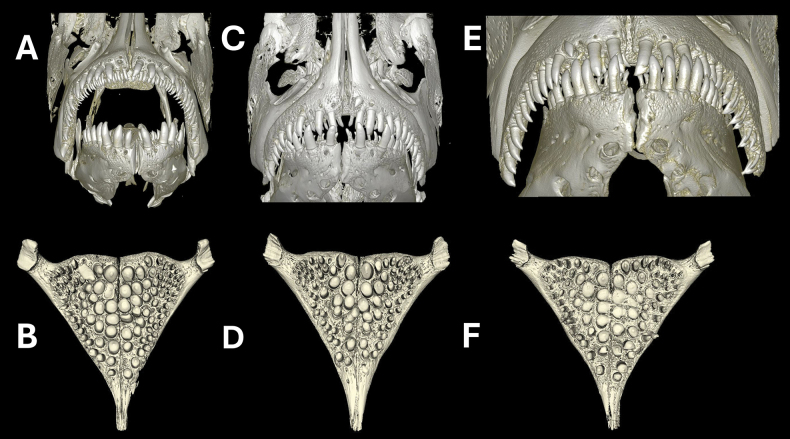

CT scans of the frontal aspect of oral jaws (top) and occlusial aspect of the lower pharyngeal jaws (bottom) of Labrochromismawe sp. nov. and L.mawepili sp. nov. All are males. From top left, A, B (NMBE 1111873) L.mawe sp. nov., Python Island C, D (NMBE 1111893) L.mawe sp. nov., Kissenda Island E, F (NMBE 1111906) L.mawepili sp. nov., Makobe Island.
The population from Makobe is distinct from both the populations from Python and Kissenda Islands in several morphometric traits including shallower BD, narrower IOW and smaller ChD (Table 1), in the presence of mid and dorsolateral stripes but often more muted expression of vertical bars (Figs 2, 3) and they have somewhat finer and somewhat more procumbently implanted teeth in the outer row of the oral jaws. Fish resembling the population from Makobe also occur at Ruti, Igombe and Hippo islands (Seehausen 1996) and we consider these conspecific with those from Makobe. Fish from Ruti, Igombe, and Hippo islands were not included in our current study, as specimens from these locations were not available for investigation. Therefore, we cannot definitively determine if these fish belong to the same species as those from Makobe. This will have to be resolved by future work. We describe this species as Labrochromismawepili sp. nov.
Labrochromis
mawe
sp. nov.
Taxon classificationAnimaliaPerciformesCichlidae
61C41078-60B9-5EC0-B15F-CBBE036CF2F7
https://zoobank.org/E9A00634-AB01-44A0-865D-1A5950FCD0EF
Haplochromis (Labrochromis) “stone”: Witte et al. 1992; Seehausen 1996; Seehausen and Bouton 1996; Seehausen et. al. 1997; Seehausen et al. 1999; Seehausen and van Alphen 1999. “Haplochromis” “stone”: Bouton et al. 1997.
Type material.
Holotype. • NMBE 1111880, male, 127.8 mm SL, Lake Victoria, Python Island, Mwanza Gulf, Tanzania, O. Selz, July 2010. Paratypes. • 35 Specimens 77.6–124.3 mm SL. All specimens are from Lake Victoria, Tanzania, Mwanza Gulf. • NMBE 1111864, 104.4 mm SL, NMBE 1111865, 91.3 mm SL, NMBE 1111866, 86.2 mm SL and NMBE 1111867, 81.6 mm SL, 4 females, Python Island, O. Seehausen, 01^st^ Dec 1993. • NMBE 1111868 116.0 mm SL, NMBE 1111869, 107.0 mm SL, NMBE 1111881, 112.7 mm SL and NMBE 1111878, 115.6 mm SL, 4 males, Python Island, O. Selz, 21^st^ June 2010. • NMBE 1111870, 90.5 mm SL and NMBE 1111872, 85.5 mm SL, 2 males, Python Island, O. Seehausen, 01^st^ Dec 1993. • NMBE 1111871, 116.7 mm SL and NMBE 1111873, 113.6 mm SL, 2 males, Python Island, O. Seehausen, 12 Nov. 1995. • NMBE 1111886, 120.0 mm SL, NMBE 1111887, 105.0 mm SL and NMBE 1111888, 106.1 mm SL, 3 females, Kissenda Island, O. Selz, 9^th^ June 2010. • NMBE 1111883, 111.5 mm SL and NMBE 1111897, 95.2 mm SL, 2 females, Kissenda Island, O. Selz, 9^th^ June 2010. • NMBE 1111891, 124.3 mm SL and NMBE 1111898, 108.3 mm SL, 2 males, Kissenda Island, O. Selz, 9^th^ June 2010. • NMBE 1111894, 115.0 mm SL, one male, Kissenda Island, O. Selz 7^th^ July 2010. • NMBE 1111895, 91.1 mm SL, one male, Kissenda Island, O. Selz 13^th^ July 2010. • NMBE 1111893, 106.1 mm SL, one male, Kissenda Island, O. Selz, 9^th^ June 2010. • NMBE 1111884, 99.1 mm SL, 1 female, Kissenda Island, O. Selz, 9^th^ June 2010. • NMBE 1111882, 115.7 mm SL, 1 male, Python Island, O. Selz 21^st^ June 2010. • NMBE 1111876, 115.2 mm SL, one male, Python Island, O. Selz, 17^th^ July 2010. • NMBE 1111877, 121.3 mm SL, one male, Python Island, O. Selz, 10^th^ July 2010. • NMBE 1111892, 82.8 mm SL, one male, Kissenda Island, O. Selz, 13^th^ July 2010. • NMBE 1111899, 96.0 mm SL, one male, Kissenda Island, O. Selz, 13^th^ July 2010. • NMBE 1111885, 99.2 mm SL, one female, Kissenda Island, O. Selz, 9^th^ June 2010. • NMBE 1111879, 111.0 mm SL, 1 male, Python, 10^th^ July 2010. • NMBE 1111874, 77.6 mm SL, one male, Python Island, O. Seehausen, 01^st^ Dec 1993. • NMBE 1111875, 87.8 mm SL, one male, Python Island, O. Selz, 10^th^ July 2010. • NMBE 1111890, 103.0 mm SL, 1 male, Kissenda Island, O. Selz, 13^th^ July 2010. • NMBE 1111896, 113.3 mm SL, one male, Kissenda Island, O. Selz, 1^st^ July 2010. • NMBE 1111889, 86.3 mm SL, one male, O. Selz, 14^th^ Nov. 2014.
Description.
Based on 36 specimens from Python and Kissenda islands including the holotype. Morphometric, meristic, and dentition characters are given in Table 1.
Habitus. Large growing robust and deep-bodied species with a blunt and wide head, few wide bars and conspicuous red (in males) or brown (females) maculae in the soft part of dorsal fin. Dorsal head profile decurved to moderately concave with heavy head appearance. Snout slightly longer than broad, the mouth oblique, and the lips not thickened. Lateral snout outline with isognathous jaws and obtuse.
Oral teeth. The teeth in the outer tooth row (Fig. 6A, C) are unicuspid to weakly bicuspid, short, stout, distantly spaced, and implanted in an upright position. The inner series teeth are small, tricuspid, and are arranged in two rows anteriorly and anterolaterally in both jaws.
Dental arcade and tooth band. Dental arcade rounded, not square shaped. Inner rows in both jaws are usually separated from the outer row by a moderate gap.
Lower pharyngeal bone and dentition. The lower pharyngeal bone is strongly hypertrophied and stout with strongly enlarged molariform pharyngeal teeth (Fig. 6B, D).
Scales and squamation. The flank is entirely scaled with ctenoid scales. Scales are ovoid with vertical long axis, slender and slightly higher than wide. Operculum: scaled, scales cycloid; cheek: fully scaled, scales cycloid; caudal peduncle: scales moderately ctenoid, chest: entirely scaled; scales cycloid, somewhat deeply embedded, though not as deeply as in many other rock-dwelling cichlids such as Neochromisgreenwoodi Seehausen & Bouton, 1998 and Mbipiambipi Seehausen, Lippitsch & Bouton, 1998 and smaller than on flank. The size transition to the chest is gradual. The belly; is fully scaled, scales moderately ctenoid and not distinctly smaller than on flanks. Dorsal fin; scaleless, caudal fin; partially scaled with cycloid scales, anal fin; scaleless and pectoral fin scaleless.
Coloration. Melanin pattern in both sexes: Males and females exhibit four to six broad vertical bars on their flanks (note that these can be hard to see in preserved specimens that have bleached slightly). Preserved specimens of both sexes exhibit a brownish coloration, with some individuals retaining their vertical bars (Fig. 3A). Male nuptial coloration: Labrochromismawe sp. nov. exhibits male nuptial color polymorphism and found in two distinct color morphs. One morph is entirely blue on the flanks, including the spinous part of the dorsal fin (Fig. 2A, D). The other morph is reddish on the dorsal head surface, and red on operculum, anterior flanks and anterior dorsum with the remaining flanks appearing yellowish and greyish towards the posterior dorsum (Fig. 2B, E; Seehausen and Bouton 1996; Seehausen et. al. 1999). Both morphs possess numerous characteristic red maculae in the soft part of the dorsal fin (Fig. 2). A nape band, nostril, forehead, supraorbital, intraorbital, hind-eye, preopercular and lachrymal stripes (Seehausen et al. 1999) may be visible or not depending on behavioral context; lower lip with a blue sheen. The caudal fin is translucent grey with red streaks and maculae, grading to solid red towards the edge, while the anal fin is proximally blue grey, distally faint red to solid red, with 2–6 orange egg dummies. In the red morph, the red color can extend into the spinous part of the dorsal fin. Females have yellowish-brown coloration.
Distribution and ecology.
Labrochromismawe sp. nov. is known from the northern and central Mwanza Gulf in Lake Victoria, Tanzania. The species has been collected at Anchor, Kissenda, Kilimo, Python, Gabalema, Nyamatala and Hippo islands, Bwiru point, Karumo bay, Nyegezi rocks, Amranda point, Ngoma point, and Capri point (Fig. 1). The species inhabits moderately steep to steep slopes, with medium sized to very large rock boulders (Fig. 7). Subadult individuals are commonly caught in shallow inshore waters between rock boulders while adults inhabit greater depths. At the moderately steep Python Islands, they are found somewhat offshore at depths ranging from 3 meters to at least 8 meters. In very steeply sloping areas, such as Anchor Island and Nyegezi rocks, they are located inshore and at depths starting from 1.5 meters downwards (Seehausen 1996).

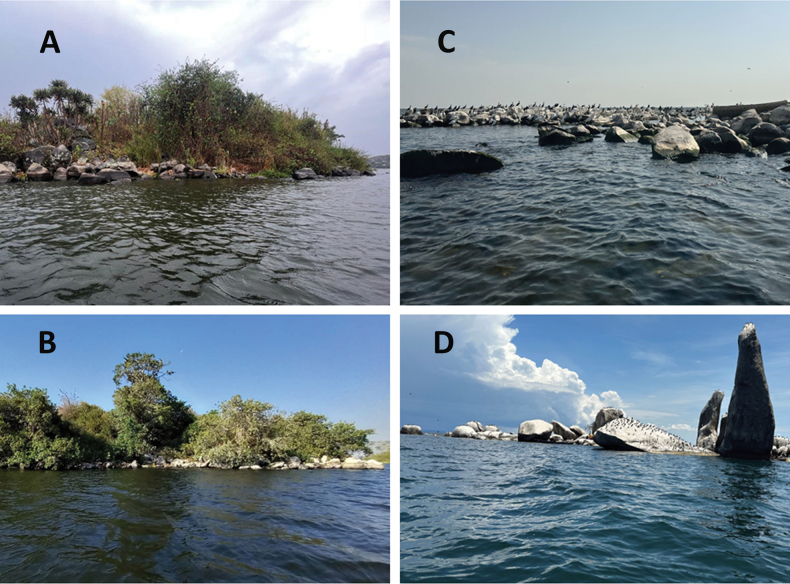

Photographs of the sampling sites of Labrochromismawe sp. nov. (A, B) and Labrochromismawepili sp. nov. (C, D) A Kissenda Island B Python Island C Makobe Island and D Ruti Island.
Food.
The diet of Labrochromismawe sp. nov. is predominantly snails but insect larvae are eaten as well (Bouton et al. 1997; Seehausen 1996).
Breeding.
Like all Lake Victoria haplochromines, Labrochromismawe sp. nov. is a female mouthbrooding care giver, wherein the female carries her eggs as well as the hatched larvae inside her mouth, providing them with a safe and nurturing environment until the larvae have resorbed the yolk sac and develop into independent, free-swimming juveniles. Spawning takes place throughout the year as far as we could ascertain. Mouthbrooding females are probably residing in the deeper part of the depth range and are not usually observed among shallow water boulders.
Diagnosis and affinities.
The nature of its pharyngeal dentition places Labrochromismawe sp. nov. on the same level of structural modification as other described Labrochromis species (L.ishmaeli, L.humilior, L.pharyngomylus, L.teegelaari, L.mylergates, L.ptistes, L.mawepili sp. nov.). Labrochromismawe sp. nov. differs from all other species except L.mawepili sp. nov. by eye size (smaller among compared species (21.3–25.9 vs 23–33), (Table 3), and habitat association. Specifically, L.mawe sp. nov. restricted to rocky substrates, unlike other species inhabiting sand and/or mud bottoms. L.mawe sp. nov. possess shorter head (31.7–34.9% SL) compared to L.ptistes (34.2–37.6% SL) and narrower interorbital width (25.0–30.2% HL) compared to L.mylergates (26.0–33.0% HL). L.mawe sp. nov. and L.mawepili sp. nov. share the habitat (rocky substrate) but L.mawe sp. nov. possess shorter and stouter teeth than L.mawepili sp. nov., wider interorbital width (24.0–31.8% HL) as L.mawepili sp. nov. 23.3–27.9 (means 24.6–25.4) % HL, and broader lower jaw (22.7–34.9% HL) as L.mawepili sp. nov. (20.2–27.5% HL). L.mawe sp. nov. possesses 31 or 32 scales in the lateral line whereas L.mawepili sp. nov. 32 or 33 scales (Table 1). L.mawe sp. nov. exhibits broad vertical bars and no traces of lateral stripes while L.mawepili possesses broken midlateral and dorsolateral bands that are typically as distinct as or more distinct vertical bars. L.mawe sp. nov. exhibits color polymorphism with two color morphs (Seehausen and Bouton 1996): one morph is entirely blue on the flanks, including the spinous part of the dorsal fin. The other morph is reddish on the dorsal head surface, and red on operculum, anterior flanks and anterior dorsum with the remaining flanks yellow and greyish towards the posterior dorsum. Both morphs possess numerous characteristic red maculae on the soft part of the dorsal fin. The caudal fin is translucent grey with red streaks and maculae, grading to solid red towards the edges. The anal fin is proximally blue grey, distally faint red to solid red, with 2–6 orange egg dummies. Male nuptial coloration of L.mawepili sp. nov. is comparable to the blue morphy of L.mawe sp. nov. However, L.mawepili sp. nov. possesses 5–10 orange egg dummies in the anal fin. Male nuptial colouration of L.pharyngomylus is blue-grey overlying silver, with a distinct coppery sheen on the flanks. The dorsal fin is hyaline with pinkish lappets and a pink margin in the soft part. The anal fin is hyaline with yellow egg dummies, while the caudal fin is hyaline with a pink flush, most intense distally and on the ventral half of the fin (Greenwood 1981). The male nuptial coloration of L.humilior is dark silvery-grey with intense dusky blotches. A coppery flush extends over the cheek, operculum, and flank up to the origin of the anal fin. The anal and caudal fins are light red, with the color intensifying along the margins of both fins. The anal fin bears two or three yellow egg dummies (Greenwood 1981). Breeding males of L.teegelaari have a purplish-grey dorsum, with the purple color more intense anteriorly. The flanks, chest, and belly are bright red, while the caudal peduncle is yellow with a faint red overlay. Traces of 4–6 vertical bars are visible on the flanks. The dorsal head surface is grey with a red flush, and the rest of the head is bright red, except for the lower lip and branchiostegal membrane, which are white. The lachrymal bar is faint, and a dark bar is present on the vertical preopercular limb. The dorsal fin is light grey with a faint red flush, dark grey lappets, and red maculae on the soft part. The anal fin is light red anteriorly and greyish posteriorly, with egg dummies orange to reddish. A nape band, supraorbital, intraorbital, hind-eye, preopercular and lachrymal stripes faint; the caudal fin is hyaline, yellowish proximally, and has red maculae and streaks (Greenwood 1981).
Etymology.
Species name mawe from the Swahili word, for stone, referring to the habitat occupation of the species that is confined to rocks.
Labrochromis
mawepili
sp. nov.
Taxon classificationAnimaliaPerciformesCichlidae
947426EF-975F-5C08-9D86-29D89116E173
https://zoobank.org/1EA9E503-6957-40E9-9D89-3F03374EFEE5
Haplochromis (Psammochromis) "striped crusher": Seehausen 1996; Seehausen et al. 1997. Haplochromis "striped crusher": Seehausen and Bouton 1998. Labrochromis sp. "stone": Karvonen et al. 2018; Gobbin et al. 2020, 2021; Meier et al. 2023.
Type material.
Holotype. • NMBE 1111906 mature male, 126.2 mm SL, Lake Victoria, Makobe Island, Speke Gulf, Tanzania, O. Selz, July 2010. Paratypes. • 16 specimens, 80.8–144.2 mm SL. All specimens are from Lake Victoria, Makobe Island, Speke Gulf, Tanzania. • NMBE 1111916, 105.4 mm SL, one male, O. Seehausen & S. Mwaiko, 2005. • NMBE 1111917, 80.8 mm SL, one female, O. Selz, 6^th^ August, 2010. • NMBE 1111908, 110.6 mm SL, one female, O. Selz, 6^th^ August, 2010. • NMBE 1111914, 120.1 mm SL, one female, O. Selz, 21^st^ July, 2010. • NMBE 1111911, 123.3 mm SL, one male, O. Selz, 3^rd^ June, 2010. • NMBE 1111909, 120.8 mm SL, one female, O. Selz, 23^rd^ June, 2010. • NMBE 1111907, 99.8 mm SL, one male, O. Selz, 23^rd^ July, 2010. • NMBE 1111910, 101.3 mm SL, one male, O. Selz, 26^th^ July, 2010. • NMBE 1111905, 98.1 mm SL, one male, O. Selz, 3^rd^ June, 2010. • NMBE 1111912, 120.8 mm SL, one female, O. Selz, 23^rd^ July, 2010. • NMBE 1111913, 88.2 mm SL, one male, O. Selz, 23^rd^ July, 2010. • NMBE 1111900 116.7 mm SL, one male, O. Selz, 8^th^ August, 2010. • NMBE 1111901 144.2 mm SL, O. Selz, 5^th^ August, 2010. NMBE 1111902, 134.9 mm SL, one male, O. Selz, 2^nd^ August, 2010. • NMBE 1111904, 112.6 mm SL, one male, O. Selz, 23^rd^ July, 2010. • NMBE 1111903, 106.8 mm SL, one male, O. Selz, 23^rd^ July, 2010.
Description.
Based on 17 specimens from Makobe Island, Lake Victoria, Tanzania (Table 1) including the holotype.
Habitus. Large growing robust species, relatively deep-bodied with broken mid and dorsolateral bands and vertical bars creating a broken chessboard pattern in both sexes. The dorsal head profile is straight to moderately concave with a heavy head appearance. Oblique mouth with neither enlarged nor thickened lips.
Oral teeth. Teeth in the outer tooth row slender, unicuspid to weakly bicuspid, distantly spaced, slightly recurved, their implantation in the lower jaw is somewhat procumbent (Fig. 6E). The inner series teeth are small, tricuspid, and are arranged in two rows anteriorly and anterolaterally in both jaws
Dental arcade and tooth band. Dental arcade rounded, not square shaped. Inner rows in both jaws usually separated from the outer row by a moderate gap. Two rows of inner teeth, anteriorly and anterolaterally in both jaws.
The lower pharyngeal bone jaw and dentition. The lower pharyngeal jaw is strongly hypertrophied and stout with strongly enlarged molariform pharyngeal teeth (Fig. 6F).
Scales and squamation. The flank scales are ctenoid, ovoid with vertical long axis, slender and somewhat higher than wide. Operculum; scaled with cycloid scales, cheek; fully scaled with cycloid scales, caudal peduncle; fully scaled, scales moderately ctenoid, the chest; is fully scaled with smaller cycloid scales compared to those on the flanks somewhat deeply embedded although not as deeply as in many other rock-dwelling cichlids. The size transition is gradual. The belly is entirely scaled, with scales moderately ctenoid and not distinctly smaller than on flanks and somewhat deeply embedded. Dorsal fin; scaleless, caudal fin; partially scaled with cycloid scales, anal fin scaleless and pectoral fin; scaleless.
Coloration. Melanin pattern in both sexes: Both adults and subadults exhibit a broken dorso lateral and broken mid-lateral bands, together with the 4 vertical bars creating a broken chessboard pattern. The broken chessboard pattern is more prominent in females and subadult males (Fig. 2H, I) while adult males more often have the lateral bands purely expressed (Fig. 2G). Male nuptial coloration: Adult males are metallic blueish on the posterior flanks, the mid flanks are purplish, anterior and posterior dorsum are greyish (Fig. 2). Dorsal fin is blue grey with numerous red maculae within the soft part of the fin. A nape band, supraorbital, intraorbital, hind-eye, preopercular and lachrymal stripes faint; lower lip with a greenish sheen. The caudal fin is blue grey with red streaks and maculae, and the anal fin is proximally blue grey, distally faint red with 5–10 orange egg dummies (Fig. 2). Preserved specimens of both sexes are brownish and retain their broken longitudinal bands and fin maculae.
Distribution and ecology.
Labrochromismawepili sp. nov. is exclusively known from the Speke Gulf in Lake Victoria, Tanzania with one observation from the northern Mwanza Gulf. The species has been observed at Makobe, Ruti, Igombe, and Hippo islands (Fig. 1) The species predominantly inhabits offshore areas beyond 4 meters in water depth with gentle to modest slopes. At steeply sloping islands it is often associated with the gently sloping small boulders habitat at the base of the larger and steeply sloping rocks (Fig. 7) in depths of 10 meters and beyond. Females of Labrochromismawepili sp. nov. are more commonly encountered than males, distinguishing it as one of the few rock-dwelling haplochromines with such a prevalence. Despite (or perhaps because of) sharing similar habitat affinities as L.mawe sp. nov., sympatry between these two species is rare and is only known from Hippo Island where L.mawe sp. nov. was frequently encountered in crevices among inshore rocks, while L.mawepili sp. nov. was only encountered once, ~ 10 m offshore in deeper water (Seehausen 1996). Labrochromismawepili sp. nov. coexists with Astatoreochromisalluaudi at all islands, but while L.mawepili sp. nov. occupies offshore areas beyond 4 meters depth, A.alluaudi tends to be more common in shallower waters.
Food.
Labrochromismawepili sp. nov. is primarily preying on snails and ostracods, with occasional consumption of insect larvae, albeit to a lesser extent (Seehausen 1996).
Breeding.
As for Labrochromismawe sp. nov.
Diagnosis and affinities.
Labrochromismawepili sp. nov. shares a comparable structural modification in pharyngeal dentition with other described Labrochromis species (L.ishmaeli, L.humilior, L.pharyngomylus, L.teegelaari, L.mylergates, L.ptistes, L.mawe sp. nov.) and shares its rocky habitat association with L.mawe sp. nov. It differs from L.ishmaeli, L.humilior, L.pharyngomylus, L.teegelaari, L.mylergates, L.ptistes, L.mawe sp. nov. in color patterns and habitat association. Labrochromismawepili sp. nov. exhibit broken longitudinal stripes and vertical bars while L.mawe sp. nov. displays vertical bars without longitudinal stripes. Male nuptial coloration of L.mawepili sp. nov. are shared with those of the blue morph of L.mawe sp. nov. (See above in diagnosis of L.mawe sp. nov.). L.mawepili sp. nov. possess a narrower interorbital width (23.3–27.9% HL) than L.mawe sp. nov. (24.0–31.8% HL), L.teegelaari (25.0–30.0% HL) and L.mylergates (26.0–33.0%HL). Longer snout (30.7–36.0% HL) than L.ptistes (29.4–32.4% HL), L.pharyngomylus (27.3–33.3% HL), L.humilior (27.0–34.8% HL), L.mylergates (28.0–33% HL) and L.teegelaari (27.0–31.0); (Table 3; Greenwood 1980). Labrochromismawepili sp. nov. possess smaller eyes (18.7–25.8% HL) than ‘H.’ theliodon (24.1–26.8% HL), L.ishmaeli (23.0–31.0), L.ptistes (26.5–32.4% HL), L.pharyngomylus (23.0–31.8% HL), L.humilior (27.0–32.5% HL), L.mylergates (28.0–33.0% HL), L.teegelaari (27.0–33.0% HL), and slightly smaller than L.mawe sp. nov. (21.3–25.9).
Etymology.
Species name mawepili, from Swahili, mawe means stone and pili means second. Refers to similarity in habitat association between this species and L. mawe and the superficial resemblance with the latter.
Discussion
Labrochromismawe sp. nov. and L.mawepili sp. nov. are unique among described Labrochromis species in their tight association with rocky habitats, a feature not observed in other described Labrochromis species (Greenwood 1981; Seehausen 1996). Additionally, these newly described species exhibit smaller eyes than all previously described species, probably because they live in better illuminated habitat. A recent study using phylogenomic analysis found that all five Labrochromis species from Lake Victoria for which whole genomes were available to the authors formed a single, monophyletic and statistically supported clade (Meier et al. 2023). L.mawepili sp. nov. (but labeled L. sp. "stone") was inluded in that Study. While previous studies have exclusively described Labrochromis species inhabiting sandy and soft substrates, the description of these two species highlights the ecological diversity within the lineage and the role of habitat specialization in this adaptive radiation. Fairly extensive lake-wide sampling of our team suggests that both new species are either very rare or absent from suitable habitats outside Mwanza and Speke Gulf and may be endemic to these regions. Other Labrochromis species occur in rocky habitats elsewhere in the lake and these await taxonomic description.
Supplementary Material
XML Treatment for Labrochromis mawe
XML Treatment for Labrochromis mawepili
