Increased implant thickness in mechanically aligned off‐the‐shelf total knee replacement compared to bone resection

TL;DR

This study finds that in knee replacement surgery, implant thickness is generally greater than bone resection, with notable differences between knee compartments.

Contribution

The study quantifies bone-implant mismatch in mechanically aligned knee replacements and identifies compartment-specific discrepancies.

Findings

Implant thickness was 14.2% greater than bone resection overall.

Medial tibio-femoral mismatch was significantly greater than lateral (p < 0.001).

Patello-femoral implant thickness was less than bone resection by 16.0%.

Abstract

Total knee arthroplasty (TKA) with mechanical alignment (MA) aims to align the leg neutrally, optimising stability and load distribution. To achieve this, bone cuts are performed, modifying the constitutional alignment of the knee and determining a mismatch between the implant thickness and the bone resection across the various compartments of the knee (bone–implant mismatch). This study aims to quantify the bone–implant mismatch in TKA with MA using an off‐the‐shelf implant and investigate how this ratio is influenced by the preoperative coronal knee alignment phenotype.

Data from 100 patients who underwent primary off‐the‐shelf TKA with MA with a medial pivot design implant from January 2021 to September 2023 were analysed. Preoperative alignment phenotype was determined via long‐leg weightbearing radiographs. During surgery, bone resections were measured with a caliper for each compartment. Bone–implant mismatch was determined for each compartment, analysing differences between medial and lateral compartments and the influence of preoperative alignment phenotype.

The overall implant thickness was 14.2% greater than the bone resection. In the patello‐femoral compartment the implant thickness was 16.0% ± 19.0 less than the bone resection. Bone‐implant mismatch was observed in the tibio‐femoral joint across all the compartments with a significant difference between medial and lateral (p < 0.001). No significant differences in bone–implant mismatch were found based on preoperative alignment phenotype.

In mechanically aligned off‐the‐shelf TKA, implant thickness exceeds bone resection by an average of 14.2%, with a consistent bone–implant mismatch observed in all tibiofemoral compartments—significantly greater medially than laterally. Conversely, in the patellofemoral joint, bone resection surpasses implant thickness. Preoperative coronal alignment phenotype does not significantly influence this mismatch. These findings highlight a systematic discrepancy between bone resections and implant geometry, suggesting potential benefits from adjusted surgical techniques or implant design modifications to improve anatomical congruence and joint kinematics.

Level III.

Figures

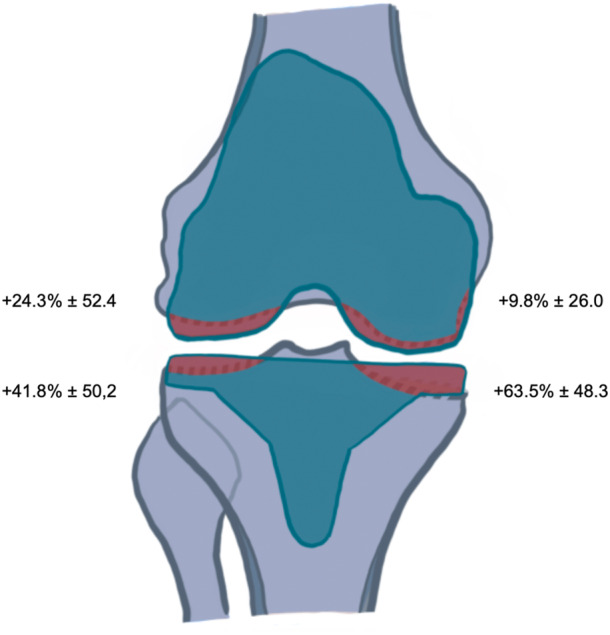

Bone implant mismatch in the tibia and in the distal femur. In red is represented a positive mismatch (more implant thickness) and in green a negative mismatch (more bone resection).

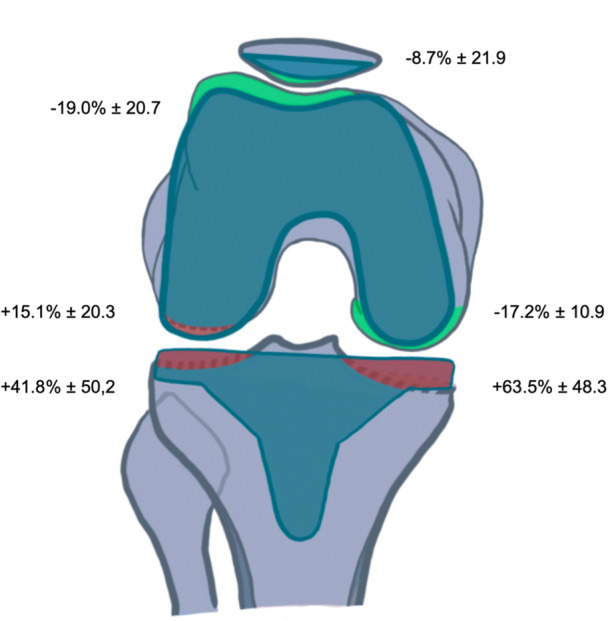

Bone implant mismatch in the tibia, posterior femur and in the patello‐femoral compartment. In red is represented a positive mismatch (more implant thickness) and in green a negative mismatch (more bone resection).

Tables

Table 1. Bone–implant mismatch (expressed as the percentage of extra implant thickness relative to the bone resection) in the different knee compartments according to coronal knee alignment.

	Varus HKA ≤ 177° (N = 50)	Neutral 177° < HKA > 183° (N = 24)	Valgus HKA ≥ 183° (N = 26)	Total (N = 100)	p value
%IMP medial tibia	64.0 ± 43.6	71.8 ± 57.4	55.2 ± 49.4	63.5 ± 48.3	0.581
	62.3 [37.6, 89.8]	59.5 [27.3, 89.8]	52.3 [23.1, 83.6]	59.5 [27.3, 89.8]
%IMP lateral tibia	38.0 ± 45.8	35.1 ± 38.8	55.1 ± 65.3	41.8 ± 50.2	0.471
	20.9 [−2.2, 63.7]	20.9 [17.7, 48.7]	37.6 [11.1, 59.5]	20.9 [7.5, 59.5]
%IMP medial posterior femur	−17.7 ± 10.8	−18.8 ± 10.7	−14.6 ± 11.4	−17.2 ± 10.9	0.573
	−18.5 [−24.6, −11.3]	−18.5 [−24.6, −11.3]	−11.3 [−24.6, −11.3]	−18.5 [−24.6, −11.3]
%IMP lateral posterior femur	12.1 ± 18.1	14.7 ± 19.8	21.0 ± 24.1	15.1 ± 20.3	0.437
	7.9 [−2.6, 20.9]	20.9 [−2.6, 20.9]	20.9 [11.1, 20.9]	20.9 [−2.6, 20.9]
%IMP medial distal femur	10.7 ± 22.5	−2.4 ± 20.5	19.0 ± 32.8	9.8 ± 26.0	0.031 0.028 *
	8.8 [−2.9, 20.1]	−7.6 [−20.1, 8.8]	8.8 [8.8, 23.8]	8.8 [−5.3, 23.8]
%IMP lateral distal femur	15.1 ± 41.3	25.6 ± 45.2	40.7 ± 72.4	24.3 ± 52.4	0.444
	3.0 [−2.9, 23.8]	16.3 [5.9, 43.5]	3.0 [−12.4, 70.8]	8.8 [−5.3, 43.5]
%IMP trochlea	−19.4 ± 17.9	−19.9 ± 16.8	−17.5 ± 28.5	−19.0 ± 20.7	0.999
	−20.3 [−31.2, −5.1]	−20.3 [−31.2, −5.1]	−20.3 [−37.5, −5.1]	−20.3 [−31.2, −5.1]
%IMP patella	−16.7 ± 8.0	−5.4 ± 18.5	−1.4 ± 30.7	−8.7 ± 21.9	0.282
	−13.7 [−17.5, −13.7]	−13.7 [−13.7, −13.7]	−13.7 [−13.7, −3.3]	−13.7 [−13.7, −13.7]
%IMP femoro‐patellar joint	−17.2 ± 16.7	−17.1 ± 17.5	−12.9 ± 24.3	−16.0 ± 19.0	0.723
	−20.3 [−31.2, −5.1]	−16.3 [−23.9, −5.1]	−10.6 [−28.5, −6.5]	−16.3 [−31.2, −5.1]
%IMP total without femoro‐patellar joint	18.2 ± 15.0	17.4 ± 11.3	22.3 ± 12.0	19.1 ± 13.4	0.496
	13.0 [11.2, 23.5]	17.9 [9.0, 24.5]	21.6 [8.9, 31.4]	14.4 [9.6, 29.7]
%IMP total	13.5 ± 12.8	13.2 ± 10.1	16.3 ± 11.0	14.2 ± 11.7	0.422
	10.0 [7.1, 15.5]	11.6 [7.1, 21.7]	19.5 [5.3, 23.7]	11.6 [6.9, 21.7]

Table 2. Comparison of bone–implant mismatch (expressed as the percentage of extra implant thickness relative to the bone resection) medial versus lateral in the different compartments of the tibio‐femoral joint.

Comparison	Medial	Lateral	p value
IMP% tibia	63.5 ± 48.3	41.8 ± 50.2	0.0014
	59.5 [27.3, 89.8]	20.9 [7.5, 59.5]
IMP% posterior femur	−17.2 ± 10.9	15.1 ± 20.3	<0.0001
	−18.5 [−24.6, −11.3]	20.9 [−2.6, 20.9]
IMP% distal femur	9.8 ± 26.0	24.3 ± 52.4	0.016
	8.8 [−5.3, 23.8]	8.8 [−5.3, 43.5]
