Effects of mouthwashes on the morphology, structure, and mechanical properties of orthodontic materials: a systematic review of randomized clinical studies

TL;DR

This review examines how mouthwashes affect the structure and mechanical properties of orthodontic materials like wires and brackets.

Contribution

A systematic evaluation of randomized clinical trials on mouthwash effects on orthodontic materials.

Findings

Chlorhexidine increased roughness and friction in stainless-steel wires but did not affect shear bond strength.

Fluoride solutions increased surface roughness of NiTi wires, especially acidulated ones.

Salvadora persica mouthwashes had no significant impact on stainless-steel bracket or wire surfaces.

Abstract

Therapeutic mouthwashes are commonly used in dentistry to support mechanical plaque removal. Their interaction with orthodontic materials is increasingly studied due to potential effects on biocompatibility and biomechanics.

To investigate in a systematic manner and evaluate the quality of the available evidence from randomized clinical trials regarding the effects of various mouthwashes on the morphology, structure, and mechanical properties of polymeric and metallic orthodontic materials.

Comprehensive electronic and manual searches were conducted in seven databases from inception until August 2024.

We analysed randomized controlled clinical studies that examined the impact of mouthwashes on the morphology, structure, and mechanical properties of both polymeric and metallic orthodontic materials.

Data eligibility, data extraction, and risk of bias (RoB-2 tool) were performed independently.

Ten studies were included, with most of them presenting some concerns in terms of bias. Chlorhexidine mouthrinse use did not affect the shear bond strength of polycarbonate brackets, the soldering alloys, as well as the stainless-steel bracket surfaces, but increased the roughness and friction of stainless-steel wires. The corrosion and mechanical properties of NiTi wires were not significantly affected by chlorhexidine. Rinsing with fluoride solutions increased surface roughness of NiTi wires, with more pronounced effects seen in acidulated fluoride solutions. While yield strength increased, no significant impacts on unloading force or modulus of elasticity was observed. Mouthwashes containing Salvadora persica did not significantly alter the surface topography of stainless-steel brackets and the roughness of stainless-steel archwires.

The evidence from randomized clinical trials suggests that chlorhexidine- and fluoride-containing mouthwashes may impact the structure and certain mechanical properties of stainless-steel and NiTi archwires. While study limitations exist, clinicians should be mindful of possible effects on orthodontic treatment.

Open Science Framework: osf.io/hz6wk

Figures

Flow of records.

Risk of bias assessment according to ROB2 tool.

Tables

Table 1.. General characteristics of the studies included in the systematic review and main results.

Study—study design	Participant & intervention characteristics	Study groups	Study methods & outcomes
Bagatin et al [35].2011	34 [14 ♂, 20 ♀]; Mean age: 9y 7m [6–12y]; Study duration: 20d (crossbite correction) + 3m	CG: 17: F toothpaste [3/d]EG: 17; as in CG plus 0.12% CHX [Periogard; 10mL; 1min; 2/w]	Haas expander—soldering point areas [wire/silver brazing/band region] [Dental Morelli]Corrosion: [ND] [stereomicroscopy]; Fe, Cr, O, C, P peaks [ND] [EDS]
Farrag et al [36].2024	30; Age: 18–30y; Study duration: 1 m	CG: 10; F toothpaste [3/d]EG1: 10; as in CG plus 0.2% NaF [proprietary formulation; 10 mL; 2/d]EG2: 10; as in CG plus 0.12% CHX [proprietary formulation; 10 mL; 2/d]	NiTi archwires [0.016’’×0.022’’; American Orthodontics]Roughness: Ra: NaF > control [SS]; CHX > control [SS] [SEM]
Hussein et al [37].2014	18; Mean age: 21.41 ± 1.2y [17–24y]; Study duration: rinsing for 7d until bonding	PG:9; placebo [20mL; 30secs; 2/d]EG:9; 0.12% CHX [Peridex; 20mL; 30secs; 2/d]	Polycarbonate brackets [Trianeiro] bonded with Transbond XT [3M Unitek]Shear bond strength: 28d after bonding [ND] [UTS]
Khanloghi et al [38].2023	10; Age: 15–20y; Study duration: 6w	CG: 5; F- toothpasteEG: 5; as in CG plus & 0.05% NaF [Oral B daily; 15mL; 1/d]	NiTi archwires - rhodium-coated [0.016’’; GAC International]Roughness: Sa, Sq, Sdq increased in NAF [SS]; Sdr & Sz [ND] [AFM]
Ogawa et al [39].2020	10 recruited [5 analysed in a cross-over trial]; Age: 18–25y; Study duration: 30d for each phase [with 10d washout period between]	PG:5; F toothpaste [3/d] and placeboEG1: 5; as in CG but NaF 1.1% pH 7 [proprietary formulation; 10 mL; 1/d]EG2: 5; as in CG but APF 1.1% pH 5.1 [proprietary formulation; 10 mL; 1/d]	NiTi archwires [0.016” Nitinol, 3M Unitek & NiTi Memory Wire, American Orthodontics]Roughness: RA and RMS increased in APF treated Nitinol wires [SS]; AO wires [ND] [SEM]Roughness [qualitative assessment]: PG < NaF < APF [AFM]
Razavi et al [40].2021	75 recruited [60 analysed]; Mean age: 21y 5m [13–30y]; Study duration: 2w	CG: 20; F toothpasteEG1: 20; as in CG plus 0.20% CHX [30mL; 30secs; 2/d] (Behsa Laboratories, Iran)EG2: 20; as in CG plus Salvadora persica [30mL; 30secs; 2/d] (Poursina Laboratories, Iran)	S. steel brackets [American Orthodontics] and S. Steel archwires (0.019” x 0.025”, 3M Unitek]Bracket surface topography: similar minor defects [SEM]Archwire roughness: Sa & Sq increased in CHX group [SS]; Sz, Sdr & Sbi [ND] [AFM]Mechanical properties: friction: FS [ND]; Fk mean [ND]; Fk max increased in CHX [SS] [UTS]
Singh et al [41].2023	68 recruited [66 analysed; 26♂; 40♀]; Mean age: 22.44 ± 1.34y; Study duration: 7d	PG:32; placebo [20mL; 30secs; 1/d]EG:34; 0.12% CHX [Septodent; 20mL; 30secs; 1/d]	Polycarbonate brackets [manufacturer not mentioned] bonded with Te-Econom [Ivoclar]Shear bond strength: 28 days after bonding [ND] [UTS]
Zibar Belasic et al [42].2021	24; Age: 13y–42y; Study duration: 3 months	CG: 12; F toothpasteEG: 12; 1st m only—brushing without toothpaste [3/d] plus 0.12% CHX [Curasept; 2/d]; next 2 m: as in CG	NiTi archwires [0.016’’×0.022’’; GAC International]Corrosion: [ND] [Cyclic polarization & Electrochemical impedance spectroscopy]Roughness: Ra, RMS & maximum height [ND] [AFM]Mechanical properties: modulus of elasticity, hardness, friction [ND] [Nanoindenter G200]
Zibar Belasic et al [43].2023	67 recruited [40 analysed]; Age: 12–22y; Study duration: 3m	CG: 20; F toothpasteEG:20; 1st m only—brushing without toothpaste [3/d] plus 0.12% CHX [Curasept; 2/d]; next 2 m: as in CG	NiTi archwires [0.020’’ x 0.020’’; GAC International]Roughness [qualitative assessment]: [ND] [SEM]Mechanical properties: modulus of elasticity, yield strength, springback ratio, modulus of resilience, loading & unloading forces [ND] [UTS]
Fateh-Zonouzi et al [44].2022	20; Age: 15–25y; Study duration: 6w	CG: 10; F toothpaste [3/d]EG: 10; as in CG plus 0.2% NaF [Oral-B; 15mL; 30secs; 1/d]	NiTi archwires - rhodium-coated [0.016’’; GAC International]Mechanical properties: unloading force & modulus of elasticity [ND]; yield strength increased in NaF [SS] [UTS]

Full text

Introduction

The risk of enamel decalcification and periodontal problems remain significant concerns in the course of orthodontic treatment, especially in individuals treated with fixed orthodontic appliances [1, 2]. Thus, a systematic and individualized oral hygiene program for every patient is of paramount significance to maintain and, if possible, improve oral health [3]. Therapeutic mouthwashes have been commonly prescribed in dentistry as an adjunct to mechanical plaque removal and, depending on the formulation, may confer benefits in terms of reduction in the prevalence and incidence of dental caries and periodontal inflammation [4].

Since mouthwashes may be administered during orthodontic treatment in individuals who have difficulty keeping plaque levels compatible with oral health through oral hygiene alone, their interaction with orthodontic materials has garnered attention, mainly due to biocompatibility and biomechanical concerns, and has been studied using various laboratory setups. The in vitro application of chlorhexidine-containing mouthwashes has been reported to increase both corrosion and the release of nickel ions from NiTi archwires, leading to increased surface structure porosity [5, 6]. Sodium fluoride, hydrogen peroxide and povidone iodine mouthwashes, may cause similar archwire surface changes [6–10]. Ion release and increases in surface roughness have been demonstrated to occur in brackets, both conventional and self-ligating [11–13]. The resulting increase in wire and bracket roughness could be associated with deterioration in the mechanical performance of the wire-bracket system [14–18]. Furthermore, the use of mouthwashes, especially those containing alcohol, may lead to force degradation of polymeric ligature chains [19–23]. Increased force decay has been observed following immersion in cetylpyridinium chloride-based mouthwashes [24]. Despite the body of evidence accumulated through laboratory orthodontic materials research, it should be acknowledged that laboratory designs used to mimic intraoral conditions differ significantly from the oral cavity environment [25, 26].

Objective

The objective of the present review was to investigate in a systematic manner and evaluate the quality of the available evidence from randomized clinical trials regarding the effects of various mouthwashes on the morphology, structure, and mechanical properties of polymeric and metallic orthodontic materials.

Materials and methods

Protocol and registration

A specific protocol was developed and piloted following relevant guidelines [27–32]. This paper is part of a broader project which did not focus on RCTs only, whose protocol was registered in the Open Science Framework (osf.io/hz6wk). As the present study is a systematic review, ethical approval was not required.

Eligibility criteria

The employed criteria were defined considering the Participants, Intervention, Comparison, Outcomes and Study design (PICOS) acronym domains (Supplementary Table 1). We reviewed randomized controlled clinical studies assessing the effects of mouthwashes on the morphology, structure, and mechanical properties of polymeric and metallic orthodontic materials. Animal studies, in vitro studies, reviews, systematic reviews, and meta-analyses were excluded.

Information sources and search strategy

In total, seven databases (Medline (PubMed), CENTRAL (Cochrane Library; includes records from Embase, CINAHL, ClinicalTrials.gov, WHO’s ICTRP, KoreaMed, Cochrane Review Groups’ Specialized Registers), Cochrane Database of Systematic Reviews (Cochrane Library), Scopus, Web of Knowledge (including Web of Science Core Collection, KCI Korean Journal Database, Russian Science Citation Index, SciELO Citation Index, and Zoological Record), EMBASE and ProQuest Dissertation and Theses (ProQuest)) were searched up to August 2024. Also, hand-searching was employed to identify additional records. One of the authors (EGK) developed detailed search strategies for each database. They were based on the strategy developed for MEDLINE (Supplementary Table 2).

No restrictions were applied in terms of language, date, or status of publication. The reference lists in relevant articles, regardless of whether they were included or excluded, as well as other relevant articles were searched and the corresponding authors were to be contacted, if needed.

Study selection

After exclusion of duplicates using EndNote’s duplicate identification strategy (EndNote X9™, Clarivate™, Philadelphia, PA, USA) and manually, the first two authors assessed electronically the titles and abstracts of the retrieved records for inclusion, in an independent and unblinded manner. Then, using the same approach, they obtained and evaluated the complete report of records that each reviewer considered that they were meeting the inclusion requirements. A record of all decisions on study identification was kept.

Data collection and data items

Data extraction was performed independently by the same authors, and disagreements were again resolved through discussion or consultation with the third author. Predefined and pre-piloted data collection forms recorded the following: bibliographic details of the study, information about study design and eligibility, participant and intervention characteristics, information on study methods and outcomes, and, finally, results.

Risk of bias in individual studies

The risk of bias in individual included studies was assessed by the same researchers in an independent manner and was evaluated using RoB2 tool for Randomized controlled trials (RCTs) [33]. Assessments were subsequently entered into the Risk-of-bias VISualization (robvis) web application [34]. Disagreements were resolved by discussion or consultation with the last author in case they were raised during any of the above-mentioned steps. Kappa statistics were not calculated since it is not recommended [32].

Summary measures and synthesis of results, risk of bias across studies and additional analyses

Data synthesis, risk of bias across studies analyses, and additional analyses for ‘small study effects’ and publication bias were not performed due to the insufficient number of studies and the variability in study designs and outcomes [32].

Results

Study selection

We identified 2825 references, and initially excluded 1644 as duplicates and subsequently another 1166 based on their title and abstract. From the 15 records that remained and were assessed for eligibility, 5 studies were excluded for the following reasons: protocol of a later published study (n = 1), systematic review of in vitro studies (n = 1), non-randomized trials (n = 3) (Supplementary Table 3). Finally, 10 full-text papers were considered suitable to be included in this systematic review [35–44]. The flow of records through the reviewing process is shown in Fig. 1.

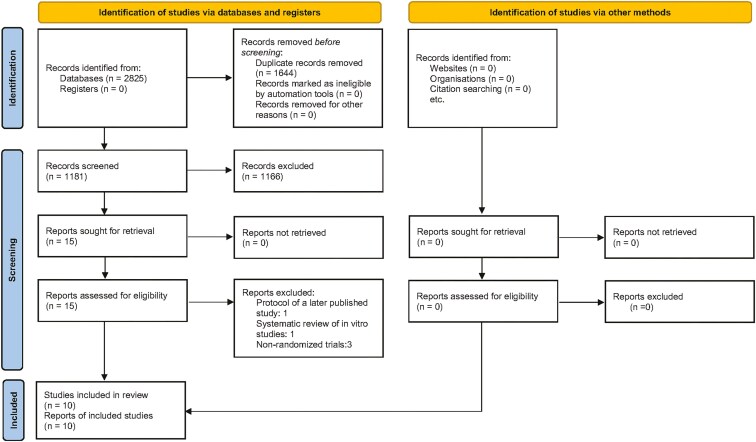

Flow of records.

Study characteristics

The characteristics of the included studies are shown in Table 1. The experimental period ranged from 7 days to 6 months and explored the effect of mouthwashes on polymeric adhesives [37, 41], soldering alloys [35], stainless-steel brackets and archwires [40], and NiTi archwires [36, 38, 39, 42–44], compared to control groups employing standard oral hygiene practices or using placebo. The mouthwashes tested included different concentrations of NaF (0.05 [38], 0.2% [36, 44] to 1.1% [39]), acidulated phosphate fluoride 1.1% [39], chlorhexidine (0.12% [35–37, 41–43] and 0.2% [40]), as well as a Salvadora persica formulation [40]. Various outcomes regarding morphology (surface topography and roughness, areas suggesting corrosion and degradation), structure (content in various elements), and mechanical properties (shear bond strength of adhesives; modulus of elasticity, hardness, yield strength, springback ratio, modulus of resilience, loading & unloading forces; friction) were reported. Measurement methodology included stereomicroscopy, energy dispersive x-ray spectroscopy, scanning electron microscopy, atomic force microscopy, cyclic polarization, electrochemical impedance spectroscopy and mechanical testing with the universal testing machine and the Nano Indenter G200.

Risk of bias within studies

Fig. 2 summarizes the risk of bias assessment. One study was considered to have overall low risk of bias [38], while nine studies showed some concerns due to the bias arising from the randomization process [35–37, 39–44]. In addition, in 3 studies [39, 40, 42] concerns were observed regarding missing data. The cross-over study of Khanloghi et al. [38] was considered to have a low risk of bias arising from period and carryover effects.

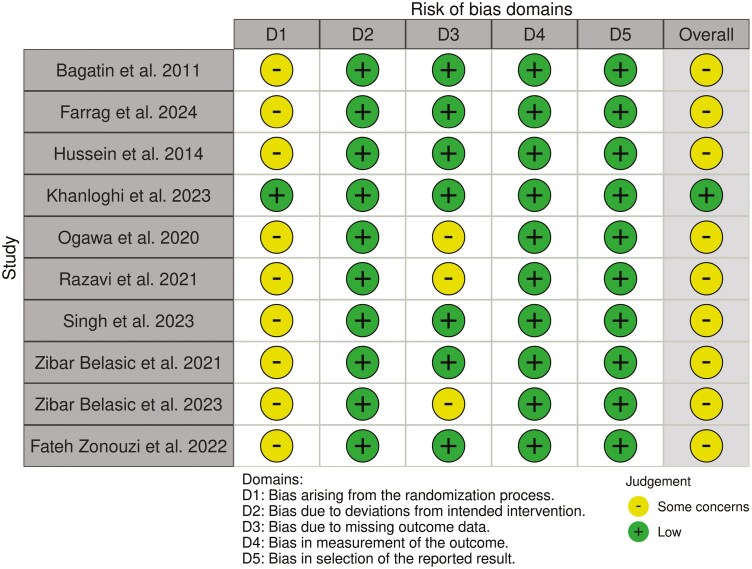

Risk of bias assessment according to ROB2 tool.

Results of individual studies

The use of a 0.12% chlorhexidine mouthwash for one week before bonding did not affect the shear bond strength of polycarbonate brackets bonded with composite resin adhesives compared to a placebo mouthwash [37, 41]. In comparison to brushing with fluoride toothpaste alone, additional rinses with 0.20% chlorhexidine for 2 weeks induced minor changes in the surface topography of stainless-steel brackets. However, surface roughness of stainless-steel archwires and maximum dynamic friction increased [40]. Increase in surface roughness (Ra) was demonstrated on NiTi archwires after using 0.12% chlorhexidine solutions for one month, as well [36]. However, Zibar Belasic et al. [42, 43] did not observe significant changes in their characteristics, in terms of corrosion, roughness and mechanical properties. The soldering alloys of Haas expanders in patients using a 0.12% chlorhexidine rinse for almost 4 months demonstrated similar corrosion characteristics with those brushing with fluoride toothpaste alone [35].

Daily rinses with fluoride solutions (0.05 to 1.1%) for periods ≥ 4 weeks, resulted in increases in some parameters related to surface roughness of NiTi wires, compared to brushing with fluoride toothpaste alone [36, 38] or placebo [39]. The increases were more pronounced after using acidulated fluoride solutions [39]. Yield strength of NiTi wires was reported to increase after rinsing with 0.2% NaF daily, compared to regular oral hygiene, but not statistically significant effects regarding the unloading force and the modulus of elasticity were noted [44].

Using Salvadora persica containing mouthwashes, did not affect stainless-steel surface bracket topography, the surface roughness of stainless-steel arch wires and the frictional characteristics compared to brushing with fluoride toothpaste alone [40] (Table 1).

Discussion

This systematic review focuses on evaluating the quality of evidence from randomized clinical trials regarding the impact of various mouthwashes on the morphology, structure, and mechanical properties of orthodontic materials, encompassing both polymeric and metallic types. The decision to conduct such a study was made because the interaction between orthodontic materials and mouthwashes has become a subject of interest, primarily due to concerns regarding biocompatibility and biomechanical effects. Based on current evidence from randomized clinical trials, mouthwashes containing chlorhexidine and fluoride may impact the morphology and certain mechanical properties of stainless steel and NiTi archwires. The observed effects do not always corroborate the findings of laboratory investigations. Methodological dissimilarities regarding the exposure to the mouthrinse as well as the differences between experimental conditions and the oral environment may account for the discrepancies between the results derived from clinical and in vitro settings, as the assessment of their clinical significance [25, 26].

Chlorhexidine gluconate, a cationic bis-biguanide, possesses broad-spectrum antibacterial properties. It has long been used as a mouth rinse to combat plaque formation [42]. Chlorhexidine is effective against a broad range of microorganisms, including both gram-positive and -negative bacteria (aerobic and anaerobic) [45, 46]. Additionally, it exhibits antifungal properties, including yeasts [47]. The use of chlorhexidine mouthwashes by orthodontic patients did not influence the shear bond strength of polycarbonate brackets bonded with composite resin adhesives [37, 41], in agreement with earlier in vitro reports [48–50]. The chlorhexidine molecule can bind to negatively charged (anionic) surfaces, including hydroxyapatite and the acquired pellicle, but most probably this absorption phenomenon does not alter the enamel surface [50, 51]. Alternatively, acid etching may eliminate any enamel alterations affected by chlorhexidine, since application of 37% phosphoric acid for 30 s is capable of etching in a depth of 16μm [52]. Opposing observations may be attributed to differences in methodology, such as, bracket material, adhesive or etching technique used [53, 54].

Chlorhexidine mouthrinse use in the clinical setting did not affect stainless-steel bracket surfaces but increased the roughness of stainless-steel wires, as well as friction [40]. Ion release has been observed in both conventional and self-ligating brackets [12, 13], but the effects on roughness and friction from in vitro studies have been conflicting. Thulasiram and co-workers [11] demonstrated increases in stainless-steel bracket roughness, while Apte et al. (2025) reported no increase regarding roughness and the frictional characteristics of stainless-steel wires [55]. Corroborating were the results regarding friction observed by Himabindu et al. (2023) [56] and Hosseinzadeh Nik and co-workers [57].

The clinical effects of chlorhexidine mouthwash use on NiTi archwires have been reported to be variable. Farrag and co-workers [36] observed increases in surface roughness, while Zibar Belasic et al. [42, 43] did not observe significant changes in roughness, corrosion and the mechanical properties of NiTi archwires. In vitro research has shown that exposure to chlorhexidine-containing mouthwashes can induce both corrosion and nickel ion release from NiTi archwires, contributing to increased surface porosity [5, 6]. However, no statistically significant difference was observed in the average surface roughness when NiTi archwires were immersed in a chlorhexidine test environment [57]. The only study that investigated the corrosion characteristics of soldering alloys in patients using a chlorhexidine rinse did not reveal significant differences from those brushing with fluoride toothpaste alone [35]. Laboratory studies have shown the lowest amounts of ion release from silver soldering exposed to chlorhexidine solutions [58–60].

For the past five decades, fluoride mouthrinses have been widely utilized for the prevention of dental caries. The primary anti-caries benefit of fluoride is attributed to its localized action at the tooth-plaque interface. This effect is achieved by promoting the remineralization of early caries lesions and reducing the solubility of tooth enamel [61]. Routine rinsing with fluoride solutions resulted in greater surface roughness of NiTi wires [36, 38, 39], with the effect particularly noticeable with acidulated fluoride solutions [39]. Similar surface alterations of NiTi wires have been reported from in vitro studies [6, 8, 9, 62]. Negative impacts on various parameters associated with friction of the stainless-steel bracket- NiTi wire complex have been observed as well [15, 16, 18, 63]. Resembling observations have been made regarding the effect of fluoride mouthrinses on the release of ions from stainless-steel brackets [17] and their roughness [13], as well as the frictional characteristics of stainless-steel wires [14, 15].

Brackets and archwires are susceptible to corrosion when exposed to fluoride agents, leading to the release of metal ions into the oral environment during orthodontic treatment, with a potential of systemic absorption [64, 65]. Fluoride exposure has been shown to degrade the titanium oxide layer of NiTi archwires, contributing to pitting [29], but their corrosion is not proportional to a high fluoride content or a low pH value [66]. In clinical settings, fluoride mouthwashes have been found to primarily induce generalized corrosion rather than pitting [40, 42]. Nickel ions are released predominantly within the first three days, after which the rate of corrosion gradually declines [67]. The levels of nickel, chromium, titanium, and manganese ions in gingival crevicular fluid return to baseline approximately six months after treatment begins, though the long-term implications of metal ion release into the oral cavity require further study [64].

A general association between surface roughness and friction has been suggested, with corrosion contributing to increased roughness [68]. However, friction is also influenced by other parameters as well, such as the applied force within the wire-bracket system, the contact angle, and the bracket surface’s characteristics. A significant number of studies have investigated static and kinetic friction within the bracket-wire system using in vitro simulations to model orthodontic tooth movement. However, despite the extensive available research, there is still no definitive agreement on the variations in the parameters associated with friction. This lack of consensus is likely attributed to the variability and limitations in the employed research methodologies. As a result, in vitro studies may not serve as a dependable approach for accurately assessing the clinical impact of friction in clinical orthodontic settings [69].

With respect to the mechanical properties of NiTi wires following clinical exposure to fluoride mouthwashes, an increase in yield strength was reported. However, no statistically significant differences were observed in the unloading force or the modulus of elasticity when compared to standard oral hygiene routines [44]. Zibar Belasic and co-workers [43] showed that the load-deflection properties of NiTi wires remained unaffected after the clinical exposure to fluoride gels. Hammad and co-workers [70] observed a decrease in the modulus of elasticity of Ni-Ti wires after exposure to a fluoride solution in vitro, while Srivastava et al. observed no difference [71].

Corrosion does not necessarily mean that the properties of NiTi archwires will deteriorate [42]. Microstructure defects and the pH of saliva have been identified as additional possible facilitators of the corrosion of NiTi alloys, although published results vary greatly [72]. The presence of pre-existing defects could serve as initiation areas of future corrosion despite protective effects of the titanium oxide layer [73]. However, fluorides tend to dissolve the titanium oxide layer causing localized, pitting corrosion [26, 48, 74]. As a consequence, as intraoral corrosion takes place inevitably, fluoride mouthrinses may not be the decisive factors relevant to any alterations of the elastic properties of NiTi archwires. The mechanical properties of NiTi wires could possibly be influenced by the chemical interactions between fluoride formulations and the materials used in wire coatings [66]. These could account for the differing responses of rhodium-coated NiTi wires to fluoride exposure compared to uncoated wires [44, 66].

Mouthwashes containing Salvadora persica had no significant impact on the topography of stainless-steel brackets, the surface roughness of stainless-steel archwires, or the frictional properties when compared to brushing with fluoride toothpaste alone [40]. In fact, corrosion was higher after chlorhexidine use, suggesting Salvadora persica-containing mouthrinses as a better option for orthodontic patients [40]. Omidkhoda and co-workers (2017) similarly did not observe significant differences in terms of corrosion and pitting of stainless-steel and NiTi archwires exposed to a Salvadora persica mouthwash and artificial saliva [75]. Ion release from stainless-steel brackets immersed in a chlorhexidine mouthwash was greater compared to immersion in a Salvadora persica mouthwash [13].

The process of corrosion in orthodontic alloys results in the release of metal ions into the oral environment, which may have cytotoxic effects and contribute to allergic reactions in some patients. Specifically, ions such as nickel, chromium, and cobalt have been shown to impact fibroblasts and oral epithelial cells [76]. Nickel, in particular, is a common trigger for allergic reactions, which can manifest as contact dermatitis or a systemic condition [77]. Additionally, when the concentration of released ions is sufficiently high, visible enamel discolouration can occur, which can be a significant concern, as it can lead to notable aesthetic issues for patients [78].

The impact of mouthwashes on orthodontic alloy corrosion carries important biomechanical considerations that should not be overlooked. The efficiency of orthodontic treatment is closely linked to factors such as force delivery, fracture resistance, friction, and the superelasticity of NiTi alloys [79]. Superelasticity enables the consistent application of gentle forces, ensuring the resilience needed to prevent deformation within the oral environment [69]. Any alteration in the properties of NiTi archwires could lead to a reduction in fracture resistance, potentially compromising treatment efficiency. Additionally, an increase in friction levels caused by pitting or surface corrosion may hinder orthodontic tooth movement and elevate anchorage demands, further impacting the overall effectiveness of treatment [79, 80].

While the findings from clinical studies should be interpreted with caution, it is clear that the use of mouthwashes during orthodontic treatment may have significant effects. Therefore, questions regarding daily oral hygiene habits and mouthwash use should be incorporated into a patient’s dental history. If appliance corrosion is anticipated, adjustments to either the orthodontic appliances or the type of mouthwash used may be necessary to reduce the potential impact of prolonged metal ion release into the oral environment. Additionally, surface alterations could lead to increased friction, which may require modifications in anchorage preparation. To ensure the appliances remain in optimal condition, orthodontists may need to monitor patients more frequently. Furthermore, to prevent corrosion and changes in surface topography, more frequent wire replacements may be necessary.

Clinical guidelines emphasize the necessity of mouthwashes during orthodontic treatment for individuals who have difficulty keeping plaque levels compatible with oral health through oral hygiene alone, whether for a part or the entire duration of treatment [1–3]. A comprehensive risk assessment is crucial, taking into account both dental and general health factors, to improve oral hygiene, reduce plaque build-up, and avert common orthodontic issues such as gingivitis and enamel demineralization in high-risk individuals of all ages [1–3]. The recommended type of mouthwash—fluoride or antimicrobial—varies based on the patient’s needs. Nonetheless, based on the limited existing evidence, it seems that exposure to more acidic mouthwashes (e.g. acidulated phosphate fluoride versus sodium fluoride) can significantly impact the mechanical properties of orthodontic materials [39]. Therefore, it could be advisable for orthodontic patients to avoid solutions with a lower pH when low friction is necessary.

Strengths and limitations

This systematic review was conducted in accordance with well-established guidelines, focussing solely on data from randomized controlled trials. A comprehensive search strategy was implemented, encompassing seven different databases, as well as electronic, manual, and grey literature sources up to August 2024. Strict inclusion criteria were applied to identify all eligible studies. The extracted data, study eligibility, and risk of bias assessments were independently reviewed twice by the first two authors. Any disagreements were resolved through discussion with the third author until a final consensus was reached.

Some limitations were identified in this review, primarily stemming from the characteristics of the included studies and the information available during the review process. The limited amount of relevant data, variations in study methodologies, differences in mouthwash formulations, and inconsistencies in outcome measures prevented the possibility of conducting a meta-analysis. Additionally, most studies were rated as having some concerns regarding the risk of bias, leading to uncertainty in the reliability of the findings. Also, relevant information from randomized controlled studies on popular mouthwashes, including but not limited to hydrogen peroxide, essential oils and povidone iodine mouthwashes, could not be retrieved.

Another challenge was the small sample size in several studies, further compounded by inconsistencies in mouthwash use, including variations in the control home care regimens. It is also important to consider that factors such as a patient’s overall health, oral microbiome, and prior use of mouthwash before orthodontic treatment may influence actual clinical outcomes. Moreover, the precision of the retrieved data is difficult to assess, as most studies did not include sample size calculations to determine statistical power. As a result, the extent to which different mouthwashes have a clinically significant impact on orthodontic outcomes in real-world practice remains uncertain.

Recommendations for future research

As therapeutic mouthwashes are commonly used to support mechanical plaque removal in orthodontic patients, further clinical research is needed to investigate the potential effects on biocompatibility and biomechanics of the existing mouthrinse formulations, including but not limited to hydrogen peroxide, essential oils and povidone iodine mouthwashes, on a variety of orthodontic materials and appliances. Randomized trials of standardized designs, control of possible source of bias and research settings resembling as closely as possible to the daily clinical practice scenarios are warranted.

Conclusion

According to the evidence from randomized clinical trials, mouthwashes containing chlorhexidine and fluoride may alter the morphology and affect certain mechanical properties of stainless-steel and NiTi archwires. Despite study limitations, clinicians should consider potential treatment-related implications.

Supplementary Material

cjaf048_suppl_Supplementary_Tables_1-3
