Identification and Abiotic Stress Expression Profiling of Malic Enzyme-Associated Genes in Maize (Zea mays L.)

TL;DR

This paper identifies and analyzes 13 malic enzyme genes in maize, revealing their roles in stress responses and potential for improving stress resistance.

Contribution

The study identifies maize ME genes and their expression under abiotic stress, highlighting ZmME13 as a candidate for stress resistance.

Findings

13 maize ME genes were identified and localized across eight chromosomes.

ZmME13 is a promising candidate gene for enhancing abiotic stress resistance in maize.

Promoter analysis shows ME genes contain stress-related regulatory elements.

Abstract

Malic enzyme (ME), a key enzyme involved in various metabolic pathways, catalyzes the oxidative decarboxylation of malate to generate pyruvate, CO2, and NADPH. This enzyme plays essential roles in plant growth, development, and stress responses. In this study, 13 maize ME genes were identified by performing homologous sequence alignment using the sequences of the Arabidopsis ME gene family as references. Chromosomal localization analysis demonstrated that ME genes were not detected on chromosomes 9 and 10, whereas the remaining eight chromosomes exhibited an uneven distribution of these genes. Phylogenetic analysis indicated a high degree of conservation between maize ME genes and their orthologs in teosinte (Zea luxurians L.) throughout the evolutionary history of Poaceae crops. Furthermore, cis-acting element analysis of promoters demonstrated that members of the maize ME gene family harbor regulatory elements associated with stress responses, phytohormones signaling, and light responsiveness, which suggests their potential role in abiotic stress adaptation. Expression profiling under stress conditions revealed differential expression levels of maize ME genes, with ZmME13 emerging as a promising candidate gene for enhancing stress resistance. These results lay a solid foundation for further investigation into the biological functions of the maize ME gene family.

Figures

Full text

1. Introduction

Maize (Zea mays L.) is the most widely cultivated food crop worldwide, and it is also an important source of animal feed and raw materials for industrial processing [1]. During the growth of maize, high temperatures, droughts, and salty soils can significantly impact its yields [2]. Drought, considered the most significant abiotic stress factor, would hinder maize’s normal growth and development by disrupting its normal physiological processes, ultimately resulting in severe yield losses [3]. The global decrease in maize yield due to drought is about 15% each year [4]. Prolonged drought directly interferes with various physiological indicators of maize, forcing the acceleration of various physiological and biochemical reactions in the maize reproductive process, shortening the maize growth cycle, resulting in significantly smaller cobs and reduced dry matter accumulation, and ultimately leading to a significant decline in maize quality and yield. In extreme cases, it can even lead to a significant reduction in maize yields as well as crop failure [5,6]. At present, countries around the world seek solutions to their dilemmas through research on dry farming, water-saving agriculture, drought-resistant breeding, and the traditional genetic breeding technology of maize. Although drought-resistant maize improvement has played a role, the cultivation of new drought-resistant maize varieties, is needed to realize an effective solution to the problem. For high and stable yields of maize, it is necessary to select and breed drought-resistant and high-temperature-resistant maize materials. Research on drought and heat tolerant maize varieties should aim to understand the molecular mechanisms of its drought and heat tolerance, particularly focusing on the synergistic regulation of stress-responsive genes and epigenetic adaptations during the entire maize reproductive period. The flowering, pollen dispersal, and grouting periods are the most vulnerable to drought and high temperatures [7], during which high temperatures can lead to decreased pollen viability or abortion, shriveling of filaments, and reduced kernel fullness and quality. Under high temperatures and drought stress, stress response phenomena occur in plants, and there are many genes whose expression is repressed or stimulated, i.e., up-regulated or down-regulated [8,9]. Given the significant impact of drought on maize, understanding the underlying physiological and molecular mechanisms is crucial. Malic acid and its related enzymes, such as malic enzyme, have been shown to be involved in plant stress responses [10,11] which provides a potential research direction for exploring maize drought tolerance.

Malic acid (MA) plays an important function in plant growth and development [12,13]. In plant cells, malic acid is a substance that links multiple metabolisms in different organelles and is involved in the regulation of a variety of metabolic reactions. Through malate synthesis and oxidation reactions, cells function as reducing power carriers and carbon carriers. The enzymes that catalyze the synthesis and oxidation of malic acid are malate synthase, malic enzyme and malate dehydrogenase [14]. Based on the coenzyme factors, plant malic enzymes can be divided into NAD-dependent malic enzymes and NADP-ME [15]. Malic enzyme is an important precursor for producing ketone bodies [16]. Studies have shown that plant malic enzymes not only play a significant role in key metabolic pathways such as photosynthesis and respiration, but also regulate plant growth and development [17], potentially related to plant defense mechanisms [11,18]. Ice plum contains the NADP-ME gene [19], which is induced under NaCl stressed conditions. The activities of both NAD-ME and NADP-ME in the plant also increase under stress [20]. Rice (Oryza sativa L.) has two NADP-ME genes that are induced under NaCl, NaHCO_3_, and Na_2_CO_3_ stressed conditions, with their activities accordingly increasing. Overexpression of these genes in transgenic Arabidopsis thaliana increases the plant’s salt tolerance [21,22]. Under drought conditions, the expression of NADP-ME genes is also affected by drought stress, but their response patterns differ [23,24,25]. Plants are exposed to seasonal temperature variations that significantly affect their biochemical processes. Elevated temperatures can cause the thermal deactivation of enzymes, resulting in the structural disassembly of enzymatic systems and cellular dehydration. In contrast, suboptimal low temperatures decrease root vitality, protoplasmic fluidity, and NADP-ME activity, while concurrently inducing chlorophyll degradation via photooxidative mechanisms. These temperature-induced disturbances collectively disrupt metabolic homeostasis in plants [26]. NADP-ME in wheat leaf increases gradually under 4 in 24 h. However, the index of photosynthesis does not show the same trend. This means that the activity of NADP-ME seriously affected by low temperatures. The enzyme responds to stress at the protein level. Through RT-PCR study, TaNADP-ME1 and TaNADP-ME2 showed the same variation trend, which increased after 3 h of declining under low-temperature stress. This evidence indicates that cold stress can induce the expression of the NADP-ME gene, which has a close relationship with the cold resistance of plants [27].

In this study, the maize inbred line B73 was selected as the research subject. Bioinformatics approaches were employed to systematically analyze the physicochemical properties, phylogenetic relationships, chromosomal localization and collinearity of the ME gene family. These extensive data resources establish a robust theoretical foundation and provide critical support for further exploration of the functional roles of drought tolerance-associated genes within the ME gene family in maize. Through this integrated methodology, the research aims to deepen the understanding of plant drought resistance mechanisms, identify novel molecular targets for stress adaptation, and ultimately drive revolutionary advancements in crop improvement and agricultural productivity.

2. Results

2.1. Identification of the Maize ME Gene Family

Based on sequence information from Uniport for six MEs (NADP-ME and NAD-ME) in Arabidopsis thaliana, a bioinformatics analysis was performed to study their protein sequence characteristics. BLAST searches were conducted to identify ZmME gene family members in the protein sequences of maize, teosinte (Zea spp.), sorghum (Sorghum bicolor L.), rice (Oryza sativa L.), barley (Hordeum vulgare L.), millet (Seteria italica L.), and proso millet (Panicum meliaceous L.). Using the local BLASTP v.2.6.0 tool (E < 1 × 10^−10^, identify > 50%), 13 ZmME gene family members were identified and analyzed as ZmME1~ZmME13 from the maize genome (Table 1). The sequence properties of these members indicate a range of lengths from 1034 to 54,178 bp for the genes and 414 to 1932 codons for the coding regions, corresponding to protein molecular weights ranging from 15,622.11 kDa to 70,694.85 kDa and amino acid counts of 178 to 644. ZmME5 contains only 178 amino acids (the shortest), while ZmME10 is the longest at 644 amino acids. The theoretical isoelectric point (pI) ranges from 5.22 to 9.2, with ZmME1, ZmME5, ZmME7, and ZmME8 having pI values above 7 (basic proteins), while the remaining members are acidic proteins. The overall hydrophobicity coefficient spans a range of −0.361~0.291, the average hydrophilicity coefficient values are consistently less than zero, indicating kinetically favorable properties for these proteins to bind water.

2.2. Chromosomal Localization and Collinearity Analysis

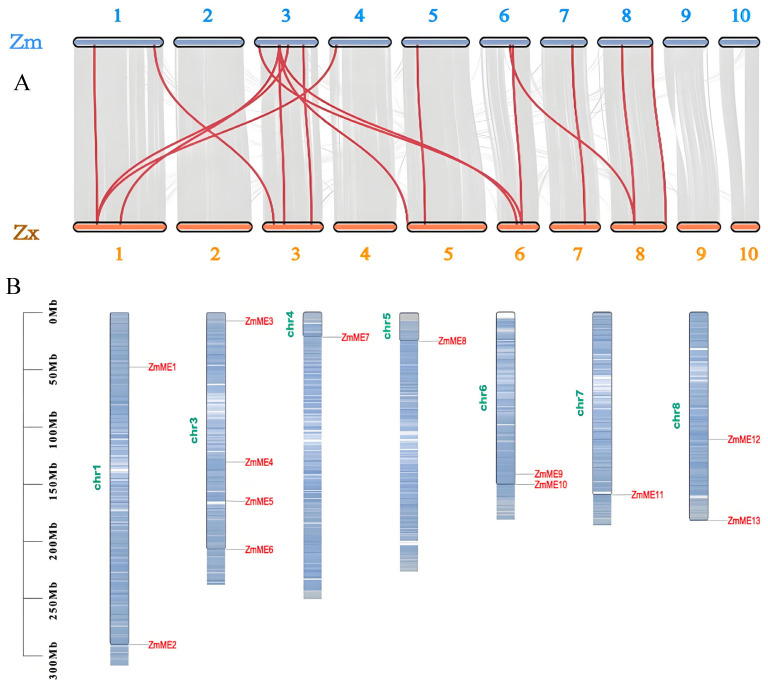

The collinearity analysis results demonstrated that ME genes were not detected on chromosomes 9 and 10, whereas the remaining eight chromosomes exhibited an uneven distribution of these genes (Figure 1A). Among these chromosomes, chromosome 3 contained four ZmME genes, while the others carried one to two ZmME genes each (Figure 1B). This suggests that ZmME gene family members are unevenly dispersed across chromosomes. Additionally, 16 collinear relationships were identified between the 13 ZmME genes and 12 ZxME genes (Figure 1A). Comparative analysis indicated that ZmME genes and ZxME genes exhibited minimal accumulated variations, sharing numerous conserved features and demonstrating high evolutionary conservation.

2.3. Phylogenetic Analysis of Gene Families

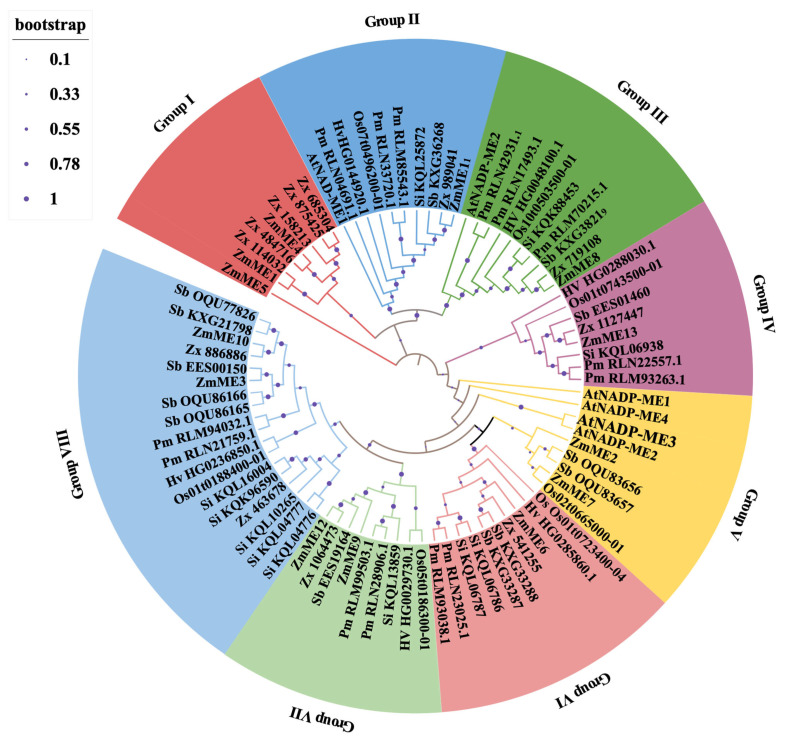

The results revealed that the 82 ME proteins were classified into eight subfamilies, with an uneven distribution of ZmME genes across these subfamilies (Figure 2). Subfamily I, the smallest group comprising only eight members, harbored the highest number of ZmME genes (three). In contrast, subfamilies II, III, IV, and VI each contained a single ZmME gene, whereas subfamilies V, VII, and VIII exhibited two ZmME genes per subfamily. Notably, phylogenetic analysis demonstrated that maize ME proteins exhibited the closest evolutionary relationship to and highest homology with those of teosinte ME suggesting functional conservation between maize and teosinte.

2.4. Conserved Motifs, Structural Domains and Gene Structure Analysis of Gene Family Members

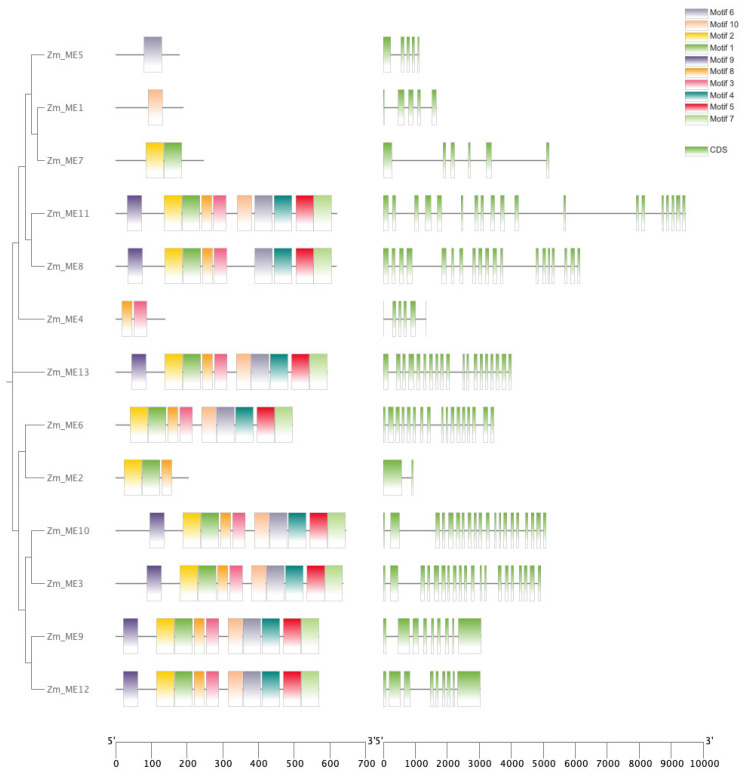

An analysis of the systematics of ZmME gene family members revealed (Figure 3) that 13 ZmME genes exhibited 1–10 conserved motifs, and these 13 ZmME genes were divided into three major branches. In the first branch, ZmME5 contained only one conserved motif Motif6, while ZmME1 contained only one conserved motif Motif10. The second branch included ZmME7 with two conserved motifs Motif2 and Motif1 and ZmME4 with two conserved motifs Motif8 and Motif3. In the third branch, ZmME2 had three conserved motif Motif2, Motif1, and Motif8, while the other developmental groups exhibited high similarity in their conserved motif. Conserved motifs are typically associated with protein functions. These motifs’ sequence information was submitted to the PFAM database for functional queries. The results demonstrated that the majority of genes were associated with oxidoreductase activity (GO:0016616) and exhibited malic enzyme activity (GO:0004470), indicating that these motifs play a pivotal role in the catalytic process of malic enzyme generation. The results indicate that the predicted conserved motif within the same developmental group of the ZmME gene family exhibit a high degree of identity and share relatively similar genetic structures.

2.5. Analysis of Promoter Cis-Acting Elements of Maize ME Family Members

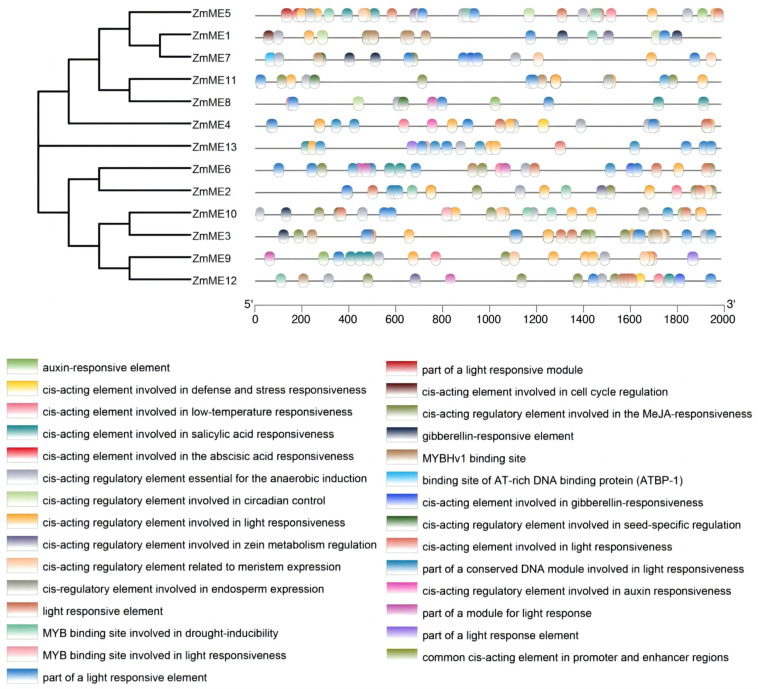

The bioinformatic analysis of cis-regulatory elements in the 13 ZmME genes identified 29 functionally significant elements within this gene family. (Figure 4). In maize, the promoters of these 13 ZmME genes contain varying numbers of functional elements such as growth hormone response elements TGA-box, GARE, and GCC-box, TGA-box regulates the expression of antioxidant enzyme genes (e.g., glutathione transferase) to mitigate oxidative damage. GARE controls stem elongation-related genes (e.g., GA20ox), promoting internode growth and flowering. GCC-box enhances stress resilience by enabling EIN3 binding under hypoxia or salt stress to activate stress-responsive genes. Integration of TGA-box and GCC-box coordinates plant adaptation to multiple stressors, abscisic acid trans-acting elements, and light response elements. Additionally, apart from the basic promoter elements such as CAAT boxes and TAAT boxes, they also possess multiple stress-related responsive elements, including ABA response elements, defense and stress response elements, heat response elements, cold response elements, and motifs associated with abiotic stress-induced responses. Furthermore, these promoters exhibit binding sites specifically related to drought-induction processes. These findings suggest that the ZmME gene family may play significant roles in developmental processes, such as regulating seed maturation and storage reserve accumulation, root elongation and morphogenesis, and reproductive growth, further indicating the critical regulatory functions of ME genes under adverse environmental conditions.

2.6. Expression Analysis of Maize Malic Enzyme Gene Under Abiotic Stresses

To investigate the expression patterns of the ZmME gene family under various abiotic stress conditions, this study examined the expression levels of different ZmME genes in seedlings at 42 °C high-temperature stress, 4 °C low-temperature stress, 250 mmol NaCl salinity stress, 20% PEG polyethylene glycol stress, and drought treatments at time points of 0 h (CK), 1 h, 3 h, 6 h, 12 h, and 24 h. Table 2 Primer information used in the transcriptional expression level detection of ZmMEgenes. The results showed that all five types of abiotic stress induced distinct differential effects on the expression of ZmME genes.

2.6.1. Drought Stress Treatments

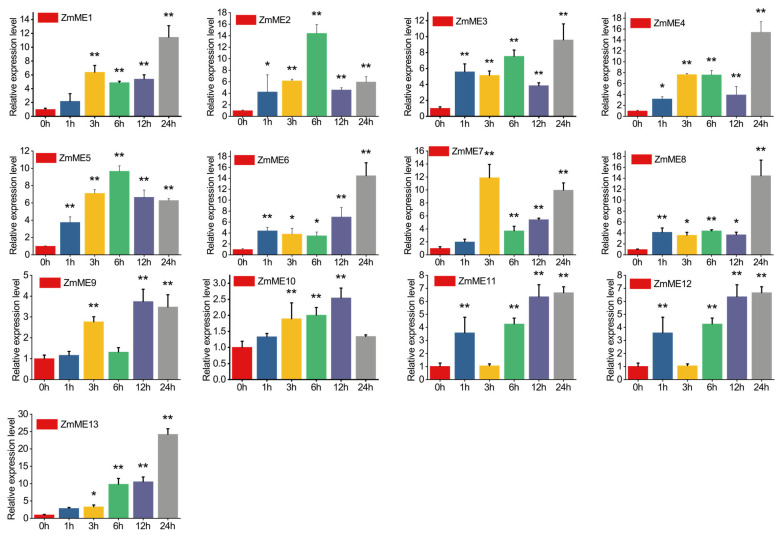

To investigate the drought responsiveness of the ZmME gene family, we evaluated the expression profiles of ZmME genes in maize leaf tissue under drought stress (Figure 5, Table S1). Thirteen ZmME genes displayed distinct temporal induction patterns, with fold-change increases ranging from 9.14 to 50.90 relative to the control. ZmME13 showed the highest level of expression at 50.90-fold induction. There was no significant difference in expression after stress at the 1 h time point. However, at the 3 h time point, the expression levels significantly deviated from those observed at the 0 h condition (p < 0.05), and this deviation became highly significant by the 6 h to 24 h time points compared to the control (p < 0.01). These results indicate that ZmME genes are strongly induced in response to drought stress.

2.6.2. High-Temperature Stress at 42 °C

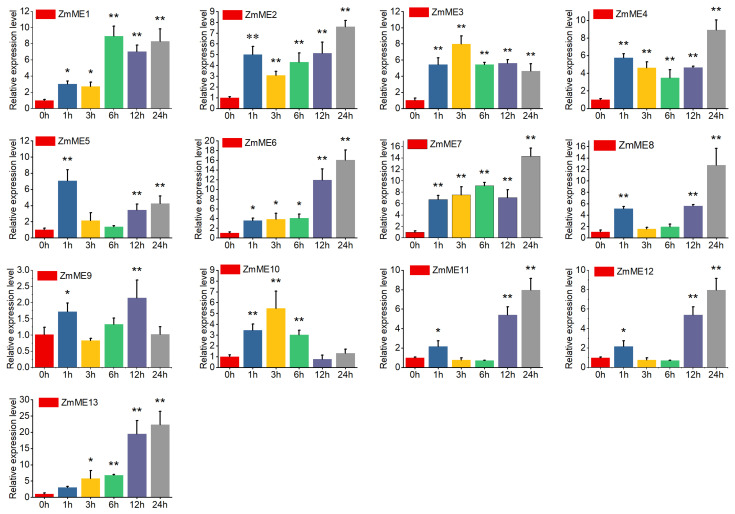

Under 42 °C elevated temperature stress, the expression levels of ZmME1-13 genes increased from 7.07- to 57.49-fold compared to the control (Figure 6, Table S2). ZmME13 exhibited the highest level of expression at a 57.49-fold induction. There was no significant difference in expression after stress at the 1 h time point. However, at the 3 h time point, the expression levels significantly deviated from those observed at the 0 h condition (p < 0.05), and this deviation became highly significant by the 6 h–24 h time points compared to the control (p < 0.01). These results suggest that ZmME genes are strongly induced in response to elevated temperature stress.

2.6.3. 4 °C Low-Temperature Stress Treatment

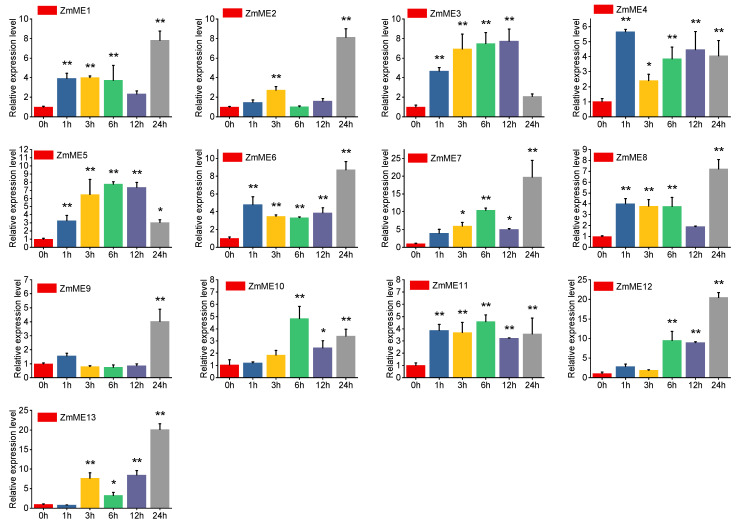

Under 4 °C cold stress treatment, the expression levels of ZmME1-13 increased from 7.98-fold to 45.19-fold compared to the control (Figure 7, Table S3). The highest fold increase was observed in ZmME7, reaching up to 45.19-fold relative to the control. No significant changes were observed after stress at the 1 h time point. However, there were significant differences between expression levels at 3 h and 12 h and those at 0 h (p < 0.05). At 6 h and 24 h, highly significant differences were observed in expression levels compared to the control (p < 0.01). Based on these findings, it can be inferred that ZmME genes are involved in the cold response of seedling maize plants.

2.6.4. 20% PEG Stress Treatment

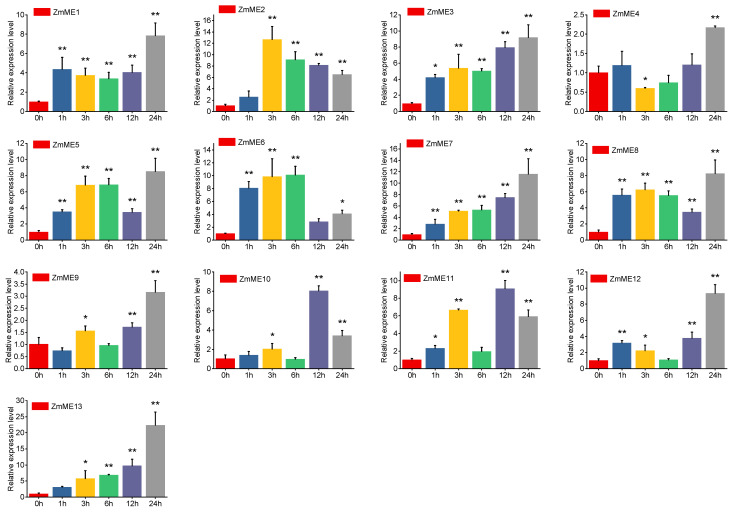

Under the 20% PEG treatment, the significant induction of ZmME genes was observed. The expression levels of ZmME1-13 were, respectively, increased to 5.93-fold and up to 47.75-fold compared to the control (Figure 8, Table S4). Among these, ZmME13 exhibited the highest level of expression, reaching 47.75-fold relative to the control. No significant changes were observed after treatment at the 1 h time point. However, a significant difference was detected between expression levels at 3 h and those at 0 h (p < 0.05). Furthermore, highly significant differences were observed in expression levels between the 6 h to 24 h treatments and the control (p < 0.01). These findings suggest that ZmME is also induced by PEG stress and shows a time-dependent pattern of expression.

2.6.5. 250 mmol·L−1 NaCl Stress Treatments

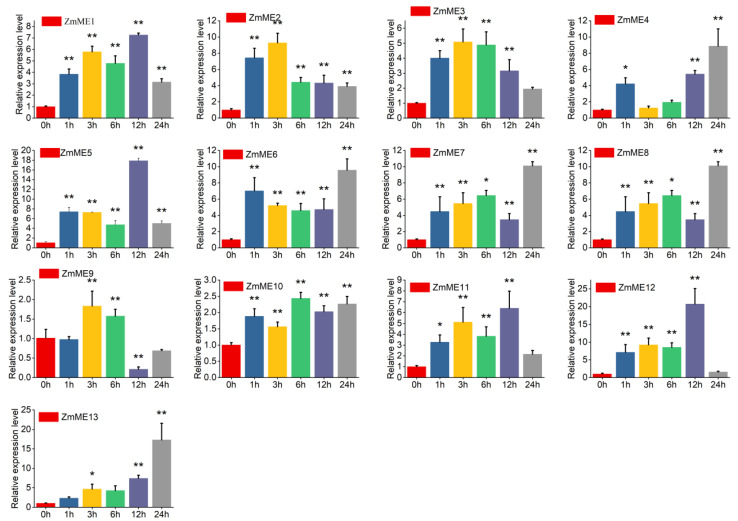

After treatment with 250 mmol·L^−1^ NaCl, the expression levels of ZmME ranged from 5.29-fold to 47.20-fold compared to the control (Figure 9, Table S5). Among these, ZmME13 exhibited the highest expression level at various time points: up to 47.20-fold relative to the control after treatment. For all other members in this group, their expression levels progressively declined over time, with significant differences observed between expression values at different time points and those measured at 0 h (p < 0.01). Notably, ZmME12 exhibited the highest level of expression among these genes across the entire stress period. After exposure to high salt stress for 24 h, its expression level significantly decreased back to baseline levels comparable to the untreated samples (p < 0.01). These findings suggest that ZmME is also induced by high salt stress and undergoes a dynamic pattern of expression over different time periods under such treatment conditions.

3. Discussion

ME is widely distributed in animals, plants, and microorganisms [28,29]. As a key enzyme participating in the tricarboxylic acid (TCA) cycle, it plays essential roles in organismal metabolism. In plants, the malic enzyme is involved in multiple critical metabolic pathways, including photosynthesis, respiration, and lipid biosynthesis [30]. It contributes significantly to maintaining cellular osmotic potential, stabilizing cytoplasmic pH, and regulating ion uptake balance in plant roots, making it one of the most vital enzymes in plant life activities. Therefore, investigating the identification of the ZmME gene family and its gene expression under stress conditions is crucial for providing important genetic resources for drought-resistant maize breeding. In this study, we successfully identified 13 ZmME gene family members using bioinformatics approaches based on known protein sequences of six Arabidopsis ME genes. Beyond maize, the ME gene family has been characterized in other species. According to the latest reports from NCBI’s Genome Data Viewer, rice contains 28 ME genes, whereas wheat harbors 39 ME genes, and they can have the same or different responses to different stresses. This may be related to the physicochemical properties of ME genes and the fact that each member assumes a different function in metabolism [31,32]. Chromosomal localization and covariance studies revealed that most of the genes were located on chromosomes, and the distribution of the chromosomes was shown to be uneven. The ZmME gene was present on only eight chromosomes and was unevenly distributed, but no significant correlation was obtained between the chromosome length and the number, while some of the genes were concentrated at either top or bottom of the chromosome. In the ME gene family, distinct chromosomal localization patterns were observed across species. Four NADP-ME isoforms designated MeNADP-ME1 to MeNADP-ME4 were identified in cassava Manihot esculenta, with MeNADP-ME1 and MeNADP-ME2 mapped to chromosome 16, while MeNADP-ME3 and MeNADP-ME4 were localized to chromosomes 11 and 4, respectively [33]. Similarly, pepper Capsicum annuum harbors five NADP-ME genes, CaNADP-ME1 to CaNADP-ME5, distributed across chromosomes 3, 5, 8, 9, and 12 [34]. This differential chromosomal distribution of ME family members in both species suggests potential functional diversification through sub functionalization or neofunctionalization, possibly reflecting distinct regulatory mechanisms and synergistic roles in plant metabolic processes.

Phylogenetic analysis of the ZmME gene family revealed eight sub-families. While the first subfamily contained three ZmME genes, the remaining subfamilies each harbored one to two ZmME genes. Notably, phylogenetic analysis revealed that malic enzyme genes from maize exhibit the closest evolutionary relationship with their orthologs in teosinte, suggesting conserved functional roles in these closely related species. Thirty-five plant NADP-MEs were classed into four distinct groups, forming the resulting phylogenetic tree: Group I consists of dicot cytosolic proteins, Group II consists of monocots, Group III encompasses dicot plastidic NADP-MEs, and Group IV includes dicot and monocot cytosolic proteins. (Fu, Zhen-Yan et al.). ZmcytME, C4(3)-NADP-ME and OscytME3 are classified as Group IV. The discrepancy with the other monocots NADP-ME indicates there are two independent evolution branches of NADP-ME in monocots. One branch represents the evolution of C4 cytosolic isoforms and the other represents the evolution of plastidic isoforms [35].

Through comprehensive analysis of conserved motifs, structural domains, and gene architectures of ZmME family members, we ultimately classified the 13 ZmME gene members into four subfamilies. The investigation of the conserved motifs revealed that ME proteins from identical subfamilies share most identical motifs while certain motifs exhibited specific spatial distributions restricted to identical motifs. In Arabidopsis, AtNAD-ME1 and AtNAD-ME2 were found to have 19 exons, and AtNAD-ME3 and AtNAD-ME4 have 18 exons [36]. The presence and distribution of exons and introns also play key roles in the evolution of gene families [37]. In this study, among the 13 ZmME gene, ZmME5 has only one motif, while the remaining genes contain multiple motifs, possibly due to mutations or duplication of conserved domains during evolution, which may enhance its binding affinity to downstream genes. We inferred that member within the same subfamily consistently shared identical conserved motif compositions, suggesting potential functional overlap and complementarity.

Cis-acting elements are critical regulatory components governing gene expression, modulating responses to developmental processes and environmental stimuli [38]. Promoter regions of ZmME family genes harbor diverse functional elements, including core promoter motifs (e.g., CAAT-box and TATA-box), as well as hormone- and stress-responsive elements such as ABA-responsive elements, defense/stress-responsive elements, heat- and cold-responsive elements. Similarly, hormone-responsive elements and ABA-responsive elements were found in bell peppers. Nevertheless, ABRE (ACGT-containing abscisic acid response element), which is involved in abscisic acid (ABA) responsiveness, was the cis-regulatory element that exerted the most remarkable positive effect on CaNADP-ME4 [34]. Additionally, abiotic stress- and light-responsive elements are widely distributed in ZmME promoters. Previous studies have demonstrated a significant positive correlation between upstream promoter regions and their associated cis-acting elements [39,40,41], indicating that ZmME gene family members likely participate in light signaling, stress adaptation, and hormonal regulation. Notably, as Poaceae members, both maize and rice exhibit enriched light-responsive elements in ZmME promoter regions, suggesting these elements play pivotal roles in maize growth and non-stress physiological processes. Intriguingly, distinct combinatorial patterns of cis-acting elements among genes—such as ZmME5 and ZmME13—may reflect functional specialization. For instance, genes containing “anaerobic induction elements” might be activated under hypoxic conditions (e.g., waterlogging), while those with “endosperm expression elements” could regulate seed development or storage compound biosynthesis. ZmME13 harbors drought-inducible MYB-binding sites in its promoter, which likely drives its highly induced expression under drought stress. These findings collectively underscore the functional importance of ZmME genes in plant growth and environmental adaptation.

Expression pattern analysis provides a crucial foundation for determining gene functions [42] in the ZmME gene under different conditions of stress treatment. Plants possess a sophisticated stress signal transduction system that activates their intrinsic defense mechanisms through hierarchical signaling cascades when subjected to external stresses. Most stress signals can induce the expression of defense-related genes [43]. For instance, expression profiling of the WRKY gene family in maize has revealed its expression patterns under abiotic stresses, offering new insights into the signaling pathways involved in maize responses to abiotic stress [44]. Overexpression of NADP-ME in rice enhances the salt tolerance of transgenic Arabidopsis seedlings. Moreover, the NADP-ME activity in leaves and roots also increases with the increase in the NaCl concentration. Similarly, the activity of NAD-ME and NADP-ME in the leaves of eucalyptus increased under salt stress, which provided a reducing power for the cells to resist salt stress. We speculate that ME is mainly used in three ways after being induced by salt stress. The enhanced activity of NADP-ME confers salt stress tolerance through three distinct mechanisms: First, it elevates NADPH production, which scavenges reactive oxygen species (ROS) to mitigate oxidative damage, second, the generated NADP serves as a cofactor for osmo-protectant biosynthesis, while the concomitant accumulation of malate the enzymatic product of NADP-ME paradoxically exacerbates osmotic stress under saline conditions. Finally, this malate synthesis pathway contributes to cytosolic pH homeostasis by counteracting the alkalinization induced by salt stress [17]. Northern and Western blot data indicated that in aloe, the NADP-ME gene was strongly induced by high salt. The increases in transcript levels and translation levels of NADP-ME in leaf tissue during salt stress suggest that this gene is responsible in part for salt tolerance in aloe [45]. Studies have shown that long-term low temperature induces an increase in the malate content or NADP-ME activity in rye (Secale cereale L.). When the low-temperature stress is removed, both the malic acid content and enzyme activity decrease. The above results indicate that rye not only regulates the malic acid content as a good osmotic adjustment substance but also responds to the osmotic stress caused by low temperature by regulating the NADP-ME activity. NADP-ME can not only be a good osmotic adjustment substance by participating in some enzymatic reactions but also balance the higher solute concentration in cells caused by low temperature [46]. ME is not only related to low-temperature stress, but also plays an important role in high-temperature stress. The NAD-ME activity in C3 plant rice increased with increasing temperature within a certain temperature range. Under drought stress, a new ~122 kDa NAD-ME subtype was formed in the mitochondria of the bundled sheath (BS) cells of the amaranth. After watering was resumed, the isomer (~122 kDa) disappeared again. Due to the emergence of new isomers, the activity of NAD-ME in the mitochondria of BS cells increased, which seems to indicate that the new NAD-ME subtype is related to plant drought resistance [47]. However, its specific mechanism of action requires further research. Similarly, using quantitative RT-PCR and immunochemical methods, the specific activity of NADP-ME in tobacco leaves was determined to significantly increase under drought stress, and the de novo synthesis of NADP-ME was enhanced. During the recovery period, the activity of the test enzyme recovered to near its basal level [16]. Changes in enzyme activity and content provide indirect evidence for the involvement of NADP-ME in the response to drought stress. The above results were consistent with the findings of this work, in which ME genes were expressed and played different roles to different degrees under stress treatments such as drought, low temperature, high temperature, and salt.

4. Materials and Methods

4.1. Experimental Methods

4.1.1. Identification of ZmME Gene Family Members

For the protein sequence information of six MEs (NADP-ME and NAD-ME) reported by the uniport database, https://www.uniprot.org/, for maize, teosinte, sorghum, rice, barley, millet, and proso millet, we downloaded their genome and annotation files. We used the local BLASTP v.2.6.0 (E < 1 × 10^−10^, identify > 50%) to perform sequence comparison analysis, with the results being the candidate members of the ME gene family in maize. We, reassigned the names of the members of this gene family based on their locations on the chromosomes. We used online software ExPASy, http://web.expasy.org/protparam/ (accessed on 18 December 2024) to predict and analyze the basic physicochemical properties of the ME proteins formally, including the molecular weight, amino acid number, and isoelectric point.

4.1.2. Chromosomal Localization and Collinearity Analysis

Maize and sorghum genome-wide co-linearity analysis was conducted using McScan X with a minimum module gene number of 5. ME genes from maize and sorghum were aligned, and orthologous genes (>90% identity) were identified as originating from the same source. A co-linearity map was generated for maize and sorghum, with red highlighting applied to ME genes on different chromosomes that belonged to the same source.

4.1.3. Phylogenetic Analysis of Gene Families

The amino acid sequences of the identified gene family members were aligned using Clustal W for multiple sequence alignment. Phylogenetic trees were subsequently constructed with MEGA11 software, employing the Neighbor-Joining method with 1000 bootstrap replicates and default parameters. This approach refined the tree topology, allowing clear visualization of distinct clades and their branching characteristics [48].

4.1.4. Conserved Motifs, Structural Domains and Gene Structure Analysis of Gene Family Members

Structural information of the ZmME family genes was obtained from the genome data of maize. The conservative base prediction of the ZmME protein sequences was performed using the online analysis software MEME (http://meme-suite.org/tools/meme (accessed on 18 December 2024)) with parameter settings as follows: maximum number of motifs as 10, occurrences of a single motif, set to zero or one per sequence [40]. The remaining parameters were set to default. Gene structure information was extracted from the genome annotation files. TBtools v0.665 were utilized to integrate and visualize the motif, conservative protein structure, and gene structural results of the ZmME family [41].

4.1.5. Gene Family Promoter Cis-Acting Element Analysis

We used seqkit to extract the upstream 2000 bp sequences of the transcription start sites (TSSs) for the ZmME family genes. These sequences were then submitted to the Plant CARE website http://bioinformatics.psb.ugent.be/webtools/plantcare/html/ (accessed on 18 December 2024) for functional prediction, aiming to identify potential upstream cis elements involved in gene regulation [42]. The prediction results were classified and organized before being integrated into a comprehensive visualization using TBtools based on motif conservation analysis and genomic structural data of the ZmME family genes.

4.1.6. ZmME Gene Family Expression Analysis

We selected size-equivalent B73 maize inbreeding lines as the experimental material. The seeds were soaked in a 0.5% hypochlorite sodium solution, stirred and soaked again, and then washed repeatedly with sterile water to ensure cleanliness. The planting was carried out in a controlled environment with an ambient temperature of 25 °C and relative humidity of 60%. After germination for seven days, the seedlings were transplanted into plastic pots. At the stage of three leaves and one stem, different stress treatments were applied: simulated drought stressed conditions (with air filters set at 50% relative humidity), high-temperature stressed conditions (42 °C), low-temperature stressed conditions (−4 °C), high NaCl stressed conditions (250 mmol/L), and PEG6000 polyethylene glycol stressed conditions. Sampling was performed at different time points: 0 h, 1 h, 3 h, 6 h, 12 h, and 24 h after the stress treatments. The samples were collected with liquid nitrogen, divided into sealed bags with labels, and stored in a −80 °C freezer for future RNA extraction and cDNA synthesis.

4.1.7. Maize ZmME Gene qRT-PCR Validation

qRT-PCR using ZmActin-1 as the reference gene was performed for the analysis of the relative expression levels of the ZmME gene family. The reaction mixture contained 10 μL of TB Green Premix Ex Taq II (Tli RNaseH Plus), 0.8 μL each of PCR forward primer and PCR reverse primer, 2 μL DNA template, and 6.4 μL of sterile water, totaling a final volume of 20 μL. The relative expression levels were calculated based on the experimental results obtained using the TB Green Premix Ex Taq II (Tli RNaseH Plus) qPCR mix kit (Takara) in the Light Cycler 96 fluorescent quantitative PCR instrument (Roche).

4.1.8. Data Processing

Data processing was performed using SPSS 20.0 software for statistical analysis and analysis of variance (ANOVA), with the mean values and standard deviations calculated (significant differences were defined at p < 0.05, and highly significant differences at p < 0.01).

5. Conclusions

This study identified 13 members of the ZmME gene family in maize, and conducted a comprehensive analysis of their physicochemical properties, evolutionary relationships, and collinearity relationship. The ZmME gene family exhibits high stability during long-term evolution and high conservation among crop legumes. Through the analysis of promoter-sequential elements, it was discovered that the ZmME family contains stress-responsive motifs and drought-induction binding sites. Under drought stress, these genes may play a regulatory role. Notably, based on the highly induced expression of ZmME13 under various stress treatments, we conclude that ZmME13 is a promising candidate gene with significant potential for stress resistance. Currently, ME gene families from many other species remain understudied, and the functional roles of their members and their involvement in stress response expression patterns are still unclear. Therefore, this study provides a theoretical foundation for subsequent investigations into the molecular biology functions of ZmME gene family members in maize.
