Long-term performance evaluation of a 1.5T MR-Linac using statistical process control techniques
Qing Xiao, Mengdie Shen, Guangjun Li, Shipai Zhu, Jinrong He, Qiang Wang, Guyu Dai, Hang Yu, Jialu Lai, Renming Zhong, Sen Bai
TL;DR
This study evaluates the long-term performance of a 1.5T MR-Linac using statistical process control to identify stability and areas needing improvement in radiotherapy systems.
Contribution
Applies statistical process control to assess long-term MR-Linac performance, identifying variability in beam quality and geometric distortion.
Findings
Beam quality was stable (Ppk ≥ 1.33), but output dose and symmetry showed increased variability over time.
MR-to-MV alignment remained consistent, but Phi and Z offsets varied after system upgrades.
Geometric distortion increased in larger volumes, particularly along the AP axis.
Abstract
The integration of magnetic resonance imaging with linear accelerators (Linacs) enhances adaptive radiotherapy by providing real-time imaging for improved treatment precision. However, the long-term performance of MR-Linac systems, particularly in clinical settings, remains insufficiently studied. Traditional quality assurance (QA) methods, relying on binary pass/fail criteria, may overlook critical system variations. This study applies statistical process control (SPC) techniques to evaluate the long-term performance of a 1.5T MR-Linac, focusing on optimization in beam quality, MR-to-MV alignment, MR imaging, and geometric distortion. A dual-phase SPC framework was applied to 1 year of daily and weekly QA data from an Elekta Unity MR-Linac. Phase I established performance benchmarks, while Phase II monitored deviations online. Evaluated parameters included beam output, symmetry,…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12- —https://doi.org/10.13039/501100001809National Natural Science Foundation of China
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAdvanced Radiotherapy Techniques · Medical Imaging Techniques and Applications · Radiation Therapy and Dosimetry
Introduction
The magnetic resonance linear accelerator (MR-Linac) integrates high-field (1.5T) magnetic resonance imaging (MRI) with a precision radiotherapy system, enabling real-time imaging and adaptive treatment planning [1]. This combination offers unparalleled advantages in soft-tissue visualization and treatment accuracy, making it a cornerstone of modern adaptive radiotherapy (ART). However, ensuring the system’s reliability and stability in clinical practice requires robust quality assurance (QA) protocols [2, 3].
The integration of MR with a Linac introduces unique QA challenges [4]. The high-field magnetic environment can affect beam characteristics, compromising dose accuracy and consistency [5, 6], while Linacs may further degrade magnetic field uniformity, causing image artifacts [7]. Achieving high-quality MR images, with stable signal-to-noise ratio (SNR), accurate scaling, and minimal geometric distortion, is essential for adaptive treatment planning [8, 9]. Routine QA must evaluate both imaging quality and geometric accuracy to ensure clinical efficacy [4, 8].
Despite the critical importance of QA for MR-Linac systems, existing protocols remain insufficiently established, creating challenges in ensuring consistent performance across clinical implementations [2]. Traditional QA approaches, predominantly based on binary pass/fail criteria, offer simplicity but lack the sensitivity to detect subtle performance trends or gradual deviations in key metrics, such as beam characteristics or imaging quality, especially over extended periods [10, 11]. This limitation not only restricts their effectiveness in long-term performance monitoring but also highlights the need for advanced and dynamic QA methodologies tailored to the unique complexities of MR-Linac systems [11, 12].
Statistical process control (SPC) is a well-established tool in quality management and has recently gained attention in radiotherapy QA [10, 13–15]. Unlike conventional methods, SPC enables dynamic monitoring of process stability and provides deeper insights into system performance [10, 16]. Specifically, SPC offers three key advantages: (1) it detects minor process variations that binary methods may overlook; (2) it evaluates the current state of the process through control charts, allowing for proactive intervention; and (3) it supports continuous improvement using performance metrics such as process capability indices or process performance indices. The application of SPC to MR-Linac QA offers a promising approach to overcome limitations of traditional QA methods and ensure consistent performance over time [12].
This study applies a comprehensive SPC framework to assess the long-term performance stability of an Elekta Unity MR-Linac over a 1-year clinical operation period. Daily and weekly QA data, including key metrics such as beam consistency, MR-to-MV isocenter alignment, MR image quality parameters, and geometric distortion, were systematically analyzed. A dual-phase SPC framework was adopted: Phase I involved retrospective baseline analysis to establish performance benchmarks, while Phase II focused on real-time monitoring to detect deviations and maintain stability. The study aims to (1) ensure the MR-Linac achieves the high precision required for adaptive radiotherapy and (2) identify critical QA parameters for process optimization. These efforts contribute to the development of standardized QA protocols and support the integration of enhanced QA practices into routine clinical workflows.
Materials and methods
This study investigates the long-term stability of an Elekta Unity MR-Linac (see Fig. A1a in Additional file 1 for details) through daily and weekly QA data analysis using SPC techniques. Monthly and annual QA tests, being less frequent, were excluded from the scope of this study. The QA program comprises four core components: (1) beam quality checks, (2) MR-to-MV isocenter alignment, (3) MR image quality evaluations, and (4) MR geometric distortion analysis. A detailed summary of the QA tests, including their associated phantoms, properties tested, and measurement frequency, is presented in Table 1. The coordinate system follows the IEC 61217 standard for radiation therapy equipment positioning [17].Table 1. Overview of QA tests and measurement parameters for MR-Linac systemsTestDeviceSubsystemTested PropertiesFrequencyBeam quality checksSun Nuclear Daily QA-MRLinac (Gantry 0° and 180°)Energy, output, transverse and axial symmetry, shape constancy, and field size shiftDailyMR-to-MV concordanceElekta MR-to-MV phantomMR and MV radiation isocentersTranslation offset (X、Y、Z); Rotation offset (Psi、Phi、Theta)DailyMRL_QA_SNRPhilips 200 mm head PhantomMarlin anterior and posterior coilsSNR, uniformityDailyMRL_QA_SCALINGPhilips 200 mm head PhantomMarlin anterior and posterior coilsSmall FOV spatial scalingDailyPeriodic image quality test (PIQT)Philips 200 mm head PhantomAll Marlin coilsSNR, uniformity, spatial linearity, slice profile, spatial resolutionDaily3D geometric QA3D geometric QA PhantomMarlin system body coilLarge FOV geometric distortionWeeklyMR = magnetic resonance; MV = megavoltage; SNR = signal-to-noise ratio; FOV = field of view; QA = quality assurance; Linac = linear accelerator
Beam quality checks
Beam quality checks were performed to assess the stability of the Linac output using the MR-compatible Daily QA-MR device (DQA, Sun Nuclear Corporation, Melbourne, FL), a system widely recognized for its application in MR-Linac QA [2, 3, 18], as illustrated in Fig. A1-b of Additional File 1. To account for the unique characteristics of the MR-Linac’s ring-shaped structure, measurements were conducted at both gantry angles of 0° and 180°, unlike conventional DQA protocols that typically assess only at 0°. Daily QA data were systematically analyzed to evaluate short-term variations and long-term trends, focusing on key metrics such as output consistency and symmetry (summarized in Table 1).
MR-to-MV concordance
The MR-to-MV alignment tests assessed the spatial congruence between MR and MV isocenters using the Elekta MR-to-MV QA phantom (Fig. A1-e in Additional File 1), containing seven ceramic spheres immersed in copper sulfate [3, 18, 19]. Simultaneous acquisition of MV images at 10 predefined gantry angles (e.g., 0°, 60°, 78°) and a T1-weighted MR image was performed [18]. Translational (X, Y, Z) and rotational (Psi (ψ), Phi (φ), Theta (θ)) offsets—defined according to the IEC 61217 coordinate system—were calculated using vendor-provided QA alignment software to evaluate deviations relative to the baseline established during commissioning. This test ensured that alignment deviations remained within the clinical tolerance of 1.0 mm [18], ensuring precise imaging and treatment delivery.
MR image quality tests
Daily MR image quality was assessed using the Philips 200 mm head phantom (Fig. A1-c and d in Additional File 1) with the vendor-provided system performance tool (SPT) for automated image acquisition and analysis [3, 20]. Three key tests performed were: (1) periodic image quality test (PIQT): Evaluates parameters such as signal-to-noise ratio (SNR), uniformity, spatial linearity (SPL), spatial resolution (SPR), and slice profile (SLP); (2) SNR Test: Measures element-wise SNR for the Marlin anterior and posterior coils; (3) Scaling Test: Verifies geometric accuracy in transverse and coronal planes within a small FOV. The phantom was positioned horizontally for coronal scaling and vertically for other tests. For details, see Subashi E et al. [20].
The PIQT test does not assess the element-wise SNR or coronal scaling. Although the SNR and scaling tests partially overlap with PIQT, all tests were conducted daily to ensure comprehensive monitoring of imaging system performance. A total of 70 imaging parameters were analyzed to ensure consistency and accuracy.
MR geometric distortion tests
Geometric distortion tests were conducted weekly using a 3D geometric QA phantom with 1932 grid markers [8, 20]. The phantom consisted of fiducial markers arranged in a precisely machined grid (Fig. A1-f in Additional File 1). Geometric distortion was calculated as the deviation between the measured and known marker positions. Distortion values were monitored across spherical volumes of varying diameters (200, 300, 400, and 500 mm). These tests ensured geometric fidelity, crucial for accurate target delineation during treatment planning.
Data processing and SPC analysis
QA data were collected from the Elekta Unity MR-Linac system at West China Hospital. A Python-based framework was developed to automate data extraction, processing, and analysis. SPC methods were implemented to monitor system performance and detect deviations over time. Correlation analysis was performed to assess the geometric accuracy between the PIQT and Scaling Test. Pearson correlation coefficients were calculated and visualized in heatmaps.
SPC framework
Individual (I) Charts and Individual-Moving Range (I-MR) Charts are among the most commonly used control charts for monitoring processes with single observations, as described in Montgomery’s textbook [21]. In this study, individual control charts were constructed using a weighted standard deviation (WSD)-based method, which is well-suited for both normal and non-normal distributions [22, 23]. Key equations for the analysis are as follows:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${MR}_{i}=\left|{X}_{i}-{X}_{i-1}\right|$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\overline{MR }=\frac{\sum_{i=2}^{N}{MR}_{i}}{N-1}$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${CL}_{X}=\overline{X }=\frac{\sum_{i=1}^{N}{X}_{i}}{N}$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$P_{X} = \frac{{\mathop \sum \nolimits_{i = 1}^{N} I\left( {\overline{X} - X_{i} } \right)}}{N},\;I\left( x \right) = \left\{ {\begin{array}{*{20}c} {1,x \ge 0} \\ {0,x < 0} \\ \end{array} } \right.$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${LCL}_{X}=\overline{X }-\frac{3\cdot \overline{MR}}{{d }_{2}^{WSD}}{\cdot 2\left(1-P\right.}_{X})$$\end{document} \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${UCL}_{X}=\overline{X }+\frac{3\cdot \overline{MR}}{{d }_{2}^{WSD}}{\cdot 2P}_{X}$$\end{document}Here, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${MR}_{i}$$\end{document} quantifies the variability between consecutive data points. The central line ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${CL}_{X}$$\end{document} ) corresponds to the process mean ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\overline{X }$$\end{document} ). The proportion of positive deviations ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${P}_{X}$$\end{document} ) captures asymmetry in the data distribution, while the lower ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${LCL}_{X}$$\end{document} ) and upper ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${UCL}_{X}$$\end{document} ) control limits incorporate weighted variability to detect process trends and deviations. The control chart constant ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${d}_{2}^{WSD}$$\end{document} ) is used to reliably estimate process variability, ensuring accurate calculation of control limits [22, 23]. Considering the impact of sampling variability on the performance of I-charts, a median-based tolerance limit method previously reported in the literature [24] was adopted.
This WSD-based SPC framework was implemented in two phases. Phase I used historical QA data from the first 8 months to establish control limits and achieve statistical control through an iterative refinement process [23, 24]. For each evaluation metric, 1000 independent random samples were generated through random sampling of the Phase I data. Within each sampled dataset, out-of-control points were identified and removed, and the lower and upper control limits (LCL and UCL) were recalculated iteratively until statistical control was achieved. The final control limits for each metric were defined as the median values of the 1000 resulting LCLs and UCLs. A detailed example of the control limit calculation process is provided in Additional file 2.
All original Phase I data points, including initially identified outliers, were retained when constructing the control charts, although out-of-control points were excluded during control limit calculation. This approach preserves the original data structure and provides a complete representation of the process variability observed during Phase I. In Phase II, the control limits established during Phase I were applied to real-time QA data to monitor for potential process shifts and deviations over time. This two-phase framework enables systematic tracking of performance stability in clinical applications.
Process performance analysis
The process performance index ( \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${P}_{pk}$$\end{document} ) was calculated to evaluate the long-term performance of the MR-Linac system. For dual-sided specification limits, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${P}_{pk}$$\end{document} was determined using the formula [25]:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$P_{pk} = \min \left\{ {\frac{{\overline{X} - LSL}}{{6\left( {1 - P_{X} } \right)s}}\frac{{USL - \overline{X}}}{{6P_{X} s}}} \right\}$$\end{document}Here, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\overline{X }$$\end{document} is the process mean, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$s$$\end{document} is the standard deviation, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${P}_{X}$$\end{document} is the proportion of positive deviations, and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$LSL$$\end{document} and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$USL$$\end{document} are the lower and upper specification limits, respectively. For single-sided specifications, the corresponding calculation used either \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\frac{{\overline{X} - LSL}}{{6\left( {1 - P_{X} } \right)s}}$$\end{document} or \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\frac{{USL - \overline{X}}}{{6P_{X} s}}$$\end{document} , depending on the specification orientation.
Based on \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${P}_{pk}$$\end{document} , process performance was graded into four levels (Table 2), ranging from optimal (“A + ”) to poor (“C”). Grades “A + ” and “A” were deemed optimal or acceptable, while grades “B” and “C” indicated moderate risk or poor performance, requiring corrective action. The specification limits were primarily derived from the Elekta MR-Linac consortium report [2] and vendor-provided reference data. In addition, although most capability classifications reported in the literature refer to Cp or Cpk indices, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${P}_{pk}$$\end{document} values follow similar interpretative principles for assessing long-term process performance. Therefore, the thresholds for \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${P}_{pk}$$\end{document} -based classification (1.00, 1.33, and 1.67) in this study were determined by analogy to these established criteria [21, 26–29].Table 2. Process capability grading based on PpkGradePpk valueProcess descriptionA +Ppk ≥ 1.67Optimal; exceeds specifications, high confidenceA1.67 > Ppk ≥ 1.33Good; meets specifications, maintain stabilityB1.33 > Ppk ≥ 1Acceptable; moderate risk, improvement recommendedCPpk < 1Poor; significant improvement requiredPpk = process performance index
Results
A systematic evaluation of beam quality, MR-to-MV alignment, MR image quality, and 3D geometric distortion is presented below. To complement the main results and provide additional distributional insights, detailed statistical analyses—including skewness, kurtosis, and normality test results—are available in the supplementary material (Additional file 1, Tables A1–A4).
Beam quality analysis

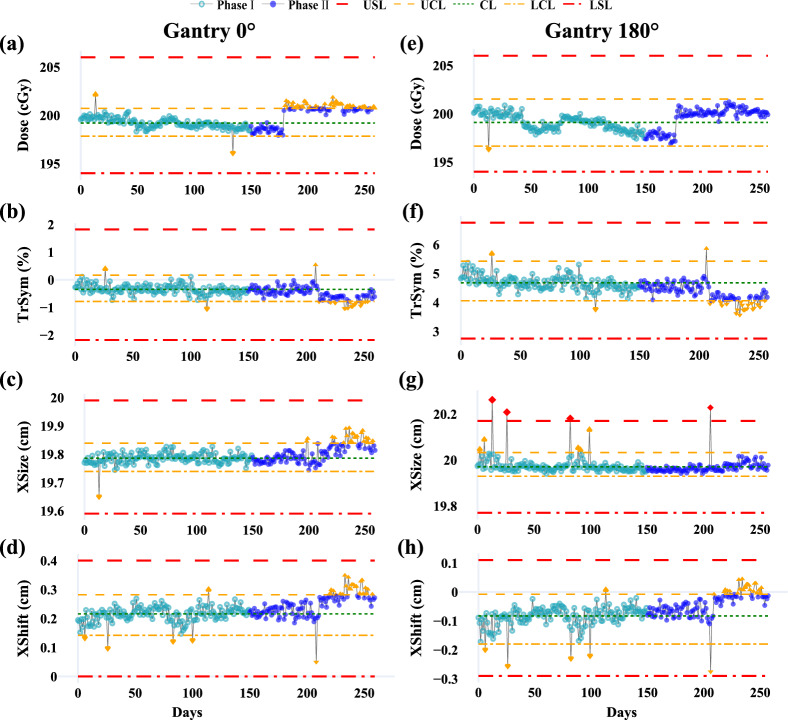

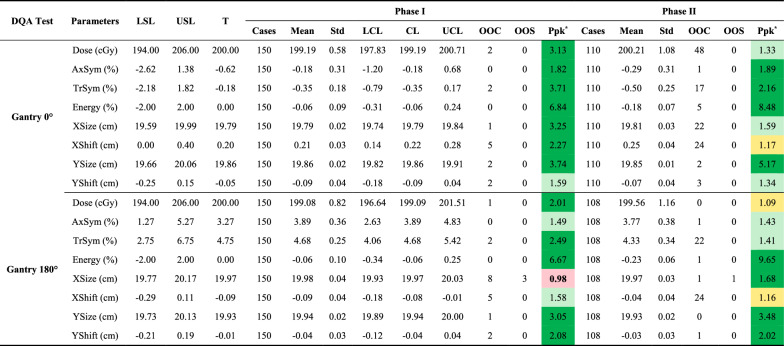

This study assessed beam quality parameters at gantry angles 0° and 180°, including output dose (Dose), axial and transverse symmetry (AxSym, TrSym), energy stability (Energy), field size along the lateral (XSize) and longitudinal (YSize) axes, and beam positional shifts in the same directions (XShift, YShift). Key findings are presented in Table 3. AxSym, Energy, YSize, and YShift showed stable performance with Ppk > 1.33 and out-of-control (OOC) rates < 5.0%, indicating well-controlled processes. In contrast, Dose, TrSym, XSize, and XShift exhibited higher OOC rates (Fig. 1). A 1.5% underdosing detected during monthly QA necessitated recalibration, causing a shift in dose output at the 180th data point for both angles.Table 3. Summary of beam quality parameters from the DQA test at gantry 0° and 180°DQA = daily QA; LSL = lower specification limit; USL = upper specification limit; T = baseline (target) value; Std = standard deviation; LCL = lower control limit; CL = central line; UCL = upper control limit; OOC = out-of-control cases; OOS = out-of-specification cases; Ppk = process performance index; AxSym = axial symmetry, TrSym = transverse symmetry; XSize = beam size along the X axis; XShift = beam shift along the X axis; YSize = beam size along the Y axis; YShift = beam shift along the Y axis^*^: Color coding for Ppk: Green: A + (Ppk ≥ 1.67); Light green: A (1.67 > Ppk ≥ 1.33); Yellow: B (1.33 > Ppk ≥ 1.00); Light red: C (Ppk < 1.00)Fig. 1. Control charts for beam quality parameters (Dose, TrSym, XSize, and XShift) at gantry 0° (a–d) and gantry 180° (e–h) during Phase I (light teal blue) and Phase II (blue). Red dashed lines indicate specification limits (LSL, USL), orange dashed and dash-dot lines represent control limits (UCL, LCL), and the green dotted line marks the central line (CL). OOC points are shown as orange triangles, and OOS points are red diamonds
Performance declined notably for Dose and TrSym in Phase II. At gantry 0°, Dose Ppk dropped from 3.13 to 1.33, with OOC rates rising to 43.6%. At gantry 180°, while no OOC points were observed, Dose Ppk fell from 2.01 to 1.09, reducing its rating from A + to B. TrSym variability increased at both angles, with OOC rates exceeding 15.4%. Positional parameters showed similar trends; for gantry 0°, XShift Ppk fell from 2.27 to 1.17, and OOC rates rose to 21.8%. XSize showed reduced stability at gantry 0° but improved at gantry 180°, with Ppk increasing from 0.98 to 1.68 and OOC rates declining to 0.9%. A single out-of-specification (OOS) event at gantry 180° was attributed to a setup error. The observed trends in TrSym and XSize fluctuations aligned with the increased variability in XShift during Phase II (Fig. 1).
MR-to-MV concordance analysis

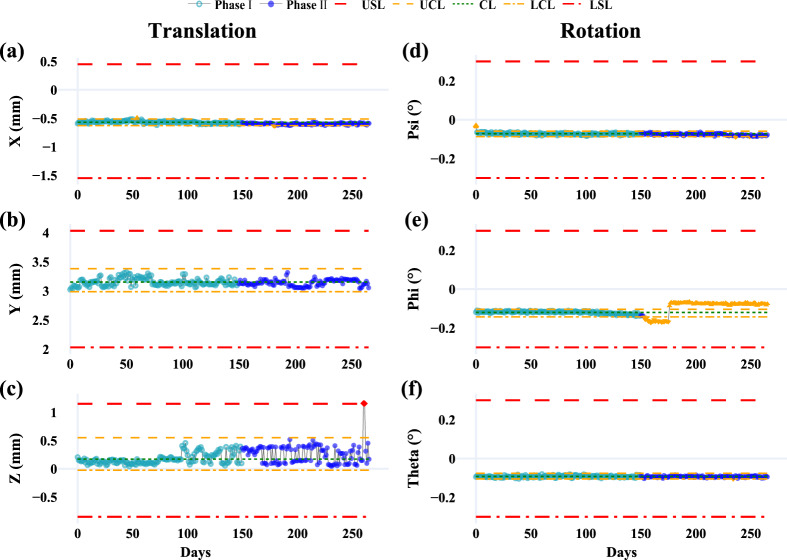

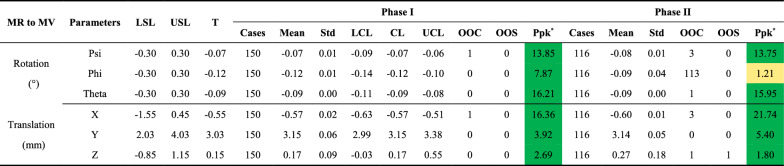

Table 4 summarizes the MR-to-MV alignment performance, evaluating rotational (Psi, Phi, Theta) and translational (X, Y, Z) offsets. All parameters maintained A + performance (Ppk ≥ 1.80) except for the Phi rotational offset in Phase II, where performance declined to B (Ppk = 1.21). Control charts are shown in Fig. 2.Table 4. Summary of MR-to-MV alignment performance for rotational and translational offsets during Phase I and Phase IIMR to MV: Magnetic resonance to megavoltage alignment; LSL = lower specification limit; USL = upper specification limit; T = baseline (target) value; Std = standard deviation; LCL = lower control limit; CL = central line; UCL = upper control limit; OOC = out-of-control cases; OOS = out-of-specification cases; Ppk = process performance index^*^: Color coding for Ppk: Green: A + (Ppk ≥ 1.67); Light green: A (1.67 > Ppk ≥ 1.33); Yellow: B (1.33 > Ppk ≥ 1.00); Light red: C (Ppk < 1.00)Fig. 2. Control charts for MR-to-MV alignment parameters during Phase I (light teal blue) and Phase II (blue). Translation parameters are shown in a X, b Y, and c Z, while rotation parameters are shown in d Psi, e Phi, and f Theta. Red dashed lines indicate specification limits (LSL, USL), orange lines (dashed and dash-dot) represent control limits (UCL, LCL), and the green dotted line marks the central line (CL). OOC points are shown as orange triangles, and OOS points are red diamonds
In Phase I, translational offsets along X, Y, and Z were well-controlled, with only one OOC point in the X direction. Rotational offsets also remained stable, except for one OOC point in Psi. These results indicate consistent MR-to-MV spatial alignment during Phase I.
Phase II, however, showed reduced performance. While the Y translational offset remained stable, other parameters exhibited increased variability. The Phi rotational offset notably deteriorated, with 86% of data points out-of-control, lowering its Ppk to B. Variability also reduced the Z rotational offset’s Ppk from 2.69 to 1.80, aligning with the fluctuations in Fig. 2. On the same day as the observed OOS event, restarting the Linac and Marlin MR system restored all parameters to normal. Additionally, increased variability in the Z translational offset was noted from data point 95 (Fig. 2c), coinciding with the Marlin MR system upgrade on March 9, 2024.
MR image quality analysis

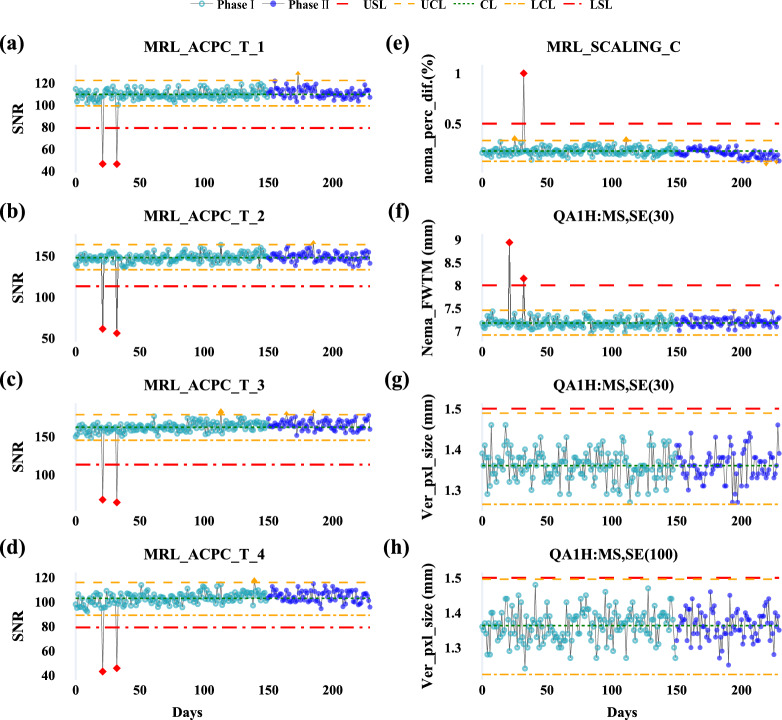

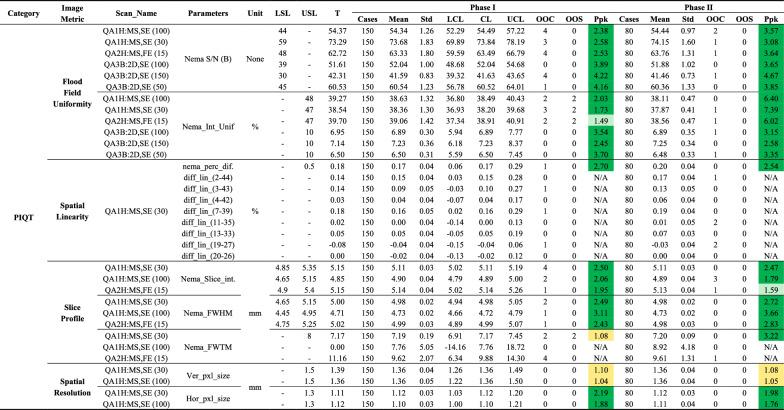

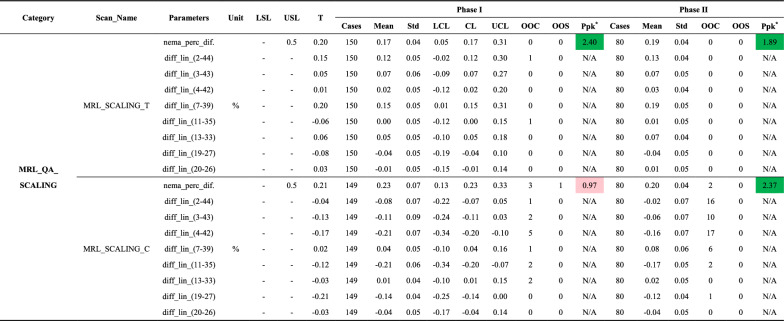

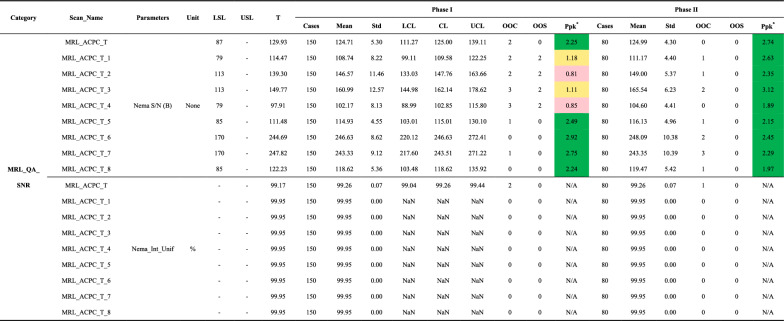

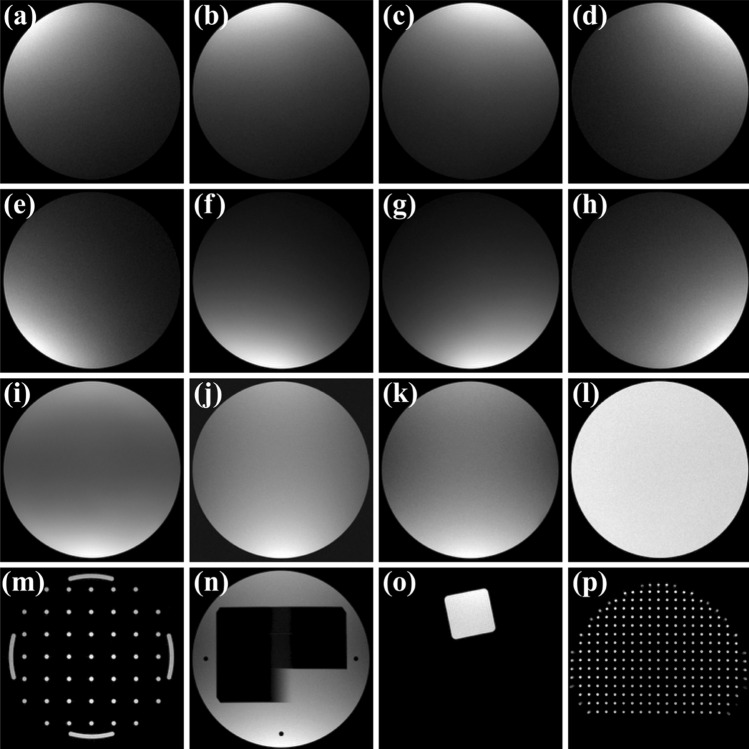

Representative MR images from quality tests are shown in Fig. 3. MR image quality metrics, including MRL_QA_SNR (Table 5), MRL_QA_SCALING (Table 6), and PIQT (Table 7), showed improved performance in Phase II compared to Phase I, with nearly all parameters remaining within specification limits and no OOS events observed. For the eight Phase I parameters with Ppk values at or below B level, control charts are presented in Fig. 4. In Phase I, two major OOS events were identified: one due to failure to lower the anterior coil to the phantom’s top and the other from leaving the ArcCHECK-MR phantom on the treatment couch after plan verification. Correcting these issues aligned Phase I variability with Phase II, as shown in Fig. 4a–f.Fig. 3. Representative MR images from quality tests. a–i Flood field uniformity (FFU) test images from the MRL_QA_SNR scans: a–d anterior coil elements (T_1–T_4), e–h posterior coil elements (T_5–T_8), and i combined result across all elements. j–l Uniformity test images from the PIQT scans: j QA1, Spin-echo (TE = 100 ms) using anterior and posterior coils; k QA2, Gradient-echo (TE = 15 ms) using anterior and posterior coils; l QA3, Spin-echo (TE = 100 ms) using the system body coil. m Spatial linearity test image from the MRL_QA_SCALING scan. n Slice profile test image from the PIQT scan. o Spatial resolution test image from the PIQT scan. p 3D geometric distortion test imageTable 5Summary of MRL_QA_SNR metrics for flood field uniformity tests, including signal-to-noise ratio (SNR) and image uniformity across Phase I and Phase IISNR = signal-to-noise ratio; LSL = lower specification limit; USL = upper specification limit; T = baseline (target) value; Std = standard deviation; LCL = lower control limit; CL = central line; UCL = upper control limit; OOC = out-of-control cases; OOS = out-of-specification cases; Ppk = process performance index; MRL_ACPC_T (and subelements) = scans using all or specific elements of the Marlin Anterior/Posterior coil (e.g., T_1 = Anterior coil element 1; T_5 = Posterior coil element 1); NEMA_Int_Unif = integral uniformity; N/A = not applicable; NaN = not available; -: not provided^*^: Color coding for Ppk: Green: A + (Ppk ≥ 1.67); Light green: A (1.67 > Ppk ≥ 1.33); Yellow: B (1.33 > Ppk ≥ 1.00); Light red: C (Ppk < 1.00)Table 6. Summary of MRL_QA_SCALING metrics for spatial linearity tests, including the maximum absolute percentage deviations (nema_perc_dif.) and pairwise distance differences (diff_lin_(x–y)) across Phase I and Phase IInema_perc_dif = NEMA-defined maximum absolute percentage deviation; diff_lin = pairwise distance difference; LSL = lower specification limit; USL = upper specification limit; T = baseline (target) value; Std = standard deviation; LCL = lower control limit; CL = central line; UCL = upper control limit; OOC = out-of-control cases; OOS = out-of-specification cases; Ppk = process performance index; N/A = not applicable; NaN = not available; -: not provided^*^: Color coding for Ppk: Green: A + (Ppk ≥ 1.67); Light green: A (1.67 > Ppk ≥ 1.33); Yellow: B (1.33 > Ppk ≥ 1.00); Light red: C (Ppk < 1.00)Table 7. Summary of PIQT metrics for flood field uniformity, spatial linearity, slice profile, and spatial resolution tests across Phase I and Phase IILSL = lower specification limit; USL = upper specification limit; T = baseline (target) value; Std = standard deviation; LCL = lower control limit; CL = central line; UCL = upper control limit; OOC = out-of-control cases; OOS = out-of-specification cases; Ppk = process performance index; SNR = signal-to-noise ratio; Nema_Int_Unif = integral uniformity; Nema_Slice_int = integral of slice profile; FWHM = full-width at half maximum; FWTM = full-width at tenth maximum; nema_perc_dif. = NEMA-defined maximum absolute percentage deviation; diff_lin_(x–y) = pairwise distance deviation; Ver_pxl_size = vertical pixel size; Hor_pxl_size = horizontal pixel size; QA1H:MS, SE = Marlin Anterior and Posterior coils with spin-echo sequences; QA2H:MS, FE = Marlin Anterior and Posterior coils with gradient-echo sequences; QA3B:2D, SE = System Body Coil (QBC) with spin-echo sequences; N/A = not applicable; NaN = not available; -: not provided^*^: Color coding for Ppk: Green: A + (Ppk ≥ 1.67); Light green: A (1.67 > Ppk ≥ 1.33); Yellow: B (1.33 > Ppk ≥ 1.00); Light red: C (Ppk < 1.00)Fig. 4. Control charts of MR image quality metrics with Ppk values at or below B level in Phase I (light teal blue) and Phase II (blue). Subfigures show: a–d SNR for four elements of the Marlin anterior coil, e spatial linearity (nema_perc_dif.) for SCALING_C scans, f FWHM for QA1H:MS scans, and g–h vertical pixel size for QA1H:MS scans at echo times of 30 ms and 100 ms. Red dashed lines indicate specification limits (LSL, USL), orange lines (dashed and dash-dot) represent control limits (UCL, LCL), and the green dotted line marks the central line (CL). OOC points are orange triangles, and OOS points are red diamonds
Flood field uniformity
The flood field uniformity (FFU) test assessed SNR and uniformity using the phantom’s FFU section. In PIQT tests, SNR measurements from the MRL anterior/posterior coils (QA1, QA2) and the system body coil (QA3) consistently performed at an A + level across both phases, with no OOS events and a maximum OOC rate of 2.7% (Table 7).
In the MRL_QA_SNR test, Phase I revealed challenges with Ppk for four elements of the Marlin anterior coil falling to B level or below due to two OOS events (Table 5). Following corrective actions, Phase II showed full recovery, with all components achieving A + Ppk and a maximum OOC rate of 3.8%.
Uniformity measurements from the MRL_QA_SNR tests remained stable across both phases, closely aligning with baseline values and showing no significant deviations (Table 5). PIQT-based uniformity measurements with the system body coil consistently maintained A + Ppk throughout both phases (Table 7). Uniformity from the anterior/posterior coils, initially affected in Phase I, improved significantly in Phase II, highlighting the system’s ability to restore and sustain high-level performance following corrective actions.
Spatial linearity
Spatial linearity, which evaluates in-plane geometric distortion across eight radial directions (Fig. A2 in Additional File 1), was assessed using MRL_QA_SCALING and PIQT tests. Key metrics included nema_perc_dif., representing maximum absolute percentage deviation, and diff_lin_(x–y), quantifying percentage differences between measured and actual distances for specific point pairs (Tables 6 and 7).
Performance remained consistent across both phases for PIQT and SCALING_T tests, with nema_perc_dif. maintaining A + Ppk values and OOC rates for specific point pairs below 2.5%, indicating strong system stability. However, SCALING_C exhibited significant variability in Phase I, with OOS events leading to a Ppk at the C level. These issues were resolved in Phase II, improving Ppk to A +, though the maximum OOC rate for specific point pairs rose to 21.2% due to baseline shifts following routine maintenance between the 197th and 198th measurement points. This maintenance notably improved spatial linearity, reducing mean deviations for diff_lin_(2-44) from -0.08% to -0.02%, diff_lin_(3-43) from -0.11% to -0.06%, and diff_lin_(4-42) from -0.21% to -0.16%, triggering OOC events despite improved performance. These trends align with changes observed in nema_perc_dif. (Fig. 4e).

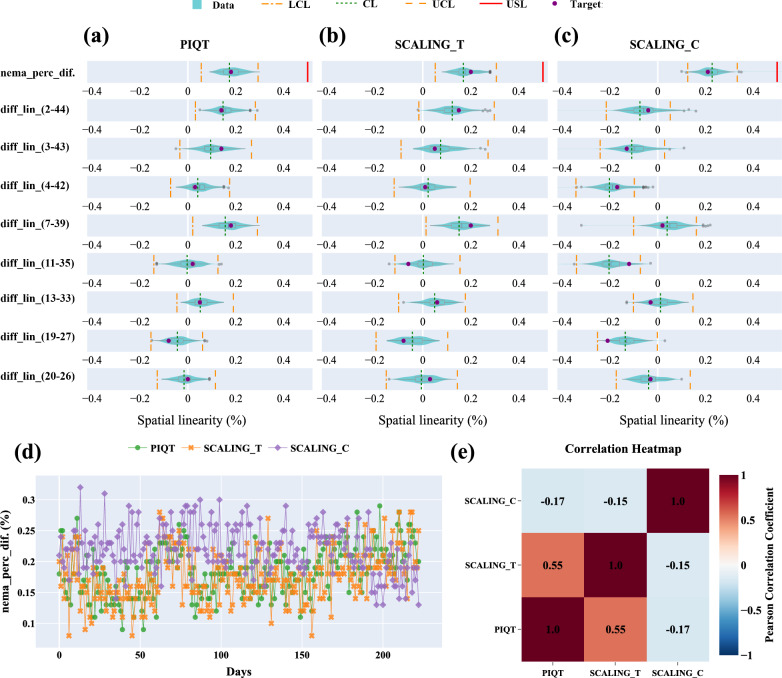

Figure 4 compare spatial linearity metrics across PIQT, SCALING_T, and SCALING_C tests. PIQT and SCALING_T demonstrated strong stability, with metrics clustering tightly near the central line (CL) and well within control limits (UCL, LCL) (Fig. 4a, b), as further supported by the positive correlation between these tests (r = 0.55; Fig. 5e). In contrast, SCALING_C exhibited higher variability, with diff_lin_(x–y) values for pairs like 2–44 and 7–39 approaching or exceeding control limits (Fig. 5c). Temporal trends of nema_perc_dif. in SCALING_C showed wider dispersion (Fig. 5d) and weaker correlations with PIQT (r = − 0.17) and SCALING_T (r = − 0.15) (Fig. 5e). These findings indicate weaker spatial linearity consistency between the horizontal and transverse planes, emphasizing the need for simultaneous measurements to ensure comprehensive evaluation.Fig. 5. Spatial linearity assessment across PIQT (a), SCALING_T (b), and SCALING_C (c), showing nema_perc_dif. and diff_lin_(x–y) metrics for specific point pairs. Violin plots illustrate the distribution of spatial linearity deviations, overlaid with central lines (CL, green dotted lines), control limits (UCL, LCL, orange dashed and dash-dot lines), and specification limits (LSL, USL, red dashed lines). Purple points represent target or baseline values. d Temporal variation of nema_perc_dif. across the three tests, excluding OOC data. e Correlation heatmap showing inter-test relationships after excluding OOC data
Slice profile
The slice profile was assessed using Nema_Slice_int., Nema_FWHM, and Nema_FWTM, representing slice integral, full width at half maximum, and full width at tenth maximum, respectively. Nema_Slice_int. and Nema_FWHM demonstrated consistently stable performance across both phases, with Ppk values above 1.33 and no OOS points, indicating well-controlled slice integrity and sharpness (Table 7). In contrast, Nema_FWTM exhibited higher variability in Phase I, particularly for QA1H:MS,SE (30), which uses Marlin anterior/posterior coils with spin-echo sequences and a 30 ms echo time, where Ppk dropped to 1.08 with two OOS events. In Phase II, Ppk increased significantly to 3.22 with no OOS points, reflecting improved slice resolution and stabilized processes. Overall, Nema_Slice_int. and Nema_FWHM remained stable, while Nema_FWTM showed marked improvement, emphasizing the enhanced control of slice profile performance.
Spatial resolution
Spatial resolution was assessed using Ver_pxl_size (vertical pixel size) and Hor_pxl_size (horizontal pixel size). Both parameters maintained process stability across Phase I and Phase II, with no OOC or OOS events observed (Fig. 4g, h). However, Ver_pxl_size showed consistently lower performance, with Ppk values ranging from 1.04 to 1.10 (B-grade), highlighting opportunities for optimization. In contrast, Hor_pxl_size demonstrated superior performance, with Ppk values ranging from 1.76 to 2.19, indicating greater consistency and stronger control of spatial resolution.
3D Geometric distortion

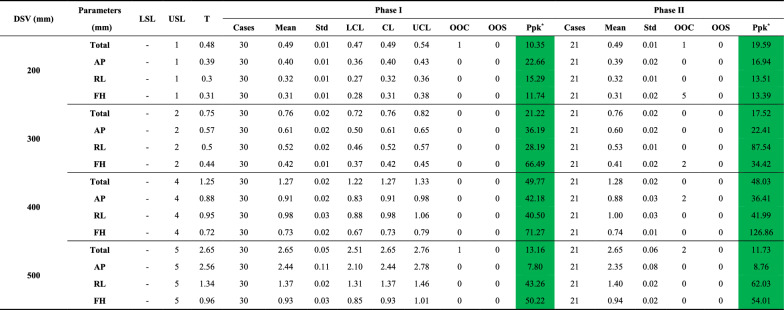

Geometric distortion was evaluated within spherical volumes of varying diameters (DSVs: 200 mm, 300 mm, 400 mm, and 500 mm), excluding 2% of markers with the largest distortions, as illustrated in Fig. A3 in Additional File 1. Distortion was assessed across the AP (anterior–posterior), RL (right-left), and FH (foot-head) directions, with maximum deviation calculated for each DSV. Across both phases, no OOS points were observed, and Ppk values consistently exceeded 1.67, indicating high geometric accuracy (Table 8). However, Phase II exhibited a slight increase in OOC points, primarily in smaller DSVs and the AP direction.Table 8. Summary of DSV geometric accuracy metrics across different directions in Phase I and Phase IIDSV = diameter of spherical volume; AP = anterior–posterior; RL = right-left; FH = foot-head; LSL = lower specification limit; USL = upper specification limit; T = baseline (target) value; Std = standard deviation; LCL = lower control limit; CL = central line; UCL = upper control limit; OOC = out-of-control cases; OOS = out-of-specification cases; Ppk = process performance index; –: not provided***:** Color coding for Ppk: Green: A + (Ppk ≥ 1.67); Light green: A (1.67 > Ppk ≥ 1.33); Yellow: B (1.33 > Ppk ≥ 1.00); Light red: C (Ppk < 1.00)

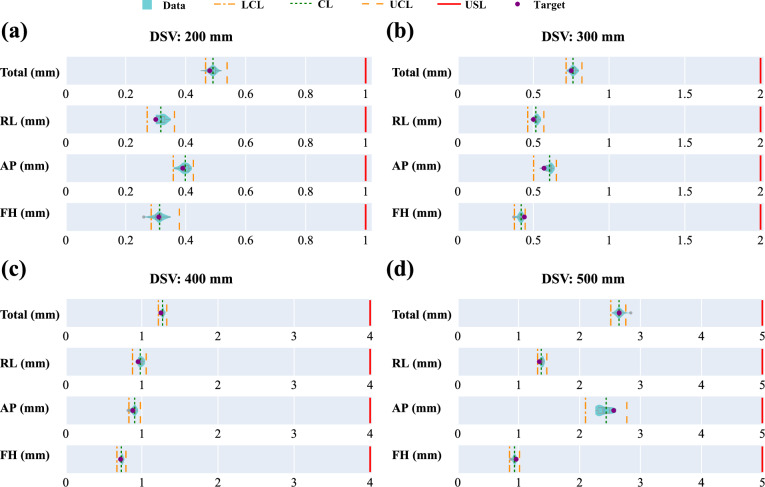

Distortion magnitude increased with DSV size, rising from ~ 0.49 mm at 200 mm to 2.65 mm at 500 mm (Fig. 6). Directional analysis revealed the AP direction consistently exhibited the highest distortion, with a maximum of 2.44 mm at 500 mm, compared to 1.37 mm in the RL direction and 0.93 mm in the FH direction. In contrast, the FH direction demonstrated the lowest distortion across all DSVs, reflecting stable control along this axis.Fig. 6. Geometric accuracy for DSVs (diameter of spherical volumes) across sphere diameters: a 200 mm, b 300 mm, c 400 mm, and d 500 mm. Violin plots illustrate the distribution of deviations for total and individual directions (RL = right-left, AP = anterior–posterior, FH = foot-head), overlaid with central lines (CL, green dotted lines), control limits (UCL, LCL, orange dashed and dash-dot lines), and specification limits (LSL, USL, red dashed lines). Purple points represent target values
