Generation and characterization of BAC transgenic mouse lines expressing a fluorescent protein in trigeminal and dorsal root ganglion neurons
Piu Banerjee, Takuya Sato, Takuji Iwasato
TL;DR
Researchers created transgenic mice with fluorescent proteins in specific sensory neurons to better study the somatosensory system.
Contribution
Generated BAC transgenic mouse lines expressing RFP in Avil-positive neurons of trigeminal and dorsal root ganglia.
Findings
RFP was specifically expressed in trigeminal and dorsal root ganglion neurons in adult mice.
RFP expression in trigeminal ganglion became evident around embryonic day 16.5 and continued postnatally.
Approximately 90% of trigeminal ganglion neurons expressed RFP.
Abstract
Genetic tools to identify and isolate specific cell types are required to study different model systems in an organism. Such tools to study sensory neurons in trigeminal and dorsal root ganglia are insufficient, making research progress in somatosensation difficult. Our study aimed to distinctly visualize and identify these peripheral sensory neurons in the mouse somatosensory system. We generated bacterial artificial chromosome transgenic mouse lines expressing the red fluorescent protein (RFP) in nuclei of Advillin (Avil)-positive neurons to help with the scarcity of bioresources. In these mice, RFP was specifically expressed in the trigeminal ganglion (TG) and dorsal root ganglion (DRG) in adulthood, consistent with previous reports. We also assessed RFP expression in the TG and DRG of these mice during embryonic and postnatal development. The TG RFP expression became evident around…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5- —http://dx.doi.org/10.13039/501100001691Japan Society for the Promotion of Science
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsNerve injury and regeneration · Photoreceptor and optogenetics research · Retinal Development and Disorders
Introduction
The somatosensory system processes tactile sensory inputs, allowing us to feel and respond to external environmental cues and interact with the world around us. Peripheral sensory neurons are vital in transmitting information from the external world to our brain; they are pivotal targets in somatosensation-related studies [1]. These neurons are primarily pseudo-unipolar: a single axon bifurcates into two, with the distal branch innervating the peripheral tissues and the proximal branch innervating the central nervous system brainstem [2,3]. Somata of somatosensory neurons are housed in nodular structures called ganglia in the peripheral nervous system [4]. Those somatosensory ganglia are divided into dorsal root ganglia (DRG) and trigeminal ganglia (TG). The DRG, arranged in a metameric pattern on either side of the spinal cord, have somata of sensory neurons innervating the tissues associated with local body segments (dermatomes). Sacral and lumbar DRG innervate the lower body region, thoracic DRG innervate the trunk, and cervical DRG innervate the forelimbs, shoulder, neck, and head occipital lobe [5,6]. The TG, located on either side of the space on top of the temporal bone, has cell bodies of sensory neurons innervating different head regions (e.g., eye, whisker pad, lower jaw) [7,8]. The peripheral trigeminal nerve is divided into three major branches: the ophthalmic branch, which innervates the supraorbital region (V1); maxillary branch, which innervates the infraorbital region (V2); and the mandibular branch. which innervates the lower jaw region (V3) [9–11]. Within these sensory ganglia, somata are further surrounded by satellite glial cells (SGCs), accounting for a heterogeneous cell population [12–14].
Despite the conspicuous importance of sensory ganglia in research, their visualization and isolation in mice remain challenging, mainly because of their small size and pale color that make it difficult to distinguish them from surrounding tissues, fat, or lymph nodes, especially during early developmental stages [15,16]. Here, we aimed to create a suitable biological resource using appropriate genetics tools to aid with the selective visualization, labeling, and isolation of peripheral sensory neurons housed in the ganglia. To specifically target these cells, we used the promoter of Advillin (Avil) gene which is almost exclusively expressed in the periphery sensory neurons [8,17–19]. We generated transgenic (Tg) mouse lines expressing the red fluorescent protein (RFP) in the nuclei of *Avil-*positive neurons by using bacterial artificial chromosome (BAC) recombination [20,21]. We characterized the strength and specificity of the RFP signal in the TG and DRG across varying time points from the embryonic to the adult stage. Our analysis allowed us to select two suitable Tg lines: Tg3 and Tg4. An example of the application of the Tg3 line has been reported [15]. In the current study, we describe the generation and characterization of the Avil-nlsRFP Tg3 and Tg4 lines. These mouse lines will assist researchers in visualizing and identifying peripheral sensory neurons across embryonic and postnatal stages.
Results & discussion
We used the BAC Tg mouse technology to selectively express a fluorescent protein in *Avil-*expressing peripheral sensory neurons in mice. We selected the BAC clone RP23-109K12, which contains the translational initiation site of the mouse Avil gene around the center of the clone, and manipulated it by Red/ET-recombination (homologous recombination in Escherichia coli) [20–22] to insert a cassette containing the nuclear localization signal (nls) RFP (Fig 1a). The obtained BAC construct was linearized by restriction digestion and purified using a column (Fig 1b). We used pulsed-field gel electrophoresis to choose a fraction that has a desired DNA size (Fig 1c). Fraction #7 was the most appropriate and was microinjected into fertilized mouse eggs, leading to the generation of four founder mice (#1, #2, #3 and #4). Founders #1 and #2 were female, and founders #3 and #4 were male. Founder #2 died before maturation. and the remaining three were backcrossed with wildtype mice to generate their respective Tg lines (Tg1, Tg3, and Tg4). The obtained lines were analyzed by assessing their TGs for RFP fluorescence. TGs isolated from postnatal day 6 (P6) to P8 pups of all three lines exhibited a clear RFP signal (S1 Fig). However, the RFP signal in the TGs of Tg1 pups was much weaker than in Tg3 and Tg4 pups (S1 Fig). Therefore, we did not analyze Tg1 further and selected Tg3 and Tg4 for detailed analyses. The TG of Tg3 pups exhibited a stronger RFP signal than Tg4. Among 36 Tg4 pups, we observed that all 18 males were RFP positive and all 18 females were RFP-negative, indicating that RFP expression in the Tg4 line was linked to the Y chromosome.

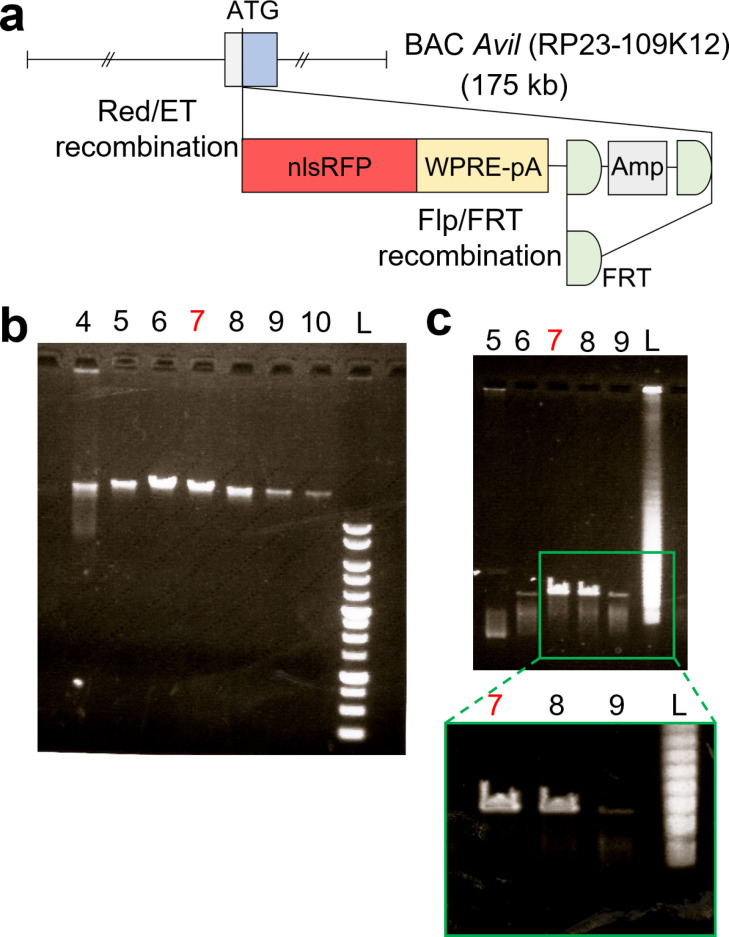

Generation of Avil-nlsRFP transgenic mice.(a) Schematic of the Avil-nlsRFP BAC transgenic construct generated by Red/ET recombination. The nlsRFP-WPRE-pA- FRT-Amp-FRT cassette was replaced with the initiation codon of the mouse Avil gene in the 175-kb BAC clone (RP23-109K12) and subsequently the FRT-Amp-FRT fragment was removed by Flp/FRT recombination. [Avil: Advillin, nls: nuclear localization signal, RFP: red fluorescent protein, Amp: Ampicillin]. (b) Sepharose column fractions (#4 to #10) of the linearized BAC construct run on an agarose gel. A 1 kb ladder (L) was used as the size marker. (c) Pulsed-field gel electrophoresis was performed to further distinguish fractions. Fractions #5 to #9 were loaded on 1% agarose gel and ran for 16 h at 5V/cm (Switch time: 50 s to 90 s). Fraction #7 was selected for microinjection into the mouse fertilized eggs. A magnified image of the area enclosed by the green square is shown for better visualization of fragment sizes.
We isolated entire TGs from *Avil-*nlsRFP Tg3 and Tg4 mice (> P45) and their wildtype littermates to evaluate RFP expression in adulthood. The TG of Tg3 and Tg4 mice exhibited strong RFP expression, with the RFP signal stronger in Tg3 than in Tg4 mice (Fig 2a). Parallelly, we crossed *Avil-*Cre knock-in mice [23] and Rosa26-loxP-stop-loxP-nls-LacZ (RNZ) reporter mice [24] and obtained *Avil-*Cre:RNZ mice, which were used for X-gal staining of the TGs in adulthood (> P45) (Fig 2b). We compared this pattern with the one displayed by RFP^+^ neurons in the TGs of adult *Avil-*nlsRFP mice and found the two to be almost identical. DRGs also exhibited a higher RFP expression in Tg3 than in Tg4 (Fig 2c).

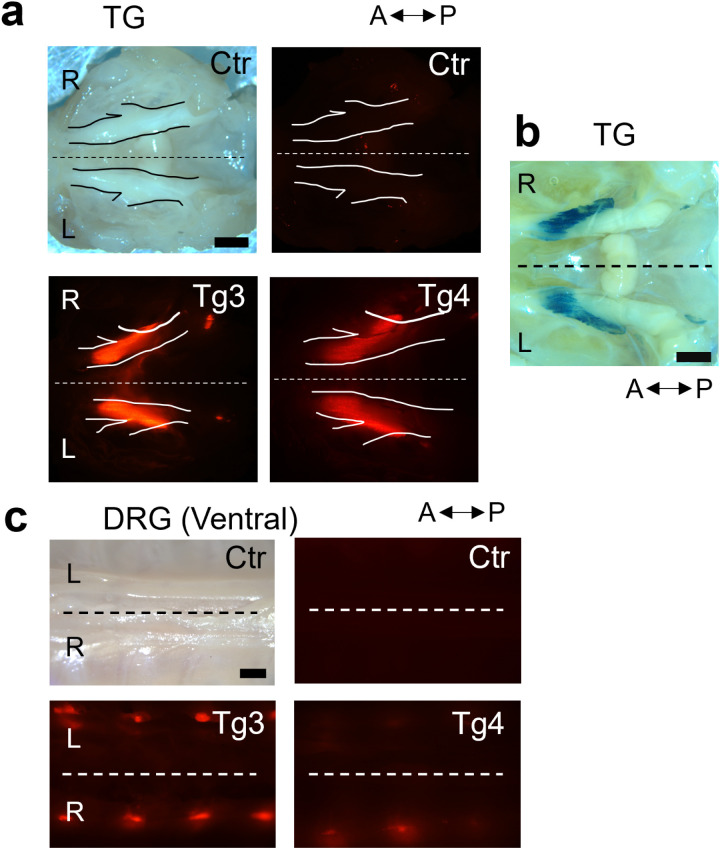

High RFP expression in TG and DRG of Avil-nlsRFP mice in adulthood.(a) Top view images of whole trigeminal ganglia (TG) attached to the cranial base. Both Tg3 and Tg4 mice showed strong RFP expression in the TG, with Tg3 considerably brighter than Tg4. Representative brightfield and fluorescent images are shown for wildtype (WT) control (n = 3), Tg3 (n = 3) and Tg4 (n = 3) mice in adulthood. (b) A representative image (top view) of the intact TG attached to the cranial base from adult Avil-Cre: Rosa26-loxP-stop-loxP-nlsLacZ (Avil-Cre:RNZ) mice. The distribution of sensory neurons is visualized by X-gal staining (n = 2 mice). (c) Images of whole dorsal root ganglia (DRG) embedded along the spinal cord (ventral view). Tg3 mice showed strong RFP expression in the DRG, while the RFP signal from Tg4 DRG was considerably weaker. Representative brightfield and fluorescent images are shown for control (n = 3), Tg3 (n = 3) and Tg4 (n = 3) mice in adulthood. A: Anterior, P: Posterior, R: Right, L: Left, Ctr: Control, dashed lines represent the midline, solid lines outline the TGs. Scale bars: 1 mm.
We noticed that a small ratio of Tg3 mouse offsprings showed weaker RFP expression compared to other Tg3 littermates (S2a Fig). To elucidate the cause of this discrepancy, we performed PCR amplification of BAC ends and found that one end of the BAC insert was intact, but the other end was deleted from the chromosome in these mice (Tg3-weak mice) (S2b Fig). Among 59 offspring analyzed from crosses between wildtype females and a Tg3 male backcrossed to ICR 5 times (N5), 27 mice (from 3 litters) had the RFP gene. Within these 27 mice, 3 (11%) were found to lack one BAC end and they all showed weak RFP fluorescence. The remaining 24 mice had intact BAC insert and all of them analyzed (18 of 24) exhibited strong RFP fluorescence. Thus, the Tg3 line appeared to be unstable. To obtain Tg3 mice with strong RFP signal, it is necessary to select mice with intact BAC ends, which occupy about 89% of RFP-positive Tg3 offsprings. On the other hand, among 17 offsprings from crosses between wildtype females and Tg4 males backcrossed to ICR 5–6 times, 8 mice (from 2 litters) were Tg mice, all of which had both BAC ends intact (S2b Fig).
We also examined RFP expression in the brains of *Avil-*nlsRFP Tg3 and Tg4 mice. We imaged the whole adult brains along the dorsoventral axis but observed no apparent fluorescence (Fig 3a). Additionally, we made 1 mm-thick coronal and sagittal sections from the adult Tg3 mice to systematically examine RFP expression across different brain regions. In coronal sections, the RFP signal was observed in a specific part of the midbrain (Fig 3b) and was confirmed in sagittal sections (Fig 3c). Parallelly, we performed X-Gal staining in 400 μm-thick coronal and 200 μm-thick sagittal brain sections from adult *Avil-*Cre:RNZ mice to visualize the Avil^+^ regions. LacZ activity was observed in areas similar to where the RFP signal was detected in *Avil-*nlsRFP Tg3 mice brain sections (Fig 3d and 3e). We also checked the RFP signal in the heart, lung, kidney, liver, hind-leg muscle, stomach, intestine, and testis of adult *Avil-*nlsRFP Tg3 mice and found no evident fluorescence (S3 Fig). This result was consistent with a previous study that found no LacZ activity in the liver, skin, thymus, testis, heart, and ovaries of *Avil-*Cre:LacZ reporter mice [17]. Overall, the *Avil-*dependent expression pattern in the adult *Avil-*nlsRFP Tg3 mice was almost identical to that of adult *Avil-*Cre knock-in mice.

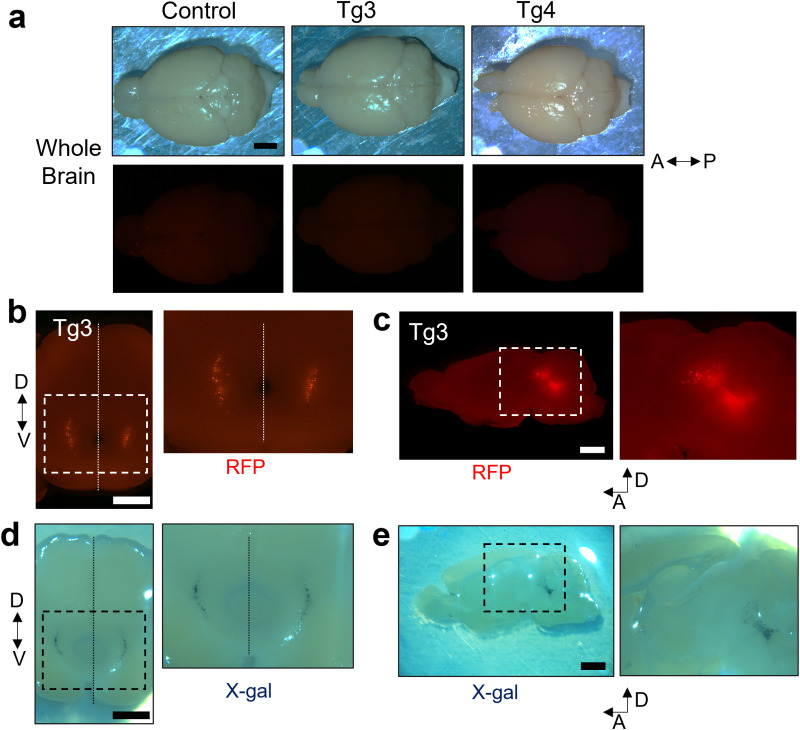

RFP expression in the brain of Avil-nlsRFP mice in adulthood.(a) Images of whole brains of adult mice taken from the top (dorsal view). Brains of both Avil-nlsRFP Tg3 (n = 4) and Tg4 (n = 3) mice showed no obvious RFP signal and appeared similar to the WT control animal brains (n = 3). Representative brightfield and fluorescent images are shown. A: Anterior, P: Posterior. (b, c) Coronal (b: n = 1) and sagittal (c: n = 1) brain sections (1 mm-thick) from adult Avil-nlsRFP Tg3 mice showed a weak RFP signal in a specific midbrain region. Magnified image of the area enclosed by the dashed line is also shown. D: Dorsal, V: Ventral. (d, e) Coronal (d: 400 μm-thick, n = 2) and sagittal (e: 200 μm-thick, n = 2) brain sections from adult Avil-Cre:RNZ mice showed X-gal signals in a specific midbrain region. Magnified images of areas enclosed by the dashed lines are also shown. Scales: 1 mm.
Next, we compared RFP expression in TGs and DRGs from embryonic development to birth. We imaged whole embryos at E12.5, E13.5, and E14.5 stages, and imaged TGs and DRGs isolated from E16.5 embryos and P0 pups. We did not detect any obvious RFP expression in the whole embryos until E14.5. At the E16.5 and P0 stages, the TGs of Tg3 mice exhibited a bright RFP signal; however, the expression at P0 was visibly stronger than that at E16.5 (Fig 4a and 4b). In Tg4, the TGs displayed very weak RFP expression at E16.5, which became stronger by P0 (Fig 4a and 4b). We also examined DRG embedded along the spinal column from the dorsal side and found that Tg3 and Tg4 embryos had a very weak RFP expression at E16.5, making it difficult to identify the organ based on fluorescence intensity (Fig 4c). By P0, RFP expression in DRG of Tg3 pups significantly improved, and the organ could easily be identified (Fig 4d). In DRG of Tg4 mice, even at P0, the RFP expression was very weak, and the organ remained difficult to visualize (Fig 4d). A previous study by our group compared RFP expression in TG of *Avil-*nlsRFP Tg3 mice at P0, P4–P6, P14–P16, and > P60 stages and reported that the RFP signal did not increase in strength from P0 to adult stages [15]. Thus, in *Avil-*nlsRFP Tg3 mice, the Avil-RFP expression in the TG and DRG conspicuously increases in intensity until P0 and remains strong throughout P4-6, P14-P16, and adult stages.

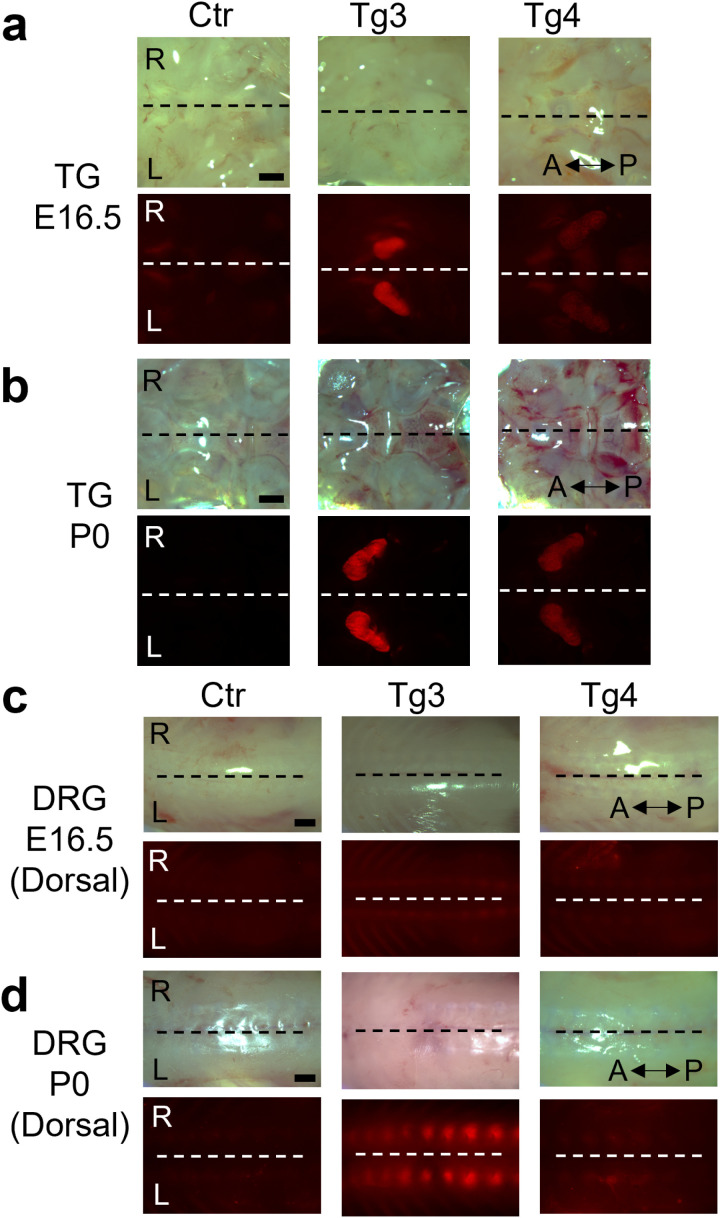

RFP expression in TG and DRG of Avil-nlsRFP Tg mice across perinatal stages.The RFP signal was assessed in the TG and DRG of Tg3 and Tg4 mice at E16.5 and P0 to elucidate the expression across perinatal period. Representative brightfield and fluorescent images are shown. (a, b) Representative images of whole TG attached to the cranial base at E16.5 (a) and P0 (b). The RFP signal was strong for Tg3 pups, but weaker for Tg4 pups. (c, d) Representative images of whole DRG (dorsal view) embedded along the spinal cord at E16.5 (c) and P0 (d). Both Tg3 and Tg4 animals showed no obvious RFP signal at E16.5 stage and appeared similar to control. By the P0 stage, the RFP signal became stronger and more obvious for Tg3 pups but continued to be weak for Tg4 animals. [n = 6 (Control, E16.5), n = 3 (Tg3, E16.5), n = 5 (Tg4, E16.5), n = 7 (Control, P0), n = 4 (Tg3, P0 and Tg4, P0)]. A: Anterior, P: Posterior, R: Right, L: Left, Ctr: Control, dashed lines: midlines. Scale bars: 1 mm.
Lastly, we aimed to evaluate the ratio of peripheral sensory neurons expressing RFP in *Avil-*nlsRFP Tg3 mice We made sections of adult TG and labeled the ubiquitous cell population using DAPI, and neurons using a neuron-specific antibody (NeuN) (Fig 5a and 5b). We found that 99.1% ± 4.4% of RFP^+^ cells were positive for NeuN, indicating that Avil-nlsRFP expression is highly specific to neurons. Additionally, 88.5% ± 5.8% of NeuN^+^ cells were positive for RFP, indicating that almost all neurons expressed RFP (Fig 5c). This result is consistent with previous studies that observed ~82%–100% of neurons in TG and DRG to be Avil-positive [8,17–19].

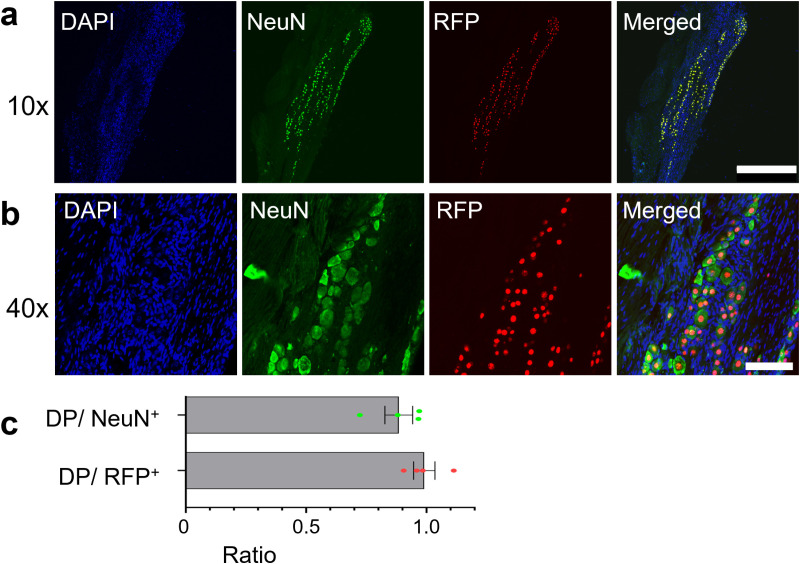

Co-localization of RFP and NeuN signals in TG of adult Avil-nlsRFP Tg3 mice.(a, b) Confocal images of adult Avil-nlsRFP Tg3 TG sections (RFP: Red) stained for an NeuN antibody (Green), and DAPI (Blue). Representative images are shown at 10 x (a) and 40 x (b) magnifications. Scale bars: 500 μm (a), 100 μm (b). (c) Horizontal bar graphs demonstrate the ratio of double positive cells (DP) to NeuN+ and RFP+ cells as labelled. Each dot represents an individual section. Error bars: SEM. [n = 4 (2 sections each from 2 animals)].
