Coevolution and cross-infection patterns between viruses and their host methanogens in paddy soils

TL;DR

This study explores virus-host interactions in rice paddy soils, revealing complex networks involving methanogens and their viruses.

Contribution

A CRISPR spacer database was used to identify virus-host linkages and coevolution in methanogens from rice paddies.

Findings

419 virus–host linkages were identified involving 56 methanogenic species and 189 viruses.

Evidence of potential virus–host coevolution was found in 24 viruses encoding anti-CRISPR proteins.

The virome composition in rice paddies differs significantly from gut environments.

Abstract

Methanogens play a critical role in global methane (CH4) emissions from rice paddy ecosystems. Through the integration of metagenomic analysis and meta-analysis, we constructed a CRISPR spacer database comprising 14 475 spacers derived from 351 methanogenic genomes. This enabled the identification of viruses targeting key methanogenic families prevalent in rice paddies, including Methanosarcinaceae, Methanotrichaceae, Methanobacteriaceae, Methanocellaceae, and Methanomassiliicoccaceae. We identified 419 virus–host linkages involving 56 methanogenic host species and 189 viruses, spanning the families Straboviridae, Salasmaviridae, Kyanoviridae, Herelleviridae, and Demerecviridae, along with 126 unclassified viral entities. These findings highlight a virome composition that is markedly distinct from those observed in gut environments. Cross-infection patterns were supported by the presence of specific viruses predicted to infect multiple closely related methanogenic species. Evidence for potential virus–host coevolution was observed in 24 viruses encoding anti-CRISPR proteins, likely facilitating evasion of host CRISPR-mediated immunity. Collectively, this study reveals a complex and dynamic network of virus–host interactions shaping methanogen communities in rice paddy ecosystems.

Figures

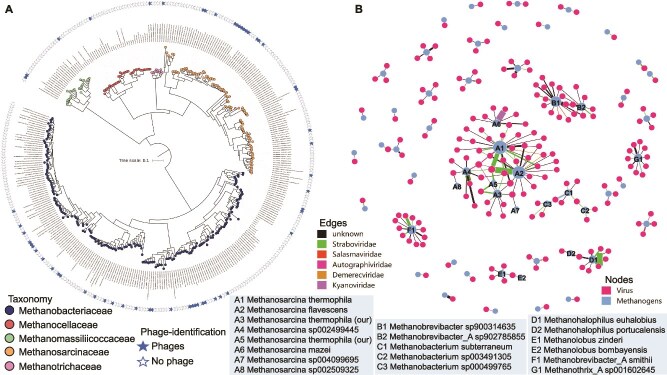

B](#f1)). Within the *Methanosarcina* family, five major cross-infection modules (designated as Modules A–E) were identified ([Fig. 1B](#f1)). Module A comprised eight *Methanosarcina* species: *Methanosarcina thermophila* (A1), *Methanosarcina flavescens* (A2), *M. thermophila* (our MAGs, A3), *M.* sp. 002499445 (A4), *M. thermophila* (our MAGs, A5), *Methanosarcina mazei* (A6), *M.* sp. 004099695 (A7), and *M.* sp. 002509325 (A8). Nodes A3 and A5, corresponding to *M. thermophila*, were reconstructed from our metagenomic datasets, while A1, A2, and A6 represented cultured methanogen strains.

Full text

Methanogenic archaea, a polyphyletic assemblage of archaeal lineages, possess a unique metabolic capability—methanogenesis—that directly controls methane (CH_4_) emissions in rice paddy ecosystems [1–3]. Both methanogens, which have persisted on Earth for ~3.5 billion years, and viruses, dating back to around 3.8 billion years, represent some of the most ancient biological entities [4, 5]. Viral predators play a significant ecological role by influencing the population dynamics of carbon-cycling methanogens, particularly along environmental gradients such as permafrost thaw zones [6]. To date, only a single virus, the siphovirus MFTV1, has been isolated from a deep-sea methanogen (Methanocaldococcus fervens AG 86) in the Guaymas Basin using traditional cultivation-dependent methods [7]. However, recent studies have identified novel virus families associated with gut methanogens, indicating a broader diversity of methanogen-infecting viruses than previously thought [8]. Given the potential ecological application of methanogen-associated viruses to mitigate global warming, investigating the virome of methanogens in rice paddies should be considered a research priority [9].

Rice paddies are recognized as a significant anthropogenic source of CH_4_ emissions [10]. Within these environments, five methanogenic families (Methanosarcinaceae, Methanotrichaceae, Methanobacteriaceae, Methanocellaceae, and Methanomassiliicoccaceae) are commonly identified as keystone taxa contributing to CH_4_ production [11, 12]. Despite their ecological importance, the associated virome of these methanogenic lineages remains poorly known. To address this gap, we conducted a genome-resolved metagenomic survey of paddy soils collected from four geographically distinct sites in China: Changsha (106.540°N, 29.403°E), Chongqing (112.986°N, 28.256°E), Ningxia (106.243°N, 38.473°E), and Jiansanjiang (116.726°N, 39.827°E).

From these samples, we recovered 43 methanogen genomes, comprising 25 high-quality and 18 medium-quality metagenome-assembled genomes (MAGs), spanning all five aforementioned families (Supplementary Fig.  1). In addition, 308 MAGs from these methanogenic families were retrieved from public databases, resulting in a total of 351 representative genomes (Supplementary Fig. 1). Phylogenetic analysis of these MAGs revealed five distinct family-level clusters (Fig. 1A).

We then examined the presence of CRISPR-Cas systems across these genomes and identified Type I or Type III CRISPR-Cas loci in 191 methanogens, suggesting that these paddy-dominant lineages have evolved adaptive immune systems to counter viral invasion [13]. To further investigate virus-host interactions, we extracted CRISPR spacers from the 351 methanogen genomes, generating a database comprising 14 475 unique spacers (Supplementary Fig. 1). These spacers were subsequently used to search for matching protospacers within the IMG/VR v4 viral database [14], leading to the identification of 189 viral genomes that potentially infect 56 distinct methanogenic archaeal hosts (Fig. 1A).

These 189 viral genomes comprised seven complete genomes, 23 high-quality genomes, 47 medium-quality genomes, and 112 low-quality genomes (Supplementary Fig. 1). Taxonomic classification assigned the viruses to five known families: Straboviridae (n = 38), Salasmaviridae (n = 10), Kyanoviridae (n = 4), Herelleviridae (n = 4), and Demerecviridae (n = 3), while 123 viruses remained unclassified (Supplementary Fig. 1). The 189 viruses were affiliated with methanogen hosts from the following families: Methanosarcinaceae (18 of 77), and Methanotrichaceae (2 of 11), Methanobacteriaceae (33 of 94), Methanocellaceae (2 of 2), and Methanomassiliicoccaceae (2 of 5), (Fig. 1B; Supplementary Figs 2 and 3).

Host-virus associations were inferred using CRISPR spacer matches, yielding 419 linkages between the 189 viral genomes and 56 methanogen genomes (Fig. 1B, Supplementary Table 1). The distribution of host-virus linkages was as follows: Methanosarcinaceae (230 linkages; Straboviridae, Demerecviridae), Methanotrichaceae (17 linkages; Zierdtviridae, Herelleviridae, Peduoviridae), Methanobacteriaceae (160 linkages; Straboviridae, Salasmaviridae), Methanocellaceae (2 linkages; Kyanoviridae), and Methanomassiliicoccaceae (10 linkages; Salasmaviridae) (Fig. 1B). Among the viruses linked to Methanosarcinaceae, 18 were classified as Straboviridae, 3 as Demerecviridae, and 52 belonged to unclassified viruses, while those associated with Methanobacteriaceae were predominantly Straboviridae (n = 20), Salasmaviridae (n = 9), and unclassified viruses (n = 58). Notably, the viromes associated with paddy field methanogens exhibited distinct taxonomic compositions compared to those identified in gut-associated methanogens [8].

We observed distinct cross-infection patterns in host-virus interactions, wherein certain viruses were capable of infecting multiple closely related species within specific methanogen families (Fig. 1B). Within the Methanosarcina family, five major cross-infection modules (designated as Modules A–E) were identified (Fig. 1B). Module A comprised eight Methanosarcina species: Methanosarcina thermophila (A1), Methanosarcina flavescens (A2), M. thermophila (our MAGs, A3), M. sp. 002499445 (A4), M. thermophila (our MAGs, A5), Methanosarcina mazei (A6), M. sp. 004099695 (A7), and M. sp. 002509325 (A8). Nodes A3 and A5, corresponding to M. thermophila, were reconstructed from our metagenomic datasets, while A1, A2, and A6 represented cultured methanogen strains. Nodes A4 and A8 originated from fermentation-associated metagenomes, and A7 was recovered from sediment metagenomes. Module B consisted of two nodes, represented by two Methanobrevibacter strains: M. sp. 900 314 635 (B1) and M._A sp. 902 785 855 (B2). Cross-infection events were also observed in Module C (3 nodes), Module D (2 nodes), and Module E (2 nodes), corresponding to the genera Methanobacterium, Methanohalophilus, and Methanolobus, respectively (Fig. 1B).

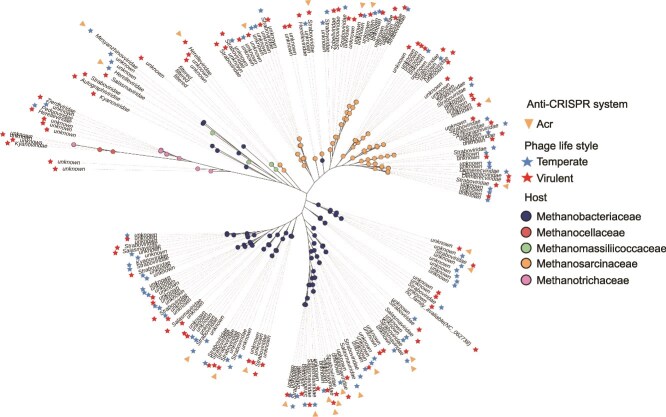

A proteome-scale phylogenetic analysis of the 189 methanogen-associated viruses, in comparison with 5420 reference double-stranded DNA (dsDNA) prokaryotic viral genomes, revealed the formation of two major phylogenetic clusters among the methanogen viruses (Supplementary Fig. 4). These two clusters exhibited close phylogenetic proximity. Of the viruses analyzed, 77 and 94 were associated with hosts from the families Methanosarcinaceae and Methanobacteriaceae, respectively (Fig. 2). Based on genome analysis, 100 viruses were classified as virulent and 79 as temperate phages (Fig. 2, Supplementary Table 2). Anti-CRISPR (Acr) systems were identified in 24 methanogen-associated viral genomes, corresponding to 7 viruses predicted to infect members of the Methanosarcinaceae and 17 infecting Methanobacteriaceae hosts (Fig. 2). These findings suggest that viruses infecting methanogens have evolved counter-defense mechanisms to evade host CRISPR-Cas immunity [16, 17].

Among the Acr-encoding viruses, 15 were classified as virulent and 9 as temperate. Taxonomic classification placed these viruses into the families Herelleviridae (n = 2), Mesyanzhinovviridae (n = 1), Salasmaviridae (n = 2), and Straboviridae (n = 6), with 11 viruses remaining unclassified. Structural annotation of virion proteins revealed components including major and minor capsid proteins, major and minor tail proteins, tail fibers, portal proteins, and baseplate structures (Supplementary Fig. 5). In addition, viral auxiliary metabolic genes (AMGs) were identified, including genes related to the 2-oxoglutarate (2OG)-Fe(II) oxygenase superfamily, glycosyltransferase family 2 (GT2) cellulose synthase, and phosphate starvation-inducible proteins. These AMGs are hypothesized to enhance host metabolic flexibility and fitness (Supplementary Fig. 6).

Collectively, our findings provide insights into the potential co-evolutionary dynamics between methanogenic archaea and their associated viromes. Evidence includes: (i) the presence of Type I and Type III CRISPR-Cas loci in 191 methanogen genomes, indicating host adaptive immunity; (ii) the identification of anti-CRISPR systems in 24 viral genomes, suggesting viral counter-defense strategies; and (iii) cross-infection of viruses among multiple methanogenic genera, including Methanosarcina, Methanobrevibacter, Methanobacterium, Methanohalophilus, and Methanolobus. These results illuminate the complexity of host–virus interactions in methanogens and suggest potential avenues for leveraging viruses to mitigate methane (CH_4_) emissions in paddy soil ecosystems.
