Evaluation of the effect of nano-hydroxyapatite/silica gel bone graft and/or hemodialysate paste on the regeneration and nano-mechanical properties of calvarial bone in gammairradiated albino rats
Noha S. Zein, Sara El Moshy, Mohammed Khashaba, Eman M. F. El-Maghraby, Engy R. Rashed, Dalia M. Abdel-Hamid
TL;DR
This study tests how a bone graft material and hemodialysate affect bone regeneration in gamma-irradiated rats.
Contribution
The novel contribution is evaluating the combined effect of nano-hydroxyapatite/silica gel and hemodialysate on irradiated bone healing.
Findings
Treated groups showed better bone regeneration than the untreated control group.
The combination treatment (NanoBone® + Solcoseryl®) yielded the highest bone quality and quantity.
Nano-mechanical properties like hardness and modulus were significantly improved in treated groups.
Abstract
Evaluating the effect of synthetic nano-hydroxyapatite/silica gel bone substitute and/or hemodialysate on gamma irradiated bone regeneration and bone nano-mechanical properties in rat model. Seventy adult male Wistar albino rats (total of 70 defects, 1 defect/rat) were randomly divided into five groups (14 rats/group); 4 irradiated groups; control (Ir-C) without any treatment, NanoBone®-treated (Ir-N), Solcoseryl®-treated (Ir-S), NanoBone® + Solcoseryl®-treated (Ir-NS) groups, and one non-irradiated NanoBone® + Solcoseryl®-treated (Nr-NS) group. Each rat’s calvarium was subjected to a single dose of gamma radiation (12 Gy) followed by a single critical-sized defect creation. Defects were then filled with the assigned treatments except the Ir-C group. Rats were euthanized after 4 weeks. Hematoxylin and Eosin, Masson’s Trichrome staining and nano-indentation were performed for histologic…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8- —Egyptian Atomic Energy Authority
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsBone Tissue Engineering Materials · Oral health in cancer treatment · Facial Trauma and Fracture Management
Introduction
The prevalence of head and neck cancers has elevated over the past few years. Surgery in conjunction with chemotherapy and/or radiotherapy are the best treatment methods to date. Oral adverse effects due to radiotherapy include xerostomia, radiation caries, loss of taste sensation, and osteoradionecrosis [1]. Nevertheless, radiotherapy produces changes in bone tissues manifested as death of bone remodeling cells (osteoblasts and osteoclasts) and endothelial cells “hypocellularity”, impaired vascularization “hypovascularity” and deficiency in the amount of oxygen reaching the affected tissues “hypoxia”. This in turn alters bone metabolism and remodeling cycle and reduces calcium and phosphate forming the hydroxyapatite mineral which is responsible for mechanical properties of bone [2].
Different types of bone grafts have been suggested to enhance bone regeneration in defected areas subjected to radiotherapy [3]. Autologous bone is the gold standard for bone graft materials as it shows osteoinductive, osteoconductive and osteogenic properties [4]. However, disadvantages of autograft transplantation include limited tissue availability, prolonged operating time, impaired healing and donor site morbidity especially in older/ or osteoporotic patients [5]. Allografts and xenografts on the other hand show osteoconductive and sometimes osteoinductive properties but have the limitations of immune-mediated rejection and risk of disease transmission [6].
Synthetic bone grafts were manufactured to overcome the drawbacks of the other types. They can be fabricated from different materials as polymers, ceramics, metals and composites [5]. Researchers have thoroughly investigated calcium phosphate ceramics, particularly tricalcium phosphate (TCP) and hydroxyapatite (HA) for bone regeneration applications. Their osteoconductivity and biocompatibility are attributed to their resemblance to the main inorganic constituent of human bones [7].
Implementing the concept of nanotechnology in developing biomaterials has led to producing nano-sized synthetic bone substituting materials with outstanding characteristics. Among those is the nano-crystalline HA silica gel bone graft (NanoBone^®^) that mimics the natural bone structure and improves bone regeneration [8]. The nano-crystalline HA is added to the silica gel matrix in a sol-gel process producing a highly porous nano-textured structure. This serves as a basis for the biomaterial’s exceptional biocompatibility and biodegradability [9, 10].
The highly purified protein-free hemodialysate paste (Solcoseryl^®^) has demonstrated promising pharmacological actions as enhancing oxygen utilization, uptake of glucose by cells, stimulating adenosine triphosphate (ATP), collagen synthesis and energy metabolism promoting angiogenesis while reducing cell apoptosis and oxidative stress. This stimulates cell growth and facilitates wound healing. Solcoseryl^®^ also has beneficial regenerative effects in the treatment of radiation-induced damage as well as disturbances of blood circulation [11]. Furthermore, previous studies have reported the efficacy of Solcoseryl^®^ in accelerating bone regeneration in the bone defects of experimental animals and around implants [12–14].
Therefore, the aim was to evaluate the effect of synthetic nano-hydroxyapatite/silica gel bone substitute (NanoBone^®^) and/or hemodialysate (Solcoseryl^®^) on bone regeneration and nano-mechanical properties of calvarial bone in gamma-irradiated albino rats. The null hypothesis of the present study was that there would be insignificant difference in the histomorphometric analysis of regenerated bone (bone area percentage) and the nano-mechanical properties of gamma-irradiated bone grafted with NanoBone^®^ and Solcoseryl^®^ when compared to non-grafted gamma-irradiated bone in rat animal model after four weeks.
Methods
Sample size calculation
To determine the optimal sample size for this study, a statistical power analysis approach is used. The goal is to achieve 80% power (0.8) and a 95% confidence level (α = 0.05), ensuring reliable detection of differences between treatment groups. The sample size for each experimental test was 6 defects per group for the histomorphometric analysis and 8 defects per group for the nano-mechanical properties measurement. Effect size (d) measures the expected difference between groups. An effect size of 0.5 is assumed if prior data isn’t available.
Sample Size Formula:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\:n={\left(\frac{{Z}_{\alpha\:/2}+\_{Z}_{\beta\:}}{\varDelta\:}\right)}^{2}\cdot\:{\sigma\:}^{2}$$\end{document}Where Z_α/2_ and Z_β_ represent critical z-values for confidence and power, Δ is the effect size, and σ^2^ is variance.
Animals and grouping
The experiment was conducted in compliance with the protocol approved by the Institutional Animal Care and Use Committee (CU-IACUC), Cairo University (CU III F 29 19). Seventy adult male Wistar albino rats (120–150 g) were enrolled in the study. Rats were kept in polypropylene/stainless steel cages with dimensions of 54, 37 and 27 cm and submitted to suitable ventilation, controlled temperature (25 max 28 °C), max humidity of 55% and 12 h of light/dark cycle with pellet diet and drinkable water ad libitum.
The rats were randomly divided into 5 groups (n = 14): Ir-C group (irradiated control without any treatment), Ir-N group (irradiated NanoBone^®^-treated), Ir-S group (irradiated Solcoseryl^®^-treated), Ir-NS group (irradiated NanoBone^®^ + Solcoseryl^®^-treated) and Nr-NS group (non-irradiated NanoBone^®^ + Solcoseryl^®^-treated).
Gamma irradiation
The rats of Ir-C, Ir-N, Ir-S and Ir-NS groups were subjected to a single dose of 12 Gy of gamma irradiation which was localized on the cranial region by shielding rats’ bodies using a cylindrical lead jacket. Irradiation was carried out at the National Center for Radiation Research and Technology (NCRRT, Cairo, Egypt) utilizing the Cobalt-60 irradiation source (GAMMACELL^®^-220, Nordion International Inc., Kanata, Ontario, Canada) at dose rate of 1.83 KGy/h at the time of the study [15, 16].
Standardization of the study materials amount
A sterile custom-made circular teflon mold having dimensions of 5 × 1 mm was constructed to simulate the dimensions of the planned surgical bony defect and to standardize the amount of the materials used in the current study. NanoBone^®^ granules were filled into the mold, weighed using an electronic balance with a readability of 0.1 mg (Precise Instrument ltd, Switzerland) and sealed in a sterile container. This process was repeated to obtain a total of 14 sterile containers filled with equal amounts of NanoBone^®^ granules to fill the surgical bony defects of the Ir-N group. For the hemodialysate paste (Solcoseryl^®^), the mold was filled with Solcoseryl^®^ using a sterile syringe weighed before and after dispensing the paste to attain 14 equally filled syringes to be used in the surgical bony defects of the Ir-S group. Lastly, the NanoBone^®^ and Solcoseryl^®^ were mixed in a ratio of 1:1 by weight on a sterile glass slab, placed in sealed containers to fill 28 surgical bony defects; 14 for the Ir-NS group and 14 for the Nr-NS group [13].
Surgical procedures
Three days following gamma irradiation, surgical procedures were performed on rats’ crania. After anesthetizing each rat using sodium pentobarbital (50 mg/kg bw) [17] and under sterile surgical conditions, midline skin incisions were made followed by elevation of the underlying periosteum. Single centralized critical-sized defect with a 5 mm diameter was performed in the calvarial bone of each rat [18]. Based on previous studies, calvarial bone thickness was found to be 1 mm [19, 20]. The defect’s preparation started using a customized surgical template with the required diameter of the defect (5 mm). This was followed by using 0.5 then 1 mm round burs to drill three holes till the required depth (1 mm) by the defect outline. The depth was confirmed using a graduated periodontal probe. Finally, 5 mm round bur was used to remove the remaining bone guided by the previously drilled holes. The drilling was carried out using low-speed motor with copious irrigation to minimize heat generation and damage to tissues [21]. Extra care was taken to avoid damaging brain and meningeal tissues [18, 22]. Each defect was treated with the pre-weighed study materials according to their group except Ir-C group that was left empty for natural bone healing and finally soft tissue flaps were sutured using interrupted 3/0 black silk sutures (Fig. 1). Analgesic and antibiotic were administered for 7 days to minimize postoperative pain and infection [13, 23]. Rats were euthanized after four weeks by overdose anesthesia [17].
Fig. 1. Surgical procedure (A) disinfection and shaving of the surgical site (B) midline incision (C) drilling in the calvarial bone (D) critical-sized defect creation (E) filling defect with NanoBone^®^ (F) filling defect with Solcoseryl^®^ (G) filling defect with mixture of NanoBone^®^ + Solcoseryl^®^ (H) suturing of soft tissue flaps
Histological examination
Thirty calvarial specimens (6 specimens per group) were fixed in 10% formaldehyde solution for 24 h, immersed in 10 EDTA for one month until decalcified, dehydrated using alcohol and xylol and inserted in paraffin to obtain blocks from which 5 μm thickness histological specimens were cut and stained with Hematoxylin & Eosin (H&E). Slides were examined by light microscopy for histological evaluation (Orig. Mag. x100 and x400). Additionally, the specimens were stained with Masson’s trichrome staining for analysis of collagen maturation and examined by the same light microscope (Orig. Mag. x400) [24].
Histomorphometric analysis
The area percent of newly formed bone was analyzed using an image analysis software (Fiji ImageJ) with Trainable Weka Segmentation and BoneJ plugins in images taken from the H&E-stained sections. This was performed on images obtained with x100 magnification from the center and periphery of the defects. Five fields were measured and averaged from each specimen to obtain mean values of the area percent of newly formed bone [25].
Nano-mechanical properties measurement
Fourty calvarial specimens (8 specimens per group) were sectioned into rectangular-shaped specimens, embedded in acrylic resin blocks, polished and transferred to the nano-indenter instrument (Nano Indenter^®^ G200, Agilent Technologies, Inc., California, USA) at the National Center for Radiation Research and Technology NCRRT for nano-mechanical properties measurement (nano-hardness and indentation modulus).
Each test specimen was subjected to 9 indents with 25 μm spacing between each indent. A loading profile was created with a maximum load of 3 mN. Collection and analysis of data were carried out using the previously described method by Oliver and Pharr [26]. The depth of penetration and area of indent were automatically recorded and the values were plotted on a graph creating a load displacement-curve for each indent [27]. The nano-hardness (NH) in GPa was calculated using the following equation:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text{NH}=\frac{{P}_{max}}{A}$$\end{document}[26].
where Pmax is the maximum load applied at the test surface and A is the projected contact area at that load.
The elastic modulus (E) in GPa of the tested specimen was calculated from the reduced modulus (Er), that is given by the following equation:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text{E}_r=\frac{\sqrt{\pi\:}}{2}\:\frac{S}{\sqrt{A}}$$\end{document}[26].
where S is the contact stiffness determined by the slope of the initial portion of the unloading curve. The elastic modulus (E) of the test specimen was calculated from the equation and described as the indentation modulus (IE):
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\:\frac{1}{{E}_{r}}=\frac{(1-{v}^{2})}{E}+\frac{(1-{v}_{i}^{2})}{{E}_{i}}$$\end{document}[26].
where Er, E and ν are the reduced modulus, elastic modulus and Poisson’s ratio of the test specimen respectively and Ei and νi are the elastic modulus and Poisson’s ratio of the diamond indenter respectively. For the diamond indenter, the elastic constants Ei = 1141 GPa and νi = 0.07 were used. Poisson’s ratio for calvarial bone was assumed to be 0.3.
The nano-hardness (NH) and indentation modulus (IE) of the 9 indents/ test specimen were calculated and averaged to obtain mean values for each test specimen. Values were recorded in GPa.
Statistical analysis
Data analysis was performed using Statistical Package for Social Sciences version 20 (SPSS 20^®^), Graph Pad Prism^®^ and Microsoft Excel 2016. All quantitative data were explored for normality using Shapiro-Wilk and Kolmogorov-Smirnov tests and presented as means and standard deviation values. One-way Analysis of Variance (ANOVA) test was used to compare between different groups followed by Tukey’s Post Hoc test for multiple comparisons.
Results
Histological evaluation
Examination of the H&E-stained specimens revealed that the bone defects of the irradiated control (Ir-C) group without any treatment were filled with granulation tissue. Few thin newly formed bone trabeculae were observed extending from the defect’s peripheries. These new bone trabeculae were scattered in the granulation tissue filling the defect (Fig. 2A). In the irradiated NanoBone^®^-treated (Ir-N) group, as well as the irradiated Solcoseryl^®^-treated (Ir-S) group, the core of the defect, was mainly filled with remnants of the NanoBone^®^ and Solcoseryl^®^ respectively, with newly formed bone trabeculae from the peripheries and bottom of the bone defect as presented in Fig. (2B) & (2 C) respectively. Meanwhile, the irradiated NanoBone^®^ + Solcoseryl^®^-treated (Ir-NS) group (NS) and the non-irradiated NanoBone^®^ + Solcoseryl^®^-treated (Nr-NS) group revealed thicker newly formed bone trabeculae extending from the defect’s peripheries toward the bottom of the defect as shown in Fig. (2D) & (2E) respectively. Despite the fact that the amount of the newly formed bone trabeculae was greater in the Nr-NS group compared to the Ir-NS group, in both groups the defect core was filled with remnants of the tested materials.

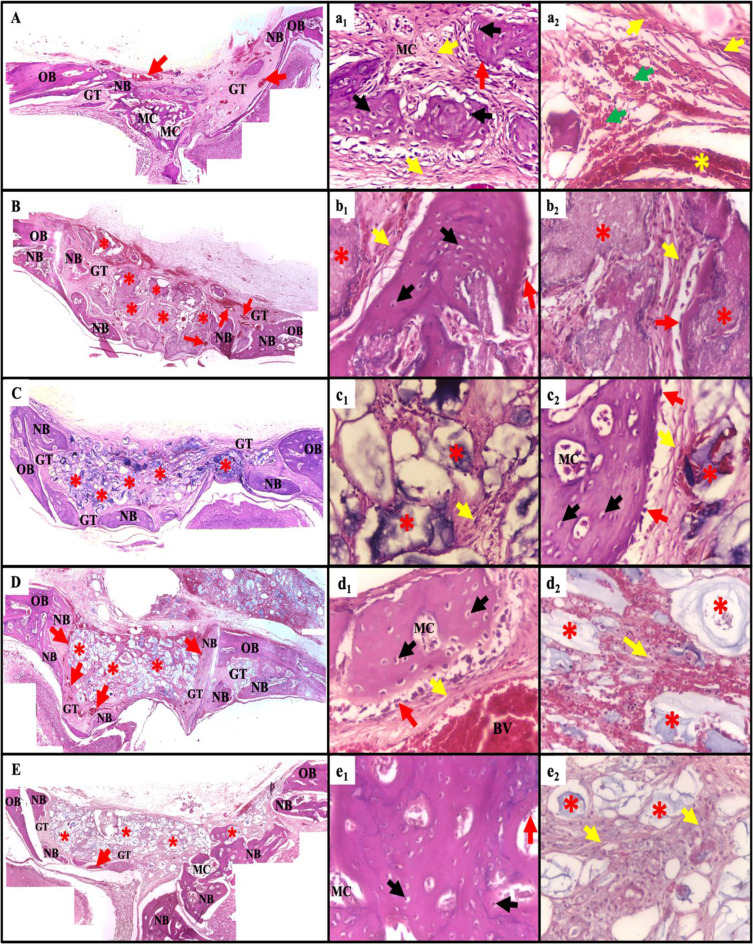

Fig. 2. Photomicrographs of the different experimental groups (A) Ir-C group (B) Ir-N group (C) Ir-S group (D) Ir-NS group (E) Nr-NS group showing the bone defects enclosing granulation tissue (GT), congested blood vessels (red arrows), newly formed bone trabeculae (NB) at the edges of the defect extending from the old bone peripheries (OB) and enclosing marrow cavities (MC) (H&E, Orig. mag. x100). (a_1_-e_2_) are higher magnifications of the different experimental groups representing the newly formed bone with randomly arranged osteocytes (black arrows), osteoblasts (red arrows) lining bone trabeculae, different size marrow cavities (MC) enclosing collagen fibers (yellow arrows) with spindle shape fibroblasts, blood vessels (yellow asterisk) and some extravasated red blood cells (RBCs) (green arrows) (H&E, Orig. Mag. x400)
Upon magnification, the newly formed bone trabeculae in all groups enclosed numerous and randomly arranged large-sized osteocytes entrapped in their lacunae. Osteoblasts were found lining the newly formed bone trabeculae (Fig. 2a_1_, b_1_&b_2_, c_2_, d_1_ & e_1_).
Granulation tissue revealed collagen fibrils. The fine collagen fibrils showed random arrangements in some defect areas in the Ir-C group (Fig. 2a_1_&a_2_). On the other hand, they showed increased thickness and some well-organized pattern in the other groups. In addition, well-arranged fine collagen fibrils were spotted at areas of new bone formation surrounding newly formed bone trabeculae and between them (Fig. 2b_1_&b_2_, c_1_&c_2_, d_1_&d_2_ & e_2_).
Regarding the blood supply at the defect sites, there was extravasated blood in the Ir-C group (Fig. 2a_2_) and newly formed blood vessels were detected in all groups especially the Ir-NS group (Fig. 2A, B, C, D and d_1_ & 2E).
The Masson’s trichrome-stained sections exhibited different levels of collagen maturation. In all groups, the newly formed bone trabeculae exhibited the presence of newly synthesized collagen fibers, which were displayed as a blue color. This indicated the formation of immature bone, with bone areas appearing as red color reflecting the maturation of collagen fibers over time. The amount of mature bone was evident in all experimental groups with an increased amount in the Ir-NS and Nr-NS groups. On the other hand, the areas of immature bone in the Ir-C, Ir-N, and Ir-S groups were clearly demonstrated in the newly formed bone trabeculae (Fig. 3).

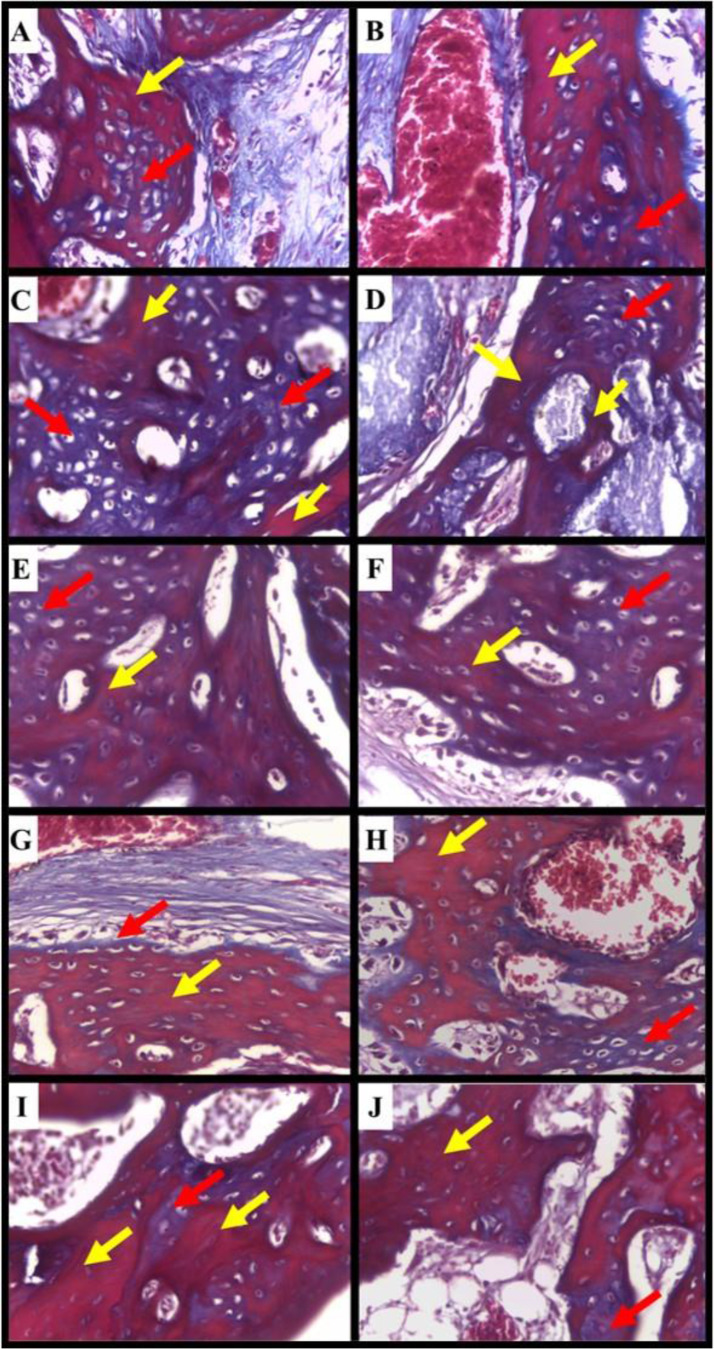

Fig. 3. Photomicrographs of the calvarial bone defects (A&B) the Ir-C group, (C&D) the Ir-N group, (E&F) the Ir-S group, (G&H) the Ir-NS group, (I&J) the Nr-NS group showing collagen fibers of the newly formed woven bone indicated by the blue color (red arrows) and areas of lamellar bone represented by the red color (yellow arrows) (Masson’s Trichrome, Orig. Mag. x400)
Histomorphometric analysis
The histomorphometric analysis revealed that the Ir-C group showed the lowest significant mean area percent of new bone, followed by the Ir-S group and the Ir-N group with insignificant difference between both groups, followed by the irradiated Ir-NS group and finally the Nr-NS group having the highest significant mean area percent (Table 1; Fig. 4).
Table 1. Area percent of new bone in the different study groupsGroupMean areapercent of new boneStandard deviation(± SD)P-valueIr-C (irradiated control without any treatment)18.49 ^d^1.89< 0.0001Ir-N (irradiated Nanobone^®^-treated)25.30 ^c^3.94Ir-S (irradiated Solcoseryl^®^-treated)24.28 ^c^3.61Ir-NS (irradiated Nanobone^®^ + Solcoseryl^®^-treated)35.27 ^b^3.18Nr-NS (non-irradiated Nanobone^®^ + Solcoseryl^®^-treated)42.83 ^a^3.26Different superscript letters indicate significant difference at P ≤ 0.05Same superscript letters indicate insignificant difference at P > 0.05 Significant at P ≤ 0.05

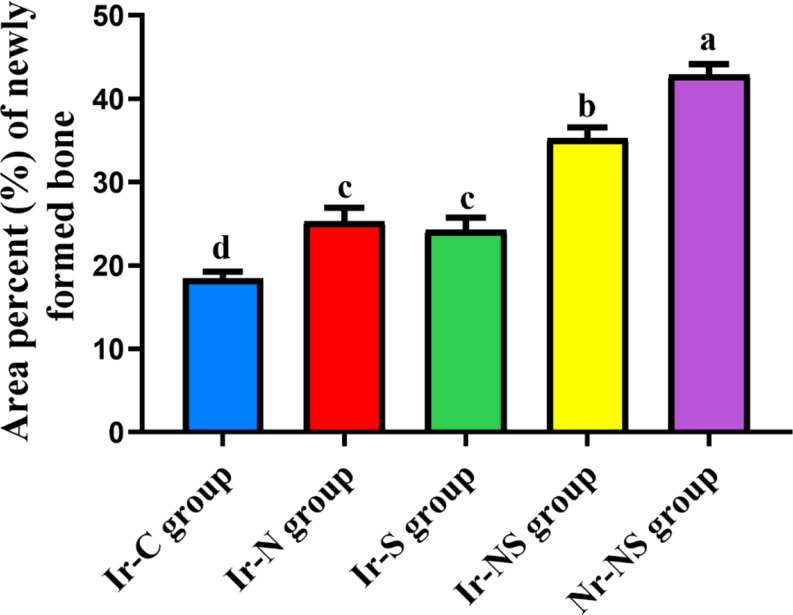

Fig. 4. Bar chart showing mean area percent of new bone in the different study groups
Nano-mechanical properties measurement
The Ir-C group possessed the lowest mean nano-hardness and indentation modulus values, followed by the Ir-S group, followed by Ir-N group, followed by the Ir-NS group and finally the Nr-NS group showed the highest values with significant differences between all groups (Tables 2 and 3; Figs. 5 and 6). Representative load-displacement curves for the different groups are presented in Fig. 7.
Table 2. Nano-hardness (GPa) values of the different study groupsGroupMean nanohardness(GPa)Standard deviation(± SD)P-valueIr-C (irradiated control without any treatment)0.085 ^e^0.013< 0.0001Ir-N (irradiated Nanobone^®^-treated)0.261 ^c^0.028Ir-S (irradiated Solcoseryl^®^-treated)0.174 ^d^0.020Ir-NS (irradiated Nanobone^®^ + Solcoseryl^®^-treated)0.416 ^b^0.039Nr-NS (non-irradiated Nanobone^®^ + Solcoseryl^®^-treated)0.579 ^a^0.047Different superscript letters indicate significant difference at P ≤ 0.05 Significant at P ≤ 0.05
Table 3. Indentation modulus (GPa) values of the different study groupsGroupMean indentation modulus (GPa)Standard deviation(± SD)P-valueIr-C (irradiated control without any treatment)2.509 ^e^0.267< 0.0001Ir-N (irradiated Nanobone^®^-treated)4.282 ^c^0.406Ir-S (irradiated Solcoseryl^®^-treated)3.350 ^d^0.438Ir-NS (irradiated Nanobone^®^ + Solcoseryl^®^-treated)5.649 ^b^0.648Nr-NS (non-irradiated Nanobone^®^ + Solcoseryl^®^-treated)7.671 ^a^0.755Different superscript letters indicate significant difference at P ≤ 0.05 Significant at P ≤ 0.05

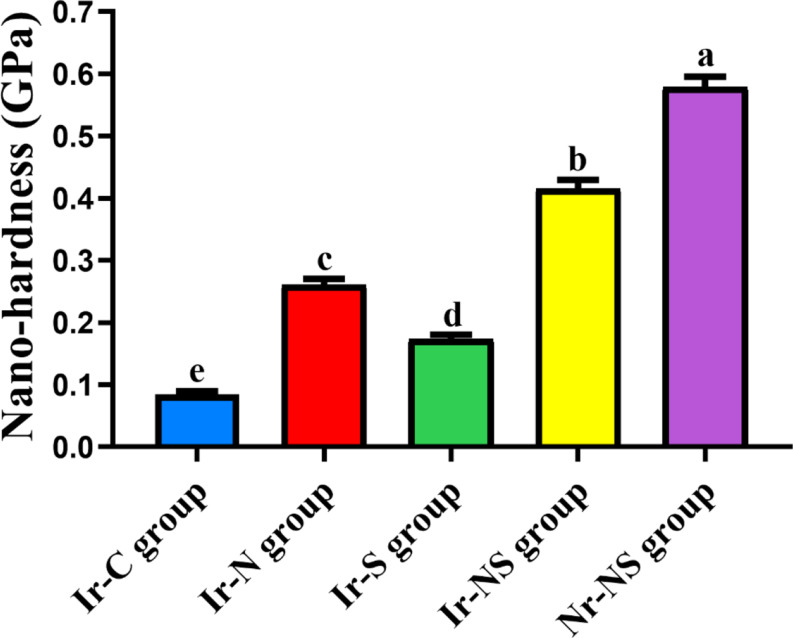

Fig. 5. Bar chart showing mean nano-hardness values (GPa) of the different study group

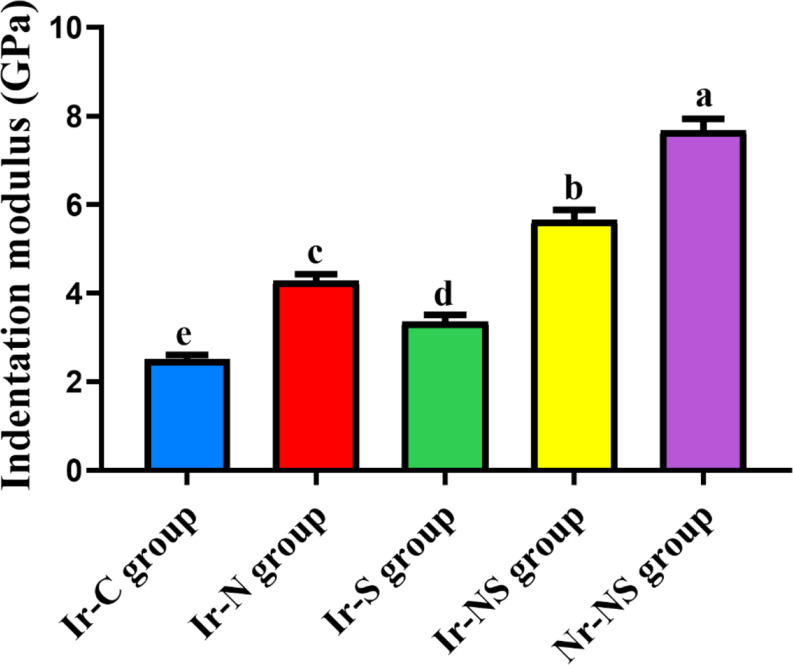

Fig. 6. Bar chart showing mean indentation modulus values (GPa) of the different study groups

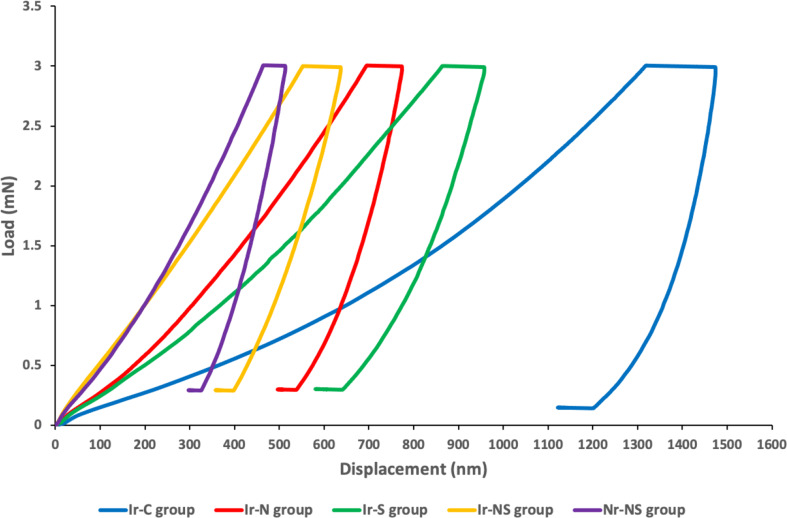

Fig. 7. Representative load-displacement curves for the different study groups
The comparison between the indentation modulus to nano-hardness (IE/NH) ratio revealed that the Ir-C group showed the highest IE/NH ratio, followed by the Ir-S group, while the lowest IE/NH ratios were obtained by the rest of the groups where there were insignificant differences between the Ir-N, the Ir-NS and the Nr-NS groups as presented in Table 4; Fig. 8.
Table 4IE/NH ratios of the different study groupsGroupMean IE/NH ratioStandard deviation(± SD)P-valueIr-C (irradiated control without any treatment)30.217 ^a^5.891< 0.0001Ir-N (irradiated Nanobone^®^-treated)16.601 ^bc^2.278Ir-S (irradiated Solcoseryl^®^-treated)19.562 ^b^3.696Ir-NS (irradiated Nanobone^®^ + Solcoseryl^®^-treated)13.629 ^c^1.445Nr-NS (non-irradiated Nanobone^®^ + Solcoseryl^®^-treated)13.327 ^c^1.758Different superscript letters indicate significant difference at P ≤ 0.05Same superscript letters indicate insignificant difference at P > 0.05 Significant at P ≤ 0.05

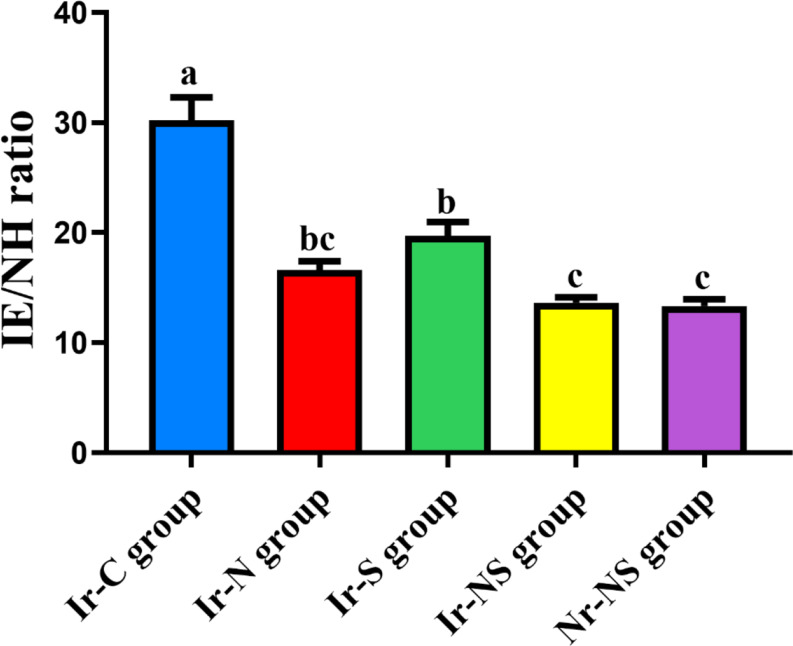

Fig. 8. Bar chart showing mean IE/NH ratios of the different study groups
