An investigation into possible interactions in the vestibular system and the cochlea during electrical stimulation
David Lanthaler, Andreas Griessner, Viktor Steixner, Julie Corre, Maurizio Ranieri, Samuel Cavuscens, Gautier Grouvel, Nils Guinand, Clemens M. Zierhofer, Angélica Pérez Fornos
TL;DR
This study explores how electrical stimulation of the cochlea and vestibular system interacts in people with combined hearing and balance impairments.
Contribution
The study provides empirical evidence of subject-specific interactions during dual stimulation of cochlear and vestibular implants.
Findings
Vestibulo-vestibular interactions consistently increased perceptual thresholds due to electrical interference.
Threshold shifts were observed in two of three subjects during vestibulo-cochlear and cochleo-vestibular interactions.
Subject-specific variability highlights the need for careful management of dual stimulation in implant use.
Abstract
The vestibular system is crucial for balance, spatial orientation, and gaze stabilization. Bilateral vestibulopathy (BV) severely impairs these functions, often co-occurring with severe to profound hearing loss. Combined cochleo-vestibular implants have the potential to rehabilitate these dual sensory impairments. These investigational devices have been used by a small group of subjects with both severe hearing loss and bilateral vestibular loss. When electrically stimulating both the cochlea and the vestibular system, understanding electrical interactions is essential for the successful fitting and operation of these combined implants. The aim of this study was to investigate the influence of vestibular pulses on cochlear and vestibular perception, and vice versa. In our study, we conducted experiments on three recipients of cochleo-vestibular implants, measuring auditory and…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6| Subject | S1 | S2 | S3 |
|---|---|---|---|
| Sex | F | F | F |
| Implantation age | 66 | 72 | 67 |
| Implantation year | 2021 | 2021 | 2013 |
| Etiology | DFNA9 | Meningitis | Trauma |
| Implant side | R | L | L |
| Condition | A | B | C |
|---|---|---|---|
| Probe | Cochlear | Vestibular | Vestibular |
| Perturbation | Vestibular | Cochlear | Vestibular |
| Subject | Vestibular electrode | Cochlear electrode |
|---|---|---|
| S1 | LAN | E2 |
| SAN | E2 | |
| PAN | E9 | |
| S2 | LAN | E2 |
| PAN | E8 | |
| S3 | LAN | E4 |
| SAN | E5 |
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsHearing Loss and Rehabilitation · Hearing, Cochlea, Tinnitus, Genetics · Noise Effects and Management
Introduction
1
The vestibular system in the inner ear is an essential contributor to the sense of balance and is also crucial for spatial orientation and gaze stabilization. A severe, bilateral impairment of the function of the vestibular system affects these abilities and is referred to as bilateral vestibulopathy (BV). BV is characterized by severe and debilitating symptoms such as chronic imbalance and visual difficulties in dynamic conditions. Because of the close anatomical proximity between the cochlea and the vestibular systems, pathological processes of the inner ear may also affect both sensory functions. Indeed, individuals suffering from profound hearing loss are the most susceptible to be affected also by vestibular disorders, with a prevalence of up to 50% (Handzel et al., 2006; Pajor and Jozefowicz-Korczynska, 2007; Wiener-Vacher, 2008; Jacot et al., 2009; Cushing et al., 2013; Batuecas-Caletrio et al., 2015; Verbecque et al., 2017; Nayak et al., 2022). Rehabilitation with combined cochleo-vestibular implants is currently being investigated and could help to overcome both sensorineural losses to a certain degree (Guyot et al., 2016; Phillips et al., 2020; Miguel et al., 2024; Vermorken et al., 2024).
Due to the anatomical proximity of the two end-organs, the possibility of achieving simultaneous stimulation of the cochlear and vestibular branches of the VIIIth cranial nerve without adverse effects needs to be carefully investigated as it could result in spread of activation adversely impacting auditory and/or vestibular performance. Concrete hints to this effect have been found in previous studies by our group, where some subjects have reported auditory percepts upon electrical stimulation delivered via the vestibular electrodes [see, e.g., (Guinand et al., 2015)]. Understanding this potential electrical interaction between the different stimulation electrodes is therefore essential for the successful fitting and operation of combined cochleo-vestibular implants.
To our knowledge, there are only two studies available on the topic to date (Phillips et al., 2020; Miguel et al., 2024). Miguel et al. investigated whether electrical stimulation from a cochlear implant could also stimulate the otolith end-organ of the vestibular system and improve balance, as a practical alternative to direct vestibular stimulation. They analyzed cross talk between the cochlea and the otolith organ in 4 subjects using trans-impedance matrix analysis as well as a speech comprehension test (Disyllabic Word Test) and the Dynamic Gait Index. No effective cross-stimulation could be found, and they concluded that effective otolith stimulation can only be achieved via direct electrical stimulation of the otolith end-organs (Miguel et al., 2024). Philips et al. conducted a study to quantify auditory and vestibular interactions during interleaved stimulation with a combined cochleo-vestibular prosthesis in 3 subjects. They found no auditory sensation when stimulating the vestibular system alone and no sensation of motion or slow-phase eye movement from cochlear stimulation alone. However, they found significant interactions during stimulation with a combined vestibular and cochlear prosthesis resulting in changes of pitch and loudness in the auditory part as well as changes in slow-phase eye velocities (Phillips et al., 2020).
In both referenced studies, electrode designs and placements and implant models are used which are substantially different to the ones we use in our study. These differences in setup lead to results not being directly comparable to possible interactions found in our design. We also aim to study possible interactions between simple electrode pulse trains at a very fundamental level, while the other two studies deal with more functional interactions.
The main objective in our study was to investigate potential interactions when using combined stimulation of one cochlear and one vestibular electrode as well as two vestibular electrodes. For this, we conducted an experiment utilizing a combined cochleo-vestibular implant, where we determined and compared the vestibular and auditory perceptual thresholds for single electrodes under controlled conditions for combined stimulations. We hypothesized that in our configuration audio-vestibular interactions would be observed as threshold shifts, which we aimed to quantify.
Methods
2
Implant and subjects
2.1
The cochleo-vestibular implant is a modified cochlear implant providing 3 electrode branches to be implanted in the ampulla of each semicircular canal and an intracochlear array with 9 electrode contacts. Device and implantation surgery details have been described previously (Fornos et al., 2014; Guinand et al., 2015).
The current case study was conducted on 3 recipients of a combined cochleo-vestibular implant who received their devices from the University Hospital Geneva. Currently such combined implants are used for vestibular stimulation in research only settings and thus the number of recipients is very limited world-wide. This explains the low number of patients included in this study. The demographic information of the participants is shown in Table 1.
Hardware and software
2.2
The setup was controlled by a desktop computer running custom-made research software (Matlab R2017b, The Mathworks Inc., Natick, Massachusetts, United States). The computer communicated this information to the implanted stimulator via the manufacturer’s MAX programming interface (MED-EL, Innsbruck, Austria) and the cochlear implant system’s speech processor—a SONNET 2 (MED-EL, Innsbruck, Austria). The testing procedures were generated and analysed using custom-made research software (Matlab R2020a, The Mathworks Inc., Natick, Massachusetts, United States).
Interaction paradigms
2.3
As mentioned above, the aim of this study is to investigate the influence of vestibular stimulation on both auditory and vestibular perception thresholds and vice versa. The main outcome measure was the current threshold (i.e., lowest current eliciting an auditory or vestibular percept) applied on a probe electrode (that could be a vestibular or a cochlear electrode) with or without concurrent presentation of another electrical signal applied on a perturbation electrode (vestibular or cochlear). The three possibilities for probe and perturbation electrodes used in this study are summarized as the interaction conditions shown in Table 2 and can be described as follows.
(A) Influence of vestibular stimulation on auditory perception thresholds (vestibulo-cochlear interactions), characterized using the probe signal on a cochlear electrode and the perturbation signal on a vestibular electrode.(B) Influence of cochlear stimulation on vestibular perception thresholds (cochleo-vestibular interactions), investigated with the probe signal on a vestibular electrode and the perturbation signal on a cochlear electrode.(C) Vestibulo-vestibular interactions, investigated with the probe signal on a vestibular electrode and the perturbation signal on another vestibular electrode.
Cochleo-cochlear interactions were not examined here, as they have already been thoroughly investigated in previous studies (Boëx et al., 2003).
Electrode selection
2.4
All active vestibular electrodes were used in each subject and vestibulo-vestibular interactions (interaction condition C) were evaluated with all available vestibular electrode pairs. To investigate cochleo-vestibular interactions, the geometric distance between electrodes was determined with the help of computer tomography scans. The geometrically closest cochlear electrode to each vestibular electrode was chosen for each combination (shown in Table 3). The listed electrode combinations per subject were used for the perturbation and probe signals depending on the tested paradigm defined in the following section.
Electrode characterization
2.5
The first step in this study involved the determination of the dynamic range (DR) of each individual electrode. The DR is defined as the current range between the threshold (lowest perceivable level) and the upper comfortable level (UCL) and was determined by the subject’s feedback using a visual analog scale. For each individual electrode, subjects were presented with pulse trains with the durations used in the actual experiments. The stimulation amplitude was increased step by step until the subject detected the signal for the first time (i.e., threshold level). Then, the signal was gradually increased until the upper comfortable level (UCL) was reached. At each stimulation amplitude the intensity of percepts was quantified using a visual analog scale of 10 levels (0 meaning no perception, 1 meaning very weak, up to 10 meaning very strong). Note that in these experiments UCL could be determined based on a very strong percept reported by the subject but also in case of unintentional activation of nearby structures such as the facial nerve. The DR of an individual electrode is influenced by both the pulse phase duration and the burst duration. As these durations are different for vestibular and cochlear electrodes used as probe or perturbation signal, determining the DR required testing all possible combinations of durations across all electrodes.
Perceptual threshold assessments
2.6
Once the DR for each individual electrode was determined, we proceeded to the measurement of the threshold levels in each of the different conditions. We used an adaptive staircase psychophysical procedure (Levitt, 1971; Boëx et al., 2003). In such a procedure, the amplitude level of the probe threshold is decreased after two consecutive correct trials (i.e., stimulus detected) and for every incorrect response (i.e., stimulus undetected) it is increased by one step-size. This staircase procedure, illustrated in Figure 1, converges to a detection rate of approximately 70.7% (Levitt, 1971) and has already been used on previous investigations for cochlear threshold comparisons (Boëx et al., 2003).

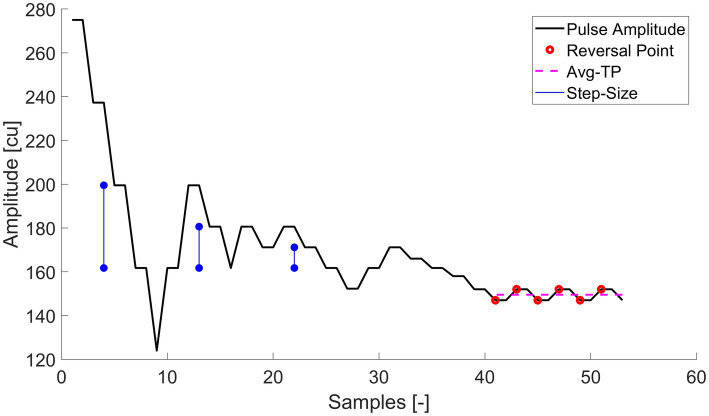

Example of the 3-AFC staircase procedure. The amplitude represents the tested amplitude level for the probe signal. The step-size by which the amplitude levels were increased or decreased were halved 3 times after every second reversal. The last six reversals points mark the values used to determine the average threshold, which is illustrated by the Avg-TP (red dashed line) and used as the main outcome measure.
The step-size was halved after every second reversal point from an initial step-size of 37.76 current units (cu) down to a minimum step size of 4.72 cu. As the protocol is demanding for the patient, the bigger initial step-size allowed convergence on the first reversal as efficiently as possible. The minimum adjustable step-size was limited by the current resolution of the device within the used amplitude range of all subjects. Each staircase ended when six reversal points with the minimum step-size were recorded (a compromise between length of the staircase run for the subject and a converged threshold).
Each experimental trial consisted of three consecutive presentations of a “perturbation” burst lasting 500 ms. During one of these three presentations, a “probe” signal (50 ms duration) was also presented, as illustrated in Figure 2. For the interaction conditions (see Section 2.3 and Table 2) the perturbation signal level was set to 50% of the DR measured during individual electrode characterization (see Section 2.5). We also performed “reference” measurements where the amplitude level of the perturbation signal was set zero (i.e., no perturbation signal). The starting amplitude for the probe signal was set to ensure that the subjects could easily identify it at the beginning of the measurements, corresponding to a perceived level of 50% of the DR.

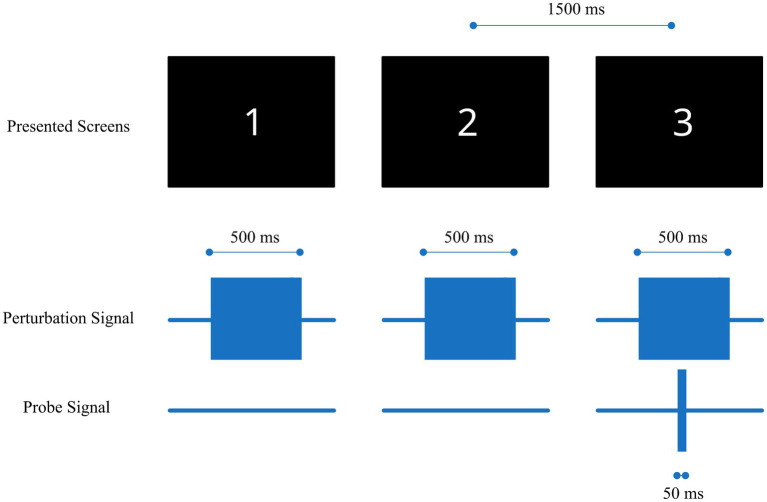

Illustration of the stimulation sequence, consisting of three 500 ms perturbation burst signals (middle row) consecutively delivered to one electrode and a 50 ms probe burst signal (bottom row) delivered to another electrode during only one of the 3 presentations (third stimulus in the current example). The numbered screens (top) were presented to the subject in the dark room during each stimulus presentation.
The position of the probe signal was randomized within each trial sequence and across subjects. Each consecutive presentation was indicated to the subject via a numbered screen 1 to 3 in a dark room with an interval of 1.5 s between each stimulus. After the three presentations, the subject had to report which presentation was perceived “different” compared to the other two. If the reported number matched the presentation screen which included both the perturbation and the probe signal, the trial was valued as correct, otherwise as incorrect. This procedure is known as a three alternative forced choice (3-AFC) method (Levitt, 1971; Boëx et al., 2003).
The pulse bursts of the probe and the perturbation signals in the lower half of Figure 2 are composed of individual pulses with the specific timing shown in Figure 3. In screens including the probe signal the individual probe pulses follow immediately after the perturbation pulses. The pulse phase durations and pulse rate were chosen to best represent real-world usage of a cochleo-vestibular implant, aligning them as close as possible to the ones from cochlea implant users in their daily life and remaining consistent with those used in a previous study (Lanthaler et al., 2021). The phase durations for the cochlea and the vestibular electrode pulses were 40 μs and 200 μs, respectively, with a rate of 878 pps and an inter-phase gap of 2.1 μs.

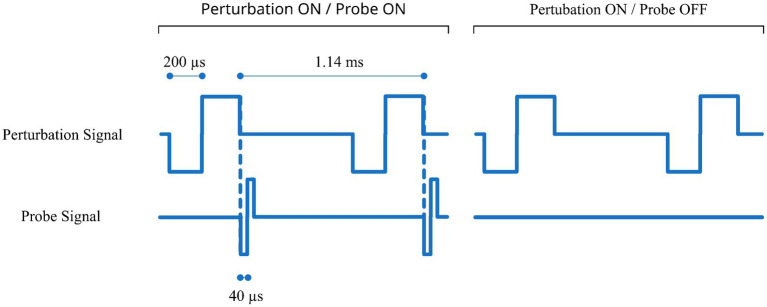

Detailed pulse timing for the probe and perturbation signal for two cases with and without probe signal (left and right panel, respectively). In this example the probe signal is on a cochlear electrode and the perturbation signal is on a vestibular electrode.
Statistical analyses
2.7
For each condition (A–C), thresholds of seven perturbed electrodes were compared pairwise to their corresponding unperturbed reference thresholds. Paired t-tests were applied for conditions B and C, where the Shapiro–Wilk test on normality passed (p = 0.709 and p = 0.877) while for condition A, a Wilcoxon signed-rank test was used, as the data did not follow a normal distribution (p < 0.05).
Results
3
The results for the individual subject thresholds in each condition are presented in Figures 4–6. Results were normalized with respect to the reference measurements performed without perturbation for every probe electrode. In general, the mean values were calculated from the last six reversal points recorded with the smallest step-size within each staircase recording and are indicated in the figures. The evaluation of vestibulo-vestibular interactions was particularly challenging for the participants. Therefore, in this case one measurement that had less than six reversals is marked with an asterisk and the number of reversals is provided.

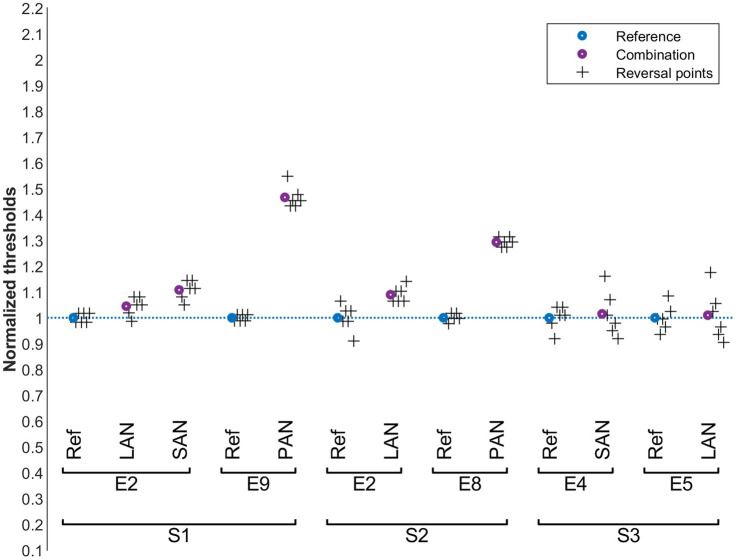

Cochlear thresholds in the presence of vestibular perturbation signals (condition A). Blue: normalized reference thresholds measured on the probe electrode alone (without perturbation signal). Purple: normalized threshold values upon simultaneous stimulation of the perturbation electrode. The final six reversal points of each run are marked with plus symbols. The cochlear probe electrodes are named below the upper brackets and the vestibular perturbation electrodes above.

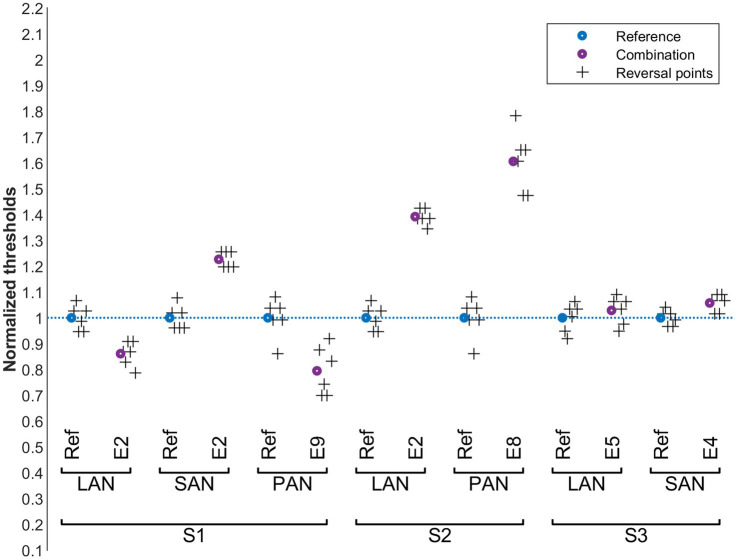

Vestibular perception thresholds in the presence of cochlear perturbation signals (condition B). Blue: normalized reference thresholds measured on the probe electrode alone (without stimulating the perturbation electrode). Purple: normalized threshold values upon simultaneous stimulation of the perturbation electrode. The final six reversal points of each run are marked with plus symbols. The vestibular probe electrodes are indicated below the upper brackets and the cochlear perturbation electrodes above.

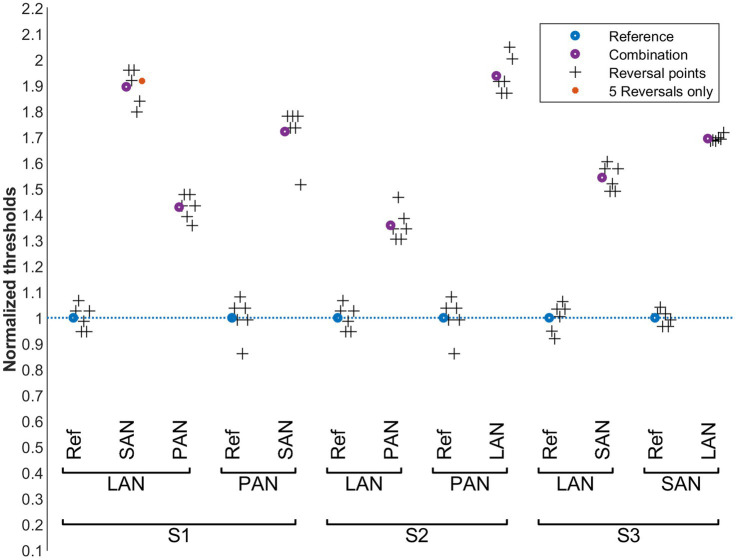

Vestibular perception thresholds in the presence of another vestibular perturbation signals (condition C). Blue: normalized reference thresholds measured on the probe electrode alone (without stimulating the perturbation electrode). Purple: normalized threshold values upon simultaneous stimulation of the perturbation electrode. The final six reversal points of each run are marked with plus symbols. There is one case with only 5 reversals which is marked with a red circle. The vestibular probe electrodes are indicated below the upper brackets and the vestibular perturbation electrodes above.
