Renal vascular patterns assessment before robot-assisted partial nephrectomy: a video-based correlation with hilum dissection
O. S. Barnoiu, H. R. Yazdani, A. V. Andersen
TL;DR
This study uses surgical videos to assess how kidney blood vessel patterns affect the time needed to control the renal hilum during robot-assisted partial nephrectomy.
Contribution
The study introduces a video-based method to evaluate factors influencing renal hilum control during RAPN, focusing on vascular anatomy.
Findings
Previous renal surgery and complex vascular anatomy increase time to hilum control.
Renal hilum control time accounts for about 15% of the total operation time.
Surgeon and surgical approach had no significant impact on hilum control time.
Abstract
Surgical video review (SVR) is an emerging tool for assessing patient outcomes, especially in complex surgeries such as robot-assisted partial nephrectomy (RAPN). Adhesive probability and morphological scores are used to evaluate fat management and warm ischemia, respectively; however, the factors influencing renal hilum control (RHC) during RAPN have not yet been assessed. The aim of this study is to use SVR to identify the renal vascular patterns and factors that influence RHC. We evaluated 60 surgical video recordings of patients undergoing RAPN in 2023–2024, and measured the time to hilum control (THC) and total operation time (TOT) using a stopwatch. Patient and surgical factors were recorded and SPSS software was used to identify the correlation of these factors and vascular patterns with THC. We observed a median THC of 22.7 min representing 15.1% of TOT. A significant…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1- —Sørlandet Sykehus HF
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsRenal and Vascular Pathologies · Renal cell carcinoma treatment · Pediatric Urology and Nephrology Studies
Introduction
Minimally invasive partial nephrectomy (PN), whenever feasible, is the standard of care for patients diagnosed with T1a and T1b kidney cancer [1]. However, this approach is technically challenging and requires a detailed understanding of renal and tumour surgical anatomy to optimise oncological, functional and perioperative outcomes [2].
Contrast-enhanced computer tomography (CT) of the abdomen is the reference standard for primary imaging of renal tumours and the vascular system. Study the renal arterial anatomy via CT scan has been previously used for arterial tree representation [3]. In approximately 75% of cases, a single renal artery and vein are present, but a high percentage (15–20%) of patients also show anatomic variations such as duplication or early branching [2]. Disposition of the renal hilar structures and their numbers are significantly more variable than the classical pattern given in standard textbooks of anatomy, and a precise knowledge of both normal and variant anatomies of renal hilum is essential in the era of robotic surgery [4].
Robotic surgery platforms enable high-quality video recordings, providing greater magnification and closer views of anatomical details. Surgical video review (SVR) is an emerging tool for assessing patient outcomes [5], especially in complex surgeries such as robot-assisted PN (RAPN). Three key surgical phases are critical during RAPN: renal hilum control (RHC), fat management and warm ischemia time (WIT). Adhesive probability and morphological scores are respectively used to evaluate fat management [6] and warm ischemia [7], along with SVR; however, the factors influencing RHC during RAPN have not yet been assessed.
The aim of this study is to use SVR to identify the factors that influence RHC according to the renal vascular patterns identified via renal CT scan.
Material and methods
The storage of recorded surgical videos for a period of time is mandatory in Norway to ensure quality of healthcare services and provide medicolegal evidence. This requirement allowed us to retrospectively review surgical video recordings of 60 consecutive patients undergoing RAPN at our institution between January 2023 and June 2024. All procedures were performed on T1a tumours using Intuitive Xi robotic systems (Intuitive™, Sunnyvale, CA, USA). As part of the kidney cancer surgical team, one surgeon (O.B.) reviewed the video recordings and measured time to hilum control (THC) and total operation time (TOT) using a digital stopwatch and exact visual cues for starting and ending points. For THC, we defined the starting point as when the monopolar-curved scissors’ cut function is first used to dissect the renal hilum (gonadal vein on the left side, inferior vena cava (IVC) on the right side), right after colon decollation for the transperitoneal approach or the posterior opening of Gerota’s fascia, for the retroperitoneal approach. The ending point for THC was defined as when the Hem-o-lock clip is applied to the vessel loop surrounding the renal artery. In cases of more than one artery or the need to clamp the renal vein, the ending point was defined as when the Hem-o-lock clip is applied to the vessel loop surrounding the last vascular structure of the hilum. The TOT compromised the time from the first to the last use of the robotic instruments.

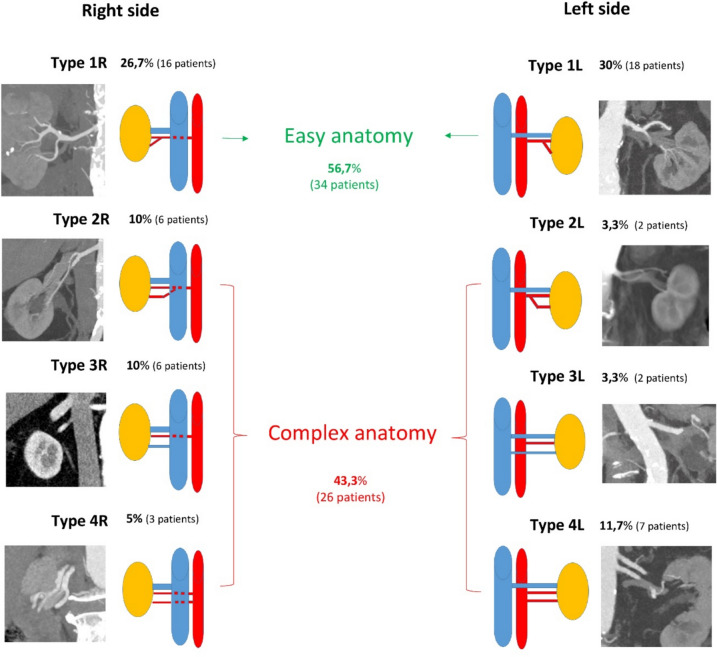

We assessed the renal vascular patterns using evaluation of the arterial and venous phase of the CT scans, performed preoperatively. Eight different vascular patterns (Fig. 1) were identified according to side, four on the right (Type 1R, 2R, 3R and 4R) and four on the left (Type 1L, 2L, 3L and 4L). Also the number of arteries or veins and proximity of the artery bifurcation to aorta were taken into consideration. We defined the anatomy of the renal hilum as easy if only one artery with a late bifurcation (lateral for the IVC on the right side, and more than 2 cm from the aorta on the left side) and one vein were present (Type 1L and 1R). Early bifurcation of the artery (behind IVC on the right side for Type 2R, and less than 2 cm from the aorta on the left side for type 2L) and more than one vein (Type 3R and 3L) or artery (Type 4R and 4L) was defined as a complex anatomy.Fig. 1. Vascular patterns identified on preoperative CT scan
