Impact of mandibular 4-implant overdenture base construction techniques on assessment of occlusion with digital occlusion analysis system (clinical crossover study)
Ahmed Ali Abdelghany, Mohammed M. Fouad, Radwa Mohsen Kamal Emera, Osama Askar, Ayman Ahmed Mustafa Yaseen
TL;DR
This study compares CAD/CAM milled and conventional overdenture bases to assess their impact on occlusal balance in patients with mandibular overdentures.
Contribution
The study provides empirical evidence on the occlusal stability of CAD/CAM milled versus conventional overdenture bases in implant-supported overdentures.
Findings
CAD/CAM milled overdenture bases showed greater occlusal contact stability compared to conventional bases.
Significant differences in occlusal force were observed in conventional bases at molar and premolar regions over time.
CAD/CAM bases demonstrated fewer changes in occlusal balance over three months of use.
Abstract
Occlusion plays a crucial role in the long-term success and prognosis of implant-supported overdentures. The method used to fabricate the overdenture base, whether conventional or CAD/CAM milled, could influence occlusal contact balance. However, definitive evidence on this matter remains lacking. Thus, this study aimed to compare two fabrication techniques, CAD/CAM milled and conventional, for four-implant-supported complete mandibular overdenture bases, with a specific focus on their impact on occlusal balance. Edentulous patients participated in this study received four-implant supported mandibular overdentures constructed using two different types of overdenture bases: CAD/CAM milled and conventional bases. A total of 21 patients, representing 42 overdentures, were enrolled in the study. Occlusal adjustments were made for each overdenture after picking up of attachments. The…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6- —Mansoura University
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsDental Implant Techniques and Outcomes · Dental materials and restorations · Orthodontics and Dentofacial Orthopedics
Background
Mandibular complete dentures often struggle with insufficient retention and stability, potentially impacting patient satisfaction and comfort. Completely edentulous patients could be rehabilitated with overdentures enhanced with at least two to four implants. Studies with long-term follow-ups indicate that using four implants yields superior results and optimal survival rates. This approach offers greater stability during function, minimizing movement and excessive loading that could jeopardize osseointegration [1].
The traditional method of complete dentures construction is intricate and challenging for both dentists and dental technicians. It also demands multiple patient visits and extensive laboratory work. Moreover, heat-cured acrylic resins fall short of meeting all the criteria for an ideally perfect denture base material [2].
The integration of computer-aided design/computer-aided manufacturing (CAD/CAM) techniques into the fabrication of complete dentures has resulted in the evolution of modified and easier clinical protocols, the use of materials with enhanced properties, and improved fit and retention of the dentures. This advancement has also shortened chairside and laboratory times, leading to a decrease in overall clinical and laboratory workflow. Reports indicate high levels of satisfaction among both patients and clinicians regarding CAD/CAM complete dentures [3].
The CAD/CAM clinical protocols are evolving quickly, with new alternative methods integrating traditional clinical steps designed to meet the necessary criteria for successful CAD/CAM complete denture fabrication. While efforts to combine optical scans with conventional clinical procedures have shown some promise, a fully digital workflow for complete denture fabrication has not yet been established [4–6].
The prepolymerized acrylic resin employed in the production of digital denture bases offers enhanced fit and strength compared to traditional bases. Unlike conventionally processed materials, the milled prepolymerized acrylic resin does not experience polymerization shrinkage. Research shows that prepolymerized acrylic resin (PAR) has lower residual monomer content and is more hydrophobic than its conventional counterparts. This characteristic helps decrease the risk of infections, as fewer microorganisms, such as Candida albicans, adhere to the denture bases [7].
Conventional resins typically exhibit a lower modulus of elasticity compared to CAD/CAM resins, likely due to differences in their manufacturing processes. This modulus is influenced by the residual monomer content; higher monomer levels tend to lower the glass transition temperature, resulting in increased flexibility of the resin. Resins with a greater modulus of elasticity are better at resisting elastic deformation, contributing to more stable occlusion [8].
Achieving occlusal equalization in removable complete denture prostheses is a primary objective for prosthodontists. Modern technology provides a digital solution to this challenge, known as OccluSense. This tool enables clinicians to make computer-guided adjustments for occlusal force, resulting in measurable improvements in the balance of the installed prosthetic occlusion [9]. Utilizing this technology, clinicians can easily assess the distribution of occlusal forces and identify specific adjustments needed to achieve a centered and balanced force distribution. The goal of these adjustments is to align the occlusal forces along the midline of the hard palate, achieving an almost equal balance of 50% on the right and 50% on the left. This balanced distribution enhances the denture’s tissue seating, ensuring that during chewing, the occlusal forces are transmitted to the broadest and most supportive areas of the tissue [10].
Occlusion plays a crucial role in the long-term success and prognosis of implant-supported overdentures. The method used to fabricate the overdenture base, whether conventional or CAD/CAM milled, could influence occlusal contact balance. However, definitive evidence on this matter remains lacking. Thus, this study aimed to compare two fabrication techniques, CAD/CAM milled and conventional, for four-implant-supported complete mandibular overdenture bases, with a specific focus on their impact on occlusal balance.
Methods
Patients for this cross-over study (aged between 55 and 65 years) were selected from the Clinic of Prosthodontic Department, Faculty of Dentistry, Mansoura University seeking prosthetic rehabilitation. All patients were informed about the line of treatment and follow up recalls during surgical and prosthodontic procedures. Any failure of implants will be replaced by another suitable prosthodontic treatment.
Patients in this study were selected based on specific criteria. All participants had completely edentulous alveolar ridges with healthy, firm mucosa, free from inflammation. They also had sufficient quality and quantity of the mandibular residual alveolar ridge for implants, confirmed by cone beam computed tomography (CBCT). All participants exhibited an Angle’s Class I maxillomandibular relationship with an interarch space of at least 10–12 mm. Additionally, they were in good health, free from systemic diseases affecting bone health, such as uncontrolled diabetes and osteoporosis. Those with a history of parafunctional habits, smoking, alcoholism, surgical contraindications, or prior radiation therapy in the head and neck were excluded from the study.
The sample size of this study was calculated on the G-power program (version 3.1.9.7). We conducted the sample size calculation using a medium effect size as the basis for our statistical analysis. Assuming a medium effect size (f) of 0.25, an acceptable error margin of 5% (d = 0.05), and a desired statistical power of 80%, the study involves two groups of participants to compare significant differences in occlusal force distribution across observation times (using repeated measures ANOVA). The minimum sample size required for this study is 34 subjects. To account for potential missing data during follow-up, we included an additional 8 participants, bringing the total sample size to 42. The sample size for this study was similar to that used in a recent study [11] with a comparable design, the minimum sample size required to test significant differences in the percentage of occlusal contact between the two groups of participants is 40. This research was conducted in accordance with the Declaration of Helsinki. Ethical approval for the study was granted by the Institutional Ethics Committee of the Faculty of Dentistry, Mansoura University, Egypt (Approval No. 05201021). Informed consent was obtained from all participants prior to treatment.
The prosthetic and surgical steps were done as follows (Fig. 1):

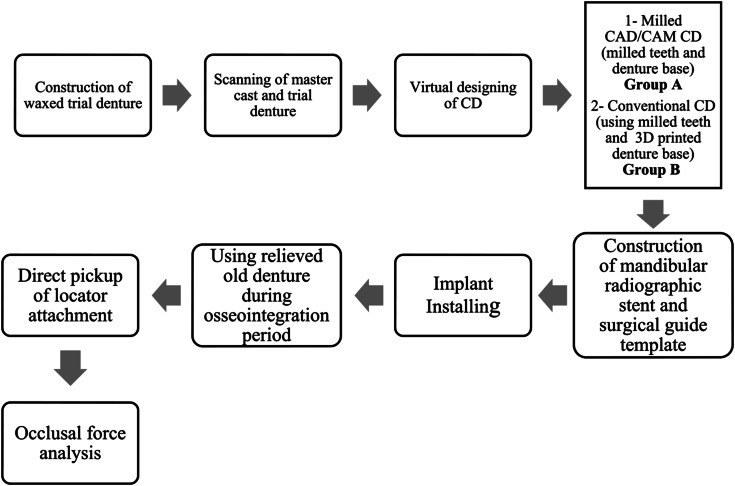

Fig. 1. Flowchart representing prosthetic and surgical steps of the research
