Usefulness of apparent diffusion coefficient values and magnetic resonance imaging histogram analysis for identifying histological types of preoperative testicular tumors
Yuka Yasuda, Akiyoshi Osaka, Keita Izumi, Toshiyuki Iwahata, Akinori Nakayama, Kazunori Kubota, Kazutaka Saito
TL;DR
This study shows that MRI and apparent diffusion coefficient values can help distinguish between types of testicular tumors before surgery.
Contribution
The study introduces histogram analysis of MRI data to differentiate histological types of testicular tumors preoperatively.
Findings
Seminomas had higher ADC ratios than malignant lymphomas and non-seminomas.
Malignant lymphomas showed higher kurtosis and skewness values compared to seminomas and non-seminomas.
MRI histogram analysis proved effective in distinguishing testicular tumor subtypes.
Abstract
Only a few studies have performed histogram analysis for the differential diagnosis of testicular tumors. Therefore, the aim of this study was to evaluate the ability of magnetic resonance imaging, including diffusion-weighted imaging with apparent diffusion coefficient values, to differentiate between the histological types of testicular tumors. Of the 156 testicular tumors diagnosed at our hospital between January 2010 and July 2023, 65 cases diagnosed with magnetic resonance imaging were included. Tumors were categorized as seminoma, non-seminoma, and malignant lymphoma. Apparent diffusion coefficient values were calculated and analyzed using the ratio to non-tumor testes and histograms according to tumor subtypes. Among the 65 cases, 46, 14, and 5 entailed seminomas, non-seminomas, and malignant lymphomas, respectively. The apparent diffusion coefficient value ratio of seminomas…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsTesticular diseases and treatments · Sarcoma Diagnosis and Treatment · Urologic and reproductive health conditions
Background
Testicular tumors are heterogeneous and include various histological subtypes, including seminoma and non-seminoma. Malignant lymphoma occurs in the testis without lymph node involvement [1]. Although histological subtypes are determined through pathological evaluation, preoperative evaluation is crucial for developing appropriate treatment plans [2]. Imaging-based testicular tumor diagnosis for tumor presence and qualitative evaluation, including the tumor histological subtype, are essential. Magnetic resonance imaging (MRI) enables detailed internal anatomical and qualitative assessments and is useful in diagnostic imaging, which is widely used in clinical settings [3–7]. However, detailed studies using MRI for the differential diagnosis of the histological subtypes of testicular tumors are lacking. Diffusion-weighted imaging (DWI) in MRI produces an apparent diffusion coefficient (ADC) map via ADC values and is useful in cancer diagnosis [8–11]. Tumor tissues demonstrate low ADC values owing to the restriction of free extracellular water molecule diffusion caused by increased cancer cell density and irregular growth [8]. Recently, histogram analysis has attracted considerable attention. However, only a few studies have performed histogram analysis for the differential diagnosis of testicular tumors. Therefore, we aimed to investigate the usefulness of MRI for testicular tumors using ADC values and histogram analysis for each histological subtype of testicular tumor.
Methods
Patients
This retrospective study was approved by the Bioethics Committee of Dokkyo Medical University Saitama Medical Center (approval number: 24007). An information release regarding this study has been published on the university’s website. No patients involved in this study requested to withdraw their participation. The Bioethics Committee waived the requirement for informed consent owing to the retrospective nature of the study. Specifically, the planned study period spans from March 21, 2024, to March 31, 2025, and data were accessed between March 21, 2024, and October 26, 2024. During data collection, the authors had access to information that could identify individual participants. Of the 156 consecutive testicular tumors diagnosed at our hospital between January 2010 and July 2023, 77 cases included an MRI with DWI performed before testicular resection. Among these, 69 were diagnosed as malignant testicular tumors, of which four cases involving bilateral testicular tumors or a single testis after orchiectomy were excluded to permit comparison between tumor-bearing and contralateral non-tumor testes in the same patients. Imaging findings revealed no cases of bilateral testicular tumors of malignant lymphoma included in the study. Cases with MRI without DWI were excluded from the study. The remaining 65 cases were included and classified as seminomas (n = 46), non-seminomas (n = 14), and malignant lymphomas (n = 5).
MRI procedures and measuring ADC values
The MAGNETOM Avanto Dot Upgr 1.5T (SIEMENS, Munich, Germany), MAGNETOM Skyra 3.0T (SIEMENS), and Ingenia CX 3.0T (PHILIPS, Amsterdam, the Netherlands) MRI systems were used in this study. DWI was performed using echo-planar imaging with a b-value of 0 s/mm^2^ for Ingenia CX and 1,000 s/mm^2^ for MAGNETOM Avanto Dot Upgr and MAGNETOM Skyra. The b-values for each tumor are presented in Table 1.
As three different ADC measurement procedures were used in this study, the ADC values of non-tumor testes differed among them. Considering that the use of different MRI scanners and various b values may affect the consistency of ADC measurements, the ADC value ratio of tumor-bearing testes to non-tumor testes was calculated to account for this difference for each tumor. Non-tumor testes were defined as testes without abnormal findings on MRI imaging. The mean ADC values of tumor-bearing and non-tumor testes were measured by setting a region of interest (ROI) on the largest cross-section of the testis on the ADC map, regardless of the presence of hemorrhage or necrotic lesions, as distinguishing them from tumor tissue on MRI images is difficult. Further, a histogram analysis was performed to measure kurtosis and skewness.
Table 1B-values for each tumorb-value (s/mm^2^)SeminomaNon-seminomaMalignant lymphoma0211100044134
Statistical analysis
Data are presented as the mean ± standard deviation. Significant differences were determined using the Wilcoxon test. Significance was set at 0.05 and the Bonferroni correction was applied. The score model was performed with the age at diagnosis and ADC values to distinguish testicular malignant lymphomas from seminomas. The typical onset ages of malignant lymphoma are higher, typically in the 50s and 60s, than those of seminomas, which commonly occur in individuals in their 30s and 40s [12, 13]. The total scores for seminomas and malignant lymphomas were calculated by adding their ADC value ratios. A receiver operating characteristic analysis was performed with a cut-off value of 0.637 for the ADC value ratio, with a specificity and sensitivity of 0.800 and 0.804, respectively. A value of 1 was assigned for ages < 30 and > 50 years and 0 for ages 30–50 years. Similarly, a value of 1 was assigned for the ADC value ratio of > 0.637 and 0 for ≥ 0.637.
Results
Patient background characteristics
Patients’ age ranges were 24–59 (median, 38.7), 19–51 (median, 33.6), and 24–74 (median, 56.8) years for seminomas, non-seminomas, and malignant lymphomas, respectively. Table 2 presents the histological types of testicular tumors for each case. Of the 14 patients with non-seminoma, three had pure histology of embryonal carcinoma, germ cell tumor, or teratoma. The histology of the remaining 11 patients was mixed non-seminomas. All five patients with testicular malignant lymphoma had diffuse large B-cell lymphoma histology. Testicular volume was measured using the formula length x width x height x 0.71 [14] (Table 2).
Table 2. Patients’ background characteristicsSeminomaNon-seminomaMalignant lymphomaNumber of cases46145Age (years)24–59(38.7)19–51(33.6)24–74(56.8)T1WI↓↓↓T2WI↓↑+↓↓DWI↑↑+↓↑ADC↓↑+↓↓ADC values ratio0.745 ± 0.1321.197 ± 0.4300.531 ± 0.11995% confidence interval0.705–0.7840.948–1.4450.383–0.679Tumor testis volume (cm^3^)53.46 ± 57.3498.47 ± 133.4787.96 ± 96.23Non-tumor testis volume (cm^3^)13.91 ± 6.1012.90 ± 5.4012.38 ± 1.25LDH (U/L)486.1 ± 1534.3377.6 ± 298.5356 ± 299.2AFP (ng/mL)2.44 ± 1.65393.01 ± 1129.382.38 ± 1.60β-hCG (mIU/mL)2.07 ± 8.1816.05 ± 55.590intact hCG (mIU/mL)6.85 ± 27.0050.89 ± 83.290.475 ± 0.95
Data are presented as ranges (mean). High signal: ↑, low signal: ↓, T1WI: T1-weighted imaging, T2WI: T2-weighted imaging, ADC: apparent diffusion coefficient.
Testicular MRI findings
Non-tumor testes showed low signal intensity on T1-weighted imaging (T1WI) and had high ADC values on MRI. Seminomas and malignant lymphomas showed low signal intensity on T2-weighted imaging (T2WI) and DWI (Figs. 1 and 2). Non-seminomas typically contained multiple tissues and did not show a single signal intensity (Fig. 3). However, seminomas and malignant lymphomas had similar signal intensities, making it difficult to distinguish them using T2WI or DWI (Figs. 1 and 2).

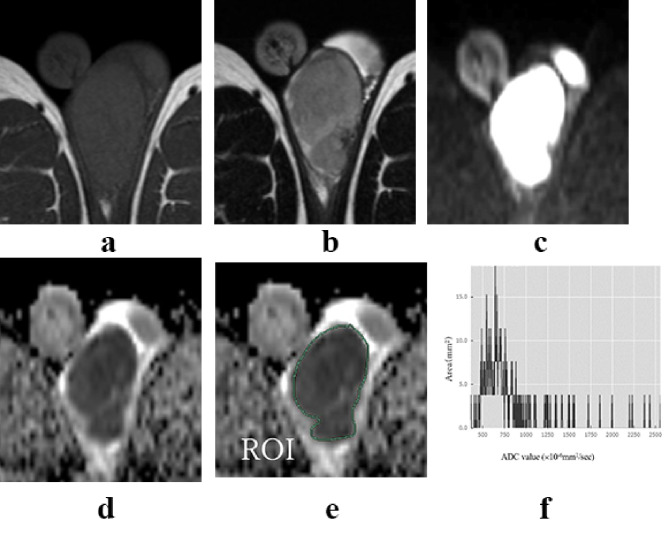

Fig. 1. Representative findings of seminoma. T1W1 (a), T2W1 (b), DWI (c), and ADC map (d). The ROI surrounded the entire tumor on the ADC map (e). Histogram of ADC value (f). The histogram of the seminoma showed high kurtosis and skewness values of 15.318 and 3.21, respectively. It showed the distribution with peaked and heavy fringes compared with the normal distribution, and the mean ADC values were skewed toward the lower end of the distribution. T1WI: T1-weighted imaging, T2WI: T2-weighted imaging, ADC: apparent diffusion coefficient, ROI: region of interest, DWI: diffusion-weighted imaging

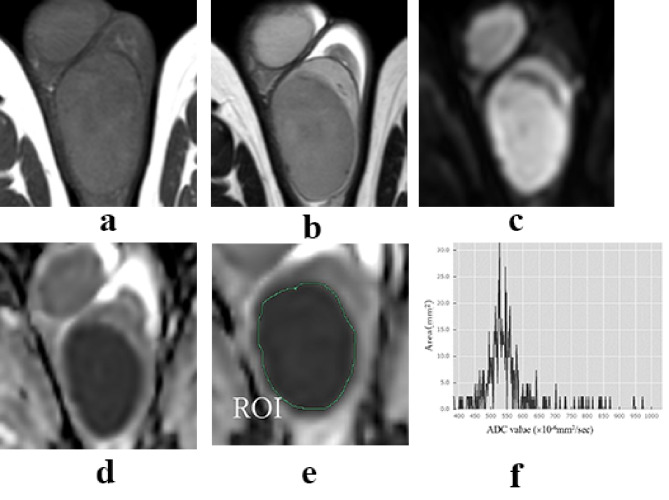

Fig. 2. Representative findings of malignant lymphoma. T1W1(a), T2W1(b), DWI (c), and ADC map (d). The ROI surrounded the entire tumor on the ADC map (e). Histogram of the ADC value (f). The histogram of the seminoma showed high kurtosis and skewness values of 15.520 and 2.929, respectively. It had a shape with peaked peaks and heavy fringes compared with the normal distribution. The overall distribution of ADC values was skewed toward lower values than that of seminoma. T1WI: T1-weighted imaging, T2WI: T2-weighted imaging, ADC: apparent diffusion coefficient, ROI: region of interest, DWI: diffusion-weighted imaging

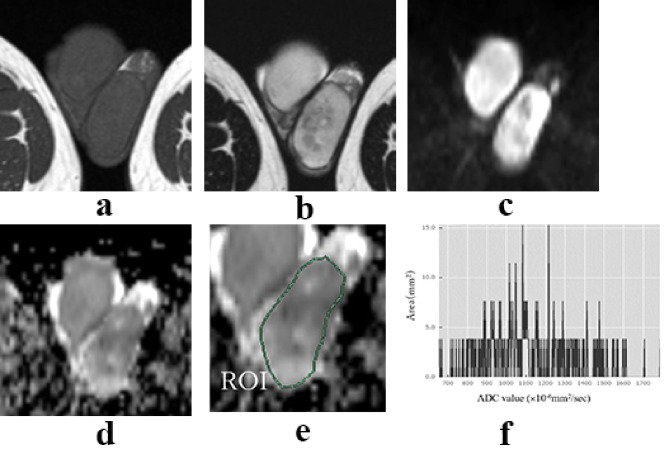

Fig. 3. Representative findings of non-seminoma. T1W1(a), T2W1(b), DWI (c), and ADC map (d). The ROI surrounded the entire tumor region on the ADC map (e). Histogram of the ADC value (f). The case under consideration is that of a 27-year-old male patient. Preoperative tumor markers included LDH of 204 U/L, AFP of 2.9 ng/mL, β-HCG of 1.6 ng/mL, and intact HCG of 1.2. The histological types were identified as embryonal carcinoma, germ cell tumor, and seminoma. The histogram of the non-seminoma showed low kurtosis and skewness values of 2.632 and 0.464, respectively. It showed a heavy hem, the distribution was symmetrically close, and the mean ADC values showed a broad distribution. T1WI: T1-weighted imaging, T2WI: T2-weighted imaging, ADC: apparent diffusion coefficient, ROI: region of interest, DWI: diffusion-weighted imaging
ADC value ratio
The ADC value ratio was 0.745 ± 0.132, 1.197 ± 0.430, and 0.531 ± 0.119 for seminomas, non-seminomas, and malignant lymphomas, respectively (Table 2). The ADC value ratio of seminomas was significantly higher than that of malignant lymphomas (p = 0.013), and the ADC value ratios of non-seminomas were significantly higher than those of seminomas and malignant lymphomas (p = 0.0013 and p < 0.001, respectively) (Fig. 4).

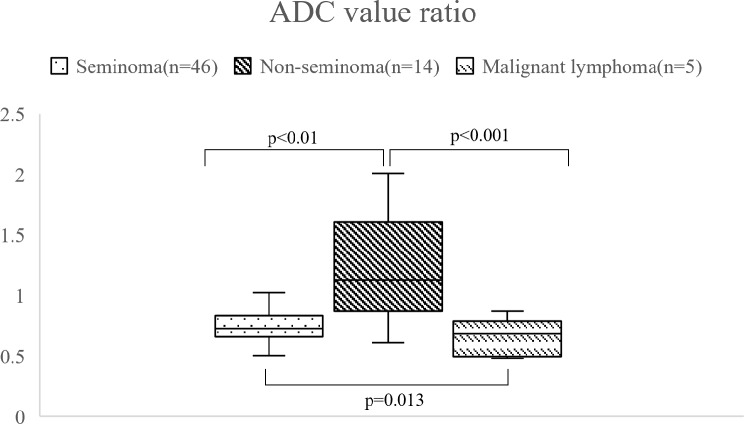

Fig. 4. Distributions of the ADC value ratio. ADC: apparent diffusion coefficient
The ADC histogram
Kurtosis and skewness were measured from the ADC histograms. Kurtosis indicates the sharpness or heaviness of a data distribution base, and its value is high when the data are concentrated around the mean. Skewness denotes the degree of distribution asymmetry, and its value is high when the ADC value is skewed toward the lower side [8]. The kurtosis and skewness of tumor-bearing testes were compared, although the shooting conditions were different. Seminomas and malignant lymphomas had significantly higher kurtosis values (8.55 ± 5.76 and 18.11 ± 5.22, respectively) than non-seminomas (4.92 ± 3.85, p = 0.012 and p = 0.0022, respectively). Malignant lymphomas had significantly higher kurtosis values than seminomas (p = 0.0123). Seminomas and malignant lymphomas had significantly higher skewness values (1.77 ± 1.00 and 3.12 ± 0.28, respectively) than non-seminomas (0.52 ± 1.17, p = 0.0016 and p < 0.001, respectively). Malignant lymphomas had higher skewness than seminomas (p < 0.001) (Fig. 5).

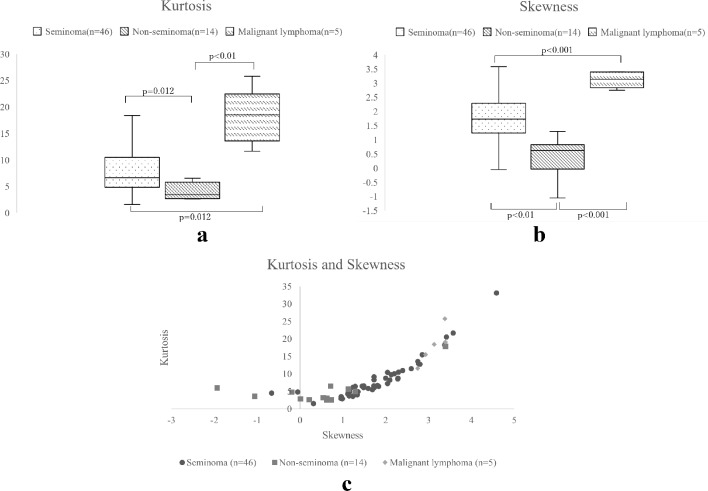

Fig. 5. Kurtosis (a) and Skewness (b) of the ADC value histogram and correlation graph of skewness and kurtosis of the ADC value histogram (c). ADC: apparent diffusion coefficient
