Neuroimaging and immunofluorescence of the Pseudopus apodus brain: unraveling its structural complexity
S. Jiménez, R. Morona, M. J. Ruiz-Fernández, E. Fernández-Valle, D. Castejón, M. I. García-Real, J. González-Soriano, N. Moreno
TL;DR
This study combines MRI and histology to map the complex brain structure of Pseudopus apodus, a limbless lizard, revealing detailed neuroanatomical features.
Contribution
The study provides a novel neuroanatomical framework for Pseudopus apodus using combined MRI and immunofluorescence techniques.
Findings
MRI and histology revealed distinct pallial and subpallial brain structures in Pseudopus apodus.
Immunofluorescence markers enabled precise identification of functional sub-regions and boundaries.
The study systematically described mesencephalic and rhombencephalic structures using combined techniques.
Abstract
The present study provides an in-depth neuroanatomical characterization of the brain of Pseudopus apodus, combining magnetic resonance imaging (MRI) with histological analysis by immunofluorescence. In the telencephalon, the pallial regions showed distinct anatomical features, including a cortical structure, a dorsal ventricular ridge and the spherical nucleus, but prominent layering patterns, observable on histological slides, were not fully resolved by MRI. Subpallial structures, such as the nucleus accumbens and the basal ganglia, were delineated with histological clarity and further supported by MRI. In the hypothalamic and diencephalic regions, the dense and complex cellular composition made precise delineation of individual nuclei difficult by MRI, in contrast to the histological accuracy, however by MRI the identification of the major tracts running through these domains are…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2

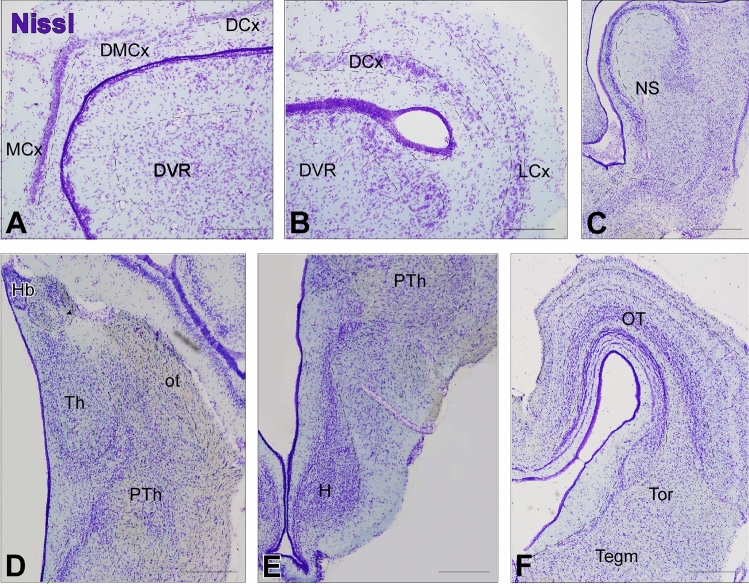

Figure 3

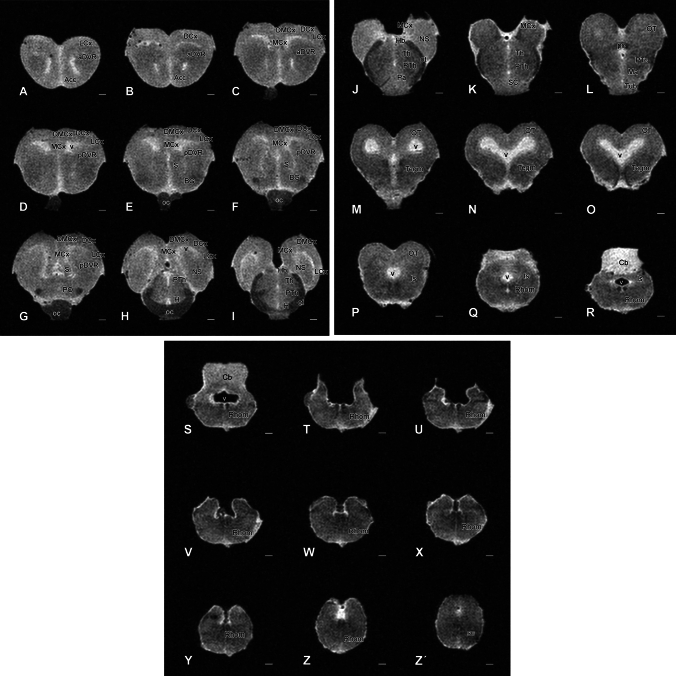

Figure 4

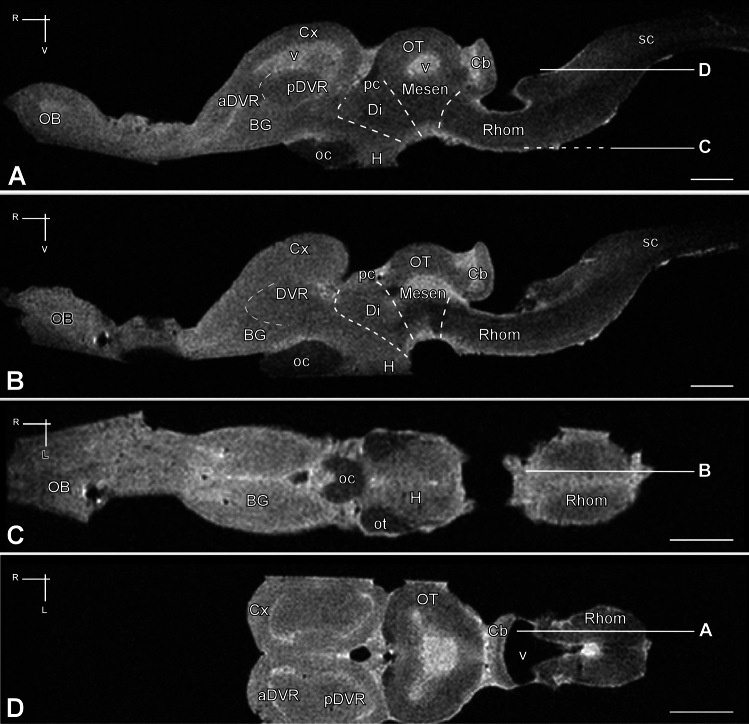

Figure 5

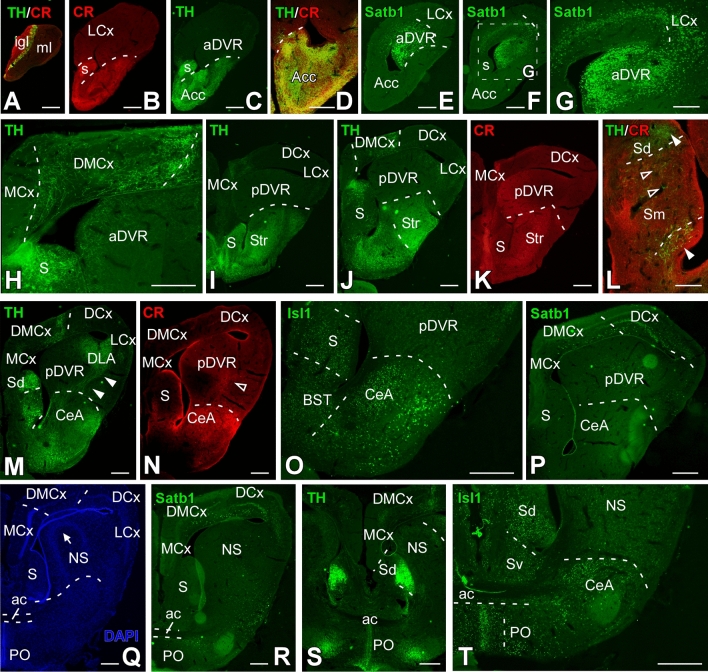

Figure 6

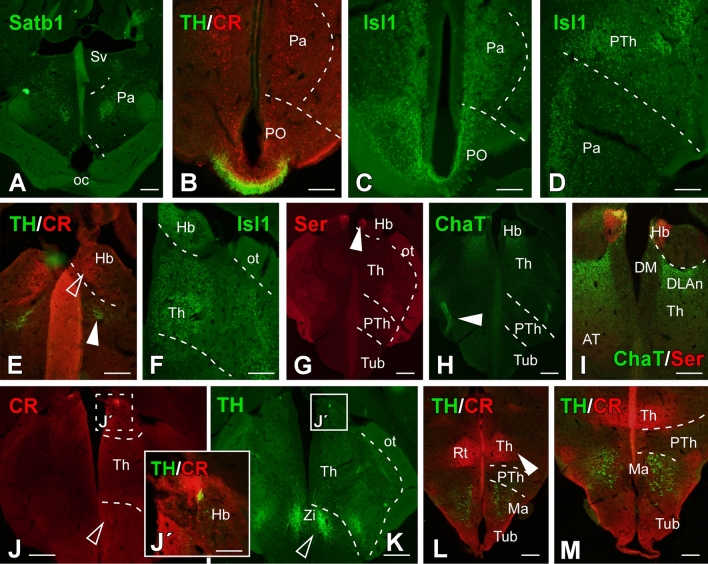

Figure 7

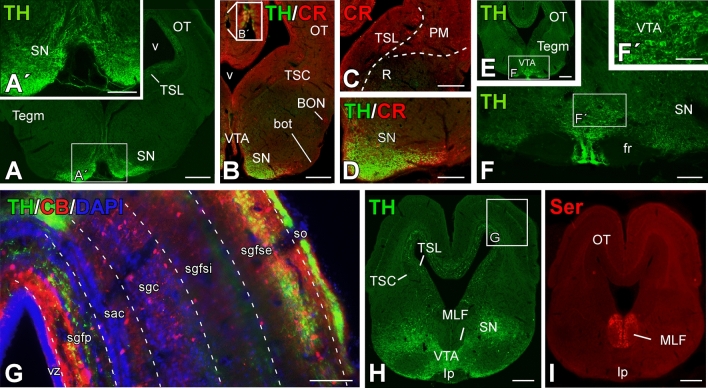

Figure 8

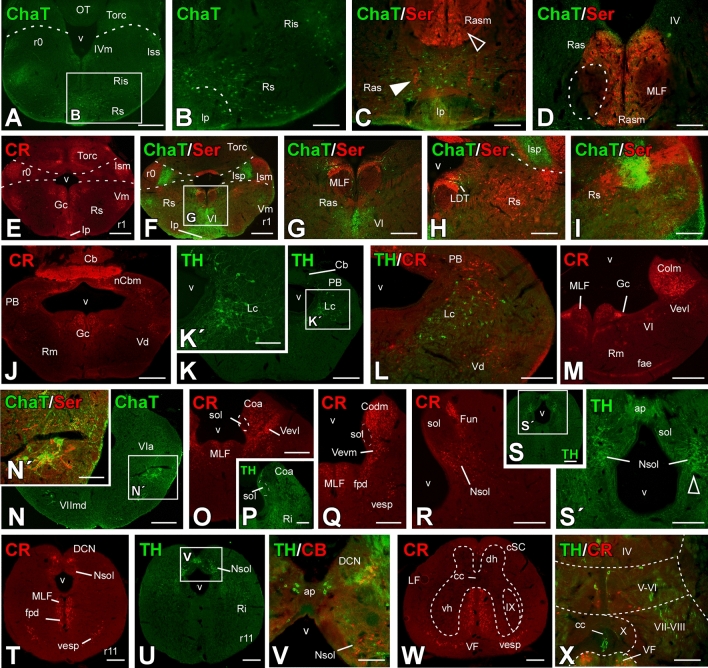

Figure 9- —Complutense University of Madrid
- —https://doi.org/10.13039/501100004837Ministerio de Ciencia e Innovación
- —Universidad Complutense de Madrid
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsAmphibian and Reptile Biology · Primate Behavior and Ecology · Zebrafish Biomedical Research Applications
Introduction
Magnetic resonance imaging (MRI) is a very powerful and widely used technique in medical studies, relatively incipient in fields such as evolutionary neurobiology or paleobiology, although in recent years interest has grown due to its wide applicability as a non-invasive technique permitting the study of models that would otherwise be inaccessible (Vickery et al. 2020; Oelschläger et al. 2007; Mietchen et al. 2007; Hoffmann et al. 2014). And thus, recently there have been significant advances in MRI studies in animals not traditionally used in neuroscience research. In particular, an increasing number of brain atlas of reptile species have been published in recent years (Hoops et al. 2018, 2021; Pritz et al. 2020; Behroozi et al. 2018; Jiménez et al. 2024).
Among reptiles, and specifically lizards, the family Anguidae is commonly known as glass lizards or glass snakes, as it includes species that are often limbless, but anatomically they can be identified as lizards by the characteristic shape of their heads, the presence of eyelids and the external openings of their ears. It comprises approximately 20 recognized species, originating in North America, dispersing to Europe and spreading to Asia during the Oligocene (Macey et al. 1999). In particular, the European glass lizard, Pseudopus apodus (Pallas 1775), is the largest legless lizard in Europe (Arnold and Ovenden 2002; Obst 1981), and the only extant specie with a distribution spanning Asia Minor, Central Asia, southeastern Europe, and the Balkans (Jandzik et al. 2018). Fossil evidence indicates that Pseudopus apodus has been present in the region since the early Miocene (Klembara 2015). Molecular analyses have confirmed the existence of two subspecies (Obst 1978, 1981), closely related to North American anguines such as Ophisaurus, but it forms a monophyletic clade with the genus Anguis (Macey et al. 1999; Pyron et al. 2013).
Research on the brain of Pseudopus apodus is almost non-existent, but there are studies on the closely related genus Ophisaurus (Kulikov and Safarov 1969; Ivazov and Belekhova 1982; Ivazov 1983; Belekhova and Ivazov 1983; Belekhova and Nemova 1987, 1988; Belekhova 1990, 1991; Pierre et al. 1990; Rio et al. 1992) and with which many comparisons can be inferred, suggesting that its neuroanatomical organization is most likely related to its ecological role as a generalist diurnal terrestrial predator (Rifai et al. 2005), highly dependent on sensory information for navigation and foraging. Pseudopus apodus shows diverse habitat preferences depending on its geographic range and, although sexual dimorphism is not prominent, it has been observed in certain populations (Çiçek et al. 2014; Kukushkin and Dovgal 2018). Therefore, the brain of Pseudopus apodus consists of the forebrain, involved in olfactory processing, spatial navigation and social behavior; the midbrain, for visual and auditory processing, crucial for its diurnal lifestyle; and the hindbrain, which controls basic motor and autonomic functions and coordinates the undulating locomotion necessary for terrestrial movement.
Noticeably, the lack of in-depth neuroanatomical studies and MRI techniques represent an important gap in our knowledge of this species, especially considering the ecological data available. Comparison of these data with neuroanatomical information would provide valuable insights into anatomical-functional relationships and its evolutionary position within reptiles, particularly considering that it is a legless lizard. Therefore, the main objective of the present study is to provide a detailed analysis of the brain of this model, through the combined use of MRI and immunofluorescence identification of conserved markers, complementing the recent study on its anatomy (García-Real et al. 2025) and following in the wake of previous neuroanatomical data recently published in reptiles (Jiménez et al. 2024). Thus, they contribute to complete this important framework of information for understanding this evolutionary node.
Materials and methods
Animals and tissue preparation
For the present study, we used 4 healthy adult Pseudopus apodus individuals (2 males and 2 females), homogeneous in size (with an average size of 100 cm) between 5 and 10 years of age. The regulations and laws established by European Union (2010/63/EU) and Spain (Royal Decree 118/2021) for care and handling of animals in research has been followed and the approval from the Ethic committee of the Complutense University (O.H. (CEA)- UCM-NP0409032022-2022).
By intraperitoneal injection (sodium pentobarbital; 50–100 mg/kg, Normon Labs, Madrid, Spain) the animals were anesthetized and perfused transcardially (4% paraformaldehyde in a 0.1 M phosphate buffer, pH 7.4) and the brains removed from the skull.
MRI ex vivo
MRI studies were performed in two brains at BioImaC (ICTS BioImagen Complutense, Madrid, Spain), node of the ICTS ReDIB (https://www.redib.net/). A 4.7-teslas MRI scanner [Biospec 47/40; Bruker BioSpin GmbH, Ettlingen, Germany], equipped with a 6-cm gradient system that provides a gradient strength of 900 mT/m, was used for ex vivo studies. The brains were drained and immersed in a proton-free susceptibility-matching fluid, Fluorinert® FC‐40 (Sigma‐Aldrich, Saint Louis, MO, USA) and placed inside a 3.5-cm volume radiofrequency coil. The MRI experiment consisted of three-dimensional T2 horizontal weighted images (T2 WI) used for identification of brain structures. Three-dimensional T2 WI were obtained using a rapid acquisition with relaxation enhancement (RARE) sequence, with a repetition time (TR) = 2622 s, echo train length = 4, interecho interval = 35 ms (resulting in an effective echo time (TE) = 82 ms), number of averages = 4, field of view (FOV) = 30 × 7.5 × 7.5 mm3. The acquired matrix size was 384 × 96 × 96. The raw data were zero-filled to get a reconstructed matrix size of 512 × 128 × 128 (resolution in each direction 59 μm) and the total acquisition time ~ 6 h 42 min. Then horizontal images were reconstructed in axial, sagittal and coronal orientations with an isotropic resolution of 25 μm.
Histological and immunolabeling experiments and controls
Two brains were subjected to the same experimental procedure of MRI followed by histological analysis. The other two brains were directly processed to immunohistochemistry.
For Nissl staining, brain sections were immersed in cresyl violet, followed by differentiation and dehydration with alcohol for optimal visualization of neuronal nuclei. Additionally, we performed immunohistochemistry (refer to Table 1 for commercial specifications, immunogen details, and antibody dilutions) for single and combined detection of Calretinin (CR), Choline Acetyltransferase (ChaT), Islet-1 (Isl1), Special AT-rich sequence-binding protein 1 (Satb1), Serotonin (5-HT) and Tyrosine Hydroxylase (TH). Table 1. List of primary and secondary antibodies used, immunogen, commercial supplier and dilutionNameImmunogenCommercial supplierDilutionCBE-coli-produced recombinant rat calbindin D-28 kPolyclonal rabbit anti-calbindin D-28; Swant, Bellinzona, Switzerland. Catalog No. CB-38a1:500ChaTDevelopmental Studies Hybridoma Bank, mouse monoclonal, Cat# 40.2D6Mouse monoclonal, Developmental Studies Hybridoma Bank. Catalog No. 40.2D61:100CRE-coli-produced recombinant human calretininPolyclonal rabbit anti-calretinin; Swant, Bellinzona, Switzer- land. Catalog No. 7699/41:1000Isl1Amino acids 247–349 at the C-terminus of rat Islet 1Mouse monoclonal, Developmental Studies Hybridoma Bank. Catalog No. 40.2D61:500Satb1Amino acids 241–310 located in the internal region of human-origin SATB1Monoclonal mouse, Santa Cruz. Catalog No. sc-3760961:100Ser (5-HT)Serotonin coupled to BSA with paraformaldehydePolyclonal rabbit anti-5-HT, Immunostar. Catalog No: 200801:1000THTH purified from rat pheochromocytoma cellsMouse monoclonal, ImmunoStar. Catalog No. P229411:1000
Immunofluorescence co-labeling was conducted on free-floating sections obtained with a freezing microtome (30–40 μm thickness) in the transverse or sagittal planes. The procedure was as follows: (1) Primary antibody incubation was carried out for 48 h at 4 °C (refer to Table 1 for antibody specifics); (2) Secondary antibody incubation, based on the species of the primary antibody, was performed for 90 min at room temperature using a 1:500 dilution. The secondary antibodies used were Alexa 594-conjugated goat anti-rabbit (red fluorescence; Molecular Probes, Eugene, OR; catalog #A-11037) and Alexa 488-conjugated goat anti-mouse (green fluorescence; Molecular Probes; catalog #A-21042). Following incubation, the sections were mounted on glass slides and coverslipped with fluorescence mounting medium containing 1.5 µg/ml 4′,6-diamidino-2-phenylindole (DAPI) for DNA counterstaining (Santa Cruz; catalog #SC-24941).
Control experiments for the immunohistochemical procedures included the omission of either the primary or secondary antibody, as well as incubating selected sections with preimmune mouse or rabbit serum instead of of the primary antibody. No residual staining was observed in any control section. In addition, previous studies analyzing the specificity of the antibodies used have shown that they exhibit specificity in the reptile species tested and/or comparable and coherent expression patterns (Medina et al. 1994; Guirado et al. 1999b; Morona et al. 2006; Moreno et al. 2010, 2012; Jiménez et al. 2025).
Analysis of photomicrographies
The sections were analyzed with an Olympus BX51 microscope equipped for fluorescence and photographed with a digital camera (Olympus DP74). Contrast and brightness of the photomicrographs were adjusted in Adobe Photoshop CS6 (Adobe Systems, San Jose, CA) and figures were mounted in Canvas X (ACD Systems, Canada).
Results

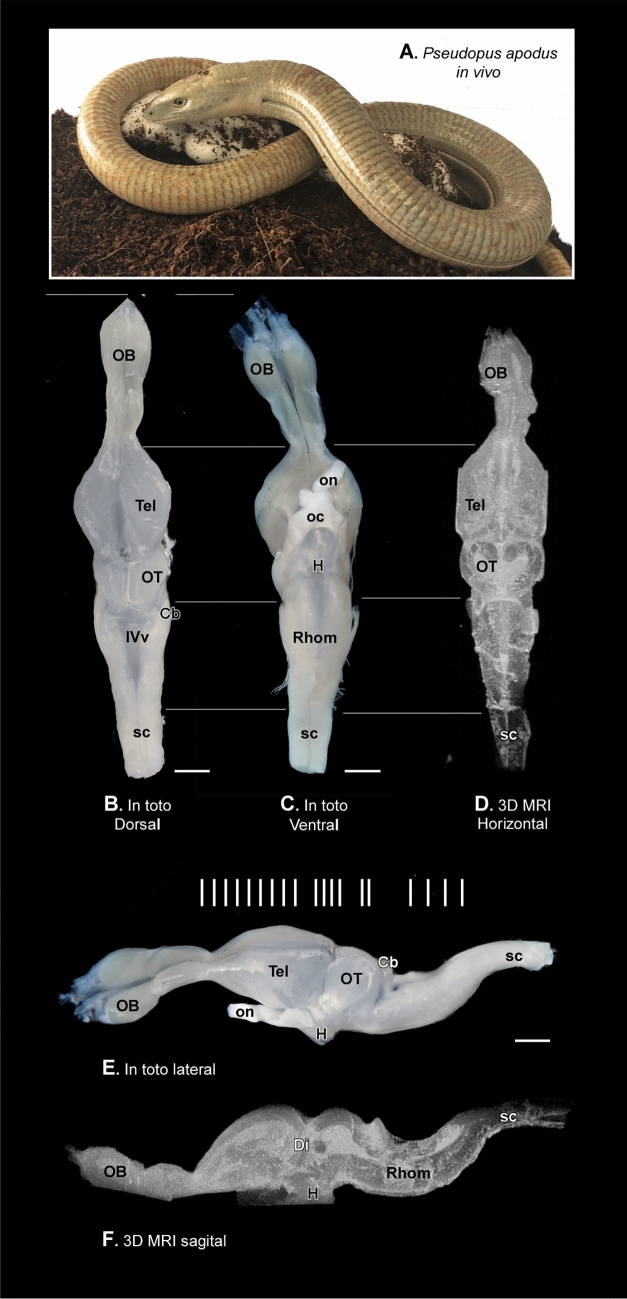

Figure 1 illustrates the appearance of the Pseudopus apodus study model (Fig. 1A), along with dorsal (Fig. 1B), ventral (Fig. 1C), and lateral (Fig. 1E) views of the intact brain, as well as the three-dimensional reconstruction of the brain following MRI scans in the dorsal (Fig. 1D) and sagittal (Fig. 1F) planes. The white lines in Fig. 1E show the approximate section levels observed in the transverse slices presented in Figs. 2, 3 and 4. Transverse sections depicting the rostrocaudal organization of the adult P. apodus brain, stained with Nissl for nuclear visualization, are shown in Figs. 2 and 3. Corresponding rostrocaudal transverse MRI images were selected at similar levels (Fig. 4). The same assay has also been visualized in sagittal and dorsal planes (Fig. 4). Finally, for the specific identification of nuclei and regions in the P. apodus brain, the expression of specific markers (see Table 1) has been analyzed (Figs. 6, 7, 8 and 9). The anatomical description will be conducted in a topographical rostrocaudal sequence just for a ready comparison with previous studies and following previous maps and descriptions of reptiles (specifically of lizards), due to the limited number of studies on the brain of this species. This is remarkable in the description of the telencephalon, but the interpretation of the results is always considered within the prosomeric paradigm. Furthermore, the discrepancies observed in any region or nuclei, in comparison to what has been described in reptiles in general, or in lizards in particular, will be commented in the discussion section.Fig. 1Pseudopus apodus images: in vivo photograph and anatomical views of the brain through 3D MRI reconstruction. A In vivo photograph of Pseudopus apodus. B Dorsal view, C ventral view, and E lateral view of the brain of Pseudopus apodus. D, F The 3D MRI reconstruction in dorsal and sagittal views, respectively. Scale bar = 1 mm. See the list of abbreviations for further referenceFig. 2Nissl-stained sections of the Pseudopus apodus brain. Transversal Nissl-stained sections of the brain of Pseudopus apodus, from the rostral olfactory bulb (A) to the rostral spinal cord (S). Scale bar = 500 μm. See the list of abbreviations for referenceFig. 3 Enlarged view of specific regions highlighted in Fig. 2. Transverse Nissl-stained brain sections of Pseudopus apodus showing detailed views of the pallial (A–C), thalamic (D), hypothalamic (E), and tectal (F) regions. Scale bar = 200 μm. See the list of abbreviations for referenceFig. 4Rostral-caudal transversal sections of the Pseudopus apodus brain from 3D MRI. Transversal sections of the Pseudopus apodus brain, organized rostrocaudally, with the main brain regions indicated. Scale bar = 500 μm. See the list of abbreviations for reference

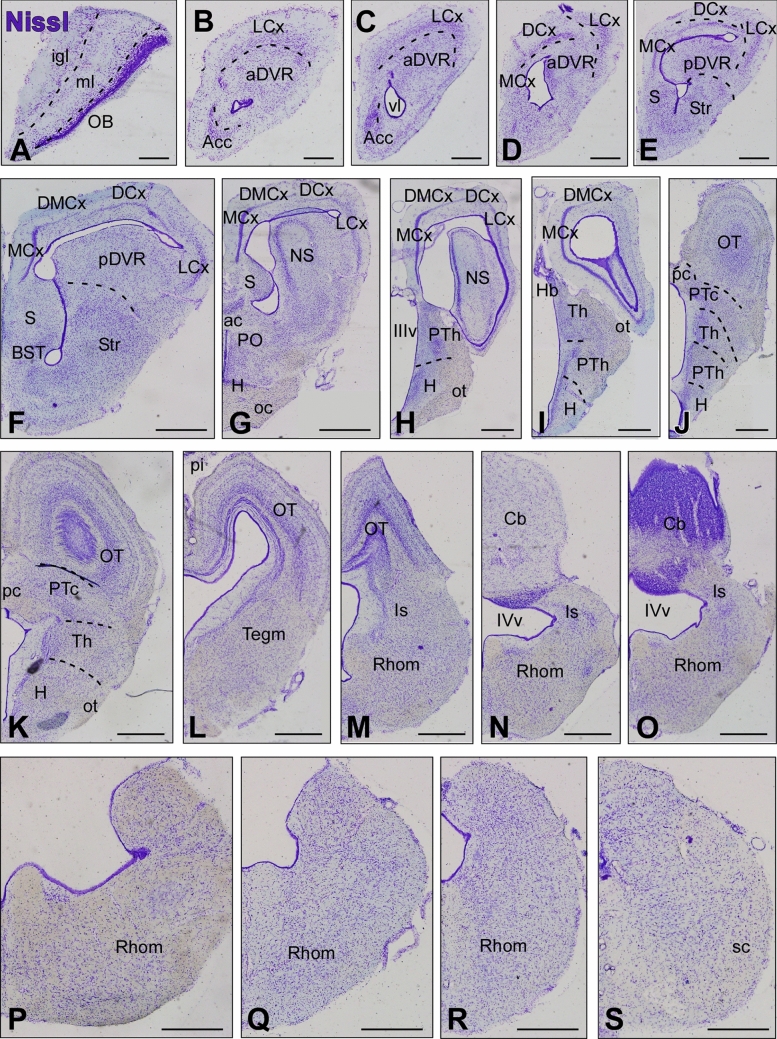

At rostral levels of the telencephalon, using Nissl nuclear staining (Fig. 2A–I) the topographical dorsal region showed a layered organization known as the pallium. These layers form the cortical areas (medial: MCx, dorsomedial: DMCx, dorsal: DCx, and lateral: LCx, see Fig. 3A–C for a more detailed view), that cannot be identified through MRI (Fig. 4A–I). The most rostral levels of the pallial region coexists with a structure identified in lizards as the anterior dorsal ventricular ridge (aDVR). This nucleus, which lacks laminar organization, is adjacent to the laminated domain of the lateral cortex (Figs. 2B–D, 3A, B). This particular area in lizards is confined to anterior regions, but not in turtles (Jiménez et al. 2024). On the other hand, in the subpallial region, specifically at the most ventral tip, close to the lateral ventricle, another cellular clustering is observed, and due to its location, it is suggested to correspond to the accumbens nucleus (Acc; Fig. 2B, C). This nucleus is also visible through MRI (Fig. 4B, C). At the pallial levels where the aDVR disappears, it is substituted caudally by its most posterior part (pDVR). It represents the most prominent pallial structure in sauropsids (birds and reptiles), extending rostrocaudally (Fig. 2E, F). The pDVR is clearly identifiable through MRI in transverse sections (Fig. 4D-F), as well as in sagittal and dorsal sections (Fig. 5A, B, D). Further caudally, the position of the DVR is occupied by a structure organized in concentric layers, identified as the spherical nucleus (NS; Figs. 2G, H, 3C). Although the layers are not identifiable through MRI, the nucleus itself is visible (Fig. 4H, I). Ventrally at this level, in the subpallium, the basal ganglia (BG) are identified by Nissl staining (Fig. 2D–F) and by MRI (Fig. 4C–F). At the level of the anterior commissure (ac), in the caudal regions of the telencephalon, when the optic recess and optic chiasm (oc) become visible, the MRI allows a clear view of both tracts, as well as the extension of the oc (Figs. 2G, 4G), and the optic tract (ot; Figs. 2H, 3D, 4I). In the hypothalamic (H) and diencephalic regions, the high density of the cellular populations complicates the precise identification of specific nuclei without the use of specialized staining for these areas (compares Figs. 2H, I and 4H–L; Fig. 3D, E). However, MRI allows the precise recognition and mapping of the ventricular system's extent at these levels, which facilitates a clear identification of the anatomical territories. Caudally, the optic tectum (OT) in the mesencephalon is clearly visible, since it is highly developed and exhibits a well-defined laminar organization in this model (Figs. 2J–M, 3F). However, with the MRI technology used in this study, lamination in this region is only weakly suggested (Fig. 4L–P). In the mesencephalic tegmentum (Tegm), both nuclear staining (Figs. 2K–M, 3F′) and MRI (Fig. 4M–O) do not provide sufficient resolution to identify specific nuclei, although they allow for the identification of the major fiber tracts passing through this structure, similarly to what is observed in the rhombencephalic region (Figs. 2M–R, 4Q–Z). In the rostral rhombencephalon (Rhom), the cerebellum (Cb) is clearly identifiable (Figs. 2N, O, 4R, S), distinctly positioned, covering the fourth ventricle, as evidenced in the sagittal and dorsal MRI (Fig. 5A, B, D). This structure exhibits a heterogeneous organization in terms of cellular density, with a granular layer densely populated, clearly visible by MRI (Figs. 2O, 4S).To support this anatomical identification (Figs. 2, 3, 4 and 5), the expression patterns of key markers were analyzed using immunofluorescence (Figs. 6, 7, 8 and 9). These markers, previously described in the brains of other reptiles, allow a consistent identification of the regions outlined and their comparison with previously reported data.Fig. 5 Sagittal and dorsal sections of the Pseudopus apodus brain from 3D MRI. Sagittal (A, B) and dorsal (C, D) sections of the Pseudopus apodus brain with the main brain regions indicated. Scale bar = 1 mm. See the list of abbreviations for referenceFig. 6Transverse sections through the telencephalic areas of the Pseudopus apodus brain. Photomicrographs of transverse sections through the telencephalic areas of the Pseudopus apodus brain, showing the distribution of specific markers in particular nuclei. The color code for the markers is provided in each image. Scale bar A–C, E, F, I–K, M, N, P–R = 500 μm; D, G, H, L, O, S, T = 200 μm. See the list of abbreviations for reference
