The spatulated glass rod: low-tech instrument for high-impact ophthalmic diagnosis and treatment
Michelle Bai, Michele Y. Fu, Grace A. Borchert, Natalie S. Lee, Amitouj S. Sidhu, Ivy Jiang, Peter J. Tweedie, Susan C. Gaden, Ashish Agar, Ian C. Francis
TL;DR
The Spatulated Glass Rod is a simple yet powerful tool in ophthalmology with many uses for diagnosis and treatment.
Contribution
The paper highlights the SGR's versatility and introduces a novel head stabilization technique for its safe use.
Findings
The SGR has at least twelve clinical and surgical applications in ophthalmology.
It is particularly effective for managing acute angle closure and detecting foreign bodies.
The Head Stabilisation Technique supports safe use by assistants during procedures.
Abstract
To describe the utility of the Spatulated Glass Rod (SGR), which is a low-tech but diagnostically and therapeutically high-impact instrument used in Ophthalmology for at least twelve clinical and surgical tasks. A literature review was conducted, examining the use of the glass rod both historically and in its applications in Ophthalmology. The MEDLINE database was searched for the terms ‘double eversion of upper eyelid’, ‘retained contact lens”, ‘spatulated glass rod’ and ‘spatulated glass rod in ophthalmology’. Detailed descriptions are provided of the specific use of the SGR in twelve disorders, but particularly in the emergent management of acute angle closure using corneal indentation, and inspection of the upper fornix for elusive foreign bodies by double eversion of the upper lid. The authors’ Head Stabilisation Technique (HST) is also described as this facilitates safe head…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4- —University of New South Wales
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsIntraocular Surgery and Lenses · Glaucoma and retinal disorders · Traumatic Ocular and Foreign Body Injuries
Introduction
In recent decades, there have been numerous extraordinary high-tech developments that have revolutionised the discipline of Ophthalmology, and have collectively served to improve patient outcomes. These include diagnostic techniques such as optical coherence tomography, and therapeutic techniques including intravitreal injections of vascular endothelial growth factor inhibitors, Descemet membrane endothelial keratoplasty, stents for glaucoma, vitreoretinal surgery for macular holes, and endoscopic dacryocystorhinostomy.
These advanced and complex techniques distinctly contrast with the simplicity of the currently used Spatulated Glass Rod (SGR). While glass rods were first described in the first century AD, when used as stirring rods in Chemistry, it was not until the early twentieth century that glass rods were first utilised in Ophthalmology. In fact, in 1949, Thomassen referenced Ascher’s ‘glass rod phenomenon’ in assessing aqueous veins and blood flow in the diagnosis of glaucoma [1].

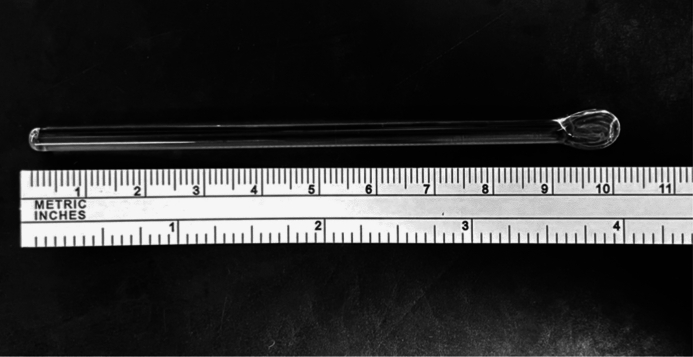

The SGR itself is an inexpensive and robust low-tech instrument which possesses a cylindrical glass handle, typically measuring 102 mm in length, and has a spatulated tip (Fig. 1). The shaft is 4.2 mm wide, with the spatulated tip measuring 7.9 mm by 2.4 mm (measured using the FORTRADE® Surgical Callipers E1-7160, London, England). A package of 30 SGRs can be purchased from a medical supplier in Sydney, Australia, for AUD8 per unit. Ophthalmologists are thereby provided with a low-tech instrument by which they may perform, safely and effectively, at least twelve clinical and surgical tasks which effectively are clearly at the high-impact end of management for an individual patient.Fig. 1. The spatulated glass rod
