Simulation of Neurotrophin Receptor Transmembrane Helix Interactions Reveals Active States and Distinct Signaling Mechanisms

TL;DR

This study uses simulations to explore how neurotrophin receptors transmit signals through their transmembrane domains, revealing active states and different signaling mechanisms.

Contribution

The study identifies distinct active and inactive states of transmembrane helix arrangements in neurotrophin receptors and proposes different signaling mechanisms.

Findings

Active and inactive TM helix arrangements of p75 and TrkA receptors were identified and supported by experimental data.

Two different signaling mechanisms are suggested through the C-terminal regions of TM helices in p75 and TrkA.

TrkB shows a single dominant TM domain dimer arrangement that is less energetically stable.

Abstract

Neurotrophin (NT) receptor signaling regulates neuronal
survival,
axonal and dendritic network maintenance, differentiation, and synaptic
plasticity. Signaling is initiated by binding of NT to the extracellular
domain of NT receptor dimers, leading to activation of the receptor
and signal propagation intracellularly. How this activating signal
is mediated by the single-pass transmembrane (TM) helical domain of
the receptor and what the relation between domain sequence and signaling
mechanism is remain unclear. The structure and dynamics of the TM
domain of the receptor dimers in the active and inactive states for
intracellular signaling are still elusive, with NMR structures capturing
only a single state. Here, we carried out unbiased and enhanced sampling
molecular dynamics simulations of the TM domain dimers of the wild-type
p75, TrkA and TrkB NT receptors and selected mutants in micelle and
bilayer lipid environments at atomistic and coarse-grained levels
of representation. The coarse-grained simulations enabled exploration
of multiple states of the TM domain dimers and revealed the influence
of the lipid environment on the TM helix arrangements. From the simulations,
we identify active and inactive TM helix arrangements of the p75 and
TrkA receptors that are supported by experimental data and suggest
two different signaling mechanisms through the C-terminal regions
of the TM helices. For TrkB, a single dominant but less energetically
stable arrangement of the TM domain dimer is observed. These findings
have implications for mechanistic studies of NT receptor signaling
and the design of neuroprotective drugs to stabilize specific states
of the TM domain of the receptors.

Figures

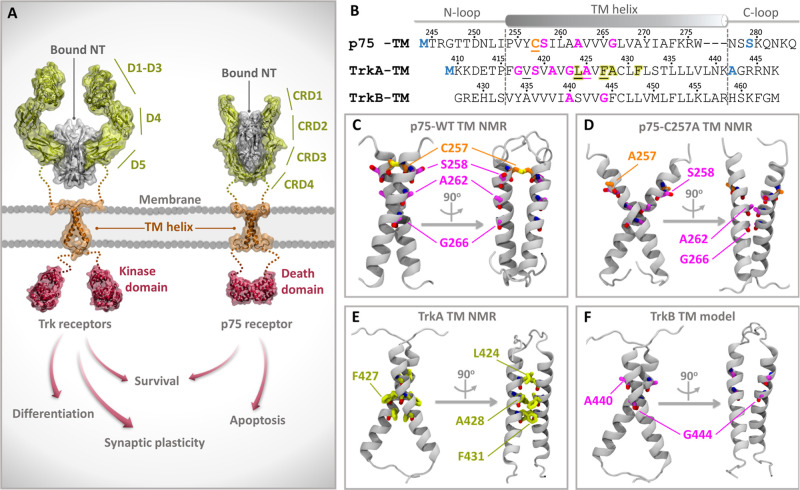

Sequence and structural features of NT receptors and their transmembrane (TM) domains. (A) Schematic representation of the Trk and p75 receptor homodimers with neurotrophin (NT) bound to the extracellular domains, indicating how NT binding leads to intracellular signal propagation. The domains whose structures have been determined experimentally are labeled and shown in cartoon representation with molecular surfaces, whereas regions lacking experimentally determined structures are indicated by dotted lines. (B) Sequences used for the simulations of the TM domains of the receptors. The secondary structure, with the helical part indicated by dashed lines and flanked by N- and C-terminal loop regions, is shown as observed in the p75 (PDB ID: 2MIC) and TrkA (PDB ID: 2N90) NMR structures. The sequence of the human TrkB TM domain (Uniprot Q16620), for which we built a homology model, is shown aligned to TrkA. Mutated residues in the NMR structures compared to the human p75 (Uniprot P08138) and TrkA (Uniprot P04629) sequences are colored blue; the TM domains of rat (Uniprot P07174) and human p75 have the same sequence. The C257 residue in p75, which is mutated to Ala in the NMR structure of p75-C257A (PDB ID: 2MJO), is underlined and colored orange. Residues participating in GxxxG-like motifs are colored magenta, while the TrkA L424xxF427A428xxF431 motif in the interface in the NMR structure is highlighted in yellow. (C–F) Cartoon representations of the (C) p75 WT (PDB ID: 2MIC), (D) p75-C257A (PDB ID: 2MJO), and (E) TrkA (PDB ID: 2N90) NMR structures, and the (F) homology model of the TrkB TM homodimer.

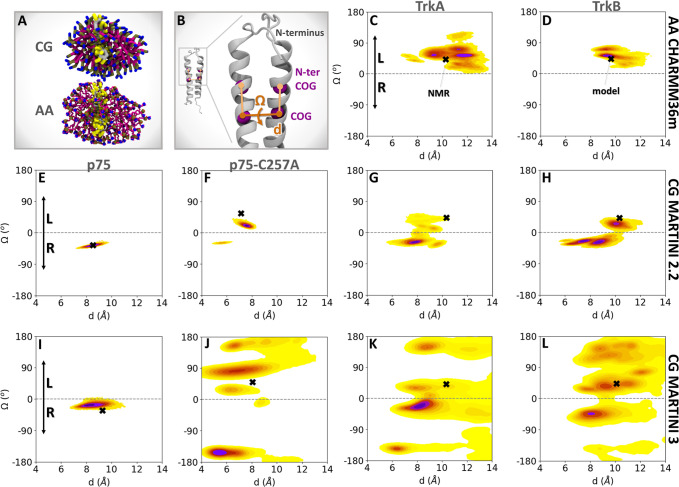

CG MD Simulations in a DPC micelle environment sample not only the NMR structures but also other low-energy arrangements of the two helices in the TM domain dimers. (A) Final snapshot of an equilibrated micelle formed by self-assembled DPC lipids (magenta) around a TrkA TM domain dimer (gray backbone with yellow side chains) extracted from one of the coarse-grained (CG) replica simulations. The system is shown in CG and all-atom (AA) representations. (B) Cartoon representation of a TM domain homodimer showing the definitions of the distance (d) between the centers of geometry (COG) of the backbone (BB) beads of the two helices and the crossing angle (Ω). The dihedral angle Ω is defined by the two planes formed by the COGs of the BB beads of the helices with the COGs of the BB beads of the N-terminal half of each of the helices (N-ter COG). (C–L) Population density maps in the d–Ω space from (C,D) AA simulations with the CHARMM36m force field and CG simulations with the (E–H) MARTINI 2.2 and (I–L) MARTINI 3 force fields for p75, p75-C257A, TrkA and TrkB TM domain dimers in DPC micelles. The maps were computed by kernel density estimation (KDE) and the probability maxima are denoted in dark purple, with the color fading to yellow for states of lower probability. The NMR structures for p75, p75-C257A, and TrkA and the homology model of TrkB, from which the simulations were started, are indicated with black crosses (X). Positive Ω values indicate left-handed helical dimers (L), while negative values correspond to right-handed dimers (R).

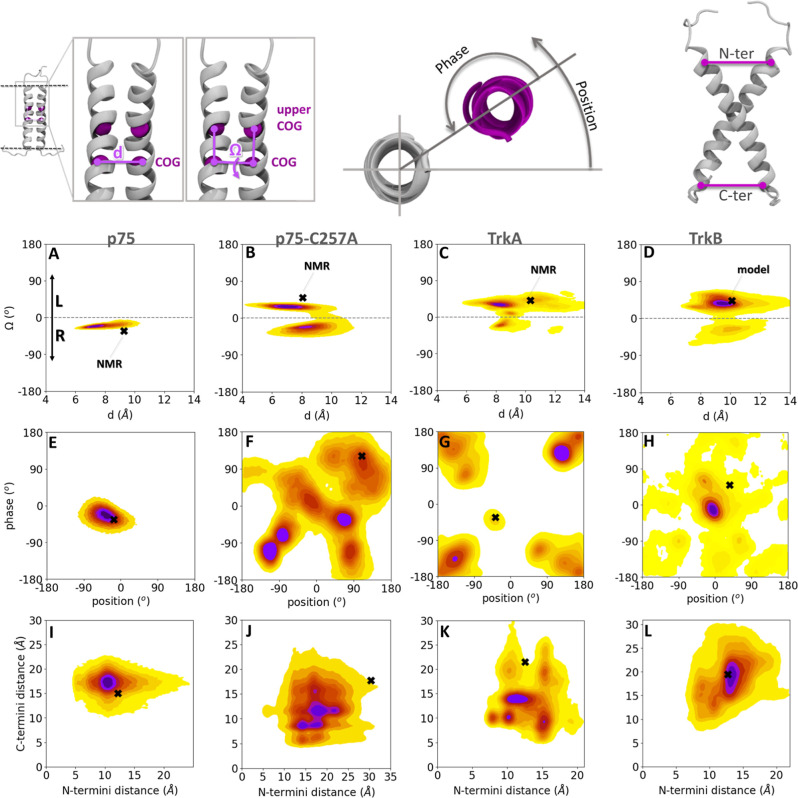

Simulations in a phospholipid bilayer environment show that the TM domain homodimers sample NMR structures and reveal other sequence-dependent low-energy arrangements of the two helices. Population density heatmaps from CG simulations with the MARTINI 3 force field of p75, p75-C257A, TrkA, and TrkB in a POPC bilayer projected onto the 2D spaces of (A–D) d–Ω, (E–H) phase-position (the reference residues used for the phase-position calculations are V265 for p75 and p75-C257A, A428 for TrkA, and G444 for TrkB), and (I–L) C-termini and N-termini distances. The definitions of these geometric parameters are shown at the top of the figure. Colors and symbols are as in Figure .

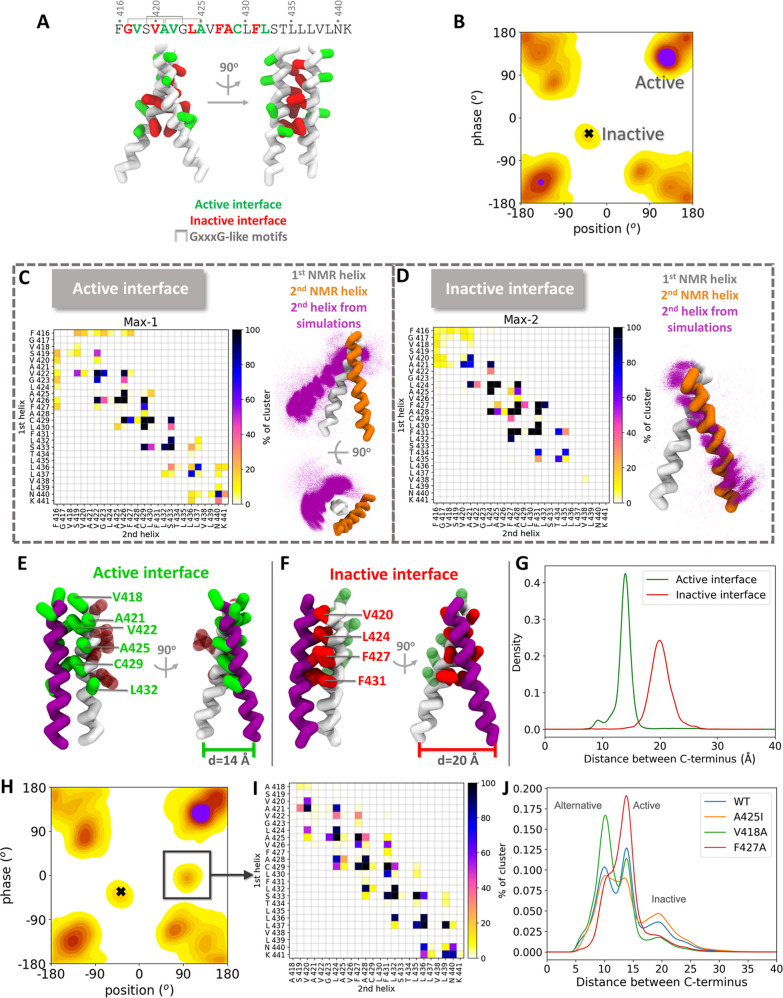

Comparison of active and inactive arrangements of the TrkA TM domain dimer in the CG MD simulations reveals closer C-terminii in the active arrangement. (A) NMR structure of the TrkA TM domain (PDB ID: 2N90) in CG representation in an inactive arrangement with the residues of the active and inactive interfaces (as defined by mutagenesis data in) shown in green and red, respectively. The three GxxxG-like motifs are indicated in the sequence. (B) Phase-position population density map from the CG MARTINI 3 simulations, with the two maxima that correspond to the active and inactive arrangements labeled. (C, D) Contact maps corresponding to the (C) active and (D) inactive TrkA arrangements labeled in (B). A contact is defined when a CG bead from one helix is within 6 Å of a bead of the second helix. The corresponding TM domain arrangements are shown with all the frames aligned to the 1st helix (white). The 2nd helix from the NMR structure (with an inactive arrangement) is shown in orange for reference, and the 2nd helix from the simulation frames is shown in purple dots. Only backbone beads are depicted for simplicity. (E,F) Interface residues in the simulations in the (E) active and (F) inactive arrangements from representative frames of the active and inactive maxima in (B). (G) Population density plot from the simulations of the distance between the C-termini of the helices from the active and inactive maxima in (B). (H) Phase-position population density map of the TrkA V418A mutant and (I) corresponding contact map between the two helices in the indicated emergent region. (J) Population density plot of the distance between the C-termini of the WT TrkA TM domain and selected mutants. See Figures S3 and S4 for further population density heatmaps and for helix contact difference maps, respectively, for these and other TrkA mutants.

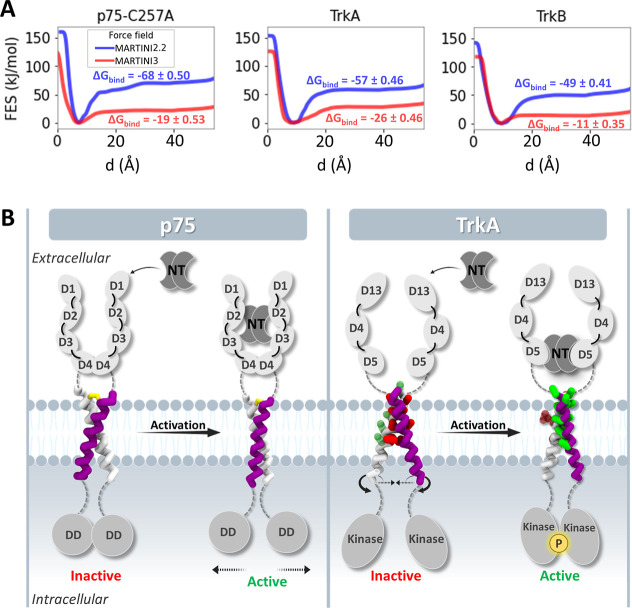

Simulations and computed free energy surfaces (FES) for helix association in a bilayer support different TM domain dimer-mediated activation mechanisms for the receptors. (A) Computed free energy surfaces (FES) for the association of the helices of the p75-C257A, TrkA, and TrkB TM domain homodimers in a POPC bilayer show the lower stability of the TrkB TM domain dimer. 1D-FES as a function of distance d between the helix centers of geometry (COGs) computed from the CG-MetaD simulations with MARTINI 2.2 and 3 (corresponding convergence plots are shown in Figures S5 and S6 and 2D-FES maps are shown in Figures S7 and S8). Corresponding values of ΔG bind are given in kJ/mol. (B) The simulations indicate small fluctuations in the helix crossing angle, and consequently the distance between the helix C-termini, upon activation of p75, whereas the activation of TrkA involves a relative rotation of the helices (with little change in helix crossing angle) and a reduction in the distance between their C-termini. The different relative movements of the TM helices upon activation by NT binding lead to dissociation of the intracellular death domains (DD) of p75 and association followed by phosphorylation of the intracellular kinase domains of TrkA. The extracellular and intracellular domains and the neurotrophins (NTs) are shown schematically, while the transmembrane helices are shown in active and inactive arrangements derived from the molecular dynamics simulations (yellow: C257 cysteine, green: active and red: inactive interface side chains).
