Safety and Sublethal Effects of Acaricides on Stethorus punctillum, a Neglected Key Natural Enemy of Phytophagous Mites

TL;DR

This study evaluates the safety and sublethal effects of four acaricides on a predatory beetle, Stethorus punctillum, used to control mites in northwest China.

Contribution

The study reveals the sublethal impacts of abamectin on the beetle's predation and lifespan, offering insights for safer acaricide use.

Findings

Abamectin was the most acutely toxic to S. punctillum larvae and adults.

Abamectin exposure reduced predation efficiency and shortened adult lifespan.

Petroleum oil posed the highest risk to S. punctillum larvae despite low acute toxicity.

Abstract

Stethorus punctillum Weise, a predatory beetle attacking phytophagous mites in northwest China, remains underutilized for biological control. Current over-reliance on synthetic acaricides necessitates evaluation of their non-target effects on this predator, particularly their safety and sublethal impacts. Here, we assessed the acute toxicity of four acaricides to S. punctillum in laboratory bioassays and then focused on sublethal impacts of abamectin on adult predation efficiency and lifespan. Based on the LC50 values, the acute toxicities of the four acaricides tested against S. punctillum larvae and adults both ranked as follows (from greatest to least): abamectin > pyridaben > spirotetramat > petroleum oil. All acaricides exhibited selective toxicity (STR: 2.16–182.49) with moderate to low risk (SF: 0.46–8.71). Notably, petroleum oil, despite showing the lowest acute toxicity to S. punctillum, posed the highest risk to larvae (SF: 0.46–0.77). Abamectin exposures at LC20 or LC50 significantly compromised S. punctillum adults, prolonging prey handling time (females: 33–100%; males: 40%), reducing maximum daily predation (females: 25–50%; males: 29%), and shortening adult lifespan (females: 2.34–3.17 days; males: 3.95–5.08 days). This study assessed the safety of four commonly used acaricides for S. punctillum, revealing abamectin-induced impairments to key biological traits. Our findings offer critical insights for risk-aware acaricide selection and integrated spider mite management strategies in agroecosystems in northwest China.

Figures

Full text

1. Introduction

Agricultural intensification has expanded in northwestern China over the past several decades [1]. The global intensification of agricultural practices has emerged as a primary driver of escalating ecological degradation, precipitating declines in ecosystem service provisioning, accelerating biodiversity loss, and undermining the biocontrol capacity of predatory arthropod populations [2,3,4]. These adverse effects further entrench chemical pesticide dependence of pest management [5], wherein control failures stimulate increased chemical use. Spider mites (Acari: Tetranychidae) are destructive agricultural pests worldwide [6], of which the two-spotted spider mite, Tetranychus urticae Koch, is the most damaging spider mite in northwestern China [7]. Chemical-dependent pest management now leads to diminishing returns, driven by escalating pesticide resistance and disrupted biocontrol services [8].

Stethorus punctillum Weise, a dominant natural enemy of phytophagous mites in northwest China, is an efficient predator of spider mites with a significant potential for use as a biological control agent [9]. However, its cryptic morphology and thanatosis behavior makes it easily overlooked in agricultural fields, leading to the unintended loss of its biocontrol value due to the indiscriminate use of chemical agents. In the context of conservation biological control, modifying habitats and use of less damaging pesticides can significantly mitigate the adverse impacts of pesticides on natural enemies [10].

Pesticides can have lethal and sublethal effects on arthropods under field conditions [11], with the latter often occurring through exposure to sublethal concentrations of chemicals produced by degradation of residues over time [12,13]. Low concentrations of pesticides, including acaricides, may affect the longevity, life history parameters, and predation capacity of exposed natural enemies [14,15]. Current research on mite biological control prioritizes toxicological assessments of impacts on predatory mites, for both acaricide safety [16] and sublethal impacts [17,18]. There are relatively few studies on S. punctillum or other insects that feed on mites, and existing studies of S. punctillum mainly focus on the beetle’s biological characteristics [19,20], bioassays of direct toxicity of certain pesticides [21], and S. punctillum’s interactions with other mite predators [22]. Notably, there is a significant gap in the area of assessment of acaricides’ safety and sublethal impacts for this efficient predator.

In this study, we assessed four commonly used acaricides that have distinct modes of action for their acute toxicity against T. urticae and S. punctillum. The safety profiles of acaricides to the predator were evaluated by calculating the selective toxicity ratios (STR) and safety factors (SF). Additionally, the sublethal effects of abamectin (the most widely used insecticide-acaricide in northwest China) were quantified through predation behavior assays and longevity monitoring. This study advances the task of selecting acaricides suitable for use in integrated pest management (IPM) programs, while demonstrating how natural enemy conservation enables ecologically sustainable spider mite management.

2. Materials and Methods

2.1. Test Mites and Insects

Tetranychus urticae and S. punctillum were collected from an apple orchard at the Horticultural Farm in Dangzhai Town, Zhangye City, Gansu Province (38.84° N, 100.49° E). Tetranychus urticae was reared on Phaseolus vulgaris L. seedlings in the laboratory. After the second compound leaves had expanded, plants were inoculated with spider mites and watered every 5 days. Stethorus punctillum was reared by providing prey (T. urticae) on fresh, infested bean leaves, which were replaced daily. Rearings were done in an artificial climate chamber (26 ± 1 °C, relative humidity 50 ± 10%, and photoperiod 16:8 light/dark). Adult mites, 1-day-old adults and third instar larvae of S. punctillum were selected for subsequent experiments.

2.2. Acaricides and Reagents

For testing, we used technical acaricides as follows: 95% abamectin and 97% spirotetramat (from the Hebei Weiyuan Bio-Chemical Co., Ltd., Shijiazhuang, China), 95% pyridaben (from the Jiangsu KWIN Group Co., Ltd., Yancheng, China), and 99% petroleum oil emulsion (from the Shandong Lukang Bio-Pesticide Co., Ltd., Dezhou, China). Dimethyl sulfoxide (analytically pure, Sinopharm Group Chemical Reagent Co., Ltd., Shanghai, China) was used to dissolve the above-mentioned technical acaricides and dilute them into a 1% stock solution.

2.3. Determination of Acaricides Acute Toxicity and Safety Assessment

The stock solution was diluted with distilled water to obtain various concentrations for acute toxicity bioassays, and distilled water containing 1% dimethyl sulfoxide was used as the control (Table 1).

The acute toxicity bioassay for T. urticae was based on the leaf-dipping method [23]. Into Petri dishes (90 mm dia × 15 mm h) filled with 1% agar, we placed fresh bean leaves (P. vulgaris) that had been immersed in a test acaricide solution for 5 s and then air-dried. One leaf per Petri dish was placed bottom side up on the agar, and 30 T. urticae adults of uniform size were placed on the leaf. The open Petri dish was then sealed and closed with a sheet of parafilm that had microperforations for ventilation. Eggs laid by the mites were removed daily, and the number of living mites was recorded 24 h and 48 h after the start of the assay.

The acute toxicity bioassay with S. punctillum was based on contact with a surface residue in a test tube (80 mm h × 18 mm dia) [24], using either 1-day-old adults or third instar larvae. To create the test arena, we added 3 mL of one concentration of a particular pesticide into a test tube, which was then mechanically rolled while the pesticide air-dried at room temperature and without forced ventilation. We then introduced 10 well-fed S. punctillum adults or larvae into each tube, which was then sealed with a cotton plug and placed horizontally on a laboratory bench. Three hours later, test insects were transferred into small, clean polyethylene cups (25 mL), whose lids had been pricked with a needle to provide 15–20 microperforations for ventilation. Live mites were added to cups daily in excess as food for predators, and the survival of the test insects was recorded after 24, 48, and 72 h. Each treatment was replicated 3 times. Replicates were considered invalid if the mortality rate of their control group exceeded 10%.

2.4. Lethal and Sublethal Effects of Abamectin on Predation Ability of S. punctillum

In the laboratory, 1-day-old male and female adults of S. punctillum were exposed to LC_20_ and LC_50_ concentrations of abamectin using the same test tube contact assay described above. The surviving individuals after 36 h were placed individually into Petri dishes and starved for 6 h. Fresh leaves of P. vulgaris infested with T. urticae (with leaf petioles wrapped with wet cotton balls) were placed into the Petri dishes, which were then sealed with parafilm with microperforations. The densities of T. urticae tested were 50, 100, 150, or 200 individuals per dish. After 24 h, the numbers of surviving T. urticae were counted. One Petri dish with one adult predator as a replicate and each treatment was replicated 5 times, and the control was treated with distilled water containing 1% dimethyl sulfoxide. A total of 60 female adults and 60 male adults were tested in the predation bioassays.

2.5. Lethal and Sublethal Effects of Abamectin on Longevity of S. punctillum

The setup for the treatment and selection of ladybugs was the same as in the above section. The surviving individuals were paired after 48 h, and then the pairs were placed in Petri dishes. Subsequently, we placed fresh leaves of P. vulgaris infested with T. urticae in the Petri dishes. Leaves had their petioles wrapped with wet cotton balls, and Petri dishes were sealed with parafilm with microperforations. Infested leaves were replaced daily, and we recorded adult beetle mortality for both sexes. Each treatment was replicated 24 times.

2.6. Statistical Analysis

Data were recorded with Microsoft Excel 2019. Probit analysis was used (in IBM SPSS Statistics 26) to calculate the toxicity regression equation, and the LC_20_, LC_50_, and LC_90_ of four acaricides to different stages of S. punctillum were calculated. Statistical analysis was performed using the agricolae package in R Studio (4.4.1). Data normality was assessed using QQ plots (performance and ggplot2 packages), and homogeneity of variances was tested with Levene’s test (car package). If assumptions were violated, appropriate transformations were applied using the bestNormalize package. Once assumptions were satisfied, mean separation was performed using the least significant difference (LSD) method, and pairwise comparisons were conducted.

The safety of acaricides against S. punctillum was evaluated by use of the selective toxicity ratio (STR) and a safety factor (SF). STR is the ratio of the LC_50_ value of the natural enemy divided by that of the pest; when STR > 1, the acaricide was considered selective, i.e., the acaricide is safer to the natural enemy than to the pest [25,26]. SF is the LC_50_ value of an acaricide for the natural enemy divided by the field recommended dose (obtained from the China Pesticide Information Network, http://www.chinapesticide.org.cn, (accessed on 23 February 2025); when SF > 5, the acaricide was considered low risk, 5 ≥ SF > 0.5 meant moderate risk, and 0.5 ≥ SF > 0.05 meant high risk [27].

To analyze the predation functional response data, we used Holling’s Type II disk equation: $[eqn]$ . The searching efficiency of S. punctillum on T. urticae was given by $[eqn]$ . In the above equation, N_a_ represents the number of prey eaten; a is the instantaneous attack rate of the predator on the prey; T_h_ is the time needed to handle the prey; N is the prey density (the density of T. urticae); and T_r_ is the total time of the experiment (T_r_ = 1 d, since the experiment was set up for 24 h) [28]. The Origin 2021 program was employed to fit the functional response equations and create the graphs.

3. Results

3.1. Acaricides Acute Toxicity and Safety Assessment

Adult mites of T. urticae, 1-day-old adults and third instar larvae of S. punctillum had different sensitivities to these four acaricides (Table 2). Based on LC_50_ values, the acaricides exhibited the following toxicity gradient to both the pest and the predator: abamectin > pyridaben > spirotetramat > petroleum oil. The LC_50_ values for S. punctillum were significantly higher (i.e., less toxic) than the values for the pest mite.

Pyridaben demonstrated a high selective toxicity ratio between S. punctillum adults and larvae relative to pest mites (STR: 142.49–182.49). At the same time, adults of S. punctillum were only at moderate risk (SF: 3.29–4.94) from this acaricide, while larvae were at moderate to low risk (SF: 4.21–6.32, Table 2). Abamectin and spirotetramat also showed relatively high selective toxicity ratios between S. punctillum and the pest mites, and both were at moderate to low risk (STR: 7.61–32.66, SF: 1.51–8.71, Table 2). However, petroleum oil, which showed the lowest toxicity to S. punctillum, exhibited a low selective toxicity ratio between adults and larvae relative to pest mites (STR: 2.16–3.06), with adults being at moderate risk (SF: 0.66–1.09) and larvae at moderately high risk (SF: 0.46–0.77, Table 2).

3.2. Lethal and Sublethal Effects of Abamectin on Predation Ability of S. punctillum Adults

Exposure to the LC_20_ concentration of abamectin, compared with the control, significantly reduced the number of mites eaten by both sexes of S. punctillum only at the highest prey density (males: F2,12 = 6.983, p = 0.020; females: F2,12 = 18.902, p = 0.005. Table 3). Exposure to the LC_50_ concentration, compared with the control, reduced predation by male beetles significantly at 50, 100, 150, and 200 mites per dish (F2,12 = 2.633, p = 0.044; F2,12 = 4.448, p = 0.013; F2,12 = 2.905, p = 0.034; F2,12 = 6.983, p = 0.004), while predation by female beetles significantly declined only at 100, 150, and 200 mites per dish (F2,12 = 2.796, p = 0.049; F2,12 = 3.984, p = 0.017; F2,12 = 18.902, p < 0.001. Table 3).

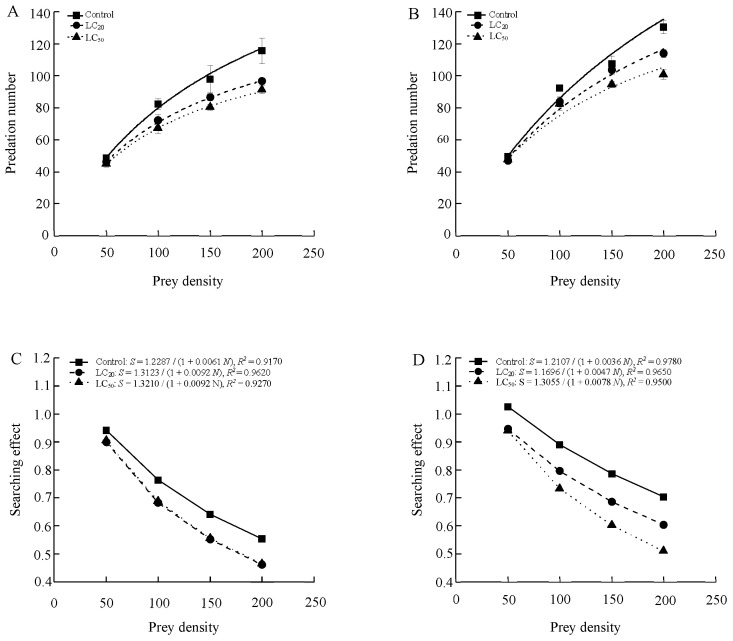

The functional responses of 1-day-old male and female adults of S. punctillum to two-spotted spider mite after being exposed to abamectin both conformed to the Holling-II model (Table 4 and Figure 1). Predation increased (number of prey eaten per predator per day) with prey density before stabilizing across all treatments, and the searching effects for males and females both declined with increased prey density. Compared to the control, exposure of beetles to abamectin residues from application rates equivalent to the LC_20_ and LC_50_ levels significantly inhibited the searching efficiency of both sexes.

3.3. Lethal and Sublethal Effects of Abamectin on Longevity of S. punctillum Adults

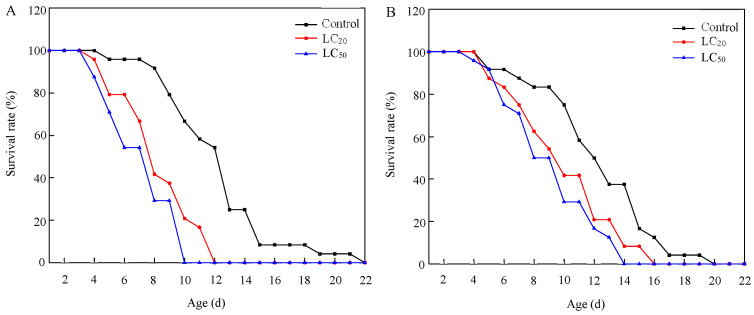

Exposure to residues from the application of abamectin significantly shortened the longevity of S. punctillum adults (Table 5 and Figure 2). Both LC_20_ and LC_50_ treatments significantly reduced the longevity of males and females compared to the control (males: F2,69 = 21.408, p < 0.001; females: F2,69 = 5.602, p = 0.006), and the impact on males was more pronounced.

4. Discussion

Agricultural intensification and expansion of acreage devoted to monoculture crops in northwest China are potentially driving biodiversity loss and escalating pesticide dependency [29]. In many crops, spider mite infestations late in the crop growth can cause substantial yield losses [30], particularly in maize fields and fruit orchards. Dense crop canopies reduce acaricide efficacy, contributing to frequent control failures and enhancing habitat and reproduction rates of spider mites in agroecosystems [31,32]. This escalation in acaricide reliance exacerbates the frequency and intensity of pesticide resistance by spider mites, inducing pest resurgence, depletion of natural enemy populations, and ecosystem destabilization [33]. Acaricide residues or patches of unevenly degraded acaricides can also have sublethal effects on non-target species, particularly the natural enemies of spider mites [34,35]. Assessing the ecotoxicological risks and sublethal impacts of field-applied acaricides on S. punctillum is useful for making better, more informed acaricide selection choices and conserving this predator’s ecological functions within integrated pest management (IPM) frameworks.

In this experiment, all four acaricides tested were markedly less toxic to S. punctillum than to the pest, T. urticae. The selective toxicity ratio (STR) and safety factor (SF) are metrics for assessing pesticide selectivity and informing field deployment strategies [27]. All tested acaricides had STR values > 1 for both adults and larvae of S. punctillum, confirming the biosafety of these products for this predator. Pyridaben exhibited pronounced selectivity toward S. punctillum (adults: STR = 142.49; larvae: STR = 182.49), although, notably, this contrasted with its lack of significant selectivity toward Neoseiulus cucumeris (Oudemans) in earlier studies [36]. This contrast likely arises from pyridaben’s mechanism of action as a mitochondrial complex I inhibitor, which selectively disrupts energy metabolism in pest mites [37], and the selectivity between S. punctillum and T. urticae may reflect divergent target-site sensitivities or enhanced detoxification pathways in S. punctillum [38]. SF analysis at field-recommended doses classified all four acaricides as low- or moderate-risk agents; however, petroleum oil posed a high risk to S. punctillum larvae (SF: 0.46–0.77), consistent with its moderate toxicity to Halmus chalybeus (Boisduval) [39]. This heightened risk likely stems from petroleum oil’s non-selective physical mode of action, which forms an occlusive film on the arthropod cuticle, blocking spiracles and disrupting respiration [40]. This non-selective physical action equally affects pest mites and S. punctillum, but the latter’s vulnerability amplified by its small body size and limited mobility. In addition, studies have shown that petroleum oil also affects the nervous system and causes dehydration and necrosis [41]. Despite its approval for use in organic agriculture, petroleum oil poses significant ecological trade-offs, and its application should be avoided during S. punctillum’s peak activity periods.

Abamectin is one of the most widely used insecticides and acaricides in northwest China. For that reason, it was prioritized in our study for assessment of its sublethal effects. Abamectin exhibited acute toxicity to both T. urticae and S. punctillum, likely attributable to its broad-spectrum neurotoxic action and the prolonged persistence of its residues [42]. This impact was consistent with previous research results on T. urticae and Stethorus gilvifrons (Mulsant) [43,44]. Abamectin demonstrated moderate field safety for S. punctillum (STR > 17.97, SF > 1.92), being less toxic to the predator than the pest mite. However, sublethal effects of abamectin via predator exposure to its residues showed a dose-dependent reduction in the predation capacity of S. punctillum. The maximum daily predation declined 25–50%, while adult longevity decreased by 2.34–3.17 days (females) and 3.95–5.08 days (males). These findings are similar to the sublethal impacts of abamectin on Phytoseiulus persimilis Athias-Henriot [45], Phytoseius plumifer (Canestrini & Fanzago) [46], and Neoseiulus longispinosus (Evans) [47]. The S. punctillum’s handling time was significantly extended, which in turn reduced its predation on pest mites. These behavioral effects of abamectin are likely due to its impact on the nervous system and endocrine homeostasis [42,48]. Despite apparent field safety, such impacts dictate that abamectin be used with caution when being integrated into pest mite control strategies.

Our research describes the safety and sublethal effects of four acaricides on S. punctillum. However, our results are only from indoor studies, and the number of acaricides considered was limited. Further research on acaricides is needed, and large-scale field trials should be carried out to see how environmental variables such as temperature, plant surface complexity, and acaricide degradation rates influence S. punctillum in natural settings.

5. Conclusions

In this study, we assessed the acute toxicity and safety profiles of four acaricides with distinct modes of action against T. urticae and S. punctillum under laboratory conditions. Additionally, we investigated the sublethal effects of abamectin on the predation capacity and longevity of S. punctillum. Although all tested acaricides demonstrated lower toxicity levels, petroleum oil posed a high risk to S. punctillum. Of particular concern is the substantial adverse impact of pesticide residues on both the predatory efficacy and adult longevity of this predator. The findings enhance the scientific foundation for sustainable spider mite management in northwest China.
