A Novel flaB Gene-Based Profiling Approach for the Rapid and Accurate Detection of Borreliella and Borrelia Species in Ticks

TL;DR

A new flaB gene-based method accurately detects Borreliaceae species in ticks, outperforming existing techniques.

Contribution

A novel flaB gene-based profiling method combining new primers and NGS for improved detection of Borreliaceae species in ticks.

Findings

The flaB gene-based method detected Borreliaceae DNA in 83 DNA pools, outperforming nested PCR and V4 rrs profiling.

23 distinct flaB sequence variants were identified, corresponding to five Borreliaceae species.

The method enabled putative strain-level discrimination within Borreliaceae species.

Abstract

The increasing incidence of tick-borne diseases in Europe necessitates the development of accurate and high-throughput molecular tools for detecting pathogens in tick populations. In this study, we present a novel flaB gene-based profiling method for the detection and identification of Borrelia and Borreliella species in Ixodes ricinus ticks, combining newly designed primers with next-generation sequencing (NGS). The method was evaluated alongside conventional nested PCR targeting the flaB gene, as well as microbial profiling based on the V4 region of the rrs gene, using tick DNA extracted from 1088 specimens pooled into 94 samples. Our results demonstrate that the flaB gene-based profiling approach was the highest-performing out of the three methods, detecting Borreliaceae DNA in 83 DNA pools, compared to 58 and 56 pools using nested PCR and V4 rrs profiling, respectively. A total of 23 distinct flaB sequence variants were identified, corresponding to five Borreliaceae species: Borreliella afzelii, Bl. garinii, Bl. valaisiana, Bl. burgdorferi, and Borrelia miyamotoi. Additionally, the method enabled putative strain-level discrimination within species. Our results highlight the value of flaB gene-based profiling as a robust tool for ecological and epidemiological studies of Borreliaceae diversity in ticks.

Figures

Full text

1. Introduction

The observed increase in the incidence of tick-borne diseases (TBDs) worldwide is a challenge for health professionals, who should also be involved in raising public awareness. This is particularly important in Europe, where the risk of diseases transmitted by Ixodes ricinus ticks is growing, including in Poland [1]. This is a growing concern due to the observed expansion of I. ricinus abundance and the spread of populations of this tick in Europe [2]. There is, therefore, an urgent need to develop both more accurate diagnostic techniques and advanced methods for researchers to study and monitor tick-borne pathogens, as well as to introduce more effective strategies to prevent TBDs [3,4,5].

The most common TBD in the northern hemisphere is Lyme borreliosis (LB), which is caused by spirochetes of the Borreliaceae family [6,7]. Molecular phylogenetic analyses have shown that the members of this family can be grouped into two clades, and that the pathogenic species within each clade can be distinguished by different disease symptoms and by their specific relationships with the tick vector and reservoir hosts [8]. On the basis of these data, two genera have been proposed: the genus Borreliella, formerly known as the Borrelia burgdorferi sensu lato complex, which includes the three most important LB agents in Europe, i.e., Bl. afzelii, Bl. garinii, and Bl. burgdorferi; and the genus Borrelia, comprising the spirochetes that cause tick-borne relapsing fever (TBRF), including Borrelia miyamotoi, the etiological agent of Borrelia miyamotoi disease. Borrelia miyamotoi, transmitted by I. ricinus, is the only species causing TBRF found in Europe [8,9]. Considering the extensive diversity of Borreliaceae species and their varying zoonotic potential, it is crucial to conduct systematic and continuous monitoring of the occurrence and distribution of Borrelia and Borreliella species in the environment.

Various methods are used for Borreliaceae DNA detection and species identification, including serological surveys, environmental DNA sampling, host tissue analysis, and molecular assays [10,11,12,13]. Molecular techniques based on the polymerase chain reaction (PCR) are among the most widely applied methodologies, due to their fast processing time and high analytical sensitivity. The application of group- or species-specific primer sets, followed by PCR amplification of a target gene fragment and subsequent sequencing of the amplicons, enables accurate and reproducible identification of the taxon of interest.

Commonly used DNA markers for Borreliella species detection include genes encoding the small subunit ribosomal RNA gene (16S rRNA, hereafter rrs), outer-surface proteins (e.g., ospA, ospB, ospC), and flagellin protein (flaB). However, the genes encoding outer-surface proteins (Osps) do not tend to have homologs between the genera; instead, Borrelia spirochaetes utilize variable membrane proteins (Vmps) in the place of Osps [14,15]. Furthermore, vmp-like sequences of Borreliella spirochaetes show too-high sequence variability for precise Borreliella species assignment [16]. A screening assay based on the hypervariable V2 region of the rrs has also been proposed, which enables the targeted amplification of Borreliaceae DNA [17]. Additional universal DNA markers that allow for the simultaneous detection of both Borrelia and Borreliella species include rrs gene-based microbial profiling targeting the V3 and/or V4 rrs regions, which can be applied across all bacteria due to the use universal primers, and the flaB gene, which is present in all members of the Borreliaceae family. The flaB gene exhibits conserved nucleotide substitutions among spirochaete species, facilitating the design of specific PCR primers, yet maintains sufficient sequence variability to enable differentiation at the species level [18,19,20].

Most methods currently used for flaB gene analysis are based on a nested PCR approach and sequencing of the second-round PCR product [17,21,22,23,24]. However, this standard approach based on Sanger sequencing of PCR amplicons may result in false-negative detections in co-infected samples, particularly when one spirochaete species dominates in abundance over other co-existing taxa, a phenomenon previously reported for other pathogenic microorganisms [25]. An effective solution to this limitation may be provided by high-throughput assays based on microfluidic real-time PCR, utilizing digital PCR (dPCR) technology. This method enables the simultaneous detection of dozens of tick-borne pathogens (TBPs) [26]. Nevertheless, this approach still relies on highly specific primers and probes, which may result in failure to detect strains that exhibit sequence variation within the targeted gene regions. In contrast, methods developed in recent years for the taxonomic profiling of microbial communities resolve this problem, because they are based on parallel sequencing of all amplicons in the sample using a next-generation sequencing (NGS) approach. Such approaches provide information not only on the amplicon sequence variants (ASVs) in the sample, but also on their relative abundance, which may reflect the relative contribution of a given taxon to the microbial community. By using degenerate primer sets optimized to detect a broad spectrum of taxa, this strategy may serve as an alternative to the recently developed multiplex PCR amplicon sequencing (MPAS) approach [27], which enables the identification of Borrelia and Borreliella species, including co-infections [20].

Therefore, the aim of this study was to develop a novel DNA-based profiling approach for the rapid detection and species-level identification of Borreliaceae members based on the flaB marker. To achieve this, we designed a new group-specific primer set for the PCR amplification of a short flaB gene fragment, enabling the detection of both Borrelia and Borreliella species. The performance of the primers was evaluated using DNA extracted from I. ricinus ticks, the primary vector of spirochetes in Europe. The results of flaB gene-based profiling were compared with those obtained using a conventional nested PCR assay targeting the flaB gene, as well as with taxonomic profiles of tick bacterial communities based on the V4 region of the rrs gene (V4 rrs).

2. Materials and Methods

2.1. Tick Collection, DNA Extraction, and Pooling of Isolates

Questing I. ricinus ticks were collected in May and June over a period of 11 years, from 2012 to 2022, in a mixed forest stand at the Rusalka Lake in the city of Poznan, west-central Poland (N 52.426389, E 16.877778), using a flag-dragging method, and stored in 96% ethanol until analyses. Ticks were assigned to species by examination of morphological features according to a key by Siuda (1993) [28]. In total, 1088 I. ricinus ticks were collected, including 170 females and 918 nymphs; from this group, up to 20 females and 100 nymphs were selected per year for screening for Borreliaceae DNA.

Total DNA was extracted from ticks using the ammonium hydroxide-based method described by Rijpkema et al. (1996) [29]. In total, 94 DNA pools were prepared by combining 5 µL of each individual DNA extract. Before pooling, DNA extracts were checked for the presence tick DNA by conventional PCR amplification of the cytochrome c oxidase subunit I gene fragment (COI) using bcdF01 and bcdR04 primers, as described previously [30]. This resulted in 54 pools containing DNA from 12 ticks each, and 40 pools containing DNA from 11 ticks each; adults were randomly pooled with nymphs. The positive control was a DNA extract from a tick positive for Bl. valaisiana, collected for a previous study [31]. Positive and negative controls, including blank DNA extraction controls and no-template PCR controls, were processed, amplified, and sequenced alongside the test samples.

2.2. Designing PCR Primers for flaB Gene-Based Profiling

A new Borreliaceae-specific primer set for PCR amplification of a flaB gene fragment suitable for NGS was developed based on sequence data published in GenBank [https://www.ncbi.nlm.nih.gov/ (accessed on 15 April 2024)]. In total, 22 flaB sequences representing Bl. afzelii (JANAGAF1173 and PKo strains), Bl. americana (SCW41), Bl. bavariensis (NT24 and PBi), Bl. bissettiae (PGeb), Bl. burgdorferi (Bol26), Bl. chilensis (VA1), Bl. finlandensis (Z11), Bl. garinii (CIP 103,362 and JAASAAF1041), Bl. japonica (Miyazaki 2E), Bl. kurtenbachii (25015), Bl. lusitaniae (PotiB2), Bl. mayonii (MN14-1420 and MN14-1539), Bl. sinica (CMN3), Bl. spielmanii (PMew), Bl. yangtzensis (CW61 and CW62), and B. miyamotoi (HT31 and NL-IR-1) (Table S1) were aligned using BioEdit 7.2.5. [32]. Initial primers were analyzed in Oligo Analyzer version 3.1 (Integrated DNA Technologies Inc., Coralville, IA, USA) to check the difference in melting temperatures and to search for possible primer secondary structures. The final abi-flaB primer set, comprising the degenerate primers abi-flaB forward (WGCWTCTGATGATGCTGCTG) and abi-flaB reverse (TATTGVGCYTGATCAGCAATTC), was designed to amplify a 276 bp fragment of the flaB gene, corresponding to amino acid positions Met46 to Asn122 in the flagellin protein sequence (e.g., Bl. afzelii strain JANAGAF1173, NZ_CP075209.1:c148380-147370).

2.3. Screening for Borreliaceae DNA Using Nested PCR Test

An approximately 600 bp fragment of the flaB gene, commonly used for the conventional detection of Borreliaceae DNA, was amplified using a nested PCR approach. The outer PCR was performed with primers 132f (TGGTATGGGAGTTTCTGG) and 905r (TCTGTCATTGTAGCATCTTT) [16]. The reaction was carried out in a final volume of 6 µL, containing 1 × Type-it Microsatellite PCR Master Mix (Qiagen, Hilden, Germany), 0.25 µM of each primer, and 1 µL of DNA template. The thermal cycling conditions were as follows: initial denaturation at 95 °C for 5 min, followed by 40 cycles of denaturation at 95 °C for 30 s, annealing at 50 °C for 45 s, and extension at 72 °C for 1 min, with a final extension step at 72 °C for 7 min. The outer PCR product was subsequently diluted 1:10 with nuclease-free water (Milli-Q) and used as a template for the inner PCR. The inner PCR amplification was carried out with the use of 220f (CAGACAACAGAGGGAAAT) and 823r (TCAAGTCTATTTTGGAAAGCACC) primers [16]. The reaction was performed in a final volume of 10 µL, containing 1 × Type-it Microsatellite PCR Master Mix, 0.2 µM of each primer, and 1 µL of DNA template. The thermal cycling conditions were the same as for the first-round reaction. After completion of the PCR, 2.5 µL of the reaction mixture was separated on 1% agarose gel and visualized using GelRed Nucleic Acid Gel Stain (Biotium, Inc., Fremont, CA, USA) to check the amplification efficiency.

2.4. Screening for Borreliaceae DNA Using V4 rrs Gene-Based Profiling

The V4 hypervariable region (about 250 bp) of the bacterial rrs gene was amplified using primers V4F (GATCAGCAGCCGCGGTAATA) [33] and V4R (GGACTACCAGGGTATCTAA) [34], both fused at their 5′ ends with dual-indexed Ion Torrent adapters. PCRs were carried out in a final volume of 10 µL, containing 1 × HOT FIREPol polymerase (Solis BioDyne, Tartu, Estonia), 0.2 µM of each fusion primer, and 1 µL of DNA template. Each reaction was performed in technical duplicate, and the two replicates were pooled after amplification. The thermal cycling conditions were as follows: initial denaturation at 95 °C for 12 min, followed by 30 cycles of denaturation at 95 °C for 15 s, annealing at 50 °C for 90 s, and extension at 72 °C for 30 s, with a final extension step at 72 °C for 5 min. Following PCR, technical replicates were combined, and 2.5 µL of each product was electrophoresed on a 1% agarose gel to assess amplification efficiency. All PCR products were subsequently combined to create a single V4 rrs amplicon library.

2.5. Screening for Borreliaceae DNA Using flaB Gene-Based Profiling

A 276 bp fragment of the flaB gene was amplified using abi-flaB forward and reverse primers (see Section 2.2), fused at their 5′ ends with dual-indexed Ion Torrent adapters. PCRs were carried out as described for V4 rrs gene-based profiling. The thermal cycling conditions were as follows: initial denaturation at 95 °C for 12 min, followed by 40 cycles of denaturation at 95 °C for 15 s, annealing at 55 °C for 30 s, and extension at 72 °C for 30 s, with a final extension step at 72 °C for 5 min. All PCR products were subsequently combined to create a single flaB amplicon library.

2.6. Library Preparation and Sequencing

The V4 rrs and flaB amplicon libraries were individually purified using a 2% E-Gel SizeSelect II Agarose Gel System (Invitrogen, Carlsbad, CA, USA), following the manufacturer’s protocol. Library concentration and fragment size distribution were assessed using a High-Sensitivity D1000 ScreenTape assay on a 2200 TapeStation system (Agilent Technologies, Santa Clara, CA, USA). Clonal template amplification was carried out with the Ion Torrent OneTouch System II and the Ion Torrent OT2 Kit, according to the manufacturer’s instructions. Sequencing was performed on an Ion 540 chip using the Ion 540 Kit-OT2 and Ion S5 system (Life Technologies, Carlsbad, CA, USA), following the manufacturer’s guidelines.

2.7. Bioinformatic and Statistical Analyses

Amplicon sequencing was performed using the Ion Torrent S5 system (Life Technologies, Carlsbad, CA, USA), according to the manufacturer’s instructions, to yield approximately 50,000 and 250,000 reads per sample of the flaB and V4 rrs library, respectively. Bioinformatic analysis was conducted using FASTQ data and a custom workflow. Briefly, sequence reads shorter than 200 bp were removed from the dataset using Geneious Prime 2023.1.2 (Biomatters Ltd., Auckland, New Zealand). Quality filtering was performed with the FastX-Toolkit, retaining sequences with at least 50% of bases having a quality score of ≥25 [35]. The quality-filtered sequences were then demultiplexed into individual index combinations in Geneious Prime. Subsequently, sequences were trimmed at both the 5′ and 3′ ends to remove PCR primer sequences in Geneious Prime using default settings, with the maximum number of mismatches increased to three. Denoising was performed using the DADA2 denoise-pyro method implemented in QIIME2 version 2024.10 [36,37] and feature-classifier, feature-table, metadata, quality-filter, stats, taxa, demux, and dada2 plugins to generate amplicon sequencing variants (ASVs). Chimeric sequences were identified within individual samples using the dada2 plugin, and those consistently flagged as chimeric across a substantial fraction of samples were removed from the dataset. ASVs detected in control samples were excluded from the dataset using the UNCROSS2 algorithm [38].

ASVs obtained from the V4 region of the rrs gene were taxonomically assigned by comparison against the SILVA SSU rRNA database (version 138.1) [www.arb-silva.de (accessed on 15 September 2024)] [39,40,41], while ASVs obtained from the flaB gene fragment of Borreliaceae were compared against the GenBank database using the blastn tool [42], with the megablast algorithm optimized for highly similar sequences [43]. The blastn search was restricted to records derived from type material, and excluded uncultured and environmental sample sequences, with a 97% identity threshold applied for taxon assignment. Finally, ASVs of the flaB gene fragment were translated into amino acid sequences using bacterial codons in GeneDoc 2.7 [44].

Pairwise comparisons between Borreliaceae DNA detection methods were performed using McNemar’s exact test for paired binary data [45], conducted in R version 4.5.0 via RStudio version 2024.12.1, with the ‘readr’ package version 2.1.5 and the ‘dplyr’ package version 1.1.4, and the exact 2 × 2 package version 1.6.9.

2.8. Phylogenetic Analysis

A total of 55 flaB sequences, including 23 sequence variants found in this study, sequences representing Borreliella (20) and Borrelia (11) species, and uncultured Spirochaetia bacterium to root the tree, were used for phylogenetic analysis (Table S2). Sequences were aligned manually in GeneDoc 2.7. The final alignment of 204 nucleotide positions was used to construct a phylogenetic tree using FastTree 2.1.11 and a GTR + G model, as implemented in Geneious Prime 2024.0.7 (GraphPad Software LLC d.b.a Geneious, Boston, MA, USA). Statistical support for branches was estimated by the Shimodaira–Hasegawa test (SH) [46]. The tree was edited in MEGA 7.0.26 [47] and Corel Draw v. X5.

3. Results

3.1. Screening by Conventional Nested PCR

The nested PCR test based on the amplification of an approximately 600 bp fragment of the flaB gene unequivocally confirmed the presence of Borreliaceae DNA in 58 out of 94 DNA samples, which had been prepared by pooling DNA extracts obtained from a total of 1088 individual ticks (Figure 1 and Figure S1). Amplicons generated by the nested PCR approach were not subjected to Sanger sequencing, as each DNA pool contained more than 10 individual DNA isolates derived from different ticks. Consequently, it was assumed that the PCR products could be heterogeneous in composition, potentially containing multiple flaB gene variants, which would complicate or preclude accurate interpretation of the Sanger sequencing results.

3.2. Screening by V4 rrs Gene-Based Profiling

Amplification and sequencing of the V4 region of the rrs gene confirmed the presence of Borreliaceae DNA in 56 DNA pools. However, only 40 of these Borreliaceae-positive pools were consistently detected by both the flaB nested PCR assay and the V4 rrs sequencing approach (Figure 1, Table S3).

3.3. Screening by flaB Gene-Based Profiling

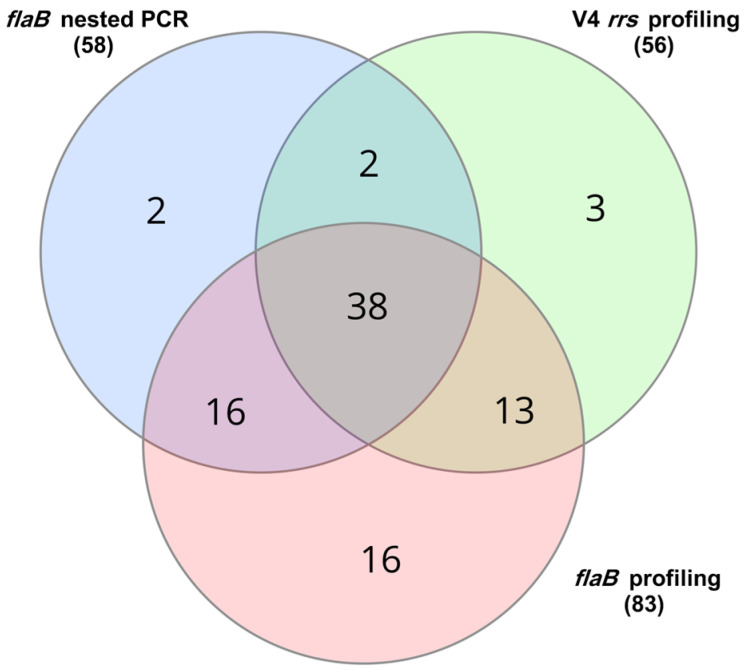

We identified seven DNA pools that were not detected using flaB gene-based profiling, including two that were detected by both the nested PCR and the V4 rrs marker (Figure 1, Table S3). Nevertheless, screening by flaB gene-based profiling demonstrated the highest performance among the three approaches tested, detecting Borreliaceae DNA in 83 out of 94 tick DNA pools. Notably, this included 29 DNA pools that had tested positive in only one of the previous methods—either the flaB nested PCR assay or the V4 rrs gene-based profiling.

To assess the differences in detection performance among the three molecular methods, pairwise comparisons were performed using McNemar’s exact test. The results revealed statistically significant differences in detection frequency between the flaB gene-based profiling approach and both conventional nested PCR (p = 1.09 × 10^−5^) and V4 rrs profiling (p = 7.43 × 10^−6^). In contrast, no significant difference was observed between the nested PCR and V4 rrs profiling methods (p = 0.8642). These results confirm that the flaB gene-based profiling is significantly more effective in detecting Borreliaceae DNA in pooled tick samples compared to the other two approaches (Table 1).

3.4. Flagellin Gene Sequence Variants

Using flaB gene-based profiling, a total of 23 flaB sequence variants were identified in the I. ricinus DNA analyzed in this study (Table S2; GenBank accession numbers PQ727213–PQ727235; note that sequence variant 3 was excluded from this dataset). Blastn searches against the GenBank database revealed identical reference sequences for fewer than half of the detected variants (11 out of 23).

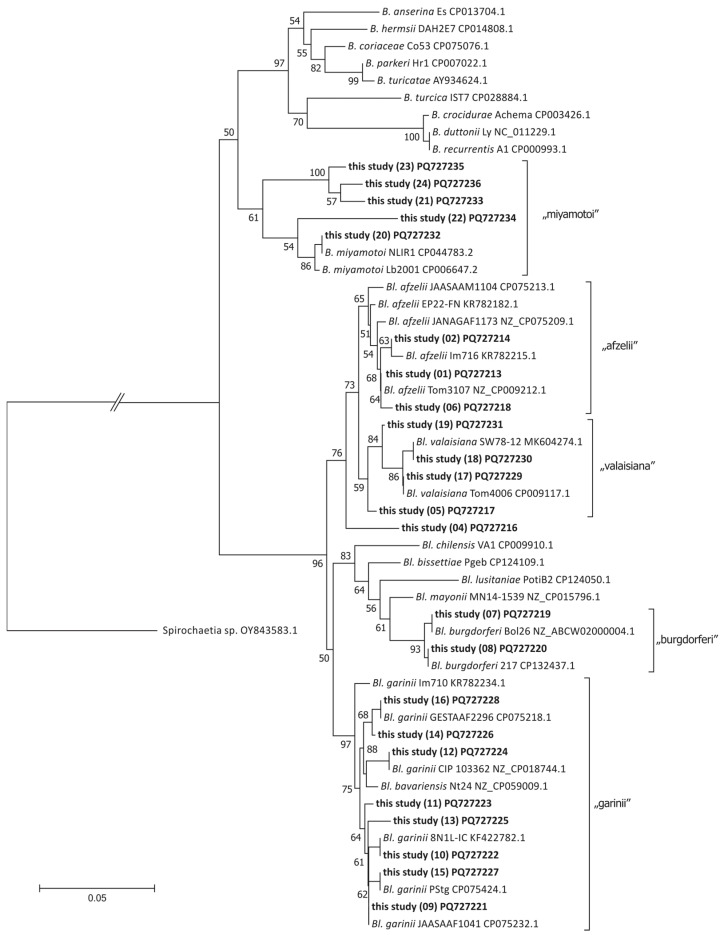

Phylogenetic analysis (Figure 2) enabled unambiguous assignment of the flaB sequence variants to five Borreliaceae species: Bl. afzelii (variants 1, 2, 6, 19), Bl. valaisiana (variants 17, 18), Bl. burgdorferi (variants 7, 8), Bl. garinii (variants 9–16), and B. miyamotoi (variants 20–24). One sequence variant (variant 4; PQ727216) was positioned, in our phylogenetic analysis, as a sister lineage to the clades containing flaB sequences of Bl. afzelii and Bl. valaisiana. However, blastn comparison indicated the highest sequence similarity to Bl. afzelii, sharing 196 out of 202 nucleotides (97% identity) with the Bl. afzelii clone EP-22-FN (GenBank accession no. KR782182.1). Consequently, variant 4 was assigned to Borreliella sp.

All flaB sequence variants were translated into amino acid sequences, resulting in a 67-amino-acid fragment without stop codons (Figure S2). In total, three different amino acid sequence variants were obtained: one corresponding to B. miyamotoi, and two others—differing by a single amino acid position—found within the genus Borreliella. One of these was shared by Bl. afzelii and Bl. valaisiana (ASV01-06, ASV17-19), while the other was common to Bl. garinii and Bl. burgdorferi (ASV07-16).

3.5. Borreliaceae Species Identified Using flaB Gene-Based Profiling

The most frequently identified species based on flaB gene-based profiling was Bl. afzelii, detected in 51 out of 83 Borreliaceae-positive DNA pools (61.45%; 95% CI: 50.69–71.19%). This was followed by Bl. valaisiana (37/83; 44.58%; 95% CI: 33.86–55.30%), Bl. garinii (28/83; 33.73%; 95% CI: 23.60–43.86%), Bl. burgdorferi (10/83; 12.05%; 95% CI: 6.68–20.78%), and B. miyamotoi (21/83; 25.30%; 95% CI: 15.95–34.65%).

3.6. Microbial Profiling Using V4 rrs Marker

Microbial profiling based on the V4 rrs marker revealed 13 distinct sequence variants (GenBank accession numbers PV151552–PV151564) across 56 DNA pools. Notably, despite the considerable variability observed in the flaB gene sequences of B. miyamotoi, all DNA pools positive for this species shared the same V4 rrs sequence variant (GenBank accession no. PV151554).

In comparison to earlier research conducted on the same area [31], two novel V4 rrs sequence variants were identified in this study: ASV20, which exhibited 99% identity to the Bl. lusitaniae strain Poti B2 sequence, and ASV21, which was identical to sequences reported for Bl. americana and Bl. mayonii.

The most frequently detected V4 rrs sequence variant, ASV06, was present in 24 DNA pools, and demonstrated 99% identity to Bl. afzelii strain VS461 and Bl. tanukii strain Hk501. However, a GenBank search without restriction to type material indicated that this sequence variant was also identical to several Bl. afzelii strains with available complete genome sequences, including Bl. afzelii strain PMel (GenBank accession no. CP075447.1).

4. Discussion

This study demonstrates that the newly developed flaB gene-based profiling approach offers significantly higher performance for the detection of Borreliaceae DNA in ticks compared to conventional nested PCR and V4 rrs gene-based profiling. The increased efficiency of the flaB gene-based profiling method results from the combination of Borreliaceae-specific PCR primers with NGS technology, which enables the detection of low-abundance targets and co-infecting species within complex DNA mixtures, such as the pools composed of DNA from more than 10 individual tick isolates. The discrepancies for the seven samples detected in this study by the nested PCR assay and V4 rrs marker, but not by the flaB gene-based profiling, may be attributed to stochastic events, which can occur when trace amounts of the target template are present in the sample [48]. This may have occurred due to the DNA pooling strategy applied, which aimed to maximize the detection of a broad range of Borreliaceae species, potentially at the cost of diluting the pathogen’s DNA in the final sample. Nonetheless, we consider the rrs gene-based profiling a valuable complementary tool for the screening of TBPs in studies aimed at detecting a broad range of taxa, despite its lower sensitivity resulting from the use of universal primers.

The flaB gene-based profiling method proved not only sensitive, but also informative, at both the species level and the putative strain level. A total of 23 distinct flaB sequence variants were identified, corresponding to five recognized Borreliaceae species. The most frequently identified species in this study was Bl. afzelii, followed by Bl. valaisiana, Bl. garinii, Bl. burgdorferi, and B. miyamotoi. These results are consistent with previous reports on the prevalence of Borreliaceae species, where Bl. afzelii is typically the most frequently detected species in both Europe and Poland, usually followed by Bl. garinii, Bl. burgdorferi, and Bl. valaisiana [19,49,50,51]. In a recent study conducted in northern Poland, the two most prevalent Borreliaceae species detected in I. ricinus ticks were Bl. afzelii (29.4% of infected ticks) and Bl. garinii (20.0%), while other species included Bl. valaisiana (9.4%), Bl. burgdorferi (6.0%), and B. miyamotoi (6.3%) [19]. Similarly, a study carried out in the city of Poznan, Poland, revealed a comparable pattern of Borreliaceae species distribution in ticks collected from vegetation, with Bl. afzelii and Bl. garinii detected in 3.7%, Bl. valaisiana in 1.2%, and B. miyamotoi in 0.6% of the collected ticks tested [31].

Notably, intra-species sequence diversity was observed, which, in the future, in combination with other markers, may allow for finer differentiation of strain-level identification. For example, flaB gene-based profiling enabled the detection of eight distinct flaB sequence variants of Bl. garinii, whereas previous studies employing dPCR identified only one or two variants when analyzing 116 and 408 ticks, respectively [52,53]. A similar pattern was observed for Bl. afzelii, where five flaB variants were identified in our study, compared to only one variant detected by dPCR, in which only a subset of samples was sequenced to validate the amplification results [53].

This level of taxonomic resolution was not achieved using the V4 rrs gene marker, where lower variability limited species and strain discrimination. For example, Bl. americana and Bl. mayonii shared an identical V4 rrs sequence, underscoring the greater resolving power of the flaB gene. Borrelia americana has been detected in Poland using the same approach [54]; however, the sequence variants identified in the study were not published, making it impossible to determine whether we detected the same V4 rrs sequence variant. Nonetheless, some studies suggest that sequence variation within the rrs gene may occur among strains belonging to the same species of Borreliaceae, especially in members of the genus Borreliella [31,55].

In our study, it was not possible to establish a direct correspondence between the V4 rrs and the flaB sequence variants, as the analyses were conducted on pooled DNA samples composed of multiple tick isolates. The presence of mixed Borreliaceae DNA within these pools precludes confident assignment of specific rrs and flaB variants to the same organism. However, we consider such linkage insufficient for species determination, as any attempt to infer strain-level associations between these markers would be speculative without genomic confirmation. Ultimately, only whole-genome sequencing could provide the resolution needed to determine whether the observed sequence variants represent intra-species diversity (i.e., strains) or distinct species-level lineages.

The flaB gene-based profiling approach represents a valuable tool for large-scale screening of tick-borne pathogens, as it enables the detection of mixed Borreliaceae infections and provides more accurate estimates of pathogen prevalence within vector populations. Unlike highly targeted qPCR assays, this method offers broader taxonomic coverage, facilitating the detection of potentially all Borreliaceae species present in a sample through a single assay. Compared to the marker used in the MPAS method [20,27], the sequence fragment employed in the flaB gene-based profiling is shorter, making it more cost-effective for NGS. Additionally, it is amplified using degenerate primers, which may potentially allow for the detection of a broader range of strains. At the same time, it remains significantly more cost-effective than metagenomic approaches that rely on sequencing the entire DNA content of a sample, making it particularly suitable for epidemiological surveillance and high-throughput environmental monitoring.

5. Conclusions

This study demonstrates that the flaB gene remains one of the most effective molecular markers for the detection of Borreliaceae DNA in I. ricinus ticks. The newly developed flaB gene-based profiling approach significantly improved analytical efficiency and throughput by enabling the detection of multiple species in pooled DNA samples derived from more than 10 individual ticks. In addition to detecting five Borreliaceae species, this method also allowed for putative strain-level resolution, offering deeper insight into the genetic diversity of Borrelia and Borreliella populations in the studied environment. Moreover, our assay is compatible with any NGS platform, as its performance is based on the abi-flaB primer sequences. Depending on the workflow, the primers can be extended at the 5′ ends with indexes and platform-specific adapters, or with adapters that enable the conversion of the library for use with any NGS system. Compared to conventional nested PCR and V4 rrs gene-based profiling, the new approach provided a broader and more detailed picture of Borreliaceae composition. As such, it represents a valuable molecular tool for future diagnostic applications, ecological surveys, and long-term monitoring of tick-borne pathogens.
