In Situ Growth of CoS Nanosheets on Carbon Fiber Surfaces to Enhance the Interfacial Properties of Carbon Fiber/Norbornene Polyimide Composites

TL;DR

This study introduces a method to grow CoS nanosheets on carbon fibers, significantly improving their bonding strength with a polymer resin.

Contribution

A solvothermal and sulfidation method to grow CoS nanosheets on carbon fibers, enhancing interfacial properties in composites.

Findings

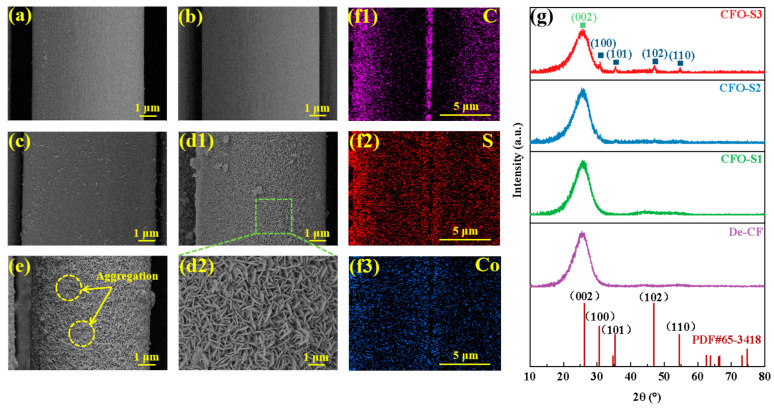

CoS nanosheets were successfully grown on carbon fibers using a solvothermal method.

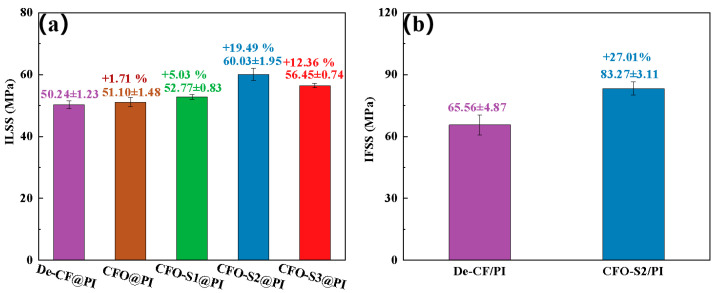

Modified fibers showed a 19.49% increase in interlaminar shear strength and 27.01% in interfacial shear strength.

The method is simple and scalable for industrial applications.

Abstract

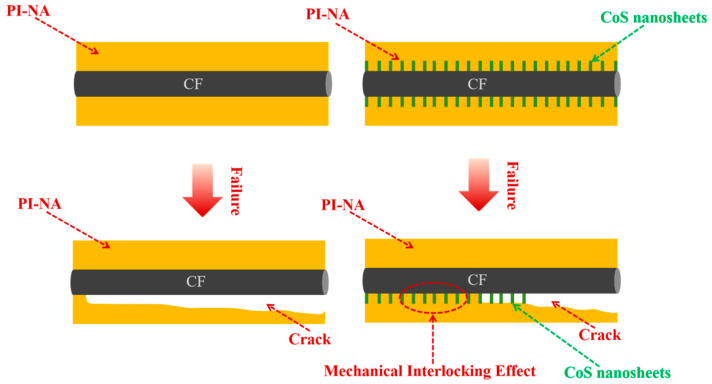

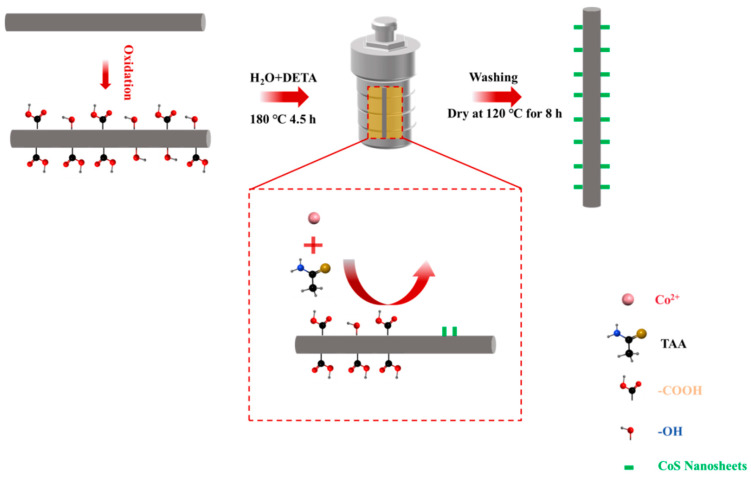

This study presents a novel method for altering the surface properties of carbon fiber (CF) to improve the bonding strength at its interface with norbornene–polyimide (PI-NA) resin. Cobaltous sulfide (CoS) nanosheets were successfully synthesized on the CF surface using a solvothermal method combined with a chemical sulfidation process. The modification increased the specific surface area and surface roughness of the CFs, enhancing the interfacial mechanical lock-in effect between the fibers and the resin. This facilitated effective load transfer between the resin and the fibers, thereby significantly improving the interfacial strength of CF-reinforced polymers (CFRPs). The experimental findings showed that after solvothermal treatment with a precursor solution of 0.006 g/mL for 4.5 h, vertical CoS nanosheets were successfully grown on the CF surface. The interlaminar shear strength (ILSS) and interfacial shear strength (IFSS) of the modified CF reached 60.03 MPa and 83.27 MPa, respectively, representing increases of 19.49% and 27.01% compared to untreated fiber composites. This research demonstrates that this method is simple to apply and promising in terms of industrial scalability.

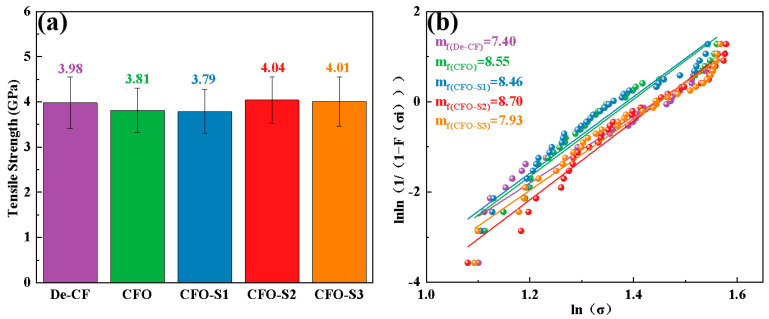

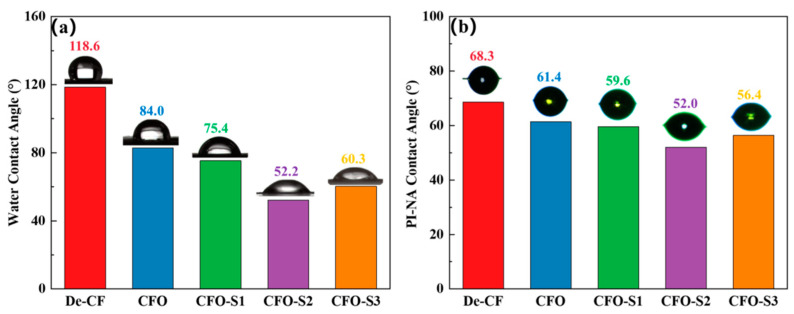

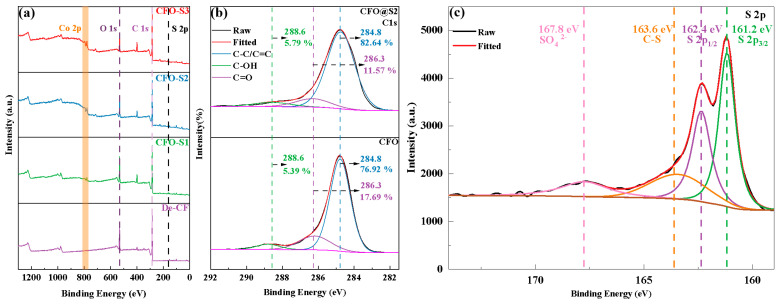

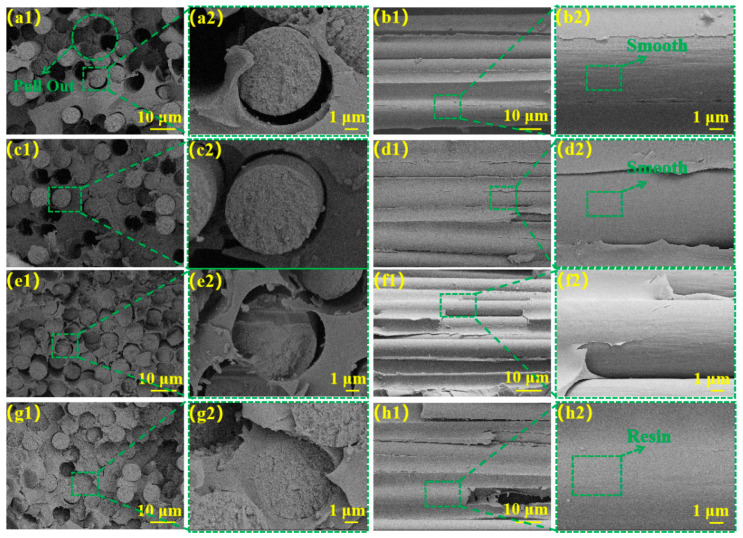

Figures
