Study on Formability and Microstructure Evolution of Usibor®2000 Sheet Under Different Forming Temperatures in Deep Drawing Process
Yuxuan Wang, Jinyu Hou, Peiran Deng, Yongze Shi, Jiacheng Song
TL;DR
This study examines how forming temperature affects the formability and microstructure of Usibor®2000 steel used in automotive lightweighting.
Contribution
The paper provides new insights into the temperature-dependent formability and microstructure evolution of Usibor®2000 during deep drawing.
Findings
Increasing temperature improves the forming limit and quality of Usibor®2000 sheets.
Microstructure evolution under warm and hot forming conditions was characterized and analyzed.
Phase composition analysis at 860 °C offers guidance for automotive lightweight applications.
Abstract
Due to the need for weight reduction in the automobile structure, effective and accurate forming is demanded to take advantage of ultrahigh-strength steels. Research on the deep-drawing formability of Usibor®2000 has an important impact on the application of lightweight automotive bodies. The microstructure and formability of Usibor®2000 sheets at different temperatures were investigated by the Swift test. The positive effects of increasing the temperature on improving the forming limit and forming quality of Usibor®2000 were demonstrated by LDR results, thickness, and hardness measurement. The microstructure evolution of Usibor®2000 steel plates under warm forming and hot forming conditions was discussed in terms of microstructure characterization and precipitate morphology. The phase composition of the sample deformed at 860 °C is analyzed by two-step etching metallographic analysis…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

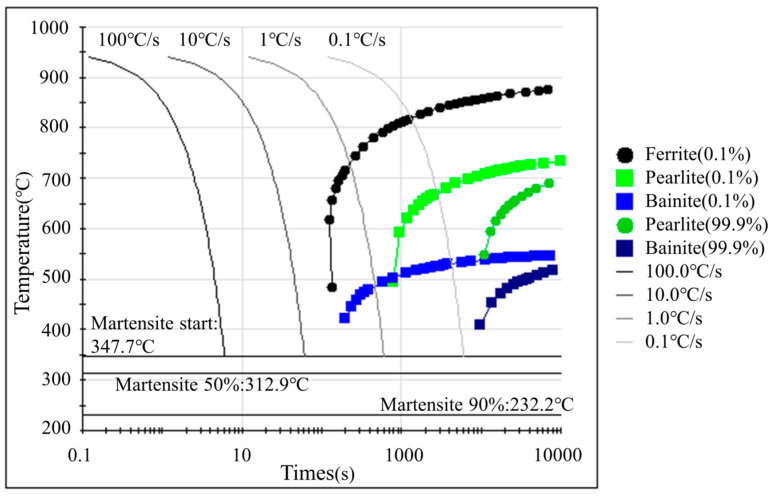

Figure 1

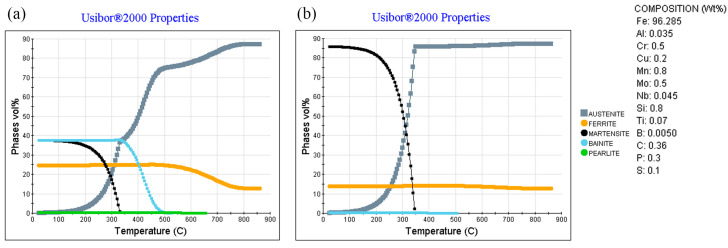

Figure 2

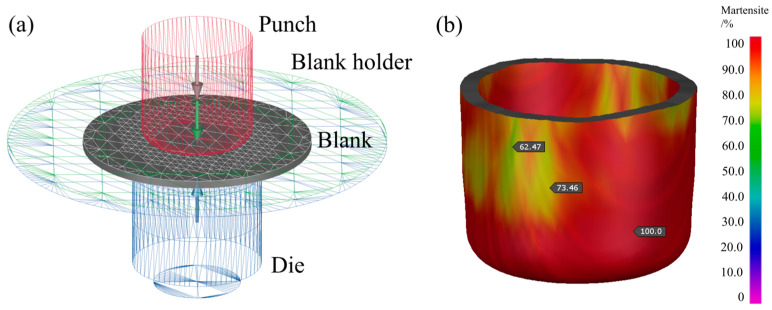

Figure 3
Figure 4

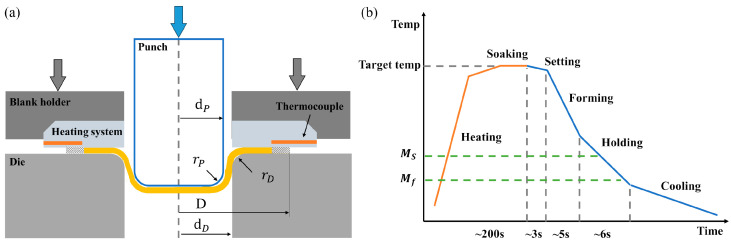

Figure 5

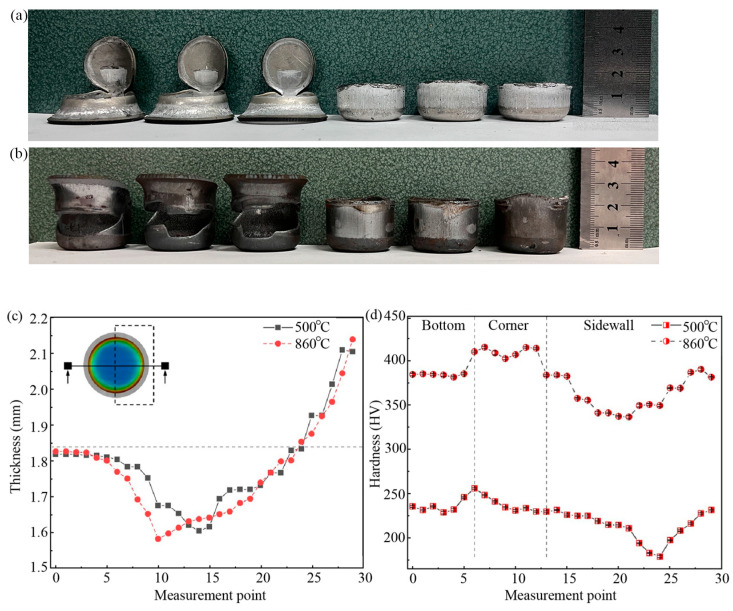

Figure 6
Figure 7
