Simulation of three dimensional diffraction patterns as aid of structural analysis for complex epitaxial films
Yajun Tao, Erhao Peng, Qingyu He, Xinyan Chen, Jiangxiao Li, Yuting Wang, Yongqi Dong, Zhe Sun, Zhenlin Luo
TL;DR
This paper introduces a simulation strategy to interpret 3D diffraction patterns for analyzing the structure of complex epitaxial films.
Contribution
The novel contribution is a simulation-based approach to interpret 3D-RSM data for structural analysis of epitaxial films.
Findings
Simulated 3D-RSM patterns enabled identification of domain variants and crystal structures in epitaxial films.
Systematic simulations for seven crystalline symmetries were performed assuming (001)-oriented cubic substrates.
The method improves the effectiveness of structural characterization for complex epitaxial films.
Abstract
Thin film is the form of material that most closely resembles the silicon-based integrated circuits (IC) and therefore has attracted tremendous attention over the past decades due to its potential applications in integrating functional devices on IC chips. The structural characterization of thin films, especially epitaxial film with complex structure has been a long-term challenge until the emergence of synchrotron three-dimensional diffraction technique (3D-RSM). 3D-RSM is a technique that can effectively collect various structural information of epitaxial films, such as crystal lattice, strain, domain variants, and oxygen octahedral rotation. Now, interpreting the massive experimental data of 3D-RSM becomes the biggest obstacle that is confronted by the researchers. In this work, we proposed a strategy that utilizes simulated 3D-RSM diffraction patterns as aid of data analysis. With…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4- —National Natural Science Foundation of China
- —National Key Research and Development Program of China
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsFerroelectric and Negative Capacitance Devices · Ferroelectric and Piezoelectric Materials · Electronic and Structural Properties of Oxides
Introduction
Epitaxy growth possesses huge potential in integrating functional devices, and has been widely applied in applications such as high-density information storage^1–4^, superconductivity^5,6^, and flexible devices^7–9^. The physical properties of these epitaxial films are majorly dominated by their structure^10^, but characterizing this structure is a long-term challenge^11^, particularly for complex epitaxial films^12^, such as epitaxial composite films^13^, multi-domain films^14,15^ or films with oxygen octahedral rotation^16^.
Recently, characterization techniques such as synchrotron three-dimensional diffraction (also named as three-dimensional reciprocal space mapping, 3D-RSM) have been developed, leveraging the high photon flux of synchrotron radiation and advanced X-ray detectors^17–19^. This 3D-RSM technique provides an excellent opportunity for structural analysis of complex epitaxial films^20–28^. However, data analysis of 3D-RSM remains challenging. The reason is that each domain in the epitaxial film behaves like a single crystal when diffracted by X-rays, resulting in a three-dimensional periodic lattice in the diffractive reciprocal space. Theoretically speaking, by measuring this reciprocal lattice, structural information such as lattice parameters and strain in the real space lattice can be obtained^23^. Nevertheless, an epitaxial film often possesses one or more crystalline phases and each phase has domain variants with different orientations of lattice, which result in multiple sets of diffraction spots in the reciprocal space and consequently cause serious challenges for interpretation.
A considerable strategy for 3D-RSM data analysis is simulation. Actually, several studies have been reported on simulating diffraction patterns of epitaxial films. For multi-phase epitaxial systems, qualitative simulation results have been provided for the 00l diffraction spots in the hl plane^29^. In the case of multi-domain systems, diagrams of reciprocal lattice points corresponding to possible domain variants have been presented^30^. However, these studies only simulated and exhibited two-dimensional diffraction patterns, simulation of three-dimensional diffraction patterns of epitaxial films has rarely been reported.
In this work, using simulated 3D-RSM patterns as aid, we not only recognized the origin of each diffraction spot but also provided quantitative structural information for two epitaxial film cases: PbTiO_3_/SmScO_3_ (001) and (CoCrFeMnNi)3_O_4 /LaAlO_3_(001). Furthermore, systematic simulations of 3D-RSM patterns for epitaxial films belonging to each of the seven crystalline symmetries were performed and exhibited, assuming the films are epitaxially grown on (001)-oriented cubic substrates.
Results and discussion
PbTiO3/SmScO3(001)

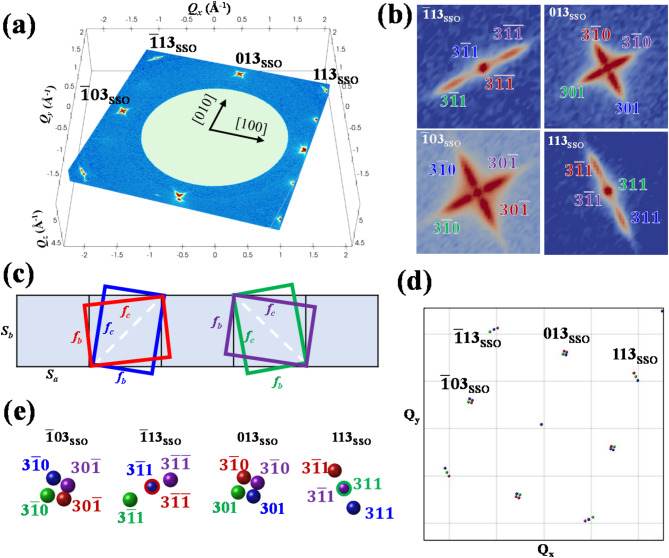

In the case of PbTiO_3_/SmScO_3_(001), ferroelectric PbTiO_3_ (PTO) film was first epitaxially grown on (001)-oriented pseudo-cubic SmScO_3_ (SSO) substrate and then patterned in dots with one micron diameter. The experimentally obtained 3D-RSM are presented in Fig. 1. In Fig. 1a, multiple selected 2D slices (contour maps) are presented to exhibit the diffraction intensity distribution in the 3D reciprocal space. The numbers with SSO subscript indicate the axis direction and diffraction index of SSO substrate. Above it, some special diffraction patterns appears and could be ascribed to PTO. Enlarged views of these patterns are shown clear in Fig. 1b, where the origins of each diffraction spot for PTO are recognized and indexed in colored numbers, with the colors corresponding to the diffraction spots of the thin film and their respective lattices. Actually, identification of these spots was the most difficult process, and was completed with the aid of simulation. According the above experimental data, we hypothesis that two types of PTO twin-domain are formed, with either [011] or \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$0{-}{\overline{\text{1}}}{-}{1}$$\end{document} axis of PTO lattice aligns along/matches with the pseudo-cubic SSO lattice, as illustrated in Fig. 1c. The \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$3{-}{\overline{\text{1}}}{-}{1}$$\end{document} and 301 diffraction peaks of PTO appear within the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\overline{\text{1}}}1{3}$$\end{document} and 013 Bragg spots of SSO, which are associated with the formation of the tetragonal a-domain of this PTO^31^. The simulated 3D-RSM patterns exhibited in Fig. 1d is well consistent with the experimental data. With the detailed simulated patterns in Fig. 1e, the origin of each experimental diffraction spot is identified in Fig. 1b. Subsequently, the lattice constants of PTO film are calculated according to Eq. (1) and the method is described in the methods part. The averaged PTO lattice parameters were measured to be a=b=3.9(3) Å, c=4.0(5) Å, α =β = γ =90°.Fig. 1. For the PbTiO_3_/SmScO_3_(001) epitaxial film, (a) experimental 3D-RSM result and (b) slice at Qz = 4.75 Å^−1^ show the PTO 3hk diffraction spots. (c) Schematic epitaxy relationship of PTO film (100) plane on SSO substrate pseudo-cubic (001) plane and the corresponding (d) simulated 3D diffraction pattern for PTO and (e) its details. Please note that, the color indexed spots in (b, e) correspond to the same color PTO lattice illustrated in (c).
(CoCrFeMnNi)3O4/LaAlO3(001)

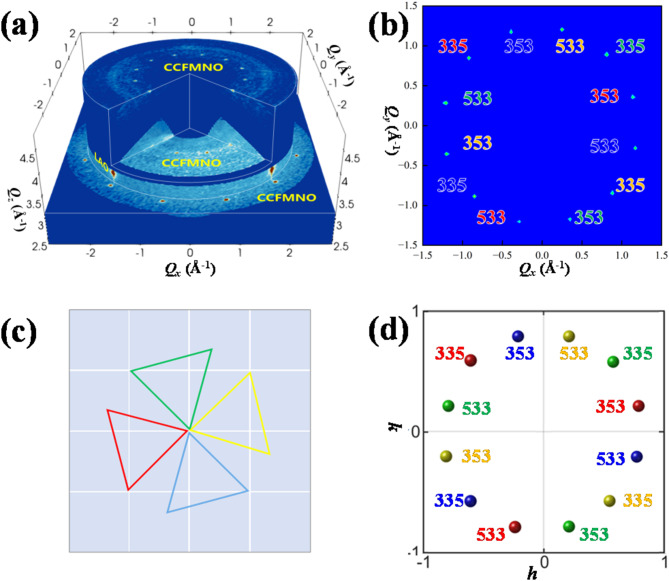

In another case of (CoCrFeMnNi)3_O_4/LaAlO_3_(001), where magnetic multi-element alloy (CoCrFeMnNi)3_O_4 (CCFMNO) film was grown on (001)-oriented pseudo-cubic LaAlO_3_ (LAO) substrate, intriguing 12-fold diffraction patterns were found in the experiment, as shown in Fig. 2a,b. Simulation reveals the appearance of a specific epitaxy relationship, as illustrated in Fig. 2c, in which the film (111) crystal planes are parallel to the substrate (001) plane while one of the triangle edges in film lattice aligns along/ matches with the in-plane diagonal of substrate lattice. Since the film lattice has threefold symmetry and substrate lattice has fourfold symmetry, the resulting diffraction pattern shows 12-symmetry. As exhibited in Fig. 2b,d, the simulated 3D-RSM is in good agreement with the experimental data. With the recognized index of each diffraction spot as listed in Fig. 2b, the lattice constants of each CCFMNO domain variant were measured and the average value are a = b = c = 8.3(4)Å, α = β = γ = 90°, with an error less than 1%. This result verifies the CCFMNO film is cubic.Fig. 2. For the (CoCrFeMnNi)3_O_4/LaAlO_3_(001) epitaxial film, (a) experimental 3D-RSM result and (b) QxQy slice at Qz = 4.8 Å^−1^, (b) schematic epitaxy relationship of threefold symmetric CCFMNO (111) plane (colored) on fourfold symmetric (001) plane (white lattice) of pseudo-cubic LAO. (d) The simulated diffraction pattern of CCFMNO presented in LAO r.l.u. Please note that, the color indexed spots in (b, d) correspond to the same color CCFMNO lattice illustrated in (c).

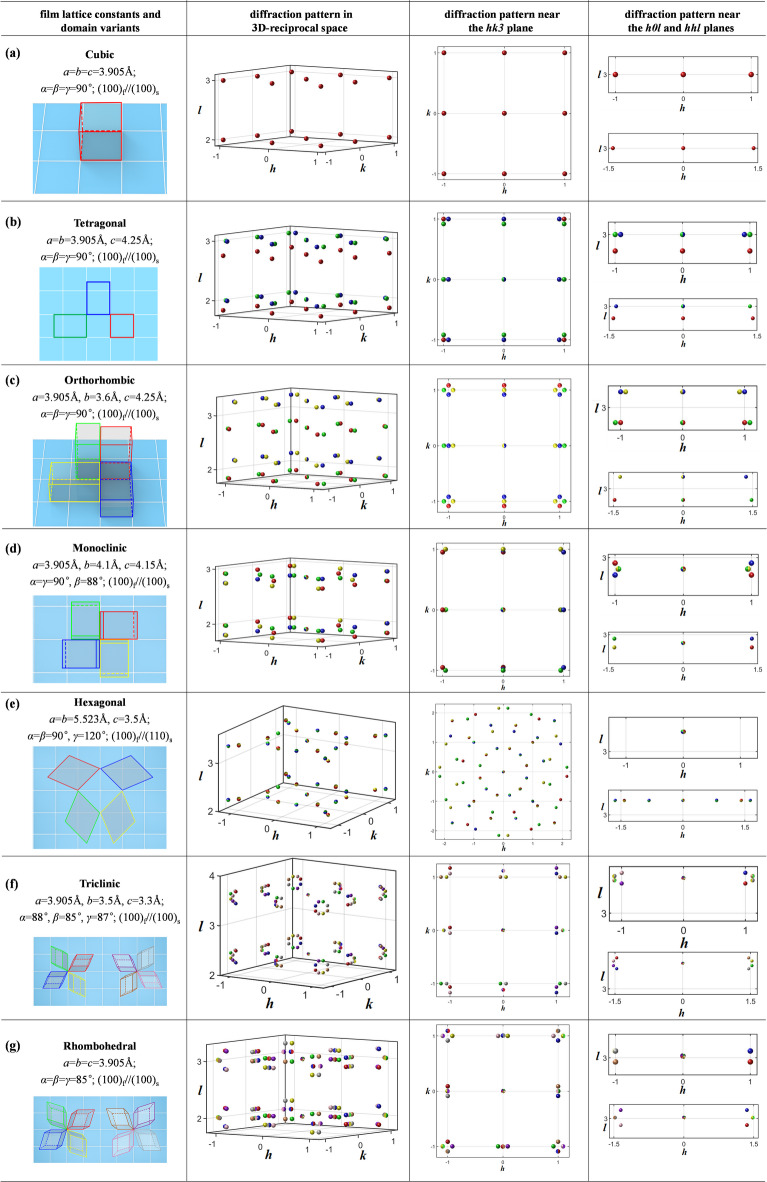

The above results show that simulation can be really helpful to 3D-RSM data analysis. Therefore, one could not stop looking forward to a systematic simulation performed before practical experiments. In the following, we perform a systematic simulation on the 3D-RSM patterns of films with all seven crystalline symmetries, i.e., cubic, tetragonal, orthorhombic, hexagonal, rhombohedral, monoclinic and triclinic. The technical details are described in the Methods part. Here, the substrate is assumed to be (001)-SrTiO_3_, while the film is assumed to be single phase but multi-domain variants, with lattice parameters and preset epitaxial relationship as listed in the first column of Fig. 3. Figure 3 provides a visual representation of the epitaxial growth of film with various crystalline symmetries on a cubic STO substrate, showcasing the unit cell schematics, simulated 3D diffraction pattern and the corresponding projections of simulated reciprocal lattice points on the hk3-, h0l-, and hhl-layers. For the given lattice constant and epitaxial relationship, the results show the different diffraction patterns for each case. From these simulating results, it could be concluded that:Fig. 3. Simulated 3D diffraction patterns for films belonging to different crystalline symmetries: (a) cubic, (b) tetragonal, (c) orthorhombic, (d) monoclinic, (e) hexagonal, (f) triclinic and (g) rhombohedral. The assumed lattice constants and epitaxial relationship are listed in the 1st column, along with the simulated full reciprocal space diffraction patterns (2nd column), the specific patterns near the hk3-layer (3rd column),* h0l*-layer (4th column up) and hhl-layer (4th column down) presented in the r.l.u. of SrTiO_3_ substrate. SrTiO_3_ Bragg spots are not showed for abbreviation.
Cubic Films: When grown epitaxial on a (001)-oriented cubic substrate, cubic films align perfectly with the substrate, resulting in a single-domain variant. This alignment is evident in the diffraction patterns, where the film’s diffraction spots coincide with those of the substrate, indicating a uniform and consistent crystalline structure.
Tetragonal Films: These films exhibit a more complex diffraction pattern due to the presence of three possible domain variants. The c-axis of the unit cell in these variants can be aligned along different directions, leading to a quadruple symmetry in the hk3-layer projection. The differences in the a/c lattice constants cause the diffraction spots to split along the z-direction in the h0l and hhl views, providing a clear distinction between the domains.
Orthorhombic Films: With the decrease in symmetry from tetragonal to orthorhombic, the films show a slightly different 3D-RSM. Assuming one lattice vector matches the substrate while the other two are significantly different, and this results in four domain variants. The hk3-view reveals diffraction points around the substrate’s Bragg spots, and the four domain variants showing distinct separations, according to the differences in lattice parameters.
Monoclinic Films: Even though monoclinic crystals can exhibit complex domain structures, the epitaxial monoclinic films considered here have only four domain variants when the c-axis is facing outward. The simulated patterns in the h0l-view are particularly distinctive, allowing for easy identification based on the presence or absence of certain diffraction spots.
Hexagonal Films: The epitaxy of hexagonal lattices on (001)-oriented cubic substrates results in four hexagonal domain variants. The hk view of the simulated diffraction pattern shows a clear 12-fold symmetry, which is a combination of the hexagonal lattice’s 6-fold symmetry and the cubic lattice’s 4-fold symmetry. This pattern is a key feature that distinguishes hexagonal films.
Triclinic Films: These films, with the lowest symmetry, exhibit eight sets of domain variants due to the c-axis tilting along both the x and y directions. The in-plane diffracted spots populate the Bragg region separately, presenting a quadruple symmetry relationship in the hk3-layer projection.
Rhombohedral Films: As a special case of triclinic symmetry, rhombohedral films have equal out-of-plane and in-plane lattice constants. This results in a quadruple symmetric diffraction pattern within the hk3-layer. However, the deviation of the crystal axes from 90° causes the 113 Bragg spot to split in the hhl-view, adding complexity to the pattern.
The above result show that our simulation study has successfully delineated the three-dimensional diffraction patterns for epitaxial films exhibiting all seven crystalline symmetries on a (001)-oriented cubic substrate. We believe these simulation outcomes will provide a valuable resource for the scientific community to accelerate 3D-RSM studies of complex epitaxial films. For example, by presenting the diffraction spot distributions in a broader reciprocal space, this work could aid researchers in developing optimized strategies for experimental data collection, thereby enhance the efficiency of utilizing synchrotron beam time—a precious but often limited resource. Moreover, the detailed and distinct patterns, as revealed in our simulations around 103 or 113, could serve as a quick reference for identifying the crystalline symmetry of the films, by comparing experimental data with the simulation results. Furthermore, under the guidance of this simulation, one is able to know with the index of each diffraction spots in the experimental collected diffraction pattern and thus to quantitatively calculated the crystalline lattice constants, as exemplified in the above Fig. 1 and Fig. 2. Please note that, the experimental pattern presented in Fig. 1e is not the same as the simulated tetragonal pattern in Fig. 3b. This discrepancy arise from the different epitaxial relationships and highlights the need for a more comprehensive simulation work.
As we advance in the field of epitaxial film research, the approach demonstrated in this study can be adapted for films grown with other epitaxial relationships or on other substrate orientations, potentially leading to the creation of a comprehensive 3D diffraction pattern database. This resource would be an invaluable asset in guiding future synchrotron radiation 3D diffraction experiments and their subsequent data analysis.
In summary, our simulations not only contribute to a better understanding of epitaxial film structures but also serve as a practical tool for researchers engaged in the study and application of these materials.
Methods
Simulation: basic concept and model

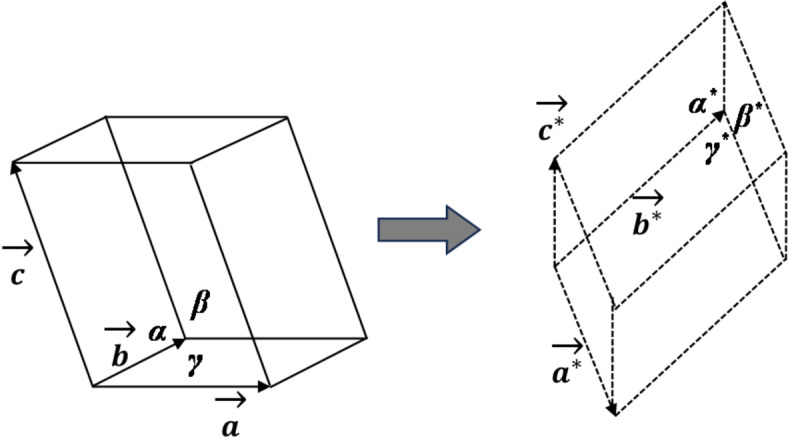

As we know, in crystals, the atoms and molecules are arranged in a three-dimensional periodic pattern in real space, which leads to the formation of a crystal lattice. This real-space lattice corresponds to a reciprocal lattice in diffractive reciprocal space, composed of Bragg spots^11^. As illustrated in Fig. 4, the relationship between the real-space lattice and reciprocal lattice is defined by the basis vectors of both lattices, which is quantitatively presented in Eq. (1). Here, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\overrightarrow {{\varvec{a}}} ,\overrightarrow {{\varvec{b}}} ,\overrightarrow {{\varvec{c}}}$$\end{document} are typically used to denote the basis vectors of the real space lattice, while \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\overrightarrow {{{\varvec{a}}^{{\mathbf{*}}} }} ,\overrightarrow {{{\varvec{b}}^{{\mathbf{*}}} }} ,\overrightarrow {{{\varvec{c}}^{\user2{*}} }}$$\end{document} are used to represent the basis vectors of the reciprocal lattice. This implies that if the lattice parameters and orientation of a crystal lattice are known, its diffraction pattern can be calculated. This is the fundamental physics for simulating 3D-RSM patterns.
