Lung volume assessment for mean dark-field coefficient calculation using different determination methods
Florian T. Gassert, Jule Heuchert, Rafael Schick, Henriette Bast, Theresa Urban, Tina Dorosti, Gregor S. Zimmermann, Sebastian Ziegelmayer, Alexander W. Marka, Markus Graf, Marcus R. Makowski, Daniela Pfeiffer, Franz Pfeiffer
TL;DR
This study compares different methods for measuring lung volume and finds that radiography-based methods are best for calculating the mean dark-field coefficient.
Contribution
The study evaluates the impact of different lung volume determination methods on dark-field coefficient calculations and recommends radiography-based approaches.
Findings
Lung volume measurements differ significantly between conventional radiography, CNN, CT, and PFT methods.
CR and CT showed the highest correlation, while PFT and CNN had the lowest.
Radiography-based methods are preferred for minimizing biases in dark-field coefficient calculations.
Abstract
Accurate lung volume determination is crucial for reliable dark-field imaging. We compared different approaches for the determination of lung volume in mean dark-field coefficient calculation. In this retrospective analysis of data prospectively acquired between October 2018 and October 2020, patients at least 18 years of age who underwent chest computed tomography (CT) were screened for study participation. Inclusion criteria were the ability to consent and to stand upright without help. Exclusion criteria were pregnancy, lung cancer, pleural effusion, atelectasis, air space disease, ground-glass opacities, and pneumothorax. Lung volume was calculated using four methods: conventional radiography (CR) using shape information; a convolutional neural network (CNN) trained for CR; CT-based volume estimation; and results from pulmonary function testing (PFT). Results were compared using a…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
TopicsPhotoacoustic and Ultrasonic Imaging · Calibration and Measurement Techniques · Radiation Dose and Imaging
Background
Dark-field radiography is an emerging technique that exploits the wave properties of x-rays [1]. As small-angle scattering, which occurs at interfaces between different materials, generates a dark-field signal, the healthy lung with its alveolar structure and numerous tissue-air interfaces has a relatively high signal, while surrounding homogeneous tissues generate hardly any signal [2, 3]. It has been shown that the dark-field signal reduces when the alveolar structure is impaired, as a lower number of tissue-air interfaces results in less small-angle scattering. This accounts for both diseases in which the number of alveolar walls is reduced (including pulmonary emphysema [4–6], combined pulmonary fibrosis and emphysema [7], and lymphangioleiomyomatosis [8]) as well as diseases in which the alveolar space is filled with inflammatory fluid (including COVID-19 [9] and other pneumonias [10, 11]).
Dark-field radiography has been introduced in humans only recently, with the so-called mean dark-field coefficient being an associated metric [3, 4, 9]. It is calculated as the ratio between the total dark-field signal (TDF) and the lung volume of the subject. Thus, it normalizes dark-field signal by lung size, which is essential for a fair comparison of quantitative dark-field images between different subjects, as subjects with bigger lungs tend to have a higher TDF. In a study of 40 healthy subjects, it has been shown that the mean dark-field coefficient is independent of gender, age, and height [3].
To our knowledge, all dark-field studies in humans until today have used the approach suggested by Pierce et al for the determination of the lung volume in mean dark-field coefficient calculation [12]. In this method, the lung volume is calculated using shapes derived from posteroanterior and lateral radiographs and simple equations. In principle, lung volume equals the volume of the chest minus the volumes of the heart, spine, and subphrenum. The big advantage of this method is that the necessary conventional radiography (CR) is automatically obtained with every dark-field radiography. Therefore, no additional image acquisition is needed for the mean dark-field coefficient calculation. Also, inspiration levels for dark-field radiographs and CRs are exactly the same. However, this method has only been evaluated in 35 subjects and has only been compared to whole-body plethysmography [12].
Therefore, the purpose of our study was to analyze and compare various approaches for the determination of lung volume to be used for mean dark-field coefficient calculation.
Methods
Participants

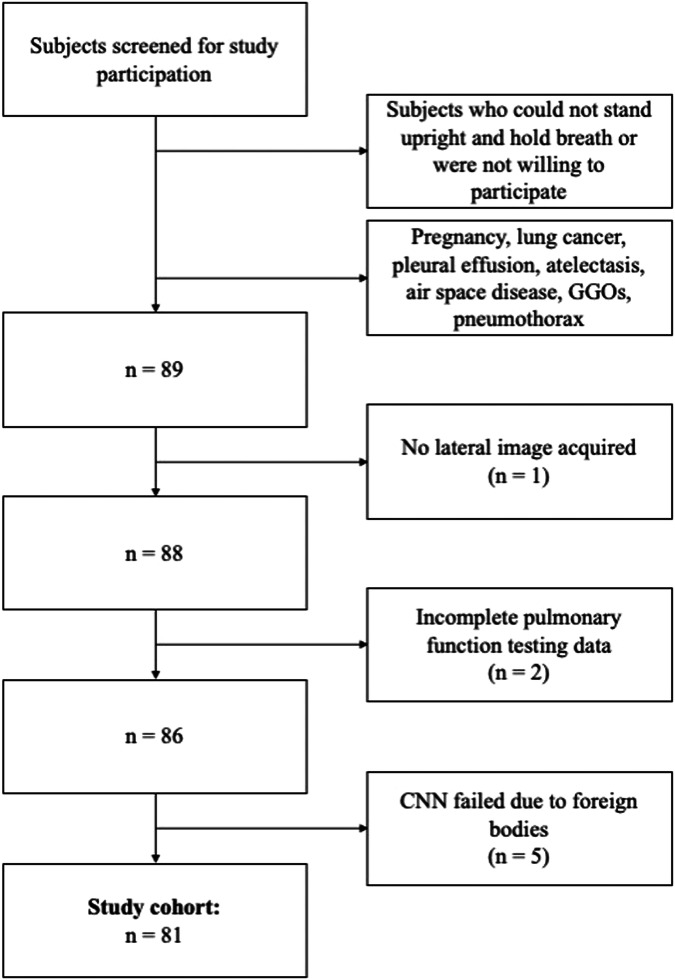

This retrospective analysis of prospectively acquired data was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Approval of the Institutional Review Board and the national radiation protection agency was obtained prior to this study (Ethics Commission of the Medical Faculty, Technical University of Munich, Germany; Reference Number 166/20S). Participants gave their written informed consent. Between October 2018 and October 2020, patients of at least 18 years of age who underwent chest CT as part of their diagnostic workup were screened for study participation. Inclusion criteria were the ability to consent and the ability to stand upright without help. Exclusion criteria were pregnancy, lung cancer, pleural effusion, atelectasis, air space disease, ground-glass opacities, and pneumothorax. Participants with missing lateral image, incomplete pulmonary function testing (PFT) data, and failed convolutional neural network (CNN) (see below) due to foreign bodies were also excluded. Figure 1 shows the study flow and selection process. Forty participants were previously described in a study by Gassert et al [3] evaluating the characteristics of dark-field chest x-ray imaging in healthy humans. Seventy-two participants were also studied by Willer et al [5] and Urban et al [4], assessing the diagnostic accuracy of dark-field imaging for emphysema diagnosis.Fig. 1. Flowchart shows participant selection. Between October 2018 and October 2020, a total of 81 participants were included in the study. GGOs Ground-glass opacities
Dark-field imaging
Dark-field imaging was performed as described previously [3–5]. In brief, dark-field images were acquired with a prototype system that uses a conventional imaging system with a diagnostic x-ray tube (MRC 200 0508 ROT-GS 1003; Philips Medical Systems, Hamburg, Germany) operated at 70 kVp and a flat-panel detector (PIXIUM 4343 F4). A three-grating interferometer inserted in the beam path enables the simultaneous acquisition of conventional attenuation radiographs and complementary dark-field images [1].
All participants were examined with one acquisition each in posteroanterior and lateral orientation at full inspiration. The acquisition time was about 7 s. The effective median dose was 37 μSv for the posteroanterior images [13] and 46 μSv for the lateral images. The entire lung was segmented in posteroanterior images and the TDF was calculated.
The dark-field coefficient has been established as the ratio between the TDF and the lung volume of an individual subject:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${dark\; field\; coefficient}=\frac{{total\; dark\; field\; signal}}{{lung\; volume}}$$\end{document}CT imaging
CT imaging was performed on one of three scanners: iCT or IQon Spectral, Philips Medical Systems, Hamburg, Germany; SOMATOM go.Top, Siemens Healthineers) with routine clinical protocols. Images were reformatted with 3-mm slice thickness using a lung-specific convolution kernel.
Lung volume determination methods
For this study, the lung volume was derived using four different approaches: from posteroanterior and lateral attenuation images as described by Pierce et al [12], from posteroanterior images only using a CNN, from CT images, and from PFT.
Lung volume derived from CRs
Using the approach adapted from Pierce et al [12], the lung volume was calculated from the posteroanterior and lateral attenuation images acquired with the dark-field chest radiography system. In brief, the lung and surrounding structures were segmented manually on images in both orientations, and the volumes were calculated using an approximation based on the formula: lung volume = chest volume minus (heart + spine + subphrenum) [12].
Lung volume derived from CNN

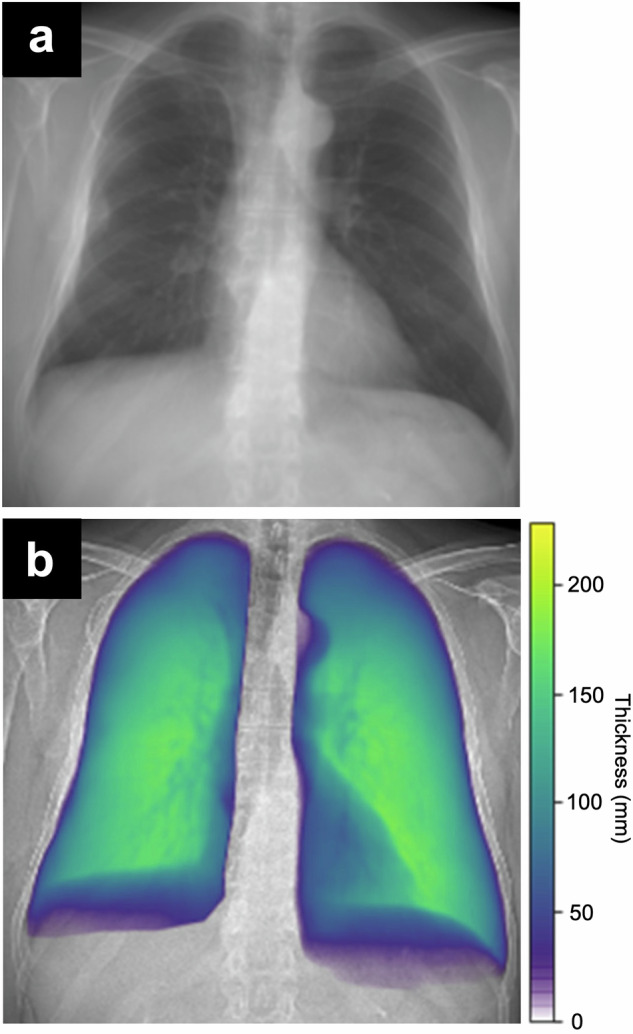

The lung volume determination by CNN was based on a model introduced by Schultheiss et al [14], which uses CT-based synthetic radiographs for training. Briefly, for the training, a U-Net architecture was used to estimate local lung thickness on 5,250 synthetic radiographs derived from CT scans, while the CT-based lung volume was used as ground truth. The model was evaluated on a test set of 131 synthetic and 45 clinical CRs [14]. The model was adapted to the dark-field scanner’s imaging and processing parameters, namely the geometry as source-to-sample/sample-to-detector distance, the simulated spectrum with 70 kVp, the detector size, thickness, and density, as well as the aluminum filter thickness. It was then applied to this study’s participants’ attenuation radiographs acquired with the dark-field scanner. Lung masks, which were selected manually for each patient on the CR from the dark-field scanner, were then applied to the local thickness prediction maps (Fig. 2) to make sure that lung volume was only calculated from actual lung tissue. In a last step, the total CNN-based lung volume was calculated by integrating the predicted lung thickness over the whole lung area.Fig. 2. Example attenuation-based radiograph acquired with the dark-field scanner (a) and computed lung thickness map (b)
Lung volume derived from CT images
Lung volume was derived from CT images using dedicated commercial software (IntelliSpace Portal, version 11.1.1; Philips), automatically segmenting the lung. Automatic segmentations excluded large airways while smaller airways were included. All segmentations were doublechecked and corrected manually if needed.
Lung volume derived from PFT
All participants performed a standardized PFT according to the European Respiratory Society [15, 16], providing the total lung capacity (TLC). The PFT consisted of a combination of spirometry with whole-body plethysmography (MasterScreen Body, Jaeger, Wuerzburg, Germany). TLC was considered as the surrogate of lung volume derived from PFT.
Statistical analysis
Statistical analysis was performed using the statistical package R version 3.2.4 (R Foundation for Statistical Computing). A p-value < 0.05 was considered statistically significant for all tests. A Shapiro–Wilk test was performed to assess the normality of lung volume data. Since three out of four datasets showed normal distribution, we applied the Student t-test for group comparisons. To account for deviations from normality in the PFT data and to increase robustness against outliers, we used the nonparametric Spearman ρ for correlation analyses. This combined approach allows for both valid mean comparisons and robust correlation estimates across datasets with partially differing distribution characteristics.
Results
Participants
We studied 81 participants (51 men, 30 women), aged 64 ± 12 years (mean ± standard deviation), with height being 170 ± 7 cm and weight 75 ± 15 kg (Table 1).Table 1. Patient demographics and lung volumes determined with four different methodsParametersAllMenWomenp-valueNumber of patients815130−Age64 ± 1266 ± 1262 ± 110.21Weight (kg)75 ± 1578 ± 1570 ± 130.01Height (cm)170 ± 7173 ± 4164 ± 6< 0.001Lung volume (L) from Conventional radiography7.27 ± 1.648.08 ± 1.425.90 ± 0.91< 0.001 Convolutional neural network4.91 ± 1.055.37 ± 0.934.14 ± 0.78< 0.001 Computed tomography5.25 ± 1.365.74 ± 1.364.42 ± 0.85< 0.001 Pulmonary function testing6.54 ± 1.527.23 ± 1.345.38 ± 1.01< 0.001
Comparison of different lung volume determination methods

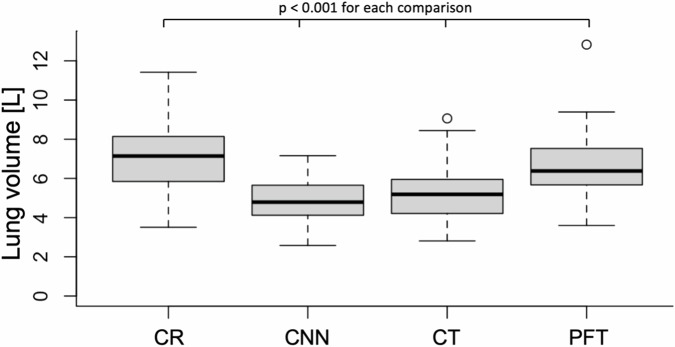

The mean lung volume was 7.27 ± 1.64 L (mean ± standard deviation) for the CR method, 4.91 ± 1.05 L for the CNN method, 5.25 ± 1.36 L for CT imaging, and 6.54 ± 1.52 L for PFT. All lung volumes derived from the various methods were different from each other (p < 0.001 for all; Table 1 and Fig. 3).Fig. 3. Lung volumes determined with conventional radiography (CR), convolutional neural network (CNN), computed tomography (CT), and pulmonary function testing (PFT). All lung volumes were significantly different from each other

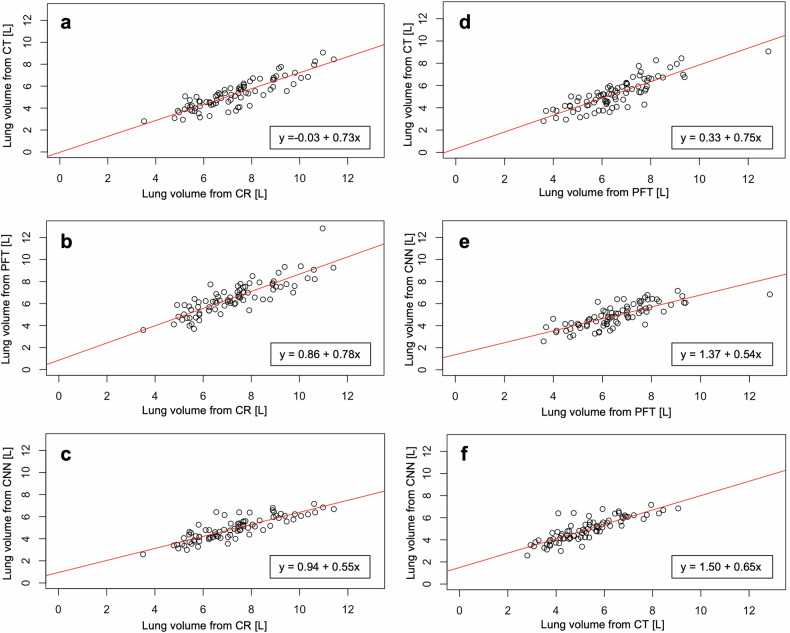

When comparing all four lung volume determination methods with each other, a high to very high positive correlation was found for all combinations (p < 0.001 for all; Table 2, Fig. 4), the highest one observed between CT and CR (ρ = 0.88) and the lowest one between PFT and CNN (ρ = 0.78).Table 2. Correlation between lung volumes determined from conventional radiography (CR), convolutional neural network (CNN), computed tomography (CT), and pulmonary function testing (PFT)CRCNNCTPFTSpearman ρp-valueSpearman ρp-valueSpearman ρp-valueSpearman ρp-valueCR−−0.85< 0.0010.88< 0.0010.84< 0.001CNN0.85< 0.001−−0.84< 0.0010.78< 0.001CT0.88< 0.0010.84< 0.001−−0.84< 0.001PFT0.84< 0.0010.78< 0.0010.84< 0.001−−Fig. 4. Scatter plots for the comparison of lung volumes determined with different methods: computed tomography (CT) versus conventional radiography (CR) (a); pulmonary function testing (PFT) versus CR (b); convolutional neural network (CNN) versus CR (c); CT versus PFT (d); CNN versus PFT (e); and CNN versus CT (f). Red lines indicate regression lines, and the box on the bottom right provides respective intercepts and slopes
