The complex rupture evolution of the long and slow, tsunamigenic 2021 South Sandwich Islands earthquake
Ryo Yamaguchi, Yuji Yagi, Ryo Okuwaki, Bogdan Enescu
TL;DR
This paper analyzes a 2021 earthquake in the South Sandwich Islands, revealing complex rupture patterns that contributed to a tsunami.
Contribution
The study introduces a novel method for analyzing long-duration earthquakes in complex subduction zones.
Findings
The earthquake's rupture propagated up-dip and then along the trench before stagnating for 30 seconds.
A slow rupture growth followed by a new fast rupture led to tsunami-like characteristics.
The study highlights the earthquake's long rupture duration and slow average rupture velocity.
Abstract
On August 21, 2021, a large earthquake occurred in the South Sandwich subduction zone, and the associated tsunami was widely observed. To robustly analyse the detailed seismic source process of this long-source duration (over 200 s) event occurring in a convexly shaped subduction zone, we applied the Potency Density Tensor Inversion with a non-rectangular and non-planar source surface to the broadband teleseismic P-waves. This method allows us to suitably reduce the effect of the time-increasing uncertainty of the Green’s function and the effect of modelling errors related to the fault geometry. We found the slip vectors of the 400 km long rupture area rotate clockwise to the south, corresponding to the clockwise rotation of the trench strike. Our results reveal that the rupture propagated up-dip to the shallow region, then propagated to the south-southeast along the trench, and…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5- —JSPS Grant-in-Aid for Scientific Research (C)
Peer Reviews
No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.
Videos
No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.
Taxonomy
Topicsearthquake and tectonic studies · High-pressure geophysics and materials · Earthquake Detection and Analysis
Introduction
Understanding the rupture process of tsunami-generating earthquakes is important for assessing the potential for future tsunami events. A “tsunami earthquake” is an event which has rupture characteristics that lead to the generation of tsunamis that are unusually large given the event’s magnitude^1,2^. It has been pointed out that tsunami earthquakes have a slow rupture front velocity and long rupture duration^3,4^. In the case of the 1992 Nicaragua earthquake, one of the typical tsunami earthquakes, the rupture front velocity and the rupture duration were reported to be 1.5 km/s, or less, and ~ 110 s, respectively^2^; it has been suggested that the slow slip along the plate interface occurred due to accumulated soft subducted sediments^2^. The mechanism of tsunami earthquakes is disputed in the scientific literature: variable frictional properties on the plate interface^5^, off-fault rupture^6^, accretionary prism rupture caused by rapid stress loading^7^, thermal pressurization^8^ and so on have been suggested being responsible for the heterogeneous rupture behaviour, typically characterized by a slow and long rupture process.
On August 12, 2021, the 2021 South Sandwich Islands (SSI) earthquake struck offshore the South Sandwich Islands, in the shallow part of the South Sandwich subduction zone^9,10^ classified as tectonic-erosion type^11–13^. In this subduction zone, the South American plate is subducting under the Sandwich plate at a rate of 70–78 mm/yr, in a west-southwest direction^14^ (Fig. 1). The South Sandwich trench curves convexly to the east^15^ (Fig. 1), and the South American plate is subducting obliquely in the southern region of this subduction zone. The bathymetric data on the South American plate^16^ shows several chains of seamounts extending in east-southeast to west-northwest directions. The aftershock distribution determined by the U.S. Geological Survey (USGS) extends from ~ 100 km north to ~ 300 km south of the mainshock epicentre along the South Sandwich trench^17^.
Fig. 1. Summary of the study region. Three yellow stars are the epicentres of MW 7.5, MW 8.1 and mb 6.7 events reported by the USGS NEIC^17^, and two light blue beachballs are the moment tensors of MW 7.5 and MW 8.1 events. The grey square is the centroid location reported by the Global Centroid Moment Tensor (GCMT) project^18,19^, and the grey beachballs on the bottom right corner are the GCMT solution and the total moment tensor solution obtained in this study. The orange dots are the aftershocks from 2021-08-12 18:32:52 to 2021-8-15 18:32:52 (within three days after the MW 7.5 events) detected by the USGS NEIC. The vector shows the subduction velocity and azimuth of South American plate^14^. The white line indicates the plate boundary^15^, and the white front is the South Sandwich trench. The shaded background bathymetry is derived from SYNBATH^16^. The inset map shows the plates around the study region: Sandwich (SW), Scotia (SC), South American (SA), Antarctic (AN) and Africa (AF) plates^15^. The black lines are the plate boundaries^15^ and the box outlines the extent of this figure.
The USGS identified three independent events corresponding to the 2021 SSI earthquake (Fig. 1). At 18:32:52 (UTC), a moment magnitude (MW) 7.5 event occurred at 57.567° S, 25.032° W was followed 145 s later by an MW 8.1 event occurred about 90 km south of the epicentre of the first event; finally, 102 s later, a body-wave magnitude (mb) 6.7 event occurred about 280 km south-southeast (SSE) of the epicentre of the first event (Fig. 1). The Global Centroid Moment Tensor (GCMT) project^18,19^ reported only a MW 8.3 earthquake with a centroid at 59.48° S, 24.34° W (Fig. 1). Jia et al. (2022)^9^ applied the multiple point source inversion to the 2021 SSI earthquake using the low-frequency waveforms (0.002–0.05 Hz) and identified five sub-events: two thrust sub-events in the first 50 s, one long-period thrust sub-event for about 180 s with a centroid time of 90 s after the beginning of the rupture, and two thrust sub-events which occurred 3 min after the beginning of the rupture. Metz et al. (2022)^10^ carried out moment tensor inversion and finite fault inversion (FFI), and reported four sub-events. They also performed a teleseismic back-projection (BP) analysis and reported high-frequency (0.5–2 Hz) energy emitters migrating southward. Previous studies used long-period (20 s and longer) waveforms to perform source inversion and have shown that the 2021 SSI earthquake is composed of multiple sub-events^9,10^ and has the characteristics of a typical tsunami earthquake, with slow rupture front velocity and long rupture duration^9^. On the other hand, it also involves spatiotemporally complex high-frequency rupture inferred from the BP analysis^10^. To understand the rupture process of the 2011 SSI earthquake, which has the characteristics of a tsunami earthquake, it is essential to construct a detailed seismic source model that is able to explain the broadband teleseismic body waves.
In general, it is difficult to stably estimate the detailed seismic source process of an earthquake with complex fault geometries and a long rupture duration, such as the 2021 SSI earthquake. The influence of the uncertainty of the Green’s functions becomes dominant as the source duration gets longer^20^. A planar rectangle fault plane that is often adopted in the FFI may not necessarily be suitable for the actual curved and convex source fault, which can also increase the modelling uncertainty^21,22^. The recently proposed Potency Density Tensor Inversion (PDTI) has made it possible to estimate detailed source processes, including information on focal mechanism, by reducing the effects of the uncertainty of the Green’s functions^21,23^. In this study we apply the PDTI with a non-rectangular and non-planar source surface to the observed teleseismic waveforms of the 2021 SSI earthquake to estimate its source process, including spatiotemporal changes in fault geometry and slip vector. We discuss the complex rupture propagation during the 2021 SSI earthquake and propose the possibility of partial slip partitioning.
Method
In general, the earthquake source can be expressed by the volume density of the moment-rate tensor^24^. The moment-rate volume-density tensor is calculated by multiplying the potency-rate volume-density tensors by the rigidity. In the case of the fault dislocation, the potency-rate tensor is represented by a linear combination of five basis double-couple components^21,25^. Therefore, the teleseismic waveform of an earthquake observed at station \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\:j$$\end{document} is given by:
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\:\begin{array}{c}{u}_{j}\left(t\right)=\sum\limits_{q=1}^{5}{\int\:}_{V}^{}{\dot{P}}_{q}\left(\xi\:,t\right)*{G}_{qj}\left(\xi\:,t\right)\:dV+{e}_{bj}\left(t\right)\end{array}$$\end{document}where V is the 3-D source area, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\:{\dot{P}}_{q}$$\end{document} is a potency-rate volume-density function of \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\:q$$\end{document} th basis double-couple component, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\:{G}_{qj}$$\end{document} is a true Green’s function of the \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\:q$$\end{document} th basis double-couple component, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\:\xi\:$$\end{document} is the location in the V, \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\:{e}_{bj}$$\end{document} is the background and instrumental noise and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\:*$$\end{document} denotes the convolution operator in the time domain.
In the FFI of seismic waveforms, the potency volume-density tensor is approximated by the fault slip vector (potency areal-density vector) on a pre-assumed fault plane^26,27^. The FFI method can resolve the spatiotemporal distribution of the potency density-rate (slip-rate) on the fixed fault plane, however it cannot identify fault ruptures with a different fault geometry.
In the multiple point source inversion, the moment volume-density tensor is approximated by a sum of the moment tensors at multiple point sources^25,28,29^. This approach makes no assumptions about the fault plane and thus allows discussion of the possibility of slip occurring on an unknown fault. However, the multiple point source inversion method is unable to estimate the detailed rupture process for each sub-event. In addition, only long-period waves can be analysed due to the effect of the modelling errors caused by the simplification of the source model.
In the PDTI method, the potency-rate volume-density tensor is approximated by the potency-rate areal-density tensor on a pre-assumed model surface^21^. Then, Eq. (1) becomes
\documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\:\begin{array}{c}{u}_{j}\left(t\right)\approx\:\sum\limits_{q=1}^{5}{\int\:}_{S}^{}{\dot{P}{'}}_{q}\left(\xi\:,t\right)*{G}_{qj}\left(\xi\:,t\right)dS+{e}_{bj}\left(t\right)\end{array}$$\end{document}where \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\:S$$\end{document} is 2-D model surface and \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\:{\dot{P}{'}}_{q}$$\end{document} is a potency-rate areal-density function. As a result, the ruptures occurring on various faults are projected onto the model surface as the potency-rate areal-density tensor. In the FFI method, the number of degrees of freedom of the potency tensor is reduced from five to two by specifying the fault plane^26,27^. However, in the PDTI method, the number of degrees of freedom of the potency tensor remains at five because the fault plane is never specified^21^. In other words, by increasing the degrees of freedom of the model, PDTI is capable of estimating a detailed seismic source process model including information on the fault geometry.
In general, a high degree of model freedom can lead to problems such as overfitting and unstable solutions. To avoid these problems, the PDTI method incorporates the modelling error derived from the uncertainty of the Green’s function into the data covariance matrix, as proposed by Yagi and Fukahata (2011)^20^, and applies Akaike’s Bayesian Information Criterion (ABIC)^30–32^ to reasonably evaluate the strength of the smoothing constraint. In this study, we use the latest version of PDTI, which introduces a time-adaptive smoothing constraint^23^ to avoid the problem of over-smoothing caused by fixing the smoothing strength.
For Eq. (2) to work successfully, it is necessary to reduce the modelling error by making the model surface \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\:S$$\end{document} closer to the earthquake source faults. In this study, we analysed the source process by projecting the potency density tensor distribution onto a non-planar model created by referring to the slab geometry data in Slab2.0^33^.
Data and model parameterization
For the PDTI, we used the vertical components of the teleseismic body *P-*waves from 47 stations at epicentral distances of 30°–100° downloaded from the SAGE Data Management Center (Fig. 2a). We selected stations, ensuring a high signal-to-noise ratio and better azimuthal coverage (Fig. 2a). We converted the observed waveforms to velocity waveforms by removing the instrument response and then decimated the signal by using a 1.2 s sampling. We calculated the theoretical Green’s functions using the method of Kikuchi and Kanamori^25^ with a sampling rate of 0.1 s. We used the 1-D averaged structure of the CRUST1.0^34^ in the source region to calculate the theoretical Green’s function (see Supplementary Table S1). Other structure models, CRUST2.0^35^ (see Supplementary Table S2) and ak135-F spherical average model^36,37^ (ak135-F) (see Supplementary Table S3), are also used to evaluate the robustness of the modelling (Fig. 3).

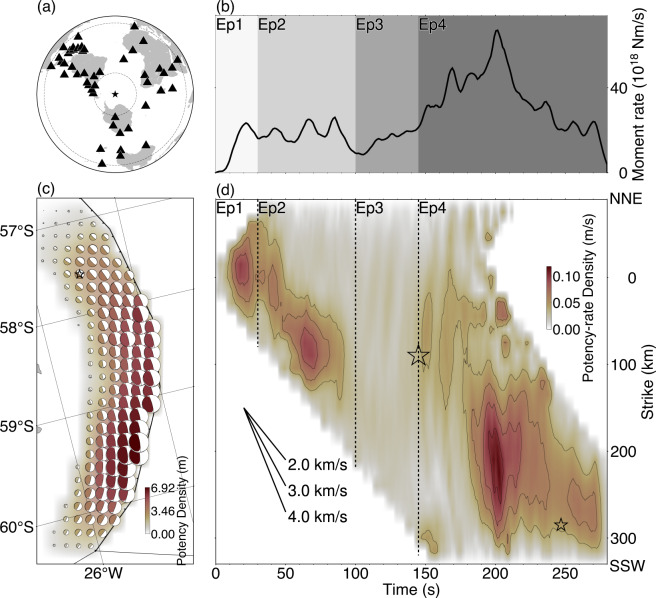

Fig. 2. Summary of inversion results. (a) The station distribution used in the inversion, projected on the azimuthal equidistant map. The dotted circles show epicentral distances of 30° and 100°. (b) Moment rate function. The background grey colours show the time range of four episodes defined in this study. (c) Map projection of the potency density tensor distribution on the non-planar model. The star and black line indicate the epicenter^17^ and plate boundary^15^, respectively. (d) Potency-rate density evolution projected along strike. The contours of 0.04, 0.06, 0.08 and 0.10 m/s are shown as black lines. The vertical axis is distance from the epicentre. The large and small stars are the epicentres of the MW 8.1 and mb 6.7 events detected by the USGS^17^.

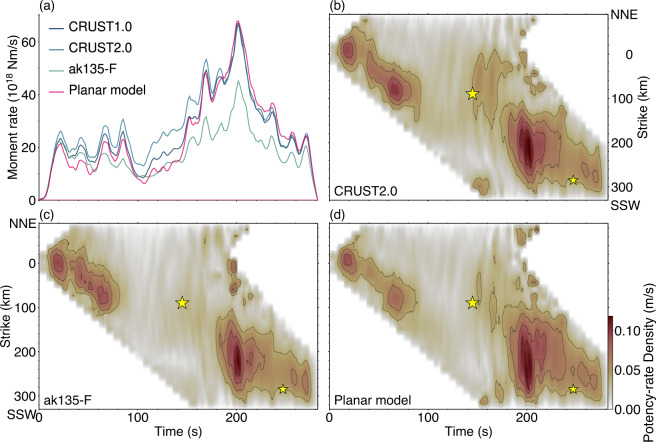

Fig. 3. Summary of results from model sensitivity test. (a) The moment-rate functions when the Green’s function is calculated using two different structure models (CRUST2.0^35^ and ak135-F^36,37^; see Supplementary Tables S2 and S3) and when the potency-rate density tensor distribution is projected onto a planar model with a strike of 190° and dip of 10°. (b, c) Potency-rate density evolution obtained with CRUST2.0^35^ (see Supplementary Table S2) and ak135-F^36,37^ (see Supplementary Table S3) structure models for calculating the Green’s function, respectively. (d) Potency-rate density evolution obtained using the planar model. The large and small stars plotted in each figure are the epicentres of the MW 8.1 and mb 6.7 events, respectively detected by the USGS^17^.
According to the USGS aftershock distribution^17^, the 2021 SSI earthquake is assumed to have occurred near the subducted and curved slab surface. To cover the aftershock distribution within three days of the event (Fig. 1), we followed Yamashita et al. (2021)^38^ and set up a non-rectangular model plane with the strike and dip angles of 190° and 10°, respectively, with a maximum width of 150 km and length of 405 km, which is expanded using a bilinear B-spline with a knot spacing of 15 km in both the strike and dip directions. Then the depth of each knot is adjusted based on Slab2.0^33^ to minimize the location error in the Green’s function. We adopted a hypocentre (initial rupture point) by using the USGS-determined epicentre^17^ of the first event (57.567° S, 25.032° W) and the corresponding depth of the Slab2.0^33^ at 21.6 km. To enable fast rupture propagation immediately after an initial break and to reduce the number of model parameters, a hypothetical rupture initiation time was set for each spatial node. The hypocentre and the surrounding nodes were set to be able to rupture immediately after the initial break, and the other nodes were set to be able to rupture immediately after the hypothetical 2.0 km/s front had passed. Based on the reported long duration of the 2021 SSI earthquake^9,10^, the rupture duration at each knot is 180 s with a sampling interval of 1.2 s, and the total rupture duration is 280 s.
In general, the PDTI method adjusts the waveform length to mitigate the influence of the *PP-*waves on the inversion results. However, when this scheme is applied to an earthquake with a long rupture duration, such as the 2021 SSI earthquake, only a few observation points contribute to the results after 200 s from the origin time. The source time function of the 2021 SSI earthquake obtained using the empirical Green’s function^39,40^ shows that the peak value of the moment rate in the 80 s after the origin time is sufficiently smaller than the peak value in the 200 s after the origin time (see Supplementary Fig. S1). Therefore, in this study, the waveform from the arrival of the *P-*wave to 80 s after the arrival of the *PP-*wave was used for inversion to stabilize the solution after 200 s from the origin time.
Results
The spatial distribution of the potency density tensor, calculated by taking the temporal integration of potency-rate density functions at each knot, is dominated by thrust focal mechanisms that are similar to the total moment tensor (Figs. 1 and 2c). The source area spans about 400 km in length, with a maximum potency of 6.4 m at about 210 km south-southeast of the epicentre (Fig. 2c). The estimated total moment tensor solution, obtained by the spatiotemporal integration of the potency-rate density tensors, shows a thrust focal mechanism including a 25% non-double-couple component (Fig. 1). The total seismic moment is 6.47 × 10^21^ N m (MW 8.5). The slip vector of the nodal plane closest to the slab surface geometry shows a tendency to rotate clockwise to the south-southwest (SSW) (Fig. 4a). The moment rate function has ten or more spikes with the largest peak of 6.71 × 10^19^ N m/s at 201 s (Fig. 2b). The synthetic waveforms calculated from the obtained source process model well reproduce the observed waveforms, including the data points not used for the inversion (Supplementary Fig. S2). In this study, we define Episodes 1–4 based on the moment rate function (Fig. 2d) and snapshots (Supplementary Figs. S3, S4, S5).

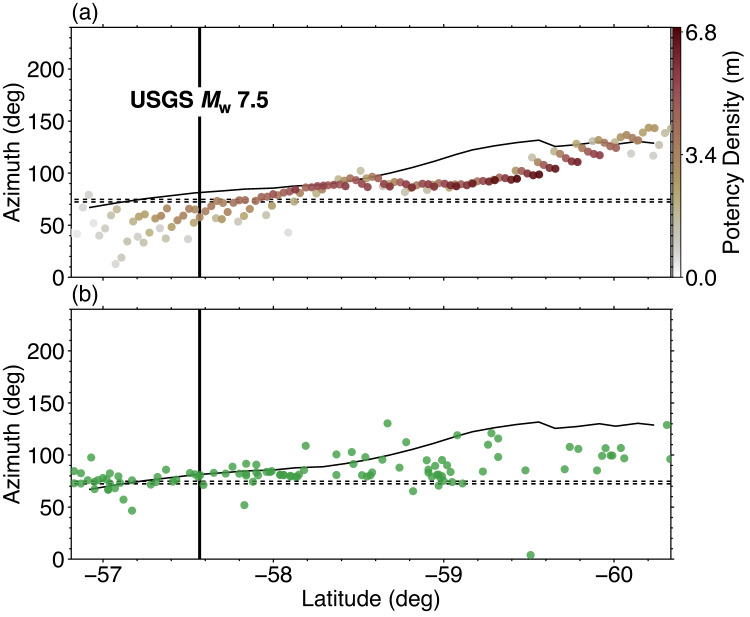

Fig. 4. Spatial variation of slip vectors. (a) The spatial variation of total slip vectors for each knot obtained by PDTI. The slip vectors are calculated for the preferred nodal plane. (b) The spatial variation of slip vectors for GCMT solutions^18,19^ of background events larger than MW 5.5. In both (a) and (b), the black solid line is the direction perpendicular to the strike of the subducting slab near the trench. The two black dashed lines indicate the direction of plate subduction^14^, the upper line and the lower line are corresponding to the most northerly and to the most southerly subduction vector azimuths denoted as arrows in Fig. 1, respectively. The vertical line indicates the initial rupture point.
In Episode 1, the thrust-type rupture propagated mainly on the up-dip side of the hypocentre and then reached the trench at 30 s after the origin time (OT) (Fig. 5, Supplementary Fig. S3). Figure 2d shows the time evolution of the rupture area projected along the strike of the model plane (190°). As shown in Fig. 2d, the thrust-type rupture also propagated asymmetrically in the SSW and north-northeast (NNE) directions until OT + 30 s. The rupture front velocity in the strike direction is about 2 km/s. The SSW rupture started at OT + 8 s, and the rupture front velocity in the strike direction is about 3 km/s.

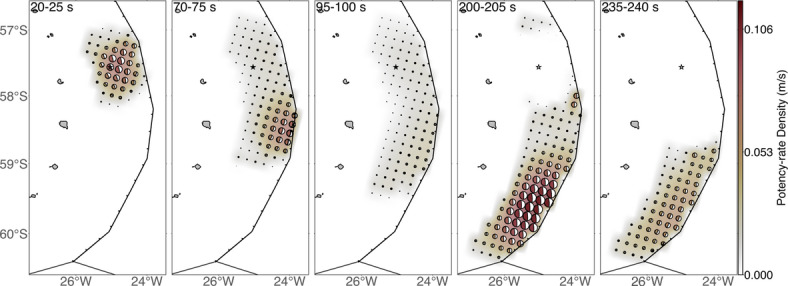

Fig. 5. Selected snapshots of the potency-rate density distribution (Fig. 2d). The beachballs show the potency-rate density tensors. The star and black line indicate the epicentre^17^ and plate boundary^15^, respectively.
