Determination of the constant pressure loss for a new segmented orifice with an inclined inflow plane
Marcin Heronimczak, Andrzej Mrowiec, Mariusz Rząsa, Krzysztof Koszela, Piotr Nowaczyk
TL;DR
This study introduces a new orifice design with an inclined inflow that reduces pressure loss and improves flow measurement efficiency.
Contribution
The first experimental determination of pressure loss ratio for a segmented orifice with an inclined inflow plane.
Findings
A 60° inclination reduces permanent pressure loss by up to 4.9% compared to conventional 90° orifices.
The inclined design improves flow stability and measurement reliability.
The new orifice is a cost-effective and energy-efficient alternative for industrial flow measurement.
Abstract
A key innovation of this study is the first-ever experimental determination of the ratio of permanent to total differential pressure loss (Δploss/Δp) for a segmented orifice with an inclined inflow plane—a geometry not standardized in any current measurement norms. While previous investigations by the authors focused on flow characteristics, this paper uniquely quantifies energy-related pressure losses, showing that a 60° inclination reduces permanent pressure loss by up to 4.9% compared to conventional 90° orifices. A combined experimental and numerical approach was applied to evaluate three orifice geometries with water as the working fluid. CFD simulations using the Transition SST model guided the optimization of pressure tapping locations. The results indicate that the inclined design improves flow stability and measurement reliability while reducing pressure losses. The findings…
Genes, proteins, chemicals, diseases, species, mutations and cell lines named across the full text — each resolved to its canonical identifier and authoritative record.
Click any figure to enlarge with its caption.

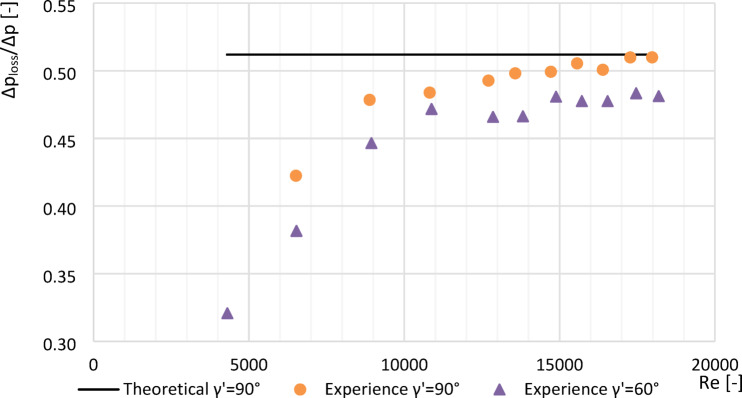

Figure 10

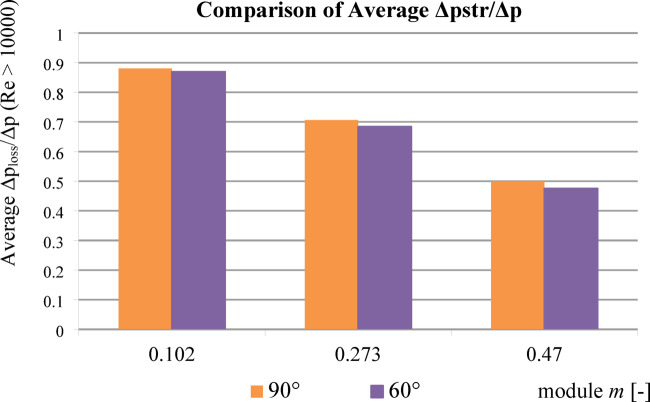

Figure 11

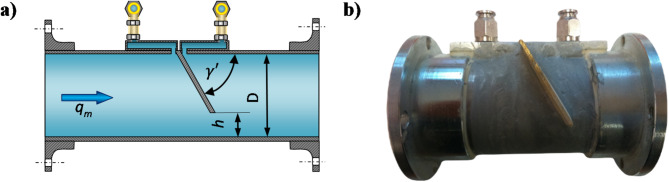

Figure 1

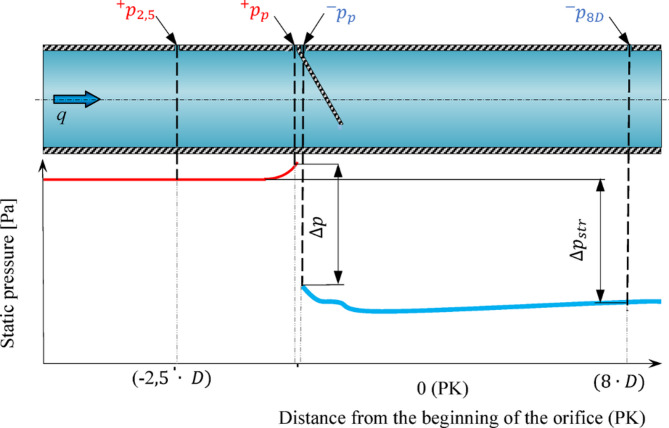

Figure 2

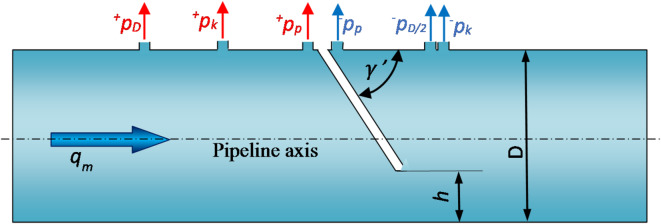

Figure 3

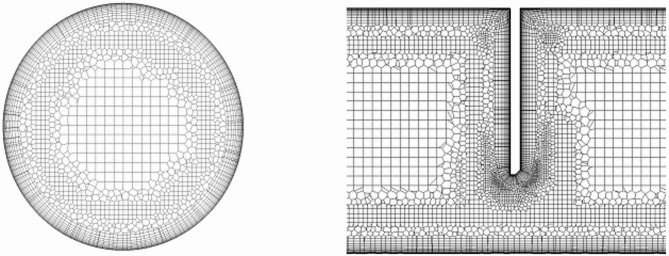

Figure 4

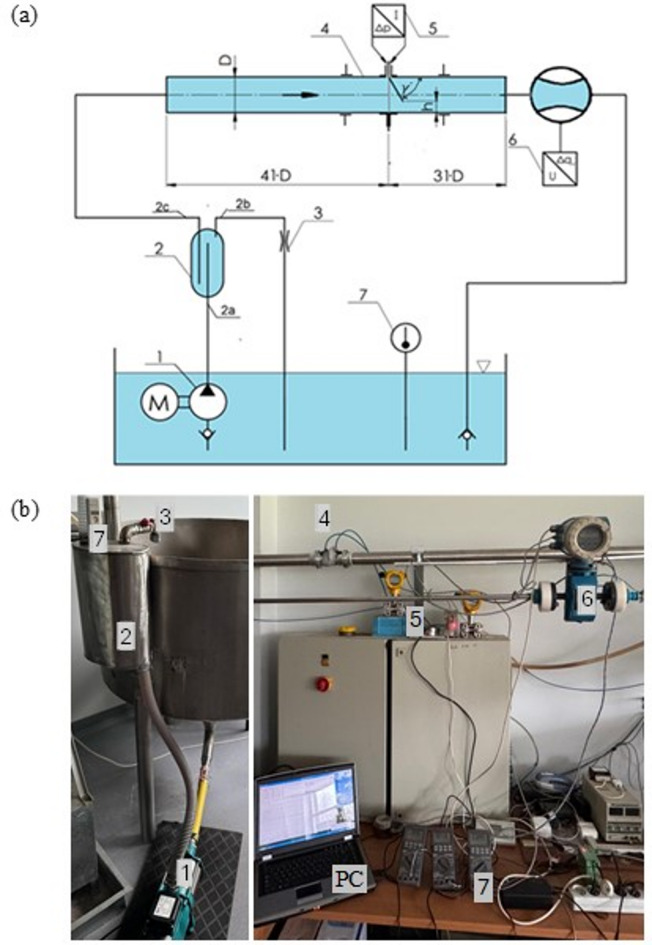

Figure 5

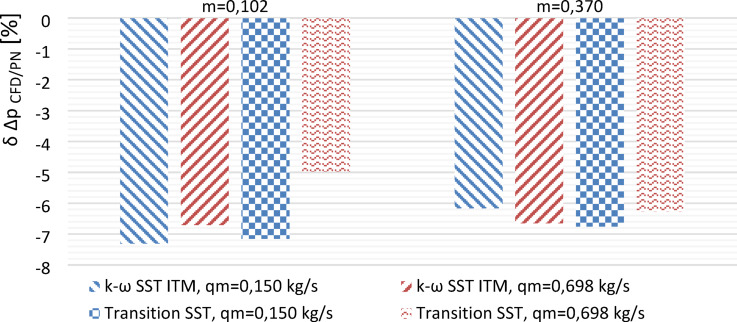

Figure 6

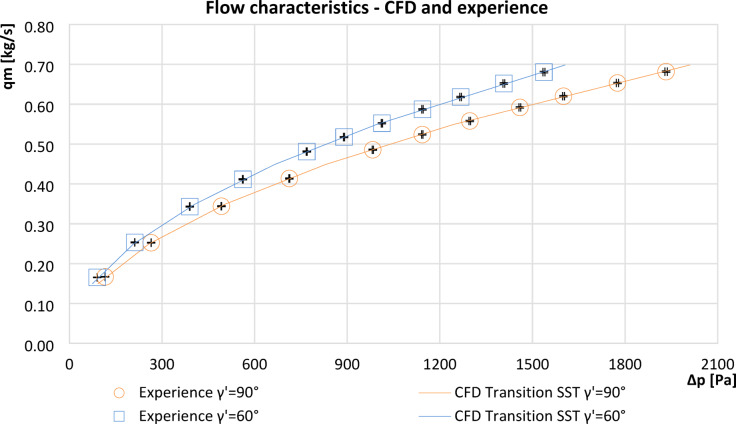

Figure 7

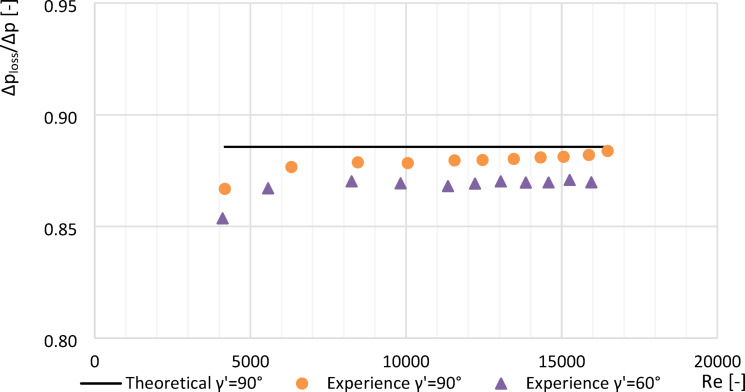

Figure 8

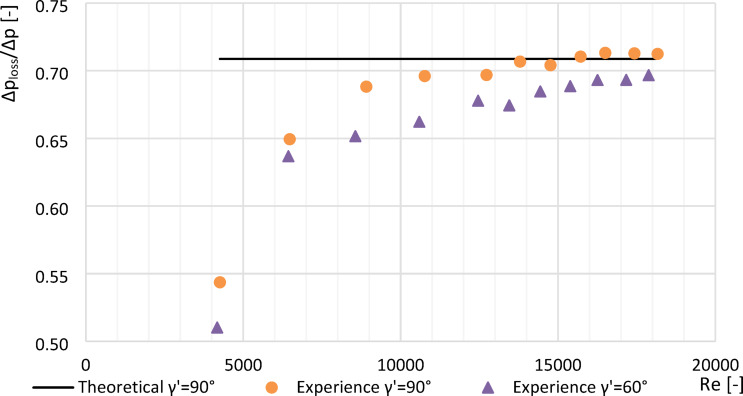

Figure 9Peer Reviews
