Acquired ROS1 fusion and iruplinalkib response in advanced NSCLC after multiple lines of systematic therapy: a case report

TL;DR

A lung cancer patient developed a ROS1 fusion after multiple treatments and responded well to iruplinalkib.

Contribution

First case report of acquired SDC4-ROS1 fusion and response to iruplinalkib in advanced NSCLC after multiple therapies.

Findings

ROS1 fusion was detected in a metastasis after initial non-driver gene diagnosis.

Iruplinalkib treatment showed promising response in the patient.

Patient underwent multiple lines of systemic therapy before ROS1 detection.

Abstract

This is the first report of a patient with lung cancer whose primary focus was the upper lobe of the left lung combined with multiple metastases in both lungs, initially diagnosed as a non-driver gene mutation, who subsequently developed SDC4-ROS1 fusion after multiple lines of systemic therapy. When diagnosis, a needle biopsy of the primary focus revealed no driver gene mutation and low PD-L1 expression (TPS < 1%, CPS 3). From November 2022 to December 2023, the patient received sequential chemotherapy-based systemic therapy including anti-angiogenesis treatment, concurrent chemoradiation and combined immunotherapy as determined by the clinician based on the initial evaluation. In December 2023, a needle biopsy of a metastasis in the left lower lobe of the lung showed a positive SDC4-ROS1 fusion. Subsequent treatment with the oral ALK TKI iruplinalkib was initiated based on the patient’s preference, which exhibited a promising response over the next 2 months.

Figures

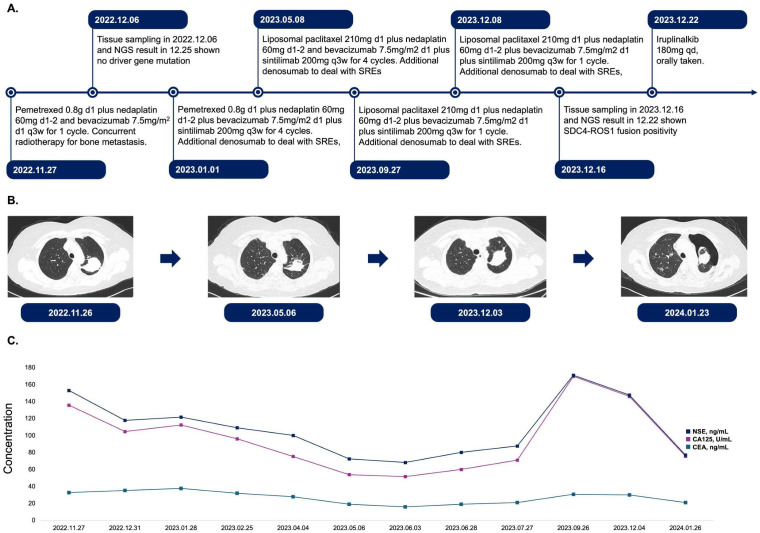

Treatment course, CT examination, and tumor biomarker expression in this patient. (A). Timeline of treatment regimens from November 2022 to December 2023. The patient received various combinations of chemotherapy agents, targeted therapies, and immunotherapies. Treatment cycles and dosages are indicated for each regimen. SREs were managed with denosumab. (B). Serial chest CT images demonstrating the evolution of the primary lesion in upper lobe of left lung. Images are shown from November 2022 to January 2024, corresponding to different stages of treatment. (C). Longitudinal assessment of tumor biomarkers NSE, CA125, and CEA from November 2022 to January 2024. The graph illustrates fluctuations in biomarker levels for treatment. d, day; q3w, every 3 weeks; qd, once daily; SREs, skeletal-related events; NSE, neuron-specific enolase; CA125, cancer antigen 125; CEA, carcinoembryonic antigen.

Immunohistology examination of needle biopsy. (A). First-time examination; (B). Second-time examination. Each panel shows staining for hematoxylin and eosin (HE) and seven distinct markers: thyroid transcription factor-1 (TTF-1), cytokeratin-7 (CK-7), Napsin A, P40, Ki-67, P53, and carcinoembryonic antigen (CEA).

Full text

Introduction

A receptor tyrosine kinase is encoded by the proto-oncogene ROS1, and somatic chromosomal fusions involving ROS1 result in chimeric oncoproteins that fuel various cancers in both adults and children (1). Tyrosine kinase inhibitors (TKIs) targeting ROS1 have therapeutic activity for these cancers, while some ALK TKIs such as repotrectinib are also used in the treatment of patients with ROS1 fusion due to the 70% homology between the kinase structural domains of ALK and ROS1 (1, 2). ROS1 fusions are relatively rare drivers in non-small cell lung cancer (NSCLC), occurring in 1-2% of cases. Previous evidence suggests that first-line chemotherapy may induce genomic alterations in driver oncogenes such as EGFR, leading to the development of acquired mutations and potential benefits from targeted therapy. Here, we present a case of advanced NSCLC initially negative for ROS1 fusion at diagnosis, but subsequently identified as ROS1 fusion-positive. Several previous studies confirmed that ROS1 is the gene most likely to be missed in DNA NGS assays, with the potential for false-negative results (3), therefore, we performed a duplicate NGS assay for molecular profiling on the same specimen and obtained the same negative results. Ultimately, the patient derives clinical benefit from a novel ALK TKI after undergoing multiple lines of systemic therapy.

Case report

A 56-year-old lifelong never-smoker Chinese female presented in November 2022 with a dry cough without apparent precipitang factors, accompanied by shoulder and back pain. The patient had no family history of cancer and no prior underlying conditions, such as hypertension or coronary artery disease. With a primary focus in the upper lobe of the left lung and numerous metastases in both lungs, she was diagnosed with lung adenocarcinoma (cT2N2M1, stage IV). Molecular profiling by NGS on the initial biopsy specimen was negative for potentially actionable driver alterations, including EGFR, ALK, ROS1, BRAF, MET, RET, NTRK, and ERBB2 mutations. Meanwhile, 3 somatic variants with unknown significance (VUS) were detected, including a TP53 missense variant (R282W) and 2 variants in HRR pathway (BRCA2 H523R; RAD51D V66M). The patient also exhibited low PD-L1 expression (TPS <1%, CPS 3) and a low TMB (7.33 Muts/Mb), suggesting limited potential benefit from immunotherapy. The patient had not received any previous treatment, given these findings, the patient received cytotoxic chemotherapy (bevacizumab in combination with pemetrexed and platinum-based chemotherapy), and anti-angiogenic therapy beginning on December 6th, 2022, followed by concurrent chemoradiation and subsequent combined immunotherapy until December 8, 2023, according to the ORIENT-11 trial (4). However, CT imaging revealed further disease progression. The treatment course and histological images are summarized in Figures 1, 2.

Treatment course, CT examination, and tumor biomarker expression in this patient. (A). Timeline of treatment regimens from November 2022 to December 2023. The patient received various combinations of chemotherapy agents, targeted therapies, and immunotherapies. Treatment cycles and dosages are indicated for each regimen. SREs were managed with denosumab. (B). Serial chest CT images demonstrating the evolution of the primary lesion in upper lobe of left lung. Images are shown from November 2022 to January 2024, corresponding to different stages of treatment. (C). Longitudinal assessment of tumor biomarkers NSE, CA125, and CEA from November 2022 to January 2024. The graph illustrates fluctuations in biomarker levels for treatment. d, day; q3w, every 3 weeks; qd, once daily; SREs, skeletal-related events; NSE, neuron-specific enolase; CA125, cancer antigen 125; CEA, carcinoembryonic antigen.

Immunohistology examination of needle biopsy. (A). First-time examination; (B). Second-time examination. Each panel shows staining for hematoxylin and eosin (HE) and seven distinct markers: thyroid transcription factor-1 (TTF-1), cytokeratin-7 (CK-7), Napsin A, P40, Ki-67, P53, and carcinoembryonic antigen (CEA).

Surprisingly, a repeat biopsy of large metastases in the left lower lobe of the lung using NGS on December 16, 2023, detected a newly acquired SDC4-ROS1 fusion (abundance 15.48%), while other potential drivers, such as EGFR, ALK, and BRAF, remained wild-type. Furthermore, none of the three earlier mutations had been found, while ROS1 fusion and another passenger mutation PDGFRB D776E with VAF of 9.5% emerged. The patient was then initiated on the ALK TKI iruplinalkib at a dose of 180 mg daily. Fortunately, the patient’s condition improved significantly at the first review following a month of oral iruplinalkib. On CT images, the maximum diameter of the primary lesion in the upper lobe of the left lung had decreased from 4.9 cm to 4.5 cm. Additionally, the CT report showed that most of the patient’s multiple metastases in both lungs were much smaller than previously. This was particularly true for the metastasis in the lower lobe of the left lung, which was the site of the second biopsy, and the imaging changes we included in the Supplementary Materials. Through our follow-up of the patient, on 20 February 2024, the cross-sectional area of the primary lesion was reduced by another 36% compared to the previous examination, and the patient will continue to benefit from the treatment.

Discussion

ROS1 fusions are well-described oncogenic drivers in NSCLC. They occur in 1-2% of cases and confer sensitivity to ROS1 TKIs like crizotinib.

While uncommon, similar examples of acquired driver oncogenes mutation such as EGFR have been reported (5), particularly after exposure to chemotherapy and other DNA-damaging agents. Similarly, there have been previous case reports of patients with EGFR-mutant advanced NSCLC who developed EML4-ALK fusion mutations after treatment (6). However, to our knowledge, this is the first report that illustrates the potential for ROS1 fusion to emerge later as acquired alterations during treatment of NSCLC. Given the high false-negative rate of ROS1 in DNA NGS assays (3), after performing the NGS test for the second time and obtaining an acquired ROS1 fusion, we repeated the examination of the initial specimen and obtained the same NGS results as the previous time. Similarly, the IHC result on the original specimen was negative. Of course, the location of the needle biopsy and the heterogeneity of the tumor would also be critical considerations, choosing an authoritative and comprehensive NGS assay, as well as repeat testing, is necessary. The mechanisms underlying such acquired ROS1 alterations remain unclear but may relate to tumor heterogeneity, genomic instability and selective pressures induced by cytotoxic and targeted therapies (7). The patient had previously received a platinum-based regimen, and previous studies have shown that cisplatin may increase genomic instability by inducing DNA damage, interfering with repair mechanisms, and epigenetic regulation (8). Therefore, we believe platinum-based drugs are highly likely to promote gene fusion, and future studies could also be devoted to analyzing the aspect of acquired gene fusion resulting from chemotherapeutic agents. At the same time, repeated molecular profiling using comprehensive NGS assays is warranted in NSCLC cases as new targetable drivers like ROS1 can emerge.

Iruplinalkib is a potent inhibitor of ALK kinases approved for ALK-positive NSCLC based on robust responses in the INSPIRE trials in China (9). More encouragingly, multiple trials have confirmed that iruplinalkib is a potent ROS1 inhibitor that inhibits the proliferation and phosphorylation levels of cells expressing ROS 1 fusion proteins (10). In a phase I clinical trial (NCT03389815), it was shown to have antitumor activity and a good safety profile in patients with advanced NSCLC who had ALK/ROS1 rearrangements, with an objective response rate (ORR) value of 44.4% (4/9) for screened patients with ROS1 rearrangements treated with iruplinalkib (11). A range of ROS1/ALK TKIs have been approved for the treatment of patients with ROS1-fusion NSCLC, such as crizotinib, but compared to it, iruplinalkib is less likely to cause liver function abnormalities and diarrhea (11), which is undoubtedly a satisfactory result. This case also exemplifies iruplinalkib’s activity in ROS1-fusion NSCLC patients.

Conclusion

We present a case of metastatic NSCLC where comprehensive genomic re-testing after multiple systematic lines of therapy revealed a newly emerged ROS1 fusion, not detected at initial diagnosis. Use of the ALK TKI iruplinalkib led to a marked therapeutic response. This highlights the potential for receptor tyrosine kinase fusions like ROS1 to develop as acquired alterations in NSCLC, underscoring the importance of persistent molecular re-profiling to guide appropriate targeted therapy.
