Carbazolyl Electron Donor and Pyridinyl Electron Acceptor Containing Derivatives as Potential Host Materials for Green Organic Light-Emitting Diodes

TL;DR

This paper introduces new electroactive compounds for green organic light-emitting diodes, showing high thermal stability and efficient light emission.

Contribution

The synthesis and characterization of novel carbazolyl and pyridinyl derivatives as host materials for OLEDs with improved performance.

Findings

New derivatives RB71 and RB74 were synthesized via Ullmann coupling and showed high thermal stability.

PhOLEDs using RB71 and RB70 hosts achieved high efficiencies, outperforming existing CBP hosts in some cases.

Abstract

Here, we present two series of new electroactive compounds containing electron donors (carbazolyl) and electron acceptor (pyridinyl) fragments as potential host materials. The objective compounds 9-(2-ethylhexyl)-3,6-di [3-(methoxypyridin-3-yl)carbazol-9-yl]carbazoles RB71 and RB74 were synthesized by an Ullmann coupling reaction between the intermediate derivatives: 9-(2-ethylhexyl)-3,6-diiodocarbazole and corresponding 3-(methoxypyridin-3-yl)-9H-carbazole. Other target derivatives, 9-alkyl-3-[N-(9-alkylcarbazol-3-yl)-N-(4-methylpyridin-2-yl)amino]carbazoles RB70 and RB75, were also prepared, according to the Ullmann reaction method, from 2-amino-4-methylpyridine and the corresponding 3-iodo-9-alkylcarbazole. Thermogravimetric analysis confirmed that the new derivatives are highly thermally stable compounds, with 5% weight loss in the temperature range of 349 °C to 488 °C. According to differential scanning calorimetry results, some amorphous materials exhibit very high glass transition temperatures exceeding 150 °C in some cases, which is a significant advantage for compounds with potential applications in organic light-emitting devices. The electroluminescent properties of devices utilizing the new hosts RB71 or RB70 with 5.0, 10.0, 15.0, and 20.0 wt.% concentrations of the dopant tris(2-phenylpyridine)iridium(III), Ir(ppy)3, were demonstrated. All the PhOLEDs emitted light at approximately 515 nm with CIE coordinates of (0.30, 0.61) due to Ir(ppy)3 emissions. The most efficient device with RB71 host demonstrated a maximum power efficacy of 8.0 lm/W, maximum current efficiency of 12.7 cd/A, and maximal external quantum efficiency of 5.4% with a relatively low turn-on voltage of 4.3 eV, as well as luminance exceeding 4000 cd/m2. Additionally, 15 wt.% Ir(ppy)3 emitter-based PhOLED with RB70 host outperformed the other devices by displaying a maximum power efficacy of 9.6 lm/W, maximum current efficiency of 16.0 cd/A, and maximal external quantum efficiency of 6.7% with a relatively low turn-on voltage of 3.7 eV, as well as luminance reaching 11,200 cd/m2. Some devices seem to exhibit higher efficiencies than those previously reported for OLEDs that utilize a 4,4′-bis(9-carbazolyl)-2,2′-biphenyl (CBP) host.

Figures

Full text

1. Introduction

Organic light-emitting diodes (OLEDs) are a multilayer technology wherein thin layers of charge-transporting and specific light-emitting organic derivatives are utilized [1]. The formation of various organic electroactive materials between two electrodes is a key procedure in the fabrication of OLEDs [2,3]. The development and synthesis of the novel materials for the charge transport layer, blocking layer, emitting layer, and more, result in relevant improvements in the performance of the devices [4]. The large fabrication areas [5], high performance [6], flexibility [7], high image quality [8], and low power [9] of the devices were successfully inducted for displays [10,11] and lightning technologies [12,13]. OLEDs are mercury-free and more efficient than fluorescent tubes, potentially becoming the next generation of general lighting [14,15].

Traditional fluorescent OLEDs use only singlet excitons for the light generation, which limits their maximum internal quantum efficiency to 25%. In contrast, the new generation of phosphorescent organic light-emitting diodes (PhOLEDs) shows more promise, because they can use heavy atom effects to generate both singlet and triplet excitons for emission and reach an internal quantum efficiency of 100% [16,17,18]. Among all the emitting phosphorescent complexes, iridium(III) complexes are regarded as the most feasible emitters for the PhOLEDs due to their high thermal stability, short excited-state lifetime, and strong spin–orbital coupling effect of the heavy metal atoms, which helps to achieve high quantum efficiency [19,20,21]. However, to remove harmful effects in the thin layers of the phosphorescent emitters, such as triplet–triplet annihilation and/or aggregation quenching (which usually are the main issues that decrease the device efficiency), a host–guest strategy of homogeneously dispersing the triplet guests into a suitable host material is frequently used [22,23,24]. Therefore, the design and synthesis of suitable hosts are essential for high-efficiency PhOLEDs. A suitable host derivative should have a higher triplet energy level than that of the phosphorescent emitter to ensure efficient energy transfer, high thermal stability, and good thin layer-forming properties, as well as suitable molecular orbitals for the facilitation of carrier transport in the device and a reduction in operating voltage [25,26,27]. As compared with unipolar hosts, bipolar hosts have an electron-rich donor and an electron-deficient acceptor in their structure, which increases OLED stability and enhances its performance by balancing electron and hole transport in the emitting layer [25,26,27]. Earlier, several series of donor–acceptor type derivatives containing hole-transporting fragments of triphenylamine [28,29,30], phenoxazine [27,31], or carbazole [25,26] were synthesized and tested in devices. Amongst them, carbazole is well known as a suitable donor fragment with high chemical stability, a special rigid structure, and high triplet energy [32,33,34]. In recent years, several series of pyridine rings as donor fragments containing electron-transporting compounds have been described as components for hole/exciton blocking and electron-transporting layers, enhancing the external quantum efficiency of the devices [35,36,37,38]. Also, polypyridine and polypyridine vinylidene were investigated by Yamamoto and his coworkers long ago as polymeric materials having negative charge carrier characteristics [39]. These studies proved the applications of the pyridine-based derivatives as components of OLEDs. Hence, it is interesting to consider pyridine when designing the bipolar host materials. Combining the pyridine unit with continuous conjugation and using suitable electron-donating fragments to create prospective bipolar derivatives could be an efficient strategy for designing efficient host materials. Taking the mentioned advantages of carbazole and pyridine in the host structure, the novel potential host materials, namely, 9-(2-ethylhexyl)-3,6-di [3-(methoxypyridin-3-yl)carbazol-9-yl]carbazoles and 9-alkyl-3-[N-(9-alkylcarbazol-3-yl)-N-(4-methylpyridin-2-yl)amino]carbazoles were designed and synthesized. We introduced a pyridine moiety as an acceptor to facilitate electron transmission, and carbazole fragments were introduced as the donor groups, connecting with the unconjugated alkyl chains, which can improve film-forming properties of the derivatives. Experimental results showed that the materials exhibited good physical properties with high thermal stabilities and suitable triplet energies for green phosphorescent emitters. Therefore, devices using tris(2-phenylpyridine)iridium(III) (Ir(ppy)3) guest were fabricated. Some of the green PhOLEDs based on the above-mentioned new host materials achieved suitable electroluminescence performance, with a maximum power efficacy of 9.6 lm/W, maximum current efficiency of 16.0 cd/A, and maximal external quantum efficiency of 8.1%, as well as a luminance reaching 11,200 cd/m^2^.

2. Results and Discussion

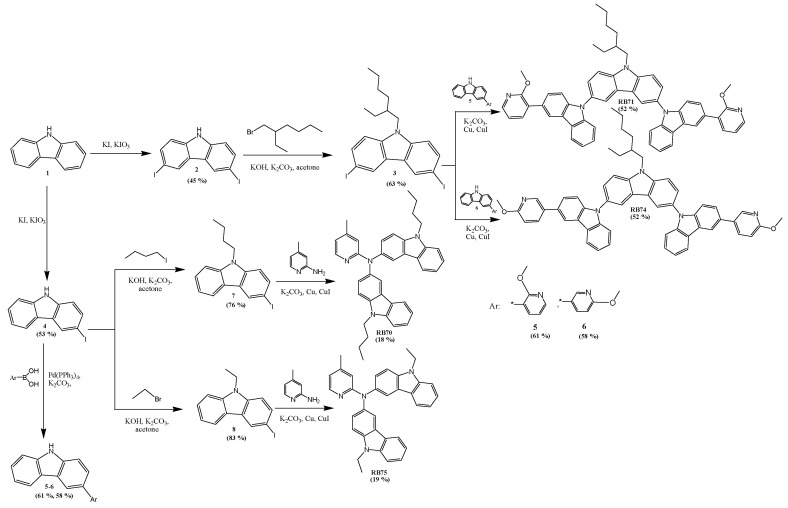

The objective derivatives RB70, RB71, RB74, and RB75 were prepared by a synthetic route, as shown in Scheme 1. Firstly, 3,6-diiodo-9H-carbazole (2) and 3-iodo-9H-carbazole (4) were prepared in the iodination reaction of 9H-carbazole (1) according to Tucker’s procedure. Then, intermediate carbazole derivatives, i.e., 9-butyl-3-iodocarbazole (7) and 9-ethyl-3-iodocarbazole (8), were synthesized as key materials from commercially available 1-bromoethane or 1-iodobutane, respectively, as well as 3-iodo-9H-carbazole (4) during alkylation reaction under basic conditions. Another alkylated compound, 9-(2-ethylhexyl)-3,6-diiodocarbazole (3), was produced in the reaction of 3,6-diiodo-9H-carbazole (2) with 2-ethylhexyl bromide as the alkylating agent. Intermediate carbazole derivatives 3-(2-methoxypyridin-3-yl)-9H-carbazole (5) and 3-(6-methoxypyridin-3-yl)-9H-carbazole (6) were prepared through the Suzuki reaction as it is described in the literature.

The objective compounds 9-(2-ethylhexyl)-3,6-di [3-(methoxypyridin-3-yl)carbazol-9-yl]carbazoles RB71 and RB74 were finally synthesized by the Ullmann coupling reaction between the 9-(2-ethylhexyl)-3,6-diiodocarbazole (3) and corresponding 3-(methoxypyridin-3-yl)-9H-carbazole (5 or 6). Other target derivatives, 9-alkyl-3-[N-(9-alkylcarbazol-3-yl)-N-(4-methylpyridin-2-yl)amino]carbazoles RB70 and RB75, were also prepared according to the Ullmann reaction method from 2-amino-4-methylpyridine and corresponding 3-iodo-9-alkylcarbazole (7 or 8). Mass spectrometry (MS) and nuclear magnetic resonance spectroscopy (NMR) confirmed the newly prepared derivatives’ structures. The data showed good agreement with the proposed structures.

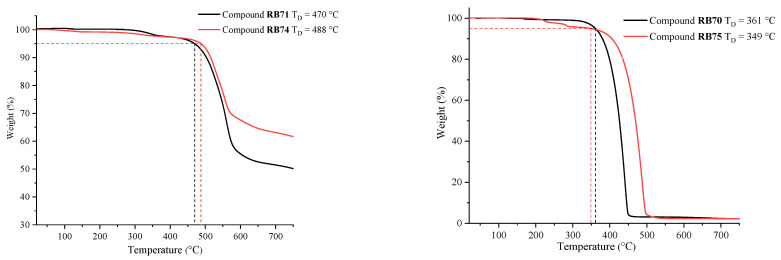

The thermal characteristics of the prepared objective derivatives RB71, RB74, RB70, and RB75 were established in a nitrogen atmosphere using differential scanning calorimetry (DSC) and thermogravimetric analysis (TGA). The curves of the TGA of these materials are demonstrated in Figure 1. The obtained results revealed that all these compounds have very high thermal stability. The temperatures of 5% weight loss (T_d_) for the prepared derivatives were, correspondingly, 470 °C for RB71, 488 °C for RB74, 361 °C for RB70, and 349 °C for RB75, as confirmed by the analysis using a heating rate of 10 °C/min. It could be seen that the materials RB71 and RB74 exhibited obviously higher values of T_d_ than those of derivatives RB70 and RB75. This could be explained by the higher molecular weight of the branched molecules having three carbazole rings. The TGA curves of RB70 and RB75 demonstrate that these materials incur thermal evaporation during the experiment due to their lower molecular weight. Furthermore, it is essential to note that all the materials exhibited very high performance for their application in the thin layers of optoelectronic devices [40,41,42].

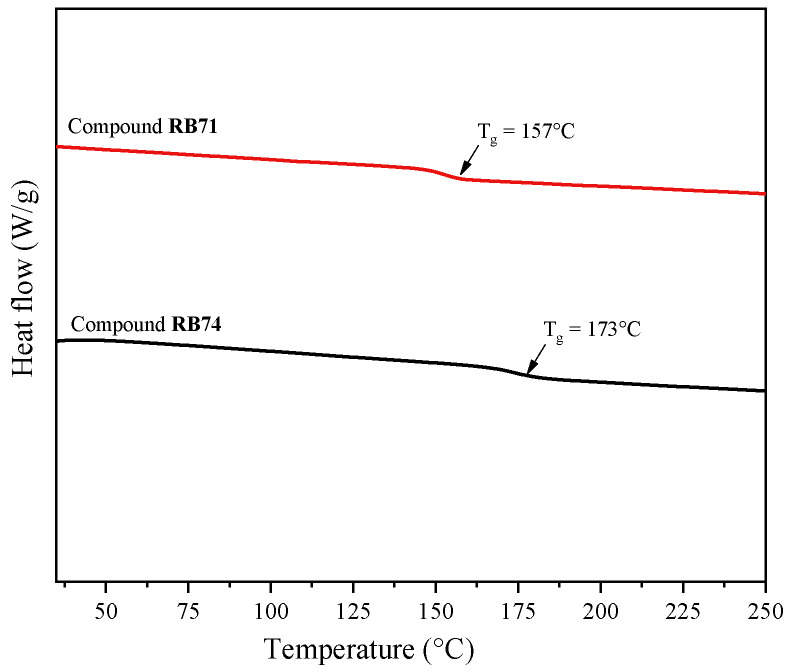

The derivatives with three carbazolyl fragments, RB71 and RB74, were obtained as amorphous materials after synthesis and purification by column chromatography, as confirmed by DSC measurement. The thermograms registered for the compounds RB71 and RB74 during their second heating cycle are presented in Figure 2. It is evident that these materials have very high glass transition temperatures (T_g_), which reach 157 °C for the derivative RB71 and 173 °C for the material RB74. The high values of T_g_ are a significant advantage for the fully amorphous derivatives, with potential application in forming thin homogeneous electroactive layers in OLEDs, as they contribute to the enhanced long-term stability of the devices [43,44,45].

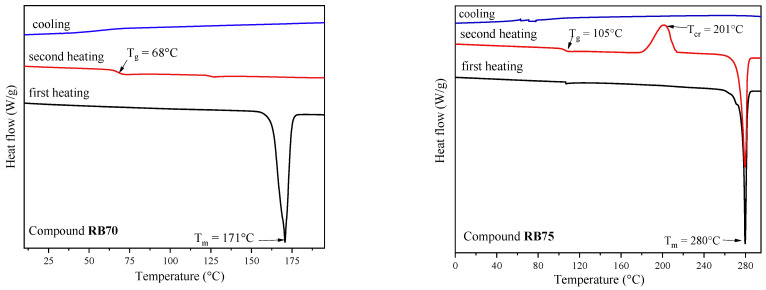

The lower molecular weight derivatives RB70 and RB75 with two carbazole rings showed different thermal transitions than those of the aforementioned fully amorphous materials. First, both compounds were obtained as crystalline materials after synthesis and purification by column chromatography; however, they could be transformed into amorphous materials by cooling the melted samples, as confirmed by the DSC experiments. The thermograms of the derivatives RB70 and RB75 are shown in Figure 3. When the crystalline material RB70 was heated, an endothermic peak was observed at 171 °C due to melting. Then, the melted sample was cooled down and converted into an amorphous material. During the second heating of the sample, only the glass transition temperature was registered at 68 °C, and upon further heating, the sample showed no peaks associated with crystallization or melting. The derivative RB75 demonstrated a stronger tendency for crystallization. Firstly, an endothermic peak due to melting was observed at 280 °C when the crystalline sample was heated for the first time. Then, the melted sample was cooled down and converted into an amorphous material. During the second heating of the sample, the glass transition temperature was observed at 105 °C, followed by crystallization at 201 °C to form the same crystals, which were obtained by crystallization from the solution and melted at 280 °C. It could be stated that the thin amorphous films of the materials RB70 and RB75 will be less stable than those of the branched derivatives RB71 and RB74; however, such materials demonstrating the formation of an amorphous phase in DSC measurements were also successfully applied as electroactive layers in OLED devices [46,47,48].

The low-temperature photoluminescence was registered for the new compounds to determine their triplet energies. It was established that 9-(2-ethylhexyl)-3,6-di [3-(methoxypyridin-3-yl)carbazol-9-yl]carbazoles RB71 and RB74 possess high triplet energy levels of about 2.79 eV. 9-alkyl-3-[N-(9-alkylcarbazol-3-yl)-N-(4-methylpyridin-2-yl)amino]carbazoles RB70 and RB75 have triplet energy levels of 2.77 and 2.84 eV, respectively. The fluorescence spectra of RB71 and RB70 are depicted in Figure S13 and Figure S14. The characteristics confirm that the synthesized compounds could be suitable host materials for green phosphorescent emitters.

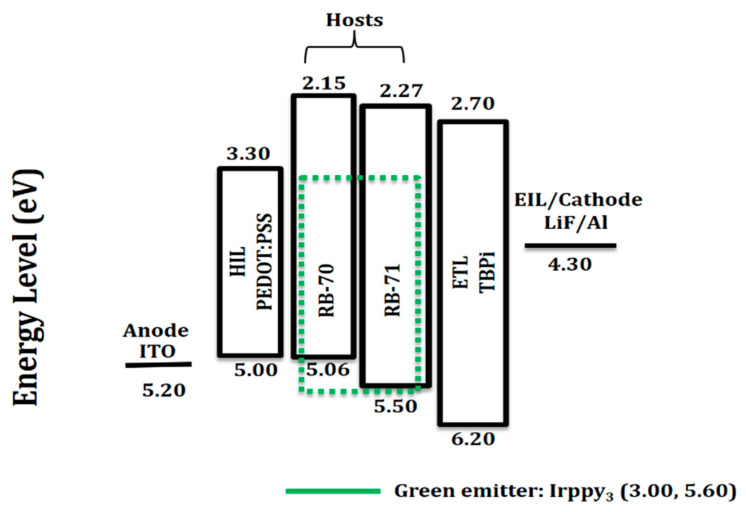

Preliminary tests of the RB materials in the formation and characterization of phosphorescent OLEDs using the emitter tris(2-phenylpyridine)iridium(III), Ir(ppy)3, have demonstrated that the host materials RB71 and RB70 are the most promising components of the multilayer devices. Therefore, subsequent detailed investigations were conducted by using only the mentioned materials. The fabricated devices had the following structures: ITO (125 nm)/PEDOT: PSS (35 nm)/RB71 or RB70 host: (x wt.%) of Ir(ppy)3 emitter (x = 5.0, 10, 15 and 20%) (20 nm)/TPBi (40 nm)/LiF (1 nm)/Al (200 nm). The detailed device fabrication process is described in the Experimental Methods. Figure 4 presents the energy level diagram of the green light-emitting OLEDs using the hosts RB71 or RB70 doped with the green commercial phosphorescent emitter Ir(ppy)3. The HOMO-LUMO levels of the materials used in the devices were established by a procedure, which we have described earlier [49]. Cyclic voltammetry (CV) curves are depicted in Figures S15 and S16. It can be observed that both the host materials could be suitable for the mentioned dopant. However, the HOMO-LUMO levels of host RB71 align more precisely with the corresponding characteristics of the green emitter.

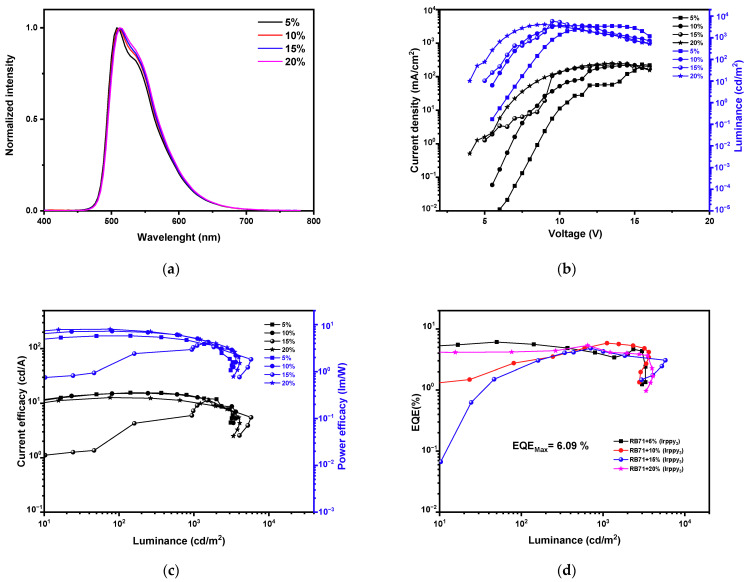

The electroluminescent (EL) properties of the devices using the new hosts RB71 or RB70 with 5.0, 10.0, 15.0, and 20.0 wt.% concentrations of dopant Ir(ppy)3 were demonstrated. Figure 5 illustrates the electroluminescence spectra, current density–voltage–luminance, current efficacy–luminance–power efficacy, and external quantum efficiency–luminance characteristics of the OLEDs using the host material RB71. Some characteristics of these devices are also summarized in Table 1. The registered EL spectra (Figure 5a) exhibit very similar emission peaks for different doping concentrations in the RB71 host-based devices. All the PhOLEDs emit light at about 515 nm due to the emissions of Ir(ppy)3. They do not have any color shift while changing the concentration of the green-emitting dopant. The fabricated devices emitted green light with CIE coordinates of (0.30, 0.61) and broad spectra from 460 to 700 nm. The presence of the single emission peak indicates the complete host–guest energy transfer and confirms that this host is well suited for the Ir(ppy)3 dopant.

The RB71-based PhOLEDs demonstrated turn-on voltages ranging from 4.3 to 7.2 V, maximal current efficiencies of 11.4–15.6 cd/A, maximal power efficiencies of 4.2–8.0 lm/W, maximal external quantum efficiencies of 4.8–6.1%, and maximal luminance in the range 3307–5795 cd/m^2^. At higher brightness, such as 1000 cd/m^2^, used for illumination applications, these OLEDs also exhibited promising performance with maximal current efficiencies of 10.5–13.50 cd/A, maximal power efficiencies of 4.2–5.3 lm/W, and maximal external quantum efficiencies of 2.3–4.8%. It could be stated that the 20 wt.% Ir(ppy)3 emitter-based device slightly outperformed the other PhOLEDs by displaying a maximum power efficacy of 8.0 lm/W, maximum current efficiency of 12.7 cd/A, and maximal external quantum efficiency of 5.4% with a relatively low turn-on voltage of 4.3 eV, as well as a luminance exceeding 4000 cd/m^2^.

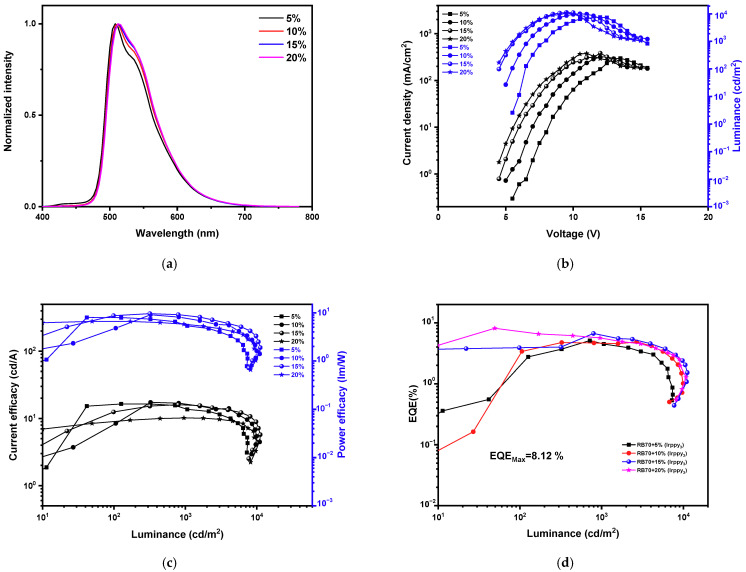

The host derivative RB70 was also employed to form the analogous green PhOLEDs in concentration-dependent experiments, where the amount of Ir(ppy)3 dopant ranged from 5 to 20 wt.%. Figure 6 presents the electroluminescence spectra of the devices as well as the current density–voltage–luminance, the current efficacy–luminance–power efficacy, and the external quantum efficiency–luminance characteristics of the PhOLEDs utilizing the host derivative RB70 in the emitting layer. Some parameters of these devices are also listed in Table 2. All the electroluminescence spectra of the PhOLEDs (Figure 6a) exhibit quite similar emission peaks across different doping concentrations in the RB70 host compound-based devices, which emit green light from the dopant Ir(ppy)3 at approximately 515 nm. All the spectra are quite similar, with CIE coordinates of approximately (0.30, 0.61), and there is no color shift when changing the concentration of the green guest material. These single peaks confirm the suitable energy transfer from the host RB70 to the Ir(ppy)3 guest and show that this host material is well suited for the green dopant.

The devices formed with host RB70 showed relatively low turn-on voltages ranging from 3.5 to 5.4 V, maximum external quantum efficiencies of 4.8 to 8.1%, notably high maximum current efficiencies of 10.4–17.3 cd/A, and maximum brightness values exceeding 7400–11,200 cd/m^2^. The high current efficiencies and relatively low voltages give power efficiencies of 6.6–9.6 lm/W. At a brightness of 1000 cd/m^2^, which is required for illumination applications, these devices also had a promising performance with maximal current efficiencies of 10.2–16.5 cd/A, maximal power efficiencies of 5.6–8.9 lm/W, and maximal external quantum efficiencies of 3.0–4.8%. It could be declared that the 15 wt.% Ir(ppy)3 emitter-based PhOLED outperformed the other devices by displaying a maximum power efficacy of 9.6 lm/W, maximum current efficiency of 16.0 cd/A, and maximal external quantum efficiency of 6.7%, with relatively low turn-on voltage of 3.7 eV as well as luminance reaching 11,200 cd/m^2^. Additionally, the efficiencies of green phosphorescent devices seem to be higher than those of previously reported OLEDs that utilize 4,4′-bis(9-carbazolyl)-2,2′-biphenyl (CBP) host and 1,3,5-tris(1-phenyl-1H-benzimidazol-2-yl)benzene (TPBi) as the electron transporting material [50]. It is important to note that the performance of the PhOLEDs could be further improved by thoroughly optimizing the layered structures, formation conditions, and charge-transporting materials.

3. Experimental Methods

3.1. Instrumentation

Thermogravimetric analysis (TGA) was performed on a TGAQ50 apparatus (Verder Scientific Haan, Haan, Germany). The TGA and DSC curves were recorded in a nitrogen atmosphere at a 10 °C/min heating rate. Differential scanning calorimetry (DSC) measurements were carried out using a Bruker Reflex II thermos-system (Bruker, Berlin, Germany). Low-temperature photoluminescence (LTPL) spectra of the compounds were recorded in tetrahydrofuran solutions on a Hitachi F-7000 spectrophotometer (Edinburgh Instruments Ltd., Livingston, UK) with a delay time of 6.25 ms at a temperature of 77 K. The spectra were used to register triplet energy values of the derivatives at the onsets of the LTPL spectra.

The OLED devices were formed on pre-patterned ITO glass substrates, which were first cleaned with a soap solution for 10 min and then rinsed for 5 min with distilled water. Then, the substrates were ultrasonically cleaned for 30 min in acetone at 50 °C, and afterward, for a further 30 min, isopropyl alcohol was used at 60 °C. After the cleaning, the substrates were treated for 15–20 min with UV to remove the solvents, and then they were transferred to a nitrogen-filled glove box. Deposition of a multilayer OLED structure was carried out in the glove box under an inert atmosphere. Hole-injecting layer of PEDOT: PSS was spin-coated at 4000× g rpm for 20 s, and then the substrates were heated at 130 °C for 10 min and then cooled. An emissive layer was then spin-coated from the solution of RB host with the dopant Ir(ppy)3 on the cooled substrates at 2500× g rpm for 20 s. The substrates were then transferred to a thermal evaporation chamber for deposition of TPBi electron transporting and LiF injecting layer, as well as an Al cathode at a high vacuum of 10^6^ torr. The device area was 0.09 cm^2^.

The OLED devices were characterized in a completely dark room under ambient conditions. The current density–voltage–luminance characteristics were recorded using a CS-100A luminescence spectrophotometer (Becker & Hickl, Berlin, Germany), while power efficacy–luminance–current characteristics were recorded using a PR-655 spectrophotometer (NLIR, Farum, Denmark). The Keithley 2400 voltmeter (Keithley Instruments, Cleveland, OH, USA) was used to measure the current–voltage (I-V) characteristics. The external quantum efficiency (EQE) of the devices was calculated using the method described in the literature [51].

3.2. Materials

9H-carbazole (1), 2-methoxy-3-pyridinylboronic acid, 6-methoxy-3-pyridinylboronic acid, 2-ethylhexyl bromide, 1-bromoethane, 1-iodobutane, 2-amino-4-methylpyridine, tetrakis(triphenylphosphine)palladium(0), 18-crown-6, KOH, KI, KIO_3_, K_2_CO_3_, Cu, CuI, Na_2_SO_4_, acetone, acetic acid, isopropanol, chloroform, and dimethylformamide were purchased from Sigma-Aldrich and used as received.

3,6-diiodo-9H-carbazole (2) was prepared from commercially available 9H-carbazole (1) using S.H. Tucker’s iodination and crystallization procedure [52].

9-(2-ethylhexyl)-3,6-diiodocarbazole (3) was prepared through a standard 3,6-diiodo-9H-carbazole (2) alkylation reaction with 2-ethylhexyl bromide, as described earlier [53].

3-iodo-9H-carbazole (4) was prepared by the Tucker iodination method from 9H-carbazole [52].

3-(2-methoxypyridin-3-yl)-9H-carbazole (5) and 3-(6-methoxypyridin-3-yl)-9H-carbazole (6) were obtained in the Suzuki reaction using a previously described method [54].

9-butyl-3-iodocarbazole (7) and 9-ethyl-3-iodocarbazole (8) were obtained in a conventional alkylation process using 3-iodo-9H-carbazole (4) and 1-iodobutane or 1-bromoethane, respectively, as an alkylating agent [54].

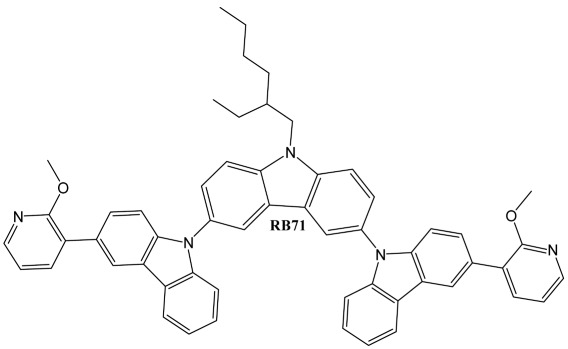

9-(2-ethylhexyl)-3,6-di [3-(2-methoxypyridin-3-yl)carbazol-9-yl]carbazole (RB71). 0.3 g (0.56 mmol) of 9-(2-ethylhexyl)-3,6-diiodocarbazole (3), 0.47 g (1.71 mmol) of 3-(2-methoxypyridin-3-yl)carbazole (5), and 0.014 g (0.05 mmol) of 18-crown-6 were refluxed under nitrogen in 10 mL of DMF. Then, potassium carbonate (0.31 g, 2.24 mmol), Cu (0.05 g, 0.78 mmol), and CuI (0.21 g, 1.10 mmol) were added stepwise to the solution. The mixture was refluxed for a further 24 h. After thin-layer chromatography (TLC) control, the inorganic materials were removed by filtration, and the organic fraction was extracted with chloroform. The extract was dried over anhydrous Na_2_SO_4_. The crude product was separated by silica gel column chromatography using an eluent, and the mixture of tetrahydrofuran and hexane (vol. ratio 1:5). Yield: 0.24 g (52%) of yellow powder. The ^1^H and ^13^C NMR spectra and MS spectra of compound are shown in Figures S1, S2 and S9. ^1^H NMR (400 MHz, CDCl_3_, δ, ppm): 8.25 (s, 2H, Ar), 8.18 (s, 2H, Ar), 8.12–8.09 (m, 4H, Ar), 7.67–7.65 (m, 2H, Ar), 7.60 (s, 4H, Ar), 7.54–7.52 (m, 2H, Ar), 7.35–7.32 (m, 4H, Ar), 7.24–7.18 (m, 4H, Ar), 6.95–6.92 (m, 2H, Ar), 4.31–4.25 (m, 2H, -CH_2_-), 3.93 (s, 6H, -CH_3_), 3.66 (s, 1H, -CH-), 1.50–1.41 (m, 8H, -CH_2_-) 0.98 (t, 3H, J = 7.6 Hz, -CH_3_), 0.87 (t, 3H, J = 7.2 Hz, -CH_3_). ^13^C NMR (101 MHz, CDCl_3_, δ, ppm): 161.1, 145.0, 142.3, 141.7, 141.3, 140.8, 138.8, 129.3, 127.3, 126.0, 123.2, 119.8, 117.8, 110.4, 109.9, 109.5, 61.8, 53.6, 39.7, 31.1, 28.9, 24.6, 23.1, 14.1, 11.0. MS (APCI+, 20 V): 824.77 ([M+H]^+^, 100%).

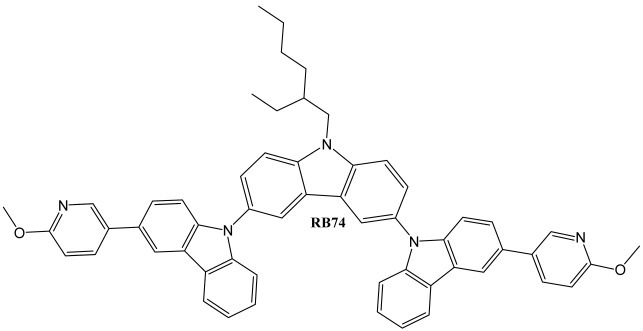

9-(2-ethylhexyl)-3,6-di [3-(6-methoxypyridin-3-yl)carbazol-9-yl]carbazole (RB74). 0.3 g (0.56 mmol) of 9-(2-ethylhexyl)-3,6-diiodocarbazole (3), 0.47 g (1.71 mmol) of 3-(6-methoxypyridin-3-yl)-9H-carbazole (6), and 0.014 g (0.05 mmol) of 18-crown-6 were stirred at reflux in DMF (10 mL) under nitrogen. Then, potassium carbonate (0.31 g, 2.24 mmol), Cu (0.05 g, 0.78 mmol), and CuI (0.21 g, 1.10 mmol) were added stepwise, and the resulting mixture was left to react for 24 h. After the reaction, the inorganic materials were removed by filtration, and the organic products were extracted using chloroform. The extract was dried over anhydrous Na_2_SO_4_. The objective product was separated in silica gel column chromatography using the mixture of tetrahydrofuran (THF) and hexane (vol. ratio 1:5) as an eluent. Yield: 0.24 g (52%) of light-yellow powder. The ^1^H and ^13^C NMR spectra and MS spectra of the compound are shown in Figures S3, S4 and S10. ^1^H NMR (400 MHz, δ, ppm): 8.41 (s, 2H, Ar), 8.20–8.11 (m, 6H, Ar), 7.84–7.82 (m, 2H, Ar), 7.59 (s, 4H, Ar), 7.48–7.46 (m, 2H, Ar), 7.38–7.31 (m, 6H, Ar), 7.26–7.21 (m, 2H, Ar), 4.34–4.24 (m, 2H, -CH_2_-), 3.92 (s, 6H, -CH_3_), 1.49–1.26 (m, 8H, -CH_2_-), 1.18 (s, 1H, -CH-), 0.98 (t, 3H, J = 7.2 Hz, -CH_3_), 0.86 (t, 3H, J = 7.2 Hz, -CH_3_). ^13^C NMR (101 MHz, CDCl_3_, δ, ppm): 163.1, 145.0, 142.3, 141.3, 140.8, 137.8, 129.2, 126.3, 125.0, 123.1, 119.9, 119.7, 110.7, 110.5, 110.3, 110.0, 53.6, 48.1, 40.0, 31.1, 28.9, 24.6, 23.2, 14.1, 11.1. MS (APCI+, 20 V): 824.74 ([M+H]^+^, 100%).

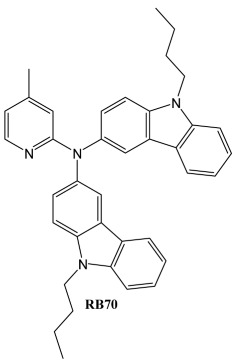

9-butyl-3-[N-(9-butylcarbazol-3-yl)-N-(4-methylpyridin-2-yl)amino]carbazole (RB70). 2.10 g (6.01 mmol) of 9-butyl-3-iodocarbazole (7), 0.5 g (4.62 mmol) of 2-amino-4-methylpyridine, and 0.09 g (0.10 mmol) of 18-crown-6 were stirred in 10 mL DMF at reflux under nitrogen. Then, potassium carbonate (1.93 g, 3.49 mmol), Cu (0.33 g, 3.46 mmol), and CuI (1.33 g, 3.49 mmol) were added stepwise. The mixture was left to react for 24 h. After TLC control, the inorganic materials were filtered out, and the organic product was extracted using chloroform. The extract was dried over anhydrous Na_2_SO_4_, and the crude product was purified by silica gel column chromatography using the mixture of tetrahydrofuran and hexane (vol. ratio 1:7) as an eluent. Yield: 0.39 g (18%) of white powder. The ^1^H and ^13^C NMR spectra and MS spectra of the compound are shown in Figures S5, S6 and S11. ^1^H NMR (400 MHz, δ, ppm): 8.03–8.02 (m, 1H, Ar), 7.95–7.89 (m, 4H, Ar), 7.38–7.29 (m, 7H, Ar), 7.18 (s, 1H, Ar), 7.08 (t, 2H, J = 7.6 Hz, Ar), 6.49–6.44 (m, 2H, Ar), 4.21 (t, 4H, J = 7.2 Hz, -CH_2_-), 2.09 (s, 3H, -CH_3_), 1.82–1.75 (m, 4H, -CH_2_-), 1.40–1.31 (m, 4H, -CH_2_-), 0.88 (t, 6H, J = 7.6 Hz, -CH_3_). ^13^C NMR (101 MHz, δ, ppm):141.0, 138.3, 125.8, 125.7, 123.7, 122.7, 120.6, 119.3, 118.7, 115.7, 111.9, 109.6, 108.8, 43.0, 31.2, 21.4, 20.6, 13.9. MS (APCI+, 20 V): 551.44 ([M+H]^+^, 100%).

9-ethyl-3-[N-(9-ethylcarbazol-3-yl)-N-(4-methylpyridin-2-yl)amino]carbazole (RB75). 2.22 g (6.91 mmol) of 9-ethyl-3-iodocarbazole (8), 0.5 g (4.62 mmol) of 2-amino-4-methylpyridine, and 0.09 g (0.10 mmol) of 18-crown-6 were refluxed in DMF under nitrogen. Then, potassium carbonate (1.93 g, 3.49 mmol), Cu (0.33 g, 3.46 mmol), and CuI (1.33 g, 3.49 mmol) were added stepwise. The mixture was refluxed for 24 h. After the reaction and TLC control, the inorganic materials were filtered out, and the organic product was extracted using chloroform. The combined extract was dried over anhydrous Na_2_SO_4_. The crude product was purified by silica gel column chromatography using the mixture of THF and hexane (vol. ratio 1:10) as an eluent. Yield: 0.42 g (19%) of light-brown powder. The ^1^H and ^13^C NMR spectra and MS spectra of the compound are shown in Figures S7, S8 and S12. ^1^H NMR (400 MHz, δ, ppm): 8.06–7.90 (m, 5H, Ar), 7.39–7.30 (m, 7H, Ar), 7.19 (s, 1H, Ar), 7.10 (t, 2H, J = 7.2 Hz, Ar), 6.51–6.46 (m, 2H, Ar), 4.29 (q, 4H, J = 7.2 Hz, -CH_2_-), 2.11 (s, 3H, -CH_3_), 1.37 (t, 6H, J = 7.2 Hz, -CH_3_). ^13^C NMR (101 MHz, δ, ppm):140.5, 125.9, 125.5, 123.9, 122.7, 120.7, 119.4, 118.9, 109.6, 108.6, 37.7, 21.5, 13.9. MS (APCI+, 20 V): 495.28 ([M+H]^+^, 100%).

4. Conclusions

In summary, we report the synthesis and complete characterization of two series of potential host materials for phosphorescent organic light-emitting diodes, i.e., 9-(2-ethylhexyl)-3,6-di [3-(methoxypyridin-3-yl)carbazol-9-yl]carbazoles (RB71 and RB74) and 9-alkyl-3-[N-(9-alkylcarbazol-3-yl)-N-(4-methylpyridin-2-yl)amino]carbazoles (RB70 and RB75). The thermogravimetric analysis demonstrated that the new derivatives are highly thermally stable, with 5% weight loss temperatures ranging from 349 °C to 488 °C. Results from differential scanning calorimetry indicate that the new compounds may form amorphous layers, with glass transition temperatures varying between 68 °C and 173 °C, depending on the molecular weight of the new materials. The electroluminescent (EL) properties of the devices using some of the new hosts with 5.0, 10.0, 15.0, and 20.0 wt.% concentrations of dopant tris(2-phenylpyridine)iridium(III) were demonstrated. All the PhOLEDs emitted light from the green dopant with a maximum at about 515 nm and CIE coordinates of (0.30, 0.61). The formed devices with host RB70 exhibited relatively low turn-on voltages of 3.5–5.4 V, maximum external quantum efficiencies of 4.8–8.1%, notably high maximal current efficiencies of 10.4–17.3 cd/A, and maximum brightness values exceeding 7400–11,200 cd/m^2^. The 15 wt.% Ir(ppy)3 emitter-based PhOLED with the host outperformed the other devices by displaying a maximum power efficacy of 9.6 lm/W, maximum current efficiency of 16.0 cd/A, and maximal external quantum efficiency of 6.7%, with a relatively low turn-on voltage of 3.7 eV as well as a luminance reaching 11,200 cd/m^2^. The efficiencies of the device appeared to be higher than those of previously reported OLEDs using the well-known 4,4′-bis(9-carbazolyl)-2,2′-biphenyl (CBP) host. It should be mentioned that the performances of the PhOLEDs could be further improved by thoroughly optimizing the layered structures, formation conditions, and charge-transporting materials.
